Product Type	Freestanding Washing Machine
Brand	Scandomestic
Model	WAD 3814
Capacity	8 kg
Spin Speed	1400 rpm
Energy Class	A+++
Dimensions (H x W x D)	85 x 60 x 54 cm
Weight	65 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2200 W
Water Connection	Cold water only
Noise Level (Wash/Spin)	54 dB / 76 dB
Number of Programs	15
Key Programs	Cotton, Synthetics, Delicates, Quick Wash, Wool, Hand Wash, Rinse & Spin, Drain
Special Features	Child Lock, Delay Start, Speed Control, Extra Rinse
Display	Digital LED
Drum Material	Stainless Steel
Door Type	Front Load with porthole
Door Opening Angle	180 degrees
Maintenance	Clean lint filter monthly; drain pump filter quarterly; descale every 3 months
Safety Features	Overflow protection, unbalanced load detection, anti-flood system
Spare Parts Availability	Motor, belt, pump, door seal, control board, and more for 10 years
Repairability Index	8.2 / 10 (estimated)
Included Accessories	Inlet hose, outlet hose, transit bolts, user manual

Frequently Asked Questions - WAD 3814 Scandomestic

How do I install the Scandomestic WAD 3814 washing machine?

First, remove all transit bolts from the back. Connect the inlet hose to a cold water tap (3/4 inch) and the outlet hose to a drain pipe at least 60 cm high. Level the machine using the adjustable feet. Plug into a grounded 220-240 V outlet.

What should I do before first use?

Run a 90°C cotton cycle without laundry to clean the drum. Use a half dose of detergent. Check that all transport protections are removed.

How can I clean the detergent drawer?

Press the lever inside the drawer to remove it completely. Rinse under warm water and use a brush to remove deposits. Wipe dry and reinsert.

Why does my washing machine show an error code E10?

Error E10 indicates a water inlet issue. Ensure the tap is fully open, the inlet hose is not kinked, and the filter in the water inlet valve is clean.

How do I activate the child lock?

Press and hold the 'Child Lock' button for 3 seconds until the icon appears on the display. To deactivate, repeat the same procedure.

What is the maximum spin speed?

The maximum spin speed is 1400 rpm for cotton programs. You can adjust it using the spin speed button.

How often should I clean the lint filter?

Clean the lint filter after every 10-15 washes. Remove the filter cover at the bottom right, twist the filter anticlockwise, and rinse under water.

Can I use liquid detergent?

Yes, but use the liquid detergent tray flap as shown in the manual. For main wash, pour liquid into compartment II. Do not exceed the max line.

How do I prevent mold in the door seal?

After each wash, leave the door ajar and wipe the rubber seal with a dry cloth. Run a cleaning cycle with descaler every 3 months.

Where can I purchase spare parts?

Authorized Scandomestic service centers or online spare parts retailers. The model WAD 3814 has spare parts like belt, pump, door lock, and motor available for 10 years.

USER MANUAL WAD 3814 Scandomestic

Simple line drawing of a trash bin with no text or symbols

Line drawing of a washing machine with labeled dimensions (W), no text or symbols present

W>20mm

Simple line drawing of a mechanical device with no text or symbols

Diagram showing a box being inserted into a base with an inset magnified view of a ship (no text or symbols)

Hand using a tool to adjust or install a device into a washing machine (no text or symbols visible)

OBS!

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

Advarsel!

Hand holding a coiled rope with an arrow indicating rotation (no text or symbols)

Luk døren

Tilsæt vaskemiddel

Note!

Simple line drawing of a sweater with a tag (no text or symbols)

Læs mærkatet

Line drawing of two backpacks with circular designs, no text or symbols present

Sørg for at lukke tøj med lynlås og lignende

Line drawing of a bag with a bag inside, containing a small animal (no text or symbols)

Line drawing of a T-shirt with textured sweater and side buttons (no text or symbols)

Diagram showing a person folding a folded paper into a larger paper stack (no text or symbols present)

Pulver vaskemiddel

Åbn sæbeskuffen

! Forsigtig!

Tryk [Start/Pause] 3sec.

Læg tøjet ind

Start

! Forsigtig!

Line drawing of a washing machine with a cloth cover (no text or symbols)

OBS!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool with a black clip and a white object inserted (no text or symbols)

Illustration of a hand holding a small electronic device with a circular inset showing a mechanical component (no text or symbols)

Simple line drawing of a person using a device to interact with a screen (no text or symbols)

OBS!

Technical line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a hand inserting a component into a rectangular frame (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Indsæt sæbeskuffen

Note!

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Simple line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

Illustration of a hand using a handheld device to press or interact with a screen (no text or symbols visible)

Åbn filteret ved at dreje dækslet mod uret

Technical line drawing of a mechanical component with rotational arrows indicating movement (no text or symbols)

Technical line drawing of a washing machine with labeled dimensions H and W (no text or symbols beyond labels)

Model	MFC80-DU1607B/C19E-EU(A)
Strømforsyning	220-240 V~,50Hz
Kapacitet	8.0kg
Tørre kapacitet	6.0kg
Dimensioner(B*D*H)	595*470*850
Vægt	64kg
Nominel effekt	1900W
Effekt når der tørres	1300W

■ Forbrugs data

■ Safety Instructions

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols:

Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

! Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

! Warning!

The electric shock!

• If the supply cord is damaged, it must bereplaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the appliance from the mains.

• Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals.
- To ensure your safety, power plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
- Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.
- Pull out its plug from the power socket before cleaning or maintenance.
- Do not use any socket with rated current less than that of appliance. Never pull out power plug with wet hand.
- Please remember to disconnect water and power supply immediately after the clothes are washed.

Risk to children!

- EN countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and usermaintenance shall not be made by children without supervision.

• Children of less than 3 years should be supervised to ensure that they do not play with appliance.

• Animals and children may climb into the machine. Check the machine before every operation.

- Kids should be supervised that they do not play with the appliance.

• Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas.
• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.

Risk of explosion!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances( such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.
• The washer dryer is not to be used if industrial chemicals have been used for cleaning.
• The exhaust air must not be discharged into a flue which is for exhausting fumes from appliances burning gas or other fuels.
  • Before hand thoroughly rinse items of washing by hand.

Caution!

Installing the product!

• This appliance is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
- The appliance shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- The appliance with single inlet valve only can be connected to the cold water supply. The appliance with double inlet valves should be correctly connected to the

hot water and cold water supply.

• Plug must be accessible after installation.
- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer.
• The appliance shall not be installed at a humid place.
• The household appliance isn't intended to be built-in.
- Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.

Risk of damaging appliance!

• The product is only for home use and is only designed for the textiles suitable for machine washing and drying.

• Do not climb up and sit on top cover of the machine.
  • Do not lean against machine door.
  • Cautions during Handling Machine:

• Transport bolts shall be reinstalled to the machine by a specialized person.

• The accumulated water shall be drained out of the machine.
• Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.
• This appliance is heavy. Transport with care.
• That the hands shall not be inserted into running water extracting tub.

- Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well.

• It is forbidden to wash carpets.

Operating the appliance!

- Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.

- Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.

• Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch,nail,screw or stone etc.may cause serious damages to this machine.

- Please check whether the water inside the drum has been drained before opening its door. Please do not open he door if there is any water visible.

- Be careful of burning when the product drains hot washing water.

• After the program is completed, Please wait for two minutes to open the door(Some model).

• Never refill the water by hand during washing.

- If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products. it be placed in a tumble dryer they should first be washed in hot water with extra detergent, this will reduce, but not eliminate, the hazard.

- Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

• Do not dry unwashed items in the appliance.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.

• Items such as foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The machine whose lidcan be opened during water extraction, that it takes 15s or more for complete stop of water extracting chamber tub.
• The final part of a washer dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches before use the appliance.
• WARNING: Never stop a washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

■ Product Description

Note!

- The product line chart is for reference only, please refer to real product as standard.

Accessories

Six technical illustrations of mechanical components and a closed book, arranged in two rows (no text or symbols)

Transport hole plug

Supply hose cold water

Supply hose hot water (optional)

Drain hose support (optional)

Owner's manual

■ Installation

Installation area

Warning!

- Stability is important to prevent the product from wandering! the power cord.

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
4. Room temperature is above 0^ C
5. Keep far away from the heat resources such as coal or gas.

Unpacking the washing machine

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation ! Keep all packaging well away from children.

Simple line drawing of a mechanical device with no text or symbols

Illustration of a cardboard box with an open lid and a magnified inset showing a ship (no text or symbols)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the unit bottom manually.
3. Removethe tape securing the power supply cord and drain hose.
4. Removethe inlet hosefrom the drum.

Remove transport bolts

Warning!

• You must remove the transport bolts from the backside before using the product.
• You'll need the transport bolts again if you move the product, so make sure you keep them in a safe place.

Please take the following steps to remove thebolts:

1. Loose n 4 bolts with spanner and then removethem.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

Illustration of a hand using a tool to adjust or install a device into a washing machine (no text or symbols visible)

Levelling the washer d ryer

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.

Connect Water SupplyHose

Warning!

• To prevent leakage or water damage, follow the instructions in this chapter!
- Do not kink, crush, modify or sever water inlet hose.
- For the model equips hot valve, connect it to hot water tap with hot water supply hose. Energy consumption will decrease automatically for some program.

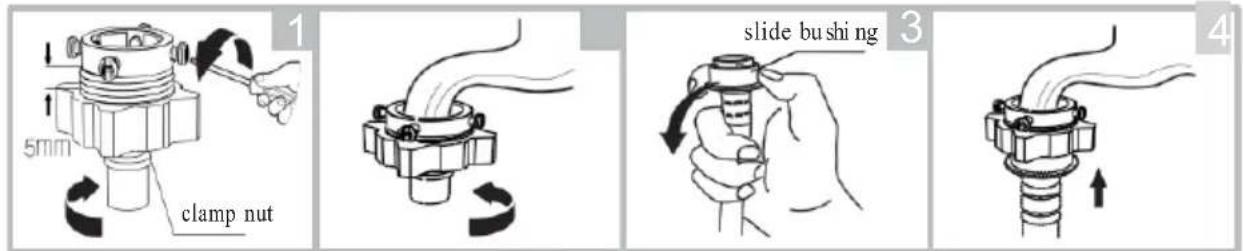

Connect the inlet pipe as indicated, There are two ways to connect the inletpipe. 1. Connection between ordinary tap and inlet hose.

Loo sen clamp nut and four bolts

Tightenclamp nut

Press slide bushing, insert inlet hose into connecting base

Connection finished

2.Connection between screw tap and inlet hose.

Tap with threads and inlet hose

Special tap for washer dryer

Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

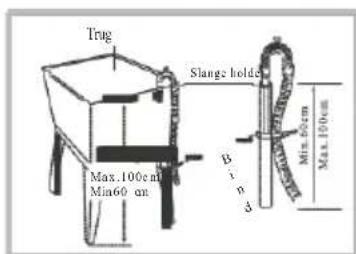

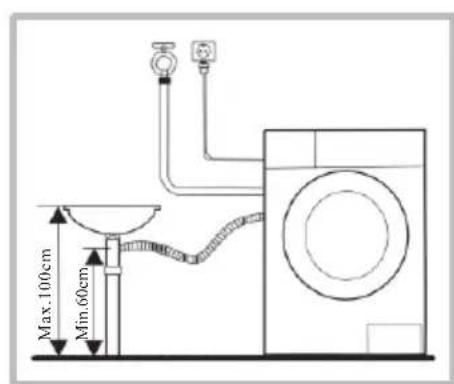

There are two ways to place the end of drain hose:

1. Put it into the water trough.

2. Connect it to the branch drain pipe of the trough.

Note!

- If the machine has drain hose support, please install it like the following.

Line drawing of a kitchen sink with faucet and faucet (no text or symbols)

Warning!

• When installing drain hose, fix it properly with a rope.
• If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.

■ Quick Start

! Caution!

• Before washing, please make sure it's installed properly.
• Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows.

1. Before Washing

Note!

- Detergent only need to be added in "case I" after selecting pre-washing for machines with this function.

2. Washing

Power On
Select Programme Select function or default
Start up

Note!

• 1. If default is selected, step 3 can be skipped.
2. The function button line chart is for reference only, please refer to real product as standard.

3. After Washing

Buzzer beep or "End" on display.

■ Before Each Washing

• The working condition of the washer should be(0-40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Check the label

Take out the items out of the pockets

Two handbags with circular designs, one open and one closed, drawn in line drawing style (no text or symbols)

Knot the long strips,zipor button

Simple line drawing of a bag with a small animal inside, no text or symbols present

Put small clothes into the pillow slip

Line drawing of a T-shaped shirt with textured design (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Diagram showing a folding process with arrows indicating direction (no text or symbols)

Separate clothes with different textures

⚠ Warning!

• When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.
• Don't washing the clothes touching with kerosene, gasoline, alcohol and other flammable materials.

■ Detergent Dispenser

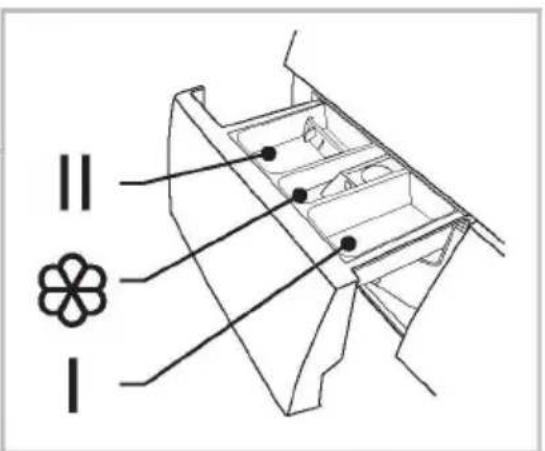

I Pre wash detergent

II Main wash detergent

Softener

Liquid detergent

Powder detergent

Pull out the dispenser

! Caution!

• Detergent only need to be added in "case I" after selecting pre-washing for machines with this function.
  Model:MFC80-DU1607B/C19E-EU(A)

Programme				Programme
Cotton	○	●	○	Spin Only
Cotton ECO				Rinse&Spin
Baby Care	○	●	○	Dry Only
Delicate				Quick 15'
Mix	○	●	○	Rapid45'	○	●	○
Woo l				Synthetic
Colors		●	○	1HourW /D		●	○
Jeans

- Means must ○ Means optional

Note!

• As for the agglomerated orropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.
• Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption.

Model:MFC80-DU1607B/C19E-EU(A)

Note!

• The chart is for reference only, Please refer to real product as standard.
• The programme with can be choose Speed Wash function.

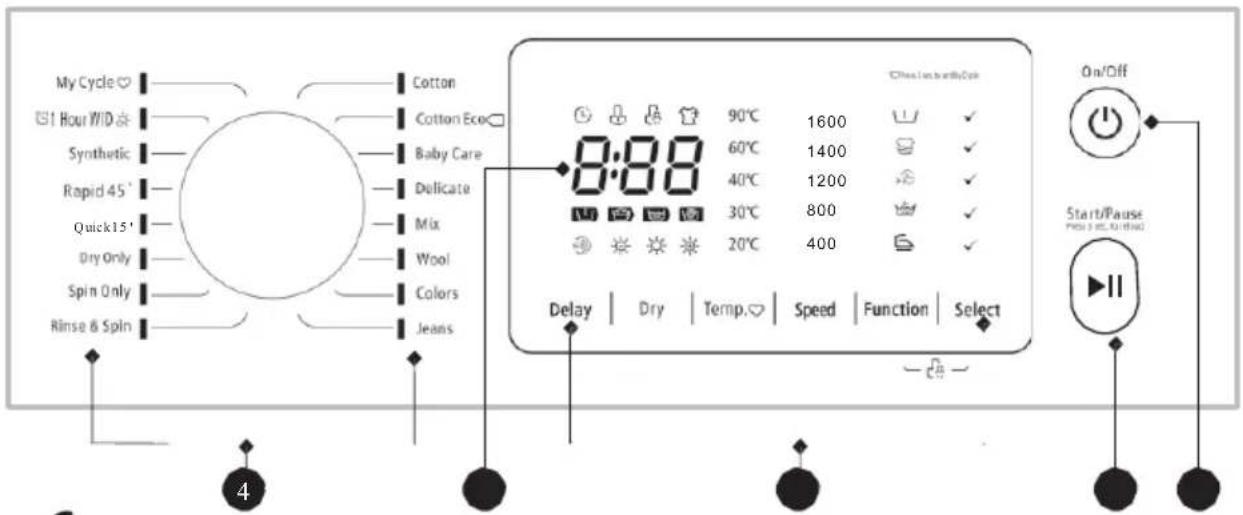

1 On/Off

Product is switched on or off.

3 Option

This allows youto select an additional function and will light when selected.

5 Display

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

Option

Pre Wash

The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes; You need to put detergent into the Case (I) when select it.

Extra Rinse

The laundry will undergo extra rinse once after you select it.

Speed Wash

The function can decrease the washing time.

Delay

Set the Delay function:

1. Select a programme
2. Press the Delay button to choose the time (the delaying time is 0-24 H.)
3. Press [Start/Pause] to commence the delay operation

On/Off

Choose the Programme

Setting time

Start

Cancel the Delayfunction:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should press the [On/Off] button to reset the programme.

! Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, press the [O n/O ff] button the program will continues.

Extra Wash

Very dirty clothes can choose it, select it can increase the washing time and intensity to increase the washing effect.

Anti-Crea se

Anti-Crease function can be used to reduce the wrinkles of clothes.

So ak

When water reaches the target level, sock for 20 minutes and then the motor do not rotate.

Model:MFC80-DU1607B/C19E-EU(A)

Description: users can choose Soft drying, Normal drying and Timer drying when using the drying function

Among them, Soft drying and Normal drying are conventional drying, and Timeris customized drying time for customers

1. The drying function is only available for programs with the drying symbol " ", as shown in the instructions of the operation panel program
2. Press the Dry button continuously to switch between Normal drying, Soft drying and Timer drying. The default is Soft drying
3. Timer drying, setting time: 30,60,120,180 (min)

On/Off

Choose the Programme

Setting

Start

■ Other Functions

Reload

This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec. to reload, and start the clothes adding inthe midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the [Start/Pause] button.

Press[Start/Pause]3sec.

Reload the clothes

S tait

! Caution!

- Don't use the Reload function when the water level over the edge of the inner tub or the temperature is higher.

My Cycle

Memory the frequently used programmes

Press [❤️/❤️]3sec. to memory the running programme. The default is cotton.

Child Lock

To avoid mis operation by children.

On/Off

Start/Pause

Press [Function] and [Select] or [Dry Options] and [Extra Options] 3 sec. till buzzer beep.

Caution!

• Press the two button 3sec. also to be released the function.
• The "Child Lock" will lock all buttons except [On/Off].
• Cut off the power supply, the kid's protection is to be released.
  • The child lock will remain effective when the power is resumed for some models.

Temp.

Temp.

Press the button to regulate the temperature(Cold,20□,30□, 40□,60□,90□)

Speed

Speed/Spin

Press the button to change the spin speed.

MODEL:MFC80-DU1607B/C19E-EU(A)

Programme	Default Speed(rpm)		Programme	Default Speed(rpm)
	1400	1600		1400	1600
Cotton	1400	1600	Spin Only	1200	1200
Cotton ECO	1400	1600	R inse & Spin	1200	1200
Baby Care	800	800	Dry Only	1400	1600
Delicate	800	800	Quick 15'	800	800
Mix	800	800	Rapid 45'	800	800
Wool	800	800	Synthetic	1200	1200
Color s	1200	1200	1 Hour W / D	1400	1400
Jeans	800	800

Caution!

- When the lights of speed are off means the spin speed is 0.

Caution!

• After Muting the buzzer function, the sounds will not be activated any more.

Dry

Press the Dry button continuously to choose the dry level: Extra Dry/Normal Dry (Normal)/ Gentle Dry(Soft)/Time/Air Dry.

Extra Dry: Need to wear clothes immediately, we can choose this function
Normal Dry(Normal): The normal dry procedure
Gentle Dry(Soft): Only to dry slightly and then is just ok.
Air Dry: Clothes is roated to remove peculiar smell without water in high temperature.

Time

Users can choose gears according to practical need. When there are fewer clothes to be dried, it is recommended to choose timing drying. The optional time is 30 Mins, 60 Mins, 120 Mins, 180 Mins (The default spinning time is 10 Mins, the actual display time is 0:40, 1:10, 2:10, 3:10), the corresponding drying capacity is recommended respectively 0.5kg/1kg/2kg/3kg.

Note!

• Drying hints
• Clothes could be dried after spinning
• To ensure quality dry the textiles, please classify them according to their kinds and the drying temperature.
• Synthetic should be set the proper drying time.
• If you want to iron the clothes after drying, please put them for a while.
  • Clothes not suitable for drying
• Particularly delicate items such as synthetic curtains, woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes, such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be dried.
• Clothes padded with foam-rubber or materials similar to foam-rubber must not be machine dried.
• Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

Option Confirm

Confirm the selection of the Pre Wash, Extra Rinse, Extra Wash, Night Wash or Anti-crease function.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Cotton ECO/Eco	To increase the washing effects, washing time is increased.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Baby Care (Baby-Care)	Washing the baby's clothes, it can make the baby's wear cleaner. and make the rinse performance better to protect the baby's skin.
Je ans	Specially for jeans.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
Colors/Color Care	Washing brightly colored clothes, it can protect the colors better .
Sport Wear	Washing the active ear
Quick(Quick 15')	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Delicate (Delicates)	For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabric s.
Wool	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses(textiles rest in wash liquor).
Spin Only	Extra spin with selectable spin speed.
Rinse&Spin	Extra rinse with spin.
Dry Only	Select it to dry clothes, the temperature is different .The drying time according to the load .
1Hour W/D (1 HWash & Dry)	For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts ). When you have an urgent appointment but no more clean shirt left in your cupboard, this program will help you.Time duration is only 1 hour including wash and dry. Remark: Big towels or jeans is not suitable for this program, they will enlarge the time duration and affect the moisture content.
Rapid45'	Washing few and not very dirty clothes quickly.
Silent	Select this program, the button sound disappears, so as to make your family more comfortable at night.

Programmes

Programmes are available according to the laundry type.

Programmes
Bedding(Bedlinen)	This program is specially designed for washing duvet coats.
Rapid 15'	This procedure is suitable for washing few and not very dirty clothes quickly.
Soak(Soak Wash)	Soak the washing machine for a while before washing.
Active Speed(Storm Wash)	When you start this function, it will increase more foam in the bucket, then it will improve the wash performance.
Automatic	For the convenience ofthe users, this program can adjust the washing time according to the load.
Tub Clean(Drum Clean)(Auto Clean)	This program is specially set in this machine to clean the drum and tube.It applies 90°C high temperature sterilization to make the clothes washing more green. When this procedure is performed, the clothes or otherwashing cannot be added. When proper amountof chlorine bleaching agent is putin, the barrel cleaning effect will be better. The customer can use this procedure regularly according to the need.
Normal	You can select this programme to wash the daily washable clothes. The washing period is quite long with quite strong washing intension. It is recommended to wash the daily cotton articles, for example: bed sheets, quilt covers, pillowcases, gowns, underwear etc.
Heavy	This program is intended for washing the large and heavy clothing like overcoats or towels.
Duvet	This program is specially designed for washing duvet coats.
ECO Wash	Cold-water washing preserves original colors, saves energy, and still delivers great cleaning performance.
Rapid	15Min Wash; 59 Min Wash and Dry.
Shoes	This program is specially designed for washing shoes.
Antiallergic(Sanitary)	Washing machine can effectively kill some allergens and achieve anti-allergic effect by adapting 60 high tempature for sterilization.
To wel	This program is specially designed for washing towel.
Stain Wash	Professionally wash stains.

Note!

• Reference to your product to select the programmes.

Model:MFC80-DU1607B/C19E-EU(A)

Programme	Washing/Drying Load (kg)	Temp.(°C)	Default Time(H)
	8.0	Default	8.0
			1600
※ Cotton	8.0/6.0	40	2:40
Cotton Eco	8.0	60	4:57
※ Baby Care	8.0/4.0	30	1:20
Delicate	2.5	30	0:50
※ Mix	8.0/6.0	40	1:13
Wool	2.0	40	1:17
Colors	8.0	Cold	1:10
Jeans	8.0	60	1:45
Spin Only	8.0	-	0:12
R ins e&Sp in	8.0	-	0:20
※ Dry Only	- /6.0	-	4:28
Quick 15'	2.0	Cold	0:15
Rapid 45'	2.0	40	0:45
※ Synt hetic	4.0/4.0	40	2:20
※ 1 HourW/D	1.0/1.0	Cold	0:59

• The EU energy class is A

Energy test program: Cotton ECO 60°C, Speed: the highest speed; Other as the default. Halfload for 8.0/10.0Kg machine: 4.0/5.0Kg.

- “Cotton Eco 60°C” is the standard washing program and “Dry only” is the standard drying programs to which the information in the label and the fiche relates, and they are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry, that the actual water temperature may differ from the declared cycle temperature.

Note!

• The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.
  • The programme with ⚙ can be choose dry function.

■ Cleaning And Care

Warning!

- Before your maintenance starts, please unplug the machine and close the tap.

Cleaning The Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed.

Line drawing of a washing machine with a cloth cover (no text or symbols)

Note!

- Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products, etc.

Cleaning The Drum

The rustsleft inside the drum bythe metal articles shall be removed immediately with chlorine-free detergents.

Never use steel wool.

Note!

- Don't put laundry in the washing machine during the drum cleaning.

Cleaning The Door Seal And Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks.

Remove any coins, buttons and other objects from the seal after each wash.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning The Inlet Filter

Note!

- Inlet filter must be cleaned if there is less water.

Washing the filter in the tap

1. Close the tap.
2. Remove the water supply hose from the tap.
   3.clean the filter.
3. Reconnect the water supply hose.

Washing the filter in washer dryer:

1. Screw off the inlet pipe from the backside of the machine.
2. Pull out the filter with long nose pliers and reinstall it back after being washed.
3. Use the brush to clean the filter.
4. Reconnect the inlet pipe.

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool with a circular component (no text or symbols)

Hand holding a small electronic device with a magnified inset showing the internal components (no text or symbols visible)

Simple line drawing of a person using a device to interact with a computer (no text or symbols)

Note!

• If the brush is not clean, you can pull out the filter washed separately;
• Reconnect, turn on thetap.

Clean Detergent Dispenser

1. Press down the arrow location on softener cover inside the dispenser drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
   3.Restore the softener cover and push the drawer into position.

Technical line drawing of a mechanical assembly with no visible text or symbols

Pull out the dispenser drawer with press theA

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Clean the dispenser drawer underwater

Line drawing of a hand inserting a component into a device (no text or symbols)

Clean inside the recess with an old toothbrush

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Insert the dispenser drawer

Note!

- Do not use alcohol, solvents or chemical products to clean the machine.

Cleaning Drain Pump Filter

Warning!

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Rotate 90C and pull out the emergency drain hose, and take off the hose cap

Simple line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

After water runs out, reset the drain hose

Illustration of a hand using a handheld device to press or watch a screen (no text or symbols visible)

Open the filter by t urning to the counterclockwis e

Remove extraneous matter

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

Close the lower cover cap

! Caution!

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak;
• Some machines don't have emergency drain hose, so step 2 and step 3 can be skipped. Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

The start of the appliance does not work or it stops during operation.

First try to find a solution to the problem, If not, contact the service centre.

Description	Reason	Solution
Washer dryer cannot start up	Door is not closed properly	Restart after the door is closedCheck if the clothes is stuck
Door can’t be opened	Washer's safety protection design is working	Disconnect the power, restart the product
Water leakage	The connection between inlet pipe or outlet hose is not tight	Check and fasten water pipesClean up outlet hose
Detergent residues in the box	Detergent is dampened or agglomerated	Clean and wipe the detergent box
Indicator or display does not light	Disconnect the power PC board or harness has connection problem	Check if the power is shut down and the power plug is connected correctly
Abnormal noise		Check if the fixing (bolts) have been removedCheck it’s installed on a solid and level floor

Description	Reason	Solution
E30	Door is not closed properly	Resta it after the door is closedCheck if the clothes is stuck
E10	Water injecting problem while washing	Check if the water pressure is too lowStraightenthe water pipeCheck if the inlet valve filter is blocked
E21	Overtime water draining	Check if the drain hose is blocked
E12	Water overflow	Rest a t the washer
EXX	Others	Please try again first, call up service line if there are still troubl es

Note!

- After the check, activate the appliance. If the problem occurs or the display shows other alarm codes again, contact the service.

■ Technical Specifications

MAX. Current t

10A

Standard Water Pressure

0.05MPa\~1MPa

Technical line drawing of a washing machine with labeled dimensions H and W (no text or symbols beyond labels)

Model	MFC80-DU1607B/C19E-EU(A)
Power Supply	220-240 V~,50Hz
Washing Capacity	8.0kg
Drying Capacity	6.0kg
Dimension (W*D*H)	595*470*850
Weight	64kg
Rated Power	1900W
Drying Power	1300W

Product Fiches

Model	MFC80-DU1607B/C19E-EU(A)
Washing Capacity	8 kg
Drying Capacity	6 kg
Spin Speed	1600 rpm
Energy efficiency class 1	B/A
Energy consumption of percycle(to wash and dry a full capacity wash load at 60°C)	5.44kWh /Cycle
Water consumption of percycle(Total)	136/152 L/cycle
Annual energy consumption(Using the dryer) 2	1088kWh /annual
Annual water consumption(Using the dryer) ?	30400L /annual
Annual energy consumption(Never Using the dryer) 3	192kWh /annua
Annual water consumption(Never Usingthe dryer) ?	12800L /annual
Washing performance class 4	A
Spin- drying efficiency class 5	B/A
Standard washing cycle 6	Cotton ECO
Energy consumption of the Cotton ECO 60°C at full load(Washing) Water	0.94kwh /cycle
consumption of the Cotton ECO 60°C at full load(Washing) Remaining	64L/cycle
moisture content of the Cotton ECO 60°C at full load(Washing) Programme	44 %
duration of Cotton ECO 60°C at full load(Washing)	310min
Energy consumption of the Dry at full load(Drying) Water	4.50kwh /cycle
consumption of the Dry at full load(Drying) Remaining	88L/cycle
moisture content of the Dryat full load(Drying) Programme	0%
duration of Dryat full load(Drying)	340min
Power consumption of off-mode	0.5 W
Power consumption of Left on -mode	1.0 W
Noise level of washing	56dB (A)
Noise level of spinning	78dB (A)
Noise level of drying	62dB (A)

Note!

• Programme setting for testing in accordance with applicable standard EN 50229:2015+Commission Directive 96/60/EC.
• When using the test programmes, wash the specified load using the maximum spin speed.
• The actual parameters will depend on how the applicance is used, and maybe different with the parameters in above mentioned table.
• The testing with Standard Programme(drying), the load is composed of two parts to test alone, the energy consumption, water consumption and programme duration are the total of the two parts.
• The household washer dryer machine is equipped with a power manager system. The duration of the left-on mode time is less than 1 minutes.

Remarks:

The energy efficiency class is from A(highest efficiency) to D (lowest efficiency).
2 Estimated annual energy and water consumption for a four-person household, always using the dryer (based on 200 cycles) per year.
3 Estimated annual energy and water consumption for a four-person household, never using the dryer (based on 200cycles) per year;
Water consumption per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.

4 Washing performance dass.

5 Spin-drying efficiency class from G (least efficient) to A (most efficient).

6 The standard programme is standard washing programme. The programme is suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle temperature.

Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

Line drawing of a washing machine with labeled dimensions (W), no text or symbols present

Simple line drawing of a rectangular box with a circular center and two diagonal X marks (no text or symbols)

Diagram showing a box being inserted into a base with an inset magnified view of a mechanical component (no text or symbols)

Diagram of a hand using a tool to adjust or install a machine component (no text or symbols visible)

Line drawing of a front-loading washing machine with wheels and a circular vent (no text or symbols)

Diagram of a mechanical component with arrows indicating motion (no text or symbols)

tter

Diagram of a mechanical assembly with a rotating component and a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a pipe fitting and directional arrow (no text or symbols)

Diagram showing a faucet being inserted into a socket, with no text or symbols present

Illustration of three different pipe fittings with arrows indicating adjustment or movement (no text or symbols present)

Illustration of a person using a camera to adjust equipment from a device, with an inset showing the same setup (no text or symbols present)

hlauch

Line drawing of a washing machine with pipes and valves (no text or symbols)

- ^ Hinweis!

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

- A Warnung!

Simple line drawing of a sweater with a tag (no text or symbols)

Line drawing of two backpacks with circular designs, no text or symbols present

Simple line drawing of a bag with a handle and small object inside, no text or symbols present.

Line drawing of a T-shirt with patterned collar and shoulder (no text or symbols)

de

(-©Achtung!
