Product Type	Blender
Brand	Wilfa
Model	Crush WBL-1200V2
Power	1200 W
Voltage	AC 220-240 V
Frequency	50/60 Hz
Jar Material	Glass
Jar Capacity	1.5 liters
Speed Settings	Variable (MIN to MAX)
Preset Programs	Crush ice, Smoothie, Pulse/Auto clean
Control Type	Rotary knob and push buttons
Safety Features	Built-in safety lock, thermal fuse, over current protector
Blade Material	Stainless steel
Dishwasher Safe Parts	Yes (removable parts)
Included Accessories	Measuring cup, lid, glass jar, blade assembly
Maximum Continuous Operation	3 minutes
Cleaning	Removable parts dishwasher safe; main body wipe with dry cloth

Frequently Asked Questions - Crush WBL-1200V2 WILFA

How to assemble the blender?

Place the sealed ring on the blade assembly unit, ensuring it is correctly installed in the groove without warp. Then place the blade assembly unit on the interface and screw it onto the glass jar bottom until fixed. Finally, place the jar on the motor unit and connect to power.

How to use the crush ice function?

Turn the knob to ON, then press the Crush ice button. The blender will run automatically for 30 seconds. Do not add more than 8 ice cubes (each < 20x20x20 mm) per batch.

What does the PLAY/STOP button do?

The PLAY/STOP button controls start/pause during manual speed operation or programmed functions. When a programmed function is blinking, press once to stop; press again to resume or change functions.

Can I put hot liquids in the blender?

Be cautious with hot liquids as they can eject due to sudden steaming. Allow liquids to cool before blending, and do not fill the jar more than indicated.

How do I clean the blender?

Disconnect power and disassemble all removable parts. Wash them in a dishwasher or in lukewarm water with dishwashing liquid. Clean the main body with a dry cloth. Avoid touching sharp blades.

What safety features does the blender have?

It includes a built-in safety lock preventing operation unless the jar is correctly placed, a thermal fuse that stops the motor if overheating, and an over current protector as secondary protection.

What should I do if the blender stops working?

If the thermal fuse triggers, unplug and let it cool for 5-10 minutes before restarting. If the over current protector triggers, the device cannot be reset and needs service.

Can I blend meat or large pieces?

It is recommended to cut meat or other food into smaller pieces before blending. Do not overload the jar with large quantities at once.

Is the blender dishwasher safe?

Yes, all removable parts (jar, lid, measuring cup, blade assembly) are dishwasher safe. The main motor unit should only be wiped with a damp cloth.

What is the maximum operating time?

Do not operate the blender for more than 3 minutes continuously. Allow it to cool to room temperature before using again.

USER MANUAL Crush WBL-1200V2 WILFA

Exterior view of a modern kitchen blender with clear glass and silver casing (no visible text or symbols)

Wilfa Crush

Blender

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

BL-1200V2

Blender

Advarsel 3

Simple diagram showing a downward arrow and a simple line drawing of a lamp or lamp (no text or symbols)

1. Sett knivbladenheten på knivenhetsadapteren.

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a blender with an arrow pointing to its base (no text or symbols)

Line drawing of a blender with a handle and lid, showing a downward arrow indicating process (no text or symbols)

Line drawing of a pitcher with a lid and handle, showing a red downward arrow indicating compression or reduction (no text or symbols)

Simple line drawing showing a container being lowered into a roof (no text or symbols)

Simple diagram showing a downward arrow and a lever mechanism (no text or symbols)

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a blender with an arrow pointing to its base (no text or symbols)

Line drawing of a blender with a red downward arrow indicating compression or disassembly (no text or symbols)

1. Anslut stickkontakten.

Line drawing of a pitcher with a lid and handle, showing a red downward arrow indicating compression or reduction (no text or symbols)

Simple line drawing showing a container being lowered into a roof (no text or symbols)

Simple diagram showing a downward arrow and a lever mechanism (no text or symbols)

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a blender with an arrow pointing to its base (no text or symbols)

Line drawing of a blender with a red downward arrow indicating compression or disassembly (no text or symbols)

Line drawing of a pitcher with a lid and handle, showing a red downward arrow indicating compression or reduction (no text or symbols)

Simple line drawing showing a container being lowered into a roof (no text or symbols)

Simple line drawing of a lamp with a downward arrow and a handle, no text or symbols present.

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a blender with an arrow pointing to its base (no text or symbols)

Line drawing of a blender with a red downward arrow indicating process (no text or symbols)

Line drawing of a pitcher with a lid and handle, showing a red downward arrow indicating compression or reduction (no text or symbols)

Simple line drawing showing a bucket being lowered into a roof (no text or symbols)

Using the appliance 7

How to assemble the appliance 9

How to use the blender jar.... 10

Cleaning 11

Technical Data 13

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Warning

■Never leave the appliance unattended when it is connected to the mains.
■Never immerse the appliance in water.
■Is the cable damaged, it must be replaced by authorized service personnel to avoid a hazard.
■Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
■Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
■Do not let the cord hang over edge of the table or counter or touch hot surface.
■The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.
■Do not use the appliance outdoors.
■This product is intended for household use and not for commercial use.
■Use the appliance only for the purpose it was designed for.
■Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.

■Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

■This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

■Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

■This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

■Children shall not play with the appliance.

Caution

■There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

■To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.

■Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

■The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

■Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

Safety precautions for your table blender

■Operate the blender with lid closed
■Blades are very sharp. Handle with care.
■Only remove the jar while motor is off.
■Avoid overwork of motor.
■Handle carefully with glass jar.
■Never place your hands into the glass jar while the motor is on.
■Avoid contact with moving parts.

Remarks:

The unit is equipped with two separate safety devices.

1. Thermal-fuse.

The thermal fuse is used to avoid overheating of the electric motor. The fuse can be triggered when the unit is run for a longer time than specified with a demanding task. When this occurs the unit will stop working until it has cool down, the fuse will then reset itself and the unit can be used again. If this happens unplug the cord and let the device rest for 5-10 minutes.

2. Over current protector.

The over current protector is used to avoid the device from causing any harmful situation related to electric failure/overheating. It is a secondary protection and will become active if the thermal fuse is not sufficient. Once the fuse has been triggered it cannot be reset and the device will no longer work.

Parts description

Built-in safety lock

This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can only be switched on. (i.e. Built-in safety lock function is disabled at this moment)

Before first use

Clean the unit and parts thoroughly before you use the appliance for the first time.

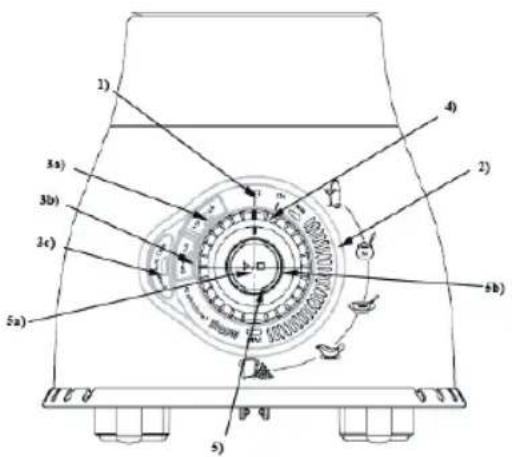

Using the appliance

1 ON/OFF switch
2 Speed control (MIN -> MAX)
3 Quick-select button

a) Crush ice button
b) Smoothie button
c) Pulse / Auto clean button

4 Knob indicator

5 PLAY/STOP button

a) Blue light indicator (Start condition)
b) Orange light indicator (Stop/Pause condition)

To switch on the appliance, turn the knob to "ON" position. The "ON" light will be illuminated. To control the rotary speed, turn the knob at between "MIN" & "MAX" position. The light will be illuminated at the desired position. To use the programmed function, turn the knob to "ON" position. The light on the three buttons start to blink. Press the programmed function button, the light on the specific button will be illuminated. The orange light indicator on PLAY/STOP button will be blinked at this moment.

Crush ice button

Press this button to crush the ice. The appliance starts crushing according to the pre-set speed profile. Press the button again to stop the process. Or the unit will operate automatically after running for 30 seconds.

Warning :

Each time added not more than 8pcs ice cubes (less than 20 x 20 x 20mm size of the ice) in glass jar.

Smoothie button

Press this button to make delicious smoothies. The appliance starts mixing according to the pre-set speed profile. Press the button again to stop the process; Or the unit will operate automatically after running for one minute.

Pulse / Auto clean button

Press the button to run the Auto mode. The appliance starts operating according to the pre-set speed profile. Press the button again to stop the process. Or the unit will operate automatically after running for 45 seconds.

PLAY/STOP button

This button is used to control the "PLAY / STOP" of the running mode condition. When the programmed function is chosen (Orange light indicator will blink at this moment), press the PLAY / STOP button once to stop the programmed function. (The light on the three programmed function buttons will start to blink. You can choose any programmed function at this moment.)

When the speed control is turned to specific location between MIN and MAX, the blue light will start to blink at this moment. Press the PLAY / STOP button once to start the operation. (Orange light indicator will then blink.) The operation can be paused by pressing the PLAY / STOP button again. (Blue light indicator will then blink at this moment.)

How to assemble the appliance

1. Place the sealed ring on the blade assembly unit. Warning: The sealed ring MUST install into the blade base groove correctly. Not allow any warp or bend of the sealed ring after installation.

Simple line drawing of a lamp with a downward arrow and a handle, no text or symbols present.

1. Place the blade assembly unit on the interface.

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

1. Screw the unit interface onto the glass jar bottom until it is fixed properly.

Line drawing of a blender with an arrow pointing to its base (no text or symbols)

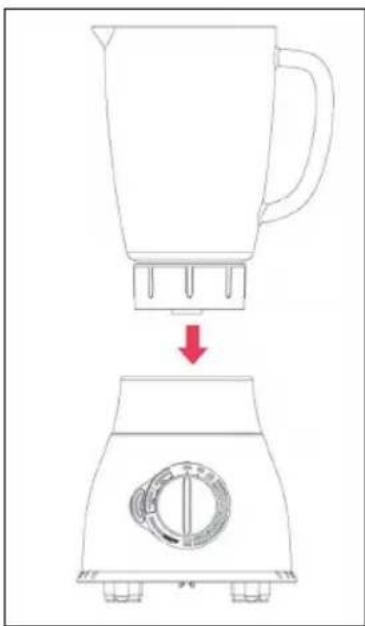

1. Place the glass jar with blade assembly unit interface on the motor unit. The handle can be placed in two positions: either located at the right hand side or left hand side.

Line drawing of a blender with a red downward arrow indicating process (no text or symbols)

1. Connect to main power supply.

How to use the glass jar

1. Place the ingredients in the glass jar.

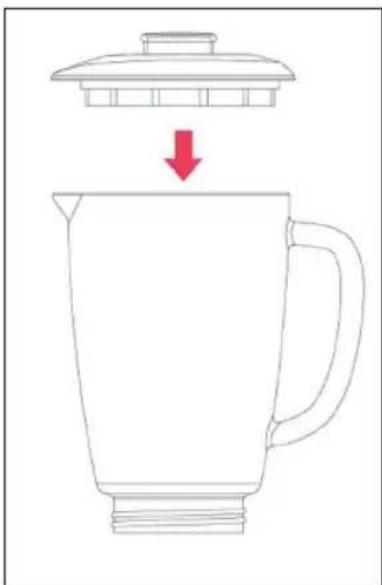

2. Place the lid on the jar and close it tightly.

Line drawing of a pitcher with a lid and handle, showing a red downward arrow indicating compression or reduction (no text or symbols)

1. Insert the measuring cup into the lid opening.

Simple line drawing showing a container being lowered into a roof, with a red arrow indicating the process (no text or symbols)

1. Select the speed by turning the control knob or press the Quick-select button.

Note: Do not let the appliance to operate more than 3 minutes continuously. Let the appliance to cool down to room temperature before continue operating the appliance.

After using the blender

1. Disconnect the power from main supply.
2. Remove the lid (together with measuring cup) from the jar.
3. Remove the jar (together with blade assembly unit interface) from the motor part.
4. Detach the blade assembly unit interface from the bottom of the jar.

Note: Always clean the removable parts immediately after use.

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

Cleaning

Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

1. Disconnect the power from main supply.
2. Disassemble all removable parts before cleaning.
3. Clean all removable parts in dishwasher or in lukewarm water with dishwashing liquid.
4. Use dry cloth to clean the main body.

How to clean the different parts:

Technical Data

Model: BL-1200V2

Power Supply: AC 220V-240V 50/60Hz

Output: 1200W

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.
