Product Type	6.5" Marine Coaxial Speaker
Brand	Fusion (by Garmin)
Model	XS-F65CWB
Peak Power	200 W
RMS Power	50 W
Impedance	4 ohms
Frequency Response	80 Hz – 18,000 Hz
Efficiency (1W/1m)	91 dB
Recommended Amplifier Power (RMS)	20 – 150 W per channel
Minimum Mounting Depth	67 mm (2 5/8 in.)
Mounting Diameter	135 mm (5 5/16 in.)
Outer Diameter (Grille)	177 mm (6 15/16 in.)
Cone Material	Polypropylene
Surround Material	Cloth
Water and Dust Rating	IP65 (front, when mounted correctly)
LED Lighting (Sports Model)	RGB, 10.8 – 16 Vdc, 150 mA at 14.4 Vdc
Operating Temperature Range	0°C to 50°C (32°F to 122°F)
Storage Temperature Range	-20°C to 70°C (-4°F to 158°F)
Optimum Enclosure Volume (Sealed)	8 L (0.28 ft³)
Compass-Safe Distance (Direction 1)	250 cm (8 ft 2 in.)
Warranty	3-year limited marine consumer warranty

Frequently Asked Questions - XS-F65CWB Fusion

What tools are needed to install the XS-F65CWB speaker?

You will need an electric drill, appropriate drill bit, Phillips screwdriver, wire strippers, crimping tool, electrical tape, and a saw or utility knife. Marine sealant is optional.

How should I connect the speaker wires?

Use 18 AWG speaker wire. The white wire is positive (+) with a 6.3 mm spade connector, and the white/black stripe wire is negative (-) with a 4.8 mm connector. Connect positive to positive and negative to negative.

What is the recommended mounting location for best sound?

Mount the speakers higher in the boat, on a vertical surface, with sufficient clearance behind. Avoid horizontal upward-facing positions to prevent water damage. Ensure each speaker is heard together for a sound stage effect.

Can I use these speakers outdoors on my boat?

Yes, they are rated IP65 for dust and water ingress when mounted correctly on a vertical surface. However, they are not designed for high-pressure water spray. Keep them above the waterline to avoid submersion.

How do I connect the optional LED lights?

The sports model has RGB LEDs. Connect the black wire to positive (+) and choose a color wire (red, green, blue) to ground. For mixed colors, combine wires. Use a 3 A fuse and connect to 12 Vdc through an isolator switch.

What should I do if there is no sound from the speakers?

Check all connections from the source or amplifier to the speaker terminals. Ensure wires are secure and polarity is correct. Verify that the audio source is powered and volume is turned up.

How do I clean the Fusion XS-F65CWB speakers?

Use a damp cloth with fresh water to remove salt residue. For heavy buildup, use mild detergent. Avoid harsh or solvent-based cleaners, which can damage the product and void the warranty.

What is the warranty period for this speaker?

Fusion offers a 3-year limited marine consumer warranty from the date of purchase. Keep your proof of purchase. The warranty covers defects in materials and workmanship under normal use.

Can I install the speaker in a ported enclosure?

It is not recommended for outdoor exposure. For best bass, use a sealed enclosure with 8 L volume filled with absorption material. A ported design is acceptable only in a protected indoor environment to avoid water damage.

What is the compass-safe distance for this speaker?

To avoid magnetic interference, maintain distances: at least 250 cm (8 ft 2 in.) from the front, 245 cm (8 ft) from the side, and 310 cm (10 ft 2 in.) from the rear. Refer to the manual for all directions.

USER MANUAL XS-F65CWB Fusion

XS Series Speakers Installation Instructions 2

Garmin ^c , the Garmin logo, FUSION ^f , the Fusion logo, and True-Marine ^m are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin.

XS Series Speakers Installation Instructions

Important Safety Information

WARNING

Failure to follow these warnings and cautions could result in personal injury, damage to the vehicle or vessel, or poor product performance.

This device must be installed according to these instructions.

Disconnect the vehicle's or vessel's power supply before beginning to install this product.

CAUTION

Continuous exposure to sound pressure levels over 100 dBA may cause permanent hearing loss. The volume is typically too loud if you cannot hear people speaking around you. Limit the amount of time you listen at high volume. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked.

Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding.

NOTICE

When drilling or cutting, always check what is on the opposite side of the surface.

It is strongly recommended that you have your audio system installed by a professional installer to ensure optimum performance.

You must read all installation instructions before beginning the installation. If you experience difficulty during the installation, go to www.fusionentertainment.com for product support.

What's In the Box

• 2 speakers
  • 12 Phillips stainless steel mounting screws

- 4 in. models: 3.5 mm x 25.4 mm (6 gauge x 1 in.)

- 6.5 in. and 7.7 in. models: 4.2 mm x 25.4 mm (8 gauge x 1 in.)

• Mounting template
• Speaker grilles

Tools Needed

• Electric drill
• Drill bit (size varies based on surface material)
  • Phillips screwdriver
• Wire strippers
• Crimping tool
• Electrical tape
• Appropriate saw or utility knife to cut surface material
  • Marine sealant (optional)

NOTE: For customized installations, additional tools and materials may be needed.

Mounting Considerations

NOTICE

When mounting the speaker in an area exposed to weather or water, you must mount the speaker on a vertical surface. If you mount the speaker on a horizontal surface facing up, water can gather in and around the speaker, causing damage over time.

Selecting the correct mounting location is critical to optimize the performance of each speaker. FUSION ^® speakers are designed to perform in the widest possible range of mounting locations,

but the more you plan the installation, the better the speakers' sound will be.

• For the best performance, you should mount the speakers higher in the boat. Sound travels in the direction in which the speakers are facing, so if you mount them in a lower location, the sound quality and volume may not be not ideal.
• If you intend to mount the speakers outside the boat, you must mount them in a location well above the waterline, where they are not submerged or damaged by docks, pilings, or other pieces of equipment. When mounted correctly, these speakers are rated IP65 for protection from the front of the speaker. Water exposure and damage to the rear of the speaker voids the warranty. This includes situations when the speakers are mounted in a sealed enclosure, especially if they are exposed to wash down. Using an enclosure with a port or vent exposed to the outside environment may allow water to collect and damage the speaker.
• You should select mounting locations that enable you to hear sound from both speakers at the same time to achieve a sound stage effect. To achieve this effect, you should not mount the speakers side-by-side.
• When possible, you should select mounting locations where the area behind each speaker is enclosed.
• You must select mounting locations that provide sufficient clearance for the mounting depth of the speakers as specified in the product specifications.
• For better bass performance, you should select mounting locations that provide the appropriate space behind the speaker according to the optimum enclosure design requirements in the specifications section. Too small an area restricts bass, and too large an area compromises bass performance. Also, mounting a speaker close to an open area (where sound from the back of the speaker has a very short path to compete with sound from the front of the speaker) produces the least bass.
• When a speaker is not exposed to the outside environment, you can achieve a better bass performance using an enclosure with a ported design.
• You can reference the Thiele Small (T/S) parameters in the specifications section when designing a custom enclosure for the speakers.
• You should select a flat mounting surface for the best seal.
• You should protect the speaker wires from sharp objects and always use rubber grommets when wiring through panels.
• You should select mounting locations that avoid potential obstacles, such as fuel and hydraulic lines and wiring.
• You should protect all terminals and connections from grounding and from each other. Failure to do so could result in permanent damage to the audio system and void the product warranty.
• To avoid interference with a magnetic compass, you should not mount the speakers closer to a compass than the compass-safe distance value listed in the product specifications.
• You must turn off the audio system before making any connections to the source unit, amplifier, or speakers. Failure to do so could result in permanent damage to the audio system.

Mounting the Speakers

Before mounting the speakers, you must choose a location following the guidelines above.

Before cutting the mounting surface you should verify that there is enough clearance for the speaker behind the surface. Refer to the specifications for clearance information.

NOTICE

Do not apply grease or lubricant to the screws when fastening the speakers to the mounting surface. Grease or other lubricants can cause damage to the speaker housing.

1 Route the wires from the source to the speaker location, away from sources of electrical interference.
2 Trim the template and make sure it fits in the selected location.
3 Orient the template so that the FUSION logo is right-side up on the template.
4 Secure the template to the selected location.
5 Using a rotary tool or jigsaw, cut the mounting surface along the inside of the line on the template.
6 Place the speaker in the cutout to test the fit.
7 If necessary, use a file and sandpaper to refine the size of the cutout.
8 After the speaker fits correctly in the cutout, ensure the mounting holes on the speaker line up with the pilot holes on the template.
9 If the mounting holes on the speaker do not line up, mark the new hole locations.
10 Using an appropriately sized drill bit for the mounting surface and screw type, drill the holes.
11 Remove the template from the mounting surface.
12 Connect the speaker wires ① while observing polarity (Speaker Wiring, page 3).

13 If necessary, connect the LED wires (LED Wiring, page 3).

14 Place the speaker in the cutout.

15 Secure the speaker to the mounting surface using the included screws ②.

NOTE: Do not over tighten the screws, especially if the mounting surface is not flat.

16 With the speakers mounted, hold the grille with the FUSION logo at the bottom, or at the 6 o'clock position.

17 Turn the grille counter-clockwise about 30 degrees, so the FUSION logo is at the 5 o'clock position.

18 Place the grille on the speaker, and twist it clockwise to secure it.

NOTE: Instead of twisting to install the grille, you can line it up so the FUSION logo is at the 6 o'clock position and press to snap it into place.

Speaker Wiring

When connecting the speakers to your stereo, observe these considerations.

- Speaker wire is not included with the speakers. You should use 18 AWG (0.82 mm ² ) speaker wire to connect the speakers to the stereo.

- The leads on the speakers are terminated using male spade connectors. You should use female spade connectors (not

included) to connect the speaker wire to the speaker leads for the best connection.

- You can use this table to identify the polarity and spade-connector sizes of the leads on the speaker.

Speaker wire color	Speaker wire polarity	Spade connector size
White Positive (+) 6.3 mm
White with a black stripe	Negative (-) 4.8 mm

LED Wiring

Connecting the LED Wires

You can control the color of the LEDs by connecting the LED color wires to ground. You can splice the ground wire to multiple LED wires to customize the LED color.

NOTE: This feature is available only on the sports model.

NOTE: Instead of connecting the LED wires for one dedicated color, you can install a remote control to turn the LEDs on and off, change the color, and create lighting effects. See your FUSION dealer or www.fusionentertainment.com for more information.

The black wire on the LED cable is terminated with a 4 mm female bullet connector, and the color wires are terminated with 4 mm male bullet connectors. You can connect these to 4 mm bullet connectors on your wires (not included), or remove the bullet connectors to connect to the bare wires instead.

1 Connect a positive wire to the black wire on the LED cable.

2 Connect a ground wire to the wire on the LED cable according to the preferred LED color.

LED Color LED Wire Color
Red Red
Green Green
Blue Blue
Yellow Red and green
Magenta Red and blue
Cyan Blue and green
White Red, green, and blue

3 Route the positive and negative wires, and connect them to a power source (Connecting the LED Wires to Power, page 3).

Connecting the LED Wires to Power

NOTE: This feature is available on only the sports model.

You must connect all 12 Vdc wiring to the LEDs to a 3 A fuse at the power-source end of the cable. You should connect the positive (+) power wire to a 12 Vdc power source through an isolator switch or circuit breaker to turn the LEDs on and off. You can use the same isolator or circuit breaker controlling the power supply to your stereo, which allows you to turn the LEDs and the stereo on and off at the same time.

You should use 22 AWG (0.33 mm ⁴ ) or thicker wire to connect the LEDs to the battery.

1 Route the positive power (+) and negative ground (-) wires from the LED-wire connections to the battery.
2 Connect the negative wire to the negative (-) battery terminal.
3 Connect the positive wire to the positive (+) terminal through a 3 A fuse and isolator switch or circuit breaker.

Speaker Information

True-Marine™ Products

True-Marine products are subjected to rigorous environmental testing under harsh marine conditions to surpass industry guidelines for marine products.

Any product that bears the True-Marine stamp of assurance has been designed for simplicity of use and combines advanced marine technologies to deliver an industry leading entertainment experience. All True-Marine products are supported by the FUSION 3-year worldwide limited consumer warranty.

Registering Your XS Series

Help us better support you by completing our online registration today.

• Go to www.fusionentertainment.com.
• Keep the original sales receipt, or a photocopy, in a safe place.

Cleaning the Speakers

NOTE: When mounted correctly, these speakers are rated IP65 for dust and water ingress protection under normal conditions. They are not designed to withstand high pressure water spray, which may occur when you wash down your vessel. Failure to carefully spray-clean the vessel may damage the product and void the warranty.

NOTICE

Do not use harsh or solvent-based cleaners on the speakers. Using such cleaners may damage the product and void the warranty.

1 Clean all salt water and salt residue from the speaker with a damp cloth soaked in fresh water.
2 Use a mild detergent to remove a heavy buildup of salt or stains.

Troubleshooting

Before you contact your FUSION dealer or service center, you should perform a few simple troubleshooting steps to help diagnose the problem.

If the FUSION speaker has been installed by a professional installation company, you should contact the company so the technicians can assess the problem and advise you about possible solutions.

There is no sound coming from the speakers

• Verify that all connections from the source device and/or the amplifier are connected correctly to the speaker terminals.

The system lacks bass or high frequencies

- Verify that the correct wire polarity is observed between the source and speakers.

The wires should be connected positive to positive and negative to negative.

- Verify that the speakers are attached firmly to the mounting surface.

The audio is distorted

- Verify that the source volume is not too loud for the speaker, and reduce the volume if necessary.

- Verify that the panels surrounding the speaker on the vessel are not rattling.

- Verify that the source device and/or the amplifier are connected to the speaker terminals correctly.

- If the speaker is connected to an amplifier, verify that the input level of the amplifier is matched to the output level of the stereo. For more information, see the manual for the amplifier.

The LED lights will not turn on

- Verify that all wiring connections are correct and tight.

Specifications

Specification 4" Speakers 6.5"		Speakers	7.7"Speakers
Peak power (Watts) 120 W 200 W 240 W
RMS power (Watts) 30 W 50 W 60 W
Efficiency (1 W/1 m) 87 dB 91 dB 92 dB
Frequency response 100 Hz to 18,000 Hz		80 Hz to 18,000 Hz	70 Hz to 18,000 Hz
Nominal impedance 4 ohms
Recommended amplifier power (RMS)	15 to 80 W per channel	20 to 150 W per channel	25 to 200 W per channel
Min. mounting depth (clearance)	54 mm ( 21/8 in.) 67 mm ( 25/8 in.)		77 mm (3 in.)
Mounting diameter (clearance)	99 mm ( 37/8 in.) 135 mm ( 55/16 in.)		162 mm ( 63/8 in.)
Optimum enclosure volume recommendation*	4 L ( 0.14 ft.3 ) 8 L ( 0.28 ft.3 ) 10 L ( 0.28 ft.3 )
LED color options (Sports Model Speakers only)	N/A	RGB
LED Supply Voltage (Sports Model Speakers only)	N/A	From 10.8 to 16 Vdc
LED Load Current at 14.4 Vdc (Sports Model Speakers only)	N/A	150 mA
Operating temperature range	From 0 to 50°C (from 32 to 122°F)
Storage temperature range	From -20 to 70°C (from -4 to 158°F)
Cone/surround material	Polypropylene cone, rubber surround	Polypropylene cone, cloth surround
Water and dust rating	IEC 60529 IP65 (Protected against dust and water ingress.)

*Sealed enclosure, fully filled with absorption material.
NOTE: This speaker is not intended to be installed in a vented or ported enclosure when exposed to the outside environment.

Speaker Dimensions

Dimension	4" Speakers	6.5" Speakers 7.7"	Speakers
1	135 mm( 55/16 in.)	177 mm ( 615/16 in.)	196 mm ( 711/16 in.)
2	Classic grille:17 mm ( 11/16 in.)	Classic grille:17 mm ( 11/16 in.)Sports grille:19 mm ( 3/4 in.)	Classic grille:20 mm ( 3/4 in.)Sports grille:23 mm ( 7/8 in.)
3	51 mm (2 in.)	64 mm ( 21/2 in.)	74 mm ( 27/8 in.)
4	95 mm ( 33/4 in.)	130 mm ( 51/8 in.)	77 mm ( 63/16 in.)

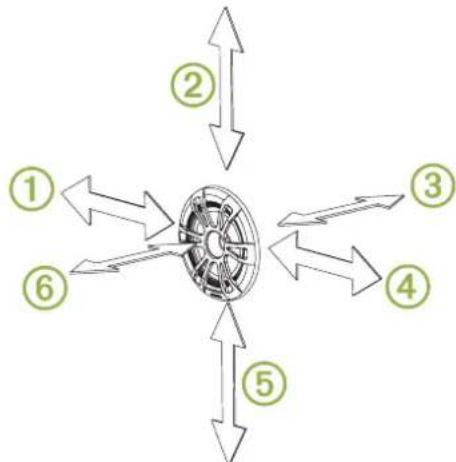

Compass-Safe Distances

All speakers contain magnets which may cause interference with instruments on your boat. The size of the magnet used in the speaker affects how much interference the speaker may cause.

Interference can cause deviations and variations in the readings of sensitive navigational equipment, such as magnetic compasses. These deviations can cause inaccuracies or offsets in the readings, but will not harm the equipment. To alleviate the deviations, adjust the compass for the deviation following the manufacturer's instructions or move the speaker away from the navigational equipment. After moving a source of interference, you may need to recalibrate the compass.

If you are navigating solely by a magnetic compass, use extreme caution to place the speaker far enough away from the compass to avoid causing deviations in the readings.

To avoid deviations to navigational equipment, position the speakers so they are separated from the navigational equipment by at least the distance listed in the table below.

Direction from Speaker	4" Speakers 6.5"	Speakers 7.7"	Speakers
1	185 cm (6 ft. 1 in.)	250 cm (8 ft. 2 in.)	275 cm (9 ft.)
2	185 cm (6 ft. 1 in.)	245 cm (8 ft.) 275 cm	(9 ft.)
3	255 cm (8 ft. 5 in.)	310 cm (10 ft. 2 in.)	400 cm (33 ft. 4 in.)
4	185 cm (6 ft. 1 in.)	255 cm (8 ft. 4 in.)	275 cm (9 ft.)
5	185 cm (6 ft. 1 in.)	230 cm (7 ft. 6 in.)	275 cm (9 ft.)
6	230 cm (7 ft. 7 in.)	280 cm (9 ft. 2 in.)	385 cm (12 ft. 7 in.)

Thiele Small Parameters

You can use the Thiele Small (T/S) parameters when designing custom enclosures for your speakers.

NOTE: Thiele/Small parameters may vary between samples, based on the environment and how much the speaker has been used. These values are intended as a guide to help with enclosure design.

T/S Parameter 4 in.	Speakers	6.5 in. Speakers	7.7 in. Speakers
Electrical Q factor ( Qes )	1.80 1.05 0.7
Mechanical Q factor ( Qms )	4.40 4.80 3.6
Total Q factor ( Qls ) 1.28	0.86 0.59
Resonance frequency ( Fs )	128 82 72
Equivalent air load ( Vas )	1.6 7.6 10.4

FUSGN®

Printing a Mounting Template

NOTICE

It is not recommended that you print a mounting template on your own. Use the template that came in the product box.

If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates, you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions, may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your boat.

1 Select File > Print.

2 Select None for Page Scaling ①.
3 Ensure the check mark is next to Auto-Rotate and Center ②.
4 Drag the arrow ③ to the right, to view page 2 in the window below.
4 Verify that the paper size is larger than the template ④.

In this example, the paper is not larger than the template.

5 If the paper size is not large enough, select Properties ⑤ and select a Page Size that is larger than the template.

NOTICE

Fusion is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow these instructions.

© 2018 Garmin Ltd. or its subsidiaries

FUSUM®

Important Safety and Product Information....2

Important Safety and Product Information

WARNING

Failure to heed the following warnings could result in an accident resulting in death or serious injury.

Marine Operation Warnings

• You are responsible for the safe and prudent operation of your vessel. This device does not relieve you from the
  responsibility of safely operating your vessel. Avoid navigational hazards and never leave the helm unattended
  • Always be prepared to promptly regain control of the vessel. Use caution near hazards in the water, such as docks, pilings and other vessels.

Hearing Damage Warning

Listening to the stereo at high volume can cause damage to your hearing.

Product Environmental Programs

Information about the Garmin" product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin/environment.

Declaration of Conformity

Hereby, Garmin declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. To view the full Declaration of Conformity, go to www.fusionentertainment.com.

Software License Agreement

BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY.

Garmin Ltd. and its subsidiaries ("Garmin") grant you a limited license to use the software embedded in this device (the "Software") in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third-party providers.

You acknowledge that the Software is the property of Garmin and/or its third-party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software, for which source code is not provided, are valuable trade secrets of Garmin and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin and/or its third-party providers. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America or the export control laws of any other applicable country.

Limited 3-Year Marine Consumer Warranty

Garmin New Zealand Limited, trading as FUSION Entertainment ('FUSION'), warrants that this FUSION Marine product is free from defects in material and workmanship, according to the following terms and conditions:

• The limited warranty for the FUSION product purchased extends to 36 months beginning on the date of purchase of the product.

• The limited warranty extends only to consumers who purchase the product in one of the countries (or areas) set forth on www.fusionentertainment.com. The limited warranty is only valid in FUSION's intended country (or area) of sale of the product.
• During the limited warranty period, FUSION or its authorised service network will repair or replace (at FUSION's discretion), any defective product or parts thereof with new and return the product to the consumer in working condition. No charge will be made to the consumer for either parts or labour in repairing or replacing the product. All replaced parts and cosmetic parts should be free of defects at the time of shipment and, therefore shall not be covered under these limited warranty terms.

- Repaired product will be warranted for the balance of the original warranty period or for ninety (90) days from the date of repair, whichever is longer.

- All warranty claims must be accompanied with a copy of this warranty card, and a copy of proof of purchase.

The consumer shall have no coverage or benefits under this limited warranty if any of the following conditions are applicable: • The product has been subject to: abnormal use, abnormal conditions, improper storage, unauthorised modifications,

unauthorised connections, unauthorised repair including but not limited to use of unauthorised spare parts in repairs, misuse, neglect, abuse, accident, alteration, improper installation, acts of God, spill of foods or liquids, maladjustment of customer controls or other acts which are beyond the reasonable control of FUSION, including deficiencies in consumable

parts such as fuses, and breakage or damage to antennae unless caused directly by defects in materials or workmanship, and normal wear and tear of the product.
- FUSION was not notified by the consumer of the alleged defect or malfunction of the product during the applicable limited warranty period.
• The product serial number or the accessory date code has been removed, defaced or altered.
• The product was used with or connected to an accessory not supplied by FUSION or fit for use with FUSION product, or used in a manner other than its intended use.
If a problem develops during the limited warranty period, the consumer should take the following step-by-step procedure:
1 The consumer shall return the product to any authorised FUSION dealer in authorised sales countries for repair or replacement processing. FUSION assumes no freight or shipping responsibility for returning goods to an authorised FUSION dealer, or return freight from an authorised dealer to the consumer submitting the warranty claim.
2 The consumer shall be charged for any parts or labour charges not covered by this limited warranty. The consumer shall be responsible for expenses related to removal and reinstallation of the product.
3 If the product is returned to FUSION after the expiration of the warranty period, FUSION's normal service policies shall apply and the consumer will be charged accordingly.
The benefits conferred by this warranty apply to the extent that they are not superseded by any other rights and remedies available under any applicable legislation that cannot be excluded. In jurisdictions where implied or legal warranties may be excluded, any implied or legal warranty is hereby excluded and the foregoing warranty is the purchaser's sole and exclusive remedy and is in lieu of all other warranties, express or implied.
• Some states in America do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights which may vary from state to state.
- FUSION neither assumes nor authorises any authorised service centre or any person or entity to assume for it any other obligation or liability beyond that which is expressly provided for in this warranty.
- All warranty information, product features and specifications are subject to change without notice.
Limited 3-Year Marine Consumer Warranty for Australian Consumers
Garmin Australasia, 30 Clay Place, Eastern Creek. NSW 2766, Australia
EMAIL: [e-mail] PHONE: [phone]
THE FUSION PROMISE OF QUALITY LIMITED 3-YEAR CONSUMER WARRANTY
This warranty is given in addition to other rights and remedies available to the consumer under Australian Consumer Law. In addition to the FUSION Warranty, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any others reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Garmin New Zealand Limited, trading as FUSION Entertainment ('FUSION'), warrants this FUSION Product including, Speaker, Subwoofer, Amplifier, Head Unit, or genuine FUSION Accessory 'product' is free from defects in materials and workmanship, in accordance with the following terms and conditions:
• The limited warranty for the FUSION product purchased is only available for (36) months after the date of purchase.
- The limited warranty extends only to the original consumer of the product and may not be assigned or transferred to any other person or consumer without FUSION's prior written consent being provided.
- During the limited warranty period, FUSION or its authorised service network will repair or replace any defective or faulty product or parts at its own cost.
- Repaired or replaced product will be warranted for the balance of the original warranty period or for ninety (90) days after the date of repair, whichever is longer.
- All warranty claims must be notified to FUSION or its authorised Dealer in writing during the warranty period accompanied with a copy of this warranty card, proof of purchase date and the product with an intact and unaltered serial number or accessory date code.
This warranty will not apply if:
The consumer causes the Product to be of unacceptable quality or falls to take steps to prevent the product from becoming of unacceptable quality and/or it is damaged by abnormal use. Examples of goods becoming of unacceptable quality or of abnormal use by the consumer include:
• Storage of product under improper conditions.
- Exposure to excessive moisture or dampness.
- Exposure to excessive temperature extremes or other adverse environmental conditions.

• Unauthorised modifications of product, connections or otherwise unauthorised repairs including, but not limited, to the use of unauthorised parts in the repair of products.
• Improper use of or installation of, or interference with, product adjustments or controls and or including antenna breakage or damage due to misuse.
  • Damage caused by consumables or by electricity supply.
• Acts of god (force majeure), exposure of product to food spills, or any other type of fluid ingress.
  • Using the product in a way for which was not intended to be used or connecting it to an accessory not supplied by, specified by, or authorised by EUSiON.
  • Any other abnormal use of or conduct causing product to become of unacceptable quality.
• This warranty extends to the repair or replacement of FUSION product only and the consumer is responsible for any expenses relating to the removal or installation of the product or related services including the cost of delivering the product to FUSION or its authorised dealer.
• Repair work conducted by FUSION after this warranty has expired or if this warranty for any other reason this Fusion warranty does not apply is subject to FUSION's normal service policies and FUSION charges for labour and material may apply.
  • This is a manufacturer's warranty provided to consumers of FUSION products. Variations to this warranty may only be made by FUSION and will be notified to the customer in writing or issued on the FUSION website. Fusion Dealers, agents and authorized dealers are not authorised to make changes or vary this FUSION warranty.
• All warranty information, product features and specifications are subject to change without notice.
• FUSION is not responsible for replacing or the cost of replacing any consumer data lost occurring either due to equipment failure or during the repair and replacement process.

Other exclusions:
