Product Type	Portable Radio
Brand	Sandstrøm
Model	S2RADW12E
Dimensions (Approx.)	200 x 120 x 60 mm
Weight (Approx.)	500 g
Power Supply	AC 230V 50Hz or 2 x AA batteries (not included)
Radio Bands	AM, FM
FM Range	87.5 – 108 MHz
AM Range	530 – 1710 kHz
Speaker	Built-in, 3W output
Headphone Jack	3.5 mm stereo
Auxiliary Input	3.5 mm (AUX IN)
Display	LCD with backlight
Tuning	Analog dial
Controls	On/Off, Volume, Tuning, Band select
Antenna	Telescopic, rotating
Battery Life (Approx.)	30 hours (alkaline)
Material	Plastic casing
Maintenance	Wipe with dry cloth; do not use harsh chemicals
Safety	Keep away from water and heat sources; do not disassemble
Spare Parts	Contact Sandstrøm support for replacement antenna or battery cover

Frequently Asked Questions - S2RADW12E Sandstrøm

How do I set the clock on the Sandstrøm S2RADW12E radio?

The clock setting procedure may vary. Typically, press and hold the Clock button, then use the tuning knob to adjust hours and minutes. Confirm by pressing the button again. Refer to the manual for exact steps.

How do I automatically scan for radio stations?

Press the Scan or Auto Tune button. The radio will search and stop at strong stations. Press again to continue scanning. Manually tuning can be done with the tuning knob.

Why is the radio not producing sound?

Check the volume is turned up. Ensure batteries are installed correctly or the AC adapter is connected. If using headphones, unplug them to test the speaker. Also verify the radio is not in mute mode.

How can I improve FM reception?

Fully extend the telescopic antenna and adjust its angle. For better reception, place the radio near a window or away from large metal objects. If using an external antenna, connect it to the designated port.

How do I switch between AM and FM bands?

Use the Band selector switch on the front or side of the radio. Slide it to the desired band (AM or FM). The LCD display will indicate the selected band.

Can I use rechargeable batteries?

Yes, you can use Ni-MH rechargeable AA batteries. However, the radio does not recharge them internally. Use an external charger for recharging.

What does the AUX input do?

The AUX input allows you to connect external audio devices like a smartphone or MP3 player using a 3.5mm audio cable. The radio will play the external audio through its speaker. Select AUX mode if available.

How do I clean the radio?

Unplug the radio and remove batteries. Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. For the speaker grille, gently use a soft brush.

The display is not working. What should I do?

Check if batteries are low or replace them. If using AC power, ensure the adapter is plugged in. Press the power button to turn on. If still blank, try a reset by removing batteries and unplugging for 1 minute.

Is there a warranty for this radio?

Sandstrøm products typically come with a 2-year warranty from the date of purchase. Keep your receipt. For warranty claims, contact the retailer or Sandstrøm customer support. Normal wear and tear are not covered.

USER MANUAL S2RADW12E Sandstrøm

Safety Warnings....5

Unpacking....10

Product Overview....11

Front View 11

Rear View....11

Power Source 12

Mains Power....12

Connections 12

Using Earphones....12

Playing music from an Audio Device ....12

General Operation....13

Switching On / Off and Selecting the Function.....13

Adjusting the Volume....13

Radio Reception....13

To Improve Radio Reception....13

Auxiliary Input....13

Maintenance 14

Cleaning the Unit 14

Hints and Tips....14

Specifications....15

Innhold

NO

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.
  • The rating label is at located at the bottom of the unit.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

- To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.

- If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains adapter and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Adapter

• The mains adapter will continue to draw electricity

from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the mains adapter plugged in the mains socket while unattended for long periods of time. Disconnect the mains adapter from the power supply.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to e a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

Thank you for purchasing your new Sandstrøm AM/FM

Mono Portable Radio with Rechargeable Batteries.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Unit

Mains Adapter x 1

Instruction Manual

Product Overview

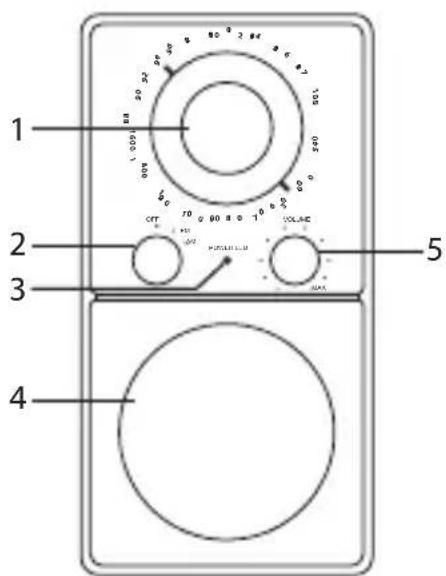

Front View

1. TUNING Control
2. FUNCTION Control
3. POWER LED Indicator
4. Speaker
5. VOLUME Control

GB

Rear View

1. AUX IN Socket
2. PHONES Socket
3. DC 12V Socket
4. Mounting Hole
5. FM Aerial

Power Source

GB

Mains Power

• This unit operates with a DC 12V mains adapter (included).
• Connecting the unit to any other power source may cause damage to the unit. Unwind the mains adapter to its full length. Connect the mains adapter to the DC socket on the rear of the unit and a mains socket. Make sure the mains adapter is fully inserted into the mains socket. The unit is now connected and ready to use.
• To switch the unit off completely, withdraw the mains adapter from the mains socket.

To the mains socket

Pure electrical circuit lines without any symbols

Connections

Using Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume. When earphones are connected, the speaker is automatically muted.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

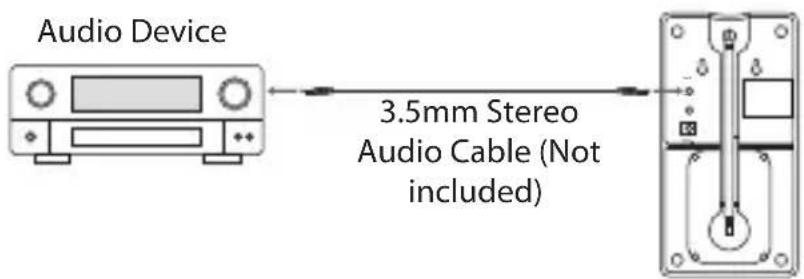

Playing music from an Audio Device

The AUX IN socket is located at the rear of the unit. Use a 3.5mm stereo audio cable (not included) to connect to the audio device through the AUX IN socket.

General Operation

Switching On / Off and Selecting the Function

• To listen the radio, adjust the FUNCTION selector to AM or FM position. The POWER indicator will illuminate red.
  • To switch off the unit, adjust the FUNCTION selector to OFF position.

To avoid unnecessary energy consumption, always adjust the FUNCTION selector to OFF after using the unit.

Adjusting the Volume

Turn the VOLUME control to adjust the volume.

Radio Reception

1. Adjust the FUNCTION selector to AM or FM position.
2. Turn the TUNING control to tune to a station.

To Improve Radio Reception

For FM

Extend, incline and turn the telescopic aerial to get the best reception. Reduce its length if the signal is too strong.

For AM

The unit uses a built-in aerial. Direct this aerial for best reception by turning the whole unit.

Auxiliary Input

1. Before connecting to the mains socket, use a 3.5mm audio stereo cable (not included) to connect your audio device through the AUX IN socket at the rear of the unit.
2. Adjust the FUNCTION selector to AM or FM position.
3. In AUX IN mode, you may operate your audio device directly for playback features.

Maintenance

Cleaning the Unit

GB

Ensure to unplug the unit from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray an aerosol at or near the unit.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Problem Cause / Solution
No power • Ensure	the mains adapter is connected.
Poor FM reception •	Make sure the FM aerial is fully extended.• Electrical interference in your home can cause poor reception. Move the unit away from them.
Desired station not found	• Weak signal. Use the manual tune function.

Specifications

System Section
Model S2RADB12E / S2RADW12E
Power Supply 100-240V ~50/60Hz
Frequency Range	AM 540 – 1600 KHzFM 87.5 – 108.0 MHz
Speaker 5W (RMS)
Net Weight 971g
Dimension 106(W) x 203(H) x 120(D) mm

Features and specifications are subject to change without prior notice.

GB

Pure electrical circuit lines without any symbols

Tilkoblinger

Auxiliary Input-AUX inntak

Pure electrical circuit lines without any symbols

Anslutningar

Använda hörlurar

Käyttöopas

Pure electrical circuit lines without any symbols

Liitännät

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Tilsluninger

Pure electrical circuit lines without any symbols

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
