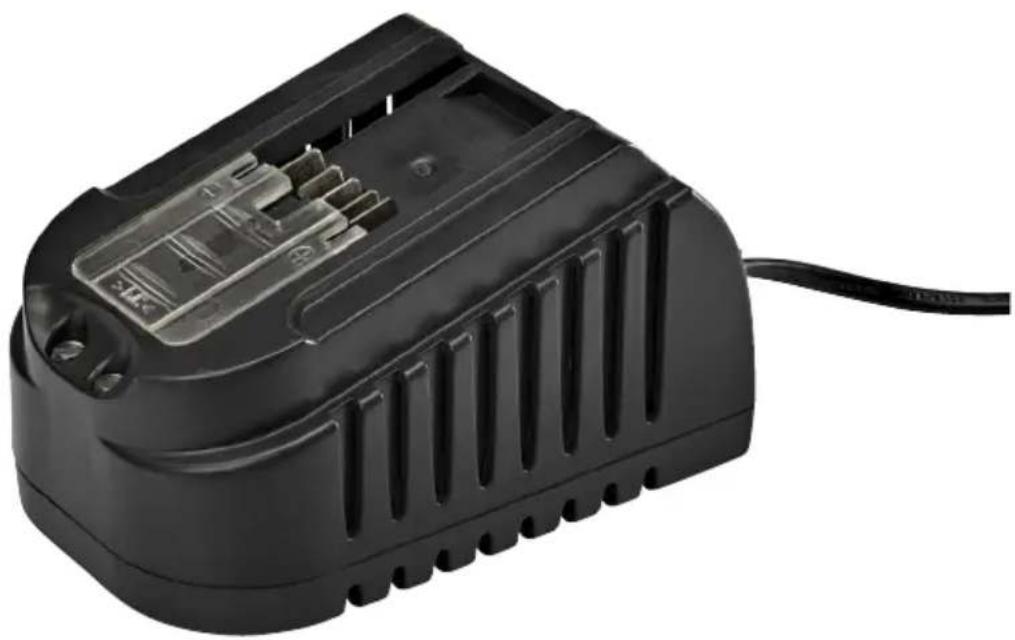

007-483 - Battery charger Meec Tools - Free user manual and instructions

Product Type	Battery Charger
Brand	Meec Tools
Model	007-483
Input Voltage	220-240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	6 A
Charging Modes	Automatic, Trickle, Pulse
Battery Compatibility	Lead-acid, AGM, Gel, Lithium (LiFePO4)
Battery Capacity Range	10 Ah to 120 Ah
Dimensions (L x W x H)	200 x 130 x 80 mm
Weight	0.85 kg
Cable Length (Input)	1.5 m
Cable Length (Output)	1.2 m
Protection Features	Reverse polarity, short circuit, overcharge, over-temperature
Display	LED indicators for power, charging, fault
Cooling	Passive convection
Operating Temperature	-20°C to +50°C
Storage Temperature	-40°C to +70°C
IP Rating	IP20 (indoor use only)
Maintenance	Wipe with dry cloth; keep vents clear
Certification	CE, RoHS
Included Accessories	Charging clamps (2 pcs), AC power cord

Frequently Asked Questions - 007-483 Meec Tools

Can I charge a completely dead battery?

Yes, the charger can recover deeply discharged batteries, but it may take longer. The charger's automatic mode detects battery voltage and applies a gentle current to revive it if above 3V.

Is this charger suitable for lithium batteries?

Yes, the Meec Tools 007-483 supports LiFePO4 batteries. Ensure you select the correct mode if available, as lithium charging requires a specific voltage profile.

What does the fault LED indicate?

The fault LED lights up when there is a reverse polarity connection, short circuit, or battery voltage below 3V. Check connections and battery condition.

Can I leave the charger connected indefinitely?

Yes, the charger has a maintenance mode that switches to trickle charging once the battery is full, preventing overcharging. It's safe for long-term connection.

How do I know when the battery is fully charged?

The charger automatically switches to maintenance mode and the 'Full' LED will illuminate continuously. The current drops to nearly zero.

What battery sizes does this charger support?

It supports lead-acid batteries from 10 Ah to 120 Ah. For lithium, the recommended capacity is similar. Smaller batteries may charge faster.

Can I use this charger in cold weather?

Yes, the operating temperature range is -20°C to +50°C. However, charging efficiency may decrease below 0°C for lead-acid batteries. Lithium batteries should not be charged below 0°C unless specified.

Is the charger waterproof?

No, the charger has an IP20 rating, meaning it is not waterproof. It must be used indoors or in a dry environment to avoid damage.

What does the pulse mode do?

Pulse mode sends short bursts of high current to break down sulfation on lead-acid battery plates, helping to restore battery capacity.

How long does it take to fully charge a 60 Ah battery?

Approximately 10-12 hours from a fully discharged state, assuming 6 A output. Actual time depends on battery condition and temperature.

USER MANUAL 007-483 Meec Tools

Black plastic electrical contactor with visible internal components and a cable (no text or symbols)

SE Bruksanvisning för batteriladdare
NO Bruksanvisning for batterilader
PL Instrukcja obsługi ładowarki do akumulatorów
EN Operating instructions for battery charger

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SÄKERHETSANVISNINGAR

Silhouette of a person reading a book inside a circle (no text or symbols)

Black electronic device casing with buttons and a black arrow pointing to the bottom (no visible text or symbols)

Ladda batteri

OBS!

Close-up of a black Litter-100 battery with control panel and power cord, no visible text or symbols on the device itself.

Close-up of a lithium-ion battery component with an arrow indicating direction (no text or symbols on the device itself)

Lossa batteri

Icon of a person reading a book inside a circle (no text or symbols)

Utgangsspenning 14,4–18 V DC

Utgående strøm 1,65 A

Beskyttelsesklasse

Kapslingsklasse

Batteritype

||

IPXO

Lithium

BRUK

Batteri

OBS!

Black electronic device with indicator lights and a black arrow pointing to it (no visible text or symbols on body)

Lade batteriet

OBS!

Close-up of a black cylindrical battery with control panel and power cord, no visible text or symbols on the device itself.

Close-up of a lithium-ion battery component with an arrow indicating direction (no text or symbols on the device itself)

Løsne batteriet

Silhouette of a person reading a book inside a circle (no text or symbols)

Black electronic device casing with buttons and a black arrow pointing to the bottom (no visible text or symbols)

Close-up of a black Litter-100 battery with control panel and power cord, no visible text or symbols on the device itself.

Close-up of a lithium-ion battery component with an arrow indicating direction (no text or symbols on the device itself)

Read the operating instructions carefully before use.

Save them for future reference.

• The battery charger is only intended for use indoors in dry, well ventilated areas.
  • Never try to charge non-rechargeable batteries.
  • Never attempt to charge batteries not intended to be used with this charger.
• If the battery charger's power cord is damaged it must be replaced by the manufacturer or an authorised service centre to prevent the risk of electric shock.
• The battery charger is not intended to be used by persons (children or adults) with any form of functional disorders, or by persons who do not have sufficient experience or knowledge on how to use it, unless they have received instructions concerning the use of the appliance by someone who is responsible for their safety.
• Keep small children under supervision to make sure they do not play with the battery charger.
• Unplug the plug from the power point before inserting or removing the battery.
• Never leave the battery charger switched on without supervision – risk of fire and electric shock.
• Protect the battery charger from moisture.
• Never immerse the battery charger in water or any other liquid, or use it where there is a risk of it being exposed to water, or falling into water.
• WARNING: Explosive gas. Avoid sparks and naked flames. Make sure there is adequate ventilation when using the battery charger.
• Connect the battery charger to an easily accessible power point in the immediate vicinity.
  • The battery charger is only intended for household use, not for commercial use.

Symbols

Silhouette of a person reading a book inside a circle (no text or symbols)

Read the operating instructions carefully before use. Save them for future reference.

For indoor use only.

TECHNICAL DATA

Input voltage 220-240V AC, 50-60Hz

Output 40 W

Output voltage 14.4–18 VDC

Output current 1.65 A

Safety class II

Protection rating IPXO

Battery type Lithium

USE

Battery

NOTE:

• Make sure that the power switch on the tool is not pressed in when inserting or replacing the battery.
- Do not force the battery when connecting it, use a moderate pressure. An incorrectly connected battery can damage the battery terminals or the battery socket on the tool.
- Use the "Press" button on the battery to check the charging status; 1-4 red LEDs, where 1 indicates low battery status.

Black electronic device casing with buttons and a black arrow pointing to it (no visible text or symbols)

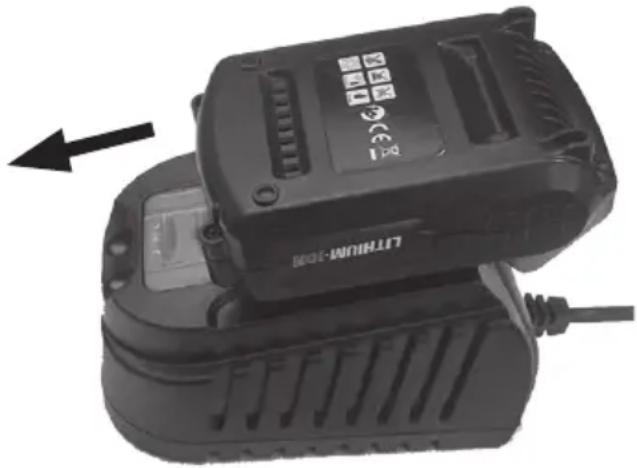

Charging the battery

NOTE:

• The battery must be charged before it can be used with a tool.
- After charging for the first time, use the tool until the battery is completely discharged. Repeat this charging and discharging cycle 4 to 5 times.

• If the LEDs on the charger do not go on when charging:

• check that the charger's mains adapter is properly plugged into the power point and that the charger is switched on

• check that the battery is correctly inserted in the charger

• Place the battery charger on a level and stable surface. Plug the charger into a 230 V power point. The red LED on the charger goes on.

• Connect the battery to the charger so that it clicks into place. The green LED goes on and starts flashing, this indicates that the battery is charging. At the same time, the red LED on the charger remains constantly red.

Close-up of a black Litter-100 battery with control panel and power cord, no visible text or symbols on the device itself.

1. When the battery is fully charged, after about on hour, the red LED goes off and only the green LED stays on.

2. Unplug the charger cord from the power point and remove the battery from the charger.

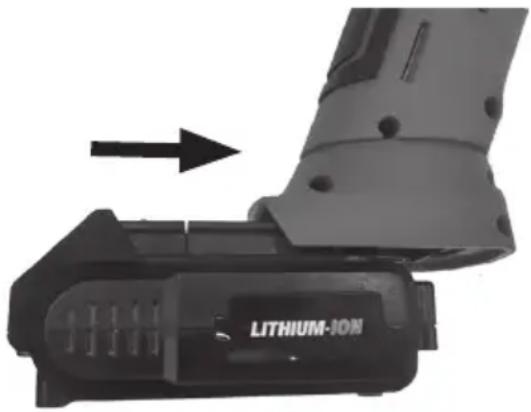

Connecting the battery

1. Connect the battery to the battery socket on the tool so that it clicks into place.

Close-up of a lithium-ion battery component with an arrow indicating direction (no text or symbols on the device itself)

Removing the battery

1. Press the battery lock and remove the battery from the tool.

MAINTENANCE

NOTE: Always unplug the battery charger from the mains before cleaning.

• Clean with a dry cloth.
