Twister Fusion 6694 - Blender OBH NORDICA - Free user manual and instructions

Product Type	Blender
Brand	OBH Nordica
Model	Twister Fusion 6694
Power Consumption	700 W
Jar Capacity	1.5 L
Jar Material	Tritan plastic
Blade Material	Stainless steel
Speed Settings	4 speed levels + pulse
Dimensions (H x W x D)	40 x 20 x 20 cm
Weight	2.5 kg
Voltage	220-240 V, 50/60 Hz
Functions	Blending, ice crushing, smoothie making
Safety Features	Lid lock, overload protection, non-slip feet
Cleaning	Removable parts dishwasher safe
Spare Parts Availability	Jar, lid, blades, seal ring
Repairability	Serviceable by qualified technician

Frequently Asked Questions - Twister Fusion 6694 OBH NORDICA

What is the power of the OBH Nordica Twister Fusion 6694 blender?

The blender has a power consumption of 700 W, suitable for blending and crushing ice.

How do I clean the blender?

Most parts, including the jar, lid, and blades, are dishwasher safe. For hand washing, use warm soapy water and rinse thoroughly.

Can I crush ice with this blender?

Yes, the Twister Fusion 6694 is designed for ice crushing. Use the pulse function for best results.

What safety features does the blender have?

It includes a lid lock to prevent operation if not closed properly, overload protection, and non-slip feet for stability.

Is the blender jar BPA-free?

Yes, the jar is made from Tritan plastic, which is BPA-free and impact-resistant.

Can I blend hot liquids?

No, blending hot liquids can create pressure buildup. Allow liquids to cool to room temperature before blending.

What should I do if the blender stops working?

Check for overload: the blender may shut off automatically. Unplug and let it cool for 15 minutes. If the issue persists, contact OBH Nordica support.

Where can I buy replacement parts?

Replacement parts like jar, lid, and blades are available through authorized OBH Nordica dealers or their website.

Does the blender have a warranty?

Yes, it typically comes with a 2-year warranty against manufacturing defects. Check the manual for terms.

How do I use the pulse function?

Press the pulse button in short bursts for controlled blending, like chopping or ice crushing. Release to stop.

USER MANUAL Twister Fusion 6694 OBH NORDICA

OBH NORDICA

DESIGNING GOOD LIFE

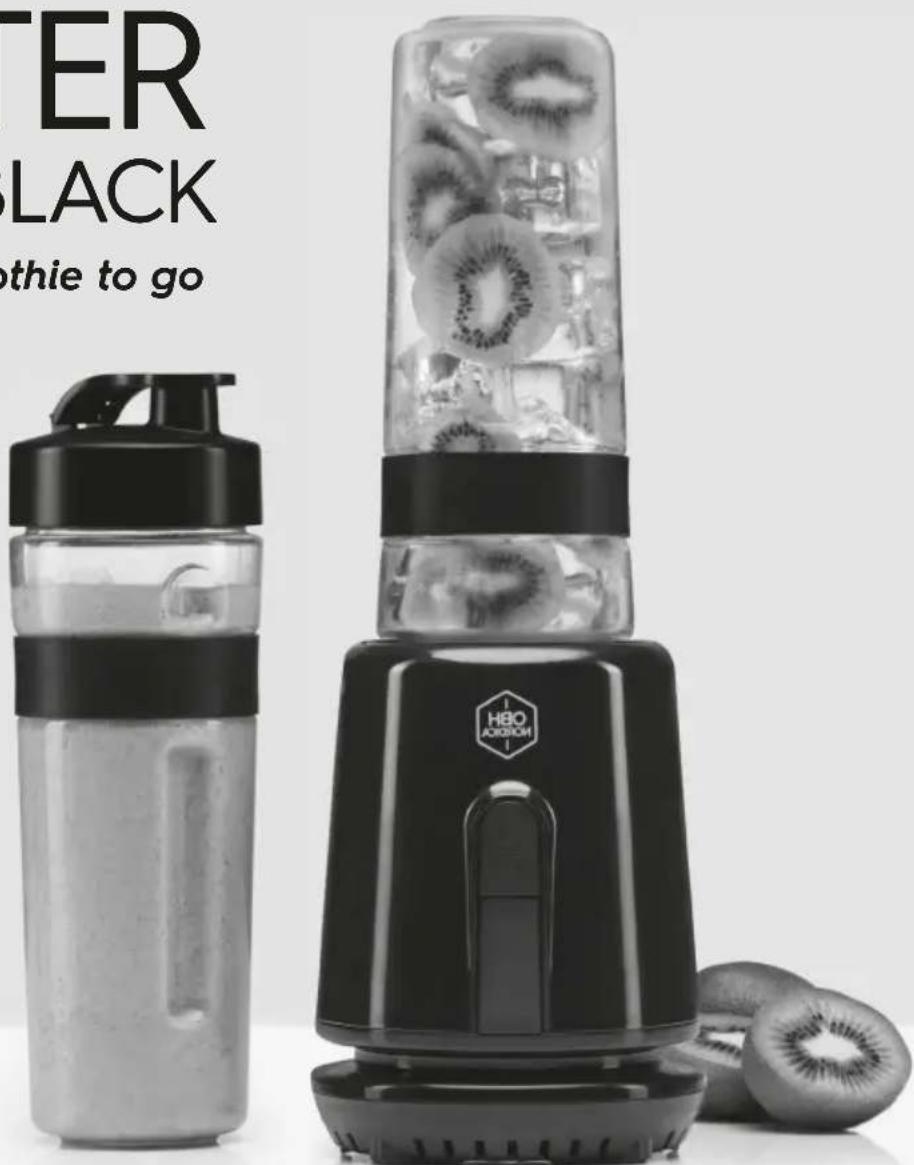

Blender TWISTER

FUSION BLACK

Your favorite smoothie to go and to share

TER LACK bothie to go HBO JOKONI

Making good!

6 (incorrect) 6 (correct) 7

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica 6694

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240 V only and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply in case of a problem, after use, when parts are mounted or removed from the appliance and before cleaning and maintenance.
4. Never immerse the appliance in water or any other liquid.
5. Do not let children use the appliance. Keep the appliance and the cord out of the reach of children.
6. Do not let children carry out cleaning and maintenance. Children should always be supervised in order that they do not play with the appliance.
7. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
8. Check that the cord is not hanging free from the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.

10. The appliance should only be used under supervision.

11. Be careful when handling the appliance, as the knife is extremely sharp! Do not touch the knife during use. Be careful that neither fingers nor tools touch the knife!

12. Do not use the appliance continuously without a break. Maximum use at a time: 1 minute. Wait for 4 minutes before you switch on the appliance again.
13. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
14. Extra protection can be obtained by installation of a residual current device of 30mA. Check with your installer.
15. The appliance is for domestic use only.
16. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages as a consequence of the above to the product are not covered by the warranty.

Before use

Wash the lid, bottle, straw and blade unit as described in “Cleaning and maintenance”. The blade unit is very sharp and must be handled with the utmost care.

Main components (see image on page 3)

1. Lid
2. Blade unit
3. Motor unit
4. Bottle (plastic) 2 included
5. Power switch
6. Activation knob
7. Plastic stick for removing sealing ring

Use

• Place the motor section on a flat, stable surface and plug into a wall socket.
• Fill the bottle with ingredients. The maximum level is 600 ml (see marking on bottle) and must not be exceeded. For best results, we recommend filling the bottle with liquid ingredients first and then fresh/frozen ingredients (cut the ingredients into pieces no larger than 2 cm).

- Screw the blade unit securely on to the bottle's opening. Make sure that the transparent sealing ring is in place in the blade unit before starting the appliance. Then place the bottle with the blade unit on the motor unit by matching the open padlock on the blade unit with the same symbol on the edge of the motor unit. Turn the bottle clockwise until it locks in place. To start the product it's necessary to attach the blade base firmly to the plastic bottle. The appliance is ready to use when the white activation knob (6) underneath the blade base is no longer possible to press down. This is the only way to secure the blade unit into the motor unit and get the appliance to start.

- Insert the plug into a wall socket and start the appliance by pressing the power switch. Once the desired results have been achieved, release the switch. The mixing process is now complete.

This appliance is not suitable for mixing potatoes, cream, egg whites, dough, etc.

Never start the appliance without first locking a bottle in place. Only bottles supplied by OBH Nordica may be used.

The appliance must not be used with hot liquids, as the pressure in the bottle will be too great.

If the motor stops during use, unplug the appliance and remove the bottle from the motor unit. Let the appliance rest for at least 15 minutes before starting it again.

Turn the bottle so that the blade unit is facing upwards and unscrew the blade unit from the bottle. Then screw the spout lid supplied to the bottle. The bottle is ready to drink from or take away with you.

Cleaning and maintenance

Always unplug the appliance prior to cleaning and maintenance.

Always clean the bottle immediately after use before the contents dry on. This makes cleaning much easier.

NOTE! Handle the blade unit with care.

Bottles, blade unit and bottle lid are dishwasher safe (see special instructions for seals later in this section.) Do not use harsh chemical agents or any other abrasive product. Remove any stubborn stains by soaking and rubbing with a soft cloth and mild detergent. Use a damp cloth when cleaning the motor unit. Dry all parts thoroughly.

Cleaning rubber seals

When cleaning the appliance, the seal must be removed from the blade unit in order to remove any residues.

1. Unscrew the blade unit from the bottle. Note that the blades are very sharp. Loosen the seal by inserting the plastic stick provided beneath the seal and lifting it up.
2. There is a seal in the bottle lid that is removed by pressing the plastic stick provided into the small hole on the underside of the lid and then lifting the seal up.
3. Hand wash the seals carefully (the blade is dishwasher safe) and dry them. Then replace the seals. Make sure that the seal forms a tight seal around the base of the blade unit/lid by pressing it down with the blunt end of the plastic stick. There is a risk of leakage if the seal is not correctly replaced.

IMPORTANT!

THE MOTOR UNIT MUST NEVER BE IMMERSED IN ANY LIQUID!

Disposing of the appliance

aw, electrical and electronic equipment must be collected for the recycling of components. Electrical and electronic equipment marked with the waste management symbol must be disposed of at a municipal recycling point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone: [phone]

www.obhnordica.com

Technical Data

OBH Nordica 6694

We reserve the right to make changes without notice.

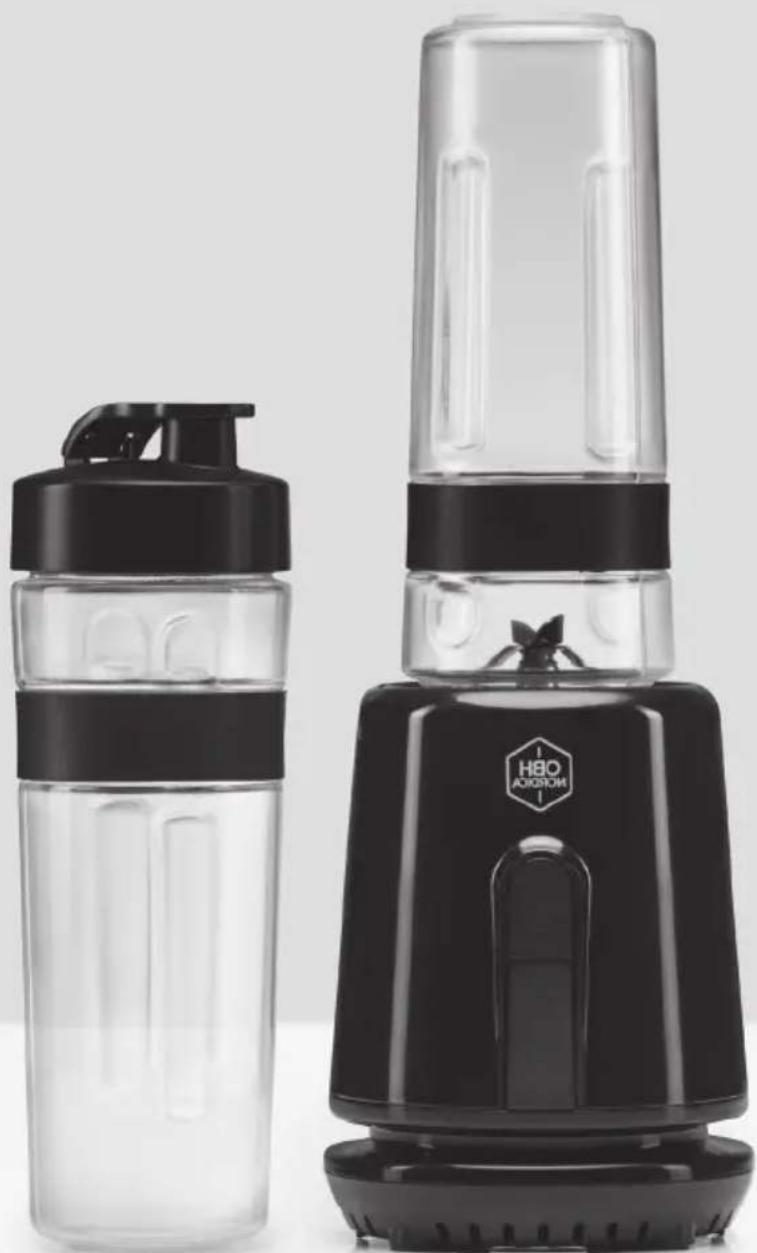

Two black and white product containers, one with a digital brush and the other a standard HBO AGNION blender (no visible text or symbols on the main objects)
