Product Type	Electric Hot Water Heater (Central Heating Boiler)
Brand	Nibe
Model	Eminent 55 CU
Volume	55 liters
Rated Pressure	1.0 MPa (10 bar)
Max Cut-off Pressure	0.9 MPa (9 bar)
Voltage	230 VAC + PE / 2 x 400 VAC + PE
Power Output	1 kW (single-phase) / 3 kW (three-phase)
Enclosure Class	IP24
Heating Time to 45°C (1/3 kW)	2.3 h / 0.8 h
Heating Time to 80°C (1/3 kW)	4.5 h / 1.5 h
Hot Water Capacity	100 liters (at 40°C, 12 l/min, thermostat 75°C)
Dimensions (Height x Width)	750 mm x 455 mm
Net Weight (Copper Model)	28 kg
Tank Material	Copper
Corrosion Protection	Copper (no sacrificial anode required)
Mixer Valve	Included, adjustable 50-65°C
Safety Valve	Included, check 4 times per year
Thermostat	Adjustable, recommended 60°C, max ~80°C
Temperature Limiter	Resettable, overheat protection
Mounting	Wall-mount vertical or horizontal
Electrical Connection	1-phase plug or 3-phase permanent (isolator required)
Serial Number Location	Underside of product

Frequently Asked Questions - Eminent 55 CU Nibe

How do I reset the temperature limiter on my Nibe Eminent 55 CU?

Turn off power to the water heater and let it cool for at least one hour. Remove the plastic cover (QQ3), then press the button on the temperature limiter lightly (max 15 N / 1.5 kg). Replace the cover and restore power.

How often should I check the safety valve?

The safety valve (FL1) should be inspected approximately 4 times a year. Turn the knob anticlockwise; water should flow through the overflow pipe. If not, replace the valve.

What should I do if there is no hot water?

Check the installation fuses, thermostat setting, and mixer valve setting. Wait a few hours without hot water usage and check if temperature has risen. If still no hot water, contact your installer.

How do I drain the water heater?

Turn off power. Open the shut-off valve (QM35) clockwise until it bottoms. Turn the mixer valve (FQ1) fully anticlockwise. Open the safety valve (FL1) anticlockwise a quarter turn. Remove vent screw (QM5) and open the lowest hot water tap. Allow to drain.

Does the Eminent 55 CU model have a sacrificial anode?

No, the CU model (copper tank) does not have a sacrificial anode. Only the E model (enamel) is equipped with a magnesium anode.

What is the recommended thermostat setting?

For best operating conditions, set the thermostat to approximately 60°C. The maximum setting is about 80°C.

Can I install the water heater horizontally?

Yes, the water heater can be mounted horizontally with the rear facing down. Ensure proper drainage and clearance for servicing.

What electrical supply do I need?

The heater can be connected to 230 VAC + PE (single-phase, 1 kW) or 2 x 400 VAC + PE (three-phase, 3 kW). For 3 kW, permanent installation with an isolator (min 3 mm gap) is required.

How do I clean the water heater?

No specific cleaning instructions are provided. Regular maintenance includes checking the safety valve and, for E models, the sacrificial anode. For external cleaning, use a damp cloth.

What is the hot water capacity?

With a thermostat setting of 75°C, incoming cold water at 10°C, and a flow of 12 l/min, the hot water capacity (40°C mixed) is approximately 100 liters.

USER MANUAL Eminent 55 CU Nibe

GB User and Installer manual Eminent

Product display featuring three white industrial devices and a gray tool icon, with NIBE logo visible in the corner (no text or symbols on main elements)

Table of Contents

Svenska

4Viktig information

5Användarhandbok

This manual describes installation and service ures for implementation by specialists.

The manual must be left with the customer.

The serial number can be found on the underside of product. proced-

Caution

Always give the product's serial number when reporting a fault.

This appliance can be used by children

aged from 8 years and above and with reduced physical, sensory or

capabilities or lack of experience and

knowledge if they have been given vision or instruction concerning use

appliance in a safe way and under the hazards involved. Children shall

play with the appliance. Cleaning a maintenance shall not be made by without supervision.

Rights to make any design or technical modi cations are reserved.

©NIBE 2018.

persons RECOVERY ental

Leave the disposal of the packaging to the ir staller who installed the product or to special waste stations.

Do not dispose of used products with normal household waste. It must be disposed of at a waste station or dealer who provides this typ

children disposal of the product by the user results administrative penalties in accordance with current legislation.

SYMBOLS

NOTE

This symbol indicates danger to person or machine.

Caution

This symbol indicates important information about what you should observe when maintaining your installation.

MARKING

CE The CE mark is obligatory for most products sold in the EU, regardless of where they are made.

IP24 Classi cation of enclosure of electro-technical equipment.

INSPECTION OF THE INSTALLATION

Current regulations require the heating installation to be inspected before it is commissioned. The ins be carried out by a suitably qualified person.

				DateSignat
Hot water (page 16)
	Shut off valves
Cold water (page 16)
	Shut off valves
	Non-return valve
	Mixing valve
	Safety valve
Electricity (page 14)
	Connected supply

ureNotesDe

User manual

MAINTENANCE

SAFETY VALVE

NOTE

The anode is a consumable.

REPLACING/CHECKING THE SACRIFICIAL

ANODE

The safety valve (FL1) must be inspected regularly, about

4 times a year, to prevent clogging. The check is made a hot water tap in the pipe system situ by turning the safety valve's knob anticlockwise, water should then ow through the over ow pipe. If this does not happen, then the safety valve is defective and must be replaced. If there is a hot water heater's highest point, the anode can be replaced/checked, without the water heater needing to be emptied. If there is not a hot water tap or ter heater is installed horizontally it must be drained,

The safety valve sometimes releases a little water after hot water has been used. This discharge is caused by the power to the water heater.

the expansion of cold water entering the water heater. Open, the shut off valve/non-return valve by turning resulting in a pressure increase, whereby the safety the knob (QM35) clockwise until it bottoms. valve opens.

SACRIFICIAL ANODE (ONLY EMINENT-E)

- Open the hot water tap mentioned above.

The water heater is equipped with a magnesium anode (FR2) that provides extra corrosion protection. The plug anode see image.

is consumed partly because it sacri ces itself for pores. The sacrial anode (FR2) is unscrewed using a 2 in the enamel and partly because it consumes itself, or 24 mm, socket wrench.

depending on the chemical composition of the water.

Check the anode within a year. Then check regularly, in relation to its use. When the anode is new, it has a diameter of approx. 21 mm. When this diameter has reduced, in the most consumed area, to less than 10 mm, the anode is consumed and must be replaced.

If there is no anode consumption after a few years, this could be due to poor conductivity in the water and analysis of the water is recommended.

Line drawing of a hand holding a knife striking a circular object on a machine (no text or symbols)

EMPTYING

Draining is through the safety valve over ow pipe and is carried out as follows:

• Turn off the power to the water heater.
• Open the shut off valve/non-return valve by the knob (QM35) clockwise until it bottoms.

- Turn the mixer valve (FQ1) fully anticlockw

- Open the safety valve by turning the knob anticlockwise a quarter of a turn, until it is raised position.

NOTE

Water splashes may occur at the overflo

- Remove the vent screw (QM5) and open tap positioned lowest in the pipe system.

NOTE

Hot water may squirt out of the vent hole.

It can take a few minutes for draining to

To speed up draining, air can be introduced screw (QM5).

Keep the valves' positions after the above actions until

the water heater is to be used again.

A small amount of water may remain at the bottom of the water heater after the draining stages described 1-5.

NOTE

The over ow pipe must be connected to pos. (XL48).

turning Installer manual

INSTALLATION

MOUNTING

The water heater must be installed in a room with ing oor drainage. The water heater can be mounted hanging vertically on a at wall (with the connections downward) or horizontally (with the rear facing down).

ow/sep the enclosed suspension bracket (UL2) when hanging on a wall; this is set up rst (∅8 - 10 r (crevo), water the dimensions diagram and gure below). The water heater is then hung on the bracket. The heater can now slide sideways a little, which facilitates the installation of the pipes. To secure further, the closed securing bracket (UL3) is mounted on the wall against the top of the water heater as a tip guard, the gure below. An area of 200 mm free space is quired in front of/under the water heater for servicing tavork.

via EMtheNTVentquires free space behind/above the water heater for inspection of the sacrificial anode (FR2). See the section "Care and main

ance - Sacri cial anode'.

NOTE

For suspended installation, these spacers must be glued onto the heater to keep it parallel with

PIPE INSTALLATION

Pipe installation must be carried out in accordance current norms and directives.

The water heater is supplied with compression ring couplings for copper or plastic pipes. Internal support bushes must be fitted when a plastic or annealed pipe is used.

All necessary valve equipment: the shut-off/non-return valve, the safety/drain valve and the mixer valve a stalled on delivery.

When the water heater is installed without a Thier water, heater is supplied with a power cable with the thermostat setting must be such that the earthwater plug for 1 phase installation (1 kW). 1 phase temperature does not exceed 65 °C. Should astallighen provides the best service life for the immers temperature be required, follow the relevant directions

for the application.

An over ow pipe must be routed from the to a suitable drain. The dimension of the must be the same as the safety valve's (pipe must be routed to prevent water pocket frost-proof and well supported.

If uncertain, contact a plumber alternatively see able standards.

For more information see nibe.eu.

NOTE

Ensure that incoming water is clean. When using a private well, it may be necessary to supplement with an extra water liter.

Filling

The water heater must be lled with water before t mains supply is switched on. Filling takes place as t lows:

• Check that the vent screw (QM5) is tightened.
• Check that the safety/drainage valve (FL1) is closed
• Open the shut off valve by turning the knob (ON) anti-clockwise.

the Bivwall.the water heater by opening a hot water 1 the system. This can be closed when only water comes out of the tap. The water heater is now and the power can be switched on.

Setting the mixer valve

Increase/decrease the tap water temperature by turning the mixer valve knob (FQ1) anti-clockwise/clockwise.

Setting range approx. 50 - 65 °C.

ELECTRICAL INSTALLATION

NOTE

Electrical installation and service must be carried out under the supervision of a qualified electrician, and in accordance with applicable electrical safety regulations.

If the power cable is damaged it must be replaced by the manufacturer, its authorised service agent or another qualified person, in order to prevent a hazard.

The lowest point of the power cable should be belc safety power socket when you connect the water heater to the pipoet. This prevents any drops of water from being) led to the socket.

If 3 KW is required, the water heater must be connected as a permanent installation (2x400V). For permanent installation, the water heater is preceded by an isolator (preferably with a signal lamp) with at least 3 mm breaker gap. The existing power can be used if the plug is cut off.

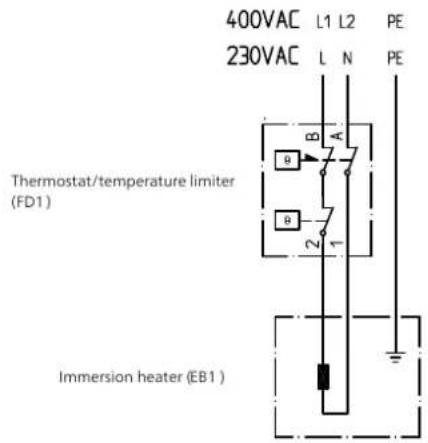

Electrical circuit diagram

Setting thermostat

For best operating conditions, we recommend a setting of 60 °C (max approx. 80 °C).

DEALING WITH MALFUNCTIONS

NOTE

Electrical installation and service must be carried out under the supervision of a qualified electrician, and in accordance with applicable electrical safety regulations.

If the power cable is damaged it must be replaced by the manufacturer, its authorised service agent or another Service qualified person, in order to prevent service a hazard. (14 digits)

Reconnecting sensors

If the immersion heater has been replaced, the sense for the thermostat and temperature limiter must be r installed in the order shown in the image.

vent service, contact the installer. The serial number (P (14 digits) and installation date should always be stat Only electrical equipment supplied by NIBE AB in Markand may be used.

Check the installation's fuses as well as the and mixer valve settings.

Wait a few hours without hot water usage and then check whether the temperature level has risen. If there is still no hot water, contact the installation engineer.

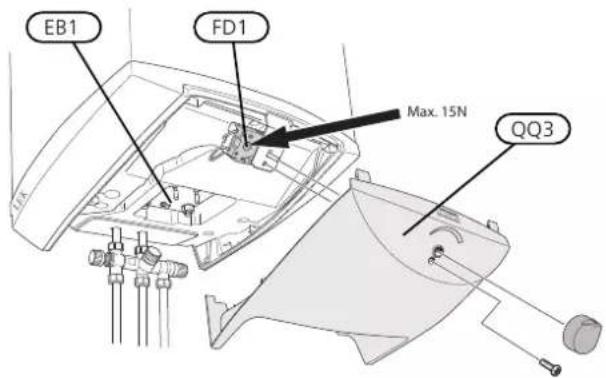

Resetting the temperature limiter

If the temperature limiter (FD1) tripped, the water heater must cool for at least one hour before it can be reset.

• Turn off the power to the water heater
• Remove the plastic cover (QQ3).
• Press the button on the temperature limiter lightly, max 15 N (approx. 1,5 kg).

TECHNICAL DATA

COMPONENT LOCATION, DIMENSIONS AND SETTING-OUT COORDINATES

List of components

FD1 Thermostat/temperature limiter

EB1 Immersion heater

UL2 Hanging bracket

Dimensions and setting-out coordinates

Eminent 35 litres:180 mm

Eminent 55 litres:250 mm

Eminent 100 litres:390 mm

FL1 Safety/drainage valveX1 Power cable with earthed plug,

FQ1 Mixer valveQQ3 Plastic cover, junction box

FR2 Sacri cial anode (EMINENT- E)QQ4 Plastic cover, anode

XL3 Cold water connection, compression ring coupling ∅15 mm

XL4 Hot water connection, compression ring coupling ∅15 mm

XL48 Connection safety/draining valve, compression ring coupling ∅15 mm

QM5 Vent screw (for air supply during draining)UL3 Securing

PF3 Serial number plateQM35 Shutoff/non-return valve

L=Total length water heater.*Required space (EMINENT-E) for replacing/checking the

Eminent 35: L=565 mm

Eminent 55: L=750 mm

Eminent 100: L=1120 mm

Eminent -R 120: L=1304 mm

When installed hanging vertically, the chain anode, which only requires 180 mm above the water h used.

TECHNICAL DATA

Model		35	65	100	120
Declared tap profile 1 E/Cu/R		S	M	L	-/L
Hot water heating 2 efficiency class E/Cu/R		C/C/B	C/C/C	C/C/C	-/C
Volume	I	35	55	100	120
Rated pressure	MPa/bar	1.0/10
Max cut-off pressure	MPa/bar	0.9/9
Voltage		230 VAC + PE / 2 x 400 VAC + PE
Enclosure class		IP24
Output	kW	1/3
Fuses required at 1/3 kW	A	6/10
Heating time to 45 °C 1/3 kW 3	h	1,4/0,5	2,3/0,8	4,1/1,4	4,9/1,6
Heating time to 80 °C 1/3 kW 3	h	2,9/1,0	4,5/1,5	8,1/2,7	10,1/3,5
Hot water capacity 4	l	60	100	185	225
Net weight E/Cu/R	kg	19/21/17	25/28/22	36/40/31	-/-/34
Length sacrificial anode Eminent E	mm	165	280	435	-
Corrosion protection Eminent E		Enamel			-
Corrosion protection Eminent Cu		Copper			-
Corrosion protection Eminent R		Stainless
RSK no. Eminent E		694 43 10	694 43 11	694 43 12	-
RSK no. Eminent Cu		694 43 13	694 43 14	694 43 15	-
RSK no. Eminent R		694 43 16	694 43 17	694 43 18	694 43 19

¹ Scale for declared top profile 3X5·4XL
² Scale for hot water heating efficiency class A+ - F
For incoming cold water at 10°C
^a Applies to suspended installation and to an incoming cold water temperature of 10°C, outgoing hot water temperature of 40°C, a tap flow
of 12 litres per minute and a thermostat setting of 75°C. In the case of horizontal installation, the hot water capacity is approx. 15% less.

ENERGY LABELLING

Supplier		N/BE AB
Model		EVH 16 - 35E / CU / R	EVH 16 - 55E / CU / R	EVH 16 - 100E / CU / R	EVH 16 - 120E / CU / R
Declared load profile		S	M	L	- / - / L
Water heating energy efficiency class		C / C / B	C / C / C	C / C / C	- / - / C

Suomeksi

Tärkeää

TURVALLISUUSTIEDOT

Line drawing of a hand holding a knife striking a circular object on a machine (no text or symbols)

TYHJENNYS

Anturien asennus

OPOFFERINGSANODE (ALLEEN EMINENT

Line drawing of a hand holding a knife striking a circular object on a machine (no text or symbols)

SYSTEEM LEEGMAKEN

STORINGEN VERHELPEN

Voorzichtig!

This manual is a publication from NIBE Energy Systems. All product illustrations speci cations are based on current information at the time of the publication's NIBE Energy Systems makes reservations for any factual or printing errors in
