Product Type	Freestanding Fridge-Freezer
Brand	Gram
Model	KFI 300851
Total Net Capacity	Approx. 300 L
Fridge Capacity	Approx. 200 L
Freezer Capacity	Approx. 100 L
Energy Class	E (EU 2019)
Annual Energy Consumption	Approx. 220 kWh
Noise Level	Approx. 38 dB(A)
Climate Class	SN-ST (10°C - 38°C)
Dimensions (H x W x D)	Approx. 1850 x 595 x 650 mm
Weight	Approx. 65 kg
Power Supply	230 V, 50 Hz
Frost-Free System	No, manual defrost required
Cooling System	Static with automatic defrost in fridge
Control Type	Mechanical thermostat
Interior Light	LED
Door Reversibility	Yes, reversible hinge
Shelves Material	Glass
Number of Drawers	3 (1 chiller, 2 freezer)
Maintenance	Clean condenser annually, defrost freezer as needed

Frequently Asked Questions - KFI 300851 GRAM

How do I adjust the temperature in my Gram KFI 300851 fridge?

The temperature is adjusted using the thermostat dial inside the fridge compartment. Turn the dial: higher numbers for colder temperatures (e.g., 3-4 for normal operation). Freezer temperature is fixed or follows fridge setting. Refer to manual for exact positions.

Why is my fridge making unusual noises?

Normal operational noises include a humming compressor, gurgling refrigerant, and occasional clicking. If the noise is loud or continuous, check that the fridge is level and not touching walls or cabinets. If persists, contact service.

How often should I defrost the freezer?

Defrost when frost build-up reaches about 5 mm. This may be every 6-12 months depending on usage and humidity. For manual defrost, remove food, unplug, leave door open, and collect melting water.

Can I reverse the door opening direction?

Yes, the door is reversible. You'll need to unscrew hinges and move them to the opposite side. Follow the steps in the manual: remove door, swap hinge plates, and reattach door. Ensure fridge is unplugged.

What should I do if the interior light doesn't work?

Check if the bulb is loose or burnt out. The Gram KFI 300851 uses an LED light; if it fails, the entire module may need replacement. Contact customer support for a compatible part.

How do I clean the fridge properly?

Unplug the fridge. Remove all food and shelves. Wash interior with warm water and mild detergent. Do not use abrasive cleaners. Dry thoroughly. Clean condenser coils at the back with a vacuum brush annually.

What is the recommended temperature setting?

For optimal food preservation, set the fridge thermostat to around 4°C (position 3-4). The freezer should be at -18°C or below. Use a thermometer to verify.

My fridge is not cooling enough. What can I check?

Ensure the thermostat is set correctly. Check that the door seals are clean and closing properly. Allow space for ventilation around the fridge. Clean condenser coils. If problem persists, a technician may be needed.

How do I replace the water filter?

This model does not have a water filter. It is a standard fridge without a water dispenser. For ice cubes, use an ice tray.

Where can I find spare parts for my Gram fridge?

Spare parts such as shelves, drawers, and door gaskets can be ordered through authorized Gram service centers or online retailers. Use model number KFI 300851 when searching.

USER MANUAL KFI 300851 GRAM

F∅R APPARATET TAGES I BRUG....2

Generelle adversler ....2

Illustration of three hands performing a cable stripping operation, showing hand positioning and cutting tool (no text or symbols)

Cartoon character emerging from a door, no text or symbols present

Cartoon illustration of a distressed container character holding a box labeled 'KG', with arms and facial expression (no text or symbols beyond the label)

Simple line drawing of a hand holding a smiling emoji inside a rounded square (no text or symbols)

DEL 2. FUNKTIONER OG MULIGHEDER

Termostatindstilling

Technical line drawing of a handheld device with spiral ports and a circular knob (no text or symbols)

Top-down view of a white electronic device with a green indicator light and an arrow pointing to it (no text or symbols visible)

Illustration showing three steps of a dental procedure: using an abacus, moving a tray with teeth, and removing the tooth (no text or symbols present)

DEL 3. GUIDE TIL OPBEVARING AF MADVARER

Køleafdelingen

Simple line drawing of a hand cleaning a door with a knife (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a bottle and cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of contents (no text or symbols)

Illustration of a multi-tiered kitchen appliance with a red X symbol crossed out, no text or symbols present.

Cartoon illustration of a smiling refrigerator with two baby pumpkins beside it (no text or symbols)

Illustration of a hand cleaning a wire rack with a circular object (no text or symbols)

Technical line drawing of a structural component with an inset showing a magnified view of a hand holding a circular object (no text or symbols present)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

General warnings ....17

Old and out-of-order fridges 19

Safety warnings....19

Installing and operating your fridge 20

Before Using your Fridge....21

HOW TO OPERATE THE APPLIANCE....21

Thermostat setting....21

Super switch (If super switch is available)....21

Warnings about temperature adjustments....22

Accessories 22

"Door Open" Indicator; 22

Ice tray 22

FOOD STORAGE IN THE APPLIANCE....23

Refrigerator compartment....23

Freezer compartment 23

CLEANING AND MAINTENANCE 24

Defrosting 24

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 25

BEFORE CALLING FOR GRAM SERVICE 26

Tips For Saving Energy 27

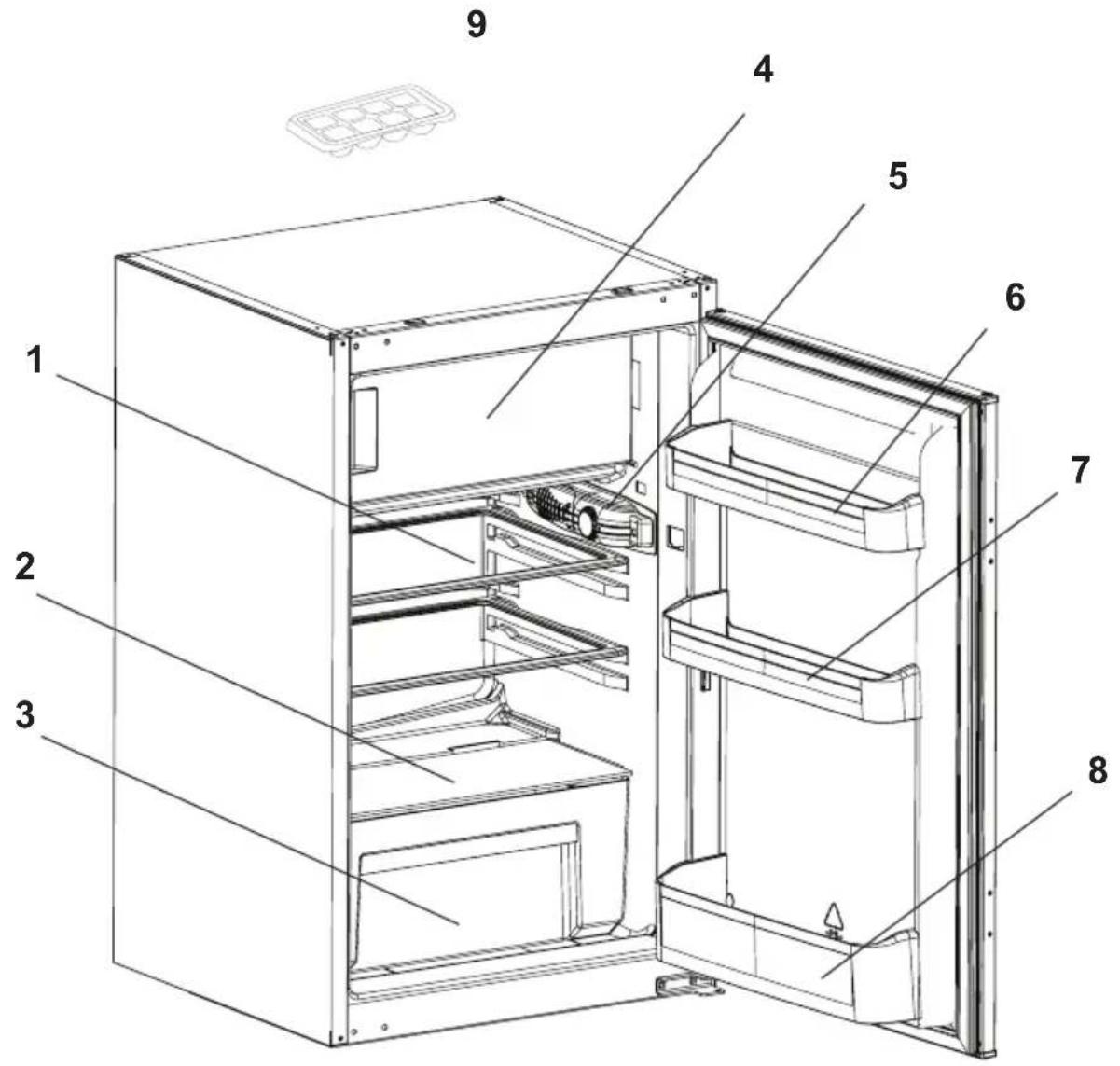

PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 28

The operating instructions apply to several models. Differences may therefore occur.

PART - 1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

SYMBOL ISO 7010 W021

Warning: Risk of fire / flammable materials

- If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans

with a flammable propellant in this appliance.

- This appliance is intended to be used in household and domestic applications such as:

• staff kitchen areas in shops, offices and other working environments.
• farm houses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments;

• catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

Old and out-of-order fridges

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

- Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Disposal of your old appliance

Pure electrical circuit lines without any symbols

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by ensuring that this product is annihilated properly. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you have purchased the product.

Please ask your municipal authority about the disposal of the WEEE reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

- Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.

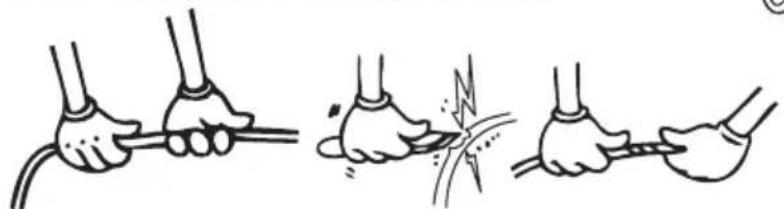

- Do not plug in damaged, torn or old plugs.

- Do not pull, bend or damage the cord.

Illustration of three hands performing a cable or wire manipulation technique (no text or symbols present)

- This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

Cartoon illustration of a character peeking out of a door, with arms and legs visible (no text or symbols)

- Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

- Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.

- Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.

- When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

- Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Secure any accessories in the fridge during transportation to prevent damage to the accessories.

- Do not use plug adapter.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.

- The plug must be accessible after installation.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

- Before connecting your Fridge Freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualified electrician for assistance.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge where it will not be exposed to direct sunlight.

- Your fridge should never be used outdoors or exposed to rain.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly, especially the interior, before use (see

Cleaning and Maintenance).

• The installation procedure into the kitchen unit is given in the Installation Manual. This product is intended to be used in proper kitchen units only.
• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.

Before Using your Fridge

- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

HOW TO OPERATE THE APPLIANCE

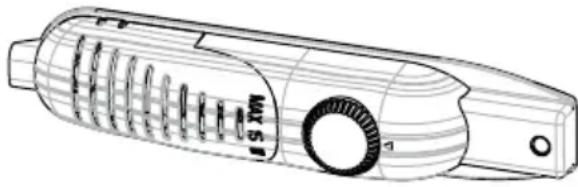

Thermostat setting

Line drawing of a handheld industrial tool with spiral grooves and a central knob (no text or symbols)

The thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained. The “•” position shows thermostat is closed and no cooling will take place.

• For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium positions (1-3).
• For long-term storage of food in the freezer compartment, you can set the knob to the medium position (3-4).
• When you first switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put a large quantity of food inside.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting in order not to damage the compressor.
• The freezer of the refrigerator cools up to -18^ and and higher.

Note that: the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartments. If required, change the temperature setting.

Super switch (If super switch is available)

- Normally set this switch to '0' position. Except when the ambient temperature is low like in winter. (ie.below 16°C) or when the freezer temperature needs to be maintained lower. In that case, turn the switch to '1' position ON.

• To set super switch ON that is on the thermostat box, press the switch down to '1' position. The switch will lit.
• When the freezer compartment is cooled down to sufficient temperature, or the weather gets hot, turn the super switch off to save electrical consumption.
• When you first switch on the appliance, for starting a suitable cooling, the appliance

should work 24 hours continuously until it cools down to sufficient temperature.

- In this time do not open the door so often and place a lot of food inside the appliance. If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

Super freezing: If ambient temperature is more than 16^ C, this switch must be used as superfreeze switch. For maximum freezing capacity, please turn on this switch when placing fresh food. After placing fresh food in the freezer, 24 hours ON position is generally sufficient. In order to save energy, please turn off this switch after 24 hours from placing fresh food.

Warnings about temperature adjustments

• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug out and then plug it in again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not

recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

- This appliance is designed for use at an ambient temperature within the 16°C - 32°C range.

Climate class	Ambient temperature (°C)
T Between 16 and 43	°C
ST Between 16 and 38	°C
N Between 16 and 32	°C
SN Between 10 and 32	°C

Accessories

"Door Open" Indicator;

Top-down view of a white rectangular object with a green indicator light and a black arrow pointing to it (no text or symbols visible)

• The « Door Open » indicator on the handle shows whether the door has closed properly or whether it is still open.
• If the indicator is red, the door is still open.
• If the indicator is white, the door is properly closed.
• Observe that the freezer's door should always be kept closed. This will prevent food products from defrosting; it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption.

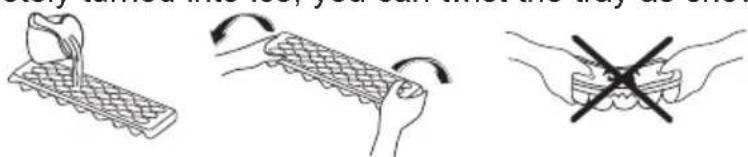

Ice tray

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three different hand positions: a keyboard, a grid with curved arrows indicating rotation, and a hand holding a cross (no text or symbols)

FOOD STORAGE IN THE APPLIANCE

Refrigerator compartment

The refrigerator compartment is used for storing fresh food for a few days.

• Do not place food in direct contact with the rear wall of the refrigerator compartment. Leave some space around food to allow circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
  • Always store food in closed containers or wrapped.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.
• Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf just above the vegetable bin, where the air is colder.
• You can put fruit and vegetables into the crisper without packaging.
• To avoid cold air escaping, try not to open the door too often, and not leave the door open for a long time.

Freezer compartment

The freezer compartment is used for freezing fresh food and for storing frozen food for the period of time indicated on packaging, and for making ice cubes.

• When freezing fresh food, wrap and seal the food properly; the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil (heavy grade, if in doubt double wrap), polythene bags and plastic containers are ideal.
• Do not allow the fresh food to be frozen to come into contact with the already frozen food.
• Always mark the date and the content on the pack and do not exceed the stated storage time.
• In case of a power failure or malfunction, the freezer compartment will maintain a sufficiently low temperature for food storage. However, avoid opening the freezer door to slow down the temperature rise within the freezer compartment.
• The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the name plate (see Freezing Capacity).
• Never place warm food in the freezer compartment.
• When purchasing and storing frozen food products, ensure that the packaging is not damaged.
• The storage time and the recommended temperature for storing frozen food is indicated on the packaging. For storing and using, follow the manufacturer's instructions. If no information is provided, food should not be stored for more than 3 months.
• Place frozen food in the freezer compartment as soon as possible after buying it.
• Once the food has thawed, it must not be refrozen; you must cook it as quickly as possible in order to consume or to freeze once again.

PART 4. CLEANING AND MAINTENANCE

- Disconnect the unit from the power supply before cleaning.

- Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

- The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water Do not clean them in the dishwasher.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

Illustration of a hand holding a circular object over a rack (no text or symbols)

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

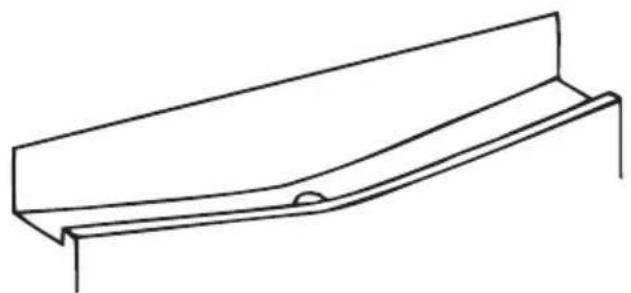

Defrosting the Refrigerator Compartment

Simple line drawing of a structural beam or support with a notch (no text or symbols)

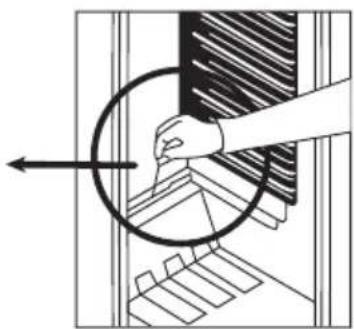

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

- Defrosting occurs automatically in the refrigerator compartment during operation; the water is collected by the evaporation tray and evaporates automatically.

- The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out.

- You can also clean the drain hole by pouring 12 glass of water down it.

Defrosting the Freezer Compartment

WARNING: Never use sharp metal tools, unless recommended by manufacturer for this operation as they can damage the refrigeration circuit.

After a period of time, frost will build up in certain areas of the freezer compartment. The frost accumulated in the freezer compartment should be removed periodically (use the plastic scraper, if available).

Complete defrosting will become necessary if the frost layer exceeds 3-5 mm, to maintain the efficiency of the freezer.

• The day before you defrost, set the thermostat dial to position "5" to freeze the food completely.
• During defrosting, frozen food should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use the food within a relatively short period of time.
• Set the thermostat knob to position “•” and switch off the appliance.
• Leave the door open to accelerate defrosting. Remove any water from the compartment.
• Clean the interior by hand with lukewarm water and a little detergent.
• Never use abrasive products or aggressive cleaning agents.
• Dry the inside of the unit, plug it into the mains and set the thermostat knob to position "5". After 24 hours, reset the thermostat to the desired position.

Replacing LED lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART - 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.
• Carry your fridge in the upright position.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

BEFORE CALLING FOR GRAM SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is a power failure,
- The mains plug is not properly plugged in, or is loose
- The thermostat setting is on position “•”,
- The socket is defective. To check this, plug in another appliance that you know which is working into the same socket.

The appliance performs poorly;

Check if;

• You have overloaded the appliance,
• The doors are not closed perfectly,
• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different check if;

• The appliance is installed firmly as described in the installation manual.
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator;

Check if;

The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).

IMPORTANT NOTES:

• In case of a sudden power loss or disconnecting and reconnecting of the plug to the electrical socket, the compressor protective thermal element will be opened as the pressure of the gas in the cooling system of your refrigerator has not yet been balanced. 4 or 5 minutes later, your refrigerator will start to operate; this is normal.
• If you won't be using your refrigerator for a long time (such as on summer holidays), please disconnect the plug from the socket. Clean your refrigerator as per Part 4 of this document and leave the door open to prevent any humidification or odor formation.
• If there is still a problem with your refrigerator although you have followed the instructions in this book, please consult your nearest authorized service center.

Tips For Saving Energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.
4. Cover drinks or other liquids when placing them in the appliance Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.
5. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (crisper, chiller ...etc) closed
7. Door gasket must be clean and pliable. Replace gaskets if worn.

PART 7.

PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Refrigerator shelf
2) Crisper cover (safety glass)
3) Crisper
4) Freezer compartment
5) Thermostat box
6) Butter shelf
7) Middle shelf
8) Bottle shelf
9) Ice tray

INNEHÅLL

INNAN DU BÖRJAR 30

ALLMÄNNA VARNINGAR 30

SÄKERHETSINSTRUKTIONER 32

REKOMMENDATIONER 32

INSTALLATION OCH IGÅNGSÄTTNING 33

FÖRE IGÅNGSÄTTNING 33

OLIKA FUNKTIONER OCH MÖJLIGHETER 34

TERMOSTATINSTÄLLNINGAR 34

SUPERREGLAGE 35

ÖPPEN DÖRR"-INDIKATOR 35

TILLVERKA IS-KUBER 36

PLACERA MATEN RÄTT.... 36

KYLSKÅP 36

FRYSSKÅP 36

RENGÖRING OCH UNDERHÅLL 37

AVFROSTNING 38

Kylskåp 38

Frysskåp; 38

TRANSPORT OCH OMPLACERING 38

INNAN DU KONTAKTE GRAM SERVICE.... 39

APPARATENS DELAR 41

DEL 1. INNAN DU BÖRJAR

Allmänna varningar

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Illustration of four hands performing a manual tool manipulation technique (no text or symbols present)

Illustration of various electrical and mechanical components including a plug, switch, battery box, fuse, and spray bottle (no text or symbols)

Simple line drawing of a smiling face on a square object held by a hand (no text or symbols)

DEL 2. OLIKA FUNKTIONER OCH MÖJLIGHETER

Close-up of a white electronic device with a green indicator light and arrow pointing to its edge (no text or symbols visible)

Line drawing of a container being poured into a rack of circular wells (no text or symbols)

Diagram of hands holding a cylindrical object with circular patterns, no text or symbols present

Illustration of two hands holding a tooth with a crossed-out black X symbol (no text or labels)

DEL 3. PLACERA MATEN RÄTT

Kylskåp

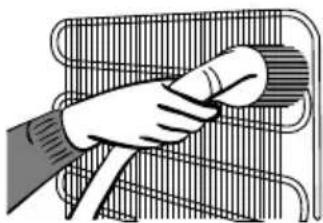

Illustration of a hand using a tool to clean or adjust a grid-like structure (no text or symbols visible)

SE TILL ATT APPARATEN ÄR BORTKOPPLAD FRÅN VÄGGUTTAGET.

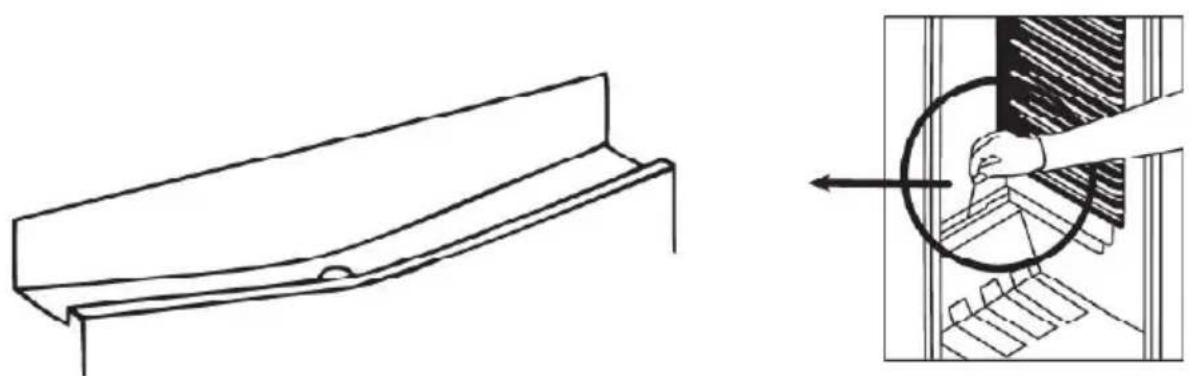

Avfrostning

Kylskåp

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

Simple line drawing of two children playing a board game (no text or symbols)

DEL 6.

INNAN DU KONTAKTE GRAM SERVICE

PLASSERE MAT I KJ∅LESKAPET 49

RENGJ∅RING OG VEDLIKEHOLD 51

Avising....52

Bytte lyspære 53

TRANSPORT OG FLYTTING AV KJ∅LESKAPET 53

KJ∅LESKAPETS ROM OG DELER.... 55

F∅R DU BRUKER APPARATET

Generelle advarsler

ADVARSEL: Hold ventileringsåpninger, i apparatets kabinett eller i den innebygde strukturen, fri for hindringer.

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Illustration of three hands performing a manual cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of a character inside a refrigerator with arms and legs (no text or symbols)

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram showing two curved heat exchanger-like structures with internal components and directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a smiling face on a square object held by a hand (no text or symbols)

FUNKSJONER OG MULIGHETER

Line drawing of a handheld hair dryer with spiral blades and a circular button (no text or symbols)

Denne bryteren er vanligvis satt til «0». Unntaket er när den omgivende temperaturen er lav, som om vinteren (det vil si under 16 °C) eller när frysertemperaturen må opprettholdes på et lavere nivå. I så tilfelle vrir du bryteren til posisjon «1» PÅ.

Line drawing of a hand pouring liquid into a tray of circular wells (no text or symbols)

Illustration of hands holding a grid-like object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding teeth with a black X symbol indicating a dental or dental procedure (no text or labels)

Close-up of a white electronic device with a green indicator light and arrow pointing to its side (no text or symbols visible)

PLASSERE MAT I KJ∅LESKAPET

Kjøleskapsrom

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small bottle and cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms and legs, holding a tray (no text or symbols)

Simple line drawing of a refrigerator with a red X symbol crossed out (no text or symbols present)

Cartoon illustration of a smiling book character and two penguin characters (no text or symbols)

Illustration of a hand cleaning a metal basket (no text or symbols)

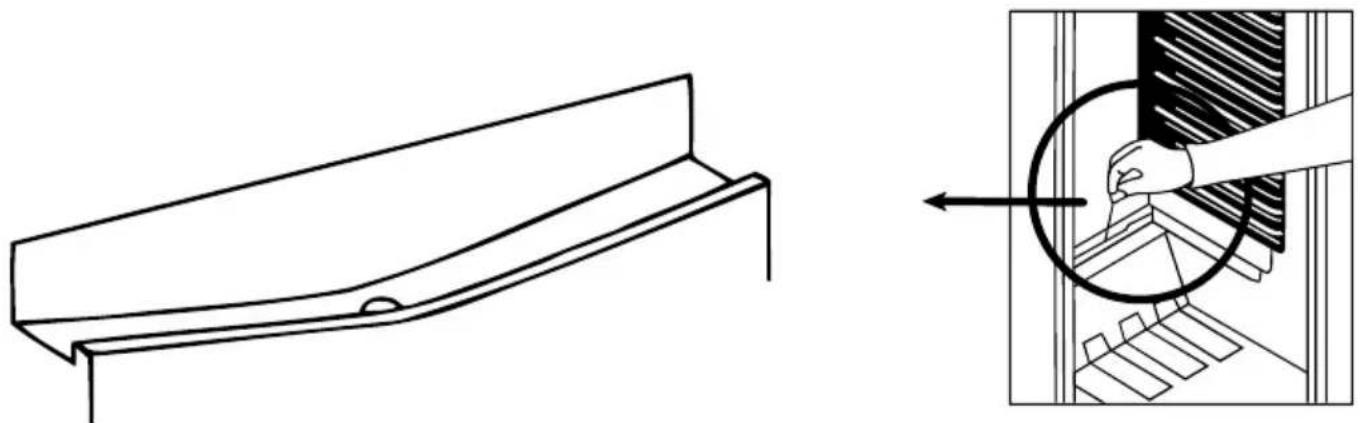

Avising

Fryseboks:

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

Technical line drawing of a handheld power tool with internal components and screw end (no text or symbols)

Å skifte ut LED-lys

Simple line drawing of two children playing a large block together (no text or symbols)

"OVI AUKI" -ILMAISIN 63

RUOANSÄILYTYS LAITTEESSA 63

JÄÄKAAPPI....63

PAKASTINOSASTO 63

PUHDISTUS JA HUOLTO 65

LED-VALAISIMEN VAIHTAMINEN 66

KULJETUS JA SIJOITUSPAIKAN VAIHTO 66

ENNEN KUIN OTAT YHTEYTTÄ GRAM-HUOLTOON 67

VIHJEET ENERGIAN SÄÄSTÄMISEKSI 68

Symbol of a trash bin crossed with no text or labels

Illustration of three hands performing a knotting or wire repair operation (no text or symbols present)

Illustration of a cartoon character opening a door, with no text or symbols present

Simple line drawing of two bottles with cracks and a starburst, no text or symbols present

Asennus ja käyttö

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

Diagram of a device with a green indicator arrow pointing to a component, no text or symbols present

Illustration showing three steps of a dental abacus: pressing a tooth, moving the abacus with arrows indicating rotation, and removing it by a hand (no text or symbols present)

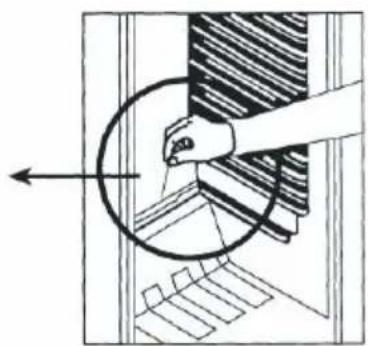

OSA 4. PUHDISTUS JA HUOLTO

Simple line drawing of a hand reaching toward a box with a bird, no text or symbols present

Illustration of cartoon household items including a refrigerator, hand gesture, and food containers (no text or symbols)

Line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand holding a circular object over a textured surface, with an arrow indicating direction (no text or symbols present)

Simple line drawing of two children playing a board game (no text or symbols)

OSA 6.

ENNEN KUIN OTAT YHTEYTTÄ GRAM-HUOLTOON
