Product Type	Television
Brand	SVAN
Model	SVTV024SWBL
Screen Size	24 inches (61 cm)
Display Resolution	1366 x 768 pixels
Energy Efficiency Class	A+
On-mode Power Consumption	19.0 W
Annual Energy Consumption	27 kWh/annum
Standby Power Consumption	0.50 W
Power Supply	220-240V AC, 50Hz
Digital Tuner	DVB-T2-C (terrestrial and cable)
Audio Output Power	2 x 2.5 W
Sound System	Stereo, NICAM
Connectivity	HDMI, USB, LAN, RF Antenna, Headphone
Wireless	Wi-Fi 802.11 a/b/g/n (2.4 & 5 GHz)
Dimensions with Stand (D x W x H)	135 x 554 x 370 mm
VESA Mount Pattern	75 x 75 mm, M4 screws
Operating Temperature / Humidity	0°C to 40°C / 85% max humidity
Key Features	Remote control, teletext, EPG, USB recording, timeshift, HbbTV, Smart Center app
Safety Class	Class II equipment
Maintenance	Clean with a soft dry cloth
Spare Parts & Repairability	Available through authorized service centers

Frequently Asked Questions - SVTV024SWBL SVAN

How do I perform the first time installation?

When you turn on the TV for the first time, the language selection screen appears. Use the directional buttons to select your language and press OK. Then set your preferences for country, broadcast type, and network. The TV will search for available channels automatically. Follow on-screen instructions.

How can I record a programme?

Connect a USB disk to the TV while it is switched off, then turn it on. Press the Record button on the remote to start instant recording. For timer recording, use the EPG to select an event and choose Record. The USB drive must have at least 2 GB free space and be USB 2.0 compatible. Recordings are saved in 4 GB partitions.

How do I connect to Wi-Fi?

Press the Menu button, go to Settings > Network/Internet Settings. Select Network Type as Wireless Device. The TV will scan for available networks. Choose your network and enter the password using the virtual keyboard. Once connected, the IP address will be displayed.

How do I change the picture mode?

Press the Menu button and go to System > Picture. Under Mode, you can select Cinema, Game, Sports, Dynamic, or Natural. Adjust Contrast, Brightness, Sharpness, Colour, and other settings as desired. The Energy Saving option also affects picture quality.

What should I do if there is no picture?

First, ensure the correct source is selected (e.g., TV, HDMI). Check that the antenna cable is properly connected and not damaged. Try retuning channels via Installation > Automatic channel scan. If the issue persists, verify the power cord is plugged in and the TV is not in standby mode.

How do I use the USB media playback?

Insert a USB drive with supported file formats (e.g., .mp4, .avi, .mkv). Press Source and select Media Browser. Choose Videos, Music, or Pictures. Navigate with directional buttons and press OK to play. Use Play, Pause, Stop, Forward/Reverse buttons on the remote.

How do I set parental controls?

Go to Settings > Parental. Enter your PIN (default 0000 or 1234, or the one you set during first installation). You can enable Menu Lock, Maturity Lock, Child Lock, and Internet Lock. To change the PIN, select Set PIN and enter a new 4-digit code.

How do I update the software?

Press Menu and go to Settings > More > Software Upgrade. Select Scan for upgrade and press OK. If a new version is found, it will download automatically. After download, confirm the reboot. You can also set Automatic scanning to update at 3:00 AM.

How can I use the FollowMe TV feature?

Install the Smart Center app on your mobile device. Ensure both the TV and mobile are on the same network. Open the app and tap the FollowMe TV widget. Select a digital SD channel and tap the play icon to stream content to your mobile device. Note: HD channels are not supported.

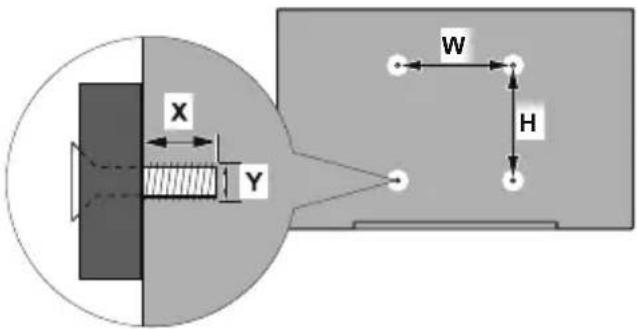

What are the VESA mount dimensions for wall mounting?

The TV supports a VESA pattern of 75 x 75 mm with M4 screws. The screw length should be between 5 mm (min) and 8 mm (max). Always follow the wall mounting warnings in the manual to prevent injury.

USER MANUAL SVTV024SWBL SVAN

The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Since the OCR output incorrectly rendered a stylistic line as underscores (which should be ignored), this violates the rule. Therefore, the OCR result is inconsistent with the Ground Truth.

ADVERTÊNCIA

ADVERTENCIA

The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Since the OCR output incorrectly rendered a stylistic line as underscores (which should be ignored), this violates the rule. Therefore, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

Português - 28 -

■ The following table is presented in the following table:

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Environmental Information

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps: If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending on the selected Mode in the System>Picture menu. The Energy Saving settings can be found in the System>Picture menu. Note that some picture settings will be unavailable to be changed.

If pressed Right button while Auto option is selected or Left button while Custom option is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again. Note: Screen Off option is not available if the Mode is set to Game.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Features

- Remote controlled colour TV

- Fully integrated digital terrestrial/cable TV (DVB-T2-C) - HDMI inputs to connect other devices with HDMI

sockets • USB input

- OSD menu system

- Stereo sound system

- Teletext

• Headphone connection

English - 56 -

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNING

Never place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as; Using cabinets or stands recommended by the manufacturer of the television set.

- Only using furniture that can safely support the television set. - Ensuring the television set is not overhanging the edge of the supporting furniture.

- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. - Not standing the television set on cloth or other materials placed between the television and supporting furniture.

- Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

WALL MOUNTING WARNINGS

- Read the instructions before mounting your TV on the wall. - The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV. - Do not install the TV on a ceiling or on an inclined wall. - Use the specified wall mounting screws and other accessories. - Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component
Markings on the Product
The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.
Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.
Class II Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety connection to electrical earth, the earth connection is used for functional purposes.
Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with the supply wiring.
Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.
Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.
Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Wireless LAN Transmitter Specifications

Frequency Ranges Max Output Power
2400 - 2483,5 MHz (CH1-CH13) <	100 mW
5150 - 5250 MHz (CH36 - CH48) <	200 mW
5250 - 5350 MHz (CH52 - CH64) <	200 mW
5470 - 5725 MHz (CH100 - CH140)	< 200 mW

Country Restrictions

This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below.

Country Restriction
Bulgaria	General authorization required for outdoor use and public service
France In-door	use only for 2454-2483.5 MHz
Italy	If used outside of own premises, general authorization is required
Greece	In-door use only for 5470 MHz to 5725 MHz band
Luxembourg	General authorization required for network and service supply(not for spectrum)
Norway	Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation	In-door use only

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LAN's.

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket located on the back of the TV.

License Notification

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

YouTube and the YouTube logo are trademarks of Google Inc.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content

usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Information for Users on Disposal of Old Equipment and Batteries
[European Union only]
Equipment bearing these symbols should not be disposed as general household waste.
You should look for appropriate recycling facilities and systems for the disposal of these products.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the

button down.
To change channel: Press the middle of the button, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.

To change source: Press the middle of the button twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

Notes:

- If you turn the TV off, this circle starts again beginning with the volume setting.

- Main menu OSD cannot be displayed via control

button. Operation with the Remote Control

Press the Menu button on your remote control to

display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

Inserting the Batteries into the Remote

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Remove the cover gently. Insert two AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.

Pure electrical circuit lines without any symbols

Remote Control

1. Standby: Switches On / Off the TV

2. Netflix: Launches the Netflix application

3. Numeric buttons: Switches the channel, enters a

number or a letter in the text box on the screen.

1. TV: Switches to TV Source

2. Directional buttons: Helps navigate menus, content etc.

and displays the subpages in TXT mode when pressed

Right or Left

1. OK: Confirms user selections, holds the page (in TXT

mode), views channel list (DTV mode)

1. Internet: Opens the portal page, where you can reach

many web based applications

1. Volume +/-

2. Mute: Completely turns off the volume of the TV

3. Back/Return: Returns to previous screen, opens index

page (in TXT mode)

1. Menu: Displays TV menu

2. Quick Menu: Displays a list of menus for quick access

3. My button 1 (*)

4. My button 2 (*)

5. Language: Switches among sound modes (analogue TV).

displays and changes audio/subtitle language (digital TV.

where available)

1. Rapid reverse: Moves frames backwards in media such

as movies

1. Record: Records programmes

2. Coloured Buttons: Follow the on-screen instructions for

coloured button functions

1. Play: Starts to play selected media

2. Stop: Stops the media being played

3. Pause: Pauses the media being played, starts timeshift

recording

1. Rapid advance: Moves frames forward in media such

as movies

1. Subtitles: Turns subtitles on and off (where avail

2. Screen: Changes the aspect ratio of the screen

3. Text: Displays teletext (where available), press

to superimpose the teletext over a normal broadcast

picture (mix)

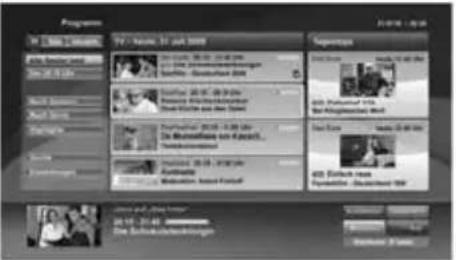

1. EPG (Electronic programme guide): Displa

electronic programme guide

1. Media browser: Opens the media browsing scre

2. Exit: Closes and exits from displayed menus or

to previous screen

1. Info: Displays information about on-screen c

shows hidden information (reveal - in TXT mode

1. Programme +/-

2. Swap: Quickly cycles between previous and

3. Source: Shows all available broadcast and

sources

(\*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the

model. However you can set a special function to these buttons

by pressing on them for five seconds when on a desired source or channel. A confirmation message will be displayed on the

on channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the

selected function.

Note that if you perform First Time Installation, MY BUTTON

1&2 will return to their default function.

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

While formatting USB hard drives which have more than 1TB (Tera Byte) storage space you may experience some problems in the formatting process.Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.Note:When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.Recording a ProgrammeIMPORTANT:When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's Format Disk option in the Media Browser>Settings>Recording Settings menu.To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature. To use recording your USB drive should have 2 GB free space and be USB 2.0 compatible. If the USB drive is not compatible an error message will be displayed. To record long duration programmes such as movies, it is recommended to use USB Hard disk drives (HDD's). Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours.Recoded programmes are split into 4GB partitions.If the writing speed of the connected USB disk is not sufficient, the recording may fail and the timeshifting feature may not be available.It is recommended to use USB hard disk drives for recording HD programmes.Do not pull out the USB/HDD during a recording. This may harm the connected USB/HDD.If the AC cord is unplugged while there is an active USB-recording timer setting, it will be cancelled.Multipartition support is available. A maximum of two different partitions are supported. The first partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used for the PVR ready features.Some stream packets may not be recorded because of signal problems, as a result sometimes videos may freeze during playback.

Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is on. If a recording starts from timer when teletext is on, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback.Timeshift RecordingPress Pausebutton while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk.Press Playbutton again to resume the paused programme from where you stopped. Press the Stop button to stop timeshift recording and return to the live broadcast.Timeshift cannot be used while in radio mode.You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option.Instant RecordingPress Recordbutton to start recording an event instantly while watching a programme. You can press Recordbutton on the remote control again to record the next event after selecting the next programme from within the EPG. Press Stopbutton to cancel instant recording.You can not switch broadcasts or view the media browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.Watching Recorded ProgrammesSelect Recordingsfrom the Media Browser menu. Select a recorded item from the list (if previously recorded). Press the OKbutton to view the Play Options. Select an option then press OKbutton.Note:Viewing main menu and menu items will not be available during the playback.Press the Stopbutton to stop a playback and return to the Recordings.Slow ForwardIf you press Pausebutton while watching recorded programmes, the slow forward feature will be available. You can use Rapid advancebutton to slow forward. Pressing Rapid advancebutton consecutively will change slow forwarding speed.Recording ConfigurationSelect the Recording Settings item in the Media Browser>Settingsmenu to configure the recording settings.Format Disk:You can use the Format Diskfeature for formatting the connected USB disk. Your PIN is required to use the Format Diskfeature.Note:Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installationuse the PIN that you have defined.

English - 62 -

English -61-

channels of it will be listed on the top of the Channel List. When finished, press OK to continue.Depending on the model of your TV and the country selection Privacy Settings menu may appear at this point. Using this menu you can set your privacy privileges. Highlight a feature and use Left and Right directional buttons to enable or disable. Read the related explanations displayed on the screen for each highlighted feature before making any changes. You can use Programme +/- buttons to scroll up and down to read the entire text. You will be able to change your preferences at any time later from the Settings>Privacy Settings menu. If the Internet Connection option is disabled Network/Internet Settings screen will be skipped and not displayed.Press OK button on the remote control to continue and the Network/Internet Settings menu will be displayed, if you confirm the previously displayed message asking whether you want to do the network settings. Please refer to Connectivity section to configure a wired or a wireless connection. After the settings are completed press OK button to continue. To skip to the next step without doing anything select No and press the OK button when the message is displayed asking whether you want to do the network settings.After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*) . Select Yes and press OK to confirm.(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.Media Playback via USB InputYou can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks.

Switching On/Off

To Switch the TV On

Connect the power cord to a power source such as a

wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

- Press the Standby button. Programme 1/2 or a

- Press the Standby button, Programme +/- of a numeric button on the remote control.

numeric button on the remote control.

- Press the middle of side function switch on the

TV in.

To Switch the TV Off

Press the Standby button on the remote control or

press the middle of the side function switch on the

TV in and hold it down for a few seconds, the TV will

switch into standby mode.

To power down the TV completely, unplug the

power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby

LED can blink to indicate that features such as Standby

Search, Over Air Download or Timer is active. The LED can

also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language

selection screen is displayed. Select the desired

language and press OK.

On the next screen, set your preferences using the

on the next screen, set your preferences using the directional buttons.

Note: Depending on the Country selection you may be asked

Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot

be 0000. You have to enter it if you are asked to enter a PIN

for any menu operation later.

About Selecting Broadcast Type

Digital Aerial: If Digital Aerial broadcast search

option is turned on, the TV will search for digital

terrestrial broadcasts after other initial settings are

completed.

Digital Cable: If Digital Cable broadcast search

Digital Cable in Digital Cable broadcast search option is turned on, the TV will search for digital cable

broadcasts after other initial settings are completed.

According to your other preferences a confirmation

message may be displayed before starting to search

Message may be displayed before starting to search. Select YES and press OK to proceed. To cancel

operation, select NO and press OK. You can select

Network or set values such as Frequency Network

ID and Search Step. When finished, press OK button

Note: Searching duration will change depending on the

Note: Searching duration will change depending on the selected Search Step

Analogical: If Analogous broadcast search option is

Analogue. If Analogue broadcast search option is turned on, the TV (will search for analogue broadcasts

turned on, the TV will search for analogue broadcasts after other initial settings are completed.

after other initial settings are completed.

Additionally you can set a broadcast type as your

favourite one. Priority will be given to the selected

broadcast type during the search process and the

Englis

TV Menu Contents

System - Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast Adjusts the light and dark values on the screen.
Brightness Adjusts the brightness values on the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colours.
Energy Saving	For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.
Advanced Settings
Dynamic Contrast You can change the dynamic contrast ratio to desired value.
Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
Picture Zoom Sets the desired image size format.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Tum this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position Appears only when the input source is set to VGA/PC.
Autoposition Automatically optimizes the display. Press OK to optimize.
H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Resets the picture settings to factory default settings (except Game mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
System - Sound Menu Contents
Volume	Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance Adjusts whether the sound comes from the left or right speaker.
Headphone	Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode	You can select a sound mode (If the viewed channel supports).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.Note: ARC is supported only via the HDMI2 input.System Audio ControlAllows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.Note:The audio device should support System Audio Control feature and CEC option should be set as Enabled.E-ManualYou can find instructions for your TV's features in the E-Manual.To use E-Manual, press to the Info button while main menu is displayed on the screen or press Quick Menu button, select Information Booklet and press OK. By using the directional buttons select a desired category. Every category includes different topics. Select a topic and press OK to read instructions. To close the E-Manual screen press the Exit or Menu button.Note:The contents of the E-Manual may vary according to the model.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate	All files in the list will be continuously played in original order
Start playback with the OK button and activate	The same file will be played continuously (repeat)
Start playback with the Play button and activate	All files in the list will be played once in random order
Start playback with the Play button and activate	All files in the list will be continuously played in the same random order.
FollowMe TV (if available)
With your mobile device you can stream the current broadcast from your smart TV using the FollowMe TV feature. Install the appropriate Smart Center application to your mobile device. Start the application. For further information on using this feature refer to the instructions of the application you use.Note: This application may not be compatible with all mobile devices. HD channels are not supported and both of the devices must be connected to the same network.
CEC and CEC RC Passthrough
This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

Audio Video Sharing	Audio Video Sharing feature allows you to share files stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. Audio Video Sharing mode will not be available with internet portal feature.
Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
Virtual Remote	Enable or disable the virtual remote feature.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
CEC Auto Power On	This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
Show All Cookies (*)	Displays all saved cookies.
Delete All Cookies (*)	Deletes all saved cookies.
OSS	Displays Open Source Software license information.
These features may not be available depending on the model of your TV and the selected country in the First Time Installation.

Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations.Analogue: Searches and stores analogue stations.
Manual channel scan	This feature can be used for direct broadcast entry.
Network channel scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels.
Analogue fine tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Installation Settings (Optional)	Displays installation settings menu. Standby Search(*): Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*): If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching.(*) Availability depends on model.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First time installation	Deletes all stored channels and settings, resets TV to factory settings.

AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone. Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed as On or Off.
Digital Out Sets digital out audio type.

System - Settings Menu Contents
Conditional Access Controls conditional access modules when available.
Language You may set a different language depending on the broadcaster and the country.
Privacy Settings (*)	Manage your privacy privileges for smart TV related applications. Press OK to enter the menu and set according to your preferences.
Parental	Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Network/Internet Settings	Displays network/internet settings.
Accessibility Displays accessibility options of the TV.
Hard of Hearing Enables any special feature sent from the broadcaster.
Audio Description	A narration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.Note: Audio description sound feature is not available in recording or time shifting mode.
Netflix	You can view your ESN(*) number and deactivate Netflix.(*) ESN number is an unique ID number for Netflix, created especially to identify your TV.
More Displays other setting options of the TV.
Menu Timeout Changes timeout duration for menu screens.
Standby LED	If set as Off, the standby LED will not light up when the TV is in standby mode.
HBBTV (*)	You can enable or disable this feature by setting it as On or Off.
Software Upgrade Ensures that your TV has the latest firmware. Press OK to see the menu options.
Application Version Displays current software version.
Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated.

Event Details (Info button): Displays detailed information about selected events.Filter (Text button): Views filtering options.Next Time Slice (Green button): Displays the events of next time slice.Options (OK button): Displays event options.Rec./Stop (Record button): The TV will start to record the selected event. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.Now/Next ScheduleOptions (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Filter (Blue button): Views filtering options.Rec./Stop (Record button): The TV will start to record the selected events. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.Event OptionsUse the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.Select Channel: Using this option, you can switch to the selected channel.Record / Delete Rec. Timer: Select the Record option and press the OK button. If the event is going to be broadcasted at a future time, it will be added to Timers list to be recorded. If the selected event is being broadcasted at the moment, recording will start immediately.To cancel an already set recording, highlight that event and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled.Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.Notes: You cannot switch to any other channel or source while there is an active recording or timer on the current channel.It is not possible to set timer or record timer for two or more individual events at the same time interval.Teletext ServicesPress the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.

Digital TeletextPress the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast.Software UpgradeYour TV is capable of finding and updating the firmware automatically via the broadcast signal or via Internet.Software upgrade search via user InterfaceOn the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the TV by pressing the OK to continue with the reboot operation.3 AM search and upgrade modeYour TV will search for new upgrades at 3:00 o'clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on.Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.Troubleshooting & TipsTv will not turn onMake sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.Poor pictureCheck if you have selected the correct TV system.Low signal level can cause picture distortion. Please check antenna access.Check if you have entered the correct channel frequency if you have done manual tuning.The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.No pictureThis means your TV is not receiving any transmission. Make sure the correct source has been selected.Is the antenna connected properly?Is the antenna cable damaged?

General TV OperationUsing the Channel ListThe TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the OK button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.Managing the Favourite ListsYou can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.Configuring Parental SettingsThe Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.Internet Lock: If this option is set to ON, the open browser application in the portal will be disabled. Set to OFF to release the application again.Set PIN: Defines a new PIN number.Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.Some options may not be available depending on the model and/or on the country selection in the First Time Installation.Electronic Programme Guide (EPG)Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.Timeline ScheduleZoom (Yellow button): Press the Yellow button to see events in a wider time interval.Filter (Blue button): Views filtering options.Select Genre (Subtitles button): Displays Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.Options (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.Search (Text button): Displays Guide Search menu.Now (Swap button): Displays current event of the highlighted channel.Rec./Stop (Record button): The TV will start to record the selected event. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.List Schedule(*)(*) In this layout option, only the events of the highlighted channel will be listed.Prev. Time Slice (Red button): Displays the events of previous time slice.Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

General TV Operation
Using the Channel List

events of previous or next day.

Supported Video File Formats for USB Mode
Extension	Video Codec	Max. Resolution & Frame Rate & Bit Rate
.mpg, .mpeg, .dat, .vob	MPEG1/2, H.264, VC1	H.264: 1080Px2@30fps - 50Mbps, 1080P@60fps - 50Mbps Other: 1080P@60fps - 50Mbps
.ts, .trp, .m2ts
.avi	MPEG1/2, MPEG4, H.264, MJPEG
.mp4, .m4a, .m4v, .mov, .qt, .3gp, .3g2, .3gpp	MPEG1/2, H.263, MPEG4, H.264
.mkv	MPEG 1/2, MPEG4, H.264
.flv	Sorenson Sp, MPEG4, H.264
.ogm, .ogg	MPEG1/2, MPEG4
.asf, .wmv	MPEG4, WMV3, VC1
.rm, .rmvb	RV30, RV40
.webm	VP9, VP8
.mp4, .mov, .3gpp, .3gp, MPEG transport stream, .ts, .trp, .tp, .mkv	HEVC/H.265
Supported Picture File Formats for USB Mode
Extension	Specification	Resolution (width x height)
.jpg, .jpeg	Baseline	8192 x 8192
	Progressive	3000 x 3000
.bmp	RGB 1/4/8/16/24/32 bit	8192 x 8192
	RLE 4/8 bit
.gif	87a
	89a (Only 1 picture at animation format)
.png	Grayscale, 24/32 bit per pixel
	Interlace format
	Progressive
.tiff, .tif	Tagged image file format
.webp	Lossy compression VP8 key frame version number support 0~3
	Lossless compression
Supported Audio File Formats for USB Mode
Extension	Format
.mp3	.mp3
.ac3	.ac3
.aac	.AAC
.wma	.WMA
.amr	.AMR-NB, .AMR-WB
.wav	.MPEG La, .AAC, .PCM
.flac	.FLAC

16	00x1050 60Hz
17	40x900 60Hz
18	40x900 75Hz
19	20x1080 60Hz

AV and HDMI Signal Compatibility
Source Supported Signals Available
Back AV	PAL O
	SECAM		O
	NTSC4.43		O
	NTSC3.58		O
YPbPr	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p 50Hz	60Hz	O
	1080i 50Hz	60Hz	O
HDMI	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p 50Hz	60Hz	O
	1080i 50Hz	60Hz	O
	1080p	24Hz, 25Hz, 30Hz, 50Hz, 60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

- Are suitable plugs used to connect the antenna?

• If you are in doubt, consult your dealer.

No sound

- Check if the TV is muted. Press the Mute button or increase the volume to check. - Sound may be coming from only one speaker. Check the balance settings from Sound menu.

Remote control - no operation - The batteries may be exhausted. Replace the batteries. Input sources - can not be selected - If you cannot select an input source, it is possible that no device is connected. If not;

- Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device. Recording unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device.
USB is too slow

If a "USB disk writing speed too slow to record" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

Index	Resolution	Frequency
1	0x480 60Hz
2	0x480 75Hz
3	0x600 56Hz
4	0x600 60Hz
5	0x600 72Hz
6	0x600 75Hz
7	24x768 60Hz
8	24x768 70Hz
9	24x768 75Hz
10	52x864 75Hz
11	60x768 60Hz
12	60x768 60Hz
13	80x960 60Hz
14	80x1024 60Hz
15	80x1024 75Hz

Supported Subtitle File Formats for USB Mode

Connectivity

External Subtitles
Extension Specification
.ssa SubStation Alpha
.ass	Advanced SubStation Alpha
.srt Subripper
.sub Micro DVD / SubViewer
.sub + .idx VOBSub
.txt Micro DVD / TMPlayer / MPL2
.mpl MPL2
.smi Sami
.jss JACOSUB
.ttml TTML
.txt / .sub DVDSUBTITLE
.lrc -

Internal Subtitles
Extension	Specification
.mkv VOBSub
.mkv ASS / SSA / TEXT
.dat, .mpg, .mpeg, .vob DVD	Subtitle
.mp4 DVD Subtitle, TEXT

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

LAN input on the rear side of the TV

Configuring Wired Device Settings

Network Type

The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an ethernet cable. Internet Speed Test

Highlight Internet Speed Test and press the OK button. TV will check the internet connection bandwidth and display the result when complete. Advanced Settings

Highlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS settings of the TV. Highlight the desired one and press

Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Press the OK button to save

settings when complete.

Wireless Connectivity

To Connect to a Wireless Network

The TV cannot connect to the networks with a hidden SSID. To make your modem's SSID visible, you should change your SSID settings via the modem's software.

Broadband

ISP A Wireless-N router connection (IEEE 802.11a/b/g/n)

with simultaneous 2.4

and 5 GHz bands is designed to increase

bandwidth. These are

optimized for smoother

and faster HD video

streaming, the transfers and wireless gaming.

• The frequency

and channel differ

depending on the area.

The transmission speed differs depending on the distance and number of obstructions between the

transmission products, the configuration of these

products, the radio wave conditions, the line traffic and the products that you use. The transmission may

and the products that you use. The transmission may also be cut off or may get disconnected depending

also be out on or may get disconnected depending on the radio wave conditions. DECT phones or any

other WiFi 11b appliances. The standard values of

the transmission speed are the theoretical maximum

values for the wireless standards. They are not the actual episode of data transmission.

The location where the transmission is most effective.

The location where the transmission is most effective differs depending on the usage environment.

differs depending on the usage environment. The Wireless feature of the TV/supports 802.11 a b c 8 p

The wireless feature of the TV supports 602.11a,b,g & h type modems. It is highly recommended that you should

use the IEEE 802.11n communication protocol in order

to avoid any possible problems while watching videos.

You must change your modem's SSID when there are

any other modems around with the same SSID. You

can encounter connection problems otherwise. Use a

wired connection if you experience problems with a wireless connection.

Wireless connection.

Configuring Wireless Device Settings

Open the Network/Internet Settings menu and select Network Type as Wireless Device to start connection

process.

The TV will scan the wireless networks automatically. A list of available networks will be displayed. Please select

your desired network from the list.

English -72

Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Press the OK button to save

settings when complete.

Wireless Connectivity

To Connect to a Wireless Network

The TV cannot connect to the networks with a hidden

SSID. To make your modem's SSID visible, you should

change your SSID settings via the modem's software.

Broadband

ISP A Wireless-N router

connection (IEEE 802.11a/b/g/n)

with simultaneous 2.4

and 5 GHz bands is designed to increase

designed to increase bandwidth. These are

optimized for smoother

and faster HD video

streaming, file transfers and wireless gaming

and wireless gaming.

• The frequency

depending on the area and channel differ

depending on the area.

• The transmission speed differs depending on the distance and number of obstructions between the

transmission products, the configuration of these

products, the radio wave conditions, the line traffic

and the products that you use. The transmission may

also be cut off or may get disconnected depending on the radio wave conditions. PECT phones or any

on the radio wave conditions, DEO1 phones of any other WiFi 11b appliances. The standard values of

the transmission speed are the theoretical maximum

values for the wireless standards. They are not the

actual speeds of data transmission.

• The location where the transmission is most effective

differs depending on the usage environment.

• The Wireless feature of the TV supports 802.11 a,b,g & n

type modems. It is highly recommended that you should

use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos

- You must change your modem's SSID when there are

You must change your modern SOD when there are

any other modems around with the same SSID. You can encounter connection problems otherwise. Use a

wired connection if you experience problems with a

wireless connection.

Configuring Wireless Device Settings

Open the Network/Internet Settings menu and select

Network Type as Wireless Device to start connection

process.

The TV will scan the wireless networks automatically. A

list of available networks will be displayed. Please select

your desired network from the list.

English

To Connect to a Wired Network

- You must have a modem/router connected to an active broadband connection.

- Connect your TV to your

cable. There is a LAN port at the rear (back) of your TV.

EXN input on the rear side of the TV

To configure wired settings please refer to

the Network/Internet System>Settings Menu.

- You might be able to connect your TV to your LAN

depending on your network's configuration. In such a

case, use an ethernet cable to connect your TV directly to the network wall outlet.

LAN input on the rear

side of the TV

Configuring Wired Device Settings

Network Type

The Network Ty

Wireless Device

active connection Device if you are

Device if you are Internet Space

Internet Speed Test

Highlight Internet Spee

Advanced Settings

Highlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS

settings of the TV. Highlight the desired one and press

	56Hz 60 Hz 66Hz 70Hz 72Hz 75Hz
640x400				☑
640x480		☑	☑		☑	☑
800x600	☑	☑		☑	☑	☑
832x624						☑
1024x768		☑	☑	☑	☑	☑
1152x864		☑		☑		☑
1152x870						☑
1280x768		☑				☑
1360x768		☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑

System>Sound menu, for remote controllers the Smart Remote option in the System>Settings>More menu. Select the menu option and press the OK button to open the related menu. Using this menu you can discover and connect the devices that use the same wireless technology and start to use them. Follow the on-screen instructions. Start the device discovery. A list of available wireless devices will be displayed. Select the device you want to connect from the list and press the OK button to connect. If "Device connected" message is displayed, the connection is successfully established. If the connection fails try it again.

Image transfer and audio streamingYou can also use this type of connection to transfer images or stream audio from your mobile device to your TV.Pair the mobile device and the TV as described before. Start a device search in your hand-held device. Select your TV from listed devices. Confirm the request for connection on your TV screen and do the same on your hand held device screen. If no pairing is done, image transfer or audio streaming to the TV will not be possible.The images sent by mobile device will be displayed on the TV without confirmation request, if the image file is suitable. You can also save the image file to a connected USB memory drive or set as boot logo, if this feature is supported and the file is suitable. Press the Exit button to terminate displaying the image.The audio will be routed through the speakers of the TV, after confirmation is given. To start audio streaming unpair the device from your TV if it is paired with your TV previously. After pairing is completed, a confirmation message will be displayed asking whether you want to start audio streaming from your mobile device. Select Yes and press the OK button on the remote of the TV. If the connection is succeeded, all audio will be routed through the speakers of the TV. A symbol will appear on the upper side of the TV screen as long as the audio streaming connection is active. To terminate the audio streaming, you should turn off the wireless connection of your mobile device.Close all running applications and all the menus on the TV for a trouble-free transfer. Only image files with sizes smaller than 5 MB and in the following file formats are suitable; .jpg, .jpeg, .png, bmp. If a file sent by the mobile device does not suit these requirements, it will not be displayed on the TV.Note: Wireless devices may operate within the same radio frequency range and may interfere with one another. To improve the performance of your wireless device place it at least 1 meter away from any other wireless devices.

Note:If the modem supports N mode, you should set N mode settings.If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control.Wait until the IP address is shown on the screen.This means that the connection is now established. To disconnect from a wireless network, highlight Network Type and press Left or Right buttons to set as Disabled. Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highlight Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Press the OK button to save settings when complete.Other InformationThe status of the connection will be displayed as Connected or Not Connected and the current IP address, if a connection is established.Connecting to your mobile device via WiFi• If your mobile device has WiFi feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software.• Connect to your router following the steps stated above in the Wireless Connectivity section.• Afterwards, engage your mobile device with the router and then activate the sharing software on your mobile device. Then, select files that you want to share with your TV.• If the connection is established correctly, you will be able to access the shared files from your mobile device via the Media Browser of your TV.• Enter the Media Browser menu and the playback device selection OSD will be displayed. Select your mobile device and press the OK button to continue.• If available, you can download a virtual remote controller application from the server of your mobile device application provider.Note:This feature may not be supported on all mobile devices.Wake ONWake-on-LAN (WoL) and Wake-on-Wireless LAN (WoWLAN) are standards that allow a device to be turned on or woken up by a network message. The message is sent to the device by a program executed on a remote device connected to the same local area network, such as a smartphone.Your TV is WoL and WoWLAN compatible. To enable this feature set the Wake On option in the Network/Internet Settings menu as On. It is necessary that both the device, from which the network message will

be sent to the TV, and the TV are connected to the same network. Wake On feature is only supported for Android OS devices and can only be used via YouTube and Netflix applications.In order to use this feature the TV and the remote device should be connected at least once while the TV is on. If the TV is powered off, the connection should be reestablished, the next time it is switched on. Otherwise this feature will be unavailable. This does not apply, when the TV is switched into the standby mode.The performance of some devices in the market, may vary due to the software architecture. In order to use Wake On feature with a better performance, please make sure that your device has latest firmware version.Wireless DisplayWireless Display is a standard for streaming video and sound content by Wi-Fi Alliance. This feature provides the ability to use your TV as wireless display device.Using with mobile devicesThere are different standards which enable sharing of screens including graphical, video and audio content between your mobile device and TV.Plug the wireless USB dongle to TV first, if the TV doesn't have internal WiFi feature.Then press the Source button on the remote and switch to Wireless Display source.A screen appears stating that the TV is ready for connection.Open the sharing application on your mobile device. These applications are named differently for each brand, please refer to the instruction manual of your mobile device for detailed information.Scan for devices. After you select your TV and connect, the screen of your device will be displayed on your TV.Note:This feature can be used only if the mobile device supports this feature. Scanning and connecting processes differ according to the programme you use. Android based mobile devices should have the software version V4.2.2 and above.Connecting Other Wireless DevicesYour TV supports another short range wireless connection technology too. A pairing is required before using these kind of wireless devices with the TV set. You should do the followings to pair your device with the TV:Set the device to pairing modeStart device discovery on the TVNote:Refer to the user manual of the wireless device to learn how to set the device to pairing mode.You can connect audio devices or remote controllers wirelessly to your TV. Unplug or switch off any other connected audio device in order for wireless connection feature to work correctly. For audio devices you should use the Audio Link option in the

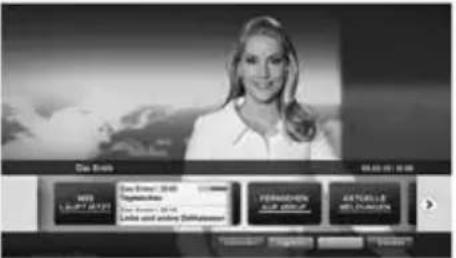

Other Information

Highlight the Speed Dial - button and press the OK button. Then select Add to Speed Dial option and press the OK button. Fill in the blanks for Name and Address, highlight OK and press the OK button to add. Whilst you are on the site you wish to add to the Speed Dial list, highlight the Opera- button and press the OK button. Then highlight Add to Speed Dial option in the submenu and press the OK button again. Name and Address will be filled automatically according to the site you are visiting. Highlight OK and press the OK button to add. You can also use the Opera menu options to manage the browser. Highlight the Opera- button and press the OK button to see available page specific and general options.There are various ways to search or visit websites using the web browser.Enter the address of a website(URL) into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to visit the site.Enter keyword/s into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to start a search for the related websites.Highlight a Speed Dial thumbnail and press the OK button to visit the related website.Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor into the USB input of your TV for easier and quicker navigation.Some web pages include flash content. These are not supported by the browser.Your TV does not support any download processes from the internet via the browser.All sites on the internet might not be supported. According to the site; content problems may occur. In some circumstances video contents might not be able to be played.HBBTV SystemHbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, EPG, interactive advertising, personalisation, voting, games, social networking and other multimedia applications.HbbTV applications are available on channels where they are signalled by the broadcaster (currently various channels on Astra broadcast HbbTV applications). The broadcaster marks one application as “autostart” and this one is started by the platform automatically. The autostart applications are generally launched with a small red button icon to notify the user that there is an HbbTV

application on that channel. Press the red button to open the application page. After the page is displayed you can go back to the initial red button icon state by pressing the red button again. You can toggle between the red button icon mode and full UI mode of the application via pressing red button. It should be noted that the red button switching capability is provided by the application and some application may behave differently.If you switch to another channel while an HbbTV application is active (either in red button icon mode or full UI mode), the following scenarios can occur.The application can continue running.The application can be terminated.The application can be terminated and another autostart red button application can be launched.HbbTV allows the applications to be retrieved both from broadband or broadcast. The broadcaster may enable both ways or one of them. If the platform does not have an operational broadband connection, the platform can still launch applications transmitted on broadcast.The autostart red button applications generally provide links to other applications. An example of this is shown below. The user then can switch to other applications by using the links provided. The applications should provide a way to terminate themselves, usually Exit button is used for this.Figure a: Start bar applicationFigure b: EPG application, broadcast video is shown on the left bottom, can be terminated by pressing 0.HbbTV applications use keys on the remote control to interact with the user. When an HbbTV application is launched, the control of some keys are owned by the

Using Audio Video Sharing Network ServiceAudio Video Sharing feature uses a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network.This standard allows you to view and play photos, music and videos stored in the media server connected to your home network.1. Server Software InstallationThe Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC or if the required media server software is not installed onto the companion device. Please prepare your PC with a proper server programme.2. Connect to a Wired or Wireless NetworkSee the Wired/Wireless Connectivity chapters for detailed configuration information.3. Play Shared Files via Media BrowserSelect Media Browser by using the directional buttons from the main menu and press OK. The media browser will then be displayed.Audio Video SharingSelect the desired media type on the main media browser menu and press OK. If sharing configurations are set properly, Device Selection screen will be displayed after selecting the desired media type. If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the Up or Down buttons and press OK. If you want to refresh the device list, press the Green button. You can press Menu to exit.If you select the media type as Videos and choose a device from the selection menu. Then select the folder with video files in it on the next screen and all the available video files will be listed.To play other media types from this screen, you can go back to main Media Browser screen and select the media type as desired and then perform the network selection again. Or press the Blue button to switch to next media type quickly without changing the network. Refer to the Media Browser menu section for further information on file playback.If a problem occurs with the network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the Audio Video Sharing feature.PC/HDD/Media Player or any other devices that are compatible should be used with a wired connection for higher playback quality.Use a LAN connection for quicker file sharing between other devices like computers.Note: There may be some PC's which may not be able to utilize the Audio Video Sharing feature due to administrator and security settings (such as business PC's).

Internet PortalHINT: A broadband internet connection is required for high quality viewing. You must set the country option accordingly in the First Time Installation for proper operation of the internet portalPortal feature adds your TV a feature that allows you to connect a server on the Internet and view the content provided by this server over your Internet connection. Portal feature allows you to view the music, video, clip or web content with defined short-cuts. Whether you can view this content without interruption depends on the connection speed provided by your internet service provider.Press the Internet button on your remote control to open internet portal page. You will see icons of the available applications and services on the portal screen. Use the directional buttons on your remote to select the desired one. You may view the desired content by pressing OK after selecting. Press Back/Return button to return back to the previous screen.Moreover, you can access some features using the short-cut feature defined for the coloured or numeric buttons of your remote.Press the Exit button to quit the Internet portal mode.PIP Window (depending on portal service)Current source content will be displayed in the PIP window, if you switch to portal mode while on any active source.If you switch to portal mode while watching TV channels, current programme will be displayed in the PIP window.Notes:Possible application dependent problems may be caused by the content service providerPortal service content and the interface may be changed at any time without prior notice.Third party internet services may change, be discontinued or restricted at any time.Internet BrowserTo use the internet browser, enter the portal first. Then launch the Internet application on the portal.(*) The appearance of the internet browser logo may changeIn the initial screen of the browser, the thumbnails of the predefined (if any) links to web sites available will be displayed as Speed Dial options along with the Edit Speed Dial and the Add to Speed Dial options.To navigate the web browser, use the directional buttons on the remote or a connected mouse. To see the browser options bar, move the cursor to the top of the page or press the Back/Return button. History, Tabs and Bookmarks options and the browser bar which contains previous/next buttons, the refresh button, the address/search bar, the Speed Dial and the Opera buttons are available.To add a desired website to the Speed Dial list for quick access, move the cursor to the top of the page or press the Back/Return button. The browser bar will appear.

application. For example, numeric channel selection may not work on a teletext application where the numbers indicate teletext pages.HbbTV requires AV streaming capability for the platform.There are numerous applications providing VOD (video on demand) and catch-up TV services. The user can use play, pause, stop, forward, and rewind keys on the remote control to interact with the AV content.Note: You can enable or disable this feature from the More menu in System>Settings menu. Smart CenterSmart Center is a mobile application running on iOS and Android platforms. With your tablet or phone, you can easily stream your favourite live shows and programmes from your smart TV. Also; you can launch your portal applications, use your tablet as a remote control for your TV and share media files.Note: Being able to use all functions of this application depends on the features of your TV.Getting StartedTo use Smart Center features, connections have to be done properly. To get connected to your network wirelessly, plug in the Wi-Fi dongle to one of the USB ports if your TV doesn't have internal wifi feature. To be able to use internet based features, your modem/router must be connected to the internet.IMPORTANT: Make sure the TV and mobile device are connected to the same network.For media sharing feature Audio Video Sharing option should be enabled(if available). Press the Menu button on the remote, select System>Settings>More menu and press OK. Highlight Audio Video Sharing and change as Enabled. Your TV is ready to connect to your mobile device now.Install the Smart Center application onto your mobile device.Start the smart center application. If all connections are configured properly, you will see your TV's name on your mobile device. If your TV's name doesn't appear on the list, wait a while and tap on the Refresh widget. Select your TV from the list.Mobile Device screenOn the main screen you can find tabs to access various features.The application retrieves actual channel list from TV first when it starts.MY CHANNELS: The programmes of first four channels from the channel list retrieved from the TV are shown. You can change the listed channels. Press on the channel thumbnail and hold. A list of channels will be displayed and you can choose your desired channel to be replaced.TV: You can watch content through the TV tab. In this mode you can navigate through the channel list retrieved

from your TV and click on thumbnails to view the detail pages.RECORDINGS: You can view your active recordings(if available) and reminders through this tab. To delete any item, simply press on the delete icon found on each row.EPG: You can view the broadcast schedules of selected channel lists through this tab. You can also navigate through channels by pressing on the selected channel on the EPG grid. Please note that updating / refreshing the EPG information may take a while depending on your network and web service quality.Note: Internet connection is required for WEB based EPG informations.PORTAL: This tab displays the Portal applications in scrollable view. Unless FollowMeTV (if available) is active, the selected application will be displayed on your TV screen.Note: Internet connection is required. This tab is enabled if a portal page is in use.SETTINGS: Configure the application to your liking. You can change;Auto-lock (Only in IOS): The screen of the device automatically turns off after a certain amount of time. Default is off, which means the screen will always stay on.Auto-enable FollowMeTV: FollowMeTV function (if available) will start automatically when this setting is enabled. Default is disabled.Auto-connection to TV: When enabled, your mobile device will automatically connect to last connected TV and skips the TV search screen.Change TV (Only in IOS): Shows the currently connected TV. You can press on this setting to go to the "TV search" screen and change to a different TV.Edit custom channel list: You can edit your custom channel list using this setting.Choose channel list source: You can choose the channel list source to be used in the application. The options are "TV List" and "Custom List". Additionally you can activate "Remember my choice" option to set the selected channel list source as a constant choice. In this case if the selected source is available it will be used in the application.Version No: Displays the current version of the application.Detail PageTo open detail page tap on a programme. On the detail page screen you can get detailed information of the programmes you select. There are "Details", "Cast&Crew" and "Videos" tabs to find on this page.DETALS: This tab provides summary and information about the selected programme. Also there are links to facebook and twitter pages of the programme selected.

CAST&CREW: Shows all the people contributed to the current programme.VIDEOS: Provides videos on Youtube related to the selected programme.Note: For some functions an internet connection may be required.FollowMe TV Feature (If available)Tap on the FOLLOW ME TV widget located at the bottom left of the screen of your mobile device to change the layout for FollowMe TV feature.Tap the play icon to start streaming of the content from the TV to your mobile device. Available if your device is in your routers operation range.Notes:Note that only digital(DVB-T/C/S) SD channels are supported.Multilanguage audio support and subtitle on/off features are not functional.The streaming performance may change depending on the quality of your connection.Media Share PageTo access the Media Share widget tap on the Up-arrow on the bottom left side of the screen.If the Media Share widget is pressed, a screen is displayed where you can select the media file type to share with your TV.Note: Not all image file formats are supported. This function will not work if Audio Video Sharing feature is not supportedPortal LauncherTo access the Portal Launcher, widget tap on the Up-arrow on the bottom left side of the screen.You can access the portal page by tapping on the Portal Launcher widget.Note: Internet connection is required. This function will not work if a portal page is not in use.Smart Remote FeatureYou can use your mobile device as a remote control for your TV once it has connected to the TV. To use smart remote's full features tap on the Up-arrow on the bottom left side of the screen.Voice RecognitionYou can tap on the Microphone, widget and manage your application, giving voice commands such as "Portal", "Volume Up/Down!", "Programme Up/Down!".Note: This feature is only for android based devices available spacecraft PageThe keyboard page can be opened in two ways; by pressing the Keyboard window widget on the application screen or automatically by receiving a command from the TV.Requirements1. Smart TV

2. Network connection3. Mobile Device based on Android or iOS platform (Android OS 4.0 or higher; IOS 6 or higher version)4. Smart Center app.(to be found on online application stores based on Android and iOS platforms)5. Router modem6. USB storage device in FAT32 format (required for PVR feature, if available)Notes:For Android devices, Normal(mdpi), Large(hdpi) and Extra Large(xhdpi) screen sizes are supported. Devices with 3" or smaller screen sizes are not supported.For iOS devices, all screen sizes are supported.User interface of the Smart Center application is subject to change according to version installed on your device.

Especificación		Especificação Specification
Señal de Televisión	PAL B/G D/K K I/I'	Emissão de TV	PAL B/G D/K K I/I'	TV Broadcasting	PAL B/G D/K K I/I'
Canales de Recepción	VHF (BANDA I/III) UHF (BANDA U) HIPERBANDA	Receção de Canais	HIPERBANDA - VHF (BANDA I/III) - UHF (BANDA U)	Receiving Channels	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Recepción Digital	Televisor de cable/digital totalmente integrado (DVB-T2-C)	Receção Digital	TV(DVB-T2-C) cabo digital terrestre satélite totalmente integrada	Digital Reception	Fully integrated digital terrestrial-cable TV(DVB-T2-C)
Número de Canales Predefinidos	1 000	Número de Canais Predefinidos	1 000	Number of Preset Channels	1 000
Indicador de Canal	Ayuda en pantalla	Indicador de canal	Visualização no Ecrã	Channel Indicator	On Screen Display
Entrada de Antena RF	75 Ohm (sin balance)	Entrada de antena RF	75 Ohm (não equilibrado)	RF Aerial Input	75 Ohm (unbalanced)
Tensión de Funcionamiento	220-240V AC, 50Hz.	Tensão de funcionamento	220-240V AC, 50Hz.	Operating Voltage	220-240V AC, 50Hz.
Audio	Alemán+Nicam Estéreo Áu		Alemanha+Nicam Estéreo	Audio	German+Nicam Stereo
Potencia de salida del audio (WRMS.) (10% THD)	2 x 2,5	Potência Saída Áudio (WRMS.) (10% THD)	2 x 2,5	Audio Output Power (WRMS.) (10% THD)	2 x 2,5
Consumo Eléctrico (en W.)	45	Consumo de energia (W)	45	Power Consumption (W)	45
Red en espera (en W)	< 3	Em espera ligado à rede (W)	< 3	Networked Standby (W)	< 3
Dimensiones del TV AxAxF (con soporte)	135 x 554 x 370	Dimensões TV P/C/A (com pé) (mm)	135 x 554 x 370	TV Dimensions DxLxH (with foot) (mm)	135 x 554 x 370
Dimensiones del TV (sin soporte) AxAxF (en mm.)	35/61 x 554 x 336	Dimensões TV P/C/A (sem pé) (mm)	35/61 x 554 x 336	TV Dimensions DxLxH (without foot) (mm)	35/61 x 554 x 336
Pantalla	24"	Exibir	24"	Display	24"
Temperatura y humedad de funcionamiento	Desde 0°C hasta 40°C, 85% humedad máx.	Temperatura e humidade de funcionamento	0°C até 40°C, 85% humidade máx.	Operation temperature and operation humidity	0°C up to 40°C, 85% humidity max

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		75	75
C	Screw Sizes
D	Length (X)	min. (mm)	5
		max. (mm)	8
E	Thread (Y)	M4

A	Product Fiche
B	Commercial Brand:SVAN
C	Product No.	10116814
D	Model No.	SVTV024SWBL
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	24 inches	61 cm
G	On mode average power consumption (Watt)	19,0
H	Annual energy consumption (kWh/annum)	27
I	Stand by power consumption (Watt)	0,50
J	Off mode power consumption (Watt)	N/A
K	Display resolution (px)	1366x768

	A	B	C	D	E	F	Visible screen size(diagonal, approx.) (inch/cm)
English	Product Fiche Commercial Brand Product No.			Model No. Energy efficiency class			Sichtbare Bildschirmgröße(diagonal,ca.) (Zoll /cm)
Deutsch	Produkt-Datenblatt	Markenzeichen		Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	(الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)(الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي(الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الصوي)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbit)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbital)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص orbits)الص struts (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts) (dusts).
Български	Справочен лист с техническите данни	Търговска марка		Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана (диагонал,прибл.) (инча /см )
čeština	Produktový list	Značka výrobce		Číslo produktu	Model č.	Energetická třída	Viditelná velikost obrazový (úhlopříčka,příbl.) (palců /см )
Dansk	Produktoplysningsskema	Varemærke		Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki		Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyvan kuvaruudun koko (diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale		Produit N°	Modèle N°	Classe d'efficacité énergétique	Tallie d'ecran visible (diagonale,approx.) (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka		Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljiva velicina ekrana (díjagonalna,približno) (inča/cm)
Nederlands	Productfiche	Commercieel merk.		Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermigrootle (diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial		N° de Producto	N° de Modelo	Clasificación Energética	Tamano de pantalla visible (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke		Produktnr.	Modellnr.	Energiklass	Synlig skærmstorlek (diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale		Numero prodotto	Numero modello	Classe di efficienza energetica	Dimensioni visibili delio schermo (diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU Marka produktu Nr produktu Nr modelu					Klasa efektywności energetycznej	Widoczny obraz ekranu (przekątna,około)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka		Termékszám	Modellszám	Energiahatékonysági osztály	Lathato keptartomany (diagonalis,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare		Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skærmstørrelse (diagonal,ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial		Produto N°	Modelo N°	Classificação eficiência energética	Tamanno ecra visivel (diagonal,aprox.) (polegadas/cm)
Română	Fişă produs	Marcă comercială		Nr. Produs	Nr. Model	Clasa de eficientă energetică	Dimenstunea ecranului vizibili (diagonală,aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали,приблизительно) (дюймов/см )
беларуская	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали,Около)(дюймов/см )
македонски	Технички податоци	Комерцијална марка		Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран (дијагонала,околу) (инчи/см )
український	Технічні дані	Кормеційна марка		Артикул	Модель	Клас енергоспоживання	Видимий розмір екрана (діагональ,Приблизно) (дюймів/см )
Srpski	Tehničke odlike	Komercijalna marka		Proizvod br.	Model br.	Klasa energetske efikasnosti	Veilcina vidljivog ekrana (díjagonala,tokom) (inča/cm)
Slovenčina	Produktový list	Značka výrobcu		Číslo produktu	Model č.	Energetická trieda	Viditelná velikost obrazovky (uhlopriečka,zhruba)(palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka		Št. İzdélka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллянік	Делтію проївтоє	Емторік огіма		Ар. Проївтоє	Ар. Монтелю	Катууорія евруYEικής απόδοσης	Ороло peyeвоє одвініς (діогувію,тер.) (івтос/см )
Bosanski	Tehnički podaci	Komercijalna marka		Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva velicina ekrana (diagonalapribližno.) (inča/cm)
Ураль	Мостот 0013	Чиоа идца		Чиоа идца	Чиоа идца	Чиоа идца идца идца	(дүүү)(дүүү),дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү,дүүү
Türkçe	Ürün fişi	Ticari Marka		Ürün No.	Model No.	Enerji verimliliği sınıfı	Görulen ekran boyutu (çapraz,yakışk.) (inch/cm)
Shqip	Tě dhěnat e produktit	Marka tregtare		Nr. i produktit.	Nr. i modelit.	Klasa e eficiencês sê energjisë	Madhesia e ekranit te dukshem (diagonal,afërsisht) (inch/cm)
Lietuvių	Gaminio etiketė	Gamintojas		Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasė	Matomas ekran odydis (jstrizainė,approx.) (coliy/cm)
Latviešu	Produkta apraksts	Marka		Produkta nr.	Modelja nr.	Energoefektivitätes klase	Ekran aizmers (pa diognali,apmram)(collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma		Toote nr.	Mudeli nr.	Energiaklass	Vaadalava ekraani suurus (diagonaal,umbes) (tolli/cm)
فارمسي	مشخصات محصول	مارک تجاري		朦اره محصول	朦اره مدل	گروه کار أبی اززی	(شانى متر)

	G	H	I	J	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschattelem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	(Watt)	Stromverbrauch im ausgeschaltetem Zustand (Watt) Display-Auflösung (px)
عربي	متوسط استهلاك الطاقة عن اstenشغيل (فرণ)	(الاستهلاك 선وي للطائناکیلی واملاً(الطampa)	(استهلاک الطاقة في wr Problem Establishment) (فرণ)	(استهلاک الطاقة في wr Problem Establishment) (فرণ)	(остهلاک الطاقة في رечان القيمة) (فرণ)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишна консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Prüměrná spotřeba elektrické energie v zapnutém režimu (Wattú)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovostním režimu (Wattů)	Spotřeba elektrické energie ve vypnutém režimu (Wattů) Rozlišení disp	Peje (px)
Dansk	Gennemsnitligt stromforbrug i tændt tilstand (Watt)	Arligt energiforbrug (kWh/Arligt)	Strømforbrug (standby)(Watt)	Strømforbrug i slukket tilstand (Watt)	Skærmoplesning (px)
Suomi	Päällä-tilan keskimääräinen virrankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakovirran kulutus (Wattia)	Pois-tilan virrankulutus (Wattia)	Näytön erottelukyky (pikselia)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode 'arrêt' (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod sključen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik(kWh/Jaarlijks)	Stand-by stroomverbruik (Watt)	Uit-modus stroomverbruik (Watt)	Schemresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual) Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PÄ-läge (Watt)	Energikonsumtion per år (kWh/Arlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skärmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Średnie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Średnie zużycie energii w trybie oczekiwania (Watów)	Zuzycie energii w trybie wyłączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt) Éves energiafogyasztás	(kWh/Éves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pámodus gjennomsnittlig strømforbruk (Watt)	Arlig strømforbruk (kWh/Arlig)	Hvilemodus strømforbruk (Watt)	Av-modus strømforbruk (Watt)	Skjermopplösning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual) Consumo energia em stand-by (Watt)	Consumo annual energy (kWh/anual) Consumo energy em stand-by (Watt)	Consumo energy em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu în modul pomit (Watj)	Consum anual de energie (kWh/anual)	Consum electric în stare de repaus (Watj)	Consum electric în modul oprit (Watj)	Rezolutja ecranului (pixeli)
Русский	Средний расход энергии в режиме работы (Вт)	Ежегодный расход энергии (кВт/Год)	Расход энергии в режиме ожидания (ватт)	Расход энергии в выключенном режиме (Вт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/радавое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е вклучен	Годишна потрошувачка на енергија (kWh/Годишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня сложивана потужність у робочому режимі (Вт)	Середньорічна сложивана потужність (kWh/Pічне)	Сложивана потужність у режимі очікування (Вт)	Сложивана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključení (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključení (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemerná spotreba elektrickej energie v zapnutom režime (Wattov)	Ročná spotreba energie (kWh/Ročná)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vypnutom režime (Wattov)	Rezlišenie displeja (pixl.)
Slovenščina	Poraba električne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллэнvik	Мёση κατανάλωση ρεύματος λειτουργίας (Watt)	Ertría σα κατανάλωση ενέργειας (kWh/Ertría σα)	Κατανάλωση ρεύματος στην αναμονή (Watt)	Κατανάλωση ρεύματος στενεργοτοιηση (Watt)	Ανάλωση οδόνης (Піξελ)
Bosanski	Prosečna potrošnja kada je uključení (Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključení (Watt)	Rezolucija ekrana (piks.)
ن脫	(oxic)الن脫ت تفروت نفروت نفروت نفروت	(ن脫ت نفروت نفروت نفروت نفروت	(ن脫ت نفروت نفروت نفروت نفروت	(ن脫ت نفروت نفروت نفروت نفروت	(ن脫ت نفروت نفروت نفروت
Türkçe	Açık moddaki ortalama güç tüketimi (Watt)	Yilik enerji tüketimi(kWh/yıllık)	Bekleme durumunda enerji tüketimi (Watt)	Kapalı moddaki güç tüketimi (Watt)	Ekran çözünürlüğü (piks.)
Shqip	Konsumi mesatar i energijse si i ndezur (Watt)	Konsumi vjetor i energijse (kWh/vjetor)	Konsumi i energijse si né gatishměri (Watt)	Konsumi i energijse si i fikur (Watt)	Rezolucioni i ekranit (piks.)
Lietuvlių	Vidutinės energijos sąnaudos jungus (Vatai)	Metinės energijos sąnaudos (kWh/Metinės)	Energijos sąnaudos budėjimo režimu (Vatai)	Energijos sąnaudos išjungus (Vatai)	Ekrano skiriamoji geba (pikselių)
Latviešu	Energijas patērīņš aktīvā režīmā (Vati)	Gada energijas patērīņš (kWh/gada)	Energijas patērīņš gaidīśanas režīmā (Vati)	Energijas patērīņš izslēgta stāvokli (Vati)	Displeja rezolūcija (piksđiem)
Eesti	Keskmine energiakulu töörežimil (Vatti)	Aastane energiakulu (kWh/aastane)	Energiakulu ooterežimil (Vatti)	Energiakulu väljalūlitatud olekus (Vatti)	Ekraani resolutsoon (pikslt)
قارمسي	(مYZAN متوسط مصرف রوق ن Chadt نفال (Озт)	(مYZAN المزى مصروفى در سالاپاپروات (ساعادابر سال)	(مصرف বرق ح Igals آمده به کز (Озт)	(مYZAN مصرف বرق در خات غر Hel (Озт)	(مYZAN مصرف برق در خات جاكتر)
