M12HMW17E - Food processor MATSUI - Free user manual and instructions

Brand	Matsui
Model	M12HMW17E
Product Type	Hand Mixer
Power Supply	230V~50Hz, 125W
Number of Speeds	5 (including off)
Maximum Continuous Operation	5 minutes
Included Attachments	One pair of beaters
Beater Material	Metal (stainless steel)
Beater Release	Push-button release
Cord Length	Approximately 1 meter
Weight	Approximately 1.0 kg
Dimensions (HxWxD)	Approximately 20 x 10 x 15 cm
Housing Material	Plastic
Bowl Compatibility	Any sturdy bowl, large enough for ingredients
Usage	Indoor household use only
Safety Features	Overheat protection, automatic shut-off after 5 min continuous use
Cleaning	Motor unit: damp cloth; beaters: dishwasher safe
Storage	Wrap cord around base; store out of reach of children
Warranty	Standard 1-year manufacturer warranty
Certifications	CE, RoHS

Frequently Asked Questions - M12HMW17E MATSUI

What is the maximum power of the Matsui M12HMW17E hand mixer?

The Matsui M12HMW17E has a power rating of 125W at 230V~50Hz.

How many speeds does the M12HMW17E mixer have?

It offers 5 speeds, including an 'Off' position, controlled by a slide switch.

Can I use the mixer continuously for long periods?

No, the maximum continuous operation time is 5 minutes. After that, allow the motor to cool down before using again.

Are the beaters dishwasher safe?

Yes, the beaters can be washed in the dishwasher or by hand in warm soapy water.

How do I attach the beaters to the mixer?

Ensure the speed selector is 'Off' and unplugged. Push the beaters into the sockets until they click into place. Each beater can fit into either socket.

What types of mixtures can I make with this mixer?

It is suitable for whipping cream, egg whites, mixing batters, mayonnaise, sauces, and purees. Not recommended for heavy dough.

Can I immerse the motor unit in water?

No, never immerse the motor unit, cord, or plug in water. Clean the motor unit with a damp cloth only.

What should I do if the mixer stops suddenly during use?

The mixer has overheat protection. If it stops, unplug and let it cool for at least 5 minutes before resuming.

Is the mixer safe for children to use?

No, this appliance should not be used by children. Keep it and its cord out of reach of children.

Where can I find the user manual for the M12HMW17E?

The manual can be downloaded for free from notice-facile.com in PDF format, available in multiple languages.

USER MANUAL M12HMW17E MATSUI

White hand mixer with metal stand and whisk, no visible text or symbols

GB Contents

Safety Warnings....6

Unpacking....21

Product Overview....22

Introduction......23

First Time Use....23

Operation....24

After Use....24

Cleaning and Storage....25

Some Everyday Terms ......25

Hints and Tips....26

Specifications....26

NO Innhold

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all the instructions carefully before using your appliance and keep them for future reference.
• Unplug the appliance from the mains supply when not in use, and before removing, attaching or cleaning any part of the appliance.
• This appliance is for household use only. Do not use it for professional catering.
• Do not use the appliance outdoors.
• Do not immerse the appliance base unit or the mains cable or plug in liquids.
• Do not use the appliance near a source of heat or on an unstable surface.
• Do not use your appliance in damp or wet conditions.
• This appliance shall not be used by children.
• Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Ensure that the mains cable does not touch any hot surface and

that it does not overhang the edge of your work surface.

• There are no user serviceable parts in your appliance.
• Do not operate the appliance with a damaged mains cable or mains plug or after any appliance or attachment damage. Seek qualified technicians for assistance.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Do not use attachments or accessories which are not recommended by the manufacturer. They may cause malfunction or injury.
• Store the appliance away from direct sunlight and out of the reach of children.
• Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons, and/or damage to the appliance.
• Make sure that you use a bowl large enough to accommodate all the ingredients and that the bowl is sturdy enough to stand still during the mixing process.
• Switch the motor unit off when filling or emptying the mixing bowl, and when attaching or removing beaters.
• Remove beaters from the appliance before washing.
• Do not mix or blend mixtures containing fruit stones, etc.

• Do not use the mixer for any purpose not specified in this manual.

• Make sure the unit is earthed properly during use. Do not use the iron with any extension sockets. If in doubt, contact a qualified electrician.

• This appliance is intended for indoor household use and similar applications such as:

— farm houses and by clients in hotels, motels and other residential type environment;
— bed and breakfast type environment;
— catering and similar non-retail applications.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

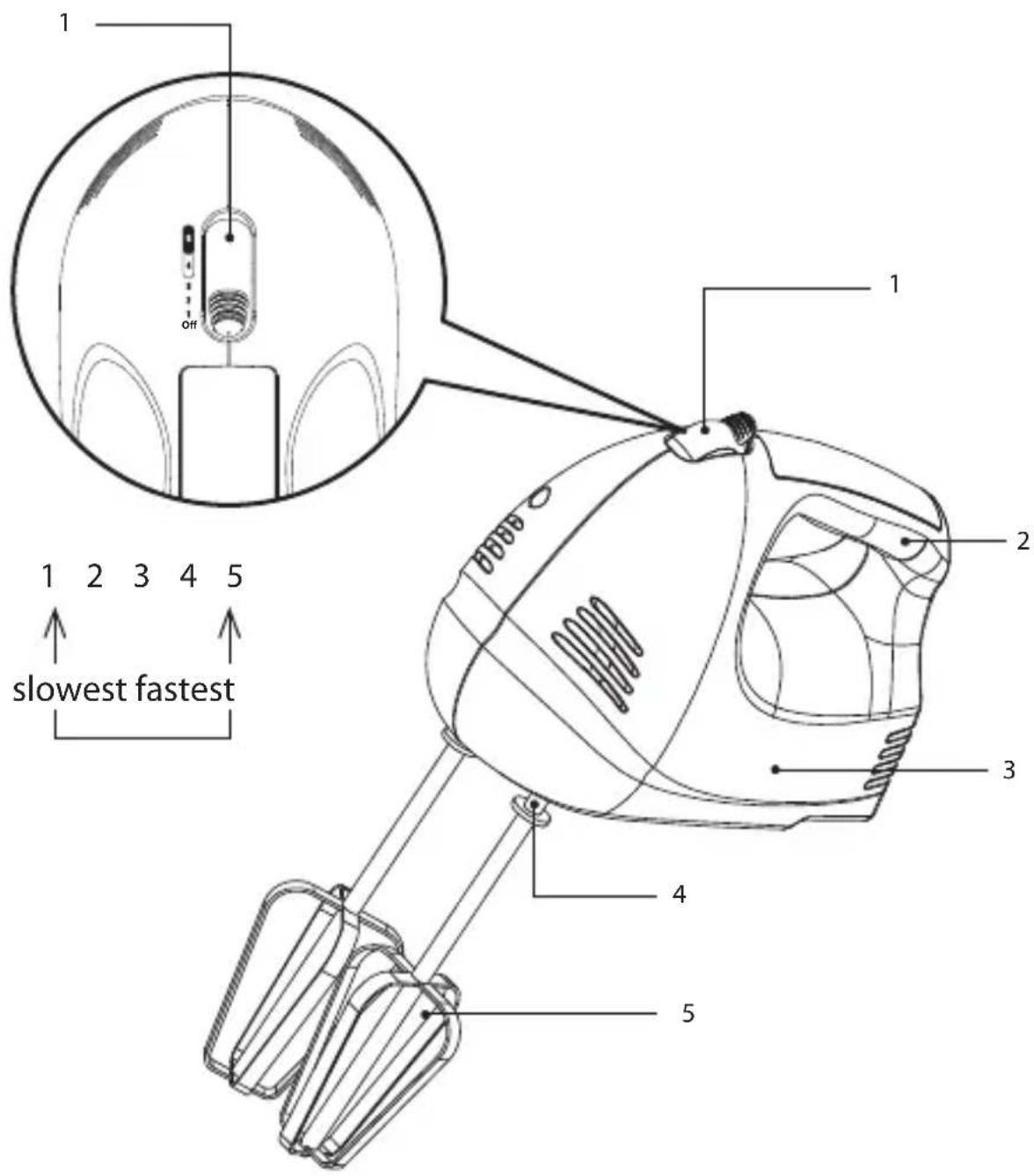

Line drawing of a hand mixer (no text or symbols)

The Main Unit

One Pair of Beaters

Instruction Manual

1. Speed Selector / Release Button

2. Handle

3. Motor Unit

4. Beater Sockets

Introduction

One set of beaters is provided. These are used for the majority of everyday mixing tasks. Use beaters for whipping egg whites and cream, and mixing batters, mayonnaise and purees. They are also suitable for mixing and stirring sauces, pudding mixes, etc. This mixer is not recommended for whipping any thick and heavy ingredients (for example, thick flour dough).

First Time Use

Before using your mixer for the first time

Wash the beaters in warm soapy water, rinse and dry thoroughly. Wipe the motor unit all over with a soft cloth dampened with soapy water. Then wipe with a clean damp cloth. Dry well. Do not immerse the motor unit, mains cable or plug in water.

Attaching the beaters

Ensure the speed selector is in the "Off" position and the unit is unplugged. The beaters must be used in matching pairs. Push the beaters one at a time into the sockets of the mixer base and rotate slightly until the beaters click into position.

Beaters can be inserted into either socket.

Line drawing of a mechanical device with two handles and a central body (no text or symbols)

Always make sure the mixer is unplugged from the mains when cleaning, attaching or removing accessories.

Operation

• Have all your ingredients prepared and ready before starting. Use a stout roomy bowl for your ingredients and do not overfill the bowl.
• Place the starter ingredients in the bowl.
• Select speed selector on the mixer to 'Off'.
• Plug the motor unit into the mains.
• Set the desired speed and start mixing. Commence with a low speed and gradually increase the speed as needed.
• If you have to add ingredients when mixing always set the Speed Selector to 'Off' first. Never permit the mixer to run 'hands off'.
• Do not operate the mixer continuously for more than 5 minutes. After 5 minutes of continuous use, allow for the motor to cool down before using the mixer again.

After Use

• Set the Speed Selector to 'Off', lift the mixer out of the mixture and unplug the mixer.
• Excess mixture may be scraped from the beaters with a flexible plastic or rubber spatula. Do not use metal spatulas for this purpose.
• Remove the beaters by holding the mixer by the handle and pressing the release button down. Hold each attachment by the spindle and remove them, one at a time.

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

Cleaning and Storage

• Disconnect the hand mixer from the mains socket.
• Remove the attached beaters.
• If the motor is warm, allow it to completely cool down. Wipe the outer surface of the motor unit with a damp cloth. Never use abrasive cleaners or scouring creams. Never immerse the motor unit in water.
• If food particles have adhered to the beater sockets or the ventilation slots in the motor unit, brush them out with a barely damp (not wet) brush.
• Wipe any excess food particles from the mains cable.
• Wash the beaters in warm soapy water and wipe dry. If preferred, the beaters may be washed in the dishwasher.
• After cleaning and drying, wrap the cable around the motor unit, and store it together with the attachments out of the reach of children.

Some Everyday Terms

Blend: Combine liquids, fold in dry ingredients, egg whites and whipped cream.

Stir: Prepare sauces, puddings, muffins and quick breads.

Mix: Prepare batters and mixes.

Beat: Cream butter and sugar, make cookie dough, cake mixes and frosting.

Whip: To whip light and fluffy mixtures, whip cream, beat eggs, make meringues.

Hints and Tips

• Ingredients should be at room temperature before mixing.
• Assembly all ingredients and utensils near the mixer.
• Break eggs into a separate container, then add to the mixture.
• When mixing egg whites even the smallest amount of oil on beaters or bowl may cause the egg whites not to aerate.
• When kneading yeast dough, we suggest the speed selector is in position 1 or 2 to achieve best results.
• Always start mixing at slow speeds. Gradually increase to the recommended speed as stated in the recipe.
• Only mix/blend mixtures as recommended in your recipe. At any stage of mixing, over beating can cause toughness, close texture, lack of rising or excessive shrinkage.
• When mixing dry ingredients use the lowest speed.
• During mixing, if you need to scrape the bowl, or add ingredients, turn the mixer off first.
• When mixing, lightly scraping the beaters after the addition of each ingredient assists in achieving efficient mixing. Switch the mixer off and then scrape the beaters with a flexible rubber or plastic spatula. NEVER USE ANY METAL IMPLEMENT.
• When mixing is complete, turn the speed selector 'Off' and unplug the cable from mains socket.

Specifications

Model M12HMW17E
Power 230V~50Hz, 125W
Maximum Operation Time 5 minutes

Features and specifications are subject to change without prior notice.

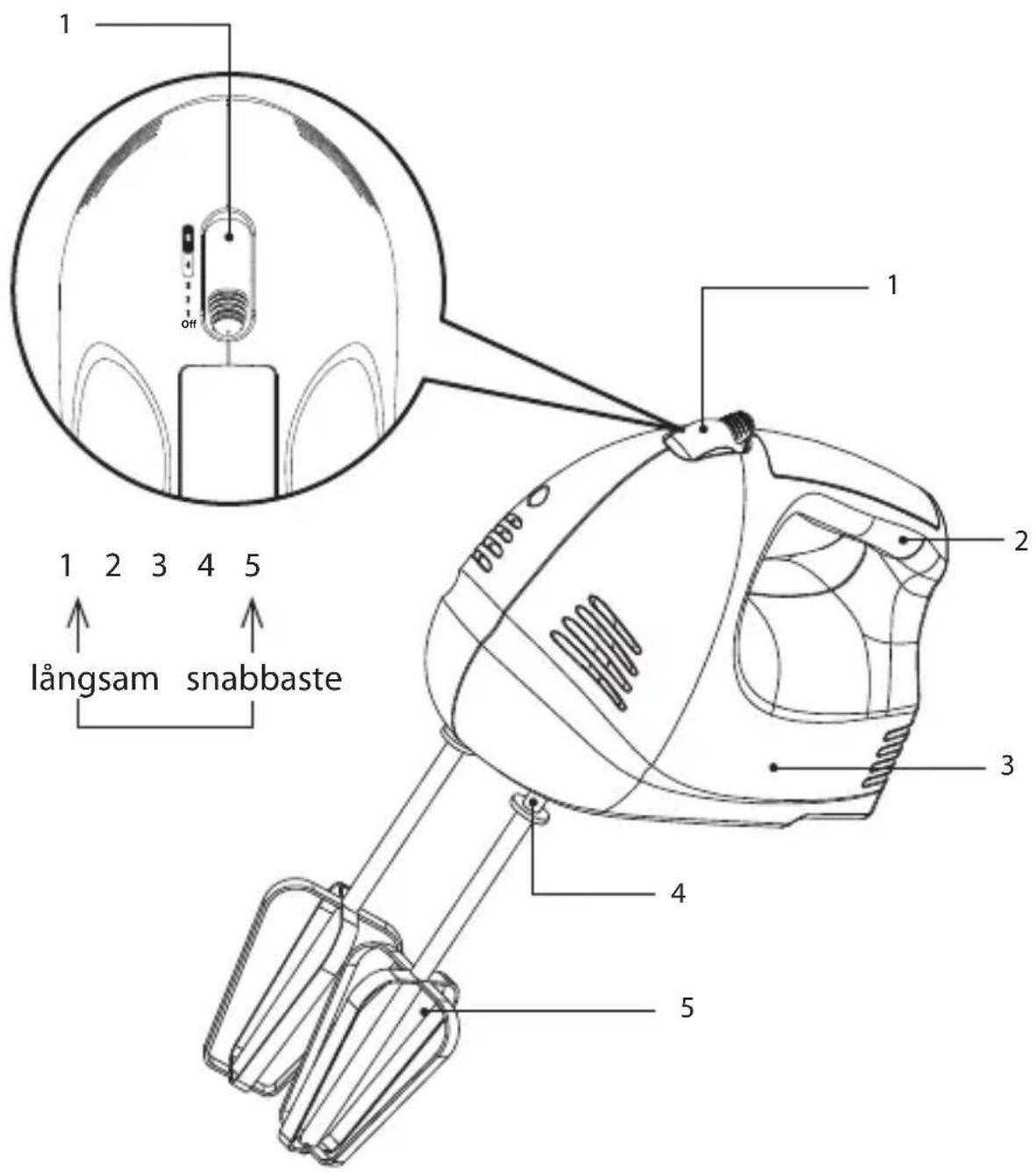

Takk for at du kjøpte ny produktet.

Line drawing of a hand mixer with handle and control buttons (no text or symbols)

Hovedenhet

To visper

Bruksanvisning

Line drawing of a hand mixer with two blades and a handle (no text or symbols)

Technical line drawing of a mechanical device with a downward arrow indicating force or motion (no text or symbols)

Line drawing of a hand mixer (no text or symbols)

Huvudenheten

Ett par vispar

Instruktionshandbok

Line drawing of a mechanical device with two vertical supports and a central body (no text or symbols)

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

Line drawing of a handheld electric shaver (no text or symbols)

Laite

Vatkainpari

Käyttöopas

Tuotekuvaus

Line drawing of a mechanical device with two vertical supports and a central body (no text or symbols)

Technical line drawing of a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

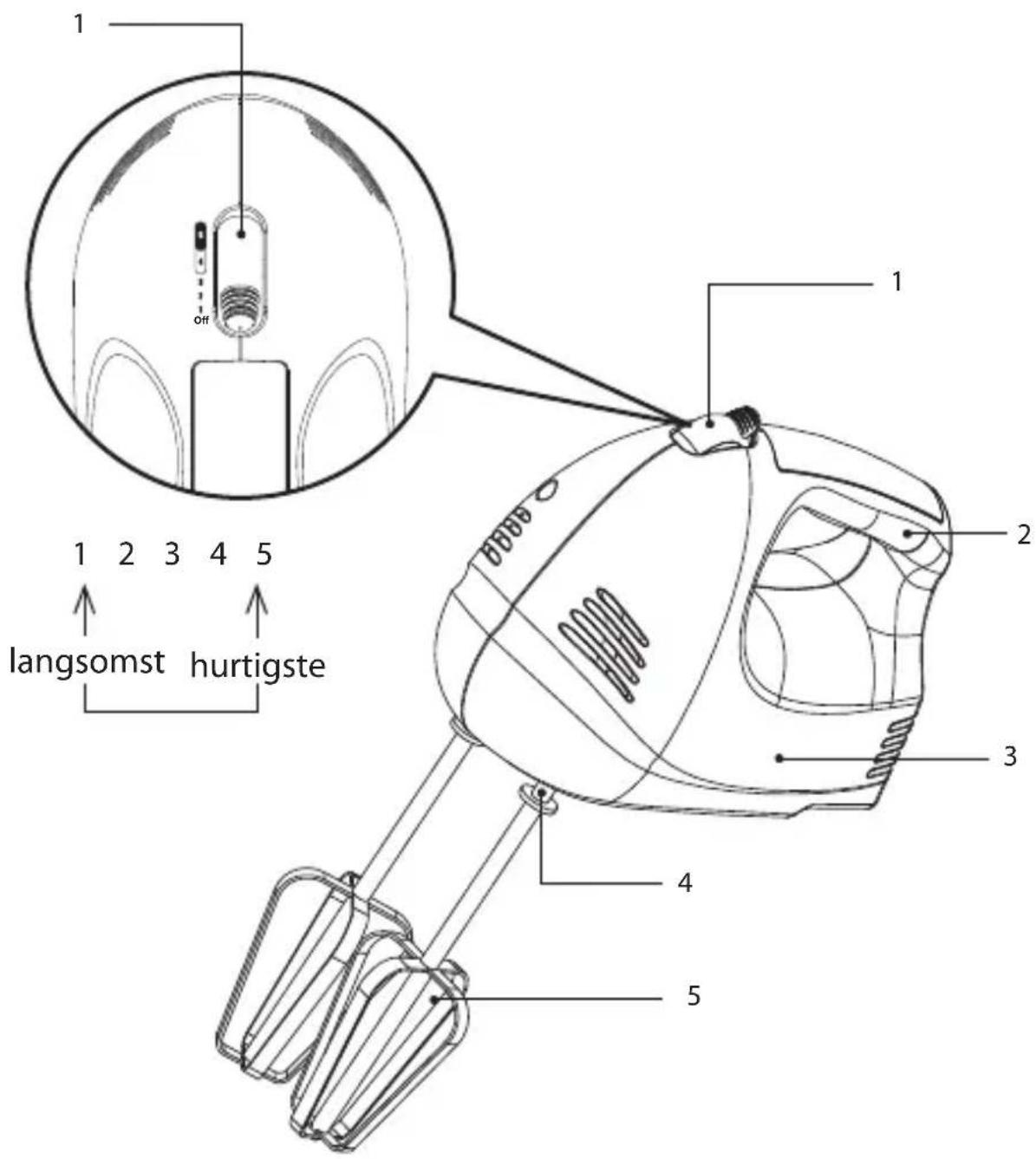

Line drawing of a hand mixer (no text or symbols)

Hovedenheden

Et sæt piskeris

Brugsvejledning

Produktoversigt

Line drawing of a mechanical device with two vertical blades and a central body (no text or symbols)

Technical line drawing of a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

GB

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

DSG Retail Ireland Ltd (259460)

3rd Floor Office Suite,

Omni Park SC, Santry, Dublin 9, Republic of Ireland

NO www.elkjop.no/support www.lefdal.com/support

SE www.elgiganten.se/support
