101 MAGNUS PLUS 12 - Tablet ARCHOS - Free user manual and instructions

Product type	Touchscreen tablet
Brand	ARCHOS
Model	101 MAGNUS PLUS 12
Approximate dimensions	240 x 170 x 9 mm
Approximate weight	500 g
Screen	10.1-inch IPS, resolution 1280 x 800 pixels
Processor	Quad-core 1.3 GHz
RAM memory	2 GB
Internal storage	32 GB (expandable via micro-SD)
Power supply	AC charger 5V, lithium-polymer battery 6000 mAh
Operating system	Android (version as per update)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Ports	1 x micro-USB, 1 x micro-USB host, 1 x mini-HDMI, 1 x 3.5 mm audio jack
Sensors	Front camera (webcam), rear camera with flash, microphone, speaker
Main functions	Web browsing, multimedia playback, gaming, productivity, ARCHOS Fusion Storage (internal memory + micro-SD fusion)
Maintenance and cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Security	Screen lock with pattern, PIN code or password
Spare parts and repairability	Built-in battery not user-replaceable. Contact ARCHOS support for any repairs.
General information	Manual downloadable at notice-facile.com. Support at www.archos.com.

Frequently Asked Questions - 101 MAGNUS PLUS 12 ARCHOS

How to turn on the tablet for the first time?

Press the ON/OFF button (5) located on the side. On first use, fully charge the battery. Follow the startup wizard to configure language, date/time, WiFi, etc.

What to do if the tablet does not turn on?

Charge the tablet for at least 10 minutes, then press the ON/OFF button for 10 seconds. If the problem persists, contact ARCHOS support.

How to connect to a WiFi network?

Swipe down the status bar, enable WiFi, then select your network. Enter the password if necessary. Check 'Show password' to see the entered characters.

What is ARCHOS Fusion Storage and how to activate it?

ARCHOS Fusion Storage merges the internal memory and the micro-SD card into a single space. Insert a micro-SD card, then accept the merge suggestion. The device restarts automatically.

How to disable ARCHOS Fusion Storage?

Go to Settings > ARCHOS Fusion Storage, then select 'Disable ARCHOS Fusion Storage' and confirm. The device restarts to apply changes.

How to take a screenshot?

Press and hold the ON/OFF button and the Volume down button simultaneously for a few seconds. The screenshot is saved to the gallery.

Why is the tablet running slowly?

Close unused apps by swiping them up in the recent apps list. You can also restart the tablet.

How to extend battery life?

Lower screen brightness and disable WiFi, Bluetooth, or location when not in use.

What to do if the screen freezes or the tablet becomes unresponsive?

Press the ON/OFF button for 10 seconds to force a restart. If the problem persists, perform a reset using the reset button (12).

How to update the tablet software?

Go to www.archos.com/support and download the update. You can also check for updates in Settings > About tablet > System update.

USER MANUAL 101 MAGNUS PLUS 12 ARCHOS

Package contents....2

Getting started....3

Description of the device....4

Through the wizard....6

Connecting to a WiFi network....7

The Android ^TM interface....8

Getting familiar with Android ^TM ....12

Troubleshooting....14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Gradient color bar transitioning from black to white (no text or symbols)

Color palette bar with 10 distinct squares in yellow, magenta, cyan, blue, green, red, black, and gray (no text or symbols)

Package Content

Front view of a tablet device with a black screen and 'ARCHOS' label at the bottom (no other text or symbols)

ARCHOS 101 Magnus Plus

QSG booklet

Warranty, legal & safety booklet

Coiled black cable with a connector (no text or symbols visible)

USB cable

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Charger

2

Getting Started

Charging

Circular diagram showing a plug inserted into a device with a central dot and diagonal lines (no text or symbols)

1. Charge your device by plugging your power cable into the power connector. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.

The charging indicator light is on when the battery is charging.

• You can use your ARCHOS whilst it charges.
• Let your device charge completely the first time you use it.
• Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

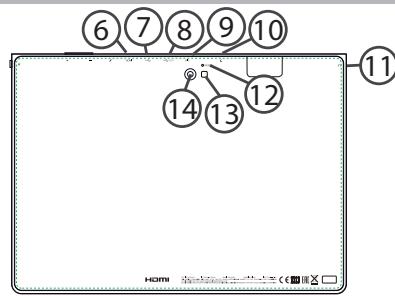

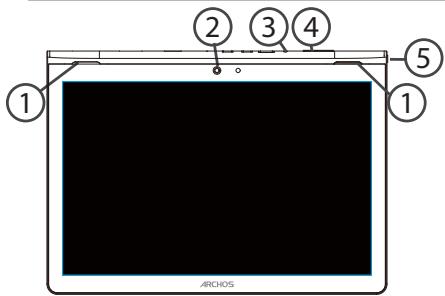

Description of the device

① Loudspeaker
② Front camera
③ Volume buttons
④ Power connector
⑤ ON/OFF button

⑥ Mini-HDMI video output ^(1)
⑦ Micro-USB port
⑧ Micro-USB host port ^(2)
⑨ Microphone
⑩ Micro-SD card slot

⑪ Headphone jack
⑫ Reset button
⑬ Flash light
⑭ Back camera

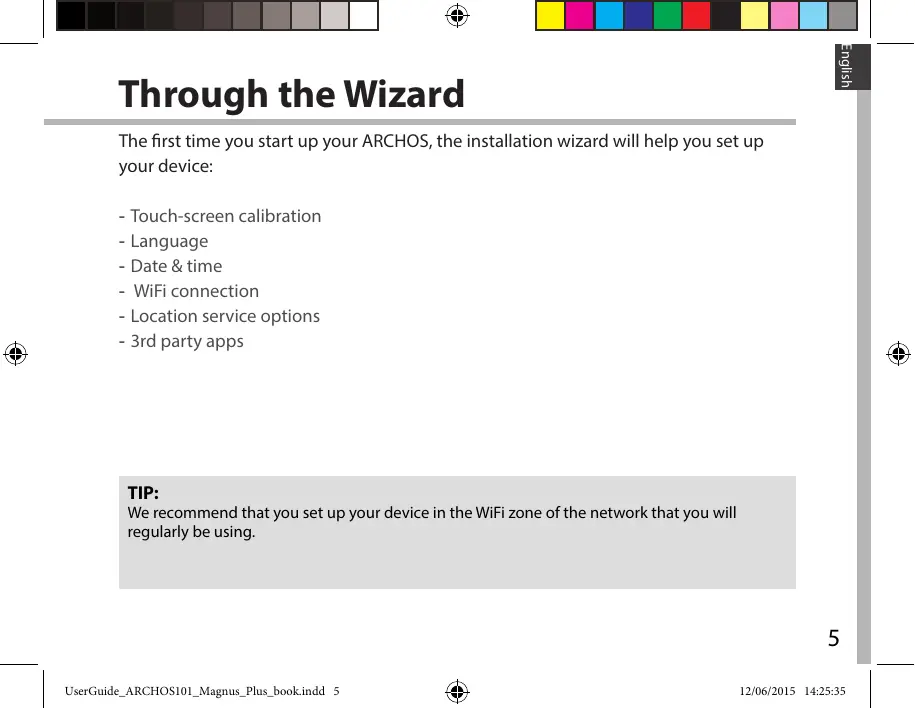

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Touch-screen calibration
• Language
• Date & time
• WiFi connection
• Location service options
• 3rd party apps

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

CAUTION: Make sure that you are in a WiFi zone.

Digital interface screenshot showing a colorful abstract background with a fingerprint icon and status bar (no readable text or symbols)

① Touch and hold the time & battery icons to reveal the status bar. A blue line is displayed.

Illustration of a finger pressing a horizontal line on a black background (no text or symbols)

② Pull the blue line down to display the status dashboard.

③ Touch "WiFi off" in the status dashboard. The WiFi page will be displayed.

④ Slide the WiFi switch to "ON" positon.

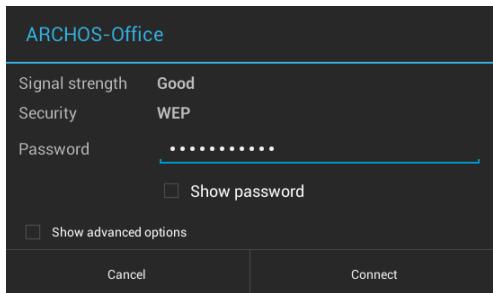

⑤The ARCHOS will scan for Wifi networks in range. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

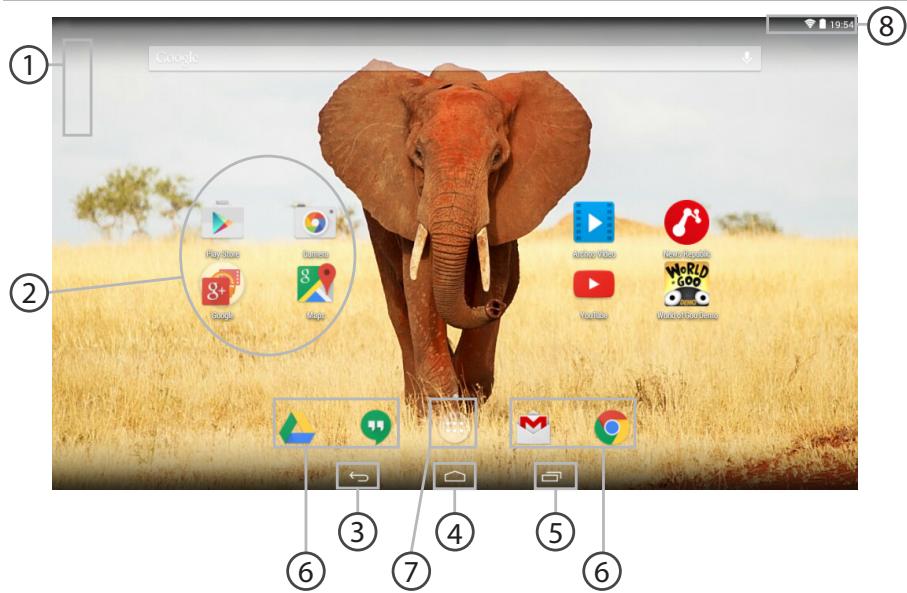

The Android™ Interface

① Google™ Search

Touch "Google" for text search or touch the microphone icon for voice search.

② Android™ apps shortcuts

Touch to start an application.

③ Back button

④ Home button

⑤ Recent apps buttons

⑥ Permanent Android™ apps shortcuts

Touch to start an application

⑦ All Apps button

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

⑧ The status bar

Displays notifications and quick settings

The Android™ Interface

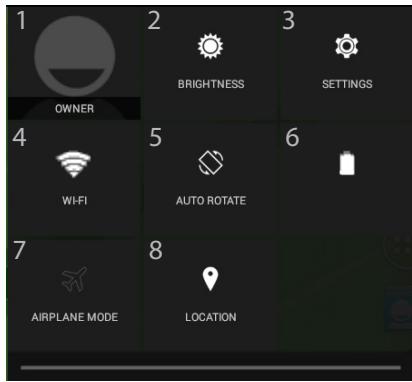

The Quick settings

1 Current user*
2 To adjust the screen brightness.
3 To access all your settings.
4 To turn on/off your WiFi connection.
5 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
6 Percentage of battery remaining
7 To activate/deactivate all wireless connections, especially when flying.
8 Location services

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

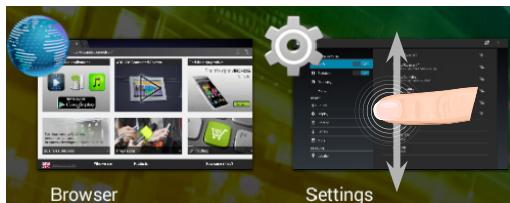

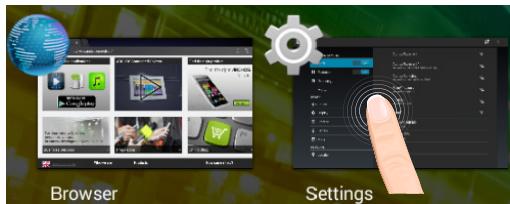

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Hold down: to display options

Swipe up or down: to close an app.

ARCHOS Fusion Storage

Setting up fusion storage

1. Insert a micro-SD card in the device's micro-SD card slot.

Make sure to insert the card in the right direction.

Your device will detect the micro-SD card automatically and offers you to merge the internal storage with the micro-SD card.

1. Select "OK".

2. Select "OK" in the Optimizing storage window to confirm your choice.

Simple line drawing of an oval shape with a vertical line and a small rectangular cutout on the left side (no text or symbols)

Archos Fusion Storage

A new SD card has been detected.

You can enable Archos Fusion Storage so as to increase your storage.

Enable ?(reboot required)

Not now

OK

2

Optimizing storage

Archos can optimize the already used storage so as to free some space for installing apps.

No data will be lost.

Optimize?

Cancel

OK

3

The device will reboot.

• When the device restarts, you are informed that the ARCHOS Fusion storage is active.
• In the status bar, a notification is displayed.
• Select the Settings app, then ARCHOS Fusion Storage. The merged storage is displayed.

Disabling fusion storage

1. Select the Settings app.
2. In the Settings app, select ARCHOS Fusion Storage.
3. When the ARCHOS Fusion Storage is active, select
   "Disable ARCHOS Fusion Storage" and confirm.
   Your device will reboot in order to apply the changes.

OPTIONS

Disable Archos Fusion Storage

Get back to the initial configuration

Tip:

We recommend you to turn off the device before inserting the micro-SD card.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Illustration of a hand interacting with a touchscreen display showing three square icons (no text or symbols)

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.
Update the firmware of the device: http://www.archos.com/support.
Reset and redefine your connection parameters.
Contact your WiFi connection provider.
