Product Type	Kitchen extractor hood
Brand	Gram
Model	EFU 601-91
Installation Type	Wall-mounted (chimney type)
Width	60 cm (approx.)
Depth	50 cm (approx.)
Height	30 cm (approx.)
Weight	12 kg (approx.)
Power Supply	220-240 V ~ 50 Hz
Rated Power	150 W (approx.)
Fan Speeds	3 speeds
Lighting	Independent lighting (incandescent/halogen/LED modules)
Grease Filter Type	Aluminium mesh (washable)
Charcoal Filter	Optional for recirculation mode (replace every 2 months)
Operation Modes	Extraction (duct to outside) and recirculation (with carbon filter)
Control Type	Mechanical buttons (pull-out front panel)
Installation Height	Min. 65 cm above electric hob, check gas cooker manual for greater distance
Duct Diameter	120 mm or 150 mm
Maximum Duct Length	4-5 m
Safety Features	No open flame under hood, automatic shut-off? (not specified), child safety warnings
Cleaning	Monthly cleaning of grease filter (dishwasher safe); wipe exterior with damp cloth and neutral detergent
Environmental Compliance	Low Voltage, EMC, ErP directives; WEEE compliant

Frequently Asked Questions - EFU 601-91 GRAM

What is the correct installation height above a gas hob?

For gas hobs, follow the gas cooker manufacturer's instructions; if greater than the hood's minimum, use that distance. Typically, a minimum of 65 cm above electric hobs is recommended.

How do I switch between extraction and recirculation mode?

For extraction mode, connect the hood to an external duct (120 mm diameter) and remove any carbon filters. For recirculation mode, install activated charcoal filters and ensure air can recirculate through the front openings.

How often should the grease filter be cleaned?

Clean the aluminium grease filter at least once a month. You can wash it in the dishwasher or by hand using mild detergent. Note that the colour may change after several washes, which is normal.

How do I replace the charcoal filter?

Charcoal filters cannot be washed; replace them every 2 months or more often with heavy use. Refer to Figure 6 in the manual for dismantling instructions.

What should I do if the hood stops working?

First, check the power supply and plug. Ensure the front panel is properly pulled out to activate the fan. If it still doesn't work, contact a qualified technician for repair.

Can I use the hood without a duct?

Yes, in recirculation mode (odour absorber) you do not need an external duct, but you must install activated charcoal filters to filter the air before it returns to the room.

How do I change the light bulbs?

Refer to Figure 7 in the manual. Use incandescent, halogen, or LED modules of the same specification as the original. Always disconnect the hood from the power before replacing.

What cleaning products should I avoid?

Avoid solvents, alcohol, caustic substances, rough or abrasive cloths, and soaked cloths or sponges. Use a damp cloth with neutral detergent for exterior surfaces.

Is it safe to leave the hood on while cooking with oil?

Always monitor cooking with oil or fat to prevent overheating, which can cause fire. Use the hood at low speed for normal conditions; higher speeds for strong odours.

What are the environmental disposal instructions?

Do not dispose of the appliance with household waste. Cut the power cord and take it to a designated recycling center for electrical and electronic equipment, following local WEEE regulations.

USER MANUAL EFU 601-91 GRAM

Before using the appliance, please carefully read this manual!

BETJENINGSVEJLEDNING - EMFANG

Technical line drawing of a mechanical component with a circular top and base plate (no text or symbols)

3a

Isometric line drawing of a rectangular box with labeled corners A, B, C, D (no text or symbols beyond labels)

3b

3D diagram of a rectangular electronic component with mounting base and labeled points A, B, C, D (no text or symbols beyond labels)

Illustration of a hand opening a laptop with a mesh screen, showing the lid and tray (no text or symbols)

3c

3d

3D diagram of a cabinet with ventilation ducts and a mesh vent (no text or symbols)

3e

Technical line drawing of a mechanical assembly with a magnified inset showing two circular components (no text or symbols)

Simple line drawing of a vertical rectangular frame with a horizontal double bar and a small protrusion, no text or symbols present.

Technical line drawing of a mechanical assembly with an inset magnified detail (no text or symbols)

4a 4d

Technical line drawing of a mechanical assembly with no visible text or symbols

Hand pressing a rectangular object with a downward arrow, no text or symbols present

5

Technical illustration of a fan assembly with internal blades and fan blades, showing rotational motion (no text or symbols)

Diagram of a kitchen ventilation system with three fans and a rotating fan (no text or symbols)

6a 6b

Technical line drawing of a mechanical component with an open bulb and internal housing (no text or symbols)

7a 7|b

THANK YOU FOR PURCHASING AN GRAM APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS

GUIDELINES CONCERNING THE SAFETY OF USE 9

INSTALLATION

11

OPERATION

AND

MAINTENANCE

11

ENVIRONMENTAL

PROTECTION

13

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

● Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

● Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

●The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not ex-

tend outside the pot, because it causes un- wanted loss of energy and a dangerous con- centration of heat.

●Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.
●Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.
●The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).
- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is

maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

●Do not lean on hood
●The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
  ●Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.
  ●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ●Children should be su-

pervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  ●Before installing unwind and straighten the power cord.
  ●Warning! The packaging materials (polyethylene bags, small pieces of foamed poly-

styrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

INSTALLATION

Installation

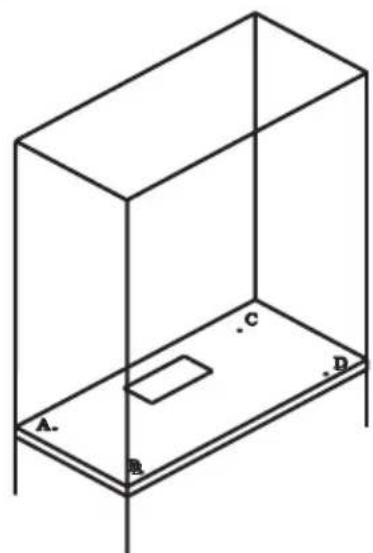

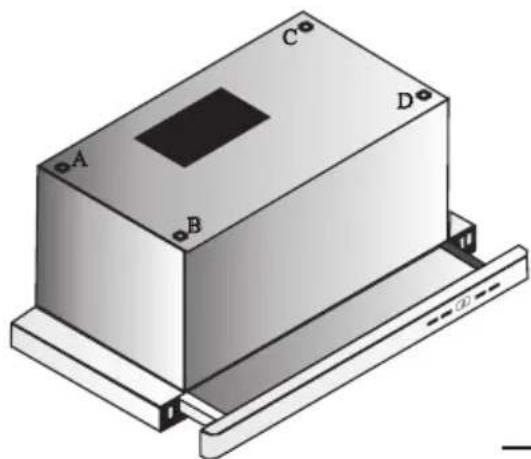

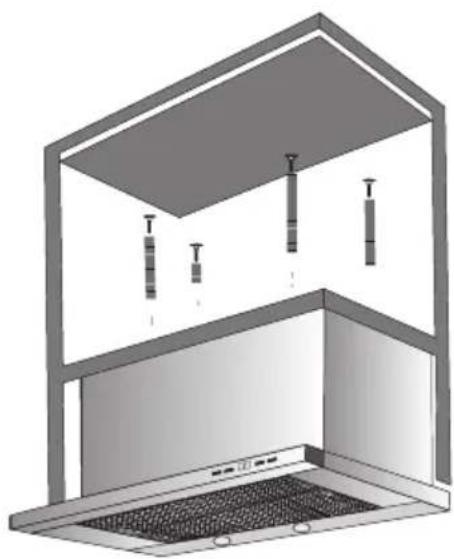

Step-by-step appliance installation is shown on page 6-7

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

Use control panel to control your cooker hood (Fig. 4a)

Cooker hood is equipped with a three-speed fan and worktop light.

You can control fan speed with buttons on the right side of the front panel.

Pull out the front control panel to start the fan (Fig 4d). When you pull out the front panel, the fan will start (regardless of the speed set).

For optimal performance in normal conditions, use a low speed. Higher speed should only be used in case of high concentration of kitchen odours. To make sure all odours are extracted, it is a good practice to turn on the hood just before cooking and turn it off about 15 minutes after you have finished.

You can control light with buttons on the left side of the front panel. Retract the front panel to turn off the light.

Maintenance

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

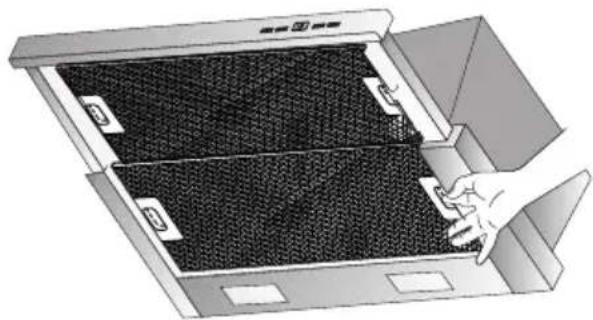

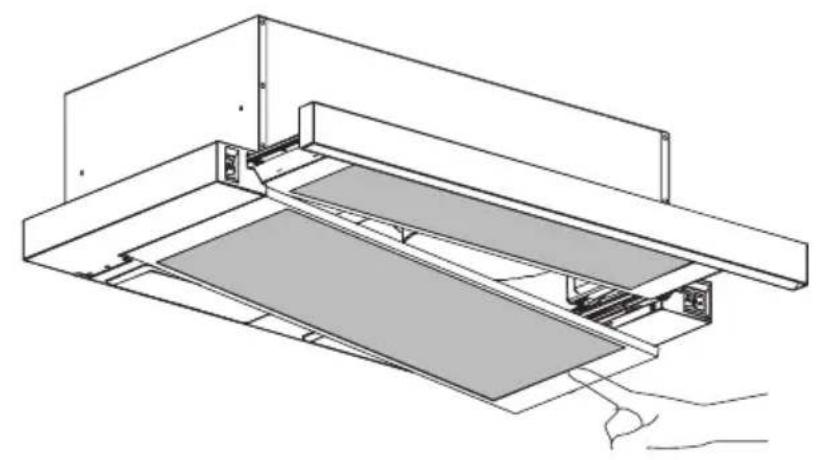

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

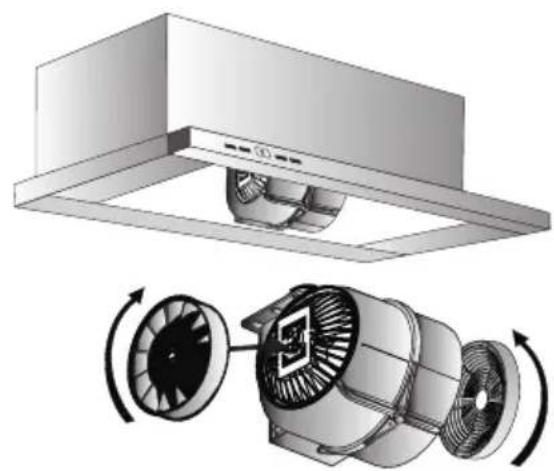

Dismantling of charcoal filter is shown on Figure 6.

Lighting

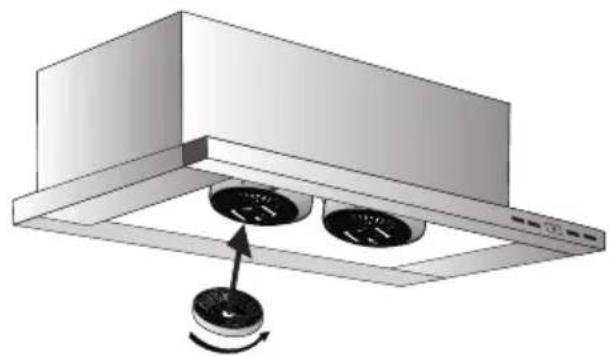

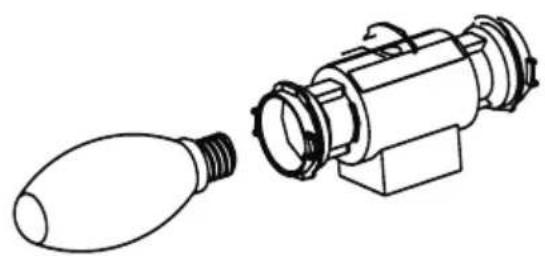

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

RECYCLING OF THE PACKAGING

Simple line drawing of a three chasing recycling symbol (no text or labels)

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU-IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such

marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2006/95/EC,
● Electromagnetic Compatibility (EMC) Directive 2004/108/EC,
● ErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.
