Product Type	Refrigerator (fridge only)
Brand	Gram
Model	KS 32265-63
Refrigerant	R600a
Temperature Control	Thermostat with settings 1 (warmest) to 5 (coldest)
Defrost	Automatic defrost for fridge compartment
Door Reversibility	Yes (instructions provided in manual)
Adjustable Front Feet	Yes (for leveling)
Interior Light	LED (replaceable by authorized service only)
Removable Shelves	Yes (glass shelves)
Vegetable Drawer	Yes (crisper)
Door Shelves	Adjustable
Drain Tube	Yes (for defrost water collection)
Power Supply	230 V, 50 Hz (typical)
Compliance	WEEE (2012/19/EU), RoHS (2011/65/EU)
Maintenance	Clean with lukewarm water and bicarbonate solution
Safety Features	Child safety, thermal protection, grounded plug required
Energy Saving Tips	Keep doors closed, avoid overloading, install away from heat sources

Frequently Asked Questions - KS 32265-63 GRAM

How do I adjust the temperature on my Gram KS 32265-63 refrigerator?

Turn the thermostat knob to the desired setting. Settings range from 1 (warmest) to 5 (coldest). For ambient temperatures above 25°C, use the maximum setting; below 25°C, use the minimum setting. The average fridge temperature should be around +5°C.

What should I do if the refrigerator does not operate?

Check that the power cord is properly plugged into a grounded socket. Ensure the fuse is not blown. If the compressor does not start, wait approximately 6 minutes for the protective thermic to reset. If still not running, contact GRAM service.

How does the defrost system work?

The fridge compartment defrosts automatically. Thawing water flows through a drain channel into a collection container at the rear. During defrost, water droplets may form at the back of the fridge; they will thaw during the next cycle. Periodically check that the drain is not blocked.

How do I change the interior light bulb?

The LED lamp used for illumination must be replaced by an authorized service. Do not attempt to change it yourself. Contact GRAM service for assistance.

How should I clean the refrigerator?

Unplug the appliance before cleaning. Use lukewarm water for the exterior and a solution of one teaspoon bicarbonate of soda per pint of water for the interior. Wipe dry. Never use sharp instruments, soap, or household cleaners. Avoid getting water into the lamp housing.

Why is there condensation on the inner walls or side walls?

Condensation can occur due to hot and humid weather, frequent door openings, or leaving the door ajar. It is normal. Wipe with a dry cloth and check if it persists. To reduce condensation, limit door openings and ensure the door is fully closed.

What should I do if the compressor is not running?

The compressor may not start immediately after a power failure or unplugging due to unbalanced refrigerant pressure. Wait at least 6 minutes for the protective thermic to reset. If it does not start after that, check power supply and contact service.

How can I reverse the door opening direction?

The door can be reversed following the instructions in the manual. The process involves removing screws, adjusting hinges, and repositioning the door. Refer to the Reversing the door section with diagrams. If unsure, consult an authorized service.

What if the refrigerator is making unusual noises?

Normal noises include liquid spilling (refrigerant flow), air blowing (fans), and compressor hum. If the noise is excessive, check that the appliance is level and on a solid floor. Remove objects from the top. If vibrations persist, adjust the front feet.

How do I dispose of the refrigerator at the end of its life?

Do not dispose with household waste. Take it to a collection center for electrical and electronic equipment (WEEE). Remove the plug and disable door locks to prevent child entrapment. Consult local authorities for designated drop-off points.

USER MANUAL KS 32265-63 GRAM

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

4 Før ibrugtagning

Line drawing of a mechanical component with concentric rings and a central oval (no text or symbols)

Temperaturen reguleres med termostatknappen.

(Eller) Min. Max.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

4 Forberedelse

Simple line drawing of a cylindrical container with a side panel (no text or symbols)

Driftstemperaturen reguleres ved bruk av temperaturkontrollen.

(Eller) Min. Max.

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

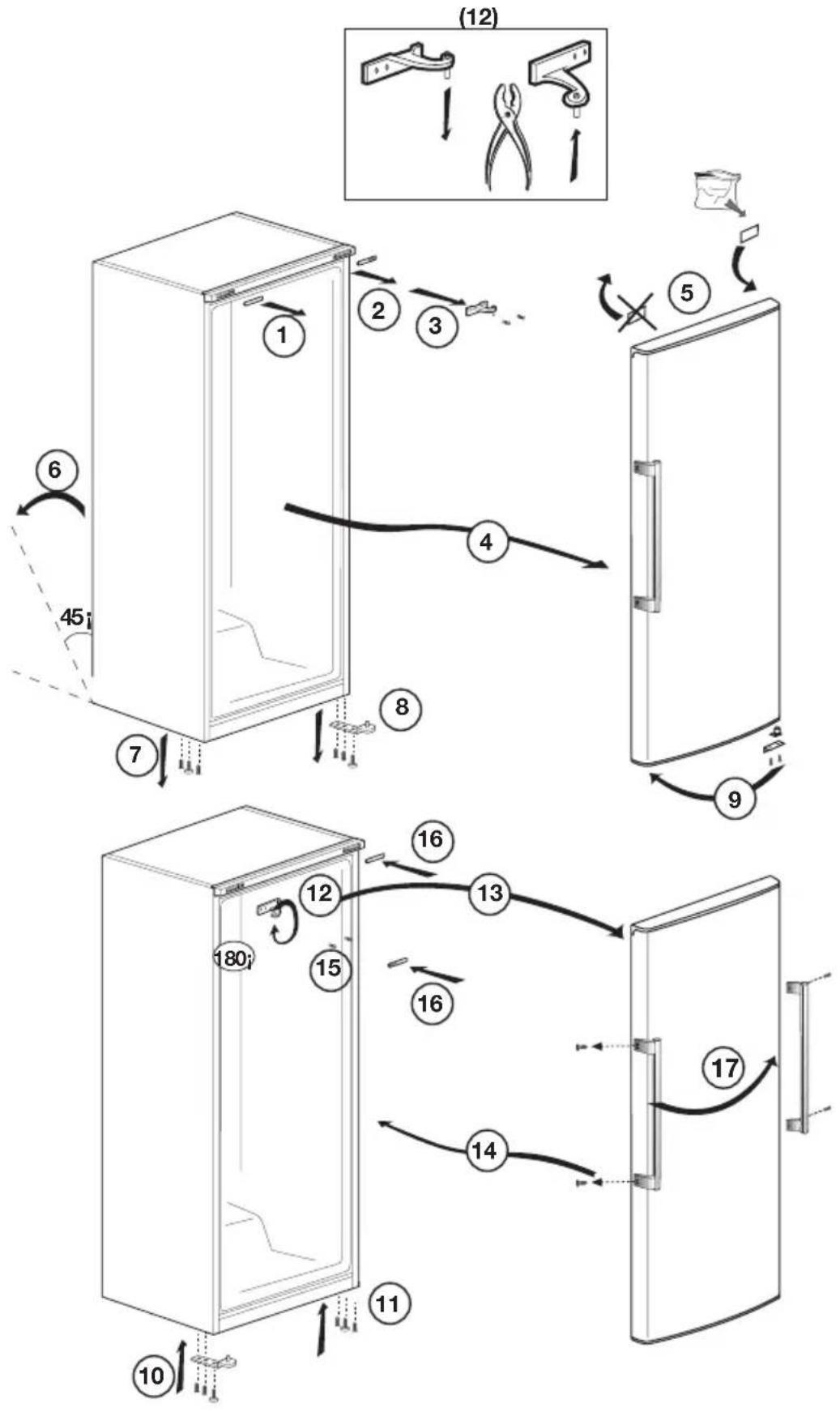

Byte av dörrar

4 Förberedelse

Line drawing of a cylindrical container with a central oval opening, no text or symbols present

Driftstemperaturen regleras med temperaturkontrollen.

(Eller) Min. Max.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Pure diagram of a beam supported at both ends with curved arrows indicating direction, no text or symbols present.

Lampun vaihtaminen

Line drawing of a cylindrical container with a central oval opening, no text or symbols present

Your product has been produced in modern plants and checked under the most meticulous quality control and we hope that your product, will provide you with an effective service.

We recommend you to carefully read the entire user guide before using your product and to keep the user guide at hand for future references.

This user guide

• Will help you to use your appliance in a fast and safe way.
• Read the user guide before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the user guide in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.

Please note that this user guide may be valid for other models as well.

Symbols and their descriptions

This user guide contains the following symbols:

i Important information or useful tips.
⚠ Warning against dangerous conditions for life and property.
⚠ Warning against electric voltage.

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use ....4

General safety 4

Compliance with WEEE Directive and

Disposing of the Waste Product: .....7

Compliance with RoHS Directive: .....8

Package information 8

HC Warning 8

Energy-saving precautions ....8

3 Installation 9

Points to be considered when re-transporting your refrigerator .....9

Before operating your refrigerator .....9

Electric connection ....10

Disposing of the packaging .....10

Disposing of your old refrigerator .....10

Placing and installation .....11

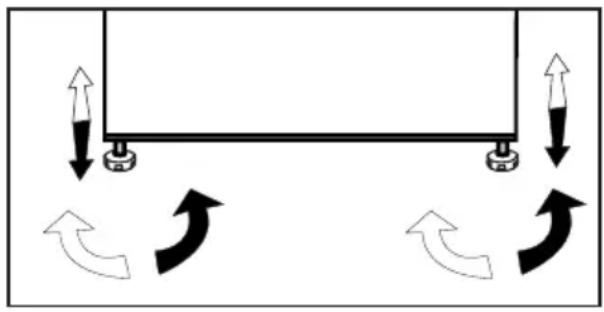

Adjusting the legs 11

Reversing the door 12

4 Preparation 13

5 Using your appliance 14

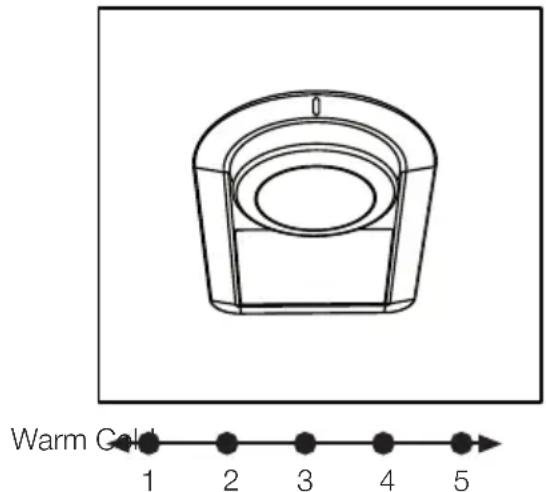

Temperature Control And Adjustment ....14

Thermostat setting button....14

Defrost 15

Changing the illumination lamp .....15

6 Maintenance and cleaning 16

Protection of plastic surfaces .....16

7 Recommended problem solving 17

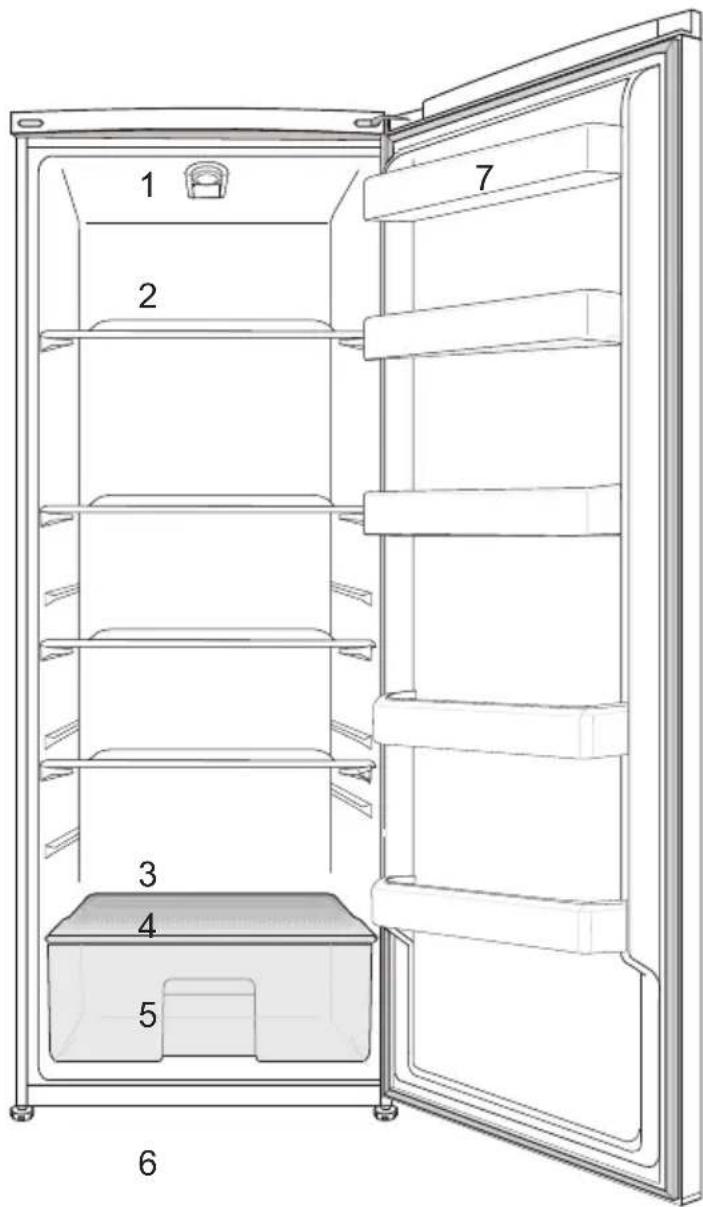

1 Your refrigerator

1. Thermostat control
2. Removable shelves
3. Defrost water collection channel - Drain tube

4. Glass shelf

5. Vegetable drawer

6. Adjustable front feet
7. Adjustable door shelves

2 Important Safety Warnings

Please read through the following information. If this information is not followed, personal injury or material damage may occur and all warranty and reliability commitments will become invalid.

Intended use

• This product is designed for domestic use.
• It should not be used outdoors. It is not appropriate to use it outdoor even if the place is covered with a roof.

General safety

• When you want to dispose of the product, we recommend you to consult the authorized service in order to get information on disposal and available facilities.
• Consult GRAM service for all your questions and problems related to the refrigerator.
  • Vapor and vaporized cleaning materials should never be used

in connection with the cleaning and defrosting of your refrigerator. In such cases, the vapor might get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the equipment from your refrigerator such as the door as a support or a step.
• Do not use electrical devices inside the freezer.
• Do not damage the cooling circuit, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured may cause skin irritations and eye injuries.

- Do not cover or block the ventilation holes on your refrigerator with any material.

- Repairs of the electrical appliances must only be made by qualified

people. Repairs performed by unqualified people may cause a risk for the user.

• In case of any failure, maintenance or repair, disconnect your refrigerator's mains supply by either turning off the relevant fuse or by unplugging your appliance.
• Do not pull the cable when pulling out the plug.
• Flammable items or products that contain flammable gases (e.g. spray) as well as explosive materials must never be kept in the appliance.
• Do not use mechanical devices or other means to accelerate the defrosting proces, other than the ones recommended by the manufacturer.

• Do not operate a damaged freezer. Consult GRAM service if you have any doubts.

• Electrical safety of your will only be covered by the guarantee be covered by the guarantee if the earth system in your house complies with standards.

• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact the GRAM service when there is a power cable damage and etc. so that it will not create a danger for you.
• Never plug the freezer into the outlet during installation or a, risk of death or serious injury may occur.
• This freezer is only only designed for storing food. It should not be used for any other purposes.

• The label that describes the technical specification of the product is located on the inner left side of the freezer.

• Do not connect the freezer to electronic energy saving systems which turn off the electricity as they may damage the product.

• If the power supply is disconnected in manually controlled freezers please wait for at least 5 minutes before reconnecting the power.
• This user guide should be passed to the next owner of the freezer if the ownership changes.

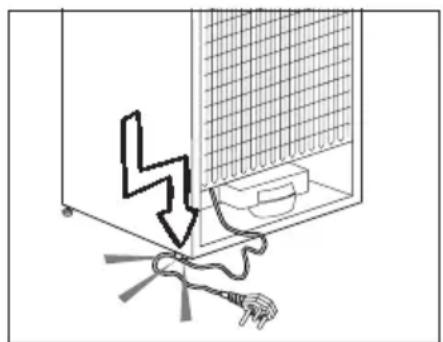

• When moving the freezer make sure that you do not damage the power cord. In order to prevent fire the power cord must not be twisted. Heavy objects should not be placed on the power cord. When the freezer is plugged into the socket do not touch the power outlet with wet hands.

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

• Do not connect the freezers if the electric outlet is loose.
• Do not splash water directly on the outer or inner parts of the freezer due to safety.
• Do not spray inflammable materials such as propane gas etc near the freezer due to the risk of fire and explosion.
• Do not place objects filled with water on top of the freezer as it may result in electric shock or fire.
• Do not overload the freezer with excess food. The excess food may fall out when the door is opened resulting in injuring you or damaging the freezer. Do not place objects on top of the refrigerator as the objects may fall out when opening or closing the freezer door.
• If the freezer will not be operated for an extended period of time it should be unplugged. A problem in the electrical

cable insulation may result in fire.

• The tip of the electric plug should be cleaned regularly otherwise it may cause fire.
• The freezer may move when the adjustable feet are not positioned firmly on the floor. By using the adjustable feet you can ensure that the freezer is positioned firmly on the floor.
• Do not pull the freezer by the door handle when moving the product as it may disconnect the handle from the refrigerator.
• If you want to place two products side by side, we recommend you to buy a decoration kit, which includes a mat to be placed on the side of the product. A decoration part is placed between the products to hide the gap between the products.

Child safety

- Children should be supervised to ensure that they do not play with the appliance

Compliance with WEEE Directive and Disposing of the Waste Product:

This product complies

with EU WEEE Directive (2012/19/EU). This product bears a

classification symbol for waste electrical and electronic equipment (WEEE).This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

HC Warning

- This product is equipped with a cooling system that contains R600a:

This gas is flammable. Therefore, pay attention not to damage the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product to catch a fire and ventilate the room in which the unit is placed.

Energy-saving precautions

• Do not leave the door of your freezer open for a long time.
• Do not overload your freezer so that the air circulation inside of it is not prevented.
• Do not install your freezer under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.

3 Installation

⚠️ Please remember that the manufacturer shall not be held liable if the information in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, vegetable drawer, etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

That recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to the recycling of the packaging, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. The interior of the refrigerator has to be dry and it is possible for the air to circulate freely at the back of the appliance.

2. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.

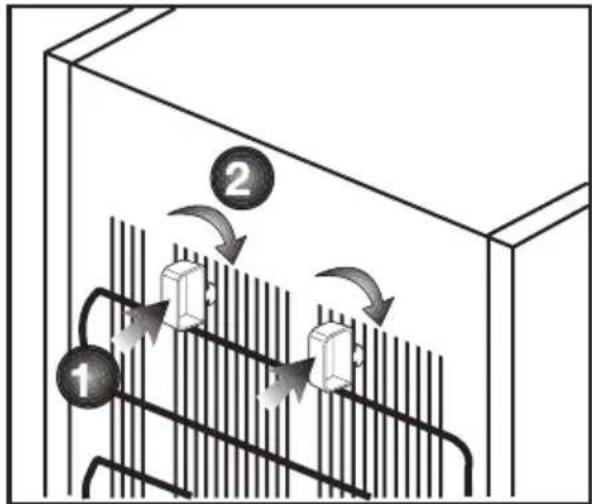

3. You can install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

1. Plug the refrigerator into the outlet. When the door is open the interior light in the refrigerator compartment will be switched on.

2. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

3. The front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

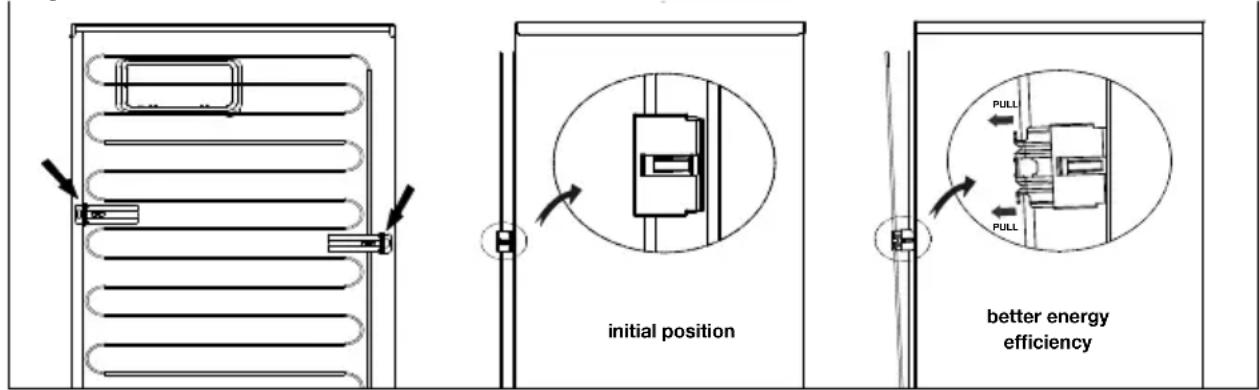

The condenser of your appliance is located on the back as shown below. In order to achieve better energy efficiency with lower energy consumption, please pull the condenser towards yourself as illustrated in picture below.

*may not be available in all models

Electric connection

Connect your product to a grounded socket which is protected by a fuse with the appropriate capacity.

Important:

• The connection must be in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• Voltage and permitted fuse protection are indicated in the “Specifications” section.
• The specified voltage must be equal to your mains voltage.
• Extension cables and multiway plugs must not be used for connection.

⚠ A damaged power cable must be replaced by a qualified electrician.

⚠️ Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep it out of the reach of children or dispose them of by classifying it in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and installation

1. Keep your refrigerator away from heat sources, humid places and direct sunlight.
2. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation.
3. Do not keep your refrigerator in ambient temperatures under 10^ C.

Adjusting the legs

If the refrigerator is not in balance you can balance by turning the front legs as illustrated in the drawing. The right corner will be lowered when you turn the leg in the same direction as the black arrow and lifted when you turn the leg in the opposite direction. It will be easier for you to turn the legs if you get help from someone to lift the refrigerator.

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

Reversing the door

4 Preparation

• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• If you want to place two products side by side, e.g. a refrigerator and a freezer, as a side by side solution you have to use a decoration kit which contains a small mat and a decoration part. The mat is mounted on the side of one of the products to create a space between the products. The decoration part is placed between the products to hide the gap between the products.2). The decoration kit is not a part of the product but can be delivered as an accessory.

• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hour.

• The door should not be opened frequently.

• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.
• Original packaging and foam materials should be kept for future transportations or moving.
• Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal.

Temperature Control And Adjustment

The operating temperature is regulated by the temperature control.

(Or) Min. Max.

1=Lowest cooling setting

(Warmest setting).

5=Highest cooling setting

(Coldest setting)

The average temperature inside the fridge should be around +5°C.

Please choose the setting according to the desired temperature.

Please note that there will be different temperatures in the cooling area.

The coldest region is immediately above the vegetable compartment.

The interior temperature also depends on ambient temperature, the frequency with which the door is opened and the amount of foods kept inside.

Frequently opening the door causes the interior temperature to rise.

For this reason, it is recommended to close the door again as soon as possible after use.

Thermostat setting button

The interior temperature of your refrigerator changes for the following reasons;

• Seasonal temperatures,
• Frequent opening of the door and leaving the door open for long periods,

- Food put into the refrigerator without cooling down to the room temperature,

- The location of the refrigerator in the room (e.g. exposing to sunlight).

- You may adjust the varying interior temperature due to such reasons by using the thermostat. Numbers around the thermostat button indicates the cooling degrees.

- If the ambient temperature is higher than 25^ C, turn the thermostat button to maximum position.

- If the ambient temperature is lower than 25^ C, turn the thermostat button to minimum position.

Defrost

The fridge compartment defrosts automatically. The thawing water flows through the drain channel into a collection container at the rear of the device.

During defrosting, water droplets form at the back of the fridge due to the evaporator.

If not all of the drops run down, they may freeze again after defrosting but will be thawed during the next defrost cycle.

Check the flow of the thawed water from time to time. It may become blocked occasionally.

Changing the illumination lamp

To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20 °C.

(only chest and upright freezer)

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.

⚠️ We recommend that you unplug the appliance before cleaning.

i Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.

Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.

Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

⚠ Make sure that no water enters the lamp housing and other electrical items.

⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

Check door seals regularly to ensure they are clean and free from food particles.

To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended problem solving

Please review this list before calling the GRAM service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.
• Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.
• Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar. Switching the thermostat to a colder degree.
• Decreasing the time the door left open or using it less frequently.
• Covering the food stored in open containers with a suitable material.
• Wipe the condensation using a dry cloth and check if it persists.

Condensation on the side wall of the fridge compartment

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.
• The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.
• Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.
• Are the temperature adjustments correctly made?
  • Power might be cut off.

The fridge is running frequently or for a long time.

·Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time. ·The ambient room temperature may be high. This is quite normal. ·The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer. ·Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature. ·Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently. ·Frigde compartment door might have been left ajar. Check if the doors are tightly closed. ·The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved. ·Door seal of the frigde may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Food kept in the fridge compartment drawers are freezing.

·The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Temperature in the frigde is very high.

·Doors might have been opened frequently or left ajar for a long time; open them less frequently. ·Door might have been left ajar; close the door completely. ·Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature. ·The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

·The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

·The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level. ·The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

Hot and humid weather increases icing and condensation. It is normal and not a fault.Doors might have been left ajar; make sure that the doors are closed fully.Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

Food packages may prevent the door's closing. Replace the packages that are obstructing the door.The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

NO: SE:

Gram A/S

Gram A/S

FI:

Gram A/S

Tel.: [phone]

Tel.: [phone]

Tel.: [phone]

www.gram.no www.gram.se www.gram.fi

Gram A/S

Gejlhavegård 2B

DK-6000 Kolding

[phone]

www.gram.dk
