Product Type	Television
Brand	XD
Model	24H2VSAT
Screen Size	24 inches (diagonal)
Display Resolution	1366 x 768 (HD)
Display Type	LED
Aspect Ratio	16:9
Power Consumption (Typical)	30 W
Standby Power Consumption	< 0.5 W
Input Voltage	100-240 V AC, 50/60 Hz
Dimensions (W x H x D) without stand	550 x 340 x 80 mm
Weight (without stand)	3.5 kg
Connectivity	HDMI, USB, AV input, VGA, Audio output
Tuner	DVB-T2/C/S2
VESA Mount	100 x 100 mm
Energy Efficiency Class	A+
Remote Control	Included
Features	Electronic Program Guide, Parental Control, Sleep Timer
Cleaning Instructions	Wipe with a soft dry cloth. Do not use liquid cleaners.
Safety	Do not expose to rain or moisture. Keep ventilation slots clear.
Repairability	Spare parts available from authorized service centers.

Frequently Asked Questions - 24H2VSAT XD

How do I connect my set-top box to the TV?

Use an HDMI cable to connect the set-top box to the TV's HDMI port. Then select the corresponding HDMI input using the Source button on the remote.

Why is there no sound coming from the TV?

Check that the volume is not muted and is turned up. Ensure external speakers are properly connected. If using an HDMI ARC connection, enable ARC in the audio settings.

How can I scan for digital channels?

Go to Menu > Channel > Auto Tuning. Select your region and signal type (DVB-T2/C/S2) then start the scan.

Can I mount this TV on a wall?

Yes, the TV supports a VESA 100x100 mm mount. Use a compatible wall bracket and follow the installation instructions carefully.

How do I reset the TV to factory settings?

Press Menu on the remote, navigate to Settings > System > Factory Reset. Confirm with the remote. All settings will be erased.

Why does the TV turn off by itself?

Check if the Sleep Timer is set. Also ensure the TV is not overheating. If the issue persists, try a factory reset.

Can I connect USB devices to this TV?

Yes, you can connect USB flash drives or hard drives to the USB port. The TV supports playback of photo, music, and video files. Go to Media from the home menu.

How do I update the TV firmware?

Download the latest firmware from the XD support website to a USB drive. Connect the drive, go to Menu > System > Software Update and select USB.

What should I do if the remote control stops working?

Replace the batteries with new ones. Ensure there are no obstacles between the remote and the TV sensor. If still not working, try using the buttons on the TV itself.

How do I clean the TV screen safely?

Turn off the TV and unplug it. Use a soft, lint-free cloth slightly dampened with water. Do not spray liquid directly on the screen. Wipe gently in circular motions.

USER MANUAL 24H2VSAT XD

TELEVISORE A COLORI CON TELECOMANDO COLOUR TELEVISION WITH REMOTE CONTROL

Contents	Safety Information
	CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOTREMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL.
	In extreme weather (storms, lightning) and long inactivityperiods (going on holiday) disconnect the TV set fromthe mains.The mains plug is used to disconnect TV set from the mainsand therefore it must remain readily operable. If the TV setis not disconnected electrically from the mains, the devicewill still draw power for all situations even if the TV is instandby mode or switched off.Note: Follow the on screen instructions for operating the relatedfeatures.
	IMPORTANT - Please read theseinstructions fully before installing oroperatingWARNING: Never let people (includingchildren) with reduced physical, sensory ormental capabilities or lack of experience and / orknowledge use electrical devices unsupervised. Use this TV set at an altitude of less than 2000meters above the sea level, in dry locations and inregions with moderate or tropical climates. The TV set is intended for household and similargeneral use but may also be used in public places. For ventilation purposes, leave at least 5cm of freespace around the TV. The ventilation should not be impeded by coveringor blocking the ventilation openings with items,such as newspapers, table-cloths, curtains, etc. The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord.A damaged power cord/plug can cause fire or giveyou an electric shock. Handle the power cord by theplug, do not unplug the TV by pulling the power cord.Never touch the power cord/plug with wet handsas this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it withother cords. When damaged it must be replaced,this should only be done by qualified personnel. Do not expose the TV to dripping or splashing ofliquids and do not place objects filled with liquids,such as vases, cups, etc. on or over the TV (e.g., onshelves above the unit). Do not expose the TV to direct sunlight or do notplace open flames such as lit candles on the top ofor near the TV.
	Caution	Serious injury or deathrisk
	Risk of electric shock	Dangerous voltage risk
	Maintenance	Important maintenancecomponent
	Markings on the ProductThe following symbols are used on the product as amarker for restrictions and precautions and safetyinstructions. Each explanation shall be consideredwhere the product bears related marking only. Nosesuch information for security reasons.Class II Equipment: This appliance isdesigned in such a way that it does notrequire a safety connection to electricalearth.Class II Equipment With FunctionalEarthing: This appliance is designed in sucha way that it does not require a safetyconnection to electrical earth, the earthconnection is used for functional purposes.Protective Earth Connection: The markedterminal is intended for connection of theprotective earthing conductor associatedwith the supply wiring.Hazardous Live Terminal: The markedterminal(s) is/are hazardous live undernormal operating conditions.Caution, See Operating Instructions: Themarked area(s) contain(s) user replaceablecoin or button cell batteries. Class 1 Laser Product:This product containsClass I laser source thatis safe under reasonablyforeseeable conditions ofoperation.
	WARNINGDo not ingest the battery, Chemical Burn HazardThis product or the accessories supplied with theproduct may contain a coin/button cell battery. Ifthe coin/button cell battery is swallowed, it cancause severe internal burns in just 2 hours and canlead to death.Keep new and used batteries away from children.If the battery compartment does not close securely,stop using the product and keep it away fromchildren.If you think batteries might have been swallowed orplaced inside any part of the body, seek immediatemedical attention.
	WARNINGNever place a television set in unstable or inclinedlocations. A television set may fall, causing seriouspersonal injury or death. Many injuries, particularlyto children, can be avoided by taking simpleprecautions such as:Using cabinets or stands recommended by themanufacturer of the television set.Only using furniture that can safely support thetelevision set.Ensuring the television set is not overhanging theedge of the supporting furniture.Not placing the television set on tall furniture(for example, cupboards or bookcases) withoutanchoring both the furniture and the televisionset to a suitable support.Not standing the television set on cloth or othermaterials placed between the television andsupporting furniture.Educating children about the dangers of climbingon furniture to reach the television set or itscontrols. If your existing television set is beingretained and relocated, the same considerationsas above should be applied.

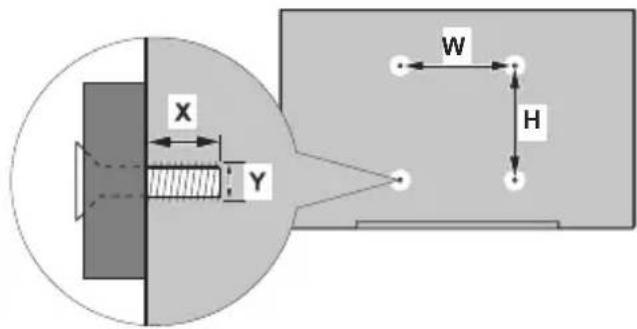

	WALL MOUNTING WARNINGSRead the instructions before mounting your TVon the wall.The wall mount kit is optional. You can obtain fromyour local dealer, if not supplied with your TV.Do not install the TV on a ceiling or on an inclinedwall.Use the specified wall mounting screws and otheraccessories.Tighten the wall mounting screws firmly toprevent the TV from fall. Do not over-tightenthe screws.

Inserting the Batteries into the Remote

Remove the screw that secure the battery compartment on the back side of the remote control first. Press and slide the cover to open insert signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.

Connect Power

IMPORTANT: The TV set is designed to operate on 20-240V AC, so HZ socket. After unprecking, allow before you connect the set to the mains. Plug the power cable to the mains socket outlet. Attenna Connection Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket or satellite plug to the STATELLITE INPUT (LNB) socket located on the back of the TV.

satellite

English - 22 -

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down. button down. To change channel: Press the middle of the button in, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down. button down. To change source: Presses the middle of the button in twice (for the second time in total), the source list will appear on the screen. Scroll through the stored channels by pushing the button up or down. Notes: • If you turn the TV off, this circle starts again beginning with the volume setting. • Main menu OSD cannot be displayed via control buttons. Press Menu button on your remote control to display your menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Source button on your remote control consecutively to select the different sources. Charging Channels and Volume You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote. Once you have connected external systems to your INPUT Selection Input Selection a menu screen. Press Return/Back button or Menu button to quit Presses Return/Back button or Menu button to quit Presses Return/Back button or Menu button to quit Presses Return/Back button or Menu button to quit Presses Return/Back button or Menu button to quit Presses Return/Back button or Menu button to quit Presses Return/Back button or Menu button to quit Presses Return/Back button or Menu button to quit Presses Return/Back button or Menu button to quit Presses Return/Back button or Menu button to quit PressesReturn/Back button or Menu button to quit PressesReturn/Back button or Menu button to quit PressesReturn/Back button or Menu button to quit PressesReturn/Back button or Menu button to quit PressesReturn/Back button or Menu button to quit PressesReturn/Back button or Menu button to quit PressesReturn/Back button or Menu button to quit PressesReturn/Back button or Menu button to quit PressesReturn/Back button or Menu button to quit PressesReturn

[IMAGE]TV Control Switch & OperationTV Control button allows you to control the volume/Programme/source and Standby-On functions of the TV.1. Up direction 2. Down direction3. Volume / Info / Sources List selection and Standby-On switchThe Control button allows you to control the volume/Programme/source and Standby-On functions of the TV.• Telephone• Stereo sound system• Stereo sound system• OSD menu system• Sort socket for external devices (such as DVD players, PVR, video games, etc).• USB input• HDMI inputs to connect other devices with HDMI societs• User screen• Fully integrated digital terrestrial/cable/satellite TV (DVB-T-72/C/S-52)• Software/sound by mode automatically because no operation was made for a long time." Press OK to continue.TV Control button allows your next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.If the TV is on and it isn't being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.If the TV is on and it isn't being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.If the TV does not receive any input signal (e.g. if the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.If the TV is on and it isn't being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.If the TV is on and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because there was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by Mode Authority Because There was no signal for a long time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by Mode Authority Because There was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by Mode Authority Because There was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by Method Authority Because There was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by Method Authority Because There was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message shall be displayed. "TV switched to stand-by Method Authority Because There was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message shall be displayed. "TV switched to stand-by Method Authority Because There was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby .When you next switch-on, the following message shall be displayed. "TV switched to stand-by Method Authority Because There was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being operated FOR A while it will go into standby. When you next switch-on, the following message shall be displayed. "TV switched to stand-by Method Authority Because There was no signal for a long Time." Press OK to continue.If the TV is ON and it isn't being active for the Mode is set to Game.When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.Note: Screen Off option is not available if the Mode is set to Game.When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.In the screen on again.Presses any button on the remote or on the TV to turn the screen on again.If pressed Right button while Auto option is selected or left button while Custom option is selected, or left button while Custom option is selected, or left button while Auto option is selected or left button while Custom option is selected, or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button while Auto option is selected or left button where the screen off immediately. If you don't press any button on the screen off immediately and press displayed on the screen off select Process and press displayed on the screen off turn the screen off every screen off. Press any button on the screen off turn the screen off screen off. Press any button on the screen off turn the screen off screen off turn the screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen-off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen of screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screenoff screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen off screen OFF turn this setting off.Note: Available Energy Saving Options may differ depending on the selected Mode in the System Picture menu.The Energy Saving options can be found in the System Picture menu.The Energy Saving options can differ depending on the selected Mode in the System Picture menu.The Energy Saving options can differ depending on the selected Mode in the System Picture menu.The Energy Saving options can differ depending on the selected Mode in the System Picture menu.The Energy Saving options can differ depending on the selected Mode in the System Picture menu.The Energy Saving options can differ depending on the selected Mode in the System Picture menu.The Energy Saving options can differ depending on the selected Mode in the System Picture menu.The Energy Saving options can differ depending on the selected Mode in the System Figuresetting: manually using Left or Right Buttons on the remote set. Set as Off turn this setting off.Follow these steps:If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy savingfrom minimum, Medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the Energy Saving from minimum, medium, maximum or Auto the TV will reduce the Energy Saving from minimum, medium, maximum or Auto the TV will reduce the Energy Saving from minimum, medium, maximum or Auto the TV will reduce the Energy Saving from minimum, medium, maximum or Auto the TV will reduce the Energy Saving from minimum, medium, maximum or Auto the TV will reduce the Energy Saving from minimum, medium, maximum or Auto the TV will reduce the Energy Saving from minimum, medium, maximum or Auto theTV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium, maximum or Auto the TV will reduce the energy saving from minimum, medium.

Standby NotificationsIf the TV does not receive any input signal (e.g. if the TV does not receive any input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only When input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal onlywhen input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal onlyWhen input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only where input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only if the TV is on and it isn't being operated for a long time." Press OK to continueIF the TV does not receive any input signal (e.g. if the TV does not receive any input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when Input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only when input signal only wheninput signal off function• Headphone connction• Automatic programming system• Manual tuning• Automatic power down after up to eight hours.• Sleep timer• Automatic power down after up to eight hours.• Child lock• Automatic sound mute when no transmission.• NTSC playback• AVL (Automatic volume limiting)• PC input• PL (Frequency search)• PLL (Frequency search)• PC input• PLL (Frequency search)• PC input• PLL (Frequency search)• PC input• PLL (Frequency search)• PC input• PLL (Frequency search)• PC input• PLL (Frequency search)• PC input• PLL (Frequency search)• PC input• PLL (Frequency search)• PC input• PLL (Frequency search)• PC input• PLL (Frequency search)• PC input• PLL (Frequency search)• PC output• PLL (Frequency search)• PC output• PLL (Frequency search)• PC output• PLL (Frequency search)• PC output• PLL (Frequency search)• PC output• PLL (Frequency search)• PC output• PLL (Frequency search)• PC output• PLL (Frequency search)• PC output• PLL (Frequency search)• PC output• PLL (Frequency search)• PC output• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow • PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow• PLL (Frequency search)• PC outflow•PLL (Frequency search)• PC outflow•PLL (Frequency search)• PC outflow•PLL (Frequency search)• PC outflow•PLL (Frequency search)• PC outflow•PLL (Frequency search)• PC outflow•PLL (Frequency search)• PC outflow•PLL (Frequency search)• PC outflow•PLL (Frequency search)• PC outflow•PLL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL( Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)( Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (FrequencySearch)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)• PC outflow•PULL (Frequency Search)<|content_end|>

English - 21 -

Notification

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

HDMI

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. Information for Users on Disposal of Old Equipment and Batteries [European Union only] Equipment bearing these symbols should not be disposed as general household waste. You should look for appropriate recycling facilities and systems for the disposal of these products. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Remote Control

(*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function. Note that if you perform First Time Installation, MY BUTTON 1&2 will return to their default function.

1. Quick Menu: Displays a list of menus for quick access
2. Mute: Completely turns off the volume of the TV
3. Programme +/-
4. Swap: Quickly cycles between previous and current channels or sources
5. Source: Shows all available broadcast and content sources

Direct, Single Satellite Cable or DiSEqC switch by using "◀" or "▶" buttons.

· Direct: If you have a single receiver and a direct satellite dish, select this antenna type. Press OK to continue. Select an available satellite on the next screen and press OK to scan for services.

· Single Satellite Cable: If you have multiple receivers and a single satellite cable system, select this antenna type. Press OK to continue. Configure settings by following instructions on the next screen. Press OK to scan for services.

· DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. Press OK to continue. You can set four DiSEqC options (if available) on the next screen. Press OK button to scan the first satellite in the list.

Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.

Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the Channel List. When finished, press OK to continue.

You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned off/on later.

Press OK button on the remote control to continue. After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.

While the search continues a message may appear, asking whether you want to sort channels according to the LCN(°). Select Yes and press OK to confirm.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).

Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

Media Playback via USB Input

You can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

English - 26 -

Switching On/Off

To Switch the TV OnConnect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).To switch on the TV from standby mode either:Press the Standby button, Programme +/- or a numeric button on the remote control.Press the side function switch on the TV until the TV comes on from standby.

To Switch the TV OffPress the Standby button on the remote control or press the side function switch on the TV until the TV switches into standby mode.To power down the TV completely, unplug the power cord from the mains socket.Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time InstallationWhen turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.On the next screen, set your preferences using the directional buttons.Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be oooo. You have to enter it if you are asked to enter a PIN for any menu operation later.

About Selecting Broadcast TypeDigital Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.Digital Cable: If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.Note: Searching duration will change depending on the selected Search Step.Satellite: If Satellite broadcast search option is turned on, the TV will search for digital satellite broadcasts after other initial settings are completed.Before satellite search is performed some settings should be made. Antenna Type menu will be displayed first. You can select Antenna Type as

Connections
Connector Type Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	YPbPr/PC Audio Cable
	HDMI Connection (back)
SPDIF	SPDIF (Coaxial Out) Connection (back)
SIDE AV	Side AV (Audio/Video) Connection (side)	AV Cable
HEADPHONE	Headphone Connection (side)
PC to YPBPR	YPbPr Video Connection (back)	PC to YPBPr Connection Cable
	USB Connection (side)
	CI Connection (side)

TV Menu Contents
System - Picture Menu Contents
Mode		You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast		Adjusts the light and dark values on the screen.
Brightness		Adjusts the brightness values on the screen.
Sharpness		Sets the sharpness value for the objects displayed on the screen.
Colour		Sets the colour value, adjusting the colors.
Energy Saving		For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
Backlight		This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.
Advanced Settings
	Dynamic Contrast	You can change the dynamic contrast ratio to desired value.
	Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
	Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
	White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
	Picture Zoom	Sets the desired image size format.
	Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
	Skin Tone	Skin tone can be changed between -5 and 5.
	Colour Shift	Adjust the desired colour tone.
	RGB Gain (Optional)	You can configure the colour temperature values using the RGB Gain feature.
	HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position		Appears only when the input source is set to VGA/PC.
	Autoposition	Automatically optimizes the display. Press OK to optimize.
	H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
	V Position	This item shifts the image vertically towards the top or bottom of the screen.
	Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
	Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset		Resets the picture settings to factory default settings (except Game Mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This

feature can also be enabled or disabled under the System>Settings>More menu. The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system.

(A/V receiver or speaker system). When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio

from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

Note: ARC is supported only via the HDMI1 input.

System Audio Control

Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set

the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system. Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.
Wait a little while before each plugging and unplugging as the player may still be reading files . Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.
You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.
It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk. Note: When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.
Media Browser Menu
You can play photo, music, and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings Menu.
Loop/Shuffle Mode Operation
Start playback with the Play button and activate	All files in the list will be continuously played in original order
Start playback with the OK button and activate	The same file will be played continuously (repeat)
Start playback with the Play button and activate	All files in the list will be played once in random order
Start playback with the Play button and activate	All files in the list will be continuously played in the same random order.
CEC and CEC RC Passthrough
This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.
The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

More		Displays other setting options of the TV.
	Menu Timeout	Changes timeout duration for menu screens.
	Software Upgrade	Ensures that your TV has the latest firmware. Press OK to see the menu options.
	Application Version	Displays current software version.
	Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
	Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated.
	Biss Key	Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter Biss key on a broadcast, you can use this setting. Highlight Biss Key and press OK to enter keys on the desired broadcast.
	Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
	Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
	CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
	CEC Auto Power On	This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
	Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
	OSS	Displays Open Source Software license information.
Installation Menu Contents
Automatic channel scan (Retune)		Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Satellite: Searches and stores satellite stations.
Manual Channel Scan		This feature can be used for direct broadcast entry.
Network Channel Scan		Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.
Analogue Fine Tune		You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Satellite Settings		Displays satellite settings. Satellite list: Displays available satellites. You can Add, Delete satellites or Edit satellite settings on the list. Antenna installation: You can change satellite antenna settings and/or start a satellite scan.
Installation Settings (Optional)		Displays installation settings menu. Standby Search(*) : Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*) : If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching. (*) Availability depends on model.
Clear Service List		Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network		This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First Time Installation		Deletes all stored channels and settings, resets TV to factory settings.

System - Sound Menu Contents
Volume	Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance	Adjusts whether the sound comes from the left or right speaker.
Headphone	Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode	You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass	Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed as On or Off.
Digital Out	Sets digital out audio type.

System - Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language	You may set a different language depending on the broadcaster and the country.
Parental	Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time	Sets date and time.
Sources	Enables or disables selected source options.
Network/Internet Settings	Displays network/internet settings.
Accessibility	Displays accessibility options of the TV.
Hard of Hearing	Enables any special feature sent from the broadcaster.
Audio Description	A norration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.

General TV OperationUsing the Channel ListThe TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.Press the OK/TV button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.Managing the Favourite ListsYou can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.Configuring Parental SettingsThe Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.Note: If the country option in the First Time Installation is set as France, Italy or Austria,Maturity Lock's value will be set to 18 as default.

Child Lock:If this option is set to ON,the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.Set PIN:Defines a new PIN number.Default CICAM PIN:This option will appear as grayed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.Note:Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during theFirst Time Installationuse the PIN that you have defined.Some options may not be available depending on the country selection in theFirst Time Installation.Electronic Programme Guide (EPG)Some channels send information about their broadcast schedules. Press theEpgbutton to view theProgramme Guidemenu.There are 3 different types of schedule layouts available,Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.Timeline ScheduleZoom (Yellow button):Press the Yellow button to see events in a wider time interval.Filter (Blue button):Views filtering options.Highlight Genre (Subtitles button):Displays Highlight Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.Options (OK button):Displays event options.Event Details (Info button):Displays detailed information about selected events.Next/Prev Day (Programme +/- buttons):Displays the events of previous or next day.Search (Text button):Displays Guide Search menu.Now (Source button):Displays current event of the highlighted channel.List Schedule(*)(*)In this layout option, only the events of the highlighted channel will be listed.Prev. Time Slice (Red button):Displays the events of previous time slice.Next/Prev Day (Programme +/- buttons):Displays the events of previous or next day.Event Details (Info button):Displays detailed information about selected events.Filter (Text button):Views filtering options.Next Time Slice (Green button):Displays the events of next time slice.Options (OK button):Displays event options.Now/Next ScheduleOptions (OK button):Displays event options.

Event Details (Info button):Displays detailed information about selected events.Filter (Blue button):Views filtering options.Event OptionsUse the directional buttons to highlight an event and press OK button to displayEvent Optionsmenu. The following options are available.Select Channel:Using this option, you can switch to the selected channel.Set Timer on Event / Delete Timer on Event:After you have selected an event in the EPG menu, press the OK button.Select Set Timer onEventoption and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then selectDelete Timer on Eventoption. The timer will be cancelled.Notes:You cannot switch to any other channel or source while there is an active timer on the current channel. It is not possible to set timer for two or more individual events at the same time interval.Teletext ServicesPress the Textbutton to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.Digital TeletextPress the Textbutton to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When theTextbutton is pressed again, the TV returns to television broadcast.Software UpgradeYour TV is capable of finding and updating the firmware automatically via the broadcast signal.Software upgrade search via user interfaceOn the main menu selectSystem>Settingsand thenMore.Navigate to Software upgradeand press the OK button. InUpgrade optionsmenu selectScan for upgradeand press OK button to check for a new software upgrade.If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the TV by pressing the OK to continue with the reboot operation.3 AM search and upgrade modeYour TV will search for new upgrades at 3:00 o'clock ifAutomatic scanningoption in the Upgrade

optionsmenu is set toEnabledand if the TV is connected to an aerial signal. If a new software is found and downloaded successfully, it will be installed at the next power on.Note:Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.Troubleshooting & TipsTv will not turn onMake sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.Poor pictureCheck if you have selected the correct TV system.Low signal level can cause picture distortion. Please check antenna access.Check if you have entered the correct channel frequency if you have done manual tuning.The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.No pictureThis means your TV is not receiving any transmission. Make sure the correct source has been selected.Is the antenna connected properly?Is the antenna cable damaged?Are suitable plugs used to connect the antenna?If you are in doubt, consult your dealer.No soundCheck if the TV is muted. Press theMutebutton or increase the volume to check.Sound may be coming from only one speaker. Check the balance settings fromSoundmenu.Remote control - no operationThe batteries may be exhausted. Replace the batteries.Input sources - can not be selectedIf you cannot select an input source, it is possible that no device is connected. If not;Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

Supported File Formats for USB Mode
Media Extension	Format	Notes
Video	.mpg,.mpeg	MPEG1-2	MPEG: 768x576 @ 30P, MPEG2:1920x1080 @ 30P
	.vob	MPEG2	1920x1080 @ 30P
	.mp4	MPEG4, Xvid,H.264
	.mkv	H.264,MPEG4,VC-1
	.avi	MPEG2, MPEG4,Xvid, H.264
	.flv	H.264/VP6/Sorenson	H.264/VP6: 1920x1080 @ 30PSorenson: 352x288 @ 30P
	.mp4, .mov,.3gpp,.3gp, MPEGtransportstream,.ts,.trp, .tp,.mkv	HEVC/H.265	1080Pe60fps - 50Mbps
	.3gp	MPEG4, H.264	1920x1080 @ 30P
Audio	.mp3	MPEG1 Layer 2/3	Layer2: 32Kbps ~ 448Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz,22.05kHz, 24kHz (Sampling rate)Layer3: 32Kbps ~ 320Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz,22.05kHz, 24kHz, 8kHz, 11.025kHz, 12kHz (Sampling rate)
	(worksonly withvideofiles)	AC3 32Kbps ~ 640Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)	AAC 16Kbps ~ 576Kbps (Bit rate) / 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz,16kHz, 12kHz, 11.025kHz, 8kHz (Sampling rate)
		EAC3	32Kbps ~ 6Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
		LPCM	Unsigned 8bit PCM, Signed/Unsigned 16bit PCM (big / little endian), 24bitPCM (big endian), DVD LPCM 16/20/24bit (Bit rate)/ 6kHz, 8kHz, 11.025kHz, 12kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz,48kHz , 88.2kHz, 96kHz, 176.4kHz, 192kHz (Sampling rate)
		IMA-ADPCM/MS-ADPCM	384Kbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)
		LBR 32Kbps ~ 96Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
Picture	.jpeg	Baseline	Resolution(WxH): 17000x10000
		Progressive	Resolution(WxH): 4000x4000
	.bmp	-	Resolution(WxH): 5760x4096
Subtitle	.sub, .srt	-	-

box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

PC Input Typical Display Modes The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index Resolution Frequency
1	640x480 60 Hz
2	800x600 56 Hz
3	800x600 60 Hz
4	1024x768 60 Hz
5	1024x768 66 Hz
6	1280x768 60 Hz
7	1280x960 60 Hz
8	1280x1024 60 Hz
9	1360x768 60 Hz
10	1400x1050 60 Hz
11	1600x1200 60 Hz
12	1920x1080 60 Hz

AV and HDMI Signal Compatibility
Source Supported Signals Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
Side AV	PAL 50/60 O
	NTSC 60 O
PC/YPbPr	480I, 480P 60Hz O
	576I, 576P 50Hz O
	720P	50Hz,60Hz O
	1080I	50Hz,60Hz O
	1080P	50Hz,60Hz O
HDMI	480I	60Hz O
	480P	60Hz O
	576I, 576P 50Hz O
	720P	50Hz,60Hz O
	1080I	50Hz,60Hz O
	1080P	24Hz, 25Hz30Hz, 50Hz,60Hz	O

(X: Not Available, O: Available)
In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top

Supported DVI Resolutions
When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.
Information regarding EU countries (only)

The symbol indicates that the product must not be disposed of with the normal household wastes. Correct disposal of this product prevents any potentially negative impact on the environment and human health that could arise from any inappropriate handling of the product itself. To receive more detailed information regarding disposal of your unit, we recommend that you contact the competent public agencies, the waste collection service or the shop where you purchased the product.
Due to the continuous evolution of the products, the features and design of this model may change without notice

In conformity with applicable rules and regulations

	56Hz 60Hz 66Hz 70Hz				72Hz 75Hz
640x400				☑
640x480		☑	☑		☑	☑
800x600	☑	☑		☑	☑	☑
832x624						☑
1024x768		☑	☑	☑	☑	☑
1152x864		☑		☑		☑
1152x870						☑
1280x768		☑				☑
1360x768		☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑

TV Broadcasting	PAL BG/DK/II'SECAM BG/DK
Receiving Channels	VHF (BAND I/III) - UHF(BAND U) - HYPERBAND
Digital Reception	Fully integrated decoder terrestrial-cable-satellite(DVB-T2/C/S2 - HEVC - H.265)
Number of Preset Channels	10 000
Channel Indicator	On Screen Display
RF Aerial Input	75 Ohm (unbalanced)
Operating Voltage	220-240V AC, 50Hz.
Audio	German+Nicam Stereo
Audio Output Power (WRMS.) (10% THD)	2 x 2,5
Power Consumption (W)	45
TV Dimensions DxLxH (with foot) (mm)	134 x 554 x 370
TV Dimensions DxLxH (without foot) (mm)	35/61 x 554 x 339
Display	24"
Operation temperature and operation humidity	0°C up to 40°C, 85%humidity max

Specifiche Specification

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		75	75
C	Screw Sizes
D	Length (X)	min. (mm)	5
		max. (mm)	8
E	Thread (Y)	M4

	A B C D E
English	VESA WALL MOUNT MEASUREMENTS	Hole Pattern Sizes (mm)	Screw Sizes Length (X)		Thread (Y)
Deutsch	MASSANGABEN FÜR VESA-WANDMONTAGE Lochmustergrößen (mm)		Schraubengrößen	Länge (X) Gewinde (Y)
Français	DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA	Dimensions des modèles de trous de montage (mm)	Dimensions des vis	Longueur (X) Filetage (Y)
Italiano	Misurazioni installazione a parete VESA Dimensioni schema forp (mm)		Dimensioni vite	Lunghezza (X) Filettatura (Y)
Portuquês	MEDIÇÕES DE MONTAGEM MURAL VESA Dimensões do molde de furação (mm)		Tamanhos do parafuso	Comprimento (X) Rosca (Y)
Español	MEDIDAS DEL MONTAJE DE PARED VESA	Tamaños de patrón para agujero (mm)	Tamaños de tomillo	Longitud (X)	Rosca (Y)
Türkçe	VESA DUVARA MONTAJ APARATI ÖLÇÜLERİ	Açılacak Delik Ölçüleri (mm)	Vida Ölçüleri	Uzunluk (X)	Yüzey (Y)
Ελληνικ	ΔΙΑΣΤΑΣΕΙΣ ΒΑΣΗΣ ΤΟΙΧΟΥ VESA	Μεγέθη σχήματος οπών (mm)	Μεγέθη βιδών	Μήκος (X)	Πείρωμα (Y)
Polski	WYMIARY DO MONTAZU NAŚCIENNEGO VESA	Rozmiary szablonu otworów (mm)	Rozmiary wkrętów	Długość (mm)	Gwint (Y)
čeština	ROZMĚRY DRŽÁKU NA ZEĎ VESA	Rozměry velikosti děr (mm)	Rozměry śroubů	Délka (X) Závit (Y)
Magyar	VESA FALI TARTÓ MÉRETEK	Lyukak méretének nagysága(mm)	Csavar méret	Hossz (X)	Menet (Y)
Română	MĂSURĂTORI SUPORT PERETE VESA	Dimensiuni tipar gaură (mm)	Dimensiuni şuruburi	Lungime (X)	Filet (Y)
Svenska	VESA VÄGGMONTERINGSMÄTT	Hålmönsterstorlear (mm)	Skruvstorlekar	Längd (X) Träd (Y)
Nederlands	VESA WANDMONTAGE METINGEN	Grootte booropening (mm)	Schroefgroote	Lengte (X)	Draad (Y)
Suomi	VESA-SEINÄASENNUKSEN MITAT	Reikäkuvion koot (mm)	Ruuvinkoot	Pituus (x) Kierre (Y)
Norsk	VESA VEGGMONTERINGSMÄL	Hullmønster størrelser (mm)	Skruestørrelser	Lengde (x)	Träd (Y)
Dansk	VESA VÄGGMONTERINGSMÄL	Hulmønster-størrelser (mm)	Skruestørrelser	Længde(X)	Träd (Y)
Русский	РАЗМЕРЫ НАСТЕННОГО КРЕПЛЕНИЯ VESA	Размеры системы отверстий	Размеры винтов	Длина(Х)	Резьба (Y)
беларуская	ПАМЕРЫ НАСЦЕННАТА МАЦАВАННЯ VESA	Памеры сістэмы адтулін	Памеры вінтоў	Даўжыня (X)	Разьба (Y)
македонски	МЕРКИ ЗА МОНТИРАЊЕ НА СИД ЗА „BECA“	Шема на големини на дупката (mm)	Големина на шрафот	Должина (X)	Навој (Y)
український	РОЗМІРИ НАСТИННОГО КРІПЛЕННЯ VESA	Відстань між кріпильними отворами, мм	Розміри гвинтів	Довжина (X)	Діаметр різьби (Y)
Srpski	DIMENZIE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije zavrtnjeva	Dužina (X)	Navoj (Y)
Slovenčina	ROZMERY DRŽIAKA NA STENU VESA	Rozmery velkosti dier (mm)	Rozmery skrutiek	Dĺžka (X)	Závit (Y)
Slovenščina	MERE STENSKEGA NOSILCA VESA	Velikosti vzorca lukenj (mm)	Velikosti vijakov	Dolžina (X)	Navoj (Y)
Hrvatski	VESA MJERE ZIDNOG DRŽAČA	Veličine uzorka otvora (mm)	Veličine vijka	Dužina (X)	Navoři (Y)
Bosanski	DIMENZIE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije vijaka	Dužina (X)	Navoj (Y)
Български	РАЗМЕРИ ЗА КОМПЛЕКТ ЗА МОНТАЖ НА СТЕНА VESA	Размери на отвора (mm)	Размер на болта	Дължинат (X)	Резба (Y)
Lietuvių	VESA TVIRTINIMO PRIE SIENOS MATAVIMAI	Angos šablono dvdis (mm)	Varžtu dydis	Iligis (X)	Sriegis (Y)
Latviešu	VESA SIENAS STIPRINĀJUMA IZMĚRI	Gaurumu šablona izměrs (mm)	Skrūvju izměri	Garums (X)	Vītne (Y)
Eesti	VESA SEINALE KINNITAMISE MÖÖDUD	Kruvi suuruse moõt (mm)	Kruvi suurus	Kõrgus(x)	Keere (Y)
Shqip	PĚRMASAT E NJĘSISĘ SĘ MONTIMIT NĘ MUR VESA	Madhēsitę modele të vrimave (mm)	Madhēsitę e vidhave	Gjatēsia (X)	Filetimi (Y)
عربي	مEqييس لنتثیت على الجدار VESA	(م) أ Compliance التقوب	(طول)	(Х)	(丫)
النام	VESA نون مزه بزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نرط مزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نزه نرط	(م) مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه мزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه م�ق	(م) مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مز.	(Х) مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مز.	(丫) مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مزه مز衆	(丫) مز衆
	VESA اندازه گیری تقصّد نوaritye VESA اندازه گیری تقصّد نوaritye VESA اندازه گیری تقصّد نوaritye VESA اندازه گیری تقصّد نوaritye VESA اندازه گیری تقصّد نوaritye VESA اندازه گیری تقصّد نوaritye VESA اندازه گیری т causedن دوaritye VESA اندازه گیری ت causedن دوaritye VESA اندازه گیری ت causedن دوaritye VESA اندازه گیری ت causedن دوaritye VESA اندازه گیری ت causedن دوaritye VESA اندازه گیری ت causedن دوaritye VESA اندازه گیری ت causedن دوaritye VESA اندازه گ Aberی ت causedن دوaritye VESA اندازه گ Aberی ت causedن دوaritye VESA اندازه گ Aberی ت causedن دوaritye VESA اندازه گ Aberی ت causedن دوaritye VESA اندازه گ Aberی ت causedن دوaritye VESA اندازه گ Aberی ت causedن دوaritye VESA اندازه.

A	Product Fiche
B	Commercial Brand:XD
C	Product No.	10110100
D	Model No.	XD24H2VSAT
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	24 inches	61 cm
G	On mode average power consumption (Watt)	19
H	Annual energy consumption (kWh/annum)	27
I	Stand by power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1366x768

	A	B	C	D	E	F
English	Product Fiche Commercial Brand Product No.			Model No. Energy efficiency class			Visible screen size (diagonal, approx.) (inch/cm)
Deutsch	Produkt-Datenblatt	Markenzeichen		Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	Sichtbare Bildschirmgroße (diagonal,ca.) (Zoll /cm)
عربية	فابس انتج	العلامة التجارية تيوتكن		رقم انتج	رقم الموتيل	قيمة علابة الطاقة	الحجم الشتالة المرباح (م outdoors)
Български	Справочен лист с техническите данни	Търговска марка		Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана (диагонал,прибл.) (инча /см )
čeština	Produktový list	Značka výroboe		Číslo produktu	Model č.	Energetická třída	Viditeína velikost obrazovky (úhlopřicka,pribl.) (palců /cm)
Dansk	Produktoplysningsskema	Varemærke		Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmistørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki		Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyvan kuvaruudun koko (diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale		Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'écran visible (diagonale,approx.) (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka		Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljiva veličina ekrana (dijagonalna,približno) (inča/cm)
Nederlands	Productfiche	Commercieel merk.		Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermgrootte (diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial		N° de Producto	N° de Modelo	Clasificación Energética	Tamaño de pantalla visibile (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke		Produktnr.	Modellnr.	Energiklass	Synlig skärnstorlek (diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale		Numero prodotto	Numero modello	Classe di efficienza energetica	Dimensioni visibili dello schem (diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU Marka produktu Nr produktu Nr modelu					Klasa efektywności energetycznej	Widoczny obraz ekranu (przekątna,około)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka		Termékszám	Modellszám	Energiahatékonysági osztály	Lathato képtartomány (diagonálts,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare		Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial		Produto N°	Modelo N°	Classificação eficiência energética	Tamanho ecra visivel (diagonal, aprox.) (polegadas/cm)
Română	Fişă produs	Marcă comercială		Nr. Produs	Nr. Model	Clasa de eficiență energetică	Dimensiunea ecranului vizibii (diagonală, aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали, приблизительно) (дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали,Около)(дюймов/см )
македонски	Технички податоци	Комерцијална марка		Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран (дијагонала, околу) (инчи/cm)
український	Технічні дані	Кормеційна марка		Артикул	Модель	Клас енергоспоживання	Видимии розмир екрана (диагональ, Приблизно) (дюймів/cm)
Srpski	Tehničke odlike	Komercijalna marka		Proizvod br.	Model br.	Klasa energetske efikasnosti	Veličina vidljivog ekrana (dijagonala, tokom) (inča/cm)
Slovenčina	Produktový list	Značka výrobcu		Číslo produktu	Model č.	Energetická trieda	Viditeína velikost obrazovky (uhlopriečka, zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka		Št. izdelka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллнік	Делтію проїєктос	Емторикó σήμα		Ар. Проїєктос	Ар. Мотіеліου	Катінорія евсуриакіє ато́бооңς	Ороло мүгевоє ововің (ойадувиюс, терр.) (IVTOECI/cm)
Bosanski	Tehnički podaci	Komercijalna marka		Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva velicina ekrana (diagonala, približno.) (inča/cm)
Начиц	Китай 0013	Чипов Липа		Чипов 0013	Чипов 0013	Чипов НИЧИ АПРО	(отуря)(дипы,дипы) (дипы)
Türkçe	Ürün fişi	Ticari Marka		Ürün No.	Model No.	Enerji verimliliği simfi	Görüten ekran boyutu (çapraz, yakışk.) (inch/cm)
Shqlp	Tê dhēnat e produktit	Marka tregtare		Nr. i produktit.	Nr. i modelit.	Klasa е eficiencês sê energjisê	Madhësia e ekranit të dukshëm (diagonal, afërsisht) (inch/cm)
Lietuvių	Gaminio etiketė	Gamintojas		Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasė	Matomas ekran o dydis (jstrizaine, approx.) (colių/cm)
Latviešu	Produkta apraksts	Marka		Produkta nr.	Modeļa nr.	Energoefektivitāles klase	Ekrania izmers (pa diognali, apmçram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma		Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekraini suurus (diagonaal, umbes) (tolli/cm)
فراسی	مشخصات محصول	مارک تجازی		ثموزه محصول	ثموزه منک	گروه کاربی اززی	(بایز مطعه قابل مشاهه (منشیک,کفری) (بیچ)

	G	H	I	J	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	(Watt)	Stromverbrauch im ausgeschaltetem Zustand (Watt) Display-Auflösung (px)
عربية	متوسط استهلاك الطاقة عند اشPoll(والمط)	(الاستهلاك الستوي تطاقابق/کیتر واطالمطقة)	(استهلاك الطاقة في ضيع استحاد(والمط)	(استهلاك الطاقة في ضيع استحاد(والمط)	(وضوح (شاشمة)کیکل)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишна консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Prüměrná spotřeba elektrické energie v zapnutém režimu (Wattú)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovostním režimu (Wattů)	Spotřeba elektrické energie v vypnutém režimu (Wattů) Rozlišení disp	peje (px)
Dansk	Gennemsnitligt stromforbrug i taëndt tilstand (Watt)	Ärligt energiforbrug (kWh/Ärligt)	Strømforbrug (standby)(Watt)	Strømforbrug i slukket tilstand (Watt)	Skærmoplesning (px)
Suomi	Päällä-tilan keskimääräinen virrankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakovirran kulutus (Wattia)	Pois-tilan virrankulutus (Wattia)	Näytön erottelukyky (pikselia)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode "arrêt" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod sključen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik(kWh/Jaarlijks )	Stand-by stroomverbruik (Watt)	Jit-modus stroomverbruik (Watt)	Schemresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual) Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PÄ-läge (Watt)	Energikonsumtion per år (kWh/Ärlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skärmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Średnie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Średnie zużycie energii w trybie czekiwania (Watów)	Zużycie energii w trybie wyłączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt) Éves energiafogyasztás	(kWh/Éves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pámodus gjennomsnítitlig stromforbruk (Watt)	Ärlig stromforbruk (kWh/Ärlig)	Hvilemodus stromforbruk (Watt)	Av-modus stromforbruk (Watt)	Skjermopplösning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual) Consumo energia em stand-by (Watt)	Consumo annual energia (kWh/anual) Consumo energia em stand-by (Watt)	Consumo energy em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu In modul pomit (Wat)	Consum anual de energie (kWh/anual)	Consum electric in stare de repaus (Wat)	Consum electric in modul oprit (Wat)	Rezoluția ecranului (pixel)
Русский	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (кВт/Год)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/гарадавое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка когае вклучен	Годишна потрошувачка на енергија (kWh/Годишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня споживана потужність у робочому режимі (Вт)	Середньорична споживана потужність (kWh/Річне)	Сложивана потужність у режимі очікування (Вт)	Сложивана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključeni (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključeni (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priememă spotreba elektrickej energie v zapnutom režime (Wattov)	Ročnă spotreba energie (kWh/Ročnă)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vypnutom režime (Wattov)	Rezlišenie displeja (pixl.)
Slovenščina	Poraba električne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллэнvik	Місток татавálшоц реúµatoç leisureрухіас (Watt)	Етіюся катавálшоц evépyειας (kWh/Eri'αίας)	Катавálшоц реúµatoç στην αναμονή (Watt)	Катавálшоц реúµatoç στεπενεργοτοίηση (Watt)	Акадуон обовнş (Пігел)
Bosanski	Prosječna potrošnja kada je uključen(Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucija ekrana (piks.)
Түйкçe	(оки)зүйкөз оқын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын оқын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақына ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақына оқын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақын ақынд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́ккгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейد ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́ксгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд ́кгейд

TR: İşbu belgede; VESTEL Elektronik Sanayi ve Ticaret A.Ş., telsiz ekipmanı tipi TFT IDTV'nin 2014/53/AB sayılı direktife uygun olduğunu beyan eder. AB uygunluk beyanının tam metni internet adresinde mevcuttur: doc.vosshub.com
EN: Hereby, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com
BG: С настоящото VESTEL Elektronik Sanayi ve Ticaret A.Ş., декларира, че този тип радиосъоръжение TFT IDTV е в съответствие с Директива 2014/53/EC. Цялостният текст на EC декларацията за съответствие може да се намери на следния интернет адрес: doc.vosshub.com
CS: Tímto VESTEL Elektronik Sanayi ve Ticaret A.Ş., prohlašuje, že typ rádiového zařízení TFT IDTV je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: doc.vosshub.com
DA: Hermed erklærer VESTEL Elektronik Sanayi ve Ticaret A.Ş., at radioudstyrstypen TFT IDTV er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: doc.vosshub.com
DE: Hiermit erklärt VESTEL Elektronik Sanayi ve Ticaret A.Ş., dass der Funkanlagentyp TFT IDTV der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: doc.vosshub.com
EL: Με την παρούσα ο/η VESTEL Elektronik Sanayi ve Ticaret A.Ş., δηλώνει ότι ο ραδιοεξοπλισμός TFT IDTV πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: doc.vosshub.com
ES: Por la presente, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declara que el tipo de equipo radioeléctrico TFT IDTV es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: doc.vosshub.com
ET: Käesolevaga deklareerib VESTEL Elektronik Sanayi ve Ticaret A.Ş., et käesolev raadioseadme tüüp TFT IDTV vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: doc.vosshub.com
FI: VESTEL Elektronik Sanayi ve Ticaret A.Ş., vakuuttaa, että radiolaitetyyppi TFT IDTV on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: doc.vosshub.com
FR: Le soussigné, VESTEL Elektronik Sanayi ve Ticaret A.Ş., déclare que l'équipement radioélectrique du type TFT IDTV est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: doc.vosshub.com
HR: VESTEL Elektronik Sanayi ve Ticaret A.Ş., ovime izjavljuje da je radijska oprema tipa TFT IDTV u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: doc.vosshub.com

HU: VESTEL Elektronik Sanayi ve Ticaret A.Ş., igazolja, hogy a TFT IDTV típusú rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: doc.vosshub.com
IT: Il fabbricante, VESTEL Elektronik Sanayi ve Ticaret A.Ş., dichiara che il tipo di apparecchiatura radio TFT IDTV è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: doc.vosshub.com
LT: Aš, VESTEL Elektronik Sanayi ve Ticaret A.Ş., patvirtinu, kad radijo jrenginių tipas TFT IDTV atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: doc.vosshub.com
LV: Ar šo VESTEL Elektronik Sanayi ve Ticaret A.Ş., deklarē, ka radioiekārta TFT IDTV atbilst Direktīvai 2014/53/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: doc.vosshub.com
MT: B'dan, VESTEL Elektronik Sanayi ve Ticaret A.Ş., niddikjara li dan it-tip ta' taghmir tar-radju TFT IDTV huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ğej: doc.vosshub.com
NL: Hierbij verklaar ik, VESTEL Elektronik Sanayi ve Ticaret A.Ş., dat het type radioapparatuur TFT IDTV conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: doc.vosshub.com
PL: VESTEL Elektronik Sanayi ve Ticaret A.Ş., niniejszym oświadcza, że typ urządzenia radiowego TFT IDTV jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: doc.vosshub.com
PT: O(a) abaixo assinado(a) VESTEL Elektronik Sanayi ve Ticaret A.Ş., declara que o presente tipo de equipamento de rádio TFT IDTV está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: doc.vosshub.com
RO: Prin prezenta, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declară că tipul de echipamente radio TFT IDTV este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: doc.vosshub.com
SK: VESTEL Elektronik Sanayi ve Ticaret A.Ş., týmto vyhlasuje, že rádiové zariadenie typu TFT IDTV je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: doc.vosshub.com
SL: VESTEL Elektronik Sanayi ve Ticaret A.Ş., potrjuje, da je tip radijske opreme TFT IDTV skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: doc.vosshub.com
SV: Härmed försäkrar VESTEL Elektronik Sanayi ve Ticaret A.Ş., att denna typ av radioutrustning TFT IDTV överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU-försäkran om överensstämmelse finns på följande webbadress: doc.vosshub.com
