USER MANUAL 32H2EWSAT XD

Black-and-white city skyline at dusk with dramatic lighting and reflections on water (no text or symbols visible)

Please read these instructions carefully and retain for future reference.

Table Of Contents

Preparations Guide

Safety Information....2

Important Safety Precautions....3

Installed And Connected TV

TV Bracket assemble....4

TV Buttons And Terminal Interface....5

External device connection diagram....6

Install And Connect TV....7

TV Stand installation Instructions....7

TV Menu

First Time Installation....8

Channel Menu....10

Picture Menu....15

Sound Menu....17

Time Menu....18

Lock Menu....20

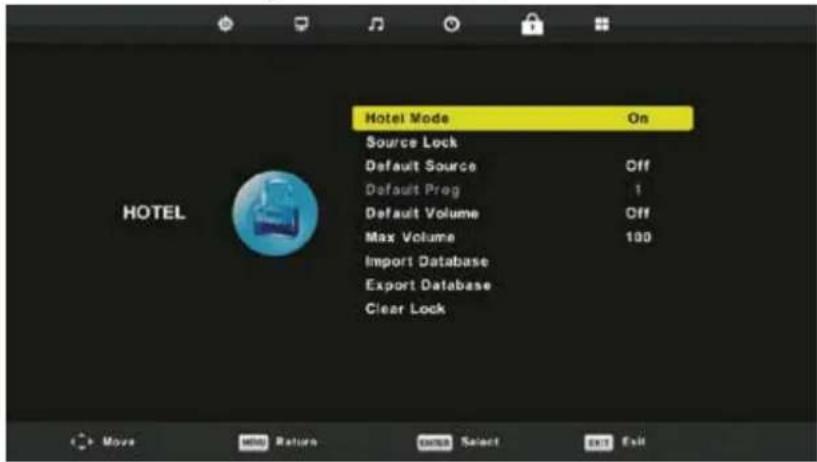

Hotel Mode....22

Setup Menu....23

PC Menu

Screen Menu....26

Media Menu

Media Operation....27

Photo Menu....28

Music Menu....29

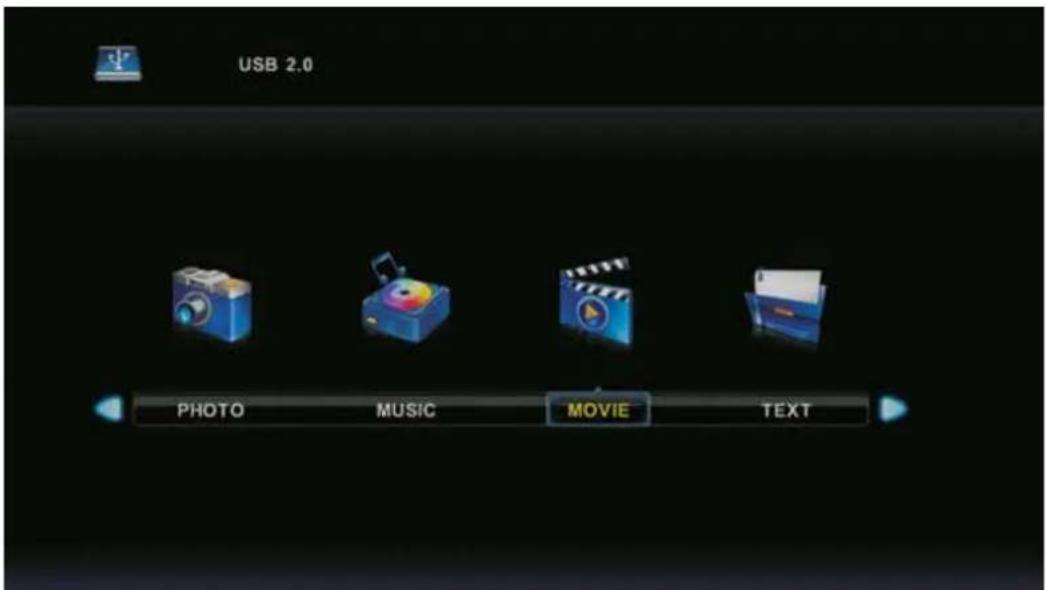

Movie Menu....30

Text Menu....31

Other Information

Help....32

Specifications....33

Remote Controller....34

This user manual for reference only

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

High voltages are used in the operation of this product. to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

Warning symbol image with exclamation mark inside triangle

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Warning The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Important Safety Precautions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at Plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments /accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury
tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

Caution:

14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

16) The socket-out shall be installed near the equipment and shall be easily accessible.

17) This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhered to.

18) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21)

Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22) The USB terminal should be loaded with 0.5 A under normal operation.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions. unless you are qualified to do so.

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24) This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth

25) The maximum using environment temperature is 45 degrees. The Maximum using altitude is 2000 meters

TV Bracket assemble

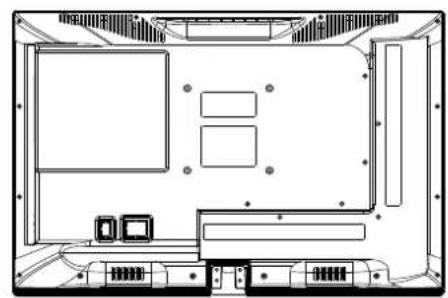

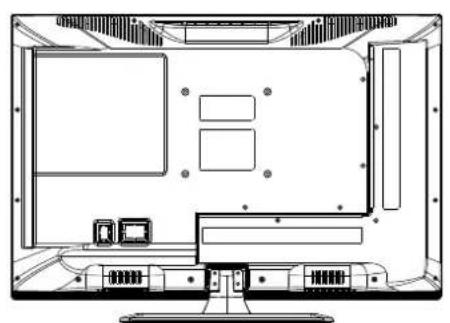

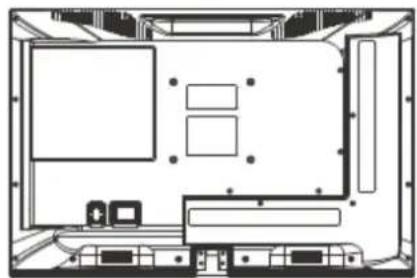

Fix the TV on the wall

1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen.
2. User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1). And take off the bottom stand (please take off the screws and bottom stand carefully).
3. Make one bracket which can fix on the wall according to the size of arrow direction of photo2 and photo3.
4. Drill four holes properly on the wall (the size only for reference) and put into four screws. (optional parts) Drill four holes properly on the wall (the size only for reference) and put into four screws. (optional parts)

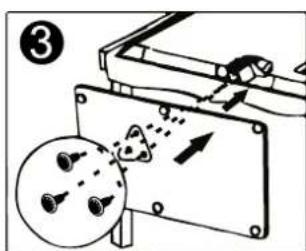

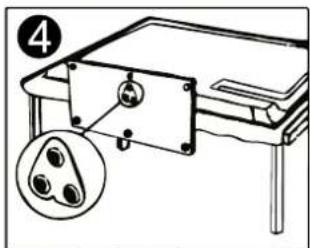

5. according to the step 4, use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Top-down schematic of a room layout with furniture and fixtures (no text or labels)

2

Wall

3

Bracket Wall Cement bolt 4

Note:

1. The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

TV Buttons And Terminal Interface

TV Buttons

Note: The following is only functional schematic, And the actual position and arrangement of different models may be different.

VOL+

VOL -

CH+

CH-

MENU

SOURCE

(●):Turn ON/OFF Power.

SOURCE: External Signal Input Selection.

MENU: Display Main MENU And Confirm MENU Item Selection.

CH+/-:Selecting Channel.

VOL+/-:Adjusting Volume.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

	AV inputExternal AV Signal Input AndRelevant Right/Left Sound Channel		EARPHONE outputWhen earphones are plugged in,speakers are disabled
	CISLOTThe card reader input CI(common interface) this requires CAM (conditional access module)used for pay TV.		USB inputConnect a USB device here to play its media files or to recordprograms via the PVR function.
	YPb Pr inputConnect to the composite terminal of your DVD/VCR(Some models without this interface)		COAXIALConnect the SPDIF receiver.
	HDMI inputDigital signal input from HDMI video connector.		SCART inputstandard, it supports composite and RGBsignal input. It is a connection for european(Some models without this interface)
	ANT 75Connect the antennal/cadle tv input(75/VHF/UHF)
	VGA inputPC analog signal input
	PC AUDIO INPUTVGA input and audio input when VGA input

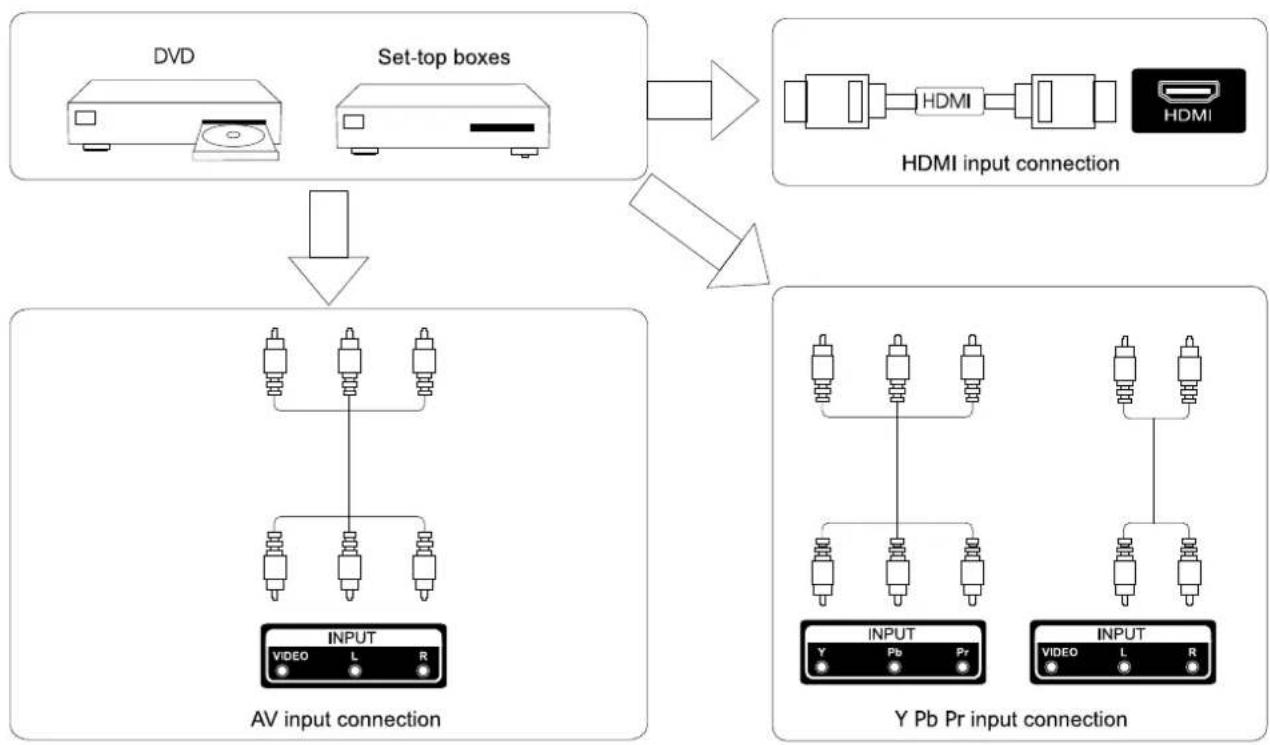

External device connection diagram


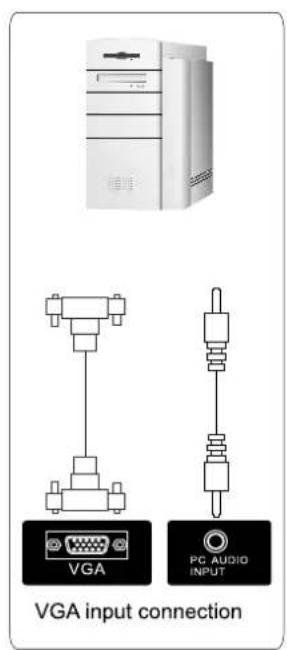

VGA input connection VGA PC AUDIO INPUT

AV input connection OUTPUT VIDEO L R AV output connection

USB connection TV connection RJ45 connection

Install And Connect TV

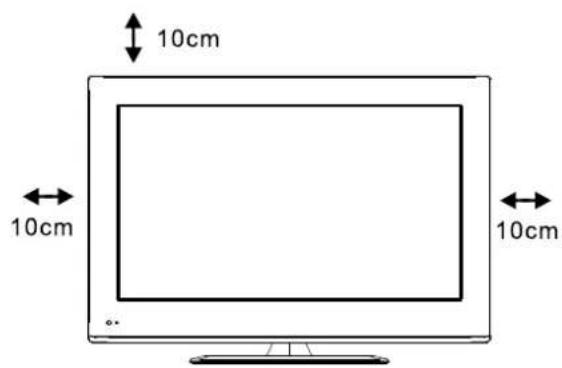

10cm 10cm 10cm

3

TV signal output FM ANT TV ANT

2
1

Set your TV

To put your TV in a firm place which can bear the weight of the TV.
To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

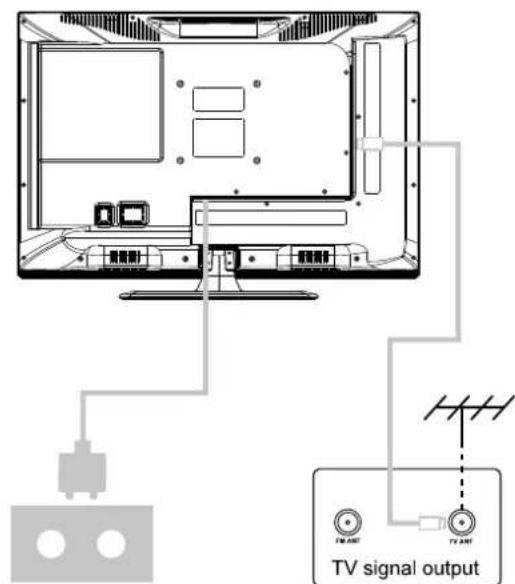

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV (AC 100-240V\~50/60Hz).

Turn on TV

1. Press the power button of the TV the indication light will turn to green. if it is on standby mode (the light is red), press the power button on the remote control to turn on the TV.

Note:

Picture for reference purposes only.

TV Stand Installation Instructions

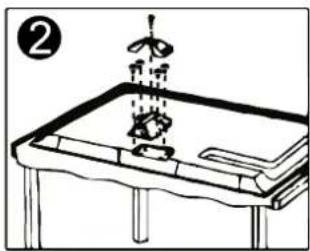

1. Open the carton and remove the TV and scattered accessories and base (some models without base).
2. to avoid the injury of the TV, covered with a soft mattress, put it on the table, face down on a soft mattress, the base of the neck is fixed on the TV with screws.
   3.screw the base and connected to the TV.
3. the installation is complete.

Note:

Picture for reference purposes only.

Please prevail in kind

①

Simple line drawing of a laboratory setup with a stand, beaker, and funnel (no text or symbols)

Diagram showing mechanical assembly with labeled parts and directional arrows, including a magnified inset of circular components.

Diagram of a table with labeled parts and an inset showing three circular components, likely illustrating a mechanical or electrical setup.

First Time Installation

Connect an RF cable from the Tv's input called "RF-In" and to your TV Aerial socket.

Select Language

Press ◀ / ▶ button to select the language to be used for menus and message.

Select Country

Press ▼ / ▲ button to highlight country menu.

Press ◀ / ▶ button to select the country you want to.

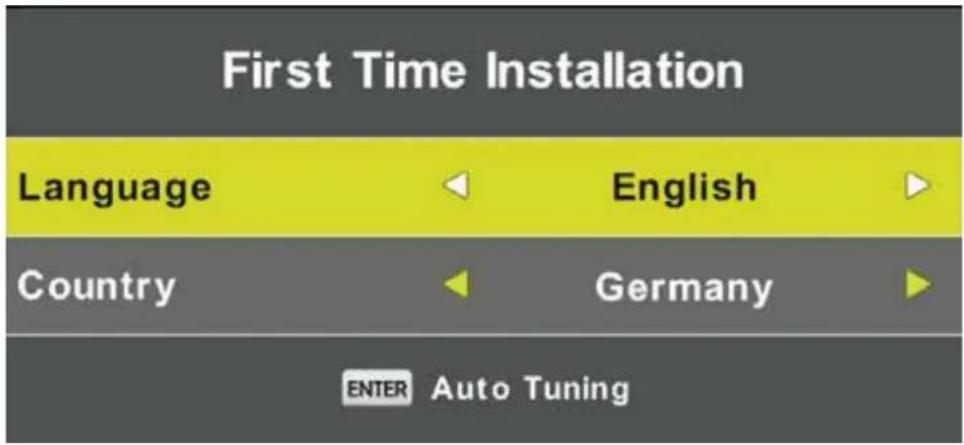

First Time Installation Language English Country Germany ENTER Auto Tuning

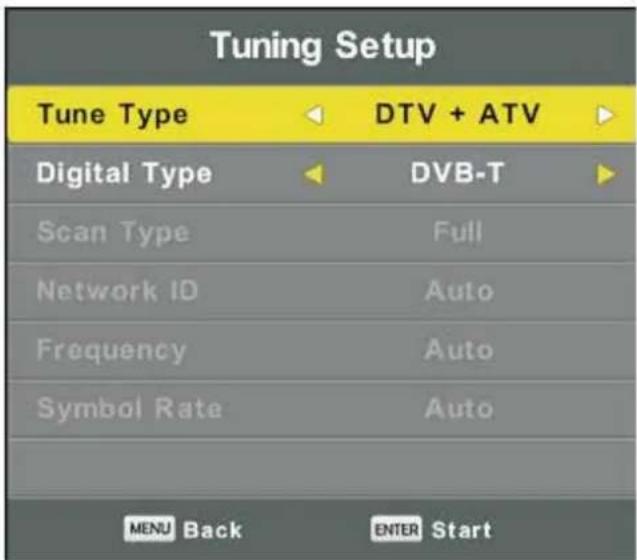

Tuning Setup Tune Type DTV + ATV Digital Type DVB-T Scan Type Full Network ID Auto Frequency Auto Symbol Rate Auto MENU Back ENTER Start

Auto Tuning

First tuning ATV, press Menu and left arrow button to skip ATV tuning, Second tuning DTV, press Menu and left arrow button to skip DTV tuning.

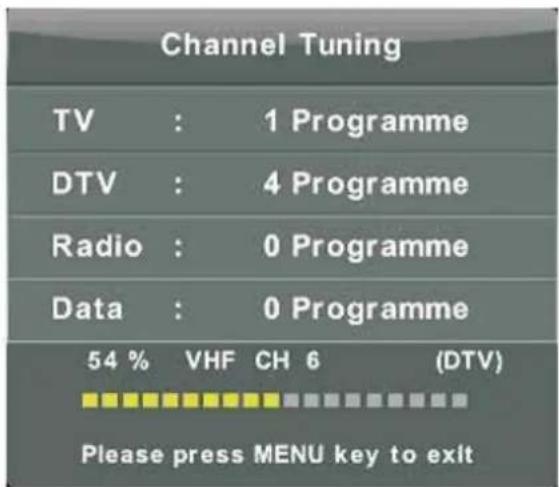

Channel Tuning TV : 0 Programme DTV : 0 Programme Radio : 0 Programme Data : 0 Programme 0 % 46.25 MHz (TV) Please press MENU key to skip

Do you want to skip ATV tuning?

Channel Tuning TV : 0 Programme DTV : 0 Programme Radio : 0 Programme Data : 0 Programme 50 % VHF CH 1 (DTV) Please press MENU key to exit

Do you want to exit tuning?

Channel Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select CHANNEL in the main menu.

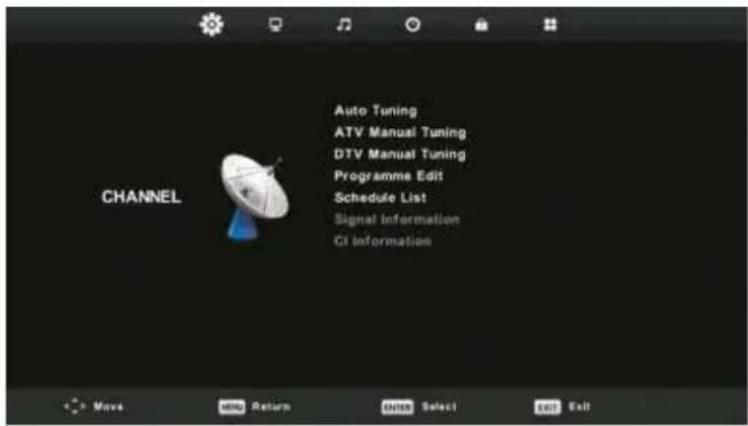

CHANNEL Auto Tuning ATV Manual Tuning DTV Manual Tuning Programme Edit Schedule List Signal Information CI Information

1. Press ▼ // ▲ button to select the option that you want to adjust in the CHANNEL menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Auto Tuning

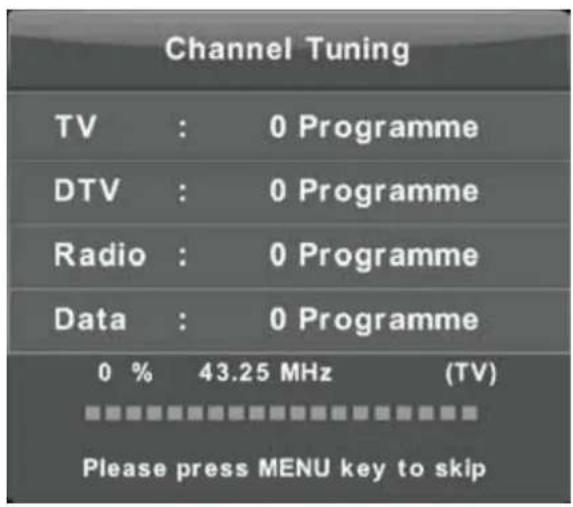

Press ▼ / ▲ button to select Auto Tuning, then press Enter/▶ button to enter.

Tuning Setup Country Germany Tune Type DTV + ATV Digital Type DVB-T Scan Type Full Network ID Auto Frequency Auto Symbol Rate Auto ENTER Start MENU Back

Channel Tuning TV : 0 Programme DTV : 0 Programme Radio : 0 Programme Data : 0 Programme 0 % 43.25 MHz (TV) Please press MENU key to skip

Do you want to skip ATV tuning?

Channel Tuning TV : 1 Programme DTV : 4 Programme Radio : 0 Programme Data : 0 Programme 54 % VHF CH 6 (DTV) Please press MENU key to exit

Do you want to exit tuning?

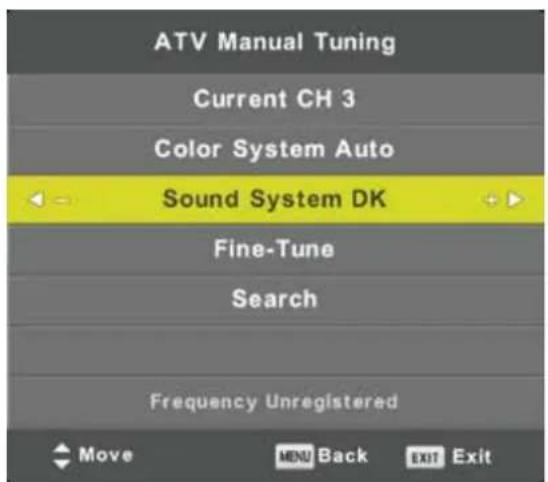

ATV Manual Tuning

ATV Manual Tuning Current CH 3 Color System Auto Sound System DK Fine-Tune Search Frequency Unregistered Move Menu Back Exit Exit

Current CH

Set the channel number.

Color System

Select the color system

(Available System: AUTO, PAL, SECAM)

Sound System

Select the Sound system

Fine-Turn

Adjust the frequency of the channel finely.

Search

Start searching channel.

DTV Manual Tuning

Press ▼ / ▲ button to select Material Tuning, then press Enter button to enter sub-menu.

Press ◀ / ▶ button to select channel, then press Enter button to search program.

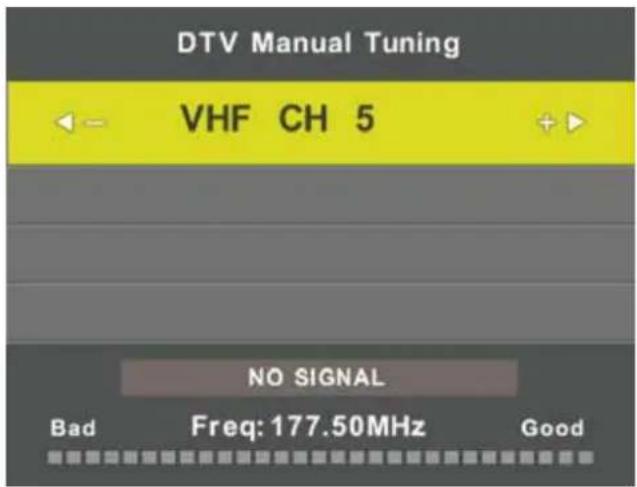

DTV Manual Tuning VHF CH 5 NO SIGNAL Bad Freq: 177.50MHz Good

Program Edit

Press ▼ / ▲ button to select Program Edit, then press Enter button to enter sub-menu.

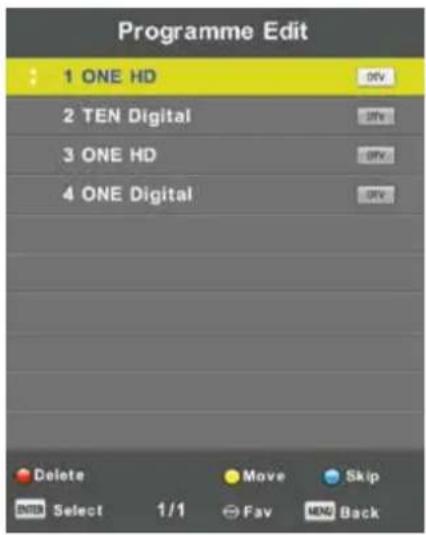

Programme Edit 1 ONE HD 2 TEN Digital 3 ONE HD 4 ONE Digital Delete Move Skip Select 1/1 Fav END Back

The th ree colore d key is the shortc ut key for pro gra mming the channel.

Firs t pre ss ▼ / ▲ to highlight th e channel you want to select, th en:

Pre ss the Red on to delete the pro gram in th e list.

Pre ss the 'butt ow n to move th e channel in fa vori te list.

Pre ss the E but on to skip the select d channel.

Pre ss Fav butt on to add or remote the channel to your fa vori te list.

(Your TV set will skip the channel automatically when using

CH+/- to view the channels.)

Schedule List

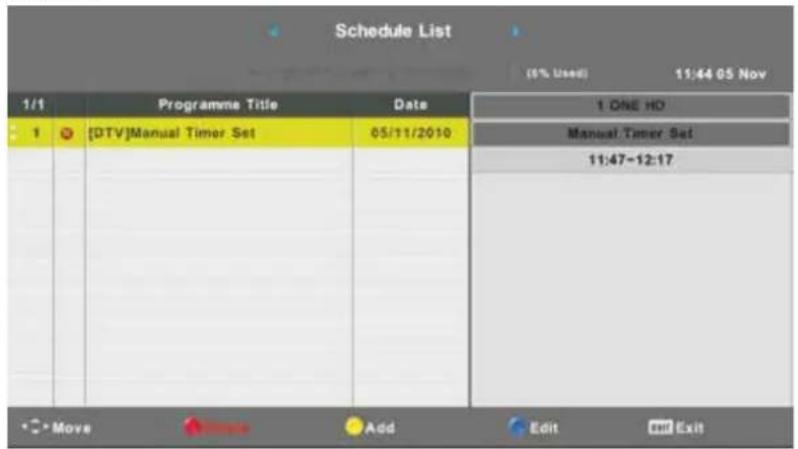

Press ▼ / ▲ button to select Schedule List, then press Enter button to enter sub-menu. It is available in source.

Schedule List (5% Used) 11:44 05 Nov 1/1 Programme Title Date 1 ONE HD 1 [DTV]Manual Timer Set 05/11/2010 Manual Timer Set 11:47-12:17 Move Add Edit Exit

Press the button to enter the interface below.

Schedule Setup 1 ONE HD Type Recorder Mode Once Start Time 11:47 05 Nov End Time 12:17 05 Nov ENTER Select MENU Back

When the time appointment is conflict, it will produce a warning message.

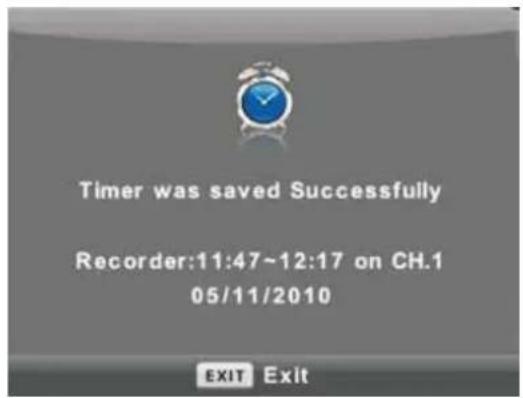

Timer was saved Successfully Recorder:11:47~12:17 on CH.1 05/11/2010 EXIT Exit

Signal Information

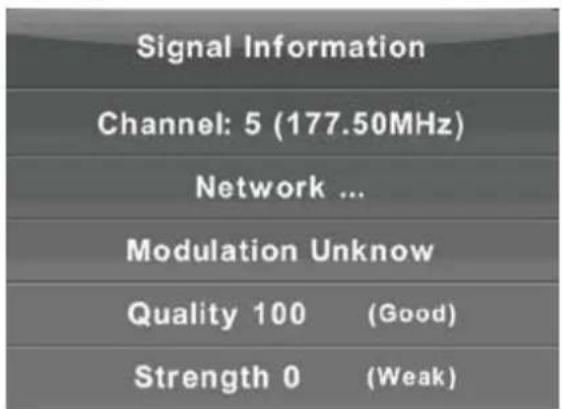

Press ▼ / ▲ button to select Signal Information, press the Enter button to see the detail information about the signal. Only available when there is signal in DTV.

Signal Information Channel: 5 (177.50MHz) Network ... Modulation Unknow Quality 100 (Good) Strength 0 (Weak)

CI Information (Need to support the CI function)

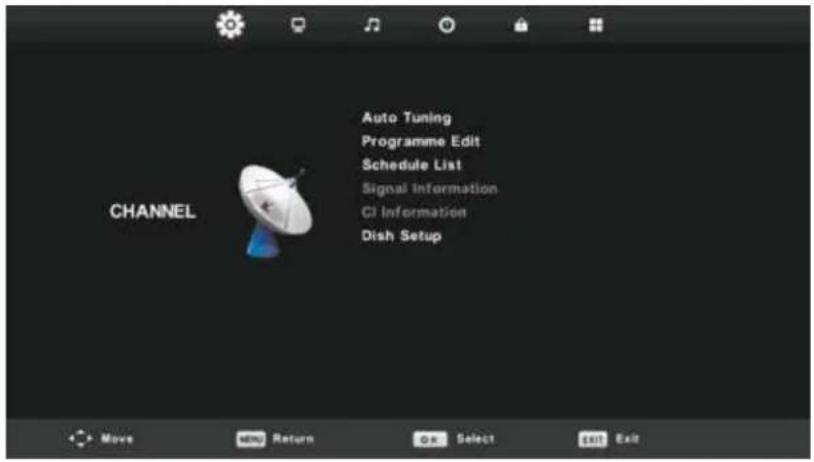

Press ▼/ ▲button to select CI Information, then press the Enter button to display detail if you has inserted the CI card

The CHANNEL List in Satellite Source.(Need to support the DVB-S2 function)

Auto Tuning Programme Edit Schedule List Signal Information CI Information Dish Setup CHANNEL Move NEW Return Go Select Exit Exit

Auto Tuning

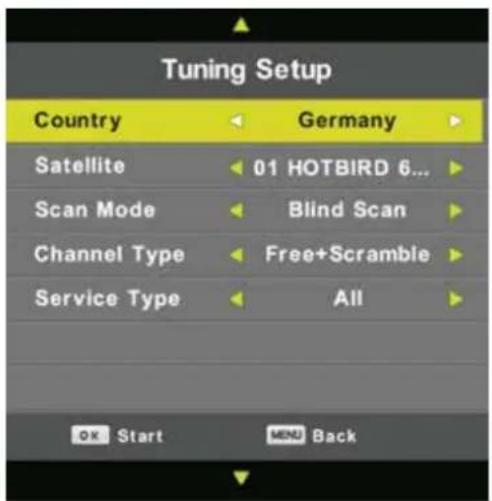

Press ▼ / ▲ button to select Auto Tuning, then press Enter/▶ button to enter.

Tuning Setup Country Germany Satellite 01 HOTBIRD 6... Scan Mode Blind Scan Channel Type Free+Scramble Service Type All OK Start MENU Back

Channel Tuning DTV : 0 Programme Radio : 0 Programme Data : 0 Programme Waiting HOTBIRD 6.7A.8 Please press MENU key to exit

Dish Setup

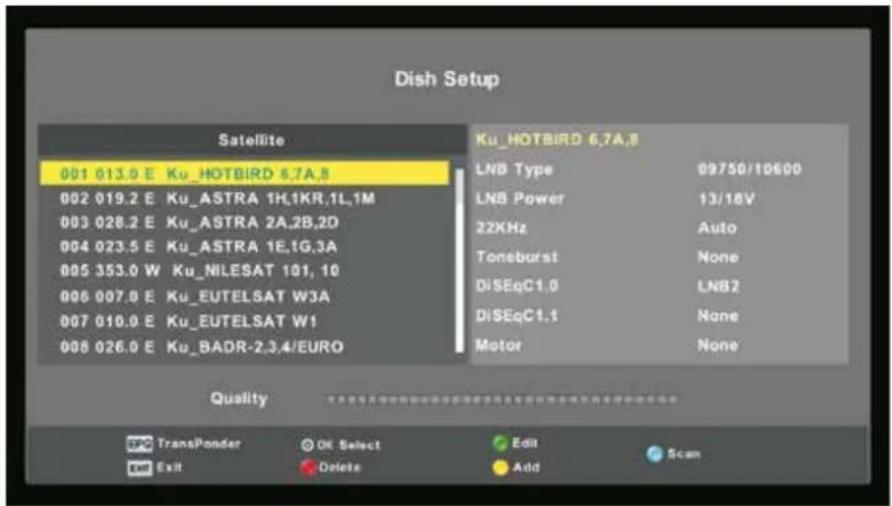

Press ▼ / ▲ button to select Dish Setup.then press Enter/▶ button to enter.

Dish Setup Satellite 001 013.0 E Ku_HOTBIRD 6,7A,8 002 019.2 E Ku_ASTRA 1H,1KR,1L,1M 003 028.2 E Ku_ASTRA 2A,2B,2D 004 023.5 E Ku_ASTRA 1E,1G,3A 005 353.0 W Ku_NILESAT 101, 10 006 007.0 E Ku_EUTELSAT W3A 007 010.0 E Ku_EUTELSAT W1 008 026.0 E Ku_BADR-2,3,4/EURO Ku_HOTBIRD 6,7A,8 LNB Type 09750/10600 LNB Power 13/18V 22KHz Auto Toneburst None DiSEqC1.0 LNB2 DiSEqC1.1 None Motor None Quality TransPonder OK Select Edit Scan Exit Delete Add Add

Picture Menu

Press MENU button to display the main menu.

Press ◀1/▶ button to select PICTURE if the main menu.

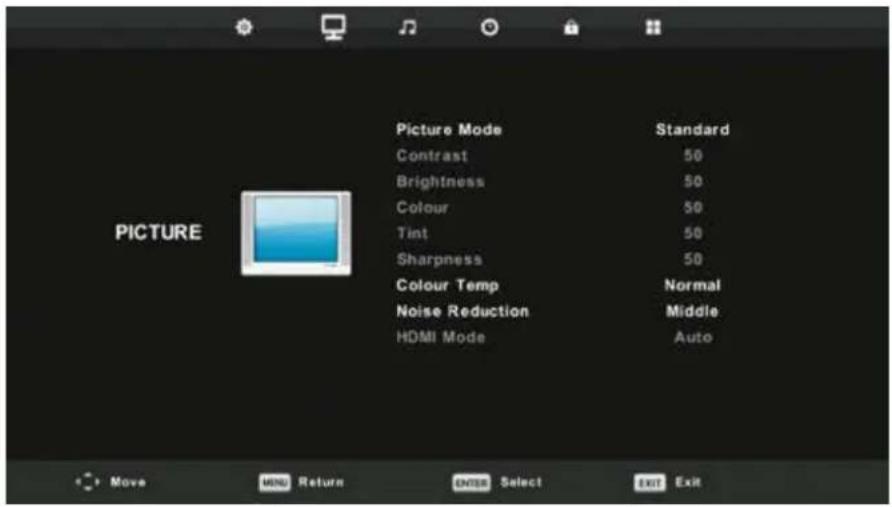

Picture Mode Contrast Brightness Colour Tint Sharpness Colour Temp Noise Reduction HDMI Mode Standard 50 50 50 Normal Middle Auto

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.st.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Picture Mode

Press ▼ / ▲ button to select Picture Mode, then press OK button to enter sub-menu.

You can change the value of contrast, brightness, color, sharpness and tint when the picture is in

Personal mode.

TIPS: You can press PMODE button to change the Picture Mode directly.

Picture Mode Dynamic Standard Mild Personal ENTER Select MENU Back

Contrast/ Brightness/ Color/ Tint / Sharpness

Press ▼ / ▲ button to select option, then press ◀ / ▶ button to adjust.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Color Adjust the saturation of the color based on your own like.

Tint Use in compensating color changed with the transmission in the NTSC code.

Sharpness Aadjust the peaking in the detail of the picture.

Color Temp

Change the overall color cast of the picture.

Press ▼ / ▲ button to select Color Temperature, then press OK button to enter sub-menu.

Press ◀ / ▶ button to select. (Available Picture mode: Cool, Medium, Warm).

You can change the value of red, green and blue when the color temperature is in User mode.

Colour Temp Cold Normal Warm ENTER Select MENU Back

Cold Increase the blue tone for the white.

Normal Increase the sex-linked colors for the white.

Warm Increase the red color for the white.

Noise Reduction

To filter out and reduces the image noise and improve picture quality.

Press ▼ / ▲ button to select Noise Reduction, then press OK button to enter sub-menu.

Noise Reduction Off Low Middle High Default ENTER Select MENU Back

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise.

High Detect and reduce enhanced video noise.

Default Set as Default.

HDMI Mode

Press ▼ / ▲ button to select HDMI Mode, then press OK button to enter sub-menu.

Press ◀ / ▶ button to select . (Available Picture mode; Auto, Video, PC).

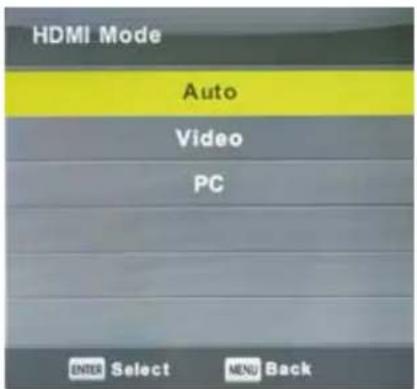

HDMI Mode Auto Video PC ENTER Select MENU Back

Sound Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SOUND in the main menu.

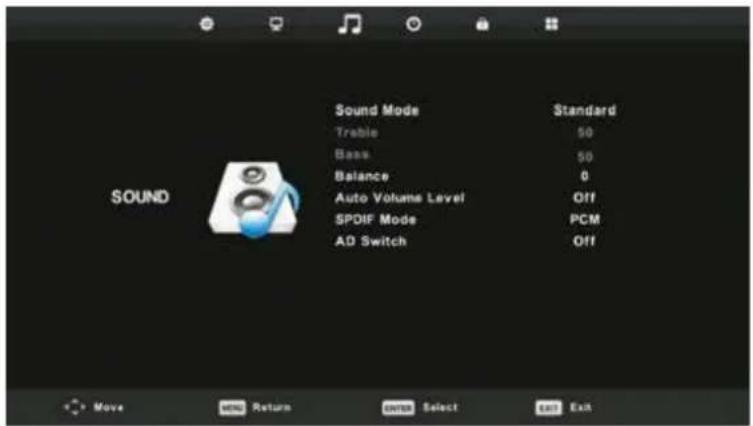

Sound Mode Treble Bass Balance Auto Volume Level SPDIF Mode AD Switch Standard 50 50 0 Off PCM Off

1. Press ▼//▲button to select the option that you want to adjust in the SOUND menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

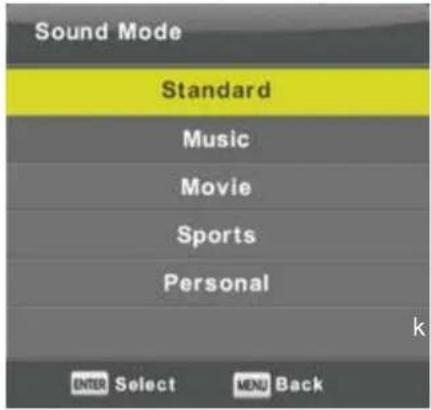

Sound Mode Standard Music Movie Sports Personal ENTER Select NOW Back k

Sound Mode

Press ▼ / ▲ button to select Sound Mode, then press Enter button to enter sub-menu. Press▼/▲ button to select.

You can change the value of Treble and Bass when the sound is in Personal mode.

TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.

Standard Produces a balanced sound in all environments.

Music Preserves the original sound.Good for musical programs.

Movie Enhances treble and bass for a rich sound experience.

Sports Enhances vocals for sports.

Personal Select to customize picture settings.

Note: The treble and bass are only available in User mode, you can adjust them as you like.

Balance

Press ▼ / ▲ button to select option, Press ◀ / ▶ button to adjust.

Auto Volume level

Press ▼ / ▲ button to select Auto Volume Level, then press ◀ / ▶ button to select On or Off.

SPDIF Mode

Press ▼ / ▲ button to select SPDIF Mode, then press ◀ / ▶ button to select Off / PCM / Auto.

AD Switch

Press ▼ / ▲ button to select AD Switch, then press ◀ / ▶ button to select On or Off.

Amblyopia function for the blind, the tracks will be mixed describe the current screen.

It need codestream to support.

NOTE:

Balance: This item can adjust the speaker's output, it enables you to listen to best at your position.

Auto Volume: This item is used for reducing the difference between channel and program's volume automatically.

Time Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select TIME in the main menu.

Clock Time Zone Sleep Timer Auto Standby OSO Timer Berlin GMT+1 Off 4H 15 S TIME Move Return MUST Select Exit

1. Press ▼ // ▲ button to select the option that you want to adjust in the TIMETimeMenu.
2. Press Enter button htb adjust st.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Time Zone

Press ▼ / ▲ button to select Time Zone, then press Enter button to enter sub-menu.

Time Zone Canary GMT Rabat GMT Berlin GMT+1 Lisbon GMT Amsterdam GMT+1 Brussels GMT+1 London GMT Beograd GMT+1 Budapest GMT+1 Move ENTER Select MENU Back

Press ▼ / ▲ / ◀ / ▶ button to select time zone.

Sleep Timer

Sleep Timer Off 15Min 30Min 45Min 60Min 90Min ENTER Select MENZ Back

Press ▼ / ▲ button to select Sleep Timer, then press Enter button to enter sub-menu.

Press ▼ / ▲ button to select.

Press ▼ / ▲ button to select.

Tips: The remote control does not make any operation in the hypothesis time, it will close down automatically. If you do any operation, it will reset the time.

OSD Timer

OSD Timer 5 S 15 S 30 S BMS Select MENU Back

Press ▼ / ▲ button to select OSD Timer, then press Enter button to enter sub-menu.

Press ◀ / ▶ button to select.

Lock Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select Lock in the main menu.

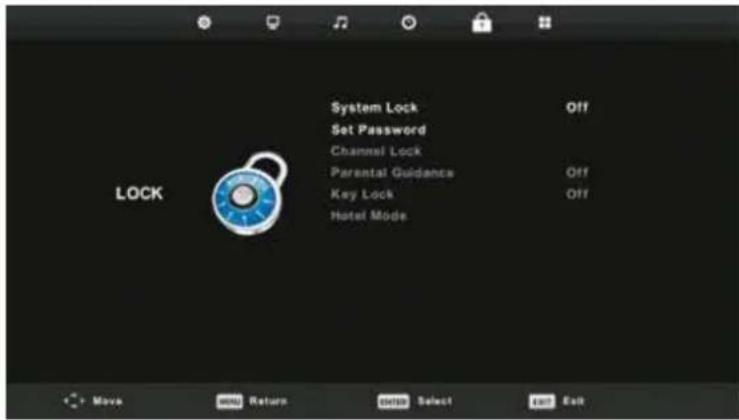

System Lock Set Password Channel Lock Parental Guidance Key Lock Hotel Mode OFF OFF OFF LOCK Move Add Return Remove Select Exit Exit

1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK SYSTEM menu.
2. Press Enter/◄/►button toadjustst.
3. After finishing your adjustment, Press MENU button to return back to the previous menu menu

Lock System

Please enter password Clear Cancel

Press ▼ / ▲ button to select Lock System, then press Enter button to make the following 3 options valid.

Default password is 0000, and if forget what you set, please call the service center.

Set Password

Please enter old password Please enter new password Confirm new password Clear Cancel >

Press ▼ / ▲ button to select Set Password, then press Enter button to enter sub-menu to set new password.

Channel Lock

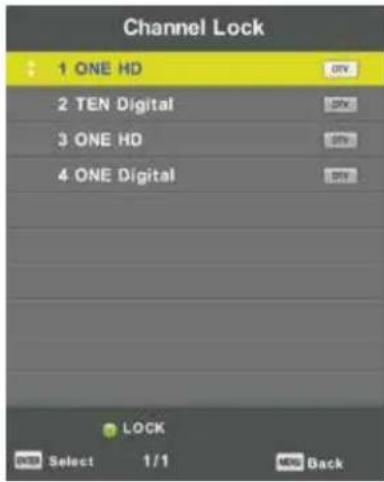

Channel Lock 1 ONE HD ON 2 TEN Digital SPV 3 ONE HD SPV 4 ONE Digital SPV LOCK OK Select 1/1 MRS Back

Press ▼ / ▲ button to select Channel Lock then press Enter button to enter sub-menu to select. Press button to lock or unlock the channel.Green

Parental Guidance

Parental Guidance Off 3 4 5 6 7 ENTER Select MENU Back

Press ▼ / ▲ button to select Parental Guidance, then press Enter button to enter sub-menu to select the number of age which is suitable for your children.

Key Lock

Press ▼ / ▲ button to select Key Lock, then press ◀ / ▶ button to select Off or On. When Key Lock's statue is on, you can't use the Key panel button.

Hotel Mode(Need support the Hotel Mode)

Hotel Mode On Source Lock Default Source Off Default Preg 1 Default Volume Off Max Volume 100 Import Database Export Database Clear Lock

1. Press ▼ / ▲ button on the remote control to select hotel mode in the Lock menu.
2. Press Enter button on the remote control to enter the sub-men menu.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Hotel Mode

Press ▼ / ▲ button to select Hotel Mode, then press ◀ / ▶ button to select on or off.

Source Lock

Press ▼ / ▲ button to select Source Locke, then press Enter button to enter sub-menu to select.

Default Source

Press ▼ / ▲ button to select Default Source, then press Enter button to enter sub-menu to select.

Default Prog

Press ▼ / ▲ button to select Default Prog, then press ◀ / ▶ button to adjust.

It is available when the default source is TV.

Max Volume

Press ▼ / ▲ button to select Max Volume, then press ◀ / ▶ button to adjust.

Clear Lock

Press ▼ / ▲ button to select Clear Lock, then press Enter button to clear the setting you have done before.

Setup Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SETUP in the main menu.

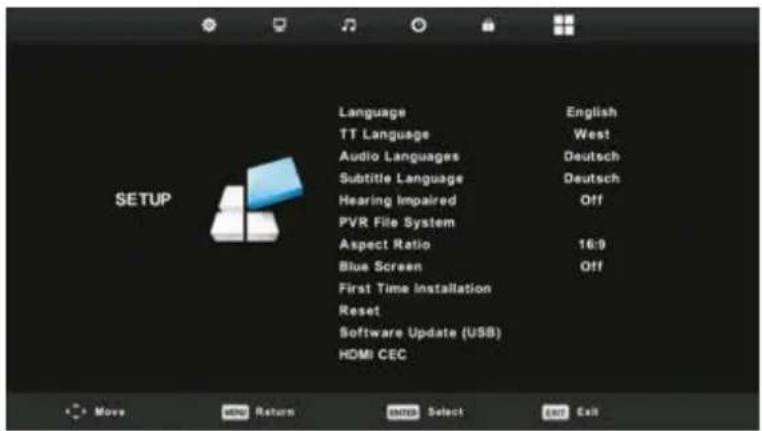

Language TT Language Audio Languages Subtitle Language Hearing Impaired PVR File System Aspect Ratio Blue Screen First Time Installation Reset Software Update (USB) HDMI CEC English West Deutsch Deutsch Off 16:9 Off Move Add Return Add Select Exit Exit

1. Press ▼ // ▲ button to select the option that you want to adjust in the SETUP menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

OSD Language

Select an OSD menu language can be displayed. Default English is selected as menu language.

Press ▼ / ▲ / ◀ / ▶ button to select Menu Language.

Language English Deutsch Espanol Français Italiano Português ENTER Select MENU Back

TT Language

Press ▼ / ▲ button to select TT Language, then press Enter button to enter sub-menu.

Press ▼ / ▲ / ◀ / ▶ button to select TT language.

TT Language West East Russian Arabic Farsi ENTER Select MENU Back

Audio Languages

Press ▼ / ▲ button to select Audio Languages, then press Enter button to enter sub-menu.

Press ◀ / ▶ button to select the primary of Audio Languages.

Press ▼ / ▲ / ◀ / ▶ button to select the Audio Languages.

Audio Languages Primary English Italiano Čeština Français Español Dansk Deutsch Português Ελληνικά ENTER Select MENU Back

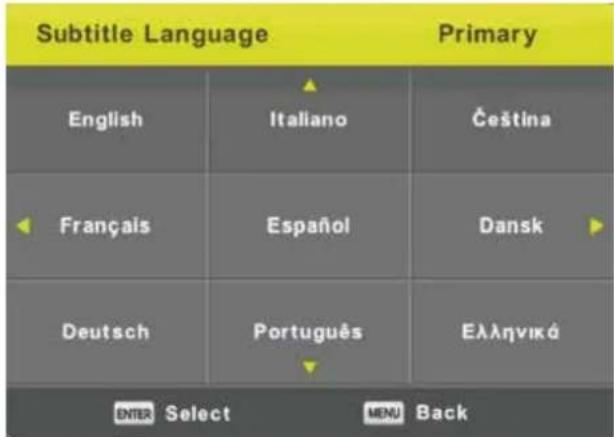

Subtitle Language

Press ▼ / ▲ button to select Subtitle Language, then press Enter button to enter sub-menu.

Press ◀ / ▶ button to select the primary of Subtitle Language.

Press ▼ / ▲ / ◀ / ▶ button to select the Subtitle Language.

Subtitle Language Primary English Italiano Čeština Français Español Dansk Deutsch Português Ελληνικά ENTER Select MENU Back

Hearing Impaired

Press ▼ / ▲ button to select Hearing Impaired, then press Enter button to select On or Off.

PVR File System

Press ▼ / ▲ button to select PVR File System, then press Enter button to enter sub-menu.

Press ▼ / ▲ button to select Check PVR File System,

then press Enter button to enter. Then it will check the USB speed.

Select Disk C: Check PVR File System Start USB disk Format Timeshift Size Speed Free Record Limit 6 Hr. Select Back

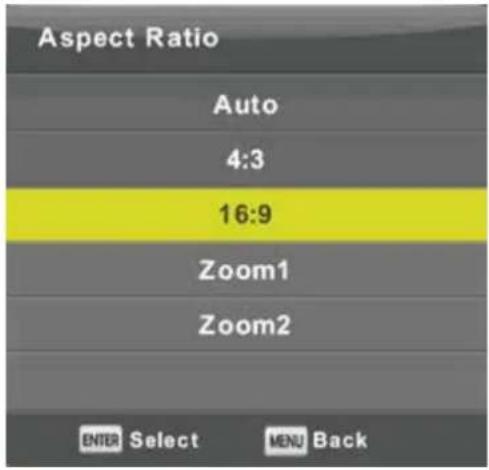

Aspect Ratio

Press ▼ / ▲ button to select Aspect Ratio, then press Enter button to enter sub-menu. Press ▼ / ▲ button to select aspect ratio. (Available options are: Auto, 4:3, 16:9, Zoom1, Zoom2).

Aspect Ratio Auto 4:3 16:9 Zoom1 Zoom2 ENTER Select MENU Back

Blue Screen

Press ▼ / ▲ button to select Blue Screen, then press Enter button to select On or Off.

First Time Installation

Press ▼ / ▲ button to select First time installation, then press Enter button to enter.

Reset

Press ▼ / ▲ button to select Reset, then press Enter button to enter sub-menu.

Software Update(USB)

Press ▼ / ▲ button to select S software Update (USB), plug your USB device in the USB slot, then press Enter button to update the right software.

HDMI CEC(Need to support the HDMI CEC/ARC function)

Press ▼ / ▲ button to select HDMI CEC, then press Enter button to enter the sub-menu.

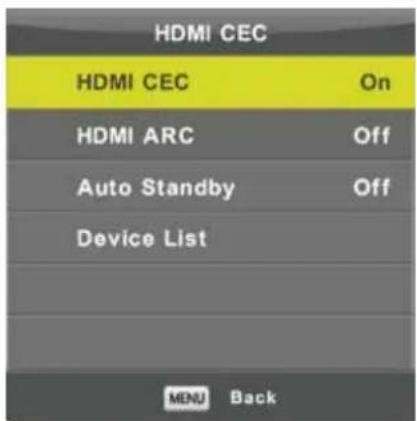

HDMI CEC HDMI CEC On HDMI ARC Off Auto Standby Off Device List MENU Back

HDMI CEC Press ◀ / ▶ button to turn the HDMI CEC on or off.

HDMI ARC Press ◀ / ▶ button to turn the HDMI ARC on or off.

Auto Standby Press ◀ / ▶ button to turn the Auto Standby on or off.

Device List Press Enter button to open the main menu of device.

Screen Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SCREEN in the main menu.

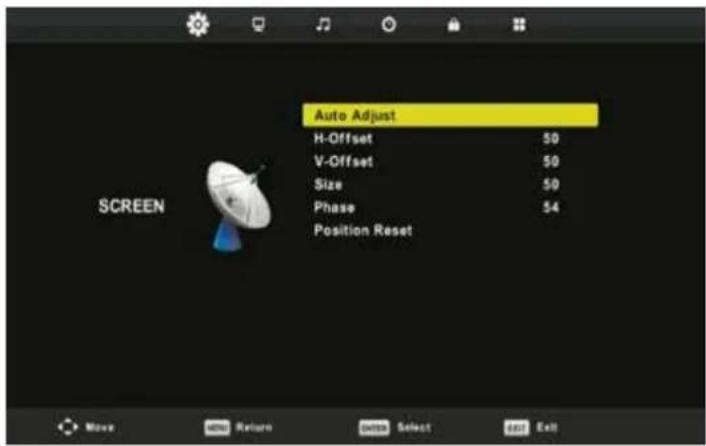

Auto Adjust H-Offset 50 V-Offset 50 Size 50 Phase 54 Position Reset SCREEN

1. Press ▼ // ▲ button to select the option that you want to adjust in the SCREEN menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Auto Adjust

Press Enter button to start adjusting H-Offset/V-Offset/Size/Phase automatically.

H-Offset.

Adjust the horizontal position of the picture.

Press ▼ / ▲ button to select H-Of fset, then press Enter button to enter sub-menu.

V-Offset

Adjust the vertical position of the picture.

Press ▼ / ▲ button to select V-Offset, then press Enter button to enter sub-menu.

Size

Adjust the display size.

Press ▼ / ▲ button to select Size, then press Enter button to enter sub-menu.

Phase

Adjust the horizontal interfering lines.

Press ▼ / ▲ button to select Phase, then press Enter button to enter sub-menu.

Position Reset

Press ▼ / ▲ button to select Position Reset, then press Enter button to enter.

Notes:

1. Noise Reduction in PICTURE option is invalid.
2. AID SOUND option is invalid.
3. TIME menu and description are the same as that for moAir.
4. Block Program and Parental Guidance in LOCK option is invalid.
5. Audio Languages, Subtitle Language, Hearing Impaired and PVR File System in SETUP option is invalid.
6. Rode has no CHANNEL menu.

Media OPERATION

Note: Before operating Media menu, Plug in USB device, then press INPUT button to set the Input Source to Media.

Press ▼ / ▲ button to select Media in the Source menu, then press Enter button to enter.

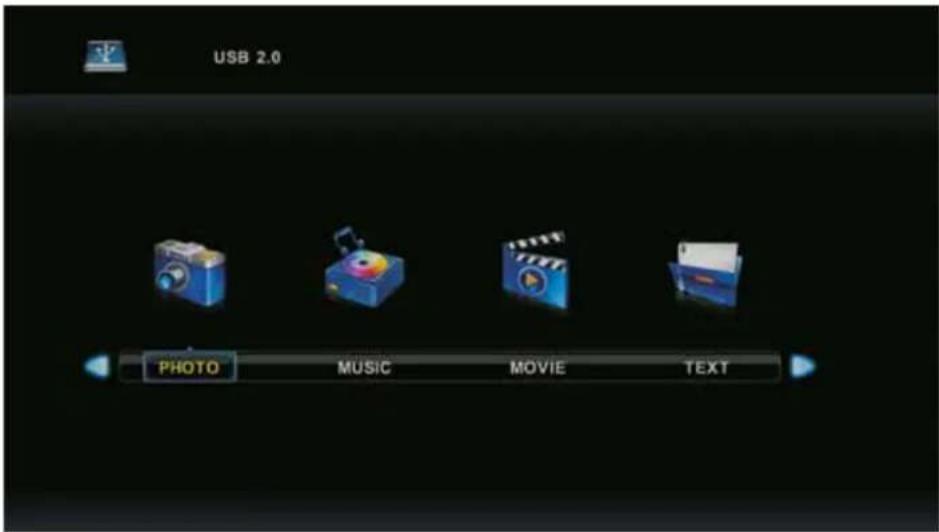

USB 2.0 PHOTO MUSIC MOVE TEXT

Press ◀ / ▶ button to select the option you want to adjust in the main Media menu, then press Enter button to enter.

Photo Menu

Press ◀ / ▶ button to select PHOTO in the main menu, then press Enter button to enter.

Press button to return to the previous menu and exit menu to quit.Exit

PHOTO C:\picture 1 / 1 Return Resolution: 500 X 375 Size: 102 KBytes Date: 2007 / 11 / 22 Time: 15 : 52 : 54 1_500x375x24b_szt.jpg.jpg Delete Exit

Press ◀ / ▶ button to select the file you want to watch in the file selecting menu, then press media button to display picture.

When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.

Play 1:588x375x24b_nst_09p30p Pause Prev. Next Stop RepeatALT Music Playlist Info.

Music Menu

Press ◀ / ▶ button to select MUSIC in the main menu, then press Enter button to enter.

Press button to return to the previous menu and exit menu to quit.Exit

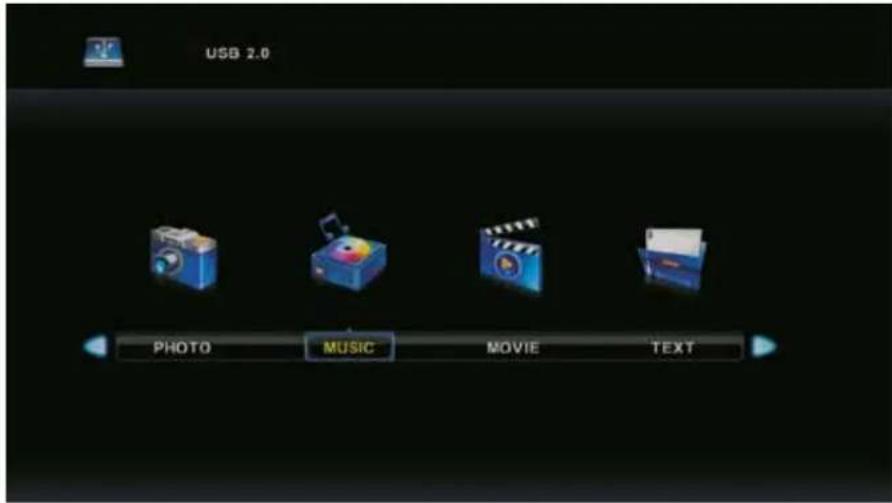

USB 2.0 PHOTO MUSIC MOVIE TEXT

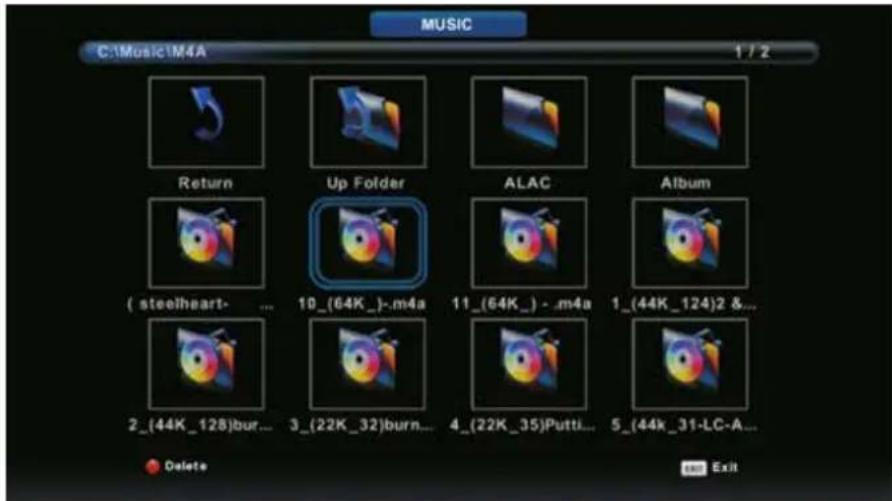

MUSIC C:\Music\M4A 1 / 2 Return Up Folder ALAC Album ( steelheart- ... 10_(64K_) -m4a 11_(64K_) - m4a 1_(44K_124)2 &... 2_(44K_128)bur... 3_(22K_32)burn... 4_(22K_35)Putti... 5_(44k_31-LC-A... Delete Exit

Press ◀ / ▶ button to select drive disk you want to watch, then press button to enter.Enter

Press ◀ / ▶ button to select return option to the previous menu.

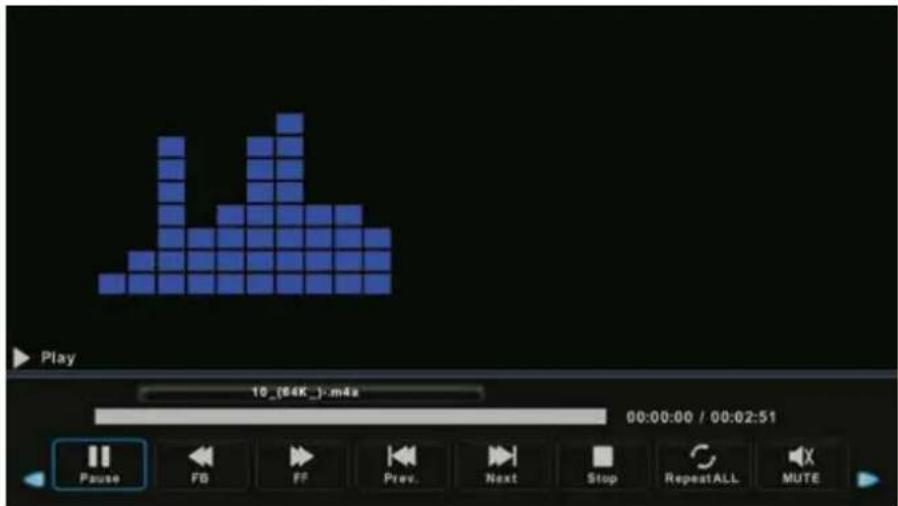

Play 10_(64K_):m4x 00:00:00 / 00:02:51 Pause FB FF Prev. Next Stop RepeatALL MUTE

Movie Menu

Press ◀ / ▶ button to select MOVIE in the main menu, then press Enter button to enter.

Press button to return to the previous menu and exit menu to quit.Exit

USB 2.0 PHOTO MUSIC MOVIE TEXT

Press ◀ / ▶ button to select drive disk you want to watch, then press button to enter.Enter

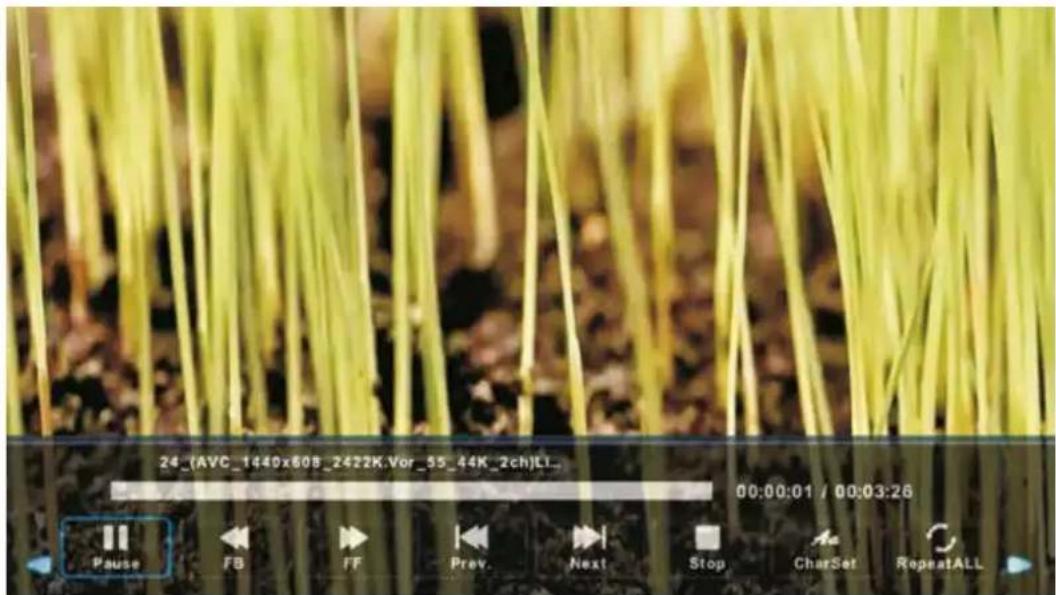

Press media button to play the selected movie.

Press display button to select menu in the bottom you want to run, then press Enter button to operate.

Press button to back to the previous menu and exit button to quit the entire menu.Exit

24_(AVC_1440x608_2422K.Vor_55_44K_2ch)LI_ 00:00:01 / 00:03:26 Pause FB FF Prev. Next Stop CharSet RepeatALL

Text Menu

Press ◀ / ▶ button to select TEXT in the main menu, then press Enter button to enter.

Press button to return to the previous menu and exit menu to quit.Exit

USB 2.0 PHOTO MUSIC MOVIE TEXT

Press ◀ / ▶ button to select drive disk you want to watch, then press button to enter.Enter

Press ◀ / ▶ button to select return option to back to the previous menu.

1. Hola!! 2. Buenos días!! 3. Buenas tardes!! 4. Buenas noches!! 5. Gracias! 6. Muchas gracias! 7. De nada 8. Adiós!! 9. Hasta luego!! 10. Hasta mañana!! 11. Hasta prontoll (=see you soon) 12. Qué tal?? Spanish 100.txt Previous P... Next Page Prev. Next Stop CharSet Music Playlist

Help

No power	·Check if the AC cord of TV is plugged in or not. If there's still no power, please disconnect the plug, and reconnect to the socket after 60 seconds. Turn the power back on.
Signal not received properly	·Double or phantom images may appear on your TV if there are high buildings or mountains close to where you are. You can adjust the image thru manual operation: consult instruction of vernier regulation, or adjust the direction of the external antenna.·If you use an indoor antenna, under certain circumstances signal reception may be more difficult. Adjust the direction of the antenna for optimum reception. If this does not improve reception, you may have to switch to an external antenna.
No picture	·Check if the antenna at the back of the TV is connected properly.·View other channels to see if the problem still occurs.
Video appears with no audio	·Try increasing the volume.·Check if the TV's sound is on mute or not.
Audio is present, but video does not appear or is discolored	·Try adjusting the contrast and brightness.
Static noise affects video and audio quality	·Check if the antenna at the back of the TV is connected properly.
Broken lines on screen	·Electrical appliances such as hair dryers or vacuums etc. may be interfering with your TV set. Switch these appliances off.
Remote doesn't work	·Make sure the plastic bag which came with the remote control is removed. Try using the remote in a shorter distance from the TV. Check if the placement of the batteries is correct, or try using new batteries with the remote control.·The TV will go into Standby mode if it receives no response in a few minutes.
No video (PC mode)	·Please check if the cable is connected to the VGA port correctly, or if the cable is bent in some places.
Vertical line blinking (PC Mode)	·Enter the main menu, and adjust the vertical placement to eliminate the vertical line.
Horizontal tearing (PC Mode)	·Adjust the horizontal placement of the screen to clear any horizontal lines.
Screen is too bright or dark (PC Mode)	·Adjust the brightness or contrast in the main menu.
No response from the PC	·Check if the PC's display resolution is set to a compatible resolution for the TV.
Lines appearing when a device is connected to the RCA port	·Make sure you are using a cable of good quality.
Problems are unresolved	·Unplug the power cable and wait for 30 seconds, then reconnect to the socket. If problems still persist, do not attempt to repair the TV by yourself. Kindly contact the service center.

Do not leave your TV displaying a static image, whether it is from a paused video, menu screen, etc. for an extended period of time, doing so will damage the display and may cause image burn-in.

Specifications

Screen Size	TV System	Preset Channels	Speaker Output
28"	PAL/NTSC	PAL:0-199,NTSC:AIR 2-69CABLE1-125	8W+ 8W
32"	PAL/NTSC	PAL:0-199,NTSC:AIR 2-69CABLE1-125	10W+10W
39"/40"	PAL/NTSC	PAL:0-199 NTSC:AIR 2-69CABLE1-125	10W+10W
42"	PAL/NTSC	PAL:0-199,NTSC:AIR 2-69CABLE1-125	10W+10W
50"	PAL/NTSC	PAL:0-199,NTSC:AIR 2-69CABLE1-125	10W+10W
55"	PAL/NTSC	PAL:0-199,NTSC:AIR 2-69CABLE1-125	10W+10W

Screen Size	power Consumption	Main accessories
28"	36W	User's manual x1Remote controller x1Power cord x1AAA Batteries x2
32"	56W/65W/100W
39"/40"	70W/75W
42"	70W
50"	135W
55"	135W

LIFE TIME : 60,000 Hrs

Remote Controller

Remote Controller:

POWER

Set your TV to power on or standby mode.

MUTE

Press to mute the sound. Press again or press VOL+ to unmute.

NUMBER BUTTONS

Press 0-9 to select a TV channel directly when you are watching TV. The channel change after 2 seconds. Applicable for entering page number in teletext mode and so on.

ATV/DTV

Switch between Analog and Digital TV.

Return to the previous viewed program.

S.MODE: Press to cycle through the different sound settings.

SLEEP: Select amount of time before TV turn itself off automatically.

MTS : Press to search the NICAM modes.

P.MODE: Press to cycle through the different picture settings.

MENU

Allows you to navigate the on-screen menus.

SOURCE

Open the main menu, press to list the sources.

THUMBSTICK (▲/▼/◄/►/ENTRE)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

DISPLAY

Press to display the source and channel's information.

EXIT

Exist from the menu or sub-menu and cancel the function in progress (if applicable).

TV/RADIO : When watching channel, allows you to switch between TV and Radio modes.

GUIDE: Launches the EPG (Electronic Program Guide). ◀ Fast reverse in PVR or Media Player mode.

TIME SHIFT: DTV channel time shift Function. ▶II: play on PVR or Media Player mode.

CANCEL: When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL key will return to the TV mode. When the required page is found, the page number will appear at the top of the TV picture, press the CANCELkey to return to the mode of text for you to browse this page. ◀: Previous chapter in PVR or Media Player mode

INDEX: Request the Index page in Teletext mode.

■: Exit the playing function in PVR or Media Player mode.

SIZE: Change the size of display in Teletext mode.

REVEAL: Reveal or Hide the hidden words.

COLOR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB menu.

1 2 3 4 5 6 7 8 9 DTV/ATV 0 P.MODE S.MODE SLEEP MTS + VOL RECLIST + CH - FAV/LIST REC FREEZE MENU SOURCE ENTER EXIT DISPLAY GUIDE TIMESHIFT ASPECT CANCEL SUB PG INDEX TV/RADIO SUBTITLE REVEAL SIZE HOLD TEXT

CH+/CH- : Press to scan through channels.

FAV/LIST: press to open the favorite list.

then you can select the favorite channel.

ASPECT: Select picture scale.

▶: fast forward in PVR or Media Player mode.

FREEZE: press to freeze the picture.

SUB. PG: Press to access sub page.

▶: Next chapter in PVR or Media Player mode.

SUBTITLE: To show and set the language of current DTV.

HOLD: HOLD On or Off for current page display.

TEXT: Switch the teletext on and off.

REC LIST: Show the recorded list.

REC: Record begin in PVR mode.

Battery Installation:

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as indicated. Do not mix old and new batteries or different types of batteries. Slide the lid until you hear it click into place.

Using the Remote Control:

Unless stated, otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in front of the TV.

Energy label
Power Consumption acc Directive EC/1062/2010, EC/642/2009)

Model	Power Consumption On Mode (W)	Power Consumption Standby Mode (W)	Power Consumption Off Mode (W)	Annual Energy Consumption (KWhr)	Screen size cm/inch	Energy class	Rezolution
LE-1919	14	0.483 0		21	48cm/19" A		1366x768
LE-2219	22	0.483 0		33	56cm/22" A		1920x1080
LE-2419D	23	0.483 0		33	61cm/24" A		1366x768
LE-2822	23	0.483 0		33	71cm/28" A+		1366x768
LE-32D7	38	0.483 0		56	81cm/32" A		1366x768
LE-4018	58	0.483 0		84	101cm/40" A		1920x1080
LE-5018A	87	0.483 0		127	127cm/50" A		1920x1080
LE-6519	150	0.483 0		219	165cm/65" A		1920x1080
LE-4318	56	0.483 0		82	109cm/43" A		1920x1080
LE-5519	100	0.483 0		146	140cm/55" A		1920x1080
LE-32D11	38	0.483 0		56	81cm/32" A		1366x768
LE-6566	150	0.483 0		219	165cm/65" A		1920x1080

ENG: Typical on-mode power consumption measured according to IEC62087 Ed 2.
Annual energy consumption is calculated using the typical power consumption 4 hours per day, 365 days per year.
This television contains lead only in certain parts or components where no technology alternatives exist in accordance with existing exemption clauses under the RoHS Directive

Indice

IT

Guida preparatoria

First Time Installation 8

Menù CHANNEL....10

Menù PICTURE....15

Menù SOUND....17

Menù TIME....18

Menù LOCK....20

Hotel Mode 22

Menù SETUP....23

Menu PC

Menù SCREEN....26

Menu multimediali

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Top-down schematic of a room layout with furniture and fixtures (no text or labels)

2

3

Bracket Wall Cement bolt 4

English	Italiano
Wall	Parete
Bracket	Supporto
Cement bolt	Bullone di cemento

Nota:

10cm 10cm 10cm ③ TV signal output ② ①

Simple line drawing of a mechanical setup with a suspended component and a base (no text or symbols)

Diagram showing a device with a mouse and a magnified view of a mouse inside a container, labeled with number 3.

4

First Time Installation

IT

First Time Installation Language English Country Germany ENTER Auto Tuning

Tuning Setup Tune Type DTV + ATV Digital Type DVB-T Scan Type Full Network ID Auto Frequency Auto Symbol Rate Auto MENU Back ENTER Start

Auto Tuning

Do you want to skip ATV tuning?

Channel Tuning TV : 0 Programme DTV : 0 Programme Radio : 0 Programme Data : 0 Programme 50 % VHF CH 1 (DTV) Please press MENU key to exit

Do you want to exit tuning?

CHANNEL Auto Tuning ATV Manual Tuning DTV Manual Tuning Programme Edit Schedule List Signal Information CI Information Move MIND Return ENTER Select Exit Exit

Do you want to skip ATV tuning?

Channel Tuning TV : 1 Programme DTV : 4 Programme Radio : 0 Programme Data : 0 Programme 54 % VHF CH 6 (DTV) Please press MENU key to exit

Do you want to exit tuning?

ATV Manual Tuning

ATV Manual Tuning Current CH 3 Color System Auto Sound System DK Fine-Tune Search Frequency Unregistered Move MENU Back EXIT Exit

Current CH

Schedule List (0% Used) 11:44 05 Nov 1/1 Programme Title Date 1 ONE HD 1 [OTV]Manual Timer Set 05/11/2010 Manual Timer Set 11:47-12:17 Move Delete Add Edit Exit

Timer was saved Successfully Recorder:11:47~12:17 on CH.1 05/11/2010 EXIT Exit

Signal Information

Signal Information Channel: 5 (177.50MHz) Network ... Modulation Unknown Quality 100 (Good) Strength 0 (Weak)

Auto Tuning Programme Edit Schedule List Signal Information CI Information Dish Setup CHANNEL Move MENU Return Do Select Exit Exit

IT

Auto Tuning

Picture Mode Contrast 50 Brightness 50 Colour 50 Tint 50 Sharpness 50 Colour Temp Normal Noise Reduction Middle HDMI Mode Auto

Contrast/Brightness/Color/Tint/Sharpness

Sound Mode Standard Music Movie Sports Personal OK Select Add Back

Sound Mode

System Lock Set Password Channel Lock Parental Guidance Key Lock Hotel Mode OFF OFF OFF LOCK Move Return Select Exit

Please enter password Clear Cancel

Please enter old password Please enter new password Confirm new password Clear Cancel

First Time Installation

Play 10_(64K_):m4s 00:00:00 / 00:02:51 Pause FB FF Prev. Next Stop RepeatALL MUTE

Menù MOVIE

IT

24_(AVC_1440x608_2422K.Vor_55_44K_2ch)LI... 00:00:01 / 00:03:26 Pause FB FF Prev Next Stop CharSet RepeatALL

Menù TEXT

IT
