USER MANUAL CKF3154V Elvita
Before using this product, please read the user manual carefully. Save the user manual for future reference.
Technical line drawing of two mechanical components with arrows indicating transformation (no text or symbols)natural_image
Line drawing of a vertical shelf or cabinet structure with a door and lid (no text or symbols)natural_image
Technical line drawing of a vehicle door frame with no visible text or symbolsnatural_image
Circular ceiling with concentric circular patterns and a small rectangular object on top (no text or symbols visible)Reversere døren
Line drawing of a vertical cabinet or enclosure with a handle and base platform (no text or symbols)natural_image
Technical line drawing of a mechanical assembly with no visible text or symbols- Løft den øvre døren på plass. Påse at døren er i vater og sett inn den midte hengseltappen i det nedre hullet i den øvre døren.
Safety and warning information 27
Control panel 31
First use and installation 31
Operation 32
Helpful hints and tips 32
Cleaning and care 33
Troubleshooting 34
Description of the appliance 35
Reversing the door 35
Disposal of the appliance 37
Safety and warning information
For your safety and to ensure correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that anyone who uses
the appliance is thoroughly familiar with its operation and safety features. Save this user manual and make sure it remains with the appliance
if it is moved or sold, so that anyone who uses it throughout its life is informed how to use it and what safety precautions to take. To ensure the safety of life and property, please follow the precautions in this user manual as the manufacturer is not responsible for damage caused by neglect.
Safety of children and other vulnerable groups
This appliance can be used by children from the age of 8 upwards, and by individuals with reduced physical, sensory or mental capabilities or lack of experience and knowledge, on condition that they are supervised or instructed in how to use the appliance safely, and that they understand the hazards involved. Children must not be allowed to play
with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
Keep all packaging away from children to avoid the risk of suffocation.
To dispose of the appliance, unplug the appliance from the power socket, cut off the power cord (as close to the appliance as you can) and remove the door so that playing children cannot get an electric shock or become trapped in the appliance.
If this appliance replaces an older appliance that has a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
General safety
WARNING —This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other working environments; -farm houses and by clients in hotels, motels and other residential type environments; -bed and breakfast type environments; -catering and similar nonretail applications
WARNING — Do not store explosive substances such as aerosol cans that contain a flammable propellant in this appliance.
WARNING — If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's service agent or a similarly qualified person in order to avoid a hazard.
WARNING — Keep ventilation openings inside or outside the appliance clear of obstruction.
WARNING — Do not use tools or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING — The refrigerant and insulation foam are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.
Refrigerant
sobutene refrigerant (R600a) is used in the refrigerant circuit of the appliance. This is a natural gas that is relatively environmentally friendly, but is still flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit are damaged. The refrigerant (R600a) is flammable.
Caution! Risk of fire
If the refrigerant circuit is damaged: Avoid open flames and sources of ignition. Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Any damage to the power cord may cause a short circuit, fire, and/or electric shock.
Electrical safety
-
Do not extend the power cord by using an extension cord.
-
Make sure that the plug is not crushed or damaged. A crushed or damaged plug may overheat and cause a fire.
-
Make sure you have access to the appliance's plug.
-
Do not pull on the power cord.
-
If the power socket is loose, do not plug in the appliance. Otherwise there is a risk of electric shock or fire.
-
Do not use the appliance if the cover is missing from the interior light.
-
The appliance is designed to be powered by a single-phase AC supply of 220\~240V/50Hz. If local voltage variations mean that the voltage may vary outside this range, an automatic voltage regulator rated for a minimum of 350 W should be connected between the power socket and the fridge. Do not connect the appliance to the same power socket as other electrical devices. The power socket and plug must be earthed.
Daily use
Do not store flammable gases or liquids in the appliance. Otherwise there is a risk of explosion.
Do not use any electrical devices inside the appliance (e.g. electric ice cream makers, blenders etc.).
Always unplug the appliance by pulling out the plug, not by pulling on the power cord.
Do not place hot items near the plastic components of this appliance.
Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
The appliance manufacturer's storage recommendations should be strictly adhered to. Refer to the relevant instructions for storage.
Do not place carbonated or fizzy drinks in the freezer compartment as the bottle will become pressurized and may explode, resulting in damage to the appliance.
Frozen food can cause frost burns if consumed straight from the freezer compartment.
Do not place the appliance in direct sunlight.
Keep burning candles, lamps and other items with naked flames away from the appliance to avoid the risk of fire.
The appliance is intended for storing food and drink in normal domestic use, as described in this user manual. The appliance is heavy. Care should be taken when moving it.
Do not remove or touch items from the freezer compartment if your hands are damp or wet, as this could cause skin abrasions or frost/freezer burns.
Never use the base, drawers, doors etc. to stand on or as supports.
Frozen food must not be refrozen once it has been thawed out.
Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burns to the mouth and lips.
To prevent items from falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.
Caution! Care and cleaning
Before carrying out maintenance, switch off the appliance and unplug it from the power socket.
Do not clean the appliance with metal objects, steam, essential
oils, organic solvents or abrasive cleansers.
Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
Important during installation!
When plugging in the appliance, carefully follow the instructions in this user manual.
Unpack the appliance and check that there is no damage to it. Do not plug in the appliance if it is damaged.
Report any damage to the retailer immediately. Keep the packaging material in case of damage.
It is advisable to wait at least four hours before plugging in the appliance, to allow the oil to flow back into the compressor.
Make sure there is adequate air circulation around the appliance, otherwise it may overheat. Follow the installation instructions to ensure adequate ventilation.
If possible the appliance should not be installed with its back too close the wall, to prevent contact with hot components (compressor, condenser). Follow the installation instructions to avoid the risk of fire.
Do not place the appliance close to a radiator or oven.
Make sure that the plug is accessible after the appliance has been installed.
Service
Any electrical work that is required during servicing must be carried out by a qualified electrician or competent person.
This product should only be repaired at an authorized service centre, using genuine spare parts.
Control panel
Starting up and temperature regulation
- Insert the plug on the power cord into an earthed power socket. When the refrigerator compartment door is opened, the internal lighting is switched on.
- The temperature selector knob is located on the top of the refrigerator compartment.
Setting 0 means:
Off.
Turn the knob clockwise to turn on the appliance.
Setting 1 means:
Highest temperature, warmest setting.
Setting 7 (end-stop) means:
Lowest temperature, coldest setting.
Normally we advise that you select setting 3 or 4. If you want the temperature to be warmer or colder please turn the knob to a lower or higher setting accordingly.
Important! High ambient temperatures (e.g. on hot summer days) and a cold setting (position 6 or 7) may cause the compressor to run continuously!
Reason: when the ambient temperature is high, the compressor has to run continuously to maintain a low temperature in the appliance.
Cleaning before use
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
Installation position
Warning!
Before installing, read the instruction carefully for your safety and correct operation of the appliance. Position the appliance away from sources of heat such as stoves, radiators, direct sunlight etc.
Maximum performance and safety are guaranteed by maintaining the correct indoor temperature for the class of unit concerned, as specified on the rating plate.
This application performs well from SN to T. The appliance may not work properly if it is left for a longer period at a temperature above or below the indicated range.
Important! Good ventilation is essential around the fridge to effectively dissipate heat and ensure efficient operation and low power consumption. So make sure there is adequate free space around the appliance.
We recommend there is at least 75 mm clearance at the rear, at least 100 mm above the appliance and at the sides, and enough free space in front to allow the door to be opened through 160°.
| Climate class Ambient temperature | |
| SN +10°C to +32°C | |
| N +16°C to +32°C | |
| ST +16°C to +38°C | |
| T +16°C to +43°C |
Appliances must not be exposed to rain. Sufficient air must be allowed to circulate around the lower rear area of the appliance, as poor air circulation can affect performance. Built-in appliances should be positioned away from heat sources such as heaters and direct sunlight.
Leveling
The appliance should be level in order to eliminate vibration. To make sure the appliance is level, it should be upright with both adjusters firmly in contact with the floor. You can also adjust the level by screwing out the appropriate level adjuster at the front (use your fingers or a suitable spanner).
Electrical connection
Caution! Any electrical work required to install this appliance should be carried out by a qualified or competent person. Warning! This appliance must be earthed. The manufacture declines any liability if these safety measures are not followed. Appliances must not be exposed to rain.
Daily use
Accessories
Movable shelves/trays
Various glass or plastic storage shelves or wire trays are included with your appliance – different models have different combinations and different models have different quality.
The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

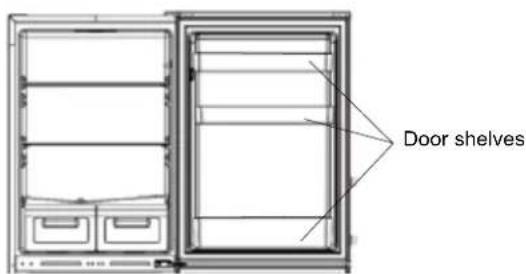

Positioning the door shelves
To permit storage of food packages of various sizes, the door shelves can be placed at different heights.
To make these adjustments proceed as follows gradually pull the shelf in the direction of the arrows until it comes free, then repositions as required.
Vegetable drawer
The drawer is suitable for storing fruit and vegetables.
Freezer drawer
The drawer is suitable for storing frozen food.
Ice-cube production
This appliance is equipped with one or more trays for the production of ice-cubes.
Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.
The freezing process lasts 24 hours: during this period do not add other food to be frozen.
Storing frozen food
When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.
Important!
In the event of accidental defrosting, for example the power has been off for longer than 16 hours, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooking).
Thawing
Before using deep-frozen or frozen food, it can be thawed in the freezer compartment or at room temperature, depending on the time available for this step.
Small pieces of food may even be cooked while still frozen, straight from the freezer. In this case, cooking will take longer.
Important!
In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves or drawers from the appliance, to suit your daily use.
Helpful hints and tips
Noises from the appliance
The sounds listed below are perfectly normal for refrigeration appliances:
Clicks Whenever the compressor switches on or off, a click can be heard.
Humming As soon as the compressor is in operation, you can hear it humming.
Bubbling When refrigerant flows into thin tubes, you can hear bubbling or splashing noises.
Splashing Even after the compressor has been switched off, this noise can be heard for a short time.
Energy saving tips
Do not install the appliance near cookers, radiators or other sources of heat.
Do not open the door too often or leave the door open any longer than necessary.
Do not set the temperature colder than necessary.
Make sure there is clearance between the sides and rear of the appliance and the wall; follow the relevant installation instructions.
The illustration shows the recommended configuration of the drawers, crisper and shelves. Changing this configuration will lead to increased energy use.
Hints for fresh food refrigeration
To obtain the best performances:
Do not store warm foods or evaporating liquids in the appliance.
Do cover or wrap the food, particularly if it has a strong flavour.
Position food so that air can circulate freely around.
Hints for refrigeration
Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer. For safety, only store meat in this way for one or two days at the most.
Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
Butter and cheese: these should be placed in aluminum foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle rack on the door
Hints for freezing
To help you make the most of the freezing process there are some important hints:
The maximum quantity of food which can be frozen in 24 hours is shown on the rating plate.
The freezing process takes 24 hours. Do not add more food to be frozen during this period.
Only freeze top-quality, fresh and thoroughly cleaned foodstuffs.
Prepare food in small portions so that it can be rapidly and completely frozen and so that you only need to thaw the quantity required.
Wrap up the food in aluminum foil or polythene and make sure that packages are airtight;
Do not allow fresh, unfrozen food to touch food which is already frozen, to avoid raising the temperature of the latter.
Lean foods store better and longer than fatty ones; salt reduces the storage life of food.
If ice lollies or popsicles are eaten immediately after removal from the freezer compartment they may cause freezer burns to the skin.
It is advisable to mark the date of freezing on each individual pack so that you can keep track of the storage time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
Make sure that commercially frozen foodstuffs are stored according to the manufacturer's recommendations.
Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time.
Do not open the door frequently or leave it open longer than absolutely necessary.
Once defrosted, foods deteriorate rapidly and can not be re-frozen.
Do not exceed the storage period indicated by the food manufacture.
Cleaning and care
Cleaning and care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly. The fridge should be cleaned and maintained at least every two months.
Warning! Danger of electrical shock!
The appliance should not be plugged in during cleaning. Before cleaning, switch off the appliance and unplug it from the power socket, or switch off or remove the circuit breaker or fuse.
Important!
Remove the food from the appliance before cleaning. Store it in a cool place, well covered.
Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components,
Hot vapours can damage plastic parts. Essential oils and organic solvents can attack plastic parts,
e.g. lemon juice or the juice from orange peel, butyric acid, cleanser that contains acetic acid. Do not allow such substances to come into contact with appliance parts.
Do not use any abrasive cleansers.
Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.
After cleaning, wipe with fresh water and a clean dish cloth.
Dust that settles on the condenser increases energy consumption. Clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
Check the water drain hole on the rear wall of the refrigerator compartment.
If the drain hole is blocked, clean it with the aid of something like a soft peg, taking care not to damage the cabinet with sharp items.
After everything is dry, reconnect and turn on the appliance.
Defrosting
Why defrost?
Water contained in food or from the air inside the fridge may form a frost layer inside. If this becomes thick it will impair refrigeration. If it is more than 10mm thick, you should defrost.
Defrosting of fresh food storage compartment
This is automatically controlled by switching the temperature regulator on or off, so there is no need to defrost it manually. Water from defrosting will drain into a drip tray through a drain pipe at the back of the fridge automatically.
Defrosting of frozen-food storage compartment
The freezer compartment must be defrosted manually. Before defrosting, take the food out.
Take the ice tray and drawers out or put them into the fresh food compartment temporarily.
Set the temperature regulator knob to position "0" (to turn off the compressor) and leave the door of the refrigerator open until ice and frost melt completely and gather at the bottom of the freezer chamber. Wipe off the water with a soft cloth.
To speed up the defrosting process you can put a bowl of warm water (about 50°C) into the
freezer chamber, and scrape away the ice and frost with a defrosting spatula. After doing so, be sure to set the temperature regulator knob to the original position.
It is not advisable to heat the freezer chamber directly with hot water or a hair dryer while defrosting, to avoid deforming the inner case.
It is also not advisable to use sharp tools or the like to scrape off ice and frost or to separate food that is frozen together or frozen to the container, as this could damage the
inner casing or the surface of the evaporator.
Warning! Switching off the appliance before defrosting and turn the temperature regulator to position "0".
Important! The fridge should be defrosted at least once a month. If the door is opened frequently or if the appliance is used in very humid conditions, we advise the user to defrost every two weeks.
If the appliance is not used for a long time
Remove all refrigerated packages. Switch off the appliance by turning the temperature regulator to position "0".
Unplug the appliance or switch off or disconnect the electricity supply.
Clean thoroughly (see section: Cleaning and Care)
Leave the door open to avoid the build up of odours.
What to do if...
Warning! Before troubleshooting, unplug the appliance. Only a qualified electrician or competent person may carry out troubleshooting that is not covered by this manual.
Important! There are some sounds during normal use(compressor, refrigerant circulation)
Important! Repairs to refrigerators/freezers may only be performed by competent service engineers. Incorrect repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or your local service centre.
| Problem Possible cause Solution | ||
| Appliance does not work. Appliance is not switched on. Switch on the appliance. | ||
| Appliance is not plugged in or plug is loose. Insert plug into power socket. | ||
| Fuse has blown or is defective. Check fuse, replace if necessary. | ||
| Socket is defective. Faults in the electrical supply must be repaired by an electrician. | ||
| Temperature inside appliance is too cold. | Temperature is set too cold. Turn the temperature regulator to a warmer setting temporarily. | |
| Food is too warm. Temperature is not properly adjusted. Please refer to the section on “Starting up”. | ||
| Door was open for an extended period. Open the door only as long as necessary. | ||
| A large quantity of warm food was placed in the appliance within the last 24 hours. Turn the temperature regulator to a colder setting temporarily. | ||
| The appliance is near a heat source. Please refer to the section on “Installation position”. | ||
| Interior lighting does not work. | Light bulb is defective. | Please refer to the section on “Changing the light bulb”. |
| Heavy build-up of frost, possibly also on the door seal. | Door seal is not air-tight (possibly after reversing the door). | Carefully warm the leaking sections of the door seal with a hair dryer(on a cool setting). At the same time shape the warmed door seal by hand so that it sits correctly. |
| Unusual noises. | Appliance is not level. | Readjust the feet. |
| The appliance is touching the wall or other objects. | Move the appliance slightly. | |
| A component, e.g. a pipe, at the rear of the appliance is touching another part of the appliance or the wall. | If necessary, carefully bend the component out of the way. | |
| The compressor does not start immediately after changing the temperature setting. | This is normal, no fault has occurred. | The compressor starts after a period of time. |
| Water on the floor or storage shelves. | Water drain hole is blocked. | See the section on “Cleaning and care”. |
Changing the light bulb
Warning! If the LED light bulb is damaged, only a qualified electrician or competent person may replace it!
If the light bulb is replaced by an unqualified person it may cause injury or serious malfunction. It must be replaced by a qualified person in order to avoid a hazard. Contact your local service centre for help. Before changing the light bulb, switch off the appliance and unplug it, or remove the fuse or circuit breaker.
LED light bulb data: 220-240 V. To switch off the appliance, set the temperature regulator to position "0".
Unplug the appliance.
Press the centre of the bulb with a finger.
Remove the bulb cover with a #1 screwdriver, replace the bulb, and then refit the cover.
Reconnect and turn on the appliance.
Description of the appliance

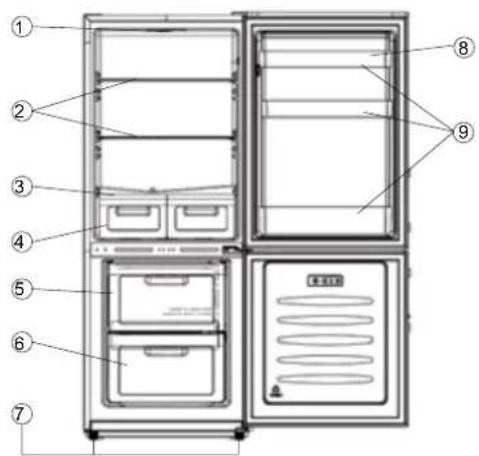

View of the appliance
- Temperature regulator and LED light part
- Storage shelf.
- Crisper cover
- Crisper
- Upper drawer in freezer
- Lower drawer in freezer
- Adjustable feet
- Egg tray
- Door shellves
Note! Due to continuous development of our products your refrigerator may appear slightly different to the illustrations in this user manual, but its operation remains the same.
Reversing the door
The side at which the door opens can be changed from the right side (as supplied) to the left side, if the installation site requires.
Tools you will need:
- 8mm socket driver
- Cross-head screwdriver
- Putty knife or thin-bladed screwdriver
Before you start lay the refrigerator on it's back in order to gain access to the base. You should rest it on soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the refrigerator
- Stand up the refrigerator, open the upper door, remove the door shelves and close the door (to protect the other shelves from damage).
- Remove the screw with a cross-head screwdriver, then use a putty knife or thin-bladed screwdriver to prise off the screw hole cover at the top left corner of the refrigerator, and unscrew the upper hinge cover, which is at the top right corner of the refrigerator.
- Use an 8 mm socket driver or spanner to unscrew the special flange self-tapping screws that hold the right upper hinge (support the upper door with your hand while doing this).
- Remove the upper hinge pin, transfer it to the opposite side and tighten securely, then put the hinge in a safe place.
NOTE: When removing the door, watch out for washer(s) between the middle hinge and the bottom of the freezer door that may stick to the door. Do not lose them.

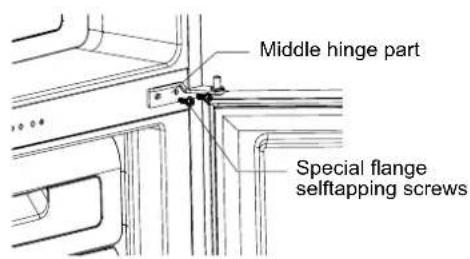

- Unscrew the two special flange self-tapping screws that hold the middle hinge, then remove the middle hinge that holds the lower door in place.
- Lift off the lower door and set it on a non-scratching surface with the outside up.
NOTE: When removing the door, watch out for washer(s) between the middle hinge and the bottom of the freezer door that may stick to the door. Do not lose them.

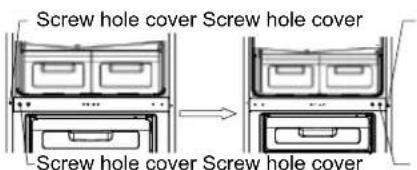

- Remove the screw hole covers from the left holes as illustrated and transfer them to the uncovered holes on the right side.
- Lay the refrigerator on soft foam packaging or similar material. Remove both adjustable bottom feet, and remove the front feet support plate and the lower hinge by unscrewing the special flange self-tapping screws.

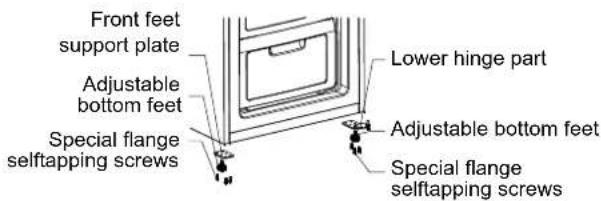

- Unscrew the bottom hinge pin, transfer it to the hole on the other side of the hinge and screw it in place.
- Replace the lower hinge on the left side and fix it with the special flange self-tapping screws. Transfer the front feet support plate to the opposite side and fix it with the special flange self-tapping screws. Install the adjustable bottom feet.
- Lift the lower door into its new position, adjust the lower hinge, insert the hinge pin into the bottom hole of the lower door, then tighten the bolts.
- Transfer the upper hinge and insert the upper hinge pin into the top hole of the upper door. Adjust the position of the upper door (supporting the upper door with your hand while doing this) and fix the upper hinge with the special flange self-tapping screws.
- Install the screw hole cover on the top right corner of the refrigerator. Install the upper hinge cover (which is in the plastic bag) on the left corner and screw it in place. Put the other upper hinge cover into the plastic bag.
- Open the upper door and install the door shelves, then close the door.
Warning! When changing the side on which the door opens, the appliance must not be connected to the power socket. Unplug the appliance first.

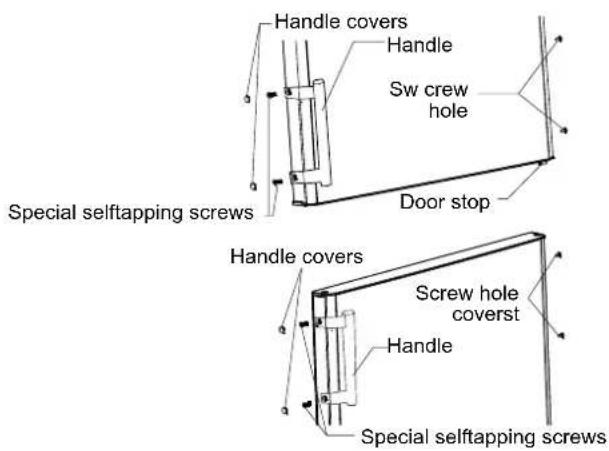

- Use a pointed tool to prise off the handle covers and screw hole covers, the unscrew the special self-tapping screws that hold the handle. Transfer the handle to the right side and fix it in place, and refit the screw hole covers on the other side. Unscrew the self-tapping screw that holds the door stop and install the door stop on the left side.
Disposal of the appliance
It is prohibited to dispose of this appliance in domestic household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the packaging in a suitable container to recycle it.
Before disposing of this appliance.
- Unplug the appliance from the power socket.
- Cut off the power cord and discard it.
Correct disposal of this product
This mark indicates that the product must not be disposed of with other household waste in the EU. To prevent possible harm to the environment or human health due to uncontrolled waste disposal, please recycle this product responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. The retailer can ensure the product is recycled in an environmentally friendly way.
INDHOLD
Line drawing of a vertical cabinet or refrigerator with a handle and base (no text or symbols)natural_image
Line drawing of a door frame with handle and seat, no text or symbols presentnatural_image
Circular ventilation grille with concentric rings and a small scale ruler above (no text or symbols visible)natural_image
Technical line drawing of two mechanical brackets with mounting holes, showing a transformation from an upper bracket to a lower bracket (no text or symbols present)natural_image
Line drawing of a refrigerator with a door and frontrest (no text or symbols)natural_image
Line drawing of a vehicle interior showing door, seat, and window (no text or symbols)natural_image
Circular ceiling-mounted ventilation grille with concentric rings and a small rectangular component on top (no text or symbols visible)Snúa hurðinni við
- Fjarlægõu skrúfurnar meõ stjörnuskrúfjärni. Notaõu pví næst skrúfjärn meõ punnu blaõi eõa kýttisspaõa til aõ ná upp skrúfuhlifinni í efsta vinstra horni ïsskápsins. Skrúfaõu par á eftir úr efri hjararhlífina sem er á efsta hægra horni ïsskápsins.
- Notaõu 8 mm topplykil eõa skrúflykil til aõ skrúfa burt sérstöku själftengjandi hjólkragaskrúfurnar sem halda efri hægri hjör (haltu viõ efri hurõina meõan pü ert aõ pessu).
- Fjarlægõu efri hjararpinnann og færõu hann yfir á hina hliõina og herõu fast að. Settu festinguna á öruggan stað.
Line drawing of a vertical shelf or cabinet structure with a door and lid (no text or symbols)natural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Gray circular icon with three white gears, no text or symbols presentGARANTI WARRANTY TAKUU ÁBYRGĐ
Quality warranty applies to consumers
- INNEHÅLL
- Reversere døren
- Safety and warning information
- Safety of children and other vulnerable groups
- General safety
- Refrigerant
- Caution! Risk of fire
- Electrical safety
- Daily use
- Caution! Care and cleaning
- Important during installation!
- Service
- Control panel
- Starting up and temperature regulation
- Setting 0 means:
- Setting 1 means:
- Setting 7 (end-stop) means:
- First use and installation
- Cleaning before use
- Installation position
- Warning!
- Leveling
- Electrical connection
- Accessories
- Movable shelves/trays
- Positioning the door shelves
- Vegetable drawer
- Freezer drawer
- Ice-cube production
- Freezing fresh food
- Storing frozen food
- Important!
- Thawing
- Helpful hints and tips
- Noises from the appliance
- Energy saving tips
- Hints for fresh food refrigeration
- Hints for refrigeration
- Hints for freezing
- Hints for storage of frozen food
- Cleaning and care
- Defrosting
- Why defrost?
- Defrosting of fresh food storage compartment
- Defrosting of frozen-food storage compartment
- If the appliance is not used for a long time
- What to do if...
- Changing the light bulb
- Description of the appliance
- View of the appliance
- Reversing the door
- Disposal of the appliance
- Packaging materials
- Before disposing of this appliance.
- Correct disposal of this product
- INDHOLD
- Vending af døren
- Snúa hurðinni við
- GARANTI WARRANTY TAKUU ÁBYRGĐ
Brand : Elvita
Model : CKF3154V
Category : Fridge
