LSBSX16E - Fridge Logik - Free user manual and instructions

Product Type	Refrigerator
Brand	Logik
Model	LSBSX16E
Total Capacity	Approximately 280 liters (10 cubic feet)
Dimensions (H x W x D)	1430 x 550 x 600 mm
Weight	Approximately 45 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	Approximately 180 kWh/year
Energy Class	F (EU 2019/2018 scale)
Noise Level	39 dB
Climate Class	N-ST (16°C to 38°C)
Defrost Type	Auto defrost (frost-free)
Adjustable Shelves	Yes, 3 glass shelves
Salad Crisper	Yes, 1 drawer
Door Bins	4 door bins including a butter box
Bottle Rack	Yes
Reversible Door	Yes
Cooling Method	Compressor, static
Refrigerant	R600a
Maintenance	Clean with mild detergent and soft cloth; defrost drain periodically
Safety	Do not store flammable materials; ensure proper ventilation; keep away from heat sources

Frequently Asked Questions - LSBSX16E Logik

How do I set the temperature on my Logik LSBSX16E fridge?

Use the thermostat dial inside the fridge compartment. Turn it to a higher number for colder temperature. Typically, setting 3-4 is recommended for normal use.

What does the 'Fast Freeze' feature do?

The Fast Freeze function rapidly lowers the temperature in the freezer to quickly freeze fresh food. Activate it 24 hours before adding a large load.

Why is my fridge not cooling properly?

Check if the door is fully closed, the temperature setting is correct, and the condenser coils are clean. Ensure adequate clearance around the fridge for airflow.

How often should I clean the condenser coils?

Clean the coils every 6-12 months to maintain efficiency. Use a vacuum or brush to remove dust.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions. You will need a screwdriver and possibly a spanner.

What is the recommended temperature for the refrigerator and freezer?

Refrigerator: 3-5°C (37-41°F). Freezer: -18°C (0°F) or lower.

How do I defrost the freezer?

This model is frost-free, so manual defrosting is not needed. However, if ice builds up, unplug the unit and let it melt naturally.

What should I do if the fridge is making loud noises?

Normal sounds include compressor hum, gas flow, and ice cracking. If the noise is excessive, ensure the fridge is level and not touching a wall.

How do I change the interior light bulb?

Unplug the fridge, remove the light cover (if applicable), and replace the bulb with an identical type (usually E14, 15W).

Where can I find spare parts for my Logik LSBSX16E?

Contact Logik customer service or authorized retailers. Spare parts like shelves, door bins, and thermostats are often available online.

USER MANUAL LSBSX16E Logik

American Style Fridge Freezer

Exterior view of a modern stainless steel refrigerator with front panel and side door (no visible text or symbols)

Safety Warnings....8

Unpacking 14

Location 15

Levelling the Unit 15

Free Space Requirements 15

Moving the Unit....15

Cleaning Before Use 16

Before Using Your Unit 16

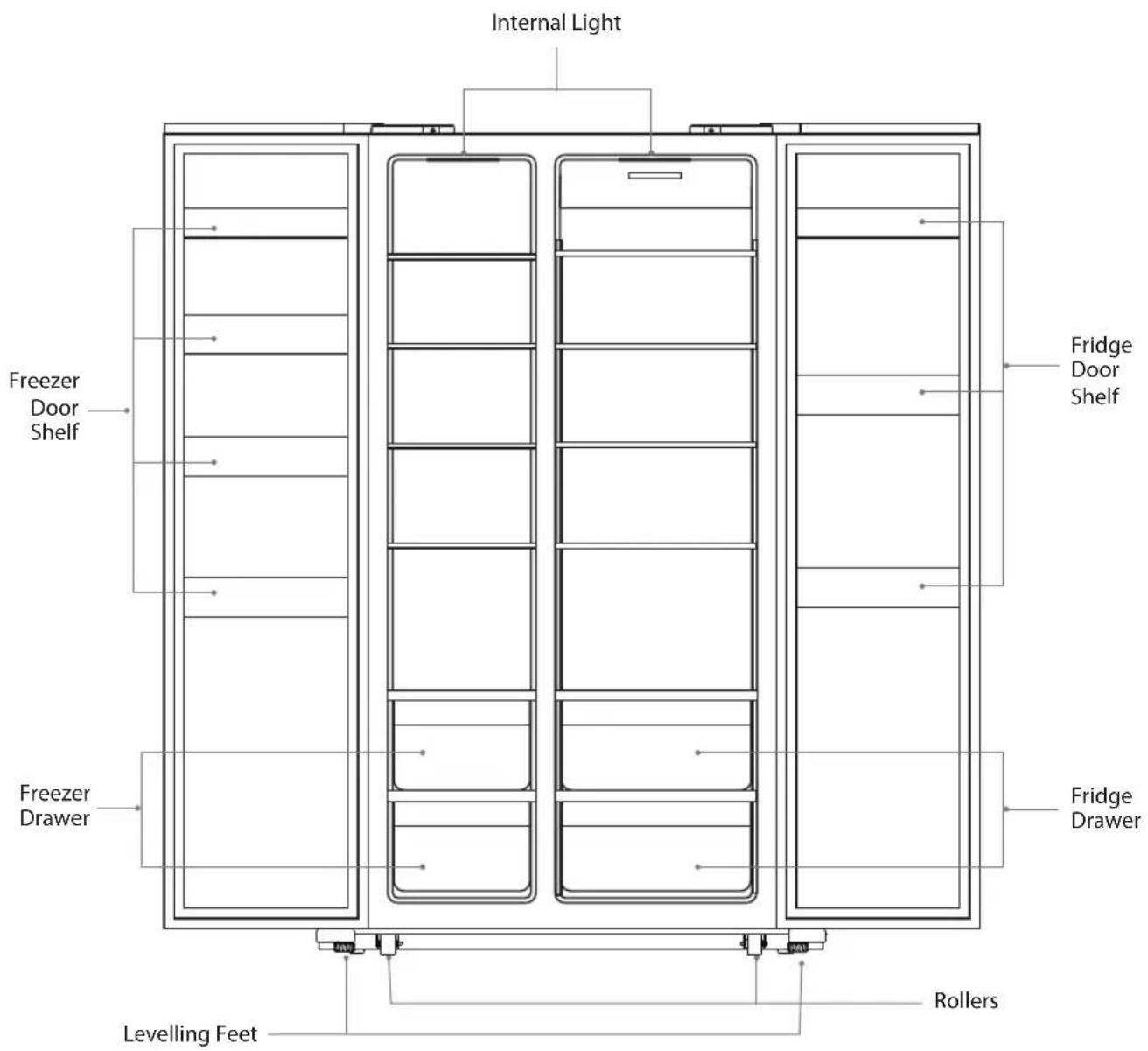

Product Overview....17

Operation 18

Temperature Setting 18

Super Cool Mode....18

Super Freeze Mode....18

Smart Mode....18

Lock and Unlock....19

Door Alarm 19

Noises Inside the Unit! 19

Tips for Keeping Food in the Unit....19

Preparations for Freezing 19

Defrosting Frozen Food 20

Cleaning 21

Defrosting 21

Cleaning the Interior and the Exterior of the Unit....21

Maintenance 22

Changing the Internal Light 22

Care When Handling / Moving the Unit....22

Servicing....22

Switching Off for Long Periods of Time....22

Condensation 22

Disposal 22

Specifications....23

Temperaturinnstilling....28

Superkjøling-modus 28

Superfrying-modus 28

Smart modus 28

Låse og låse opp 29

Døralarm....29

Lyder inne i enheten! 29

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.

• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:
  – farm houses and by clients in hotels, motels and other residential type environments;
  — bed and breakfast type environments;
  – catering and similar non-retail applications.

• Ensure that the plug is easily accessible to enable disconnection from the mains supply.

• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (if applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

- bed and breakfast type miljøer;

Thank you for purchasing your new Logik Fridge Freezer.

You must spend some time reading this installation/instruction manual in order to fully understand how to install and operate it.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Main Unit

Freezer Door Shelf x 4

Fridge Door Shelf x 3

Freezer Drawer x 2

Fridge Drawer x 2

Freezer Glass Shelf x 5 Fridge Glass Shelf x 5

Instruction Manual

Egg Tray x 2

Ice Tray

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Make sure the levelling feet (not the rollers) are well secured to the floor to prevent movement of the appliance.

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

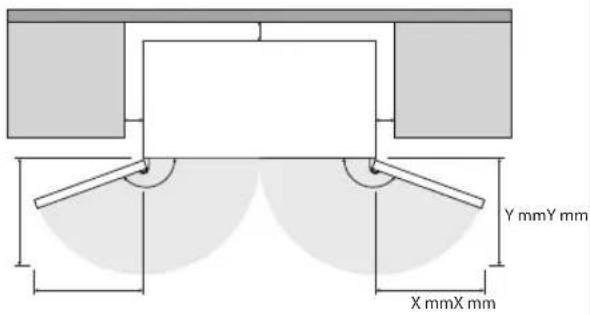

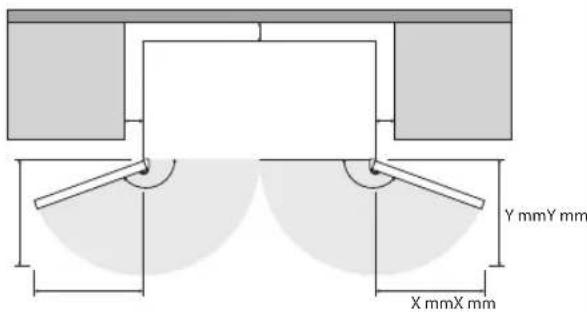

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door.

Moving the Unit

Adjust the levelling feet until the rollers can roll freely.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a damp sponge or cloth. Wipe completely dry before replacing the shelves and drawers. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle. You may damage the cooling circuit if the unit is turned on too soon.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Connect the mains cable to the mains socket.

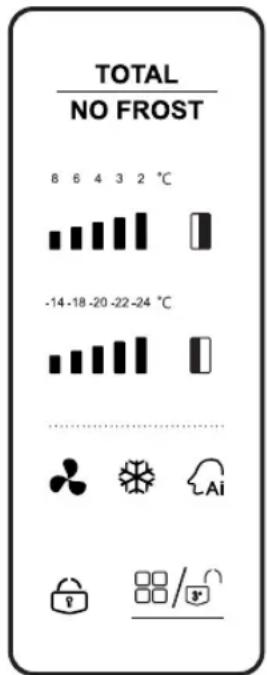

Before changing any setting, ensure the buttons are unlocked by pressing ☐☐/☐ for 3 seconds.

Temperature Setting

Fridge temperature setting:

• Recommended fridge temperature: 6°C.
- Press [REDACTED] repeatedly to set the fridge temperature.

Freezer temperature setting:

• Recommended freezer temperature: -18°C.
- Press [REDACTED] repeatedly to set the freezer temperature.

The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.

To ensure that the unit is cool enough to sufficiently chill and freeze your food, wait 24 hours before filling it with food.

If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in the centre of either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be an average of 5^ C. The correct temperature for the freezer compartment should be -18^ C or lower.

Super Cool Mode

Super Cool can refrigerate your food faster, keeping food fresh for a longer period.

- Press 📄/ 📋 repeatedly to select Super Cool function (The light will be illuminated.

- Super Cool will automatically deactivate after 6 hours, and the fridge temperature will set to 2^ . The light will extinguish.

Super Freeze Mode

Super Freeze can quickly lower the temperature within the freezer so food can freeze faster.

- Press 📄/repeatedly to select Super Freeze function (the light will be illuminated.

- Super Freeze will automatically deactivate after 26 hours, and the freezer temperature will set to -24^ . The light will extinguish.

Smart Mode

When Smart mode is selected, the temperature of the appliance will be automatically adjusted (fridge temperature will be set to 6^ C and freezer temperature will be set to -18^ C).

- Press / repeatedly to select Smart function (4). The light will be illuminated.

Lock and Unlock

All buttons are locked if 16 illuminated. To unlock, press for 3 seconds. The appliance will be locked automatically after 20 seconds when no more buttons are pressed.

Door Alarm

If the door is open for a long time, an alarm will sound. Close the door to clear the alarm.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
  • To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
  • Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
  • To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Line drawing of a hand pouring liquid from a container into a container with a small container (no text or symbols)

GB

Defrosting Frozen Food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted out unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Defrosting

The freezer compartment of this unit is frost-free. With proper use, there should not be any frost accumulated. However, in case of improper use of the freezer compartment, frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 3mm. Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep to keep it cool.
2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.
3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Changing the Internal Light

The internal light is an LED light. It cannot be changed by the user; please contact your service agent.

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal. Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Model LSBSX16E / LSBSW16E
Appliance Category Category 7 (Refrigerator - Freezer)
Overall Dimension (H x W x D) 1786 x 910 x 643 mm
Fresh Food Storage Volume 339 L
Frozen Food Storage Volume 177 L
Defrosting Type Frost-free
Climate Class SN/N/ST
This appliance is intended to be used at an ambient temperature between 10°C and 38°C.
Storage Temperature	Freezer: ≤-18°CFridge: 0-8°C, average ≤4°C
Energy Consumption 1.126 kWh / 24 h
Energy consumption 411 kWh per year, based on standard test results for 24 hours.Actual energy consumption will depend on how the appliance is used and where it is located.
Airborne Acoustical Noise 43 dB
Energy Grading A+
Temperature Rise Time 10 hours
Freezing Capacity 11 kg / 24 h
Rated Voltage 220~240V / 50Hz
Rated Current	1.6 A

Features and specifications are subject to change without prior notice.

NO

Simple line drawing of a two-panel cabinet or enclosure with no text, numbers, or symbols

Hovedenheten

Dørhylle i fryser x 4

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Plassbehov

Illustration of a hand pouring liquid from a container into a container with a small container inside (no text or symbols)

NO

Tine frossen mat

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Huvudenhet

Frysdörrhylla x 4

Illustration of a hand using a tool to adjust a mechanical component (no text or symbols visible)

Flytta enheten

Illustration of a hand pouring liquid into a container with a small object inside (no text or symbols)

Tina upp fryst mat

Simple line drawing of a two-panel cabinet or enclosure with no text, numbers, or symbols

Laite

Pakastimen ovihylly x 4

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand pouring liquid from a container into a container with a small object inside (no text or symbols)

FI

Pakastetun ruoan sulatus

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Hovedenheden

Fryserlägehylde x 4

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Krav til fri plads

Illustration of a hand pouring liquid from a container into a container with a small container inside (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

GB www.knowhow.com/knowledgebank

www.lefdal.com/support

SE www.elgiganten.se/support
