Product Type	Upright Freezer
Model	GS 365
Brand	Bomann
Dimensions (H x W x D)	84.5 x 50.1 x 54.0 cm
Net Weight	27.0 kg
Net Freezing Capacity	68 L
Freezing Capacity	4 kg/24h
Energy Efficiency Class	A+
Annual Energy Consumption	168 kWh
Power Connection	70 W, 220-240 V ~ 50 Hz
Climate Class	N/ST (16°C – 38°C ambient)
Star Rating	4-star (***)
Temperature Rise Time	15 h
Noise Emission	39 dB(A) re 1 pW
Refrigerant	Isobutane R600a (flammable)
Temperature Control	Rotary dial, settings 1-4 (off to coldest)
Defrosting	Manual (disconnect, melt ice, wipe dry)
Door Reversible	Yes, left or right opening
Included Accessories	3 freezing drawers, 1 ice-cube tray
Cleaning	Warm water and mild detergent, no abrasives
Safety Features	Child safety (ages 8+), ventilation openings, no electrical appliances inside
Repairs	Authorized technician only; do not damage refrigerant circuit
Disposal	Return to collection points; do not dispose with household waste

Frequently Asked Questions - GS 365 BOMANN

How do I set the temperature on the Bomann GS 365 freezer?

The temperature control is a rotary dial located at the front. Settings range from 1 (warmest) to 4 (coldest). For initial operation, set to 4 until desired temperature is reached, then adjust to a medium setting. The internal temperature depends on ambient conditions, door opening frequency, and food load.

How do I defrost the freezer?

Unplug the appliance or turn off the fuse. Remove all food and keep it covered in a cool place. Allow ice to melt naturally, or place a bowl of warm water (approx. 50°C) inside to speed up the process. Wipe up condensate, dry the interior thoroughly, then reconnect and turn the temperature control back on. Never use metal tools to remove ice.

Can I reverse the door opening direction?

Yes, the door can be changed from right (as supplied) to left. You will need a screwdriver and wrench. Follow the steps in the manual: remove screw covers, undo screws, lift off top cover, remove hinges, transfer adjustable feet, reattach door and hinges. Ensure the door is aligned horizontally and vertically. Always unplug the appliance first.

How should I clean the freezer?

Unplug the appliance first. Use warm water and a mild detergent to clean the interior and exterior. Avoid wire brushes, sharp objects, acidic or abrasive cleaners. Do not use steam cleaners. Dry everything thoroughly before restarting. For the condenser, avoid contact with refrigerant circuit.

What are the energy saving tips for this freezer?

Place the freezer away from heat sources, keep ventilation openings clear, allow warm food to cool before storing, open the door only when necessary, defrost regularly, ensure the door seal is intact, and set the temperature not colder than -18°C. Disconnect the plug if not in use for long periods.

Why is my freezer making unusual noises?

Normal sounds include mumbling from the compressor, liquid flowing from refrigerant, and clicking when the thermostat cycles. If you hear vibrations, check that shelves and cooling coils are secure. If the unit is not level, adjust the feet. Loud noise may indicate improper installation.

How should I store food in the freezer?

Freeze fresh food as quickly as possible to preserve structure. Keep items in contact with the bottom of the compartment and leave space between them for air circulation. Do not store bottles or cans, as they may burst. Thawed food should be consumed soon and not refrozen unless cooked. For safety, do not eat frozen food directly or touch frozen items with wet hands.

What safety precautions should I take?

The refrigerant Isobutane (R600a) is flammable. If the coolant circuit is damaged, avoid flames, unplug, ventilate the room, and call a technician. Do not use electrical appliances inside the freezer. Keep packaging away from children to avoid suffocation. Children aged 8+ may use the appliance under supervision. Never attempt repairs yourself; always contact an authorized specialist.

What should I do if the freezer stops working?

Check if the plug is connected and the fuse is intact. Verify the temperature control setting. Ensure the ambient temperature is within climate class (N/ST: 16-38°C). Make sure the door closes properly and ventilation openings are not blocked. If the problem persists, refer to the troubleshooting section in the manual or contact an authorized technician.

How do I dispose of the Bomann GS 365?

Do not dispose of with household waste. Use designated collection points for electrical and electronic equipment. Remove or disable any locks to prevent child entrapment. Contact local authorities for disposal information. This helps protect the environment and human health.

USER MANUAL GS 365 BOMANN

White refrigerator with closed lid and silver rim (no visible text or symbols)

Special safety Information for this Unit....Page 17

Unpacking the Appliance......Page 18

Overview of the Appliance......Page 18

Installation......Page 19

Startup / Operation....Page 21

Tips for Energy saving....Page 23

Cleaning....Page 23

Repairs....Page 24

Troubleshooting......Page 24

Technical Data......Page 25

Installation Installation

Three-step illustration showing hand tool application on a metal bracket, with no text or symbols present.

Technical line drawing showing two mechanical assembly steps: one with a tool inserted, the other with a wrench (no text or symbols present)

Simple line drawing of a mechanical device with a lever and a box (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in the Synstruction for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARMAGNING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

IOTENOL highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARMWARNING

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this UnitSpecial safety Information

• This unit is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of use of the appliance appliance safety and understand the hazards involved.

- ChildrenShadrant play with the appliance.

- Cleaning and user maintenance shall maintain a trade by children, while they are older 8 years and supervised.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

- Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNINGING

The coolant circuit of this appliance contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged: If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
  • thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Unpacking the Appliance Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filler, cable holder and cardboard packaging.
3. To prevent hazards, check the appliance for any transport damage.
4. In case of damage, do not put the appliance into operation. Contact your distributor.

IOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning".

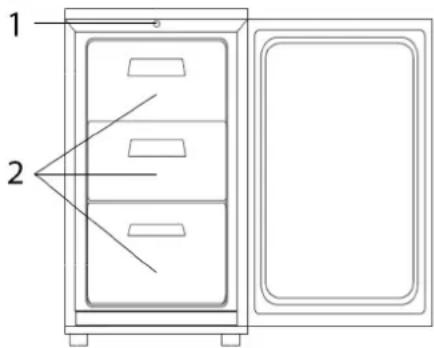

Overview of the Appliance overview of the Appliance

IOTENOREllustrations in this instruction manual can deviate from the original appliance.

1	Temperature control
2	Freezing drawers

Delivery scope

3 x freezing drawer, 1 x ice-cube tray

Installation Installation

Condition6 for their installation location or the installation location

- Good ventilation is required around the appliance, in order to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Sufficient clearance must be created for this purpose:

• Gap to the back and to the side walls each approx. 5 cm;

• Clearance to the front must be created so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to chapter “Technical Data” or to the rating label located in the interior or on the rear side of the appliance.

• Place the device on a steady and safe surface. If the device is not horizontally leveled, adjust the feet accordingly.
  • Install the appliance for the wall socket to be freely accessible.
• Avoid the installation: Avoid the installation:

- near heaters, next to a stove, direct sunlight or any other heat sources;

- at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;

- near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.) and in rooms which may have poor air circulation (e.g. garages).

Electrical connection Electrical connection

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock/electric shock
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured in order to disconnect the appliance from the power supply in case of an emergency.

CAUTION:

In case you disconnect the appliance or in case of power failure:

• Wait for approx. 10 minutes before restarting the appliance.

• Check the operation settings.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

• Connect the mains cable to a properly installed and earthed wall outlet.

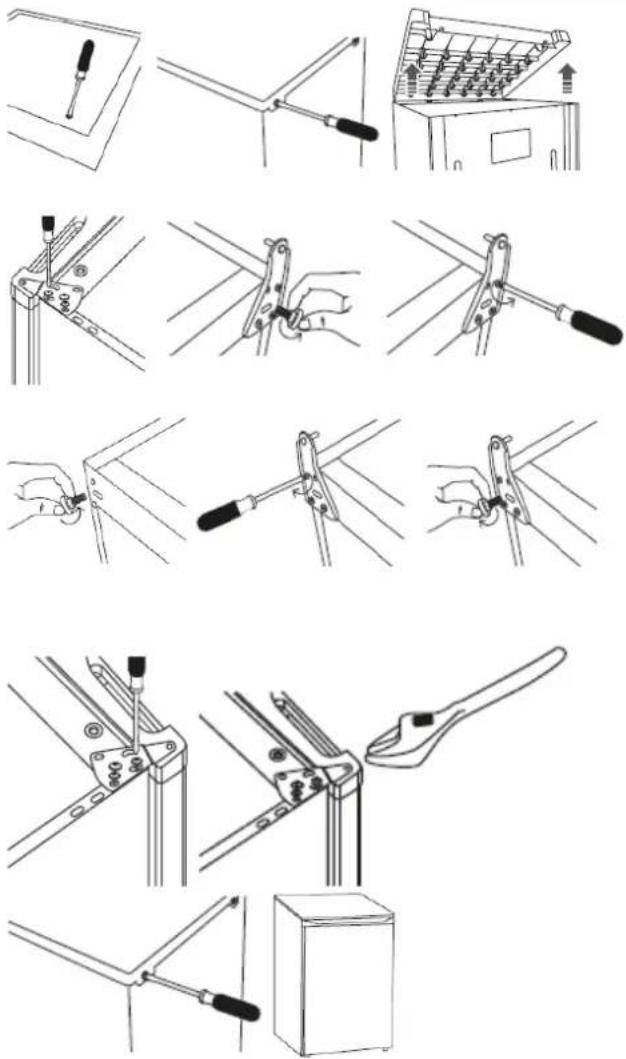

Reverse the Door Opening Reverse the Door Opening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING: WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply. Always unplug the appliance first.

NOTENOTE

• When installing, ask another person to assist.
• You need: screw wrench, Phillips screwdriver as well as a thin-blade screwdriver.

Remove the 2 screw cover first, then undo the screws underneath.

Remove the 2 screws on the back.

Lift the top cover away from the fridge.

Remove the three screws, then remove the upper hinge. Lift the door and place it on a padded surface to prevent it from scratching. Remove the lower screws, hinge bracket and adjustable feet from the unit bottom.

Remove the adjustable feet from the other side of the unit bottom and tranfer it to the corresponding position on the opposite side of the unit bottom. Reattach the two lower screws, hinge bracket and adjustable feet to the opposite side of the unit bottom.

Carefully set the upper door back into place. Ensure that the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. Insert the hinge bracket and screw it to the top of the unit.

Put the top cover back and fix it in place with the screws.

With the door is closed, check the correct alignment of the door again.

Startup / OperationStartup / Operation

Prior to first use Prior to first use

CAUTIONCAUTION

After transport, the appliance should be left standing upright for about 4 hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes a breakdown of the appliance.

Clean the interior of the appliance including all accessory parts located inside. Consider the instructions which we provide in the chapter "Cleaning".

Starting the appliance Starting the appliance

• Switch on by connecting the appliance to the power supply.
• Operate the temperature control, which is located at the appliance front. See also the following section "Settings".

SettingsSettings

The power levels 1 - 4 regulates the different values of the internal temperature.

Setting 1 lowest setting (warmest inside temperature)

Setting • off state

Setting 4 highest setting (coldest inside temperature)

Turning the temperature control clockwise will lower the inside temperature. Keep in mind that the temperature will change depending on the ambient temperature (of the location), the frequency of door opening and the amount of food in the appliance.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Storing foodStoring food

The freezer allows you to store frozen food at a temperature of -18^ or below (from a middle temperature control setting) for several months, to produce ice cubes and to freeze fresh good. Due to external influences such as room temperature, placements, frequency of opening the door and the amount of food the temperature in the freezer can be influenced.

Freezing

- 24 hours before freezing we recommend turning the temperature control to the highest power level and to keep this setting even after freezing for a few hours. The appliance is not compromised if the setting will not revert to a normal operating temperature after the freezing process, but for economic reasons you should possibly avoid it.

• Fresh food should be frozen as fast as possible to the core. Therefore during freezing operation, the temperature of fresh food should be lowered as fast as possible in order to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food Storing frozen food

• Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time, up to three months. This period might vary, so please observe the storage information on the packaging of the merchandise.

i NOTE:NOTE:

Make sure that the temperature in the freezer does not rise above -18^ . Moreover the appliance should be defrosted regularly. A thick layer of ice on the wall deteriorates the cooling effect and the power consumption increases.

Safety precautions Safety precautions

• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not open the door in case of power failure. If the failure does not take longer than 15 hours, the food will not be affected.
• Do not eat food that is still frozen. Do not allow children to eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the appliance can cause symptoms similar to burns if the skin is very sensitive.
• Do not touch frozen food with moist or wet hands; they could freeze to the items.

i NOTENOTE

For safety reasons, the freezer drawers are provided with a stopper. However they can be completely removed by pulling them up and then removing them. Reattach in reverse order.

DefrostingDefrosting

To achieve better cooling and to save energy, defrost the appliance regularly. To start the defrosting process disconnect the plug or turn off the fuse. Remove the food items and keep covered at a cool location. When the ice has melted, wipe the condensate away and dry the device interior. You may then restart the device by connecting the plug and turning the temperature control.

CAUTIONCAUTION

Never use metal objects (e.g. knives) for removing ice from the vaporizer. The vaporizer could be damaged.

A defect vaporizer could cause serious damages.

i NOTE:NOTE:

In order to speed up the defrosting process, you may put a bowl of warm water (about 50^ C) into the freezer chamber.

Operating noise Operating noise

Type of sound noise	Type of sound Type of sound Cause / solution
Normal Norm noise	Mumbling Caused by the compressor during its operation.This is stronger when it turns on or off.
	Liquid sounds Caused by the circulation of the refrigerant in the appliance.
	Click sounds The temperature control turns the compressor on or off.
	Disturbing noises Vibration of the shelves or cooling coils – check if those are securely fastened.

Switching off

Disconnect the mains plug or switch off the fuse in order to switch off the appliance.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Thoroughly clean the appliance (see "Cleaning").
• Leave open the appliance door to prevent unpleasant odours.

Tips for Energy saving

• Disconnect the plug if you do not use the appliance.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure sufficient ventilation at the bottom and rear side. Never block ventilation openings.
• Allow warm dishes to cool down before putting them in the appliance.
• Do not adjust the temperature colder than necessary.
• Make sure that the temperature in the freezer does not rise above -18^ .
• Do not open the door longer than necessary.
• The appliance should be defrosted regularly.
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning

WARNING:

• Always turn off the appliance and disconnect the plug or turn off / unscrew the fuse before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts. The appliance must be dry before restarting operation.

CAUTIONCAUTION

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Clean the appliance including interdining regularly: interior regularly:

• Remove the appliance content and storage at a cool location.
• Use warm water and a mild detergent for cleaning the appliance interior as well as the exterior.
  • After everything was thoroughly dried, you can restart the operation.

RepairsRepairs

A wrong or improperly performed repair brings danger to the user.

Repairs to electrical appliances must only be carried out by an authorized specialist. A damaged power cord must be changed only by a qualified electrician.

Troubleshooting Troubleshooting

Before you contact an authorized specialist Before you contact an authorized specialist

Problem Possible	Possible cause Possible cause	Solution
The appliance is not working properly or at all.	- Is the unit not connected to mains power?- Is the temperature control properly set?- Is the place unqualified?- Does the content prevent the appliance door from closing properly?- Are the ventilation openings clear of obstruction?	- Insert the plug properly in the contact socket.Check the fuse.- Check the temperature setting.- Check the ambient temperature.- Check the appliance content.- Unblock the ventilation openings, install the appliance freely.
Appliance cools too much.	Is the temperature control set properly?	Check the temperature setting.
The food is too warm.	- Is the temperature control set properly?- Was the appliance door open for an extended period?	- Check the temperature setting.- Open the door only as long as necessary.
The food is too warm.	- Is the temperature control set properly?- Was the appliance door open for an extended period?- Was large quantity of food placed in the appliance within the last 24 hours?- Is the appliance near a heat source?	- Check the temperature setting.- Open the door only as long as necessary.- Turn the temperature control to a colder setting temporally.- Check the location (see “Installation”).
ProblemPossible	Possible causePSolutioncause	SolutionSolution
Loud noise during operation.	Does the appliance not stand vertical or horizontal?	Adjust the feet accordingly. Liquid flow sounds in the cooling circuit are normal.
Water on the bottom.	Is the temperature control set properly? Check the temperature setting.
The housing sides are very warm.	The refrigeration cycle takes place in the foaming. The heat exchangers are installed in the housing covered. The appliance cut the interior heat, which must be dissipated through the housing areas.
Water on the outer surface.	On days of high humidity, condensation might occur on the outer surface of the appliance. This is no malfunction; you may simply wipe the water off.

i NOTE:NOTE:

If a problem still persists after following the steps above, please contact your trader or an authorized technician.

Technical Data Technical Data

Measures / Weight weights
Height x Width x Depth	cm	84.5 x 50.1 x 54.0
Net weight	kg	27.0
Electrical connectionctrical connection
Connection power	W	70
Connection voltage	V~ / Hz	220-240 / 50

Product data sheet for household refrigerators/freezers according to regulation (EU) No. 1060/2010

BrandBrand		BomannBomann
Model		GS 365
Category1)		8
Energy Efficiency class2)		A+
Annual Energy consumption3)	kWh/a	168
Net capacity cooling total	I	-
- thereof cold storage compartment		-
- thereof wine storage compartment		-
- thereof cellar compartment		-
- thereof storage compartment for fresh-food	I	-
Net capacity freezing total	I	68
Star rating4)		4
Design temperature of other compartments		-
Coldest storage temperature of wine storage compartment		-
Frost-free		-
Temperature rise time	h	15
Freezing capacity kg/24h		4
Climate class ^5)		N/ST
Noise emission dB(A) re1 pW		39
Built-in / integrable		- / -
Wine storage appliance		-

1) Category:

1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances.

2) A+++ (highest efficiency) to G (lowest efficiency).

3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.

4) * = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C.

** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C.

*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C.

(***) = food freezer compartment in which the temperature is not warmer than -18^ and a min. freezing capacity in 24h .

5) Climate class SN: ambient temperature of +10°C up to +32°C.

Climate class N: ambient temperature of +16°C up to +32°C.

Climate class ST: ambient temperature of +16°C up to +38°C.

Climate class T: ambient temperature of +16°C up to +43°C.

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations

Disposal Disposal

Meaning of the "Dustbin" SymbolMeaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the appliance out of operation or dispose it.

BOMANN®
