Crush Go BBL-1200B - Blender WILFA - Free user manual and instructions

Product Type	Table Blender
Model	BBL-1200B / WBLB-1200 / WBL-1200B
Power Supply	AC 220-240V, 50/60Hz
Power Output	1200W
Jar Material	Glass
Jar Capacity	Not specified (typical ~1.5L)
Speed Control	Rotary knob from MIN to MAX
Pulse/Auto Clean Function	Yes, press button for pre-set speed profile (45 sec auto cycle)
ON/OFF Switch	Yes, with indicator light
Built-in Safety Lock	Yes, prevents operation unless jar is properly attached
Maximum Continuous Operation	3 minutes, then allow cooling to room temperature
Maximum Ice Cubes	8 cubes (less than 20x20x20mm each)
Maximum Jar Temperature	60°C (do not pour hot liquids above this)
Dishwasher Safe Parts	Yes, all removable parts (jar, lid, measuring cup, blade assembly)
Blade Care	Sharp blades, handle with care
Accessories Included	Measuring cup, lid, sealed ring, blade assembly unit
Handle Orientation	Reversible (left or right side)
Warranty	Standard warranty (not specified in manual)
Manufacturer	AS Wilfa, Industriveien 25, 1481 Hagan, Norway

Frequently Asked Questions - Crush Go BBL-1200B WILFA

How do I assemble the blender?

Place the sealed ring on the blade assembly unit. Then place the blade assembly unit onto the interface and screw it onto the glass jar bottom until fixed. Finally, place the jar onto the motor unit.

How do I use the pulse/auto clean function?

Turn the knob to ON position. Press the Pulse/Auto clean button to start a pre-set speed profile. The appliance will run for 45 seconds and stop automatically. Press again to stop manually.

Can I crush ice in this blender?

Yes, but do not add more than 8 ice cubes (each less than 20x20x20mm) at a time.

How long can I run the blender continuously?

Do not operate for more than 3 minutes continuously. Allow the appliance to cool to room temperature before restarting.

Can I blend hot liquids?

No, the glass jar can only withstand temperatures up to 60°C. Pouring hot liquids may cause ejection or damage.

How do I clean the blender?

Disconnect power, disassemble all removable parts. Wash them in dishwasher or in lukewarm water with dishwashing liquid. Wipe the motor unit with a dry cloth. Be careful with sharp blades.

Is the blender dishwasher safe?

Yes, all removable parts (jar, lid, measuring cup, blade assembly) are dishwasher safe.

What does the built-in safety lock do?

It prevents the appliance from operating unless the jar and blade assembly are properly attached, ensuring safe use.

What should I do if the supply cord is damaged?

It must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Where can I find the user manual?

The user manual is available for free download on the official Wilfa website or at notice-facile.com.

USER MANUAL Crush Go BBL-1200B WILFA

Black and white photo of a Wella blender with visible control knob and handle (no text or symbols on body)

Wilfa CRUSH GO

Blender

Bruksanvisning

Bruksanvisning

Operating Instructions

BBL-1200B

LES ALLE ANVISNINGER F∅R BRUK

LÄS IGENOM ALLA INSTRUKTIONER INNAN PRODUKTEN ANVÄNDS

LÆS ALLE VEJLEDNINGER INDEN BRUG

LUE OHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ

READ ALL INSTRUCTIONS BEFORE USING

Blender

Advarsel ....3

1 PÅ-/AV-bryter
2 Hastighetskontroll (MIN -> MAX)
3 Puls-/autorengjøringsknapp
4 Knappindikator

Simple diagram showing a downward arrow pointing to a conical object with a handle (no text or symbols)

1. Sett knivbladenheten på knivenhetsadapteren.

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a pitcher with a red arrow pointing to its base, no text or symbols present

Line drawing of a blender with a red downward arrow indicating process (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with a red arrow indicating downward motion (no text or symbols)

1 Strömbrytare (ON/OFF)
2 Hastighetsreglage (MIN -> MAX)
3 Puls/Auto-rengöringsknapp
4 Reglageindikator

Simple line drawing of a lamp with a downward arrow indicating compression or disassembly (no text or symbols)

Line drawing of a pitcher with an arrow pointing to its base, no text or symbols present

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

1. Anslut stickkontakten.

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with a red arrow indicating downward motion (no text or symbols)

1 TÆND/SLUK-knap
2 Hastighed (MIN -> MAKS)
3 Puls/Autorengøringsknap
4 Indikatorknap

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a pitcher with a red upward arrow pointing to its base (no text or symbols)

Line drawing of a blender with a handle and lid, showing a downward arrow indicating process (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with a red arrow indicating downward motion (no text or symbols)

Model: WBLB-1200/WBL-1200B

Strømforsyning: Vekselstrøm 220V-240V 50/60Hz

Effekt: 1200W

Simple line drawing of a lamp with a downward arrow and a base component (no text or symbols)

Line drawing of a pitcher with an arrow pointing to its base, no text or symbols present

Line drawing of a blender with a handle and lid, showing a downward arrow indicating process (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with a red arrow indicating downward motion (no text or symbols)

Using the appliance 7

How to assemble the appliance 9

How to use the blender jar.... 10

Cleaning 11

Technical Data 13

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Warning

■ Never leave the appliance unattended when it is connected to the mains.

■ Never immerse the appliance in water.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.

■ Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.

■ Do not let the cord hang over edge of the table or counter or touch hot surface.

■ The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.

■ Do not use the appliance outdoors.

■ This product is intended for household use and not for commercial use.

■ Use the appliance only for the purpose it was designed for.

■ Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.

■ Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

■ This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

■ Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

■ This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

■ Children shall not play with the appliance.

Caution

■ There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

■ To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.

■ Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

■ The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

■ Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

Safety precautions for your table blender

■ Operate the blender with lid closed

■ Blades are very sharp. Handle with care.

■ Only remove the jar while motor is off.

■ Avoid overwork of motor.

■ Handle carefully with glass jar.

■ Never place your hands into the glass jar while the motor is on.

■ Avoid contact with moving parts.

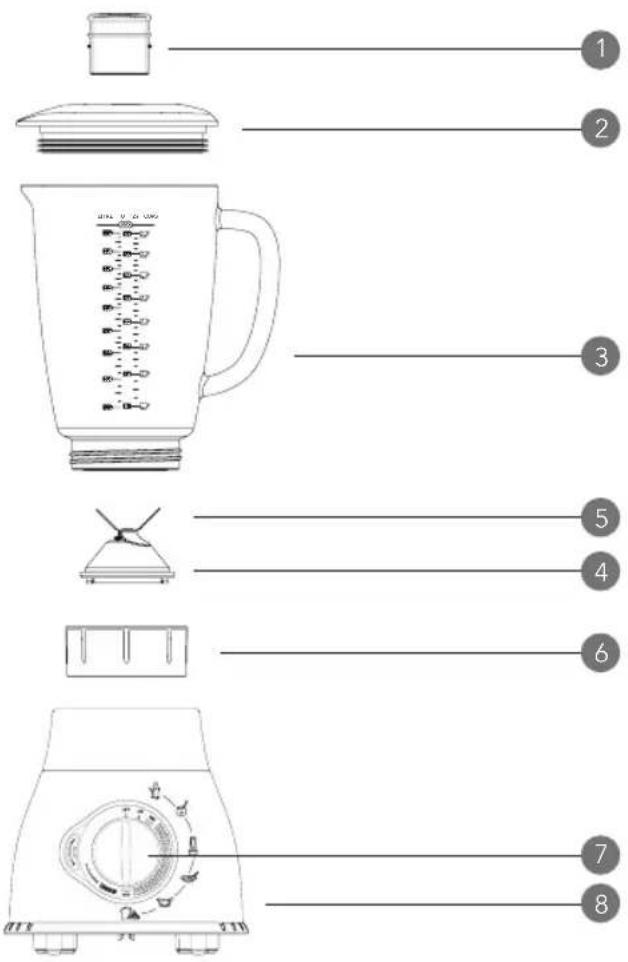

Parts description

1 Measuring cup
2 Lid
3 Glass jar with level indication
4 Sealed ring
5 Blade assembly unit
6 Blade assembly unit interface
7 Control panel
8 Motor unit

Built-in safety lock

This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can only be switched on. (i.e. Built-in safety lock function is disabled at this moment)

Before first use

Clean the unit and parts thoroughly before you use the appliance for the first time.

Using the appliance

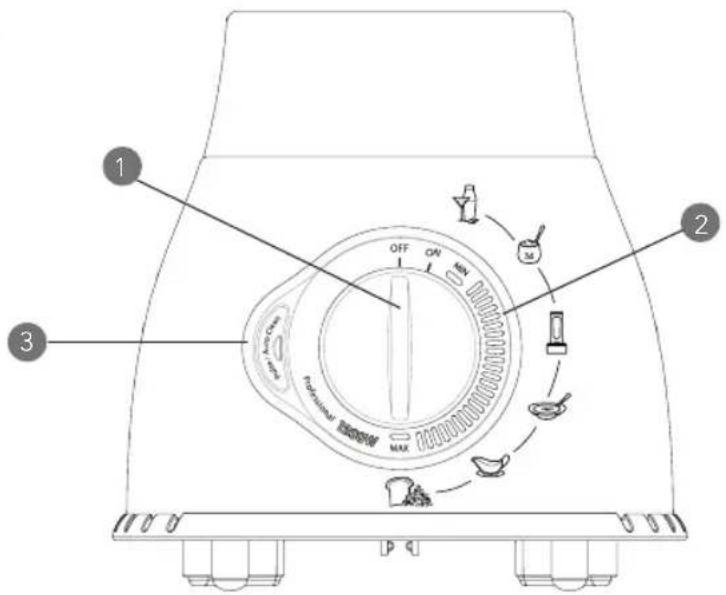

Control panel

1 ON/OFF switch
2 Speed control (MIN -> MAX)
3 Pulse/Auto clean button
4 Knob indicator

To switch on the appliance, turn the knob to "ON" position. The "ON" light will be illuminated. To control the rotary speed, turn the knob at between "MIN" & "MAX" position. The light will be illuminated at the desired position. To use the programmed function, turn the knob to "ON" position. The light on the three buttons start to blink. Press the programmed function

button, the light on the specific button will be illuminated. The orange light indicator on PLAY/STOP button will be blinked at this moment.

Warning:

Do not add more than 8pcs ice cubes (less than 20 x 20 x 20mm size of the ice) in glass jar at a time.

Pulse/Auto clean button

Press the button to run the Auto mode. The appliance starts operating according to the pre-set speed profile. Press the button again to stop the process. Or the unit will operate automatically after running for 45 seconds.

How to assemble the appliance

1. Place the sealed ring on the blade assembly unit.

1. Place the blade assembly unit on the interface.

Simple line drawing of a lamp with a downward arrow and a base component (no text or symbols)

1. Screw the unit interface onto the glass jar bottom until it is fixed properly.

Line drawing of a pitcher with an arrow pointing to its base, no text or symbols present

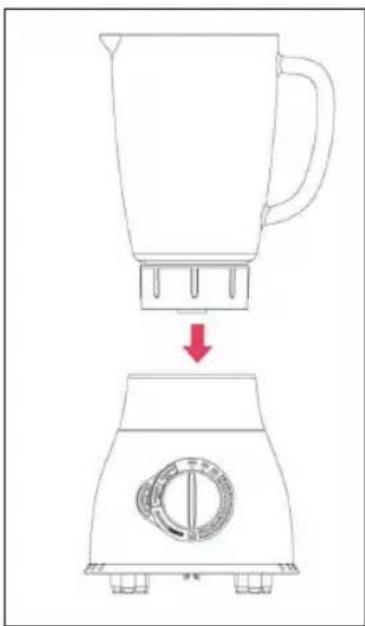

1. Place the glass jar with blade assembly unit interface on the motor unit. The handle can be placed in two positions: either located at the right hand side or left hand side.

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

1. Connect to main power supply.

How to use the glass jar

1. Place the ingredients in the glass jar.

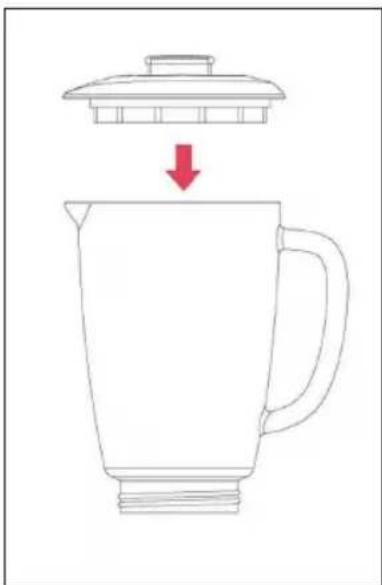

2. Place the lid on the jar and close it tightly.

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

1. Insert the measuring cup into the lid opening.

Simple line drawing showing a bucket pouring liquid into a container (no text or symbols)

1. Select the speed by turning the control knob or press the Quick-select button.

Note: Do not let the appliance to operate more than 3 minutes continuously. Let the appliance to cool down to room temperature before continue operating the appliance.

Note that BBL-1200B glas jar can only withstand temperatures up to 60°C.

After using the blender

1. Disconnect the power from main supply.
2. Remove the lid (together with measuring cup) from the jar.
3. Remove the jar (together with blade assembly unit interface) from the motor part.
4. Detach the blade assembly unit interface from the bottom of the jar.

Note: Always clean the removable parts immediately after use.

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

Cleaning

Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

1. Disconnect the power from main supply.
2. Disassemble all removable parts before cleaning.
3. Clean all removable parts in dishwasher or in lukewarm water with dishwashing liquid.
4. Use dry cloth to clean the main body.

How to clean the different parts:

Technical Data

Model: BBL-1200B

Power Supply: AC 220V-240V 50/60Hz

Output: 1200W

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.

AS WILFA

Industriveien 25

1481 Hagan

Norway

wilfa.com

in homes since 1948
