246-034 - Hand blender Exido - Free user manual and instructions

Product Type	Hand Blender
Model	246-034
Brand	Exido
Color	White/Stainless Steel
Power Consumption	600 W
Power Supply	220-240 V ~ 50/60 Hz
Motor Type	Universal
Shaft Material	Stainless Steel
Blade Material	Stainless Steel
Speed Settings	2 speed levels + turbo
Functions	Blending, pureeing, mixing, chopping (with accessory)
Beaker Included	Yes, 0.6 L plastic beaker
Whisk Attachment	Yes, for whipping cream and eggs
Chopper Attachment	Optional (not included)
Ergonomic Handle	Yes, soft grip
Immersion Depth	Up to 20 cm
Protection	Overheat protection, automatic shut-off
Cord Length	1.2 m
Weight	0.7 kg
Dimensions (H x W x D)	20 x 7 x 7 cm
Cleaning	Detachable shaft and accessories are dishwasher safe; hand wash motor unit
Safety Features	Non-slip base on beaker, locking mechanism for attachments
Included Accessories	Blending shaft, whisk, beaker, user manual
Repairability	Spare parts available through Exido service centers

Frequently Asked Questions - 246-034 Exido

How do I assemble the hand blender?

Attach the desired accessory (blending shaft, whisk, or chopper) to the motor unit until it clicks into place.

Can I blend hot liquids?

Yes, but let them cool slightly and blend in short bursts. Do not overfill the beaker.

How do I clean the hand blender?

Detach all accessories. The shaft, whisk, and beaker are dishwasher safe; wipe the motor unit with a damp cloth.

What should I do if the blender stops working?

Check if the overheat protection has tripped. Unplug and let it cool for 10 minutes before restarting.

Can I use the blender in a non-stick pot?

Yes, but avoid scraping the sides to prevent damage.

How long can I operate the blender continuously?

Do not run for more than 1 minute at a time. Allow a 2-minute rest between uses.

What attachments come with the 246-034 model?

It includes a blending shaft, a whisk, and a 0.6 L beaker.

Is the blender suitable for crushing ice?

No, this model is not designed for ice crushing. Use it for soft foods and liquids only.

Can I repair the blender myself?

Only authorized Exido service centers should perform repairs to avoid voiding the warranty.

How do I store the hand blender?

Clean and dry all parts. Store in a dry place, preferably with the motor unit upright and accessories in a drawer.

USER MANUAL 246-034 Exido

OVERSIGT OVER APPARATETS DELE

To get the best out of your new appliance, please read this user guide carefully before using it for the first time. We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

Normal use of the appliance

- Incorrect use of this appliance may cause personal injury and damage.

- Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).

- For domestic use only. Not for outdoor or commercial use.

- For connection to 230 V, 50 Hz only. The appliance must be earthed.

- Do not submerge in water or any other liquid.

- Do not operate with wet or damp hands.

- Do not place next to hot areas, for example gas rings and electric hotplates.

- Keep the appliance under constant supervision while in use. keep an eye on children.

- Never touch the whisks or dough hook while in operation. Risk of serious injury. Never stick kitchen implements or other objects into the whisks or dough hooks while in operation. Risk of serious injury and damage to the appliance.

- Never eject the whisks or dough hooks while the appliance is in operation.

- Switch appliance off and disconnect from the mains before cleaning, changing whisks/dough hooks and when not in use.

- Do not cover the ventilation holes. Never insert anything into the ventilation holes.

- Do not leave the appliance running for more than 3 minutes at a time. If the appliance has been running for more than 3 minutes, leave it to cool down before you use it again.

Cord, plug and mains socket

- Ensure that the cord is fully extended.

- Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.

- Do not allow the cord to hang over the edge of a table/counter, and keep it away from hot objects and naked flames.

- Check that it is not possible to pull or trip over the cord or any extension cord.

- Check regularly that neither cord nor plug is damaged and do not use if they are, or if the appliance has been dropped or damaged in any other way.

- If the appliance or plug is damaged, it must be inspected and if necessary, repaired by an authorised repair engineer, otherwise there is a risk of electric shock. Never try to repair the appliance yourself. Unauthorised repairs or modifications to the appliance will invalidate the guarantee. Please contact the store where you bought the appliance for repairs under guarantee.

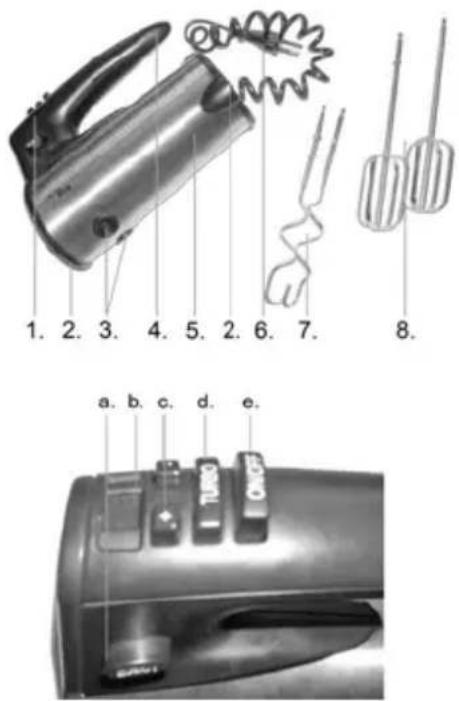

KEY TO MAIN COMPONENTS OF THE APPLIANCE

1. Control buttons

2. Air vents

3. Harness holes

4. Handle

5. Motor section

6. Power cord with plug

7. Dough hooks

8. Whisks

a. Eject button (EJECT)

b. Display

c. Speed buttons (+ and -)

d. Turbo button

e. On/Off button (ON/OFF)

PRIOR TO FIRST USE

Before using for the first time, or after prolonged storage without use, wash any parts that will come into contact with food.

USING THE APPLIANCE

- Slot the whisks (8) or dough hooks (7) into the holes (3) on the appliance until they click.

o The two whisks are identical and fit in either hole.

o The two hooks are different: The hook with a ring fitted to the top may ONLY go in the large hole. The hook with no ring may ONLY go in the small hole.

- Plug in and switch on.

- Switch the appliance on by pressing the on/off button (e). The appliance will start. The display (b) will show "5" – the standard speed.

- Select desired speed (1-8) using the speed buttons (c).

- Press the Turbo button (d) at any setting to boost speed. Only use the Turbo button for a short period at a time.

- Switch off at the on/off button when finished mixing or whisking.

- Disconnect from the main before removing whisks or dough hooks. Press the eject button (a) on the left of the handle (4). Press hard. The button can be stiff.

Storage

- Ensure the appliance is clean and dry before storing.

- Do not wind the cord around the appliance.

CLEANING

- Remove the plug from the socket before cleaning.

- The best way to clean the appliance is to wipe it with a well-wrun cloth using hot water and a little detergent. IMPORTANT! Do not submerge in any form of liquid.

- Whisks and dough hooks can be washed by hand or in a dishwasher.

- Do not use any kind of strong or abrasive cleaning agent on the appliance or its accessories. Never use a scouring sponge or similar to clean it, as the surface may be damaged.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is

marked with this symbol:

This means that this product must not be disposed of together with ordinary household waste, as electrical and electronic waste must be disposed of separately.

In accordance with the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In some member states you can, in certain cases, return the used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what you should do with electrical and electronic waste.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions are not followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• If faults have arisen because of faults in your electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without warning.

QUESTIONS AND ANSWERS

If you have any questions regarding use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

Go to the "Consumer Service" menu, click on "Question & Answer" to see the most frequently asked questions.

You can also see contact details if you need to contact us for technical issues, repairs, accessories and spare parts.

IMPORTER

Adexi Group

www.adexi.eu

We cannot be held responsible for any printing errors.
