Pop-Up Soccer Goals FLX-PUG-02 - Sports Equipment Crane - Free user manual and instructions

Product Type	Pop-Up Soccer Goal
Brand	Crane
Model	FLX-PUG-02
Article Number	94774
Dimensions (W x H x D)	47.24 x 31.50 x 31.50 in (120 x 80 x 80 cm)
Material	100% Polyester
Package Contents	Soccer goal (1), plastic poles (4), pegs (8), bag for pegs (1), transport bag (1), tie strap (1)
Intended Use	Private garden soccer play; not for commercial use
Assembly	Pop-up design with plastic poles; requires adult assembly
Anchoring	Must be secured with provided pegs on flat ground
Safety Warning	Not suitable for children under 3; risk of suffocation, strangulation
Cleaning	Wipe with damp cloth; no aggressive cleaners
Storage	Store dry and weather-proof; use transport bag
Weight (approximate)	Lightweight, portable (exact weight not specified)
Disposal	Dispose according to local regulations; packaging recyclable

Frequently Asked Questions - Pop-Up Soccer Goals FLX-PUG-02 Crane

How do I set up the pop-up soccer goal?

Take the goal out of the transport bag, loosen the tie strap, and carefully unfold it. Connect the plastic poles, insert them into the zippered openings, and zip closed. Finally, secure the goal to the ground using the provided pegs on a flat surface.

Can children use this soccer goal?

The goal is not suitable for children under 3 years due to small parts and risk of strangulation. Children should be supervised when playing, and the goal must be anchored to prevent tipping.

How do I fold up the soccer goal?

Remove pegs and plastic poles, then fold the goal parallel to your chest. Push corner A forward and down toward corner B to form two rings. Twist the rings together until they collapse, then secure with the tie strap.

What are the dimensions of the goal?

The goal measures 47.24 x 31.50 x 31.50 inches (120 x 80 x 80 cm).

Can I use the goal on the beach?

No, the pegs may not hold in sand. Use alternative anchoring like sandbags if needed, but the manual advises against using the pegs on loose sand.

How should I clean the soccer goal?

Clean with a damp cloth only. Do not use aggressive cleaners, brushes with metal or nylon bristles, or sharp objects that could damage the material.

What is the goal made of?

The goal is made of 100% polyester.

How do I store the goal?

Ensure all parts are dry, then store in a dry, weather-proof location using the provided transport bag.

What should I check before each use?

Inspect all parts for cracks, breaks, or deformation. Do not use damaged parts; replace only with original spare parts.

Is the goal suitable for tournaments?

No, this goal is designed for private garden use only and is not suitable for commercial or tournament play.

USER MANUAL Pop-Up Soccer Goals FLX-PUG-02 Crane

English......06

Español .....13

Contents

Overview .... 3

Use....4

Package contents/parts 6

General information....7

Reading and storing the user manual ......7

Explanation of symbols ......7

Safety 7

Proper use....7

Safety instructions....8

Checking the soccer goal andpackage contents......9

Assembling and setting up the soccer goal....10

Taking down and folding up the soccer goal....11

Cleaning....11

Storage 11

Technical data ......12

Disposal....12

Disposing of the packaging 12

Disposing of the soccer goal 12

Package contents/parts

1 Soccer goal, 2×
2 Peg, 8×
3 Plastic pole, 4×
4 Bag for the pegs
5 Transport bag
6 Tie strap

General information

Reading and storing the user manual

This user manual accompanies these pop-up soccer goals. It contains important information on set-up and handling.

For improved readability, the pop-up soccer goals will be referred to only as the “soccer goal” below.

Read the user manual carefully before using the soccer goal. This particularly applies to the safety instructions. Failure to heed this user manual may result in severe injury, or damage to the soccer goal.

Store the user manual for future use. If you pass the soccer goal on to third parties, be absolutely sure to include this user manual.

This user manual can also be downloaded as a PDF file from our homepage www.flexxtrade.de.

Explanation of symbols

The following symbols and signal words are used in the user manual, on the soccer goal or on the packaging.

ATTENTION!

This signal symbol/word designates a hazard with moderate degree of risk which may lead to death or severe injury if not avoided.

NOTICE!

This signal word warns against potential damages to property.

Safety

Proper use

The soccer goal is only designed for playing soccer in your garden. It is intended for private use only and is not suitable for commercial purposes.

Only use the soccer goal as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury.

The manufacturer or vendor accepts no liability for damage caused by improper or incorrect use.

Safety instructions

ATTENTION!

Not suitable for children under three years of age. Danger of suffocation due to small parts and packaging materials that can be swallowed!

Children can become trapped in the packaging material or swallow small parts when playing and suffocate or choke.

- Keep the packaging material and small parts away from children.

ATTENTION!

Not suitable for children under three years of age. The cords and nets pose a risk of strangulation!

When playing, children could catch themselves in the cords or net and be strangled.

- Keep children away from the cords and nets.

ATTENTION!

Risk of injury!

Tipping over of the soccer goal could result in serious injury.

• Do not allow children to use the goal frame and the net as a climbing frame. There is a risk of injury if the soccer goal tips over or the child falls over. Therefore, children have to be supervised during play.
• Always set up the soccer goal on a flat surface and anchor it firmly to the ground with the provided pegs. The soccer goal must not be used if it is not firmly secured against tipping over.
• Secure the soccer goal against tipping over when not in use.

• Do not use the soccer goal near swimming pools or water bodies. If the soccer goal falls in water, you could be caught in it and drown.

• Stop using the soccer goal if the plastic or metal parts of the soccer goal exhibit cracks or breaks or are deformed. Therefore, inspect all parts for damage before each use. Only replace damaged parts with corresponding original spare parts.

• Keep children away when setting the soccer goal up and taking it down. The soccer goal may only be set up and taken down by adults.
• The soccer goal is under tension when folded up. Secure the soccer goal with one hand when opening it. There is a risk of injury if the soccer goal suddenly unfolds.

NOTICE!

Risk of damage!

An unsuitable location can result in damage to property while playing soccer.

- Keep a minimum distance of 9.8 ft (3 meters) from other objects (such as electrical cables, plant pots, etc.).

Checking the soccer goal and package contents

NOTICE!

Risk of damage!

If you are not cautious when opening the packaging with a sharp knife or other pointed object, you may quickly damage the soccer goal.

- Be very careful when opening it.

1. Take the soccer goal out of the packaging.
2. Check to make sure that the delivery is complete (see Fig. A).
3. Check whether the soccer goal or the individual parts exhibit damage. If this is the case, do not use the soccer goal. Contact the manufacturer at the service address specified on the warranty card.

Assembling and setting up the soccer goal

ATTENTION!

Risk of injury!

Tipping over the soccer goal could result in injury.

• Always set up the soccer goal on a flat surface and anchor it firmly to the ground with the provided pegs. The soccer goal must not be used if it is not firmly secured against tipping over.
• Before using pegs, make sure that the ground is suitable (e.g. there must not be any water pipes for garden sprinklers).
• Do not use the pegs on the beach. The pegs could easily come loose if the sand is not firm.

ATTENTION!

Risk of injury!

Incorrect assembly may result in injury.

• Carefully assemble the soccer goal on a suitable, flat surface.

• Secure the soccer goal with one hand when opening it. There is a risk of injury if the soccer goal suddenly unfolds.

• Take the soccer goal 1 out of the transport bag 5.

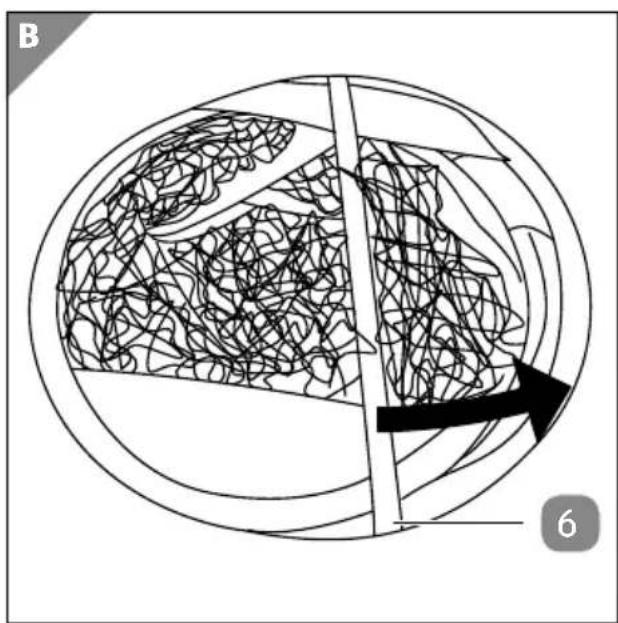

• Loosen the tie strap 6 and carefully unfold the soccer goal (see Fig. B).
• Connect the plastic poles 3 with one another.
• Undo the zippers and push a plastic pole into each opening (see Fig. C).
• Do up the zippers to prevent the plastic poles from coming loose.
• Fix the soccer goal in the ground with the enclosed pegs 2.

Should securing the goal with pegs not be possible due to the ground conditions, use other appropriate means (such as sand bags) to prevent the soccer goal from tipping over.

Taking down and folding up the soccer goal

1. Pull the pegs 2 out of the ground.
2. Undo the zippers and remove the plastic poles 3.
3. Fold the soccer goal 1 up and hold it parallel to your chest.

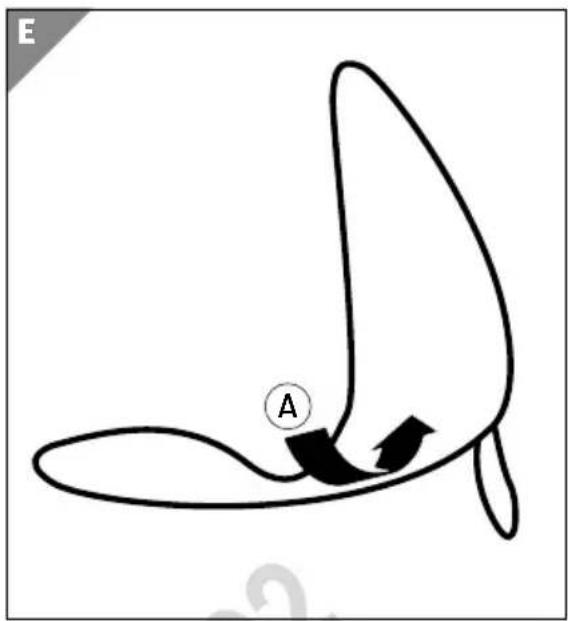

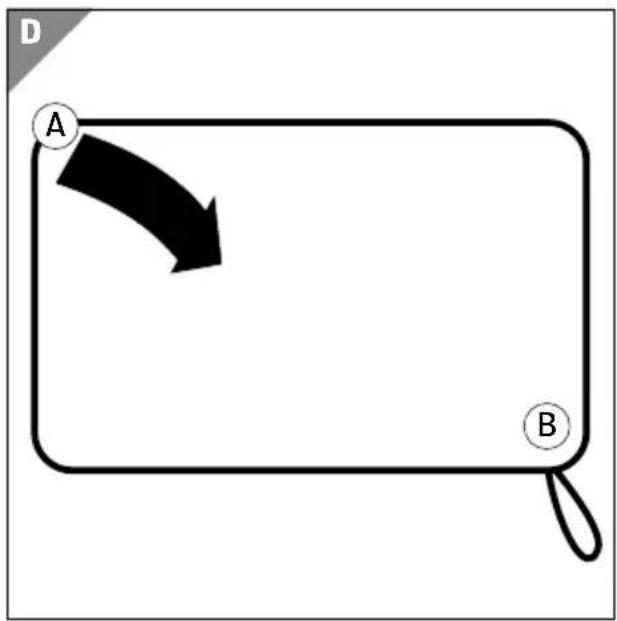

4. Push corner A forward and then down towards corner B (see Fig. D and E). Two rings will form automatically.
5. Twist the corners A and B together until the rings fold into one another and collapse (see Fig. F and G).
6. Secure the three rings with the tie strap 6 (see Fig. H).
7. Put all pegs in the bag for the pegs 4.
8. Put the soccer goal, the plastic poles and the pegs in the transport bag 5.

Cleaning

NOTICE!

Risk of damage!

Improper handling of the soccer goal may result in damage.

- Do not use any aggressive cleaners, brushes with metal or nylon bristles or sharp or metallic cleaning utensils such as knives, hard scrapers and the like. They could damage the surfaces.

1. Clean the soccer goal 1 with a damp cloth.

2. Then let all parts dry completely.

Storage

- Make sure that all parts are stored in a dry and weather-proof location. Use the transport bag 5 for this purpose.

Technical data

Model: FLX-PUG-02

Article number: 94774

Dimensions (W × H × D): 47.24" × 31.50" × 31.50" (120 × 80 × 80 cm)

Material: 100 % polyester

As our products undergo continual development and improvement, technical changes and changes to the product design are possible.

These assembly instructions can also be downloaded as a PDF file from our homepage www.flexxtrade.de.

Disposal

Disposing of the packaging

Sort the packaging before you dispose of it. Dispose of paperboard and cardboard with the recycled paper service and wrappers with appropriate collection service.

Disposing of the soccer goal

Dispose of the soccer goal in accordance with the applicable disposal regulations for your country.
