02020CA - Detector AcuRite - Free user manual and instructions

Product Type	Lightning Detector
Brand	AcuRite
Model	02020CA
Power Source	2 x AAA alkaline batteries (not included)
Detection Range	1 - 25 miles (1.6 - 40 km)
Strike Counter	Up to 199 strikes (resets when powered off)
Audible Tone	85 decibels
Operating Temperature	32°F to 140°F (0°C to 60°C)
Battery Life	8-10 months (based on avg 3 strikes/day)
Display	LCD with backlight (momentary, 5 seconds)
Indoor/Outdoor Modes	Yes (default outdoor, indoor mode reduces interference)
Audio Mute	Yes, up to 60 minutes
Visual Alerts	Flashing red LED and display messages
Distance Units	Miles or kilometers (selectable)
Language Options	English or French (selectable)
Belt Clip	Included
Dimensions (approx.)	4 x 2.5 x 1.2 inches
Weight (approx.)	5 oz with batteries
Water Resistance	Weather resistant, not intended for direct rainfall
Warranty	Limited 1 year
Customer Support	[phone] or www.AcuRite.com

Frequently Asked Questions - 02020CA AcuRite

How do I turn on the lightning detector?

Press the Power Button (⏻) to turn the detector ON. The display will show 'PLEASE WAIT' while it calibrates, then 'LISTENING..' when ready. To turn it off, press and hold the power button for 3 seconds.

What is the difference between indoor and outdoor mode?

Outdoor mode is the default setting for general use. Indoor mode reduces sensitivity to interference, making it suitable for indoor use. To switch, press and hold the '✿' and '' buttons for 2 seconds until you hear a beep and see 'INDOOR' on the display. The detector reverts to outdoor mode when powered off.

How do I mute the audio alerts?

To mute audio alerts for up to 60 minutes, press and hold the LIGHT button for 5 seconds. The display shows 'MUTED'. Visual alerts (LED and display) remain active. To re-enable sound, press and hold the LIGHT button again for 5 seconds until 'SOUND ON' appears.

Why does my detector display 'UNABLE TO DETECT... PLEASE RELOCATE'?

This message indicates interference from nearby electronics (e.g., motors, CRT monitors, microwave ovens). Relocate the detector at least 3 feet away from such sources. Avoid placing it near computers, fluorescent lights, or mobile phones.

How do I change the distance units from miles to kilometers?

Press the 'miles/km' button located inside the battery compartment. Each press toggles between miles and kilometers. The selected unit is used for the estimated storm distance display.

How do I change the language?

Press the 'english/français' button located inside the battery compartment to toggle between English and French. The display language for alerts and messages will change accordingly.

How do I replace the batteries?

Remove the belt clip, then remove the battery compartment cover. Insert 2 x AAA alkaline batteries following the polarity diagram (+/-). Replace the cover and belt clip. Use high-quality alkaline batteries; do not use rechargeable or heavy-duty batteries.

What does the low battery indicator mean?

When the battery icon appears on the display and the detector beeps once per minute, it indicates low battery. Replace the batteries promptly to ensure proper operation. Expected battery life is 8-10 months under normal use.

What is the detection range of the AcuRite 02020CA?

The detector can sense lightning strikes within a range of 1 to 25 miles (1.6 to 40 km). It detects cloud-to-cloud, cloud-to-ground, and intra-cloud lightning. Strikes beyond 25 miles are not reported.

How do I clean and maintain the detector?

Clean the exterior with a soft, damp cloth. Do not use caustic cleaners or abrasives. The detector is weather resistant but not waterproof; avoid direct exposure to rain. Store in a dry place when not in use.

USER MANUAL 02020CA AcuRite

Unpacking Instructions ...... 2

Package Contents 2

Product Registration 2

Features & Benefits......3

Setup 4

Using the Lightning Detector...5

Interference....6

Alerts & Messages ...... 7

Care & Maintenance......8

Specifications......8

FCC Information 8

Customer Support 9

Warranty....9

Questions? Contact Customer Support at

[phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

ACU RITE®

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Unpacking Instructions

Remove the protective film that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove.

Package Contents

1. Lightning detector with belt clip
2. Instruction Manual

Note: Under no circumstances shall the Lightning Detector, Chaney Instrument Co. or the Primex Family of Companies be held responsible for any damages whatsoever that may result from the use of or inability to use this product, including without limitation any indirect, incidental, special, exemplary or consequential damages, which are expressly disclaimed. This disclaimer of liability applies to any damages or injury caused by any failure of performance, error, omission, inaccuracy, interruption, deletion, defect, delay in operation or transmission software virus, communication failure, theft or destruction or unauthorized access to, alteration of, or use of the product, whether for breach of contract, tortuous behavior (including, without limitation, strict liability), negligence, or under any other cause of action, to the fullest extent permissible by law. This does not affect any statutory rights which may not be disclaimed. The contents of this product, including all lightning and weather data are provided “as is” and without warranty or condition of any kind, express or implied, including, without limitation, any warranty of merchantability or fitness for a particular purpose. Chaney Instrument Co. & the Primex Family of Companies do not warrant that this product or the data that it provides will be free of errors, interruptions, viruses or other harmful components. Chaney Instrument Co. & the Primex Family of Companies do not warrant the accuracy or reliability of any lightning strike alerts, weather data or other information provided by the product. Chaney Instrument Co. & the Primex Family of Companies reserve the right to alter the product or withdraw it from the market at its sole discretion.

Features & Benefits

Black plastic object with ventilation slots and a numbered label '13' pointing to it (no other text or symbols)

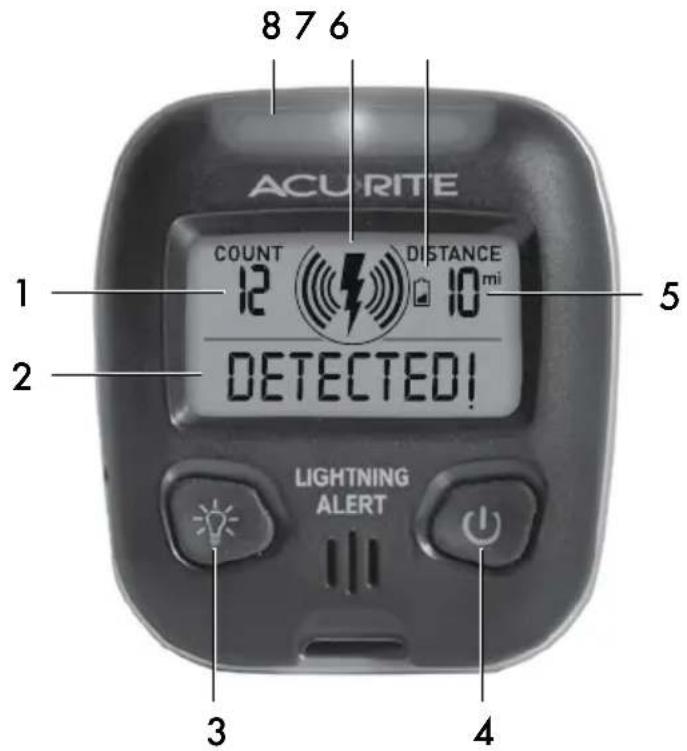

LIGHTNING DETECTOR FRONT

1. Strike Counter

Displays running total of lightning strikes that have been detected.

2. Status Display

Displays current status of the device and/or instructions.

3. Backlight Button

Momentary (5 second) backlight for low-light viewing.

4. Power Button

Press to power ON, press AND HOLD to power off.

5. Estimated Distance to Storm Front

Updates with every lighting strike.

6. Low Battery Indicator

7. Lightning Strike Indicator

Indicates a lightning strike has occurred within 25 miles.

8. Strike Indicator Red LED Light

Indicates a lightning strike has occurred within 25 miles.

LIGHTNING DETECTOR BACK

9. miles/km Button

Press to select distance units.

Press to select language.

11. Battery Compartment

12. Belt Clip

13. Battery Compartment Cover

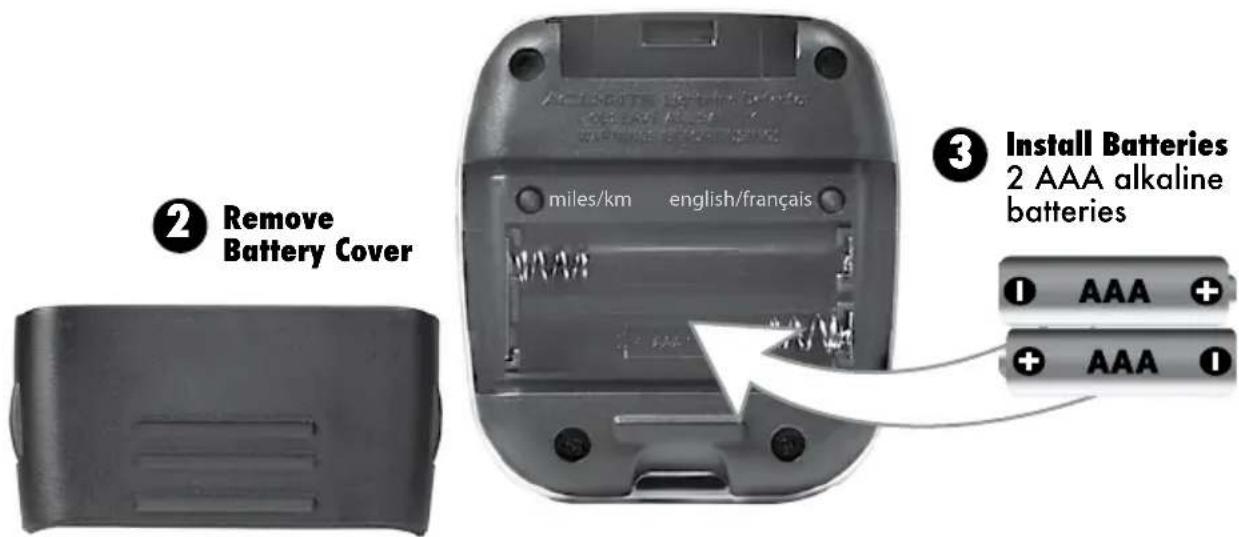

Install or Replace Batteries

AcuRite recommends high quality alkaline batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended.

1. Remove the belt clip.
2. Remove the battery cover.
3. Insert 2 x AAA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
4. Replace the battery cover.
5. Replace the belt clip.

Select Miles or Kilometers Distance Units

To select between miles or kilometers distance units, press the "miles/km" button located inside the battery compartment area.

Select English or French Language

To select between English and French, press the "english/français" button located inside the battery compartment area.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Using the Lightning Detector

Power On/Off

Press " ⏻ button to turn the detector ON. The detector will display "PLEASE WAIT" while it automatically calibrates itself. When calibration is complete "LISTENING.." will display, indicating it is ready for use. Press AND HOLD the " ⏻ button for 3 seconds to turn the detector off.

Indoor & Outdoor Modes

Outdoor mode is the default setting. Indoor Mode optimizes the performance of the detector for indoor use by making it less sensitive to interference. To select indoor mode, press AND HOLD the "✿ and " 🔊 buttons for 2 seconds until you hear a beep. The display will say "INDOOR". When powered off, the detector will return to its default, outdoor mode.

Lightning Detected

The device detects cloud-to-cloud, cloud-to-ground and intra-cloud lightning. When lightning is detected, the device emits two beeps and the red light flashes. The display indicates "STRIKES DETECTED!", and "COUNT" displays a running count of lightning strikes detected. The detector estimates the distance to the front of the lightning-producing storm. The detector alerts and flashes the light every 5 seconds until no strikes are detected for 30 minutes. After 30 minutes of inactivity, the detector will return to its default "LISTENING.." state. The "COUNT" resets when the device is powered off.

False Detection

This detector features advanced technology to distinguish between lightning strikes and interference, however in rare cases the detector may "false detect" lightning activity due to interference. In these situations, verify there is no lightning in the area and then relocate the detector. If the false detections persist, identify and relocate the source of interference or relocate the detector.

Silencing Audio Alerts

Audio alerts (beeps) are enabled by default each time the device is powered on. Audio alerts can be temporarily silenced for up to 60 minutes. To temporarily silence audio alerts, press and hold the "LIGHT" button for 5 seconds. The device will display "MUTED". The visual alerts from the LED light and display messages will remain active even when audio alerts have been silenced. When the device detects a lightning strike while audio alerts are muted, the device will display the message, "STRIKES DETECTED! MUTED" along with the strike indicator/flushing LED, updated strike count and updated estimated distance. The device will re-activate audio alerts after 60 minutes or after audio alerts have been re-enabled. To re-enable audio alerts, press and hold the "LIGHT" button for 5 seconds. The device will display "SOUND ON".

Interference

The detector features enhanced interference rejection capabilities to prevent false lightning detection. When the detector cannot detect lightning due to interference from nearby equipment, the detector sounds a single audible beep and displays "UNABLE TO DETECT...PLEASE RELOCATE."

Use the detector at least 3 feet away from sources of interference, including:

• Electric motors (windshield wiper motor or fan motors in cars, hard drive and optical drive motors on your PC and AV equipment, well pumps, sump pumps)
• CRT monitors (PC monitors, TV's)
- Fluorescent light fixtures (turned off or on)
• Microwave ovens (while in use)
• PC's and mobile phones

WARNING: Take shelter IMMEDIATELY when lightning is present, whether or not it has been detected by the Lightning Detector. If you are concerned about lightning strikes, follow all safety precautions to keep yourself and others safe. DO NOT rely on this Lightning Detector as your only source for warnings about potentially deadly lightning strikes or other severe weather conditions.

Alerts & Messages

Text on Display Alerts Message
STRIKES DETECTED!	2 beeps & light flashes	Lightning has been detected within 25 miles
INDOOR	None	Confirms the detector is set to operate indoors
LISTENING..	None Detector is ready for use
LO BATTERY.	icon & 1 beep/minute	Replace batteries
NA	None Lightning detected beyond 25 miles
PLEASE WAIT	None Detector is calibrating itself
UNABLE TO DETECT...PLEASE RELOCATE	1 beep	Interference detected, use the detector in a different location
MUTED	None	Audio alerts temporarily silenced. Press AND HOLD the "LIGHT" button for 5 seconds to re-enable audio alerts.

Troubleshooting

Display reads "UNABLE TO DETECT...PLEASE RELOCATE"	Relocate the detector.Make sure the detector is placed at least 3 feet (.9 m) away from electronics that may cause interference (see page 6).
Display screen not working	Check that the batteries are installed correctly. Batteries may need to be replaced.
Detector beeping	Review the Alerts & Messages chart above to determine why the detector is beeping.

If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call [phone] for assistance.

Care & Maintenance

Detector is weather resistant. It is not intended for direct exposure to rainfall. Clean with a soft damp cloth. Do not use caustic cleaners or abrasives.

Specifications

OPERATING TEMPERATURE	32°F to 140°F; 0°C to 60°C
LIGHTNING DETECTION RANGE*	1 - 25 miles / 1.6 - 40km
LIGHTNING COUNTER	Counts up to 199 strikes (power off to reset counter)
AUDIBLE TONE	85 decibels
POWER	2 x AAA alkaline batteries (not included)
BATTERY LIFE EXPECTANCY	8-10 months - based on an average of 3 lightning strikes detected per day

*To select between miles or kilometers, press the "miles/km" button located inside the battery compartment area.

FCC Information

This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:

1- This device may NOT cause harmful interference, and

2- This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation of the device.

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

[phone]

[e-mail]

24/7 support at www.AcuRite.com

▶ Installation Videos

▶ Register your Product

▶ Instruction Manuals

▶ Support User Forum

▶ Replacement Parts

▶ Submit Feedback & Ideas

IMPORTANT

PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

Register online to receive 1 year warrantyprotection

www.AcuRite.com

SUPPORT

Support Forum

Archived Products

▶Register a Product

Limited One Year Warranty

At AcuRite, we proudly uphold our commitment to quality technology. Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase.

We recommend that you visit us at www.AcuRite.com for the fastest way to register your product. However, product registration does not eliminate the need to retain your original proof of purchase in order to obtain warranty benefits.

Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase. Remedy for breach of this warranty is limited to repair or replacement of the defective item(s). Any product which, under normal use and service, is proven to breach the warranty contained herein within ONE YEAR from date of sale will, upon examination by Chaney, and at its sole option, be repaired or replaced by Chaney. Transportation costs and charges for returned goods shall be paid for by the purchaser. Chaney hereby disclaims all responsibility for such transportation costs and charges. This

warranty will not be breached, and Chaney will give no credit for products it manufactures which have received normal wear and tear, been damaged (including by acts of nature), tampered, abused, improperly installed, damaged in shipping, or repaired or altered by others than authorized representatives of Chaney. The above-described warranty is expressly in lieu of all other warranties, express or implied, and all other warranties are hereby expressly disclaimed, including without limitation the implied warranty of merchantability and the implied warranty of fitness for a particular purpose. Chaney expressly disclaims all liability for special, consequential or incidental damages, whether arising in tort or by contract from any breach of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Chaney further disclaims all liability from personal injury relating to its products to the extent permitted by law. By acceptance of any of Chaney's products, the purchaser assumes all liability for the consequences arising from their use or misuse. No person, firm or corporation is authorized to assume for Chaney any other liability in connection with the sale of its products. Furthermore, no person, firm or corporation is authorized to modify or waive the terms of this paragraph, and the preceding paragraph, unless done in writing and signed by a duly authorized agent of Chaney. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For in-warranty claims: Chaney Instrument Co. 965 Wells St., Lake Geneva, WI 53147
