Product Type	Upright Freezer
Brand	Gram
Model	FSI 3225-92 N
Total Net Capacity	Approx. 200 L
Energy Efficiency Class	E (EU 2019)
Annual Energy Consumption	Approx. 220 kWh
Climate Class	SN-N-ST-T
Noise Level	Approx. 40 dB(A)
Freezing Capacity	Approx. 10 kg per 24 h
Temperature Range	-18°C to -24°C
Defrost Type	Manual
Door Hinge	Right, reversible
Shelves / Drawers	4 shelves + 1 drawer
Control Type	Mechanical thermostat
Interior Light	Yes, LED
Fast Freeze Function	Yes
Door Open Alarm	No
Power Supply	220-240 V / 50 Hz
Power Input	Approx. 100 W
Dimensions (H x W x D)	Approx. 145 x 60 x 65 cm
Weight	Approx. 50 kg
Refrigerant	R600a (isobutane)
Warranty	2 years (manufacturer)

Frequently Asked Questions - FSI 3225-92 N GRAM

How do I set the correct temperature for my Gram FSI 3225-92 N freezer?

Turn the thermostat knob inside the freezer. Settings 1-7: 1 warmest, 7 coldest. For normal use, set to 4 (approx -18°C). Adjust as needed.

How often should I defrost the freezer?

Defrost when ice layer reaches 5-10 mm thickness, typically every 6-12 months. Remove food, unplug, leave door open, and place towels to absorb water.

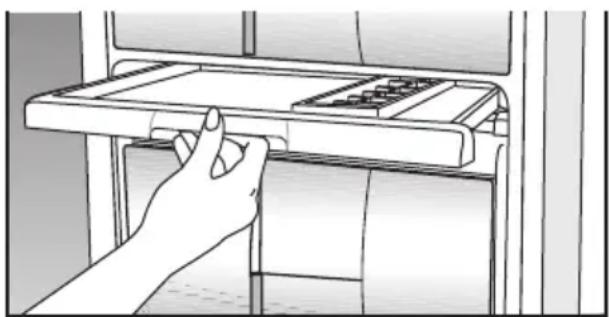

What does the 'Fast Freeze' function do and how do I activate it?

The Fast Freeze function lowers temperature quickly to freeze fresh food. Activate it by pressing the fast freeze button (if equipped) or turning the thermostat to the highest setting for 24 hours before adding food.

Why is the freezer making unusual noises?

Normal sounds include compressor hum, gas flow gurgle, and clicks from thermostat. If loud or sharp, check leveling, ensure rear clearance for ventilation, and that interior items are stable.

How do I clean the freezer?

Unplug the freezer, remove all food and shelves. Wash interior with mild detergent and warm water, not abrasive cleaners. Dry thoroughly before restarting. Clean door seals with a damp cloth.

What should I do if the freezer stops working?

Check power cord, fuse, and that the plug is secure. Ensure the thermostat isn't set to '0' (off). If still not cooling, contact a qualified technician.

Can I reverse the door on my Gram freezer?

Yes, the door is reversible. Refer to the manual for instructions. You'll need to unscrew hinges and transfer to opposite side. Ensure you have tools and assistance.

What is the recommended power failure duration for safe food storage?

A full freezer keeps food safe for about 48 hours if door stays closed. Partial freezer: 24 hours. Do not refreeze thawed food unless still icy.

Where can I find replacement parts for the FSI 3225-92 N?

Contact Gram customer service or authorized dealers. Use original parts for safety. Models often share parts with similar Gram freezers.

How do I interpret the energy label on this freezer?

The energy class E indicates moderate efficiency. Annual energy consumption is approx 220 kWh. Higher classes (A-G) mean more efficiency. Use in cool, ventilated places to reduce consumption.

USER MANUAL FSI 3225-92 N GRAM

1. Betjeningspanel
2. MegaBox (indfrysningsområde)
3. Indfrysningsbakke
4. Fryseskuffer
5. Ventilationsrist

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Illustration of a hand inserting a tray into an appliance (no text or symbols visible)

1. Kontrollpanel
2. Klaff (hurtigfrysdel)
3. Isbitbrett
4. Skuffer
5. Luftegitter

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Dette produktet er i samsvar med EU-direktivet som omhandler elektronisk og elektrisk utstyr (2012/19/EU). Dette produktet har et klassifiseringsymbol for

Illustration of a hand inserting a tray into a refrigerator (no text or symbols visible)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Simple line drawing of a mechanical device with no text or symbols

Illustration of a hand inserting a tray into a refrigerator (no text or symbols visible)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Illustration of a hand inserting a tray into a refrigerator (no text or symbols visible)

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

• Read the manual before installing and operating the product.
  • Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

i Important information or useful tips.

⚠ Warning against dangerous conditions for life and property.
⚠ Warning against electric voltage.

1 Your freezer 3

2 Important Safety Warnings 4

Intended use ....4

General safety ....4

Compliance with WEEE Directive and

Disposing of the Waste Product: .....7

Compliance with RoHS Directive: .....8

Package information 8

HC Warning 8

Energy-saving precautions ....8

3 Installation 9

Points to be considered when re-transporting your freezer ....9

Before operating your freezer .....9

Before starting to use your freezer check the following: 9

Disposing of the packaging .....10

Disposing of your old freezer .....10

Placing and Installation .....10

Reversing the doors ....11

4 Preparation 12

5 Using your freezer 13

Setting the operating temperature ...13

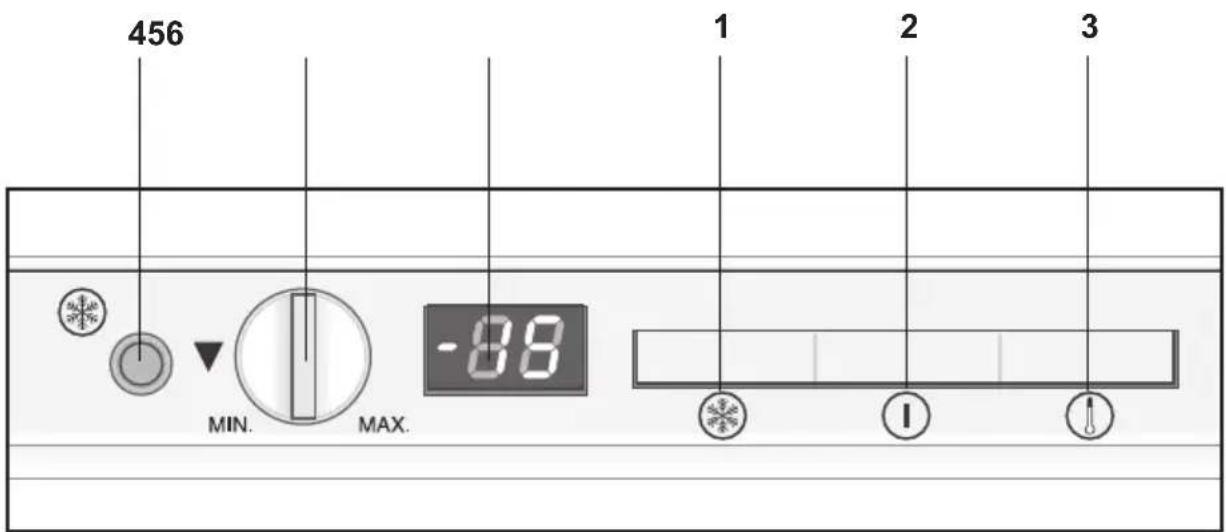

LED indicators and control panel .....14

Freezing 15

Making ice cubes ....15

Fast freeze 15

Door Open Warning 16

6 Maintenance and cleaning 17

Protection of plastic surfaces .....17

7 Recommended solutions for the problems 18

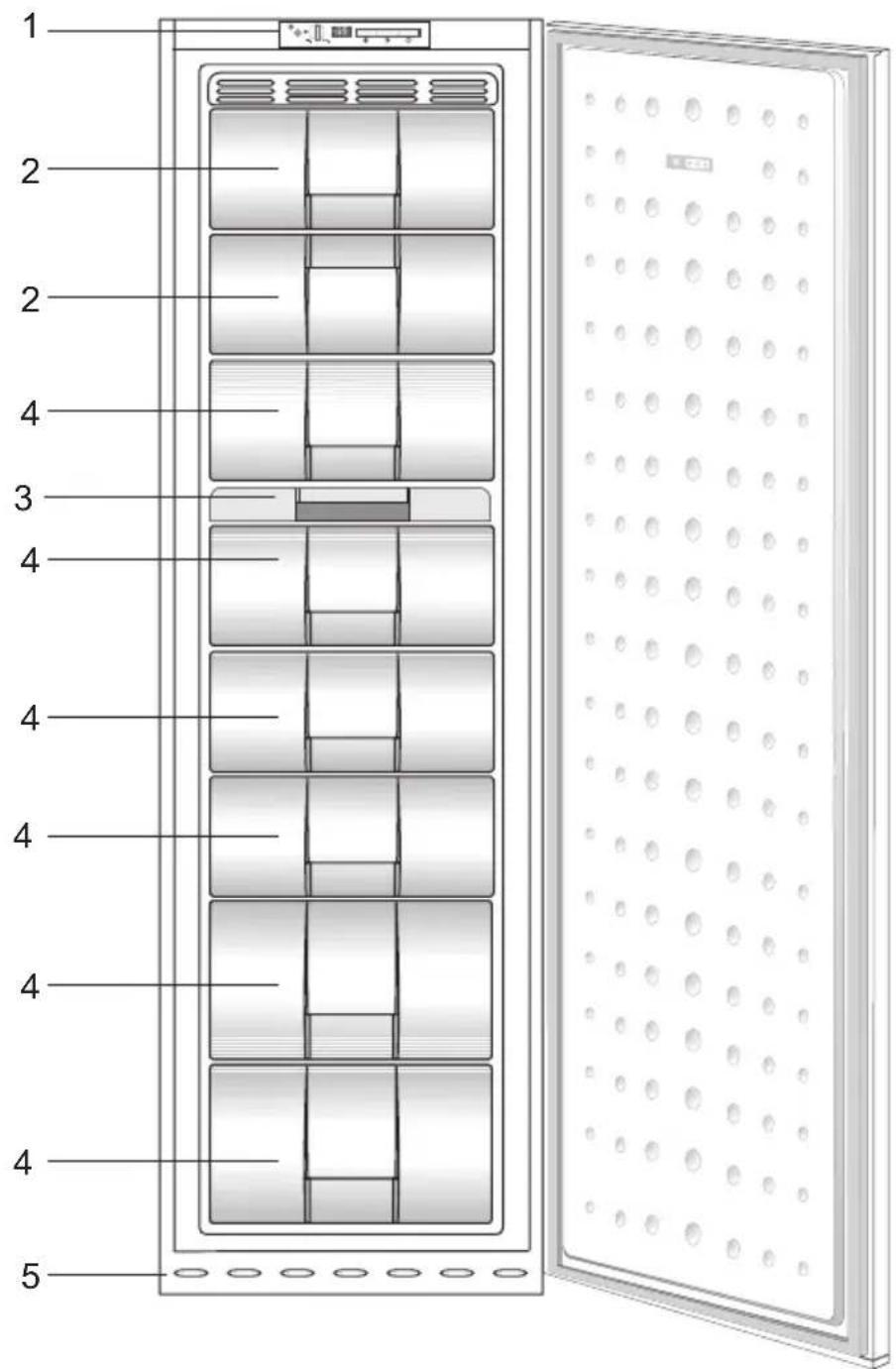

1 Your freezer

1. Control Panel
2. Flap (Fast-Freeze compartment)
3. Ice cube tray
4. Drawers
5. Air grill

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please read through the following information. If this information is not followed, personal injury or material damage may occur and all warranty and reliability commitments will become invalid.

Intended use

• This product is designed for domestic use.
• It should not be used outdoors. It is not appropriate to use it outdoor even if the place is covered with a roof.

General safety

• When you want to dispose of the product, we recommend you to consult the authorized service in order to get information on disposal and available facilities.
• Consult GRAM service for all your questions and problems related to the refrigerator.
• Vapor and vaporized cleaning materials

should never be used in connection with the cleaning and defrosting of your refrigerator. In such cases, the vapor might get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the equipment from your freezer such as the door as a support or a step.
• Do not use electrical devices inside the freezer.
• Do not damage the cooling circuit, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured may cause skin irritations and eye injuries.
• Do not cover or block the ventilation holes on your freezer with any material.
  • Repairs of the electrical appliances must only be made by qualified

people. Repairs performed by unqualified people may cause a risk for the user.

• In case of any failure, maintenance or repair, disconnect your refrigerator's mains supply by either turning off the relevant fuse or by unplugging your appliance.
• Do not pull the cable when pulling out the plug.
• Flammable items or products that contain flammable gases (e.g. spray) as well as explosive materials must never be kept in the appliance.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than the ones recommended by the manufacturer.

• Do not operate a damaged freezer. Consult GRAM service if you have any doubts.

• Electrical safety of your will only be covered by the guarantee be covered by the guarantee if the earth system in your house complies with standards.

• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact the GRAM service when there is a power cable damage and etc. so that it will not create a danger for you.
• Never plug the freezer into the outlet during installation or a, risk of death or serious injury may occur.
• This freezer is only designed for storing food. It should not be used for any other purposes.

• The label that describes the technical specification of the product is located on the inner left side of the freezer.

• Do not connect the freezer to electronic energy saving systems which turn off the electricity as they may damage the product.

• If the power supply is disconnected in manually controlled freezers please wait for at least 5 minutes before reconnecting the power.
• This user guide should be passed to the next owner of the freezer if the ownership changes.

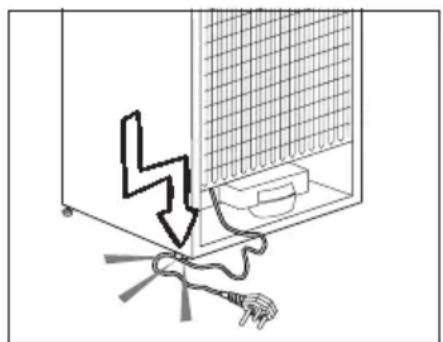

• When moving the freezer make sure that you do not damage the power cord. In order to prevent fire the power cord must not be twisted. Heavy objects should not be placed on the power cord. When the freezer is plugged into the socket do not touch the power outlet with wet hands.

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

• Do not connect the freezers if the electric outlet is loose.
• Do not splash water directly on the outer or inner parts of the freezer due to safety.
• Do not spray inflammable materials such as propane gas etc near the freezer due to the risk of fire and explosion.
• Do not place objects filled with water on top of the freezer as it may result in electric shock or fire.
• Do not overload the freezer with excess food. The excess food may fall out when the door is opened resulting in injuring you or damaging the freezer. Do not place objects on top of the refrigerator as the objects may fall out when opening or closing the freezer door.
• If the freezer will not be operated for an extended period of time it should be unplugged. A problem in the electrical

cable insulation may result in fire.

• The tip of the electric plug should be cleaned regularly otherwise it may cause fire.
• The freezer may move when the adjustable feet are not positioned firmly on the floor. By using the adjustable feet you can ensure that the freezer is positioned firmly on the floor.
• Do not pull the freezer by the door handle when moving the product as it may disconnect the handle from the refrigerator.
• If you want to place two products side by side, we recommend you to buy a decoration kit, which includes a mat to be placed on the side of the product. A decoration part is placed between the products to hide the gap between the products.

Child safety

• Children should be supervised to ensure that they do not play with the appliance

Compliance with WEEE Directive and Disposing of the Waste Product:

This product complies

with EU WEEE Directive (2012/19/EU). This product bears a

classification symbol for waste electrical and electronic equipment (WEEE).This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

HC Warning

- This product is equipped with a cooling system that contains R600a:

This gas is flammable. Therefore, pay attention not to damage the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product to catch a fire and ventilate the room in which the unit is placed.

Energy-saving precautions

• Do not leave the door of your freezer open for a long time.
• Do not overload your freezer so that the air circulation inside of it is not prevented.
• Do not install your freezer under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.

3 Installation

⚠️ Please remember that the manufacturer shall not be held liable if the information given in the user guide is not observed.

Points to be considered when re-transporting your freezer

1. Your freezer must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, and etc. have to be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

That recycled material is an indispensable source for the nature and for our national resources. If you would like to contribute to the recycling of the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your freezer

Before starting to use your freezer check the following:

1. The interior of the freezer has to be dry and it is possible for the air to circulate freely at the back of the appliance.

2. Clean the interior of the freezer as recommended in the “Maintenance and cleaning” section.

3. Plug the freezer into the wall outlet. When the freezer door is open the freezer compartment interior light will come on.
4. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
5. Front edges of the freezer may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity. Important:

• The connection must be in accordance with with national regulations.
• The power cable plug must be easily accessible after installation.
• Extension cords and connector must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

Disposing of the packaging

The packaging may be dangerous for children. Keep it out of the reach of children or dispose of it by classifying it in accordance with the waste instructions. Do not dispose of it together with the normal household waste.

The packaging of your freezer is made from recyclable materials.

Disposing of your old freezer

Dispose of your old refrigerator without harming to the environment.

- You may consult your authorized retailer or the recycling depot in your municipality about the disposal of your freezer.

Before disposing of your freezer, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

1. Install your freezer in a place that allows ease of use.
2. There must be appropriate air ventilation around your freezer in order to achieve an efficient operation.
3. Place your freezer on an even floor surface to prevent jolts.
4. The freezer can be installed indoors, at temperatures up to -15 C. This gives you the option to install a freezer such as a holiday home, garage or utility room.

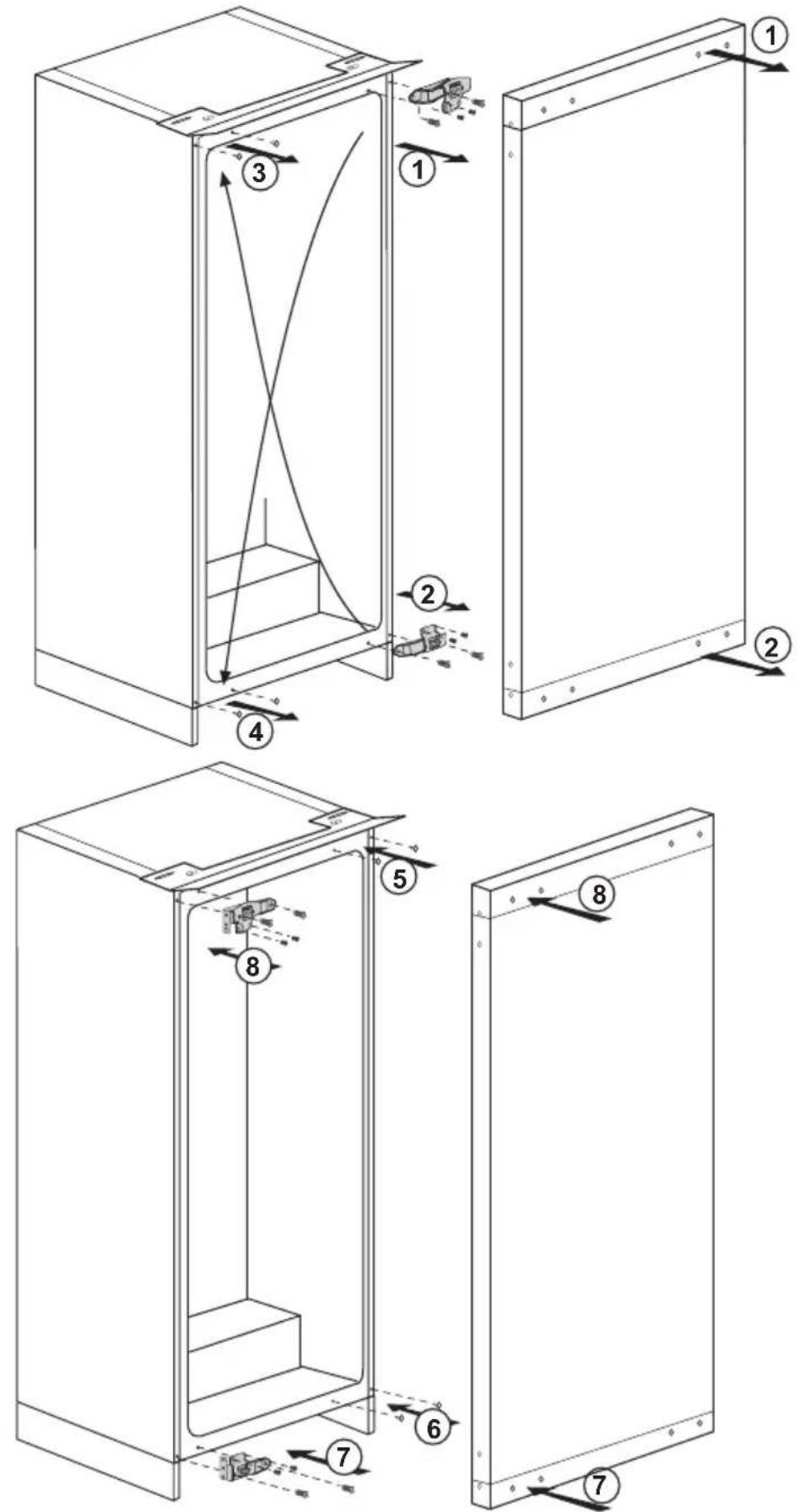

Reversing the doors

Proceed in numerical order.

4 Preparation

• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.
• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.
• Original packaging and foam materials should be kept for future transportations or moving.
• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

• In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

• Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal

Setting the operating temperature

The operating temperature is regulated by the temperature control.

1 = Lowest cooling setting (Warmest setting)

MAX. = Highest cooling setting (Coldest setting)

Please choose the setting according to the desired temperature.

The interior temperature also depends on ambient temperature, the frequency with which the door is opened and the amount of foods kept inside.

Frequently opening the door causes the interior temperature to rise.

For this reason, it is recommended to close the door again as soon as possible after use.

The normal storage temperature of your appliance should be -18 °C (0 °F). Lower temperatures can be obtained by adjusting the thermostat knob towards Position MAX.

We recommend checking the temperature with a thermometer to ensure that the storage compartments are kept to the desired temperature. Remember to take the reading immediately since the thermometer temperature will rise very rapidly after you remove it from the freezer.

LED indicators and control panel

LED indicators in the front section of your freezer are intended to help you in monitoring the operation of your appliance.

Keep your food in the freezer in a safe manner by monitoring and using these LEDs and controls as explained below:

Fast Freeze Button (4): Used to freeze the food fastly. Compressor may not operate immediately but after some time when the button is pressed and this is quite normal.

Thermostat Setting Button (5): Used to set your freezer between minimum and maximum values.

Temperature Indicator (6): Displays the inner temperature of your freezer.

Orange LED (1): Lights up when the fast freeze button on the LED panel is pressed. In this case, freezer operates continuously.

Press the button again when the food you would like to fast freeze comes to the desired temperature and the orange LED will turn off.

Green LED (2): Lights up continuously after plugging in your freezer.

Red LED (3): It warns user by lighting up continuously when there is not enough cooling in the freezer, when the door remains open for a long time and when excessive food is loaded.

If the red LED lights up continuously when the conditions stated in the adjacent column do not exist, then call our Authorized Service.

Freezing

Freezing food

You can use the appliance for freezing fresh food as well as for storing pre-frozen food.

Please refer to the recommendations given on the packaging of your food.

Attention

Do not freeze fizzy drinks, as the bottle may burst when the liquid in it is frozen.

Do not exceed the freezing capacity of your appliance in 24 hours. See the rating label.

In order to maintain the quality of the food, the freezing must be effected as rapidly as possible.

Thus, the freezing capacity will not be exceeded, and the temperature inside the freezer will not rise.

Attention

Keep the already deep-frozen food always separated with freshly placed food.

When deep-freezing hot food, the cooling compressor will work until the food is completely frozen. This can temporarily cause excessive cooling of the refrigeration compartment.

If you find the freezer door difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the door to open normally after a few minutes.

You will hear a vacuum sound just after closing the door. This is quite normal.

Making ice cubes

Fill the ice-cube tray 3/4 full with water and place it in the freezer.

As soon as the water has turned into ice, you can take out the ice cubes.

Never use sharp objects such as knives or forks to remove the ice cubes. There is a risk of injury!

Let the ice cubes slightly thaw instead, or put the bottom of the tray in hot water for a short moment.

Fast freeze

If large amounts of fresh food are going to be frozen, adjust the control knob to max. 24 hours before putting the fresh food in the fast freeze compartment.

Line drawing of a hand inserting a tray into a refrigerator (no text or symbols)

It is strongly recommended to keep the knob at MAX. position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food.

When fast freeze switch is on, -27 degrees C will flash for 5 seconds on display (6). Fast-freeze operation is for freezing fresh food (see Freezing Fresh Food section).

Defrosting of the appliance

The appliance defrosts automatically.

Door Open Warning

\*May not be available in all models

An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the freezer before cleaning.

• Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
• Use lukewarm water to clean the cabinet of your freezer and wipe it dry.
• Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
• If your freezer is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
• Check door seals regularly to ensure they are clean and free from food particles.

⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.
⚠️Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Protection of plastic surfaces

- Do not put liquid oils or oil-cooked meals in your freezer in unsealed containers as they may damage the plastic surfaces of your freezer. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the GRAM service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The freezer does not operate.

Is the freezer properly plugged in? Insert the plug to the wall socket.Is the fuse of the socket to which your freezer is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the freezer.

Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Leaving the door ajar. Switching the thermostat control to a colder temperature.Decreasing the time the doos is left open or using it less frequently.Wipe the condensation using a dry cloth and check if it persists.

The compressor is not running

In case of an electrical cut the freezer cannot start up right away as the compressor has to balance the refrigerant pressure in the cooling system of the freezer. The alignment of the refrigerant pressure will lead to a postponement of the start up by 6 minutes. Please contact GRAM service if the freezer does not start up at the end of this period.The freezer is in the defrost cycle. This is normal for a full-automatically defrosting freezer. The defrostning cycle occurs periodically.Your freezer is not plugged into the socket. Make sure that the plug fits properly into the socket.Are the temperature adjustments correctly made?The power might be cut off.

The freezer is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal. Large freezers operate for a longer period of time.
• The ambient room temperature may be high. This is quite normal.
• The freezer might have been plugged in recently or might have been loaded with food. Cooling down of the freezer completely may last for a couple of hours longer.
• Large amounts of hot food might have been put in the freezer recently. Hot food causes longer running of the freezer until it reaches the safe storage temperature.
• The door might have been opened frequently or left ajar for a long time. The warm air that has entered into the freezer causes the freezer to run for longer periods of time. Open the door less frequently.
• The freezer door might have been left ajar. Check if the door is tightly closed.
• The freezer is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and wait until the temperature is achieved.
• The door seal of the freezer may be soiled, worn out, broken or not placed properly. Clean or replace the seal. A damaged or broken sea causes the freezer to run for a longer period of time in order to maintain the current temperature.

The food kept in the fridge compartment drawers are freezing.

- The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

The temperature in the freezer is very high.

• The fridge temperature might have been adjusted to a very high degree. Change the temperature of the freezer until the freezer temperature reaches to a sufficient level.
• The door might have been opened frequently or left ajar for a long time; open it less frequently.
• The door might have been left ajar; close the door completely.
• Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge reaches the desired temperature.
• The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

- The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

- The floor is not level or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the freezer, and that the floor is level. - The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of the refrigerator.

Hot and humid weather increases icing and condensation. It is normal and not a fault.The door might have been left ajar; make sure that the door is closed fully.The door might have been opened frequently or left ajar for a long time; open it less frequently.

Humidity occurs on the outside of the refrigerator

There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

A bad odor inside the refrigerator.

The interior of the refrigerator must be cleaned. Clean the the interior of the refrigerator with a sponge, lukewarm water or carbonated water.Some containers or packaging might cause the smell. Use a different container or different brand packaging..

The door is not closing.

Food packaging may prevent the door from closing. Replace the packaging that are obstructing the door.The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

The vegetable drawers are stuck.

The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Pure electrical circuit lines without any symbols

Illustration of a hand inserting a tray into a refrigerator (no text or symbols visible)
