Product Type	Hearing Aid
Brand	Siemens
Model	IMPACT Pro M
Color	Beige / Silver (typical)
Dimensions (approx.)	30 x 15 x 10 mm
Weight (approx.)	5 g (without battery)
Battery Type	Size 312 (or 13, typical)
Battery Life	Up to 10 days (depending on usage)
Amplification	Digital, programmable
Noise Reduction	Adaptive feedback cancellation
Directional Microphone	Yes
Program Options	Multiple programs (e.g., quiet, noise, phone)
Telecoil	Yes
Connectivity	Not specified (likely no Bluetooth)
Water Resistance	Not specified (avoid moisture)
Maintenance	Clean with dry cloth; store in dry place
Spare Parts	Batteries, domes, wax guards, tubes
Warranty	Standard manufacturer warranty
Certifications	CE, FDA (typical)
Manual Format	PDF (22 pages)

Frequently Asked Questions - IMPACT Pro M SIEMENS

How do I insert the hearing aid correctly?

Hold the hearing aid with the earpiece facing your ear canal. Gently push the dome into your ear while pulling your outer ear backward. The device should sit snugly. Consult the manual for correct insertion.

How do I clean my Siemens IMPACT Pro M hearing aid?

Use a soft, dry cloth to wipe the device daily. Do not use water or solvents. Clean the dome and wax guard with the provided brush. For deep cleaning, visit a professional audiologist.

What battery does the IMPACT Pro M use?

It typically uses a size 312 zinc-air battery. Open the battery door completely to insert the new battery with the plus side up. Remove the tab and wait 2 minutes before closing the door.

How long does the battery last?

Battery life varies from 5 to 10 days depending on usage time, volume level, and environmental conditions. You will hear beeps when the battery is low. Always keep spares handy.

Can I connect the hearing aid to my phone?

The IMPACT Pro M is not Bluetooth-enabled. However, you may use a telecoil with a compatible phone neck loop. Check your phone's hearing aid compatibility (HAC) rating.

How do I change programs or adjust volume?

Use the rocker switch or push button on the device. A short press often changes programs; longer presses adjust volume. Refer to your manual for specific button functions.

What should I do if my hearing aid whistles?

Whistling (feedback) may occur if the hearing aid is not inserted properly or if the volume is too high. Try reinserting the device, reducing the volume, or cleaning the earwax from the dome. If persists, consult your audiologist.

Is the IMPACT Pro M water-resistant?

It is not fully water-resistant. Avoid exposure to moisture, rain, or sweat. Remove before showering or swimming. Use a drying kit overnight to remove humidity.

Where can I find spare parts like domes or wax guards?

Spare parts can be purchased from your hearing care professional or online retailers. Use only genuine Siemens parts to ensure proper fit and performance.

How do I know if my hearing aid is working correctly?

Perform a daily listening check by cupping the device in your hand; you should hear a stable sound. Also check for weak or distorted audio. If you suspect a problem, run a feedback test or visit your audiologist.

USER MANUAL IMPACT Pro M SIEMENS

White robotic device with curved handle and mechanical grip (no visible text or symbols)

IMPACTProM,DP

&DSP

Instructions and guidance

SIEMENS

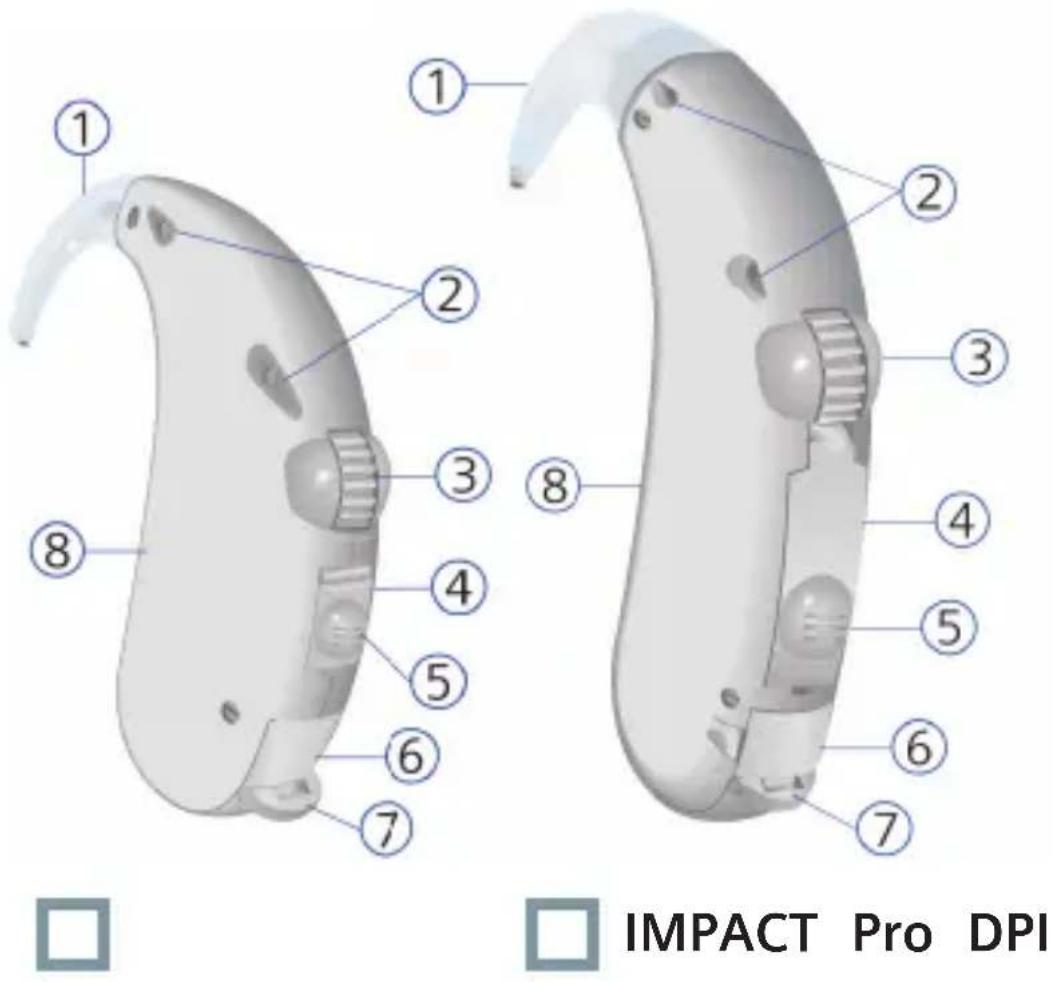

Your IMPACT Pro hearing instrument

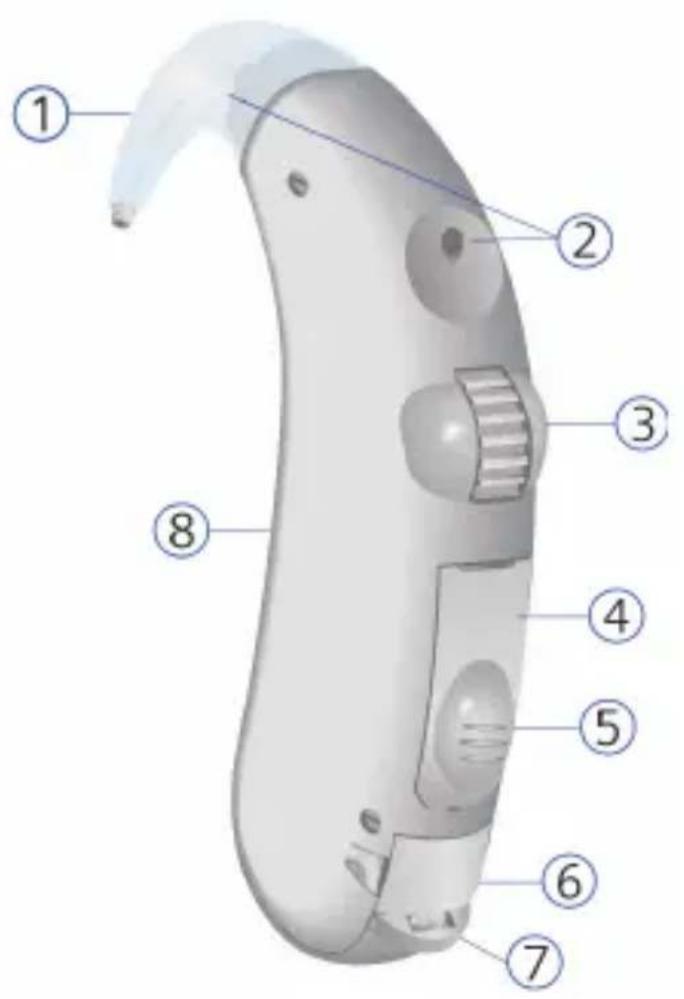

Features

1. Earhook
2. Microphone opening
3. Volume control
4. Cover for programming socket
5. Program button

IMPACT Pro DSP

1. Audio input
2. Battery compartment
3. Colour-coded typeplate red = right instrument blue = left instrument

Changing the batteries

1. Open the battery compartment

Simple diagram showing a cloud transforming into a plus sign (no text or symbols)

Close-up of a medical device with a blue upward arrow indicating growth (no text or symbols)

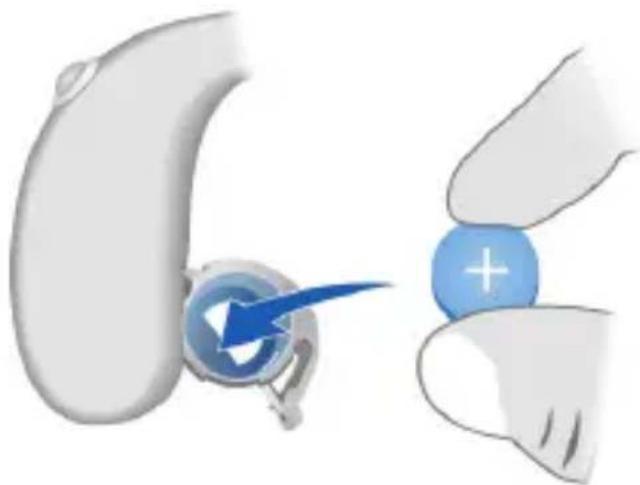

1. Remove coloured sticker from new battery, place battery

in drawer with + symbol on battery + side up. (You should only remove the protective sticker if you actually use the battery)

Illustration of a medical device with a blue arrow pointing to a circular component, next to a blue plus sign (no text or symbols)

1. Close battery door

Close-up of a curved, white object with a blue arrow indicating upward motion (no text or symbols)

Low Battery indicator

Your hearing instrument may be programmed to inform you when the battery should be replaced for best system performance. You may hear an intermittent series of beeps and/or experience low amplification power or volume. Change the battery when either of these occur.

Switching the instrument on/off

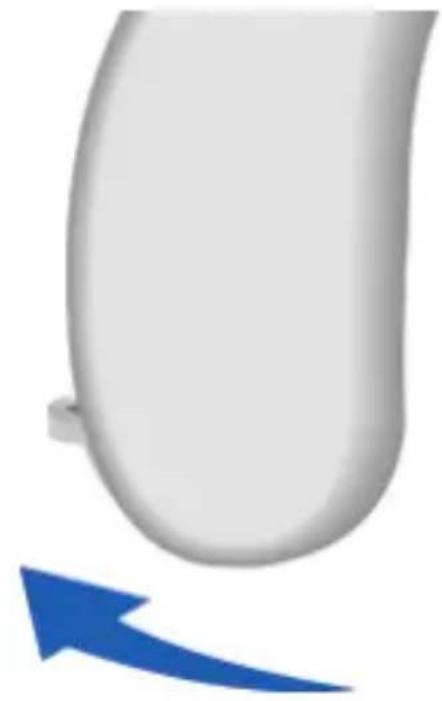

On:

Close the battery compartment fully to switch on.

Simple 3D illustration of a toilet with a blue arrow pointing downward (no text or symbols)

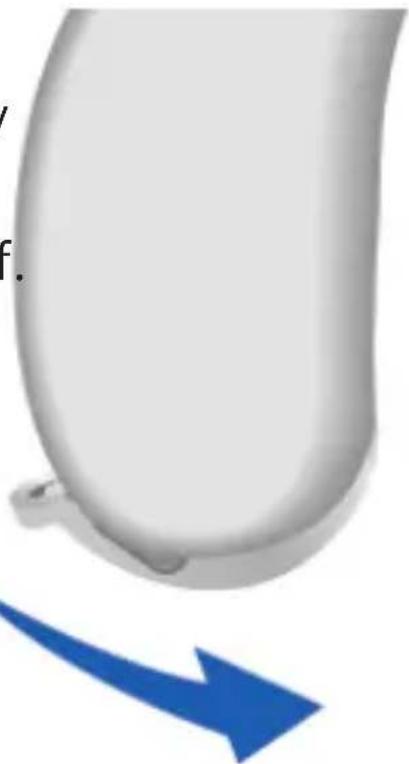

Off:

Press open the battery compartment to the first stop to switch off.

3D rendered image of a white toilet with a blue arrow pointing downward (no text or symbols)

Selecting the hearing program

Your IMPACT Pro hearing instrument can be programmed with up to 5 hearing programs which are selected with a program button. Each time the button is pressed the instrument changes to the next program, which is confirmed with beep tones. The number of beep tones is the same as the selected program.

Your NHS Audiologist will complete your program details below:

Close-up of a blue oval object with three horizontal lines, resembling a stylized icon or symbol (no text or symbols present)

Hearing program

1. Everyday listening
4. 5.

IMPACT Pro will always be on program 1 when initially switched on.

On/Off using the program button

Blue oval-shaped object with three horizontal lines inside, resembling a stylized icon or symbol (no text or symbols present)

Your IMPACT Pro hearing instrument can also be programmed by your NHS Audiologist to be turned on and off using the program button.

To turn your hearing instrument off, press and hold the program button for approximately 3 seconds. To turn your hearing instrument on again, press and hold the program button for approximately 3 seconds. Please note that when you turn your hearing instrument off using the program button, you must wait approximately 10 seconds for the instrument to reset before turning it back on using the program button.

Optional

Power-on delay

Your hearing instrument may be equipped with a "power-on delay" feature.

This feature delays sound from entering your hearing instrument when it is first turned on, so that you may insert the hearing instrument into your ear without experiencing unpleasant feedback (whistling).

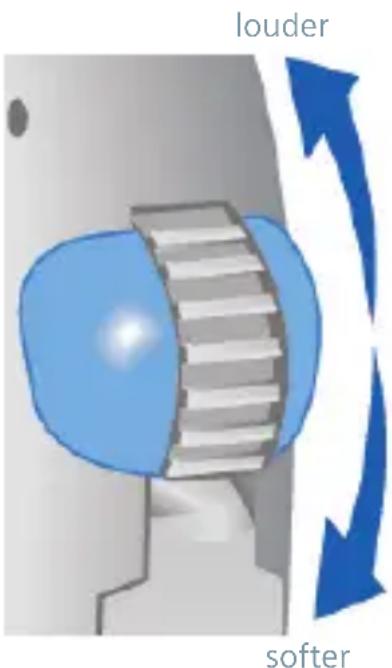

Using the volume control

Optional

Your IMPACT Pro hearing instrument is fully automatic. There is no need to manually adjust the volume control.

However, if you prefer manual volume control, your IMPACT Pro hearing instrument can be programmed for manual adjustment. This will be done by your NHS audiologist.

Rotate the wheel upwards to increase volume. Rotate it down to decrease volume.

If your system is programmed for manual adjustment, the wheel-shaped volume control can be rotated up (louder) or down (softer) to select the desired listening volume.

To increase volume, place your index finger gently against the volume control wheel and rotate it upward. If your IMPACT Pro hearing instrument is equipped with a warning tone for volume control limits, once it is heard, adjusting the volume control further in that direction will have no effect. To reduce the volume, rotate the wheel in the opposite direction.

NOTICE

If your hearing instrument has not been programmed for manual control adjustment, the volume will automatically adjust and rotating the volume control wheel will have no effect.

Fitting the audio shoe to the hearing instrument

It is possible to connect audio accessories through an audio shoe.

Ask your NHS Audiologist for details.

Fitting

Before the audio shoe can be connected to the hearing instrument follow the steps below:

▶ Open the battery compartment
▶ Open the audio shoe cover
▶ Close the battery compartment

Attaching the audio shoe

Illustration of a hand holding a device with a blue arrow indicating motion (no text or symbols)

Take the audio shoe and hook the two nibs into the small recesses of the hearing instrument housing. Slide the audio shoe to the inner side of the hearing instrument housing until it snaps into the end position.

Removing the audio shoe

Illustration of a robotic arm with a blue arrow indicating force or movement (no text or symbols)

To remove the audio shoe, slide it in the opposite direction.

Any other method of inserting or removing the audio shoe may result in damaging the audio shoe or hearing instrument housing.

With the connected audio shoe, the battery compartment switch is disabled and the hearing instrument can only be switched off with the push button.

Safety instructions for hearing instruments with audio input:

The audio input may be connected to line-operated equipment only if the equipment fulfils the safety requirement IEC 65 / DIN VDE 0860.

e2e wireless™ for IMPACT Pro e2e systems

Optional

The following section applies to binaural fittings only.

Your IMPACT Pro hearing instrument includes e2e (ear-to-ear) wireless technology. The wireless functionality:

Automatically adjusts both hearing instruments simultaneously to adapt to different listening situations
Provides synchronisation of the hearing instrument settings. If you change the volume or program on one instrument, the other is automatically changed

Your NHS Audiologist can activate the wireless functionality of your hearing instruments.

NOTICE

The performance of the e2e wireless system could be affected by electro-magnetic interference, such as computer monitors or halogen lamp systems controlled by a switching power supply. Move away from the source of interference if you experience difficulty.

In some countries restrictions for the usage of wireless equipment exist.

▶ Refer to local authorities for further information

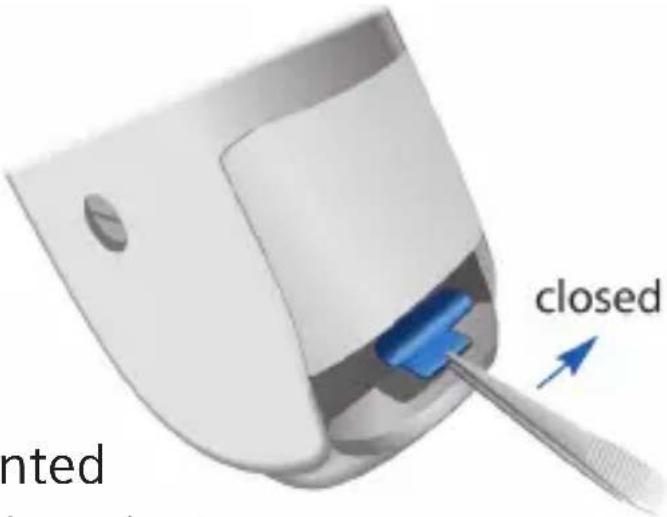

Children's safety device for the battery

This special feature prevents children from unintentionally removing the battery.

Open the battery compartment to the first stop to switch off, do not open the battery door fully.

Using a pointed tool, push the pin to the right to lock the battery door and to the left to unlock.

miniTek and Tek wireless enhancement

Optional

Your IMPACT Pro hearing instrument can be used with the miniTek and Tek wireless enhancement system. Both devices provide a wireless connection from your IMPACT Pro hearing instruments to your television, mobile phone, MP3 player and stereo. miniTek and Tek are also easy-to-use remote controls for your IMPACT Pro hearing instruments for convenient and discreet program and volume adjustment. The miniTek and Tek packages comprises the miniTek or Tek Connect itself which controls the hearing instruments, a Tek transmitter and all cables necessary to link the miniTek/Tek into a variety of devices such as TVs, MP3 players, etc.

NOTICE

miniTek and Tek are additional products to your hearing instrument; Tek is available to purchase at £300. miniTek is available to purchase at £400. If you think it would assist you in your day-to-day life talk to your NHS Audiologist about how you can obtain a miniTek or Tek. Further information is available on our website www.siemens.co.uk/hearing or email [e-mail]

Siemens Hearing Instruments will also be offering accessories and care products. Please visit the website or call 01293 423700.

General notes on safety

WARNING

Connect the audio input only to equipment which conforms with the safety requirements of IEC 65/BS EN 60065

Close-up of a white ergonomic chair or umbrella with a black handle (no visible text or symbols)

Audio adaptor including plug

Choking hazard posed by small parts.

Keep batteries, hearing instruments and accessories out of children's reach
If swallowed consult a physician or a hospital immediately
If infants, small children or disabled persons need to wear hearing instruments ensure adequate supervision
▶ Check the condition and operation of the hearing instrument regularly.
Consult your NHS Audiologist if the housing is deformed
Keep the battery compartment locked. Verify the proper function of the locking mechanism

NOTICE

Your hearing instruments are sensitive to extreme heat, high humidity, strong magnetic fields (> 0.1T), X-rays and mechanical stress.

Do not expose your hearing instruments to extreme temperature or high humidity
Do not leave them in direct sunlight
Do not wear them in the shower, or when applying makeup, perfume, aftershave, hairspray or suntan lotion
Do not wear your hearing instruments when you are exposed to short-waves, a strong magnetic field, a high frequency field or X-rays
Do not place your hearing instruments in a microwave oven

Leaking batteries damage hearing instruments.

▶ Turn the hearing instruments off when not in use to preserve battery life

Remove batteries when the instruments are not in use for a prolonged period of time

NOTICE

Batteries contain harmful substances that pollute the environment.

Do not throw away batteries into household refuse
▶ Dispose batteries according to national regulations or return to your NHS Audiologist

WARNING

Hazard of explosion!

Do not use your hearing instruments in areas where there is a danger of explosions (e.g. mining)

IN CASE OF INSTRUMENT FAILURE

Is the instrument switched on?
Is the battery inserted correctly?
Is the battery run down?
Is the battery compartment closed?
Is the sound opening in the ear mould or LifeTip clogged with wax?

CARE

Clean the ear mould regularly to remove built up ear wax.

With the CE marking, Siemens confirms that this hearing instrument fulfils all relevant European guidelines, in particular directive 93/42 EEC of the European Council applying to medical products.

For the products with e2e wireless 2.0 Siemens additionally confirms compliance with the European Directive 99/5/EC (R&TTE) concerning radio and telecommunications terminal equipment.

Our quality management system, certified by an independent authority, assures consistently high product quality and reliability to the customer.

Siemens

Represented in the UK by:

0123

Siemens Hearing Instruments

Alexandra House

Newton Road

Manor Royal, Crawley

West Sussex RH10 9TT

United Kingdom

Email: [e-mail]

www.siemens.co.uk/hearing
