Smoothie Twister 7757 - Blender OBH NORDICA - Free user manual and instructions

Product Type	Personal Blender for Smoothies
Model Number	Smoothie Twister 7757
Brand	OBH Nordica
Motor Power	500 W
Voltage	220-240 V, 50/60 Hz
Jug Capacity	600 ml
Jug Material	BPA-free Tritan plastic
Blade Material	Stainless steel
Dimensions (H x W x D)	28 x 12 x 12 cm
Weight	1.2 kg
Cord Length	1.0 m
Functions	Smoothie, crush ice, pulse
Number of Speeds	1 speed + pulse
Control Type	One-touch twist & blend
Safety Features	Safety lock, non-slip base, overheat protection
Cleaning	Dishwasher-safe parts (jug, lid, blade assembly)
Spare Parts Available	Blade assembly, lid, jug
Warranty	2 years

Frequently Asked Questions - Smoothie Twister 7757 OBH NORDICA

How do I use the Smoothie Twister 7757?

Fill the jug with ingredients up to the max line, attach the blade assembly and lid, then twist the base to start blending. Release to stop. Use pulse for ice crushing.

Can it crush ice?

Yes, it can crush ice cubes. Use the pulse function for best results. Do not overfill.

Is the jug dishwasher safe?

Yes, the jug, lid, and blade assembly are all dishwasher safe. Rinse immediately after use for best results.

What is the maximum capacity?

The maximum liquid capacity is 600 ml. Do not exceed the max line on the jug to avoid spills.

Can I blend hot liquids?

No, do not blend hot liquids. Allow them to cool to room temperature first to avoid pressure buildup.

How loud is the blender?

The noise level is typical for a personal blender, around 75 dB during operation.

Is the blender BPA-free?

Yes, the jug is made from BPA-free Tritan plastic, safe for food contact.

What is the warranty period?

OBH Nordica offers a 2-year warranty against manufacturing defects. Keep your receipt.

Can I buy spare parts?

Yes, spare parts such as blade assembly, lid, and jug are available from OBH Nordica or authorized retailers.

How do I clean the blade assembly?

Rinse immediately after use. For thorough cleaning, wash in warm soapy water or place on the top rack of the dishwasher. Handle carefully to avoid cuts.

USER MANUAL Smoothie Twister 7757 OBH NORDICA

OBH NORDICA

Abstract geometric pattern composed of overlapping triangles in grayscale (no text or symbols)

DESIGNING GOOD LIFE

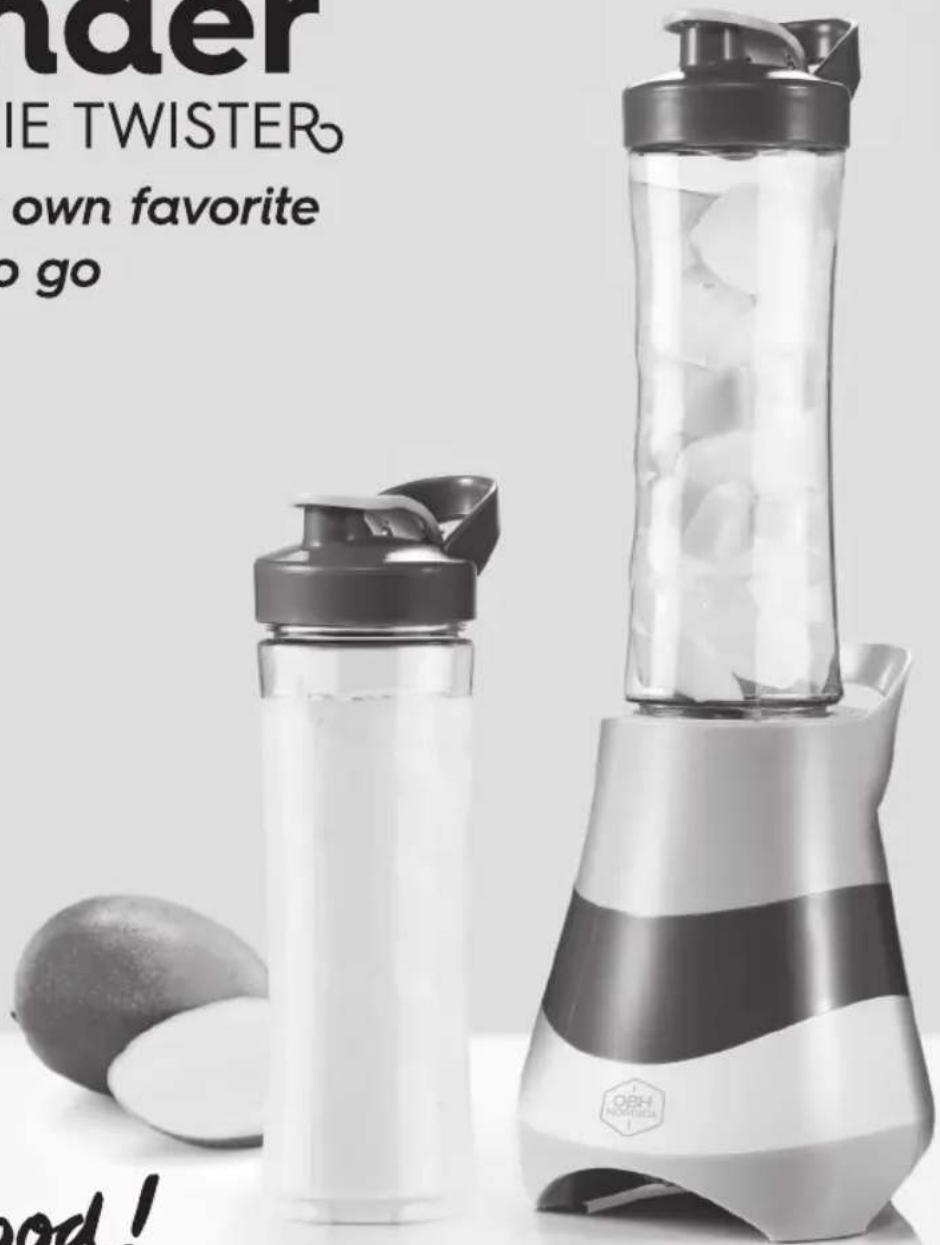

Blender

SMOOTHIE TWISTER

Make your own favorite smoothie to go

under IE TWISTER own favorite go pod!

Making good!

Diagram of a thermos flask with labeled parts including lid, internal structure, and base

4

Close-up of a hand holding a tool interacting with a dark object (no visible text or symbols)

Close-up of a white plastic container with internal compartments (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a curved tool (no visible text or symbols)

Close-up of a hand holding a tool interacting with a dark object (no visible text or symbols)

Close-up of a white mechanical component with a curved handle and internal structure (no visible text or symbols)

Close-up of a hand adjusting a mechanical component (no visible text or symbols)

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6620, 6630, 7757, 7758, 7759, 7760

220-240 volt \~

300 W

Blenderflaskens volumen: 0,6 liter

Close-up of a hand holding a small electronic component, possibly a camera lens or sensor, with no visible text or symbols.

Close-up of a white plastic container with internal compartments (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a circular base (no visible text or symbols)

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6620, 6630, 7757, 7758, 7759, 7760

220-240V \~

300 watt

Blenderflaskens volum 0,6 liter

Close-up of a hand holding a tool over a dark object, possibly a container or mechanical component (no visible text or symbols)

Close-up of a white mechanical component with a curved top and internal structure (no visible text or symbols)

Close-up of a hand turning a mechanical component with threaded shaft (no visible text or symbols)

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240 V only and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply in case of a problem, after use, when parts are mounted or removed from the appliance and before cleaning and maintenance.
4. Never immerse the appliance in water or any other liquid.
5. Do not let children use the appliance. Keep the appliance and the cord out of the reach of children.
6. Do not let children carry out cleaning and maintenance. Children should always be supervised in order that they do not play with the appliance.
7. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
8. Check that the cord is not hanging free from the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.

10. The appliance should only be used under supervision.

11. Be careful when handling the appliance, as the knife is extremely sharp! Do not touch the knife during use. Be careful that neither fingers nor tools touch the knife!

12. Do not use the appliance continuously without a break. Maximum use at a time: 3 minutes Wait for 15 minutes before you switch on the appliance again.
13. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
14. Extra protection can be obtained by installation of a residual current device of 30mA. Check with your installer.
15. The appliance is for domestic use only.
16. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages as a consequence of the above to the product are not covered by the warranty.

You are welcome to visit our website www.obhnordica.se for inspiration and further information about our products.

Before use

Wash the blender bottle, the lid and the knife unit (see more in "Cleaning and maintenance"). The knife at the bottom of the bottle is extremely sharp and should be handled with great care. Wipe the motor part with a damp cloth.

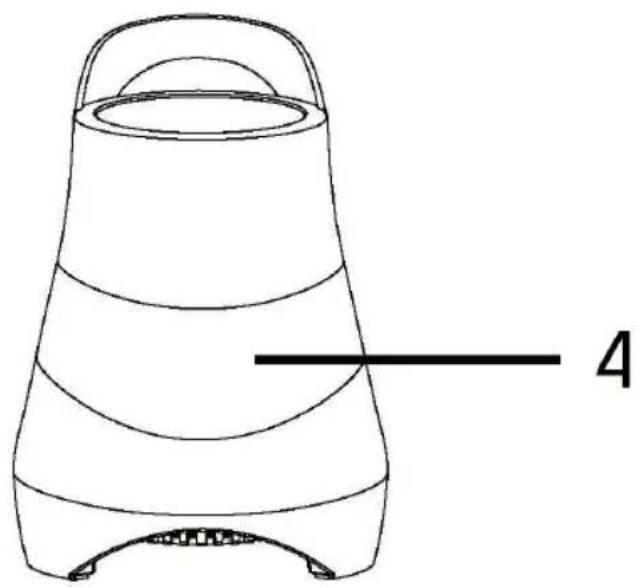

Parts of the appliance (see illustration on page 3)

1. Lid
2. Blender bottle
3. Knife unit
4. Motor unit

Use

• Position the motor part on an even and stable surface and plug the appliance.
• Fill the blender bottle with ingredients, maximum level is 600 ml (see the marking on the bottle) and must not be exceeded. To get the best result we recommend that you fill the bottle with liquid ingredients first and then fresh/frozen ingredients (cut the ingredients in bites of maximum 2 cm in size). Do not overfill the blender bottle.
• Screw the knife unit on the opening of the blender bottle. Next, position the bottle with the knife unit on the motor part by aligning the arrow at the outer side of the knife unit and the arrow on the edge of the motor unit. The blending starts as soon as the blender bottle is pressed downwards into the motor unit. Twist the blender bottle in the direction of the arrow, alternatively, press it downwards until the mixing is ready. The mixing is interrupted when you let go of the bottle or loosen the motor part. The maximum mixing time for continuous mixing is 3 minutes, followed by a break of 15 minutes.

This appliance is not made for mixing potatoes, cream, egg whites, dough or similar.

Do not use the appliance for hot liquids, as the pressure at the bottom will be too high.

If the motor stops during use, unplug and remove the blender bottle from the motor unit. Let the appliance rest for at least 15 minutes before you switch it on again.

Turn the blender bottle to have the knife unit facing upwards and remove the knife unit. Screw on the delivered lid and the blender bottle is ready for you to drink or bring along.

Cleaning and maintenance

Always unplug before cleaning and maintenance. The blender bottle, knife holder and the lid are dishwasher proof. Note that the knife blades are extremely sharp. Do not use aggressive chemical detergents or other scouring products. Remove difficult spots after a brief soak and rub with a mild detergent and a soft brush. Use a damp cloth for cleaning the motor part. Wipe off all parts and put the blender bottle with the knife unit back into the motor part. Click the lid onto the bottom of the blender bottle.

Cleaning of the rubber gasket

At each cleaning the gasket should be remoed from the knife unit in order to remove any possible remains.

Close-up of a hand holding a small object over a dark container (no visible text or symbols)

1. Unscrew the knife unit from the bottle. (Note that the knives are extremely sharp). Turn the knife unit upside down and press the delivered plastic stick into the small opening at the underside of the knife unit.

Close-up of a white mechanical component with internal components (no visible text or symbols)

1. Now the gasket will come loose from the upper side of the knife unit and can then be cleaned in water and washing-up liquid.

Close-up of a hand adjusting a mechanical component (no visible text or symbols)

1. Clean the gasket and the knife unit (the knife unit is dishwasher-proof) and next put the gasket back into the groove on the knife unit. Be careful that the gasket seals properly at the bottom of the knife unit by pressing it down by means of the blunt end of the plastic stick. If the gasket is not inserted properly, there may be a risk of leakage.

IMPORTANT!

NEVER IMMERSE THE MOTOR PART IN ANY KIND OF LIQUID!

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. The stamped cash receipt with purchase date shall be handed over together with a possible claim. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé 5

SE-174 66 Sundbyberg

Tel [phone]

www.obhnordica.se

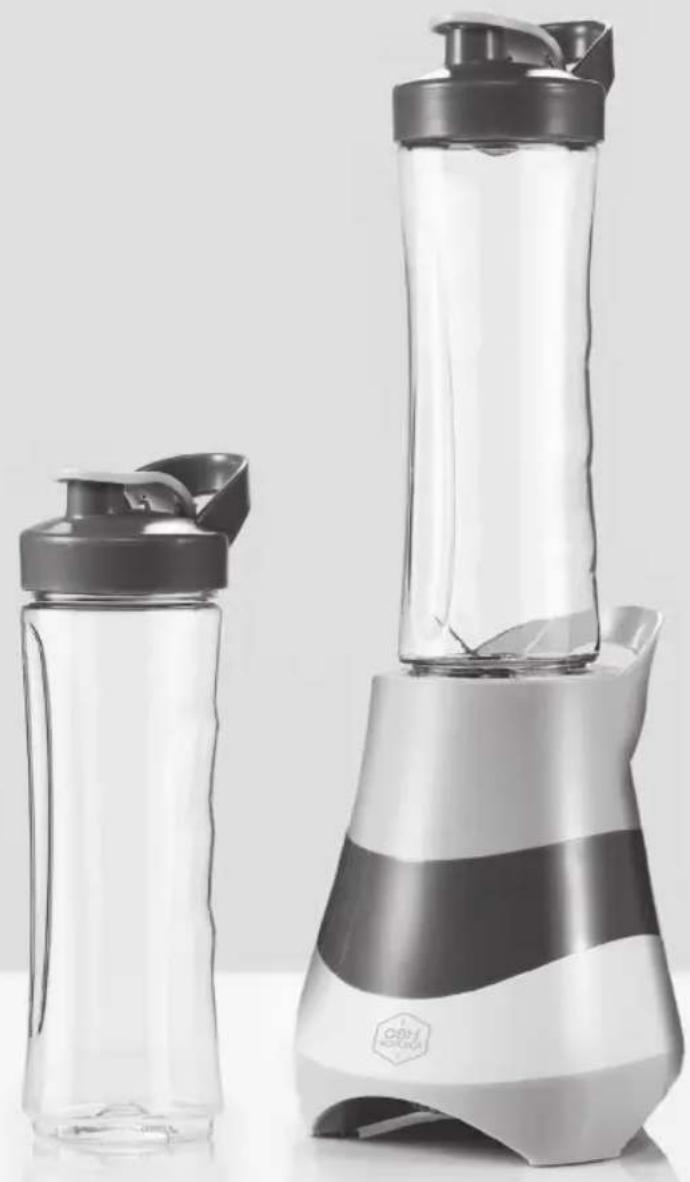

Technical data

OBH Nordica 6620, 6630, 7757, 7758, 7759, 7760

220-240 volt \~

300 W

Volume of the blender bottle: 0.6 litres

These instructions are subject to alterations or improvements.

Two modern kitchen blender models, one with a black lid and the other with a silver handle and white base (no visible text or symbols)

SE/IDV/UVN/6620_6630_7757_7758_7759_7760/221014
