Quickmix 6705 - Hand blender OBH NORDICA - Free user manual and instructions

Product Type	Hand Blender
Brand	OBH Nordica
Model	Quickmix 6705
Power	600 W
Voltage	220-240 V ~ 50/60 Hz
Cord Length	1.2 m
Speed Settings	2 speeds + turbo
Shaft Material	Stainless steel
Blade Material	Stainless steel
Mixing Attachments	Blending shaft, whisk, chopper (500 ml)
Beaker Included	Yes, 600 ml
Dishwasher Safe Parts	Shaft, whisk, chopper bowl, beaker
Weight	0.85 kg
Dimensions (H x W x D)	38 x 6.5 x 6.5 cm
Safety Features	Overheat protection, non-slip handle
Maintenance	Wipe motor unit with damp cloth; clean attachments in warm soapy water
Spare Parts Availability	Shaft and whisk available from OBH Nordica service
Warranty	2 years

Frequently Asked Questions - Quickmix 6705 OBH NORDICA

Can I blend hot liquids with the Quickmix 6705?

Yes, but let them cool slightly (max 60°C) and do not immerse the motor unit. Use a tall container to avoid splashing.

How do I clean the hand blender?

Unplug the device. Wipe the motor unit with a damp cloth. The shaft, whisk, chopper bowl, and beaker are dishwasher safe or can be washed in warm soapy water.

Can I crush ice with this blender?

No, the Quickmix 6705 is not designed for crushing ice. Use it for soft fruits, cooked vegetables, soups, and sauces.

What do I do if the blender stops working while in use?

It may have triggered overheat protection. Unplug and let it cool for 15-20 minutes. Then it should work again.

Is the hand blender suitable for making baby food?

Yes, it is ideal for pureeing cooked vegetables and fruits. Ensure the food is soft and cut into small cubes.

What attachments are included?

The package includes a blending shaft, a whisk attachment, a 500 ml chopper with lid, and a 600 ml beaker.

Can I use the blender in a non-stick pot?

Yes, but avoid scratching the coating. Use gentle contact and do not run the blender for more than 1 minute continuously.

How do I replace the shaft or whisk?

Press the release button on the motor unit and pull out the attachment. Align the new one and push until it clicks. Spare parts are available from OBH Nordica service.

What is the maximum operating time?

Do not operate continuously for more than 1 minute. Let it cool for 2 minutes before next use to prolong motor life.

Is the Quickmix 6705 suitable for making mayonnaise?

Yes, use the whisk attachment and a narrow container. Add oil slowly while blending at low speed.

USER MANUAL Quickmix 6705 OBH NORDICA

Type 6705

Instructions of use - english ...... page 19 - 22

OBH Nordica Stavmixer

A. Pulsknapp I
B. Pulsknapp II
C. Motordel
D. Mixerstav

Användning

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6705

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

Faks: 22 96 39 40

www.obhnordica.no

Tekniske data

OBH Nordica 6705

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 230V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, when parts are applied or removed from the appliance and before cleaning and maintenance.
4. The motor section must not be immersed into water or other liquids. The other parts of the blender must not be washed in a dish washing machine.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Cleaning and user maintenance shall not be made by children. Children shall be supervised to ensure that they do not play with the appliance.
7. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved..
8. Check that the cord is not hanging over the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. The appliance should only be used for preparation of food.
12. The appliance must not be used continuously without a break. Maximum time of use: 1 minute, then wait at least 3 minutes before the appliance is used again.

13. It is very important to clean the appliance and the vessel carefully after use, since they both get into contact with food.

14. The appliance should be handled with care, as the knife is very sharp! Do not touch the knife while it is operating. Be careful that neither fingers nor utensils get into contact with the knife! Always pull out the plug before cleaning the knife.

15. Pay special attention when the vessel contains hot liquids, as drops over the rim may occur.
16. This appliance is only intended to blend small portions.
17. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.
18. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.
19. The appliance is for domestic use only.
20. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Before the hand blender is taken into use for the first time, please read the instruction manual thoroughly and keep it for future use.

Wipe the hand blender over with a moist cloth before use.

The hand blender mashes, whips, and chops foods quickly and easily. Cut the ingredients into smaller pieces before mashing, blending, or chopping for better and more uniform results.

The hand blender can be used in a jug, a measuring jug, or similar, but it can also be used in any bowl, jug, or pot. Be careful when using the hand blender in a bowl or pot due to potential spatter. When using the hand blender directly in a pot, remove the pot from the cooker to prevent the hand blender from overheating (75-80° C at the max.) from the pot's hot base.

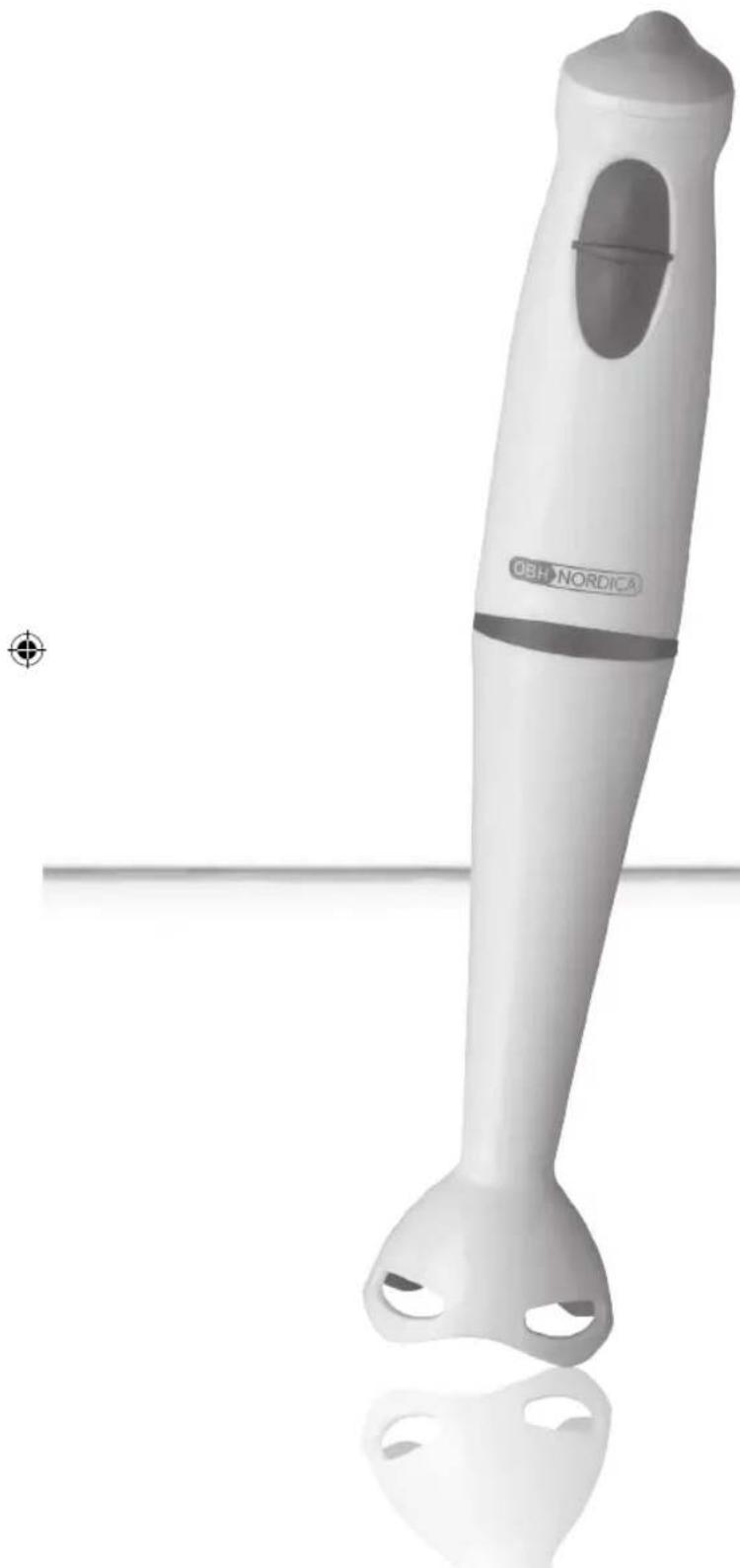

Description

A. Moment button I
B. Moment button II
C. Motor part
D. Blender shaft

How to use the hand blender

The hand blender is well suited for e.g. sauces, soups, dressings, pesto, diet- and baby food, cocktails, sorbet ice, etc. Attach the detachable blender stick to the motor part by carefully turning the stick shaft towards the "closed padlock" (clockwise). When the "closed padlock" on the hand blender and the arrow on the motor part are in alignment, the blender is completely attached. Apply the plug to a power socket and switch on. Make sure that the power cord does not get in the way.

Lower the hand blender into the ingredients before pressing moment button I or II to avoid spatter. Carefully work the hand blender upwards and to the sides in slow, rotating movements.

The motor stops when you let go of the moment button. Press and hold the moment button for approximately 10-second-intervals, release the button for a brief moment, and start again. Continue in this way until the ingredients have the desired consistency.

Because the hand blender works very quickly - most things are done in less than 1 minute - it is recommended that you activate it for short intervals, especially at first when you are not yet familiar with the hand blender. Note that the hand blender should only be activated continuously for 1 minute max. when blending soft foods, and 15 seconds max. when blending hard foods. Allow the hand blender to rest and cool off for 3 minutes before re-activating.

After use, take the hand blender out of the jug or bowl, switch off the power, and remove the plug from the power socket.

Separate the hand blender by turning it towards "open padlock" (counterclockwise), then rinse under running water. Use a soft brush and hot soapy water when cleaning the blade. Never soak the blade in water as water will enter the blade bearing.

Cleaning and maintenance

Only wipe the motor part using a soft, slightly moist cloth or kitchen roll. The additional parts can be cleaned in hot soapy water, or in the dishwasher. When using the dishwasher, place the parts in the top basket, never at the base where the powerful heat development in can cause deformation to the plastic parts.

The plastic parts may discolour due to coloured foods such as e.g. carrots. To avoid discoloration, apply a little vegetable oil to the parts before putting them in the dishwasher.

IMPORTANT!

The motor part must never be rinsed under running water or be immersed into water or other liquids. Consequently, the motor part is NOT dishwasher safe!

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica AB

Löfströms Allé 5

SE-172 55 Sundbyberg

Tel: [phone]

www.obhnordica.se

Technical data

OBH Nordica 6705

230 V AC

400 Watts

These instructions are subject to alterations or improvements.

SE/IDV/6705/UVN_050813
