Product Type	Hand Blender (Stick Mixer)
Brand	OBH Nordica
Model	Frost 7705
Power Consumption	800 W
Voltage	220-240 V~, 50 Hz
Dimensions (approx.)	40 x 7 x 7 cm (stick mixer shaft)
Weight (approx.)	1.2 kg (motor part + accessories)
Main Functions	Blending, mixing, whisking, chopping (meat, herbs, nuts, cheese, onions, garlic, carrots, chocolate)
Speed Control	Variable speed selector + Turbo button
Maximum Continuous Operation (soft foods)	1 minute
Maximum Continuous Operation (solid foods)	10 seconds
Rest Time Between Uses	At least 2 minutes
Included Accessories	Stick mixer shaft, whisk holder, whisk, mini-chopper bowl (500 ml), knife part, lid, cup (800 ml), cup lid
Motor Part Cleaning	Wipe with damp cloth only; do not immerse or rinse under water
Accessories Cleaning	Hand wash or dishwasher (top basket only); some discoloration may occur
Safety Features	Sharp blade caution, automatic stop when button released, use only with supervision
Warranty	According to current law; claim with cash receipt at place of purchase

Frequently Asked Questions - Frost 7705 OBH NORDICA

What is the maximum capacity of the mini-chopper?

The mini-chopper bowl has a capacity of 500 ml. For specific food quantities, refer to the manual: e.g., max 250 g meat, 50 g herbs, 150 g nuts, 100 g cheese, etc.

Can I use the hand blender directly in a hot pot?

Yes, but you must remove the pot from the stove first to prevent overheating. The maximum recommended temperature is 75-80°C.

Is the motor part dishwasher safe?

No, the motor part must never be immersed in water or placed in a dishwasher. Only wipe it with a damp cloth. Other parts are dishwasher safe (top basket only).

How long can I use the stick mixer continuously?

For soft foods, maximum 1 minute; for solid foods, maximum 10 seconds. After use, let the appliance cool for at least 2 minutes before reactivating.

Can I crush ice with this blender?

Yes, but crush no more than 5-8 ice cubes at a time. Add a little water and use the Turbo button for best results. Do not crush ice in the mini-chopper.

How do I clean the knife blade safely?

Use a soft brush and hot soapy water. Never touch the blade directly. Do not soak the knife in water to avoid damaging the bearing.

What should I do if the appliance stops working?

First, unplug the appliance. Check the power cord and plug for damage. If the problem persists, contact the manufacturer or a qualified service agent. Do not attempt to repair yourself.

Can the mini-chopper process grains, coffee beans, or nutmeg?

No, these items are prohibited as they can damage the bearings, knife, and bowl. Any resulting damage is not covered by warranty.

How do I attach the whisk?

First attach the whisk to the whisk holder, then mount the whisk holder to the motor part until it clicks. Place the whisk in the bowl before switching on. The whisk can run continuously for up to 2 minutes.

What is the warranty period?

The warranty follows current law. You must keep the cash receipt with the purchase date. Claims are handled at the store of purchase.

USER MANUAL Frost 7705 OBH NORDICA

DESIGNING GOOD LIFE

Stick Mixer FROST

Mix, blend, chop and whip with style

Making good!

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 7705

220-240V\~, 50 Hz

800 W

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 7705

220-240V\~, 50 Hz

800 W

CE

1. Read the instruction manual carefully before use, and save it for future use.

2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.

3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, when parts are applied or removed from the appliance and before cleaning and maintenance.

4. The motor section must not be immersed into water or other liquids. The other parts of the blender must not be washed in a dish washing machine.

5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

6. Cleaning and user maintenance shall not be made by children. Children shall be supervised to ensure that they do not play with the appliance.

7. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved..

8. Check that the cord is not hanging over the edge of the table.

9. Do not place the appliance on or near hotplates, open fire or the like.

10. The appliance should only be used under supervision.

11. The appliance should only be used for preparation of food.

12. The appliance must not be used continuously without a break. Maximum time of use: 1 minute, then wait at least 2 minutes before the appliance is used again.

13. It is very important to clean the appliance and the vessel carefully after use, since they both get into contact with food.
14. The appliance should be handled with care, as the knife is very sharp! Do not touch the knife while it is operating. Be careful that neither fingers nor utensils get into contact with the knife! Always pull out the plug before cleaning the knife.
15. Pay special attention when the vessel contains hot liquids, as drops over the rim may occur.
16. This appliance is only intended to blend small portions.
17. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.
18. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.
19. The appliance is for domestic use only.
20. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Wipe the stick mixer with a damp cloth before use.

The stick mixer mashes, blends, whips, and chops foods fast and easy. Well suited for e.g. sauces, soups, dressing, dietetic food and baby food, cocktails, sorbet ice, etc., for chopping nuts and similar or for whipping e.g. cream. It can also be used for crushing ice for e.g. drinks.

The stick mixer is used with the enclosed cup, but can be used in any bowl, jug, or pot. Be careful when using the appliance in a bowl or pot due to potential splashing. When using the stick mixer directly in a pot, remove the pot from the stove to prevent the appliance from overheating (max 75-80°C) from the hot base of the pot.

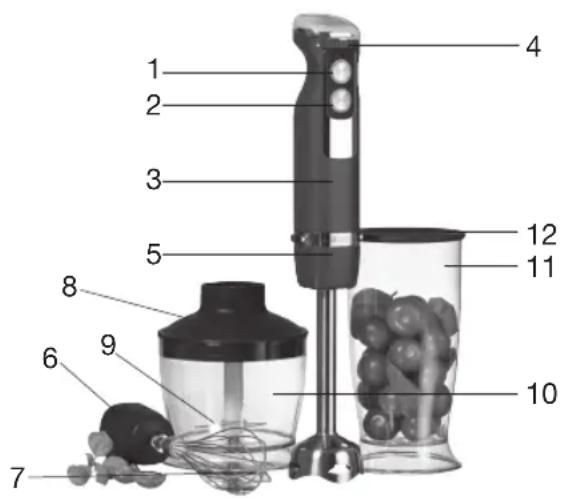

Description

1. ON-button
2. Turbo button
3. Motor part
4. Speed selector
5. Stick mixer
6. Whisk holder
7. Whisk
8. Lid for mini-chopper bowl
9. Knife part for mini-chopper
10. Mini-chopper bowl 500 ml
11. Cup for stick mixer 800 ml
12. Lid for cup

How to use the stick mixer

Mount the removable blending shaft on the motor part by pressing the blending shaft onto the motor part until it engages (you will hear a click sound) and the mixer is correctly positioned. Apply the plug to a power socket and switch on. Make sure that the power cord does not get in the way.

Lower the stick mixer into the ingredients before switching it on to avoid splashing. Press the ON-button and carefully work the stick mixer upwards and to the sides in slow, rotating movements. To set the speed, turn the speed selector on top of the motor part. To choose the highest speed, use the turbo button.

When the ON-button or the turbo-button is released, the motor will stop immediately. Press the button at intervals of about 10 seconds, release the button for a moment and restart. Continue in this way until all ingredients have the texture you want.

Because the stick blender works very fast – most ingredients are done in less than 1 minute – we recommend that you activate the appliance only for short intervals, especially the first times, when you are not yet familiar with it.

Note that the stick mixer should only be activated continuously for max 1 minute when blending soft foods, and max 10 seconds when blending solid foods. Allow the stick mixer to rest and cool off for a couple of minutes before re-activating.

If the stick mixer is used for crushing ice, do not crush too important amounts at a time. We recommend that you start with max 5-8 ice cubes. Add a little more water in the container before switching on the appliance. Use the “turbo” button until you have obtained the wanted result.

After use, remove the stick mixer from the jug or the bowl, switch off the power and remove the plug from the power socket.

Demount the stick mixer by pressing the two buttons at the bottom of the motor part and remove the blending shaft and rinse it under running water. Use a soft brush and hot soapy water to clean the knife. Never soak the knife in water as water will penetrate into the bearing of the knife and damage it.

The mini chopper is well suited for chopping foods such as meat, cheese, onions, herbs, garlic, carrots, nuts, almonds, beans, etc.

Remove the plastic cap from the knife. Please note: The knife is very sharp! Never touch the knife directly, only touch the plastic part. Place the bowl on an even surface, and then place the knife on the shaft in the middle of the bowl.

Add the ingredients to be chopped. Put on the lid and turn clockwise until it engages with a click

Now lock the motor part onto the bowl by pressing the motor part downwards, until it engages with a click.

The mini chopper is designed for small portions and must be activated in accordance with the quantities stated in the table below. If not, the result may not be satisfactory and there is a risk of overloading the appliance.

Type Preparation	Maximum quantity	Approx. time
Meat Cut into 2 cm pieces 250 g 15 sec.
Herbs	Rinse, string and dry well	50 g 10 sec.
Hazelnuts/almonds	Only the nut itself and not the shell	150 g 15 - 25 sec.
Cheese Cut into small cubes 100 g 10 sec.

Onion	Peel and cut into 2-3 cm pieces	200 g 10 -	15 sec.
Garlic	Peal and separate in cloves	5-8 cloves 5 sec.
Carrots, raw	Peel and cut into 1 cm pieces	150 g	5 short pushes and 20-30 sec.
Chocolate	Keep in freezer and cut into 1 cm pieces	50 g	5 short pushes and 30 sec.

IMPORTANT!

To avoid damage to bearings, knife and container, please do not use the following foods in the mini-chopper: Grain, ice, nutmeg, and coffee beans. Any resulting damage is not covered by the warranty!

Apply the plug to a power socket. Switch on the appliance by pressing the ON-button and the appliance will work as long as the button is pressed. Adjust the speed by using the speed selector at the top of the motor part. To choose the highest speed, use the turbo button. We recommend that you start by pressing the button in short sequences and subsequently let the appliance work continuously until the desired degree of fineness has been obtained. However, note that the mini-chopper must only be activated continuously for a maximum of 1 minute at a time with soft foods, and max 10 seconds with solid foods. Subsequently, the appliance must be allowed to cool off for a couple of minutes before re-activating.

Hold the motor part with one hand and the bowl with the other hand during use.

After use, remove the motor part from the bowl by pressing the two buttons at the bottom of the motor part, upon which the motor part can be removed. Switch off the power and remove the plug from the power socket. Take the lid off the bowl and remove the knife part carefully.

IMPORTANT!

The knife is very sharp and must be handled with care. Never take the lid off and detach the knife before it has stopped completely!

How to use the whisk

The whisk is used only for whipping cream, egg whites, light dough such as pancake dough or cake mixtures, or ready-made dessert mixtures.

Attach the whisk to the whisk holder and mount the whisk holder to the motor part until it engages. Place the whisk in the bowl before the motor part is activated. Press the ON-button to switch on the whisk.

Note: The whisk shall only run continuously for max 2 minutes.

After use, switch off the power and pull the plug from the power socket. Then detach the whisk from the motor part by pressing the two buttons at the bottom of the motor part, and the whisk and the whisk holder can be removed from the motor part. The holder can now be taken off the whisk.

Cleaning and maintenance

Only wipe the motor part using a soft, damp cloth or kitchen roll. The additional parts can be cleaned in hot soapy water or in the dishwasher. When using the dishwasher, place the parts in the top basket, never at the bottom part, where the powerful heat development in some cases may cause deformation of the plastic parts.

Plastic parts may be discoloured by coloured food such as carrots. Grease the parts with a little vegetable oil before putting them in the dishwasher.

IMPORTANT!

The motor part must never be rinsed under running water or be immersed in water or other liquids. Consequently, the motor part is not dishwasher-safe!

NOTE: The container and the bowl cannot be used in a microwave oven.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Claims according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé 5

Tel: [phone]

www.obhnordica.se

Technical data

OBH Nordica 7705

220-240V\~, 50 Hz

800 W

CE

These instructions are subject to alterations or improvements.

SE/IDV/7705/UVN/140514
