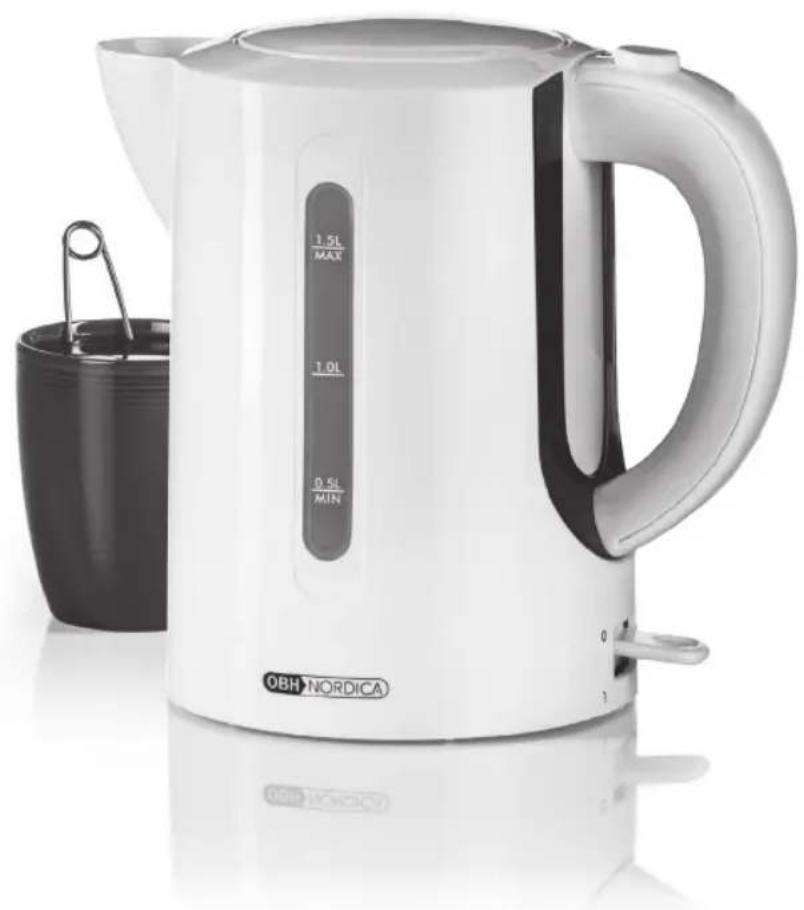

Spirit 6411 - Kettle OBH NORDICA - Free user manual and instructions

Product Type	Kettle
Brand	OBH Nordica
Model	Spirit 6411
Capacity	1.5 liters
Power	1850-2200 watts
Voltage	220-240 V ~
Heating Element	Concealed heating element
Base	360° swivel base with cord storage
Water Level Indicator	Yes, with Min (0.75 L) and Max (1.5 L) markings
Automatic Shut-off	Yes, when water boils or kettle removed from base
Dry Boiling Protection	Yes, double protection system
Lime Filter	Removable filter in spout
Lid	Hinged, lockable safety lid
Safety Features	Overfill protection, hot steam warning, automatic shut-off
Housing Material	Plastic
Usage	Domestic use only
Cleaning	Wipe with damp cloth; not dishwasher safe
Descaling	Regular descaling required using commercial descaler or citric acid
Warranty	According to current law

Frequently Asked Questions - Spirit 6411 OBH NORDICA

How do I use the OBH Nordica Spirit 6411 kettle?

Fill the kettle with water between the Min (0.75 L) and Max (1.5 L) markings. Close the lid securely, place on the base, and press the switch under the handle. The kettle will automatically switch off when the water boils. Always unplug after use.

What should I do if the kettle switches off too early or too late?

This indicates scale build-up. Descale the kettle using a commercial descaler or citric acid, following the instructions. Rinse thoroughly and boil fresh water a few times before use.

Can I open the lid while the kettle is boiling?

No, never open the lid when the kettle is switched on. Hot steam can cause burn injuries. Always switch off and unplug before opening.

How do I clean the lime filter?

Remove the filter by opening the lid and carefully lifting it out. Brush under running water with a washing-up brush or soak in descaler for a few minutes. Reinsert securely into the spout grooves.

What is the maximum capacity of the kettle?

The maximum capacity is 1.5 liters. Exceeding this may cause boiling water to splash out, posing a burn risk.

Can I immerse the kettle or base in water?

No, never immerse the kettle or base in water or any liquid. This can cause electric shock. Clean only with a damp cloth.

Why does the kettle automatically switch off when removed from the base?

This is a safety feature to prevent unintended heating. The kettle will not resume boiling until the switch is pressed again after being placed back on the base.

Is the kettle safe for children to use?

Children aged 8 and above can use the kettle under supervision, but cleaning and maintenance should not be done by children under 8. Always supervise children to prevent accidents.

How often should I descale the kettle?

Descale regularly depending on water hardness. If you notice slow boiling or the kettle switches off prematurely, it's time to descale. Use a commercial descaler or citric acid.

What does the dry boiling protection do?

The dry boiling protection automatically switches off the kettle if it is turned on without water or boils dry. If activated, check for scale at the bottom and descale if needed.

USER MANUAL Spirit 6411 OBH NORDICA

2200 watt

1.5 L

Concealed heating element

360° base Water level indicator

indicator

Bruksanvisning – svenska......sida 3 – 7

Instruction manual – english ...... page 22 – 26

OBH Nordica Spirit Vattenkokare 1,5 liter

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6409, 6411

1850-2200 watt

220-240V \~

Maks. indhold 1,5 liter

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6409, 6411

1850-2200 watt

220-240V \~

Maks kapasitet: 1,5 liter

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply in case of a problem, after use, when parts are mounted or removed from the appliance and before cleaning and maintenance.
4. Never immerse the appliance or the base in water or any other liquid.
5. This appliance can be used by persons (including children from the age of 8) with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
7. Cleaning and maintenance shall not be made by children under the age of 8 and they shall be supervised.
8. Check that the cord is not hanging free from the edge of the table.
9. Do not place the kettle on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. WARNING! Risk of fire burns! Hot steam from the appliance may cause burn injuries. Respect the maximum level of the water gauge. Never open the lid when the appliance is switched on.
12. Only use the kettle with the corresponding base.
13. Never switch on the appliance without water.

14. ALWAYS remove the kettle from the base before filling of water.

15. WARNING! If the kettle is overfilled, boiling water may splash out.

16. Always check the appliance, the cord and the plug before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
17. Extra protection can be obtained by installation of a residual current device of 30mA. Check with your installer.
18. The appliance is for domestic use only.
19. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any consequential damages to the product or other things are not covered by the warranty.

Please visit our website www.obhnordica.se for inspiration and further information regarding our products.

Use

The kettle consists of two parts: the kettle itself and a separate, live base, on which the kettle can be placed from any angle. Only use the kettle with the corresponding base. If necessary, wind up a part of the cord under the base and make sure that the cord is as short as possible in order that children cannot grab hold of it. Plug the switch to a wall outlet.

Press the button on top of the handle to open the lid of the kettle. Pour water in the kettle, see the markings on the outer level indicator and close the lid. Do not exceed the maximum marking (1.5 liters) and do not pour water less than the minimum marking (0.75 liter) and do not pour water when the kettle is positioned on the base. Position the kettle with water on the base and switch on the appliance on the switch under the handle. The water from the first two boilings should not be used, as there may be impurities from the production of the kettle. Note that the housing of the kettle gets very hot during use.

NOTE! The kettle comprises a hinged, lockable safety lid that reduces scalding hazards considerably, as the lid cannot fall off, should the kettle tip over. Remember always to close the lid properly after filling of water.

WARNING! If there is too much water in the kettle (i.e. water exceeds the MAX marking) boiling water may splash out. The maximum level of the kettle is 1.5 liters and should not be exceeded. Never switch on the kettle without water.

The kettle automatically switches off when the water is boiling. Every time the kettle is removed from the base, the kettle switches off. In this way, unintended heating is avoided when the kettle is put back on the base. If the kettle is shortly removed from the base in order e.g. to add water, remember to switch it on again. Always unplug from the mains supply when the appliance is not in use.

IMPORTANT: Make sure that the lid is always properly closed, when the kettle is in use. If not, the automatic switch-off function will not work and there is furthermore a risk that boiling water will splash out. The automatic switch-off function of the kettle is very sensitive. If the switching off becomes irregular (the kettle switches off too soon or too late), the kettle needs to be descaled and this might be the reason (see the section about descaling below).

Scale build-up/dry boiling protection

The kettle comprises a double protection system:

If the kettle has severe scale build-up at the bottom, if it is switched on without water or boils dry, the dry boiling protection system is activated and the kettle switches off automatically. In such case, check for lime in the bottom of the kettle and descale if necessary. Try to switch the kettle on again with water in it.

If the kettle continues to switch off before the water reaches the point of boiling, contact the shop of purchase.

Lime filter

The kettle has a lime filter in the spout. Remove the filter for cleaning by opening the lid of the kettle and carefully lifting the filter. Brush the filter with a washing-up brush under running water or put the filter in a descaler for a couple of minutes, when the kettle is being descaled. Put the filter back in the grooves inside the spout and make sure that it is positioned correctly.

It is very important that the filter is cleaned and does not scale again, as if not, water cannot pass through the filter, but will run off along the sides, which involves a risk of burning.

Descaling and cleaning

• The kettle needs regular descaling.
- Do not boil more water than you need. This will save energy due to a shorter boiling time and you will be sure that the kettle is emptied each time, which reduces the building-up of limestone.
- Check at regular intervals whether the kettle needs descaling. In case of a heavy build-up of limestone, use a decalcification product, citric acid or similar that you can buy in the store (do not use household vinegar). It is important to follow the instructions on the package, and remember to bring the kettle to a boil a couple of times subsequently and to pour out the water.
- Repeat the descaling procedure if necessary and descale the appliance more often, if necessary.
- The descaling procedure will be more efficient if you heat the liquid up to about 50-60°C.

Important! Never use sharp items to remove limestone, as these may damage the appliance. If the appliance is not descaled at regular intervals, the appliance may become unusable. Such damage is not covered by the warranty.

The housing of the kettle can be cleaned with a damp cloth and wiped dry. Do not use scouring or etching detergents. Neither the appliance nor the base is dishwasher-proof.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé

172 66 Sundbyberg

Tel [phone]

www.obhnordica.se

Technical data

OBH Nordica 6409, 6411

1850-2200 watt

220-240V \~

Max capacity 1.5 liters

Wireless with base

Double descaling/dry boiling protection

These instructions are subject to alterations or improvements.

OBH NORDICA

Spirit Kettle
