Brooklyn 6415 - Kettle OBH NORDICA - Free user manual and instructions

Product Type	Cordless Electric Kettle
Model	Brooklyn 6415
Brand	OBH Nordica
Capacity	1.7 liters
Power	1850-2200 W
Voltage	220-240 V ~
Frequency	50 Hz
Water Level Indicator	Yes, with MAX and MIN markings
Material	Plastic and stainless steel (approx)
Weight	Approx 1.2 kg
Dimensions	Approx 25 x 20 x 25 cm
Cord Length	Approx 75 cm
Base Type	360° wireless base
Safety Features	Automatic shut-off, dry boil protection, double safety system
Filter	Removable lime filter in spout
Auto Shut-off	Yes, when boiling complete or kettle removed from base
Dry Boil Protection	Yes, automatically switches off if operated without water
Cord Storage	Under base (adjustable length)
Cleaning Instructions	Wipe housing with damp cloth; do not immerse in water
Descaling Instructions	Use household vinegar or citric acid; boil and rinse
Warranty	According to current law; receipt required

Frequently Asked Questions - Brooklyn 6415 OBH NORDICA

What is the capacity of the OBH Nordica Brooklyn 6415 kettle?

The kettle has a maximum capacity of 1.7 liters. Do not exceed the MAX marking to avoid boiling water splashing out.

How do I descale the kettle?

Regular descaling is recommended. Fill the kettle with a mixture of water and household vinegar (or a descaling product) and let it sit for a couple of hours. Then boil and rinse thoroughly. For heavy scale, repeat or use citric acid.

Why does the kettle switch off before the water boils?

This is often due to scale build-up on the heating element. Descale the kettle as described. If the issue persists, contact the place of purchase.

Can I open the lid while the kettle is boiling?

No, never open the lid during use. Risk of scalding from hot steam and boiling water. Always wait until the kettle has switched off automatically.

How do I clean the lime filter?

Remove the filter by pressing the plastic flap inside the spout. Wash it with a brush under running water or soak in descaling solution. Reattach until it clicks.

Can I put the kettle base in water?

No, never immerse the base or kettle in water. Clean the housing with a damp cloth and wipe dry. The base is not dishwasher-safe.

What happens if I switch on the kettle without water?

The dry boil protection activates and the kettle switches off automatically. Refill with water and switch on again; the kettle will reset.

What is the cord length?

The cord is approximately 75 cm and can be partially wound under the base for convenient storage.

What is the warranty on this kettle?

The warranty follows current law. Keep your cash receipt with purchase date. For claims, return the appliance to the store of purchase.

Is the kettle suitable for all types of water?

Yes, but hard water may cause faster scale build-up. Regular descaling as per the manual will maintain performance.

USER MANUAL Brooklyn 6415 OBH NORDICA

DESIGNING GOOD LIFE

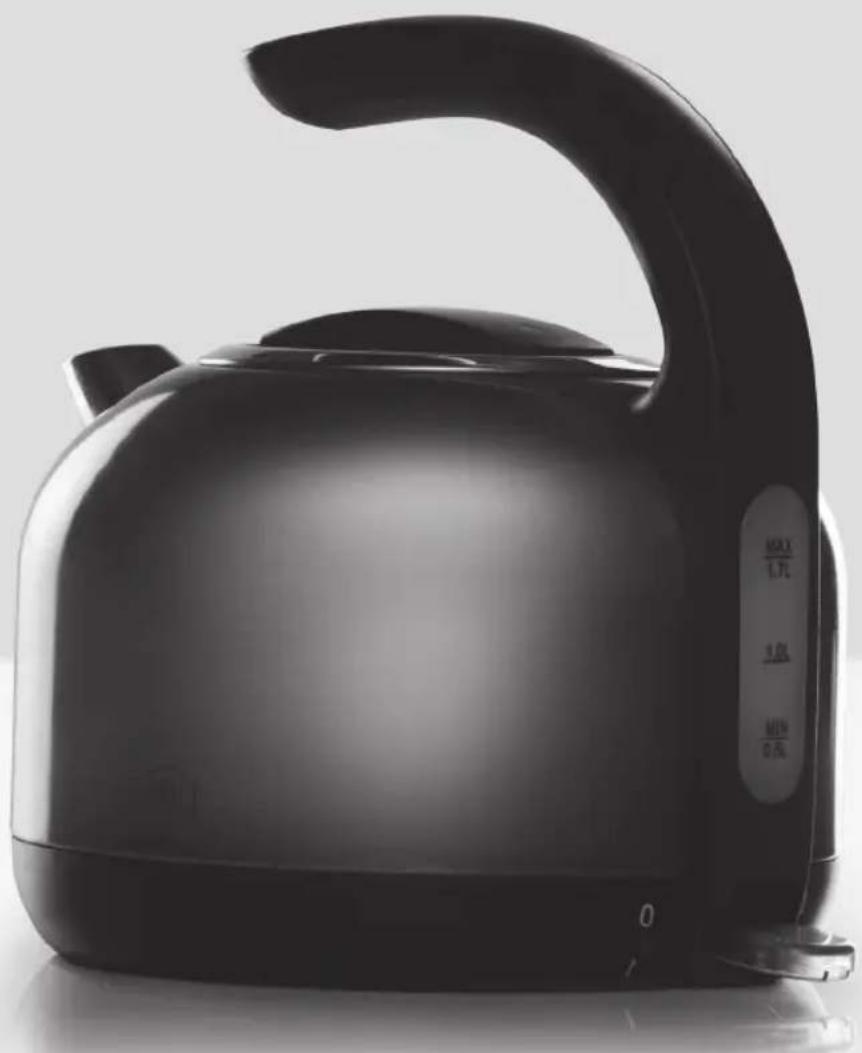

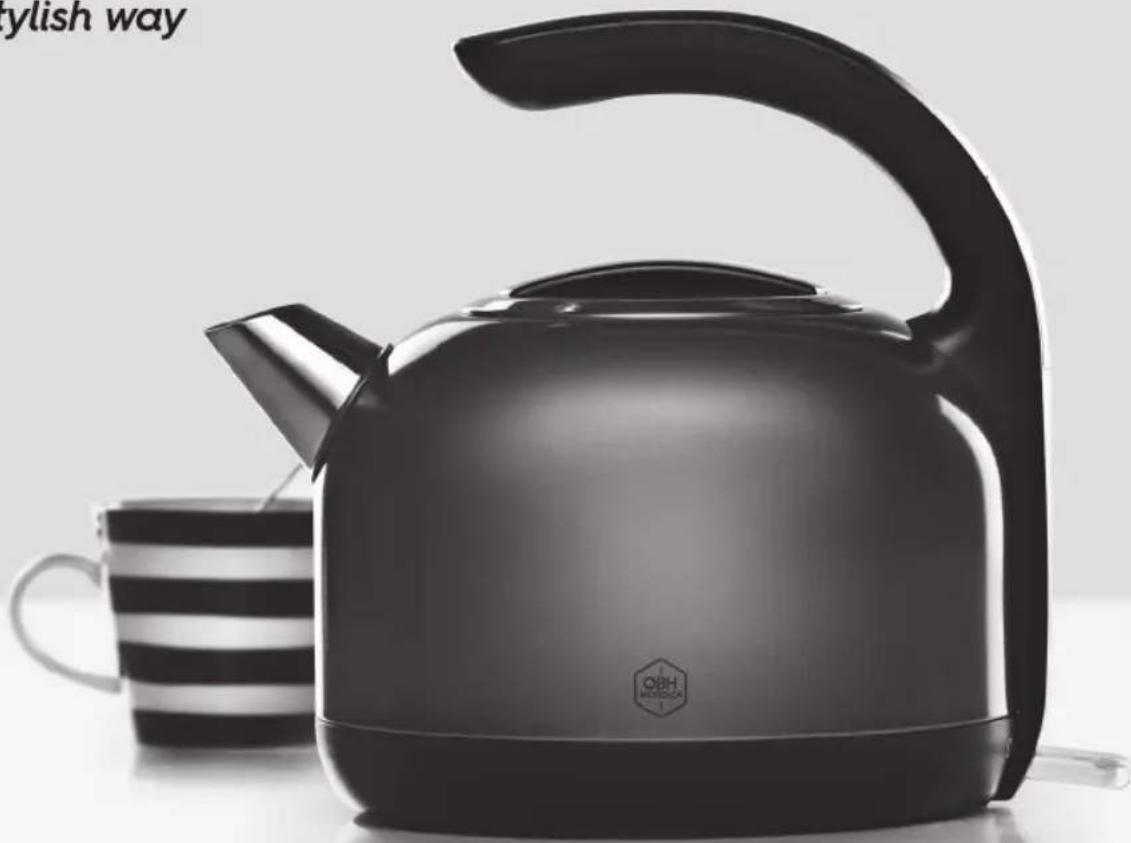

Kettle

BROOKLYN 1.7 L

Hot water - the fast and stylish way

Making good!

Bruksanvisning - svenska......sida 3 - 7

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6415

220-240 V \~, 50 Hz

1850-2200 watt

Maks. kapacitet: 1,7 liter

OBH Nordica Norway AS

Maridalsveien 15 E

0178 Oslo

www.obhnordica.no

Tekniske data

OBH Nordica 6415

220-240V \~, 50 Hz

1850-2200 watt

Maks kapasitet 1,7 liter

Ledningsløs med fot

Dobbelt sikringssystem

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240 V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply if not in use, in case of a problem, after use, when parts are mounted or removed from the appliance and before cleaning and maintenance.
4. Never immerse the appliance or the base in water or any other liquid.
5. This appliance can be used by persons (including children from the age of 8) with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
7. Cleaning and maintenance shall not be made by children under the age of 8 and they shall be supervised.
8. Position the appliance and the cord out of the reach of children under the age of 8.
9. Check that the cord is not hanging free from the edge of the table.

10. Do not place the kettle on or near hotplates, open fire or the like.

11. The appliance should only be used under supervision.

12. WARNING! Risk of fire burns! Hot steam and boiling water from the appliance may cause burn injuries. Respect the maximum level of the water gauge. Never open the lid when the appliance is switched on and be careful when pouring out the water.
13. Only use the kettle with the corresponding base.
14. Never switch on the appliance without water.
15. Always remove the kettle from the base before filling of water.
16. WARNING! If the kettle is overfilled, boiling water may splash out.
17. Always check the appliance, the cord and the plug before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
18. Extra protection can be obtained by installation of a residual current device of 30mA. Check with your installer.
19. The appliance is for domestic use only.
20. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any consequential damages to the product or other things are not covered by the warranty.

You are welcome to visit our website www.obhnordica.se for inspiration and further information about our products.

Use

Remove the lid of the kettle by pulling it upwards. Fill the kettle with water and be careful to put the lid on back correctly before you switch on the appliance. Note that the water from the first two boilings should not be used, but poured out.

Plug to a wall outlet and put the kettle with water on the base. Switch on the appliance by means of the on/off button under the water level gauge, and the signal lamp will go on.

Let the kettle cool for 3-4 minutes between each use.

WARNING! IF THERE IS TOO MUCH WATER IN THE KETTLE (ABOVE THE MAX MARKING) WATER MAY BOIL OVER AND SPLASH OUT. THE MAXIMUM LEVEL OF THE KETTLE IS 1.7 LITERS AND SHOULD NOT BE EXCEEDED. NEVER SWITCH ON THE KETTLE WITHOUT WATER.

The kettle consists of two parts: the kettle itself and a separate base, on which the kettle can be placed from any angle. Only use the kettle with the corresponding base. If necessary, wind up a part of the cord under the base and make sure that the cord is as short as possible in order that children cannot grab hold of it.

The kettle automatically switches off when the water is boiling and the signal lamp will go off. Every time the kettle is removed from the base, the kettle switches off and the signal lamp goes out. In this way, unintended heating is avoided when the kettle is put back on the base. If the kettle is shortly removed from the base in order e.g. to add water, remember to switch it on again. Always unplug from the mains supply when the appliance is not in use.

IMPORTANT: Make sure that the lid is always properly closed, when the kettle is in use. If not, the automatic switch-off function will not work and there is furthermore a risk that boiling water will splash out. The automatic switch-off function of the kettle is very sensitive. If the switching off becomes irregular (the kettle switches off too soon or too late), the kettle needs to be descaled and this might be the reason (see the section about descaling below).

BE CAREFUL! The housing of the kettle gets very hot during use.

NOTE! If the kettle is inadvertently switched on without water, it will automatically switch off and the signal lamp will be on constantly until the kettle is filled with water and switched on again and the water reaches the boiling point; the on/off button rises and the signal lamp goes off. Always pour water in the kettle before switching it on.

WARNING! RISK OF SCALDING; NEVER OPEN THE LID DURING USE.

When the water is boiling, the kettle switches off automatically. You can also switch off the kettle manually by lifting the kettle from the base, switch it off with the on/off button or unplug. If you want to boil the same water again, put the kettle back on the base, check that it is plugged and switch it on by using the on/off button.

IMPORTANT! Always unplug after use.

Scale build-up/dry boiling protection

The kettle comprises a double protection system:

If the bottom of the kettle is covered in scale build-up, if it has been switched on without water or boils dry, the dry boiling protection system is activated and the kettle switches off automatically. In such case, check for lime in the bottom of the kettle and descale if necessary. Try to switch the kettle on again with water in it.

If the kettle continues to switch off before the water reaches the point of boiling, contact the shop of purchase.

Lime filter

The kettle has a lime filter in the spout at the inner side of the kettle. Remove the filter for cleaning by opening the lid of the kettle and carefully loosen the filter from the filter holder by pressing the plastic flap at the edge of the filter. Clean the filter with a washing-up brush under running water or put the filter in a descaling means for a couple of minutes, e.g. when the kettle is being descaled. After cleaning, put the filter back in the filter holder and press carefully until it engages with a click.

Descaling

The kettle needs regular descaling. A sign of this could be that the boiling time is longer than normal or that the kettle switches off too soon.

• Do not boil more water than you need. This will save energy due to a shorter boiling time and you will be sure that the kettle is emptied each time, which reduces the building-up of limestone.
  * Check at regular intervals whether the kettle needs descaling and add household vinegar to cover the bottom and let it stay for a couple of hours. Empty the kettle and rinse with water before use.
• In case of heavy build-up of limestone, use a descaling product, citric acid or similar that you can buy in the store. It is important to follow the instructions on the packaging and remember to bring the kettle to a boil a couple of times and subsequently to pour out the water. As an alternative you could fill the kettle with half water and lemon juice. Bring the mixture to a boil and leave it in the kettle for 15 minutes. Bring it to a boil 3 times and let it rest for 15 minutes each time. Next, empty the kettle and rinse thoroughly.
• Repeat the descaling procedure if necessary and descale more often, if necessary.

IMPORTANT! Never use sharp items to remove limestone, as this may damage the appliance and make it unusable. If the appliance is not descaled at regular intervals, the appliance may become unusable. Such damage is not covered by the warranty.

The housing of the kettle can be cleaned with a damp cloth and wiped dry. Do not use scouring or etching detergents. Neither the appliance nor the base is dishwasher-proof.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé 5

172 66 Sundbyberg

Tel [phone]

www.obhnordica.se

Technical data

OBH Nordica 6415

220-240V \~, 50 Hz

1850-2200 watt

Maximum capacity 1.7 litres

Wireless with base

Double safety system

These instructions are subject to alterations or improvements.

SE/KK/6415/UVN/101014
