Product Type	Countertop Ice Maker
Brand	Menuett
Model	802-549
Dimensions (W x D x H)	249 x 360 x 327 mm
Net Weight	11.5 kg
Ice Making Capacity	12 kg per day
Max Ice Layer	0.8 kg
Water Reservoir Capacity	2.2 L
Power Supply	230 V, 50 Hz
Refrigerant	R600a
Control Type	Buttons with status lights
Alarms	Empty water reservoir, full ice box
Ice Cube Size	Uniform, bullet-shaped
Viewing Window	Transparent panel
Cooling Method	Compressor-powered
Minimum Ambient Temperature	5°C
Ventilation Clearance	At least 20 cm around air inlet/outlet
Material	Plastic and stainless steel
Cleaning Method	Mild detergent, wipe with damp cloth
Storage	Drain water, dry thoroughly, store in clean dry place
Safety Features	Auto shut-off when ice box full or water empty

Frequently Asked Questions - 802-549 Menuett

How do I start the ice maker?

Fill the water reservoir with fresh potable water, plug in the power cord, and press the power button (marked with a circle). The WORK light will indicate it is operating.

What does the ADD WATER light mean?

The ADD WATER light indicates that the water reservoir is empty. Fill it with drinking water and press the power button to resume ice making.

What does the ICE FULL light mean?

The ICE FULL light means the ice box is full. Remove the ice cubes to continue production. It can also trip if ambient temperature is below 5°C.

How often should I clean the ice maker?

Clean the appliance regularly, especially the water tank and interior. Unplug, drain water, and wipe with a mild detergent solution. Rinse thoroughly before next use.

Can I use the ice maker outdoors?

No, the appliance is intended for indoor household use only. Do not expose it to rain, direct sunlight, or temperatures below 5°C or above ambient room temperature.

How long does it take to make ice?

The first batch typically takes 6-15 minutes depending on ambient temperature and water temperature. Subsequent batches are faster as the system cools.

What type of water should I use?

Use fresh, potable drinking water. Avoid distilled or overly mineralized water as it may affect ice quality or cause scaling.

The ice maker is making noise, what should I do?

Abnormal noise may indicate a faulty fan or pump. First, check that the appliance is on a level surface and has proper ventilation. If noise persists, contact your dealer.

Can I make ice cubes of different sizes?

No, the ice maker produces uniform bullet-shaped ice cubes of the same size. There is no size adjustment.

How do I store the ice maker when not in use?

Switch off, unplug, drain all water, and dry the interior thoroughly. Store in a clean, dry place with the lid open to prevent odors.

USER MANUAL 802-549 Menuett

Operating Instructions for Ice Machine

802-549

Exterior view of a modern stainless steel milk carton (no visible text or symbols)

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importör/ Importer/ Importer

HANDHAVANDE

Miljö

Line drawing of a rectangular electronic device with lid and ventilation slots (no text or symbols)

ice

ICE FULL

○ ADD WATER

WORK

UNDERHÅLL

RENGÖRING

BRUK

Miljø

Plasser apparatet på et plant, stabilt underlag.

Line drawing of a rectangular electronic device with lid and ventilation slots (no text or symbols)

VEDLIKEHOLD

RENGJ∅RING

OBSŁUGA

Otoczenie

Line drawing of a rectangular electronic device with lid and ventilation slots (no text or symbols)

KONSERWACJA

CZYSZCZENIE

Read the Operating Instructions carefully before use.

Save these instructions for future reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Check that the mains voltage corresponds to the rated voltage on the type plate.
  • Never put acids, alkalis or flammable or explosive substances in the appliance.
• Do not use the appliance if it is damaged or not working properly, or if the power cord or plug are damaged. A damaged power cord must be replaced by an authorised service centre, or qualified person, to ensure safe use.
• Do not pull the power cord to unplug the plug.
• Do not use the machine in explosive environments, for example, in the vicinity of flammable liquids, gases or dust.
• Switch off the appliance and unplug the power cord before cleaning and maintenance.
• The device is only intended for making ice cubes. Never use the appliance to cool food or drinks, this can damage the appliance.
• Unplug the power cord before moving the appliance, otherwise the cooling system can be damaged.
• Do not attempt to repair the appliance yourself. Repairs should be carried out by qualified personnel or an authorised service centre.
• Do not use the appliance for any other purpose than the one it is intended to be used for. The appliance is not intended to be used by persons (children or adults) with any form of functional disorders, or by persons who do not have sufficient experience or knowledge on how to use it, unless they have received instructions concerning the use of the appliance from someone who is responsible for their safety.
• Keep the appliance under careful supervision when it is used by, or near children, or persons with functional disorders.

TECHNICAL DATA

Power supply	See type plate.
Refrigerant	See type plate.
Ice making capacity	12 kg
Max. ice layer	0.8 kg
Volume, water reservoir	2.2 l
Alarm for empty water reservoir	Yes
Alarm for full ice box	Yes
Operation	Buttons
Indicator	Status lights
External dimensions	249 x 360 x 327 mm
Net weight	11.5 kg

The above technical data is only intended for reference. Exact data is available on the type plate on the appliance.

Contact your dealer if you have any questions.

DESCRIPTION

1. The appliance is operationally reliable and quickly and automatically makes ice cubes of the same size which do not stick to each other.
2. There are three modes on the appliance.
3. Follow all the instructions and safety instructions for best results and service life.
4. The appliance makes ice cubes by means of compressor powered cooling.
5. The appliance is intended for household use.
6. A transparent panel makes it easy to check the process.
7. Controlled with buttons. Status lights show the current process status.
8. The appliance emits an automatic signal when there is a shortage of water and when the ice cubes are ready.

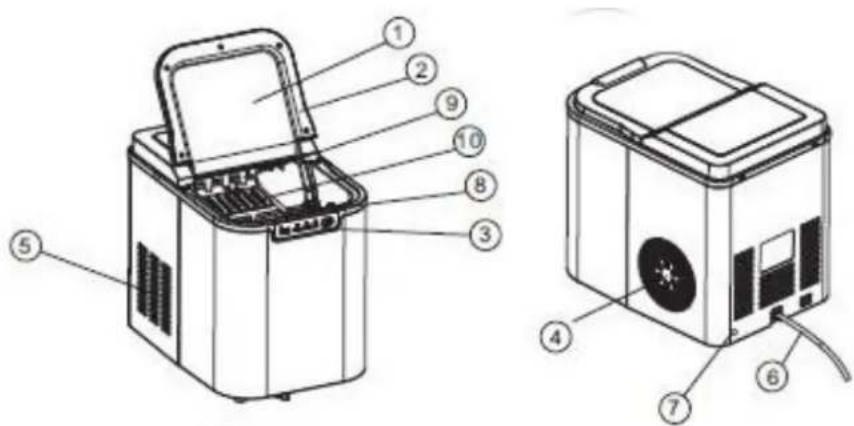

Parts

1. Transparent panel
2. Lid
3. Control panel
4. Air outlet
5. Air inlet
6. Power cord
7. Water outlet
8. Ice box
9. Evaporator
10. Ice making box

OPERATION

Environment

Place the appliance on a level, stable surface.

Do not expose the appliance to high temperatures and/or direct sunlight.

Make sure there is adequate ventilation. Do not block the ventilation openings on the appliance. Leave a free space of a least 20 cm round the air inlet and outlet on appliance.

Do not use the appliance at temperatures lower than 5°C.

Do not use the appliance outdoors.

Preparations

1. Unpack the appliance and check that no parts are missing or damaged.
2. Put the appliance in a suitable place.
3. Clean the appliance before using it for the first time.

Use

1. Wait at least 30 minutes after the appliance has been moved. Plug in the power cord and start the appliance.

2. Fill the reservoir with fresh water.

WARNING! Fill with potable water only.

1. Press to start the appliance.

Control panel

Buttons and status lights

[Non-Text]

WORK

ICE FULL

ADD WATER

Function

Start ice making, standby, troubleshooting

Indicates that the appliance is supplied with voltage.

Indicates that the ice box is full.

Indicates that the water reservoir is empty. Fill with water.

Line drawing of a rectangular electronic device with lid and ventilation slots (no text or symbols)

ice

ICE FULL

○ ADD WATER

WORK

MAINTENANCE

CLEANING

1. Unplug the power cord before cleaning and if the appliance is not going to be used for some time.
2. Clean the inside and outside of the appliance with a cloth moistened with a mild detergent.

3. Clean the water tank

4. Unscrew the cover over the water outlet and drain off the water.

5. Pour fresh water into the tank and rub the inside of the tank with a clean cloth. Pour out the water and rinse the tank several times. Screw the cover on the water outlet.

6. Do not use boiling water or strong detergents or solvents.

7. Switch off the appliance, unplug the power cord, drain off the water and wipe the appliance with a dry cloth if it is not going to be used for a prolonged period. Store the appliance in a clean, dry place.

TROUBLESHOOTING

Problem	Cause	Action
The WORK status light does not go on.	The appliance is not switched on.	1. Check the power supply.2. Check that the power cord is plugged in.3. The appliance is defective.Contact your dealer.
The ICE FULL status light is on.	1. The ice box is full.2. The subtemperature relay has tripped (ambient temperature lower than 5°C).	1. Remove the ready ice cubes2. Place the appliance where the ambient temperature is higher than 5 °C.
The ADD WATER status light goes on.	The water reservoir is empty.	1. Fill the reservoir with drinking water and press the button ⏻2. Fault in the water system. Contact your dealer.
The status lights ICE FULL and FILL WATER go on.	The ice making box is not not correctly positioned.	1. Check and correct the position of the ice making box.2. The appliance is defective.Contact your dealer.
The ice maker is not working properly.	1. Inadequate cooling.2. Water temperature too high.3. Ambient temperature too high.4. Refrigerant leak.	1. Clean the cooling fan and the air inlet/outlet.2. Fill up with cold water.3. Do not use the appliance in high ambient temperature.4. The cooling system is defective.Contact your dealer.
Abnormal noise.	Fan or pump is defective.	Contact your dealer.
