Brand	TEFAL
Model	PRO EXPRESS TURBO
Product type	Steam generator for ironing
Power supply	220-240 V
Frequency	50-60 Hz
Water tank capacity	Removable, fill without exceeding max level
Heating time	About 2 minutes
Functions	Continuous steam ironing, Turbo function (depending on model), vertical steaming
Steam adjustment	Steam flow adjustment button
Thermostat	Temperature adjustment by fabric type
Indicators	Green (ready), Red (empty tank)
Safety	Overpressure valve, thermal fuse
Maintenance	Rinse the boiler every 10 uses; clean the soleplate with a non-metallic scraper
Recommended water type	Tap water, or a 50% demineralized water mixture if water is very hard
Cord rewinder	Yes, rewinder button
Iron rest plate	Included, with non-slip pads
Spare parts	Boiler drain plug, removable water tank
Repairability	Contact an Approved Service Center for any replacement or repair

Frequently Asked Questions - PRO EXPRESS TURBO TEFAL

What to do if the generator does not turn on?

Check that the appliance is plugged in and press the illuminated on/off switch located under the cord rewinder button. If the problem persists, contact an Approved Service Center.

Why does water leak from the holes in the soleplate?

This can happen if the iron is not hot enough or if you are using steam for the first time. Reduce the steam flow at low temperature, wait for the iron's indicator light to turn off before ironing, or press the steam button away from the laundry to expel cold water.

How to remove white stains on laundry?

White stains are caused by limescale. Rinse the boiler every 10 uses (see chapter 10 of the manual). If your water is hard, increase the rinsing frequency.

What to do if brown stains appear on laundry?

Never add descaling products or additives to the water tank or boiler. Use only tap water or a 50% demineralized water mixture if the water is very hard.

Why is there little or no steam?

Check that the removable water tank is not empty (red indicator on). If empty, fill it and press the 'restart' button to reheat. Make sure the tank is properly seated. You can also increase the steam flow with the adjustment button on the control panel.

How to use the Turbo function?

Give 2 or 3 pulses on the Turbo control to get an extra burst of steam. Use it for thick fabrics, to remove stubborn wrinkles, or for powerful vertical steaming. Caution: the steam is very hot, handle with care.

How to steam vertically?

Set the iron thermostat and steam flow button to max. Hang the garment on a hanger, stretch the fabric with one hand, and press the steam button intermittently while moving from top to bottom. For delicate fabrics, hold the iron a few centimeters from the fabric.

When and how to rinse the boiler?

Rinse the boiler every 10 uses, or more often if the water is hard. Unplug the appliance and let it cool for more than 2 hours. Empty the tank, unscrew the drain plug, fill the boiler with 1/4 liter of water, shake, and empty completely. Repeat once. Tightly close the plug.

What water should I use in the tank?

Use tap water. If your water is very hard, mix 50% tap water and 50% commercial demineralized water. Never use tumble dryer, scented, softened, refrigerator, battery, air conditioner, distilled, or rainwater.

How to store the appliance after use?

Place the iron on the iron rest plate, unplug the appliance, press the cord rewinder button while guiding the cord with your hand. Allow the iron and rest plate to cool for 30 minutes before storing.

USER MANUAL PRO EXPRESS TURBO TEFAL

Line drawing of a portable air conditioner device with attached strap and buttons (no text or symbols)

I- LERNEN SIE IHREN DAMPGENERATOR KENNEN

Illustration of a hand using a tool to adjust or install a mechanical component, with an upward arrow and label '1' (no text or symbols on the diagram itself)

Illustration of hands using a tool to handle a piece of paper or material (no text or symbols visible)

Illustration of a car interior with hands adjusting a seatbelt, showing arrows indicating movement (no text or symbols)

Diagram showing car gear shift mechanism with labeled parts and directional arrow

Diagram showing car engine components with numbered parts and directional arrows indicating inspection or repair steps

Illustration of a hand using a steam iron to clean or brush the ball (no text or symbols present)

Diagram illustrating a hair cleaning or hair styling process with directional arrows and a numbered label '10'

Illustration of a hand using an iron to clean or press air onto a cloud-shaped object (no text or symbols)

Illustration of hands washing a sink with a faucet, showing water splashing from the drain (no text or symbols)

10- DAS AUSSPÜLEN DES DRUCKBEHÄLTERS

Achtung:

Illustration of a hand turning a circular component with directional arrows (no text or symbols)

Illustration of a hand holding a car tire with an arrow indicating clockwise motion (no text or symbols)

Illustration of a person receiving a medical procedure from a bottle, with no visible text or symbols

Illustration of hands washing a plate with a cloth, pouring liquid into a basin (no text or symbols)

Diagram showing hands installing or adjusting a car component with directional arrows and numbered label 17

Illustration of a hand using a tool to adjust or install a mechanical component, with an upward arrow and label '1' (no text or symbols on the diagram itself)

Illustration of hands using a tool to handle a small object, no text or symbols present

Illustration of a car interior with hands adjusting a seatbelt, showing pressure points and directional arrows (no text or symbols)

Diagram showing car seatbelt adjustment with directional arrow and magnified view of seatbelt component

Diagram showing car interior components with numbered parts and directional arrows indicating movement or change

Illustration of a hand using a steam iron to press down a surface, with an arrow indicating the process (no text or symbols present)

Illustration of a person using a hairdryer to clean or wear a garment (no text or symbols present)

Illustration of a hand using an iron to clean a cloud-shaped object (no text or symbols)

9- POUR ENTRETENIR VOTRE GENERATEUR

Illustration of hands washing a sink with a curved pipe, no text or symbols present

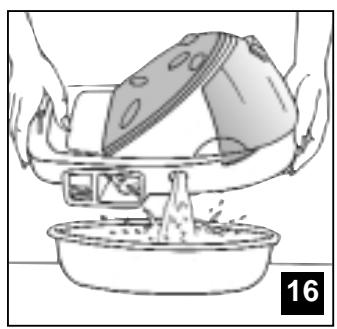

10- POUR RINCER LA CHAUDIERE

Attention :

Illustration of a hand turning a circular component with directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a ring with an arrow indicating rotation (no text or symbols)

Illustration of a person using a medical device to lift a patient's neck area, with no visible text or symbols.

Illustration of hands washing a plate with a water dispenser, no text or symbols present

Diagram showing hands installing or adjusting a car component with directional arrows and numbered label 17

I2- CONSEILS POUR VOTRE SECURITE

Illustration of a hand using a tool to adjust or install a mechanical component, with an upward arrow indicating motion (no text or symbols present)

Illustration of hands holding a folded paper or plastic object with a tool inserted (no text or symbols visible)

Illustration of a car interior with hand positioning and directional arrows indicating movement (no text or symbols)

Diagram showing car seatbelt switch mechanism with labeled parts and directional arrow

Diagram showing car interior components with numbered parts and directional arrows indicating movement or change

Illustration of a hand using a steam iron to clean or brush the ball (no text or symbols present)

Polyamide, Polyester

Ons advies :

Diagram illustrating hair styling technique with labeled arrows and figure number 10

Illustration of a hand using an iron to press down on a cloud-shaped object (no text or symbols)

9- ONDERHOUD VAN UW STOOMGENERATOR

Illustration of hands washing clothes from a sink with a faucet (no text or symbols)

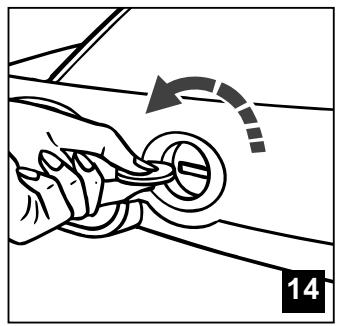

10- HET OMSPOELEN VAN DE STOOMTANK (BOILER)

Let op :

Illustration of a hand turning a circular component with directional arrows (no text or symbols)

Illustration of a hand holding a ring with an arrow indicating rotation (no text or symbols)

Illustration of a person pouring liquid from a bottle into a container (no text or symbols)

Illustration of hands washing clothes in a basin with a cloth and water filter (no text or symbols)

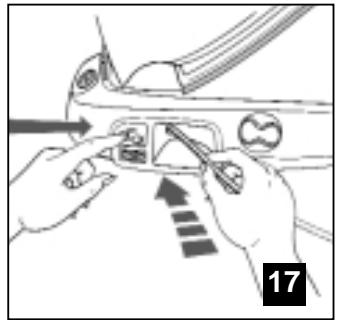

I I - OPBERGEN VAN HET APPARAAT

Diagram showing hands installing or adjusting a car component with directional arrows and numbered label 17

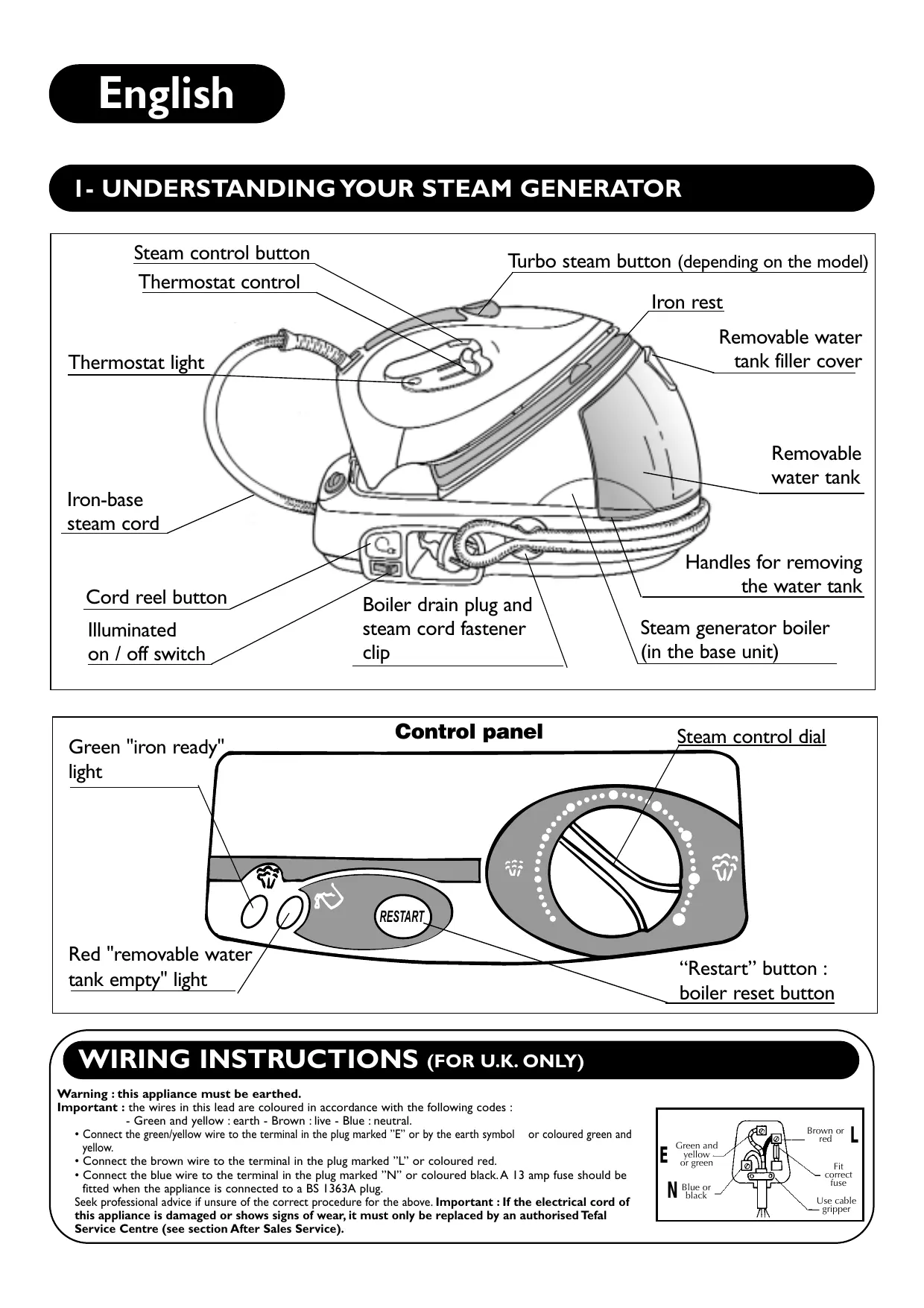

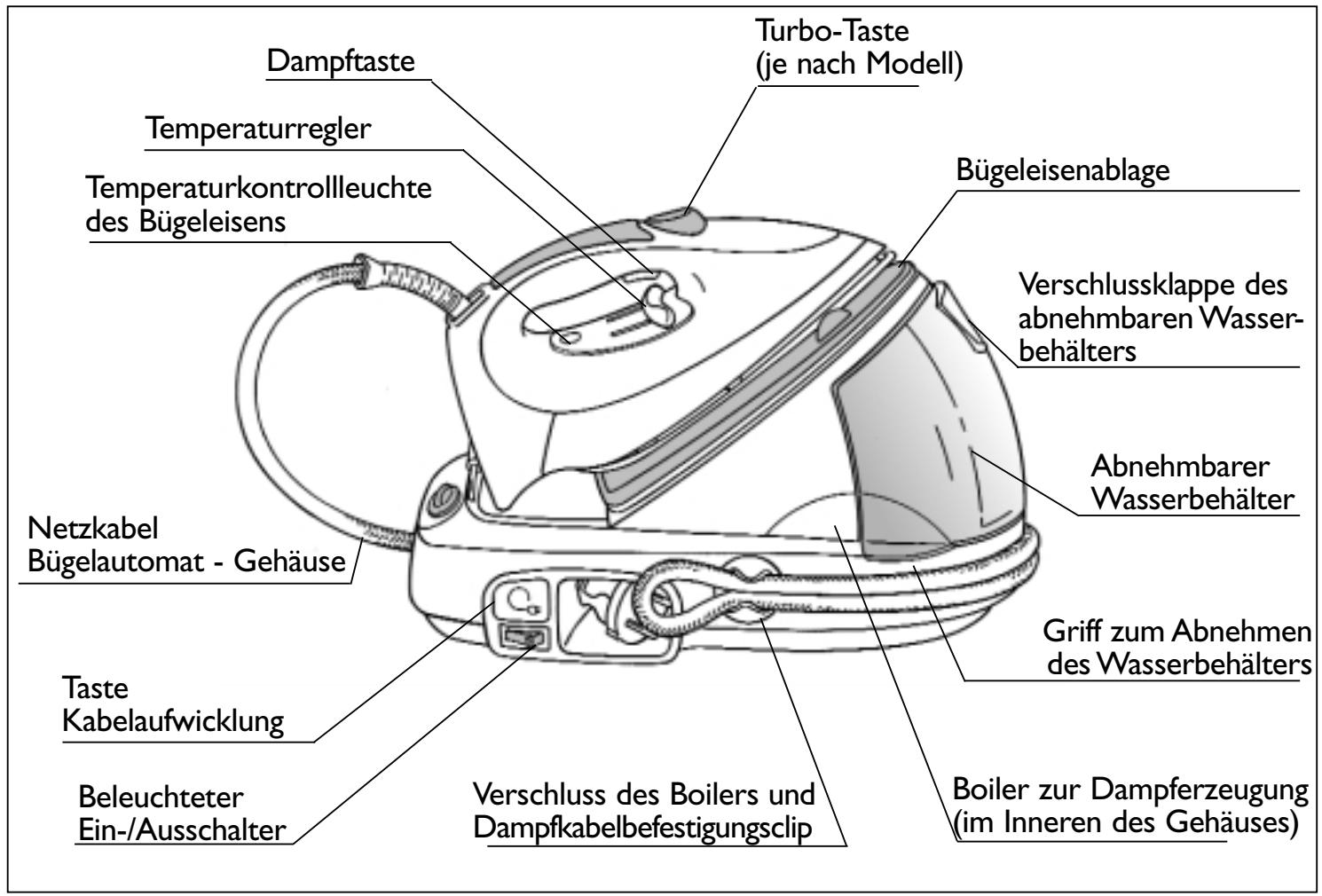

Steam control button Thermostat control Thermostat light Iron-base steam cord Cord reel button Illuminated on / off switch Turbo steam button (depending on the model) Iron rest Removable water tank filler cover Removable water tank Handles for removing the water tank Boiler drain plug and steam cord fastener clip Steam generator boiler (in the base unit)

Control panel Green "iron ready" light Steam control dial Red "removable water tank empty" light RESTART "Restart" button : boiler reset button

WIRING INSTRUCTIONS (FOR U.K. ONLY)

Warning : this appliance must be earthed.

Important : the wires in this lead are coloured in accordance with the following codes :

- Green and yellow : earth - Brown : live - Blue : neutral.

- Connect the green/yellow wire to the terminal in the plug marked "E" or by the earth symbol or coloured green and yellow.

- Connect the brown wire to the terminal in the plug marked "L" or coloured red.

- Connect the blue wire to the terminal in the plug marked "N" or coloured black. A 13 amp fuse should be fitted when the appliance is connected to a BS 1363A plug.

Seek professional advice if unsure of the correct procedure for the above. Important : If the electrical cord of this appliance is damaged or shows signs of wear, it must only be replaced by an authorised Tefal Service Centre (see section After Sales Service).

E Green and yellow or green N Blue or black Brown or red L Fit correct fuse Use cable gripper

2- PREPARING YOUR STEAM GENERATOR

I. Place your steam generator on a stable, horizontal heat-resistant surface.

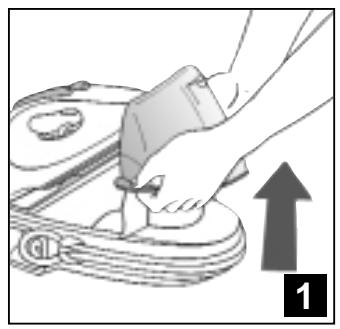

2. Remove the water tank by pulling the handles upwards 1.

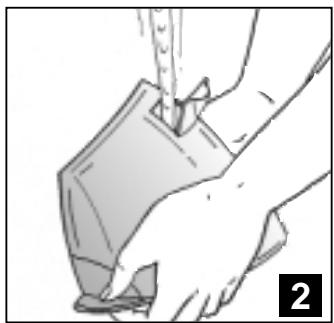

3. Fill up the water tank taking care not to exceed the maximum level just below the filler cover 2.

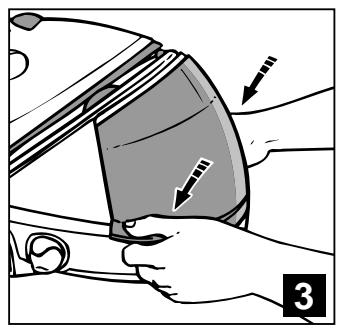

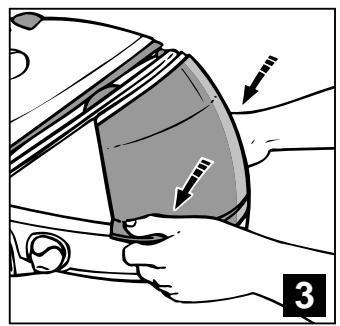

4. Replace it firmly in its housing, making sure it is fully pushed down 3.

Illustration of a hand using a tool to adjust or install a mechanical component, with an upward arrow and label '1' (no text or symbols on the diagram itself)

Illustration of a hand holding a small object with a tool, no text or symbols present

Illustration of a car interior with hands holding a seatbelt, showing pressure point arrows (no text or symbols)

The water to use in your steam generator :

Your steam generator has been designed to operate using tap water. However, if your water is very hard, mix it 50% tap water with 50% distilled water.

Types of water to be avoided :

Do not add anything to the contents of the removable water tank, and do not use water from clothes dryers, scented or softened water, water from refrigerators, batteries or air conditioners, pure distilled water or rain water. These contain organic waste or mineral elements that become concentrated when heated and cause spitting, brown staining or premature wear to your iron.

3- USING YOUR STEAM GENERATOR

I. Completely unwind the power cord from its storage space before connecting to an earthed socket 4.

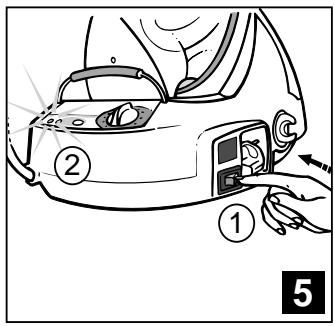

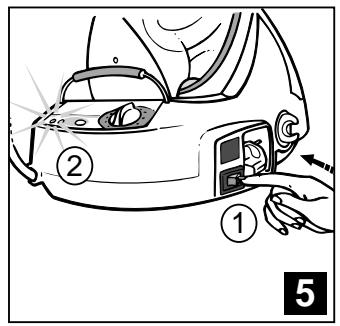

2. Press on the on / off switch (located under the cord reel button) ①: the green light (located on the control panel) flashes and the boiler heats up ②. It will take around 2 minutes for steam to be produced which is indicated when the green “steam ready” light stops flashing 5.

Diagram showing car gear shift mechanism with labeled parts and directional arrow

Diagram showing car interior cleaning steps with numbered labels and directional arrows

• The first time the appliance is used, there may be some fumes and smell but this is not harmful. They will not affect use and will disappear rapidly.
• When starting, and regularly while it is being used, your steam generator's electric pump injects water into the boiler. It makes a noise but this is quite normal. You may also hear a clicking noise which is the steam valve opening. Again this is normal. If you are pressing on the steam control button at this time you may lose a little steam pressure momentarily.

• Flashing green light : the water is heating up in the boiler.
• Continuous green light : steam is ready for use.
• Continuous red light : the water tank is empty.
• “Restart” button : boiler reset button to be activated after each refill (see chapter 6)

5- USING YOUR STEAM GENERATOR

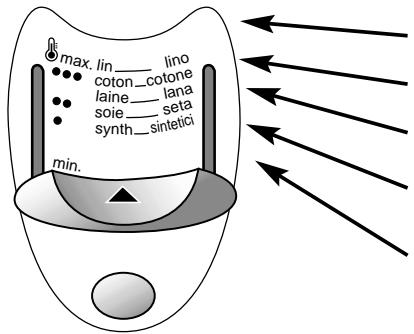

max. lin___linen •••• cotton__cotton laine___wool soie___silk synth___synth min.

RESTAINT 7

Illustration of a hand using an iron to clean or brush the power of a surface (no text or symbols)

I. Place the iron's thermostat control to the type of fabric to be ironed 6.
2. The thermostat light comes on.

Be careful! The steam generator is ready when the thermostat light goes out and when the green “steam ready” light stays on.

Note : it is normal for the steam cord to become warm during use.

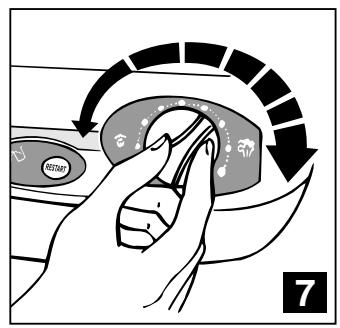

1. Adjust the steam output control dial located on the control panel 7.

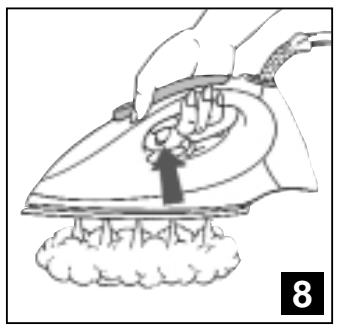

2. To obtain steam, press on the steam control button beneath the iron handle and keep it pressed 8. The steam will stop when you release the button.

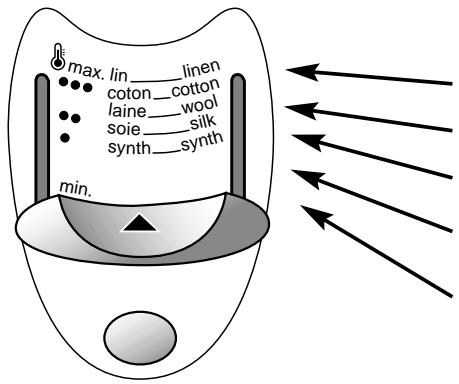

max. lin___linen coton__cotton laine__wool soie___silk synth__synth min.

Linen

Cotton

Wool

Silk, Viscose

Synthetics,

Polyester, Acetate,

Acrylic, Polyamide

Recommendations :

- To prime the steam circuit, either before using the iron for the first time, or if you have not used the steam function for a few minutes, press the steam control button several times in a row, holding the iron away from your clothes.

This will enable any cold water to be removed from the steam circuit

Iron thermostat control setting :

- Start with the fabrics to be ironed at a low temperature (●) and finish with those which need higher temperatures (●●● or Max).

• Mixed fibre fabrics : set the ironing temperature to the setting for the most delicate fabric.
• Woollen garments : press repeatedly on the steam control button to obtain short bursts of steam, without placing the iron on the garment itself.

Steam output control dial setting :

• Thick fabric : increase the steam setting.
• At a low temperature : set the steam output control dial to the low position.

To iron without using steam :

- Do not press on the steam control button under the iron handle.

Ironing Board :

For best results, a mesh type ironing board should be used to allow any excess steam to escape.

- If you are using starch, it should be sprayed onto the reverse side of the fabric to be ironed.

6- WHEN THE RED LIGHT "WATER TANK EMPTY" COMES ON

There is no more steam. The removable water tank is empty 9.

I. Remove the water tank and fill it up.
2. Ensure the water tank is replaced securely making sure it is fully pushed down and press the "restart" button located on the control panel to continue your ironing.

RESTART 9

7- VERTICAL STEAM IRONING

I. Set the iron thermostat and the steam output control dial (located on the control panel) to the MAX position.
2. Hang the garment on a coat hanger and hold the fabric slightly taut with one hand.
3. Holding the iron in a vertical position, tilted slightly forwards, press repeatedly on the steam control button (under the iron handle) moving the iron from top to bottom 10.

Recommendations : for fabrics other than linen or cotton, hold the iron a few centimetres from the garment to avoid burning the fabric.

Diagram illustrating hair styling technique with labeled arrows and scale indicator

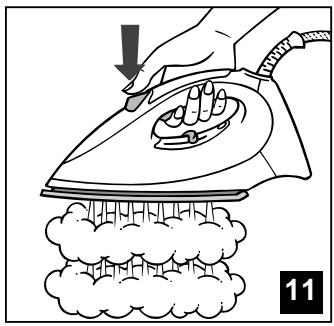

8- TURBO STEAM FUNCTION (depending on the model)

Press 2 or 3 times on the turbo steam button to obtain a more powerful burst of steam 11 :

• for ironing thicker fabrics,
• to eliminate creases,
• for powerful vertical steaming.

Be careful: use the turbo steam function very carefully because of the exceptional power of steam that may cause burns.

NOTE : continuous use of the turbo steam function will begin to cool the iron and may cause water to drip from the iron. If this occurs, stop using the turbo steam function and allow the iron thermostat to reach temperature again (thermostat light will come on and go off) before using this function again.

Illustration of a hand using an iron to clean or press something on a cloud-shaped object (no text or symbols)

9- MAINTAINING YOUR STEAM GENERATOR

• Before cleaning, ensure that your steam generator is unplugged and that the sole plate and the iron rest have cooled down.
• Do not use detergent or descaling products for cleaning the sole plate or the boiler.
• Never hold the iron or the base unit under the tap
• Do not place the iron on a metal rest as this could damage it.

Place it on the iron-rest on the base unit : it has non-slip pads and has been designed to withstand high temperatures

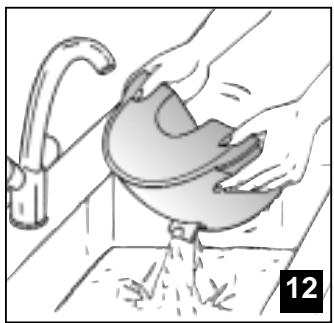

I. Empty and rinse the removable water tank 12.
2. Regularly clean the sole plate with a damp, non-metallic washing up pad.
3. Clean the plastic parts of the appliance occasionally with a soft cloth.

Illustration of hands washing a sink with a pipe, no text or symbols present

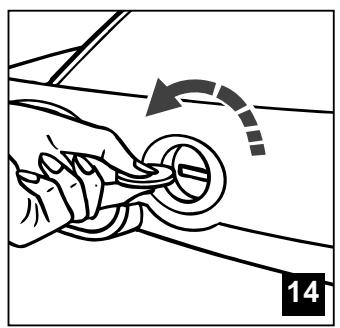

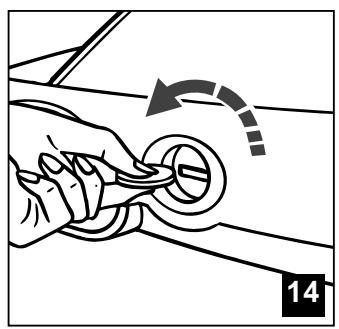

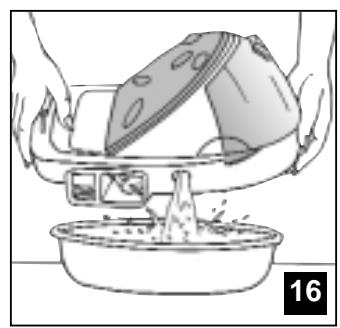

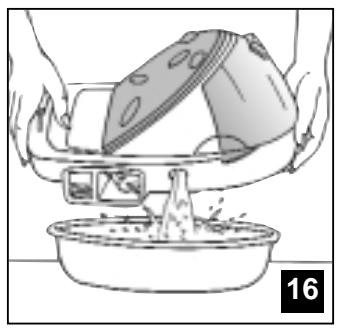

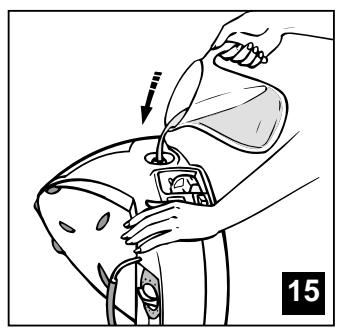

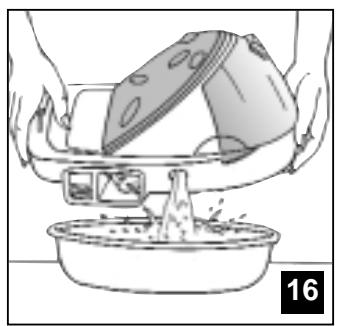

10- RINSING OUT THE BOILER

Be careful:

• To extend the life of your boiler and to avoid any build up of scale, it is essential that you rinse out the boiler after approximately every 10 uses. If your water is hard, increase the frequency.
• Do not use descaling agents for rinsing out the boiler, as they could damage it.

Diagram showing hand turning a car wheel with directional arrows indicating rotation (no text or symbols)

Illustration of a hand holding a car tire with a circular component and an arrow indicating rotation (no text or symbols)

Illustration of a person receiving a medical procedure from a bottle, with no visible text or symbols

Illustration of hands washing a plate with a water bath, no text or symbols present

I. Check that the generator is cold and unplugged for more than 2 hours, and that the removable water tank is empty.
2. Place your steam generator on the edge of your sink.
3. Unscrew the cord clip by turning a quarter turn to the left 13.
4. Using a coin, unscrew the boiler drain plug 14.
5. Holding your steam generator in a tilted position, and using a jug, fill the boiler (in the base unit) with 1/4 litre of water 15.
6. Shake the base unit for a few moments and then empty it completely over a sink or bucket 16.

To obtain the best result, we recommend that this operation is done twice.

1. Important : before re-closing, make sure no water remains in the boiler.
2. Replace and tighten up the boiler drain plug with a coin.
3. Put the cord clip back in place.

I I- PUTTING YOUR STEAM GENERATOR AWAY

I. Place the iron on the rest.
2. Unplug the appliance from the socket
3. Press the cord reel button and guide the cord with your hand 17.
4. It is best to leave your generator to cool down before putting it away. If you put it away straightaway be careful because it will be hot.

Diagram showing hands installing or adjusting a car component with directional arrows and labels 17 and 2

I2- SAFETY RECOMMENDATIONS

• Your steam generator is an electrical appliance. It should be used under normal conditions. It is intended for domestic use only.
• Your generator is fitted with 2 safety systems :

- A pressure release valve which, in the event of a malfunction, releases any excess steam.

- A thermal fuse to prevent the appliance from overheating.

• Completely unwind the power cord from its storage space before connecting to an earthed socket.
  • Always plug your steam generator into:

- An electrical installation with voltage between 220V and 240V. Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee.

- An earthed socket. If you are using a mains extension lead, ensure that it is correctly rated (10A) with an earth, and is fully extended.

- Should the reel and power cord mechanism or the boiler cord linking the iron to the base unit become damaged, it must be replaced by an approved service centre to avoid the risk of danger or injury.

Be careful:

• The soleplate and generator iron-rest can become very hot and cause burns: never touch these parts.
• Your appliance gives off steam which can cause burns.
• Handle your iron carefully, particularly when using the vertical steam function
  • Always keep the steam generator away from children.
• Never leave the appliance unattended :

- when it is connected,

- until it has cooled down (around 1 hour).

• Always unplug your appliance :

• before filling the removable water tank or rinsing out the boiler,
• before cleaning your generator,

• after each use.

• Before unscrewing the boiler drain plug, wait until the generator is cold (unplugged for more than 2 hours).

• Never fill the boiler through the drain hole (except for rinsing)
• Never immerse your steam generator in water or any other liquid. Never hold it under the water tap
• While rinsing out the boiler, never fill it directly under the tap.
• If the appliance falls, receives a violent blow or is not operating correctly, do not dismantle it: take it to an Approved Service Centre, to avoid any danger.
• If you lose or damage the boiler drain plug, have it replaced by an Approved Service Centre.

This appliance is designed for domestic use only. In the case of professional use, inappropriate use or failure to comply with the instructions, TEFAL accepts no responsibility and the guarantee does not apply.

I3- IS THERE A PROBLEM?

Problems	Possible causes	Solutions
■The steam generator on light does not light up.■The thermostat light and the on/off switch are not illuminated.	■The appliance is not switched on.	■Check that your appliance is correctly plugged in and press the illuminated on/off switch (located under the cord reel button).
■Water runs through the holes in the sole plate.	■You are using steam before the iron is hot enough.■Water has condensed in the pipes because you are using steam for the first time or you have not used it for some time.■Over use of the turbo steam function (which has cooled down the iron).	■Decrease the steam output while ironing at low temperature (steam output control dial on the control panel).■Wait for the thermostat light to go out before ironing.■Press the steam control button away from your ironing board until the iron produces steam.■Stop using the turbo steam function and allow the thermostat light to come on and go off again before using this function again.
■White streaks come through the holes in the sole plate.	■Your boiler has a build-up of scale because it is not rinsed out regularly.	■Rinse out the boiler after every 10 uses. (see chapter 10). If your water is hard, increase the frequency.
■Brown streaks come through the holes in the sole plate and stain the linen.	■You are using chemical descaling agents or additives in the water for ironing.■Your linen is not rinsed sufficiently or you have ironed a new garment before washing it.	■Never add this type of product in the removable water tank or in the boiler (see our recommendations regarding water to be used).■Ensure linen is rinsed thoroughly to remove any soap deposits or chemicals on new garments which have been sucked up by the iron.
■The sole plate is dirty or brown and may stain the linen.	■You are ironing at too high a temperature.■You are using starch.	■See our recommendations regarding temperature control setting.■Always spray starch on the reverse side of the fabric to be ironed.
■There is little or no steam.	■The boiler does not operate, or the red light on the control panel comes on even though there is still water left in the removable water tank.■The removable water tank is empty (red “water tank empty” light on).■The steam output control dial is set at minimum.■The removable water tank is not fully seated down.	■Check that the removable water tank is securely in place and press the “restart” button located on the control panel.■Fill the removable water tank and press the "restart" button located on the control panel.■Increase the steam output (control dial on the control panel).■Push the tank fully down (see section 2)
■Steam escapes from the drain plug.■Steam escapes under the appliance.	■The drain plug has not been tightened correctly.■The equipment is faulty.	■Tighten the drain plug correctly.■Stop using the generator and contact an Approved Service Centre.
■The power cord does not fully retract.	■The power cord has lost momentum during retraction.	■Pull out the cord in full and press on the button.

Never dismantle your iron : always take it to an Approved Service Centre
HELPLINE
If you have any product problems or queries with your product, please telephone our Customer Relations team on : 0845 6021454 (UK) (Calls charged at local rate) - [phone] (Ireland)
Consult our web site : www.tefal.co.uk

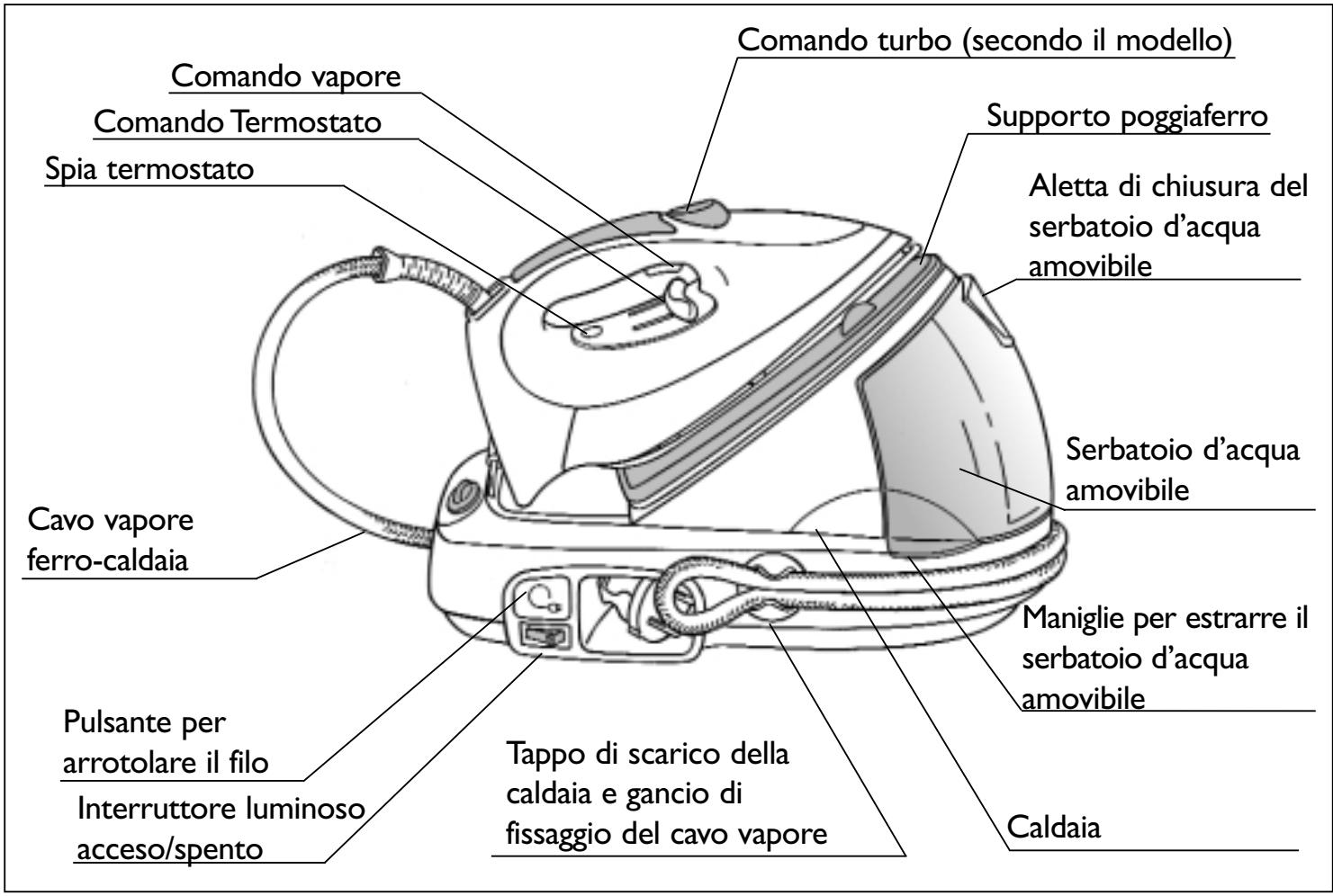

I- CONOSCENZA DEL GENERATORE DI VAPORE

Illustration of a hand using a tool to adjust or install a mechanical component, with an upward arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to handle a small object, no text or symbols present

Illustration of a car interior with hands adjusting a seatbelt, showing pressure points and directional arrows (no text or symbols)

Diagram showing car door control with a hand holding a device and a downward arrow, labeled '4'

Diagram showing car interior components with numbered parts and directional arrows indicating movement or inspection

Illustration of a hand using a steam iron to clean or brush the ball (no text or symbols)

max. lin___ lino ••• coton__cotone ••• laine___ lana ••• soie___ seta ••• synth__sintetici min.

Lino

Cotone

Lana

Seta, Viscosa

Sintetici,

Diagram illustrating hair styling technique with labeled arrows and page number 10

Illustration of a hand using a steam iron to clean or store air, with cloud shapes underneath (no text or symbols)

9- CONSERVARE IL GENERATORE

Illustration of hands washing a sink with a cloth, showing water flowing from the drain (no text or symbols)

10- PER SCIACQUARE LA CALDAIA

Attenzione:

Illustration of a hand turning a circular component with directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a ring with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid into a device with a bottle, no text or symbols present

Illustration of hands washing a plate with a water bath, no text or symbols present

Diagram showing hands installing or adjusting a car component with directional arrows and numbered label 17
