Product Type	Range Hood
Brand	Elektro Helios
Model	SF6131X
Power Supply	220-240 V, 50 Hz
Installation Height	Minimum 650 mm between hob and hood
Exhaust Diameter	Minimum 120 mm
Motor Speeds	3 speeds (Low, Medium, Maximum)
Lighting	On/off switch for lighting system
Filter Type	Grease filter (washable) and activated charcoal filter (replaceable)
Grease Filter Cleaning	Every 2 months; dishwasher safe
Charcoal Filter Replacement	Every 4 months or more frequently with heavy use
Hood Cleaning	Use damp cloth and neutral liquid detergent
Safety Features	Do not flambé under hood; keep distance from high flames; mandatory earthing for Class I appliances
Venting Requirement	Must not connect to flues carrying combustion fumes; room ventilation required when used with non-electric appliances
Intended Use	Domestic use only: removing kitchen odors
Certification	CE marked
Spare Parts	Original spare parts recommended
Documentation Languages	EN, SV, NO, FI, DA

Frequently Asked Questions - SF6131X ELEKTRO HELIOS

What is the minimum installation height for the Elektro Helios SF6131X range hood?

The minimum safety distance between the cooker top and the extractor hood is 650 mm.

How often should I clean the grease filters?

Grease filters should be cleaned every 2 months of operation, or more frequently with heavy usage. They are dishwasher safe.

How often should I replace the charcoal filter?

The activated charcoal filter cannot be washed or regenerated; replace it approximately every 4 months of operation, or more often with heavy use.

What is the recommended duct diameter for venting?

Connect the extractor to the exhaust flue using a pipe of minimum diameter 120 mm.

Can I use the range hood with a gas hob?

Yes, but ensure the kitchen has an opening to the open air so that negative pressure does not exceed 0.04 mbar, preventing backflow of exhaust gases.

How do I clean the exterior of the hood?

Use a damp cloth and a neutral liquid detergent. Avoid abrasive cleaners.

What does the light switch control?

The L button switches the lighting system on and off.

What are the speed settings for?

Speed 1: low for continuous silent air change; Speed 2: medium for most conditions; Speed 3: maximum for heavy vapor emission.

Is it safe to flambé under the range hood?

No, never flambé under the range hood as it presents a fire risk.

Where can I find the model and serial number?

The model (PNC) and serial number are listed on the rating plate fixed inside the hood.

USER MANUAL SF6131X ELEKTRO HELIOS

Abstract geometric composition with two overlapping white circles on a gray background (no text or symbols)

EN USER MANUAL....3

SV ANVÄNDNINGSHANDBOK 24

NO BRUKSVEILEDNING 27

FI KÄYTTÖOHJEET 30

DA BRUGSVEJLEDNING 33

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux

ACCESSORIES AND CONSUMABLES

In the Electrolux webshop, you'll find everything you need to keep all your Electrolux appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Five circular icons representing shopping, cleaning, security, retail, and shopping cart (no text or symbols)

Visit the webshop at: www.electrolux.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol ☑ Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol ☒with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

PNC

Serial Number ____

RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the

bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• “CAUTION: Accessible parts may become hot when used with cooking ap-pliances”.

MAINTENANCE

• 1. Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

- Activated charcoal filter W These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

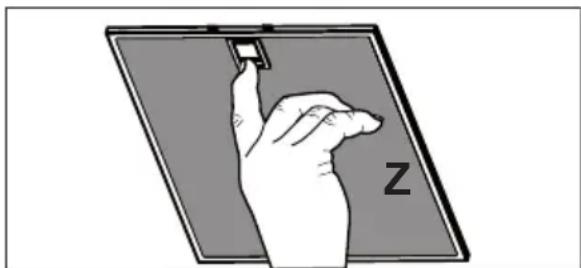

- Grease filters Z The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

Illustration of a hand holding a small object over a tablet screen with 'Z' label (no text or symbols on the diagram itself)

- Control lights, if present.

- Clean the hood using a damp cloth and a neutral liquid detergent.

CONTROLS

L	Light Switches the lighting system on and off
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

LIGHTING

WE'RE THINKING OF YOU

Five circular icons representing shopping and related activities: cart, washing machine, gear, gift box, and bicycle (no text or symbols)

Illustration of a hand pressing a small square button on a tablet screen (no text or symbols)

VI TENKER PÅ DEG

Five circular icons representing shopping, cleaning, security, delivery, and shopping cart (no text or symbols)

Illustration of a hand interacting with a device labeled 'Z' (no text or symbols on the device itself)

- Kontrollamper hvis installert

WE'RE THINKING OF YOU

Five circular icons representing shopping and related services: cart, washing machine, gear, and shopping cart (no text or symbols)

Illustration of a hand interacting with a device labeled 'Z' (no text or symbols on the device itself)

VI TÄENKER PÅ DIG

Five circular icons representing shopping, washing machine, gear, car, and shopping cart (no text or symbols)

PRODUKTNR. (PNC) ____

Serienummer ____

RÅD OG ANVISNINGER

Illustration of a hand holding a small object over a tablet screen, with 'Z' label visible (no text or symbols on the diagram itself)

- Eventuelle kontrollamper.
