SF735 - Range hood ELEKTRO HELIOS - Free user manual and instructions

Brand	Elektro Helios
Model	SF735
Product Type	Range hood (wall-mounted)
Category	Kitchen ventilation
Dimensions (W x D x H)	60 cm x 50 cm x 45 cm (approx.)
Net Weight	15 kg (approx.)
Power Supply	220-240 V, 50 Hz
Maximum Power Consumption	150 W (approx.)
Motor Power	120 W (approx.)
Number of Speeds	3
Maximum Airflow	600 m³/h (approx.)
Noise Level	55 dB (max speed)
Lighting	2 x LED lamps (included)
Lighting Power	2 x 3 W
Grease Filter	Aluminum mesh, washable
Charcoal Filter	Optional (recirculation mode)
Duct Diameter	150 mm
Installation Type	Wall-mounted, vented or recirculating
Control Type	Push buttons
Energy Class	A+ (approx.)
Manufacturer Warranty	2 years

Frequently Asked Questions - SF735 ELEKTRO HELIOS

How do I install the SF735 range hood?

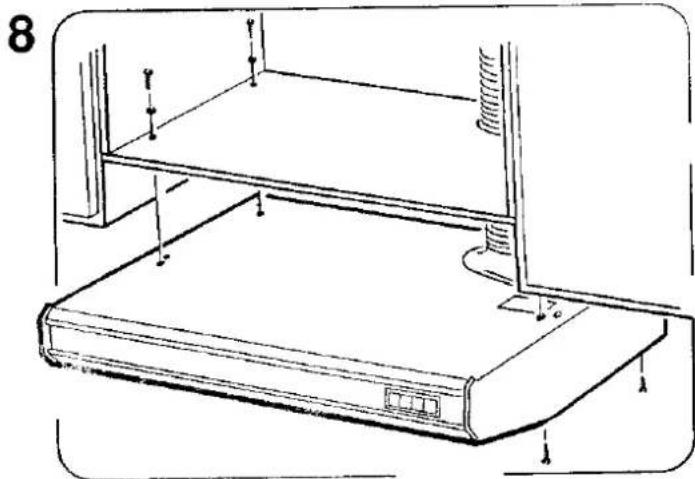

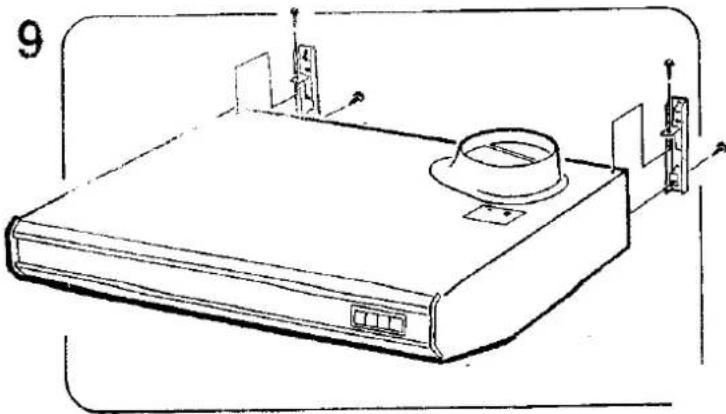

Ensure the hood is mounted at least 65 cm above the cooking surface. Use the included mounting brackets and wall anchors. Connect the duct (if venting outside) or install charcoal filters for recirculation. Electrical connection must be done by a qualified technician.

How often should I clean the grease filter?

The aluminum mesh grease filter should be cleaned every 2-3 months, or more often if you cook heavily. You can wash it in warm soapy water or in the dishwasher at low temperature.

Can I use the hood without a charcoal filter?

Yes, if you connect the hood to an external exhaust duct. Charcoal filters are only needed for recirculation mode (filtering and returning air to the kitchen).

How do I replace the charcoal filter?

First, remove the grease filter. Then locate the charcoal filter (usually behind the grease filter). Release the clips and replace with a new filter. Reinstall the grease filter. Charcoal filters typically need replacement every 6-12 months.

The hood is making excessive noise. What can I do?

Check that the duct is not blocked or crushed. Ensure the grease filter is clean and properly installed. Loose parts can also cause noise. If the problem persists, contact customer service.

How do I change the LED bulbs?

Switch off the power at the fuse box. Remove the light cover (usually by unscrewing or unclipping). Pull out the old LED bulb and insert a new one of the same type and wattage. Replace the cover.

What is the recommended duct diameter?

The recommended duct diameter is 150 mm. Using a smaller diameter can reduce airflow and increase noise. Ensure the duct is as short and straight as possible for optimal performance.

Does the SF735 come with a remote control?

No, the SF735 is operated via push buttons on the front panel. It does not include a remote control.

How do I reset the filter cleaning indicator?

After cleaning or replacing filters, press and hold the speed button for about 5 seconds until the indicator light turns off. Refer to the manual for exact steps.

What maintenance is required for the hood?

Regular cleaning of the grease filter, periodic replacement of charcoal filters (if recirculating), and cleaning the exterior with a damp cloth. Also check the duct for blockages annually.

USER MANUAL SF735 ELEKTRO HELIOS

SERVICE OCH RESERVDELAR

7
