Total Control Ultrasonic - Humidifier OBH NORDICA - Free user manual and instructions

Product Type	Ultrasonic Humidifier
Brand	OBH Nordica
Model	Total Control Ultrasonic
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	280 W (max) / 30 W (standby)
Water Tank Capacity	6 liters
Max Steam Output	600 ml/h
Room Coverage	Up to 120 m³
Humidity Control Range	40% - 80%
Auto Mode	Maintains humidity between 55-65%
Steam Temperature	Cold, Low, Medium, High
Steam Output Levels	3 levels
Timer	1-12 hours
Scent Function	Yes, with removable scent tray
360° Steam Outlet	Yes, adjustable nozzle
Display	LED with humidity reading
Safety Features	Auto shut-off when empty, overheat protection
Cleaning	Descaling with citric acid, clean tank twice weekly
Dimensions (approx.)	30 x 20 x 40 cm
Weight (approx.)	3 kg

Frequently Asked Questions - Total Control Ultrasonic OBH NORDICA

How do I set the desired humidity level?

Adjust the humidity level by pressing the air humidity + or - buttons on the control panel. Each press changes the setting by 5%, ranging from 40% to 80%. The humidifier will stop steaming when the set level is reached and resume when humidity drops about 5% below the set point.

What is the auto mode and how does it work?

Press the Auto button to activate automatic control. The humidifier will automatically maintain the room humidity between 55% and 65% by adjusting steam output based on the current humidity level.

Can I use essential oils with this humidifier?

Yes, the humidifier has a scent tray on the left side. Pull it out, add about 10 drops of essential oil to the filter, and push it back in. The scent will be dispersed through the steam.

How do I clean the humidifier?

Unplug the appliance. Remove the water tank and clean it with a mild detergent. For descaling, use a descaling agent or citric acid on the feeder and element. Wipe the base with a damp cloth. Clean the tank twice a week if used regularly.

Why does my humidifier not produce steam?

Check that the power cord is plugged in and the unit is switched on. Ensure the water tank has enough water. If the tank is empty, the unit will beep and shut off automatically. Also check if the set humidity has been reached.

What does the timer function do?

Press the Timer button to set the humidifier to automatically turn off after a set number of hours (1-12 hours). The selected time is shown on the display.

How do I change the steam temperature?

Press the Warm steam button to cycle through cold, low, medium, and high temperature settings. The corresponding icon will appear on the display.

Where should I place the humidifier for best results?

Place the humidifier on a stable, flat, water-resistant surface. Keep it away from direct sunlight, heat sources, and electronics. Ensure the steam outlet is not pointed at walls or objects that could be damaged by moisture.

Is it normal for the humidity reading to differ from a separate hygrometer?

Yes, the internal sensor measures near the floor where air movement may affect readings. A wall-mounted hygrometer may give different values due to room air currents and placement.

What should I do if the water tank leaks?

Ensure the tank lid is screwed on tightly (turn in the 'FASTEN' direction). Also check that the water tank is properly seated on the base. If leaking persists, inspect for cracks or damage.

USER MANUAL Total Control Ultrasonic OBH NORDICA

For improved indoor climate

Ultrasonic mist Room capacity: Up to 120 m ⁴

Adjustable humidity

Bacterial growth reduce

Effective steam distribution

Steam output

Low noise level

Kontrollpanelens funktioner

Användning

1. Timerknap
2. Luftfugtighedsknap
3. Varmeknap
4. Autoknap

Betjeningspanelets funktioner

d/sluk knap

Timerknap

Autoknap

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6164

220-240V \~

280 watt/30 watt

Vandtankens volumen: 6 liter

Maks. dampkapacitet: 600 ml/h

1. Varmeknapp
2. Autoknapp

OBH Nordica Norway AS

Postboks 5335, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6164

220-240V \~

280 watt/30 watt

1. Read the instruction manual carefully before use and save it for future use.

2. Plug the appliance to a household outlet of 220-240 V only and use the appliance only for the intended use.

3. Always unplug before cleaning and maintenance.

4. Never immerse the appliance in water or any other liquid.

5. This appliance can be used by persons (including children from the age of 8) with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.

6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.

7. Cleaning and maintenance shall not be made by children under the age of 8 and they shall be supervised.

8. Check that the cord is not hanging free from the edge of the table.

9. Unplug before you add water and before cleaning.

10. Do not place the appliance on or near hotplates, open fire or the like.

11. During use, the appliance should not be left unattended.

12. WARNING! In order to avoid overheating, never cover the appliance.

13. Never tilt or move the appliance during use or when filled with water.

14. Switch off the appliance if steam is found on the inner side of the window. The air humidity can be measured by means of a hygrometer.

15. Do not place the appliance in such a way that air, flowing out, is directed towards persons, walls, electrical appliances or other objects.

1. The appliance is for indoor use only. Do not position the appliance in direct sunlight, at places with high temperature, near computers or other electronic equipment.
2. Position the appliance on a stable, non-metallic, even and water-resistant surface. The appliance works best when placed on an even surface.
3. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
4. Extra protection can be obtained by installation of a residual current device of 30mA. Check with your installer.
5. The appliance is for domestic use only.
6. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages as a consequence of the above to the product are not covered by the warranty.

You are welcome to visit our website www.obhnordica.se for inspiration and further information about our products.

Parts of the appliance

1. Steam mouthpiece
2. Lid
3. Handle
4. Water tank
5. Water level sensor
6. Air inlet
7. Steam tube
8. Water tank lid
9. Feeder
10. Heating element
11. Cord
12. Scent tray
13. LED display
14. ON/OFF switch
15. Steam content button
16. Timer button
17. Air humidity button

1. Heat button
2. Auto button

Functions of the control panel

On/off button

Timer button

Auto button

Steam content button

Air humidity button

Warm steam button

Use

• Position the appliance on an even and steam-resistant surface in order to avoid moisture damage.
• Remove the lid and remove the water tank from the base unit by lifting it straight upwards. Turn the water tank upside-down and unscrew the lid at the bottom by turning it in the direction of the arrow towards "LOOSEN".
• Fill the water tank with clean tap water (max 40°C) and screw the lid back on by turning it in the direction of the arrow towards "FASTEN".
• Put the water tank back on to the base unit and make sure tat it is properly secured. If there is not enough water in the tank when the appliance is plugged to the wall outlet, the appliance will emit a beep sound and switch off.
• Put the lid on again with the steam mouthpiece on the water tank.
• Plug the appliance to a wall outlet and press the on/off button on the control panel to activate the appliance. The display will show the air humidity level of the surroundings.
• Switch off the appliance by pressing the on/off button until the display goes out.

If the water has a high content of minerals (hard water) in your area, this might lead to lime deposits on the appliance and on the surfaces around the appliance. Consequently, this does not mean that the appliance is defective, only that the tap water contains minerals.

Timer function

The appliance comprises a timer function enabling you to set the appliance for automatic switch-off after a certain number of hours. Press the timer button at the control panel until the wanted number of hours (1-2 hours) is displayed. The setting is confirmed by an illuminated icon in the display showing the number of hours set.

Auto mode

Press the AUTO button at the control panel and the appliance switches over to automatic control mode, which means that the appliance selects a suitable air humidity level in relation to the air humidity of the surroundings and keeps the level between 55-65%.

Setting of amount of steam

For adjustment of the amount of steam, press the button for amount of steam, and choose from level 1 to 3, where 1 is the smallest volume. An icon will be illuminated to show the selected level. You can direct the steam outlet 360° by turning the steam mouthpiece on the lid of the water tank in any direction. Never point the steam towards electrical appliances or other material that might be damaged by the steam.

Setting of air humidity capacity

The air humidity capacity is changed by means of air humidity button + and air humidity button -. The capacity is increased/decreased by 5% each time you press the button and it can vary from 40 to 80%.

Note! The air humidifier stops generating steam, when the set humidity level has been reached. The air humidifier restarts emitting steam, when the air humidity in the immediate surroundings is about 5% (relative air humidity) below the set air humidity level.

The intensity of the steam is influenced by the relative humidity and the temperature in the room. It will be more difficult to generate steam, if the surroundings are cold and humid because of the fact that the dehumidification takes more time.

The air humidity in a room depends on the size of the room, the room temperature, objects in the room and the conversion of air in the room. The capacity of the product is given in accordance with standardized norms, which means that the ventilation system of the room exchanges the entire air volume of the room within two hours. If the ventilation in the room is more powerful or if doors and windows to adjacent rooms are open, a big part of the steam is led out of

the room, and consequently, it is difficult to have the humidifier obtain the air humidity value set in the display.

How to measure air humidity: The movements of air in a room can result in different measuring results at different places in the room. The internal sensor of the air humidifier measures close to the floor and due to draught on the floor it may show another value than that of a separate meter positioned on a wall.

Hot steam

Press the button to adjust the temperature of the steam. Choose between low ☐, medium ☐ and high ☐ temperature. When this function is off, the appliance produces cold steam.

Scent function

In order to use the scent function, pull out the scent tray at the bottom part on the left side of the appliance. Now add about 10 drops of aromatics in the filter of the scent tray and push it back into the appliance. The scent will then spread through the steam mouthpiece, when the appliance is activated.

Cleaning and maintenance

• Always unplug before cleaning and maintenance.
- Never immerse the base unit or the cord in water or any other liquid.

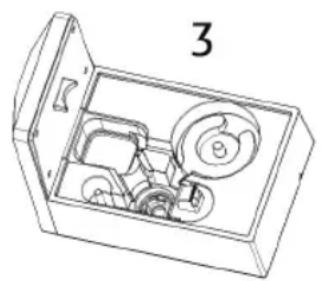

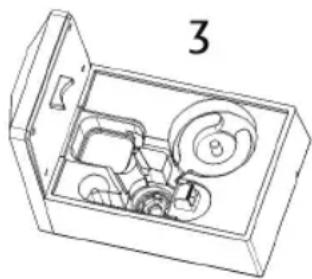

- The feeders of the appliance and the element need regular descaling as follows: Remove the water tank from the base unit. Remove the steam tube at the base unit by turning it anticlockwise (fig. 1); pull the air channel upwards as shown in fig. 2. Clean the water tank (fig. 3) by pouring a small amount of cleansing agent on the feeder and add some water to cover the feeder. Leave to rest for 10-15 minutes. Clean with a brush and rinse twice with water. Do not use sharp tools when cleaning.

- Clean the water tank twice a week, if you use it regularly, by adding a few drops of washing-up liquid in the water tank and then fill the water tank half way up with water. Mount the lid of the water tank and shake the water container, up and down, a couple of times. Then rinse the water tank with clean water.

• Clean the inner side of the base unit with a damp cloth with a little cleansing agent, alternatively use a washing-up brush. Wipe with a damp cloth to remove the cleansing agent.
• Wipe the outer surface of the appliance with a damp cloth.
• If you are not going to use the appliance for some time, pour out all water from the water tank and check that there is no water in the water tube.

Troubleshooting

Problem Possible cause	Solution
There is no steam. Check	the cord and the power switch.	Plug the appliance and switch on the appliance with the switch.
	There is no water in the water tank.	Fill water in it.
	There is not enough water in the water tank.	Add more water.
The steam has a strange smell.	The appliance is new or water has been kept for too long in the appliance.	Remove the water tank and put it somewhere cold and dry for 12 hours; alternatively, empty the water tank and clean it.
The appliance is quite noisy.	The water tank is not correctly positioned.	Position the water tank correctly.
	The amount of water in the water tank is too small.	Add more water.
	The appliance is positioned on an uneven surface.	Position the appliance on an even surface.
Temperature warning ("Hight temp." is displayed).	A too high water level in the base unit because water has been filled in a wrong way in the water tank.	Pour out the water of the base unit and mount the water tank again.
	No water in the base unit because of damaged water sensor.	Make a complaint at the purchase store.

Storing

Keep the appliance in a dry place. If you are not going to use the appliance for a long period of time, clean the appliance according to the instructions above and make sure that all parts are dry before you put away the appliance.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé 5

SE-172 55 Sundbyberg

Tel [phone]

www.obhnordica.se

Technical data

OBH Nordica 6164

220-240V \~

280 watt/30 watt

Volume of the water tank: 6 litres

Max steam capacity: 600 ml/h

Suitable for rooms up to 120 m³

These instructions are subject to alterations or improvements.
