HB72A00 - Hand blender Clas Ohlson - Free user manual and instructions

Product Type	Hand Blender (Stick Blender)
Model	HB72A00 (Art.no 18-4754-1, -2, -3)
Brand	Clas Ohlson
Rated Voltage	220–240 V AC, 50/60 Hz
Power Consumption	150 W
Motor Unit	Plastic housing with power trigger
Mixing Stem	Removable stainless steel blade assembly
Maximum Continuous Operation (No Load)	15 seconds
Maximum Continuous Operation (Under Load)	60 seconds
Intended Use	Domestic blending, mixing, and pureeing
Safety Feature	Automatic shut-off if overheated (not explicitly stated but implied)
Cleaning Method (Mixing Stem)	Wash in warm soapy water by running for a few seconds; rinse under running water avoiding motor unit
Cleaning Method (Motor Unit)	Wipe exterior with damp cloth; never immerse in water
Blade Material	Stainless steel
Housing Material	Plastic
Power Cord Length	Not specified (typical ~1 m)
Dimensions	Not specified
Weight	Not specified
Warranty	Standard manufacturer warranty (refer to retailer)

Frequently Asked Questions - HB72A00 Clas Ohlson

Can I blend hot oil or fat with this hand blender?

No, never blend hot oil or fat as it may cause splashing or damage to the blender. Always let liquids cool before blending.

How long can I run the blender continuously?

Under load (when blending ingredients), run for a maximum of 60 seconds. Without load, run for a maximum of 15 seconds. Longer operation may cause overheating.

Can I wash the motor unit in water?

No, the motor unit and power switch must never be exposed to water. Clean them by wiping with a damp cloth and mild detergent only.

How should I clean the mixing stem and blade?

Lower the mixing stem into warm soapy water and run the blender for a few seconds to clean the blades. Rinse with warm water, ensuring the motor unit stays dry. The blade is very sharp; handle with care.

What is the correct voltage for this hand blender?

The blender is designed for standard household supply of 220–240 V AC, 50/60 Hz. Do not use with other voltages.

Can I add ingredients while the blender is running?

No, never add ingredients while the blender is switched on. Always switch off and unplug before adding or removing food.

Is the blender suitable for crushing ice?

The manual does not specifically mention ice crushing. It is intended for blending, mixing, and pureeing soft foods. Avoid using it for hard items like ice cubes.

What should I do if the blender stops working?

First, unplug and check the power cord for damage. If the motor has overheated, let it cool down for several minutes before restarting. If the problem persists, contact Clas Ohlson customer service.

Can children use this hand blender?

No, the product must not be used by children. Keep the blender and its cord out of reach of children. Persons with reduced capabilities may use it only under supervision.

How do I dispose of the blender at the end of its life?

Do not dispose of it with general household waste. Take it to a local recycling facility or return it to the place of purchase for environmentally sound disposal. The product bears the crossed-out wheeled bin symbol.

USER MANUAL HB72A00 Clas Ohlson

Black plastic electronic device with a handle and control panel (no visible text or symbols)

Hand Blender

Art.no 18-4754-1, -2, -3 Model HB972A00

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services.

Safety

• Always disconnect the product from the mains when it is not in use.
• The product must not be used by children. Ensure that the product and its mains lead are kept out of children's reach.
• The product may be used by persons with reduced physical, sensory or mental capability, lack of experience or knowledge which could jeopardise their safety, provided they have been given supervision or instruction concerning the safe use of the product and understand the hazards involved.
• Never let children play with the product.
• Keep hair, clothing and any loose or hanging jewellery away from the rotating blade.
• Keep the mains lead away from the rotating cutting blade. Never insert your fingers or any other kitchen utensil into the container in which you are using the hand blender.
• Be very careful when cleaning the blade, it is very sharp.
• Never touch the blade when the product is plugged in.
• The product is intended for normal domestic use or under similar conditions such as in staff kitchens or hotel rooms.
• The product must only be connected to a standard domestic 220–240 V, 50/60 Hz electrical supply.

• Do not use the product if it is damaged or in any way malfunctioning.

• The mains lead should be checked regularly. Never use the product if the mains lead or plug is damaged.

• If the mains lead is damaged in any way it must be replaced by a qualified electrician.
• Never immerse the motor unit of the product in water or other liquid.
• Never use the product if your hands are moist or wet.
• Never point the rotating blade toward anyone when the product is switched on.
• Place the mains lead where there is no risk of people tripping over it.
• Always unplug the product from the power point when it is not in use.
• The product is only intended for normal domestic use and only in the manner described in this instruction manual.

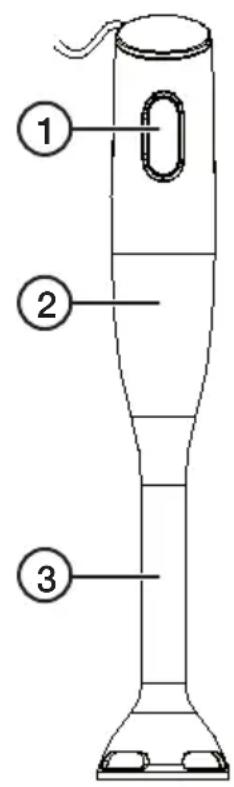

Product description

1. Power trigger
2. Motor unit
3. Mixing stem

Operating instructions

Note:

• The motor runs the risk of overheating if it is run for too long continuously:
• Run it for max 15 seconds under no load
• Run it for max 60 seconds under load
  • Make sure that the hand blender is clean before use.
• Never blend hot oil or fat.
• Never add ingredients while the blender is switched on.

Switching on/off

Start the hand blender by pressing in the power trigger. Release the power switch to switch the hand blender off.

Care and maintenance

- Unplug the mains lead from the wall socket before cleaning. The blade is extremely sharp and could cause serious personal injury if the blender were to start accidentally. Note: The motor unit and power switch must never be exposed to water.

- The exterior of the motor unit can be cleaned by wiping it with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals. Never immerse the motor unit in water.

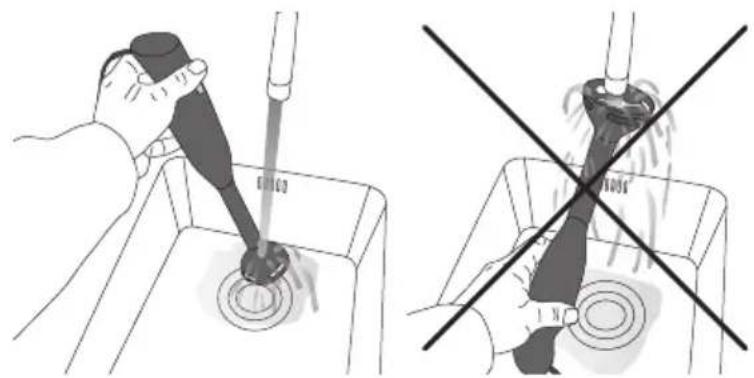

- The mixing stem can be washed by lowering it into warm soapy water and running it for a few seconds to clean the blades. The mixing stem and blade should then be rinsed with warm water.

- If the mixing stem is rinsed under running water care must be taken not to get any water on the motor unit and power switch.

Two-panel illustration showing a hand using a pipette to lift a circular component in a basin, with no text or symbols present.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Rated voltage 220–240 V AC, 50/60 Hz

Power 150 W

Stavmixer

Art.nr 18-4754-1, -2, -3 Modell HB972A00

Användning

Obs!

Illustration of two hand-painted scenarios showing a tool in a container with a dropper, no text or symbols present.

Avfallshantering

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 220–240 V AC, 50/60 Hz

Effekt 150 W

Stavmikser

Art.nr. 18-4754-1, -2, -3 Modell HB972A00

Bruk

Obs!

• Hvis mikseren kjøres for lenge av gangen kan den gå varm:
• maks 15 sek uten belastning
• maks 60 sek med belastning
• Mikseren må være ferdig sammensatt før den startes.
• Bland aldri varme oljer eller fett med mikseren.
• Ikke fyll ingredienser i beholderen mens miksingen pågår.

På/av

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Nettspenning 220–240 V AC, 50/60 Hz

Effekt 150 W

Sauvasekoitin

Tuotenro 18-4754-1, -2, -3 Malli HB972A00

Käyttö

Huom.!

Two-panel illustration showing a person using a pipette to clean or wash the surface in a basin, with no text or symbols present.

Kierrättäminen

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Bedienung

Hinweis:

Illustration of a hand using a pipette to lift a circular component in a basin, with no text or symbols present.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technische Daten
