INN-602 - Hair Dryer Innoliving - Free user manual and instructions

Product Type	Travel Hair Dryer
Brand	Innoliving
Model	INN-602
Power Consumption	1000 W
Voltage	220-240 V
Frequency	50/60 Hz
Speed Settings	2 (Low and High)
Heat Settings	2 (Low and High) plus cool shot
Cool Shot Function	Yes, to set hair with cool air
Accessories	Concentrator nozzle
Design	Foldable and compact for travel
Dimensions (approx.)	20 x 15 x 7 cm (folded)
Weight (approx.)	0.5 kg
Safety Features	Auto shut-off when airflow blocked; Class II insulation; RCD recommended
Cleaning	Dry cloth for unit; damp cloth for concentrator
Storage	Hanging hook; cool and dry place
Reparability	Only authorized personnel; warranty void if tampered
Intended Use	Household only
Waste Disposal	Separate collection (WEEE directive)

Frequently Asked Questions - INN-602 Innoliving

What is the power rating of the Innoliving INN-602 hair dryer?

The INN-602 operates at 1000 W, suitable for travel use.

Can I use this hair dryer in the bathroom?

Yes, but with caution. It must be unplugged after use and kept away from water. Installing a residual current device (RCD) is recommended for safety.

How many speed and heat settings does it have?

It has 2 speed settings (low and high) and 2 heat settings (low and high), plus a cool shot button for setting hair style.

What accessories are included?

The dryer comes with a concentrator nozzle to direct airflow precisely.

How do I clean the hair dryer?

Clean the main body with a dry cloth. The concentrator can be cleaned with a damp cloth or rinsed under water, but ensure it is dry before reuse.

Is the hair dryer safe if the airflow is blocked?

Yes, it has an auto shut-off feature that activates if airflow is obstructed. It will restart automatically after cooling down.

Can I wrap the cord around the dryer for storage?

No, do not wrap the cord around the appliance to prevent damage. Use the hanging hook for storage.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer, after-sales service, or a similarly qualified person to avoid hazards.

Is this hair dryer suitable for children?

Children 8 years and older can use it under supervision. Cleaning and maintenance must be done by adults.

How should I dispose of this product at end of life?

Follow local regulations for WEEE disposal. Do not throw it in household waste; take it to a collection center or return it to the retailer.

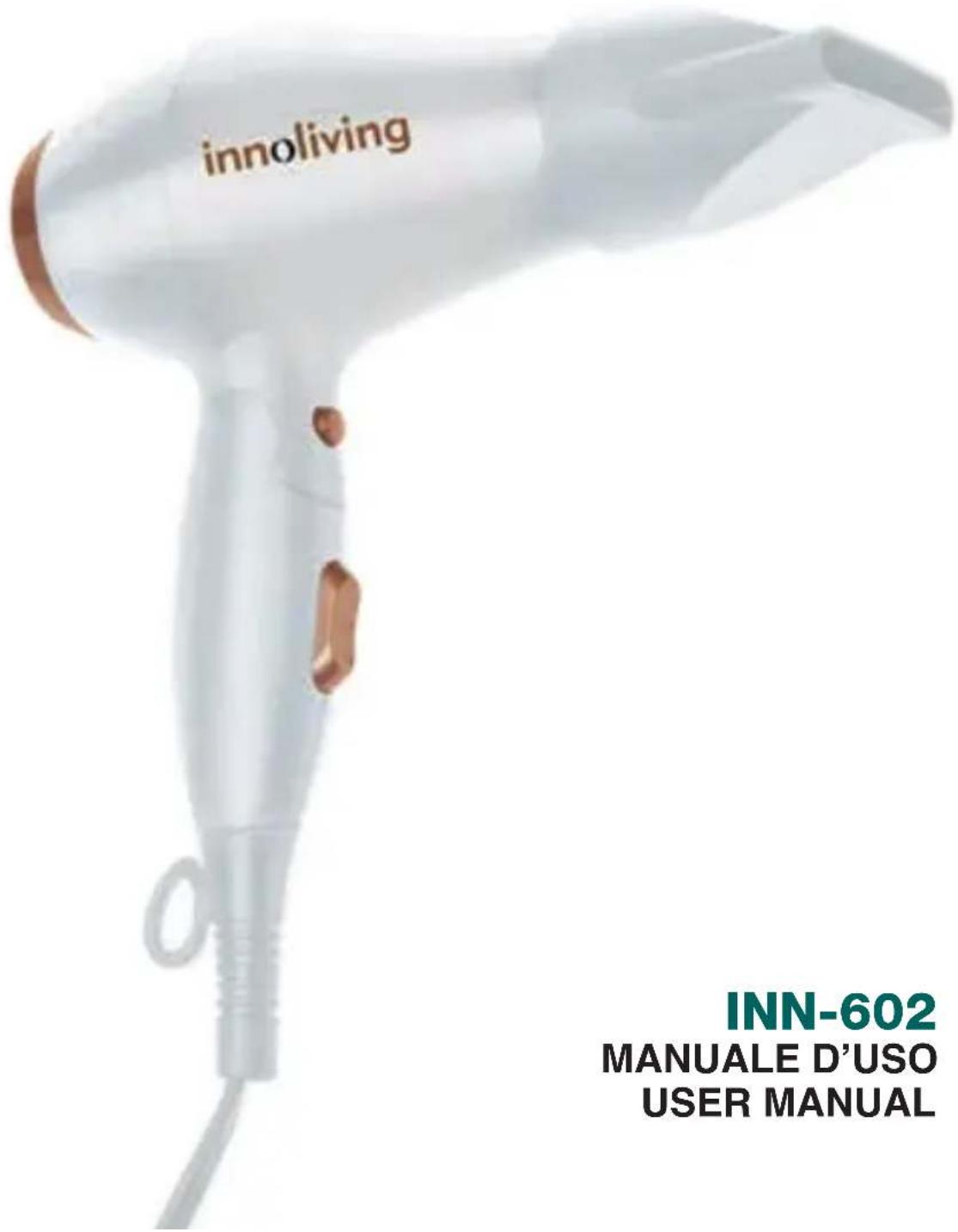

USER MANUAL INN-602 Innoliving

innoliving easy tech, easy life

ASCIUGACAPELLI TRAVEL

INN-602

MANUALE D'USO

USER MANUAL

ISTRUZIONI PER L'USO

Thank you for purchasing the hair dryer TRAVEL INN-602, it is foldable and compact, ideal for all situations that require a small footprint hairdryer, as fitness, travel, etc.

Read carefully all the instructions before using the unit and maintain this manual for future references.

WARNINGS AND IMPORTANT SAFETY INSTRUCTIONS

• Do not use the appliance for purposes different from those indicated in this instruction manual. Any other use is considered improper and therefore dangerous.
• For hygienic reasons, do not share the product with others. In case of infections or health problems to the ear or nose, which require special treatment, you should use the device with extreme caution and after consultation with the attending physician.
• This product is intended for household use only.
• Remove the packaging before use. Keep all packaging (plastic bags, cardboard, etc.) out of reach of children as they are potentially dangerous and should be disposed of as required by law.
• Before connecting the device to the power outlet, make sure the voltage on the rating label corresponds to the local mains voltage.
• If the power cord is damaged it must be replaced by the manufacturer or by the after sales service or a similarly qualified person in order to avoid any risks.
• When the hair dryer is used in the bathroom, unplug it after use since water represents a risk even when the hairdryer is switched off.
• For additional protection, we recommend installing a residual current device (RCD) with a rated residual operating current not exceeding 30 mA in the electrical circuit supplying the bathroom. Ask your installer.
• CAUTION - Do not use this appliance near bathtubs, showers, basins or any other container filled with water.
• The use, cleaning or maintenance of the device made by children older than eight years, or by anyone who does not have knowledge, experience or who have reduced physical, mental, sensory must not be carried out without having first received appropriate instructions and under the supervision of an adult responsible for their safety and have fully learned the associated risks.
• Cleaning and maintenance shall not be made by children without supervision
• Do not use outdoors.
• Always unplug the hair dryer from the power supply when not in use and before cleaning.
• Do not immerse the device in water or other liquids to avoid any risk of electrical shock.
• Do not spray aerosol products when the dryer is running.
• Do not leave the dryer on when not in use. Do not leave the appliance unattended when it is plugged in.

• Use the appliance only with the originally supplied accessories.

• Do not block the ventilation points to prevent the unit from overheating.

• If the airflow is inadvertently obstructed during use, the appliance switches off automatically. The hair dryer is automatically reactivated after a few minutes after cooling.
• Store in a cool, dry place. Do not use it with wet hands.
• Place the unit only on heat resistant surfaces.
  • Take care that the plug and cord do not get wet.
• Do not tamper with the product trying to repair or replace damaged parts. All repairs should be performed only by authorized personnel; otherwise the warranty is void.
• Do not weave or twist the cord or wrap it around the appliance.
• Keep the product and its accessories away from heat sources.
• Do not store the product if operating under a blanket or pillow.
  • Always turn off the product after use.
• Do not immerse the device in liquids and do not use it near the bathtub, sink or other container filled with water.
• This product is not a toy. Children should not play with the appliance.
• Do not recover the device if it has fallen into water. Disconnect the product from the electrical outlet. Do not use it again until the product has been inspected and approved by a qualified electrician.

How to use

1. Insert the plug into the socket.
2. Switch on the appliance by selecting the desired speed / temperature setting.

Symbols of switch

0: OFF

1: low speed and low temperature
2: High speed and high temperature

Cool: Cool shot function

After drying, you can use the button (cool) to fix the hair set with a continuous flow of fresh air.

Styling Accessories

Concentrator

This accessory allows you to direct the air flow on the lock of hair you are drying.

Enter the concentrator on the hair-dryer. Remove it, pulling outward.

Cleaning

1. The external device can be cleaned with a dry cloth.
2. The accessory (concentrator) can be cleaned with a damp cloth or rinse under running water.

Remove accessories from the machine before cleaning the hair dryer. Make sure the accessories are dry before using them or store them.

Do not wash the appliance under running water.

Storage

When the unit is not in use, disconnect from the mains.

Allow the device to cool down and store it in a dry place. This hair dryer is equipped with hanging hook. Do not wrap the cord around the appliance to prevent damage to the cable.

RATING LABEL

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-602 ASCIUGACAPELLI - HAIR DRYER

220-240V\~50/60Hz 1000W

This product complies with all applicable European directives.

Appliance with electrical insulation class II

Do not immerse the device in liquids and do not use it near the bathtub. Do not place it on flat surfaces or where it could fall into the sink or other container filled with water.

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving easy tech, easy life

Innoliving Spa

Via Merloni, 9

60131 Ancona Italy

Tel 199.188.335

www.innoliving.it

MADE IN CHINA

CE
