Product Type	Refrigerator with freezer compartment
Brand	Gorenje
Model	RB30914AW
Power Supply	220-240V or 200-230V, 50Hz
Refrigerant	R600a (isobutane)
Climate Class	T, ST, N, SN (10°C to 43°C)
Freezer Temperature	Up to -12°C
Thermostat Control	Rotary knob, positions 1-5 (0 off)
Defrost Type (Refrigerator)	Automatic
Defrost Type (Freezer)	Manual (recommended twice a year)
Door Open Indicator	Red (open) / White (closed) indicator on handle
Ice Making	Ice tray included
Interior Shelving	Adjustable glass shelves, crisper, egg shelf, bottle shelf
Light Bulb	Max 15W, replaceable
Leveling Feet	Front adjustable leveling feet
Condenser Cleaning	Recommended every 6 months
Safety Features	Flammable refrigerant warning, child lock removal for old units, anti-tip stability
Installation Clearance	50 cm from heat sources, 5 cm from electric stoves, 15 cm top clearance
Door Reversibility	Reversible (consult service)

Frequently Asked Questions - RB30914AW GORENJE

How do I adjust the temperature?

Turn the thermostat knob inside the refrigerator. Position 1 is the warmest, 5 is the coldest. Position 0 turns off cooling. For long-term freezing, set between 3 and 4.

How often should I defrost the freezer?

Defrost the freezer at least twice a year, or when frost build-up exceeds 5 mm. Set the thermostat to 5 the day before, switch off, leave door open, and place warm water basins inside to speed up the process.

What does the door open indicator mean?

The indicator on the handle shows red if the door is not properly closed, and white if the door is securely closed. Always ensure the freezer door is closed to prevent defrosting and energy waste.

How do I clean the refrigerator?

Disconnect the power. Use a solution of lukewarm water and baking soda to clean the interior. Clean accessories separately with soap and water. Do not use abrasive cleaners. Clean the condenser with a broom every six months.

What if the light bulb burns out?

Unplug the appliance. Remove the light cover by pressing the side hooks. Replace with a new bulb of max 15W. Reattach the cover and wait 5 minutes before plugging back in.

Can I change the door opening direction?

Yes, but it is recommended to contact an authorized service agent to perform the door reversal procedure.

Why is my refrigerator not cooling properly?

Check that the thermostat is not set to 0, the doors are closing properly, the condenser is clean, and the appliance has adequate ventilation. Also ensure the ambient temperature is within the climate class range.

What should I do if water collects at the bottom?

The defrost drain hole may be clogged. Clean it with the defrost drain plug or pour a glass of water into the drain hole to flush it out.

Is the refrigerator safe for children?

Children should be supervised to ensure they do not play with the appliance. Do not allow sitting on drawers or hanging on the door. If replacing an old unit with a lock, remove the lock to prevent child entrapment.

How long should I wait before plugging in after installation?

Wait at least 3 hours after positioning the appliance before plugging it in to allow the refrigerant to settle. After a power cut or unplugging, wait 5 minutes before restarting.

USER MANUAL RB30914AW GORENJE

BEFORE USING THE APPLIANCE ....2

Safety Instructions 2

Recommendations.... 3

Installation and Switching On The Appliance 4

Before Switching On 4

THE VARIOUS FUNCTION AND POSSIBILITIES....5

Thermostat Setting 5

Accessories 6

"Door Open" Indicator 6

Making Ice cubes 6

CLEANING AND MAINTENANCE ....7

Defrosting 7

Replacing The Light Bulb 8

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ...... 9

Changing of Door Opening Direction 9

BEFORE CALLING YOUR AFTER SALES SERVICE 9

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 11

PART- 1. BEFORE USING THE APPLIANCE

Safety Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting process.
• Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Conformity Information

• Tropical Class is defined for the environment temperatures between 16^ and 43^ in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not use adapters or shunts, which could cause overheating or burning.
• Do not plug old, warped power supply cables.
• Do not twist and bend the cables.

Illustration of three hands performing a rope knotting technique (no text or symbols present)

• Do not allow children to play with the appliance. Children must NEVER sit on drawers or hang from the door.
• Do not use sharp metal objects for removing ice on the freezer compartment; they could puncture the refrigerator circuit and cause unrepairable damage to the unit.
• Do not plug the power supply with wet hands.
• Do not place containers (glass bottles or tin containers) of liquids into the freezer especially gassy liquids as they could cause the container to burst during freezing.
• Bottles that contain a high percentage of alcohol must be sealed well and placed vertically in the refrigerator.
• Do not touch the cooling surfaces, especially with wet hands as you could be burnt or hurt.
• Do not eat ice, which have just been removed from the freezer.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.
• If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

Cartoon illustration of a character peeking from behind a door (no text or symbols)

Installation and Switching On The Appliance

- This appliance is connecting to 220-240V or 200-230V and 50 Hz. Please check nameneplate of appliance and be sure voltage range suitable to your mains voltage.

- You can offer help from the service to install and switching on the appliance.

- Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system in your home.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorised electrician for assistance.

- The plug should be accessible after the appliance is positioned.

- Manufacturer is not responsible for failure to complete the ground connection as described in this booklet.

- Do not place the appliance in direct sunlight.

- Do not use in open air and shall not be exposed to the rain.

- Place the refrigerator far from heat sources and in a well-ventilated position. The refrigerator should be at least 50 cm from radiators, gas or coal stoves and 5 cm far from electrical stoves.

- Keep the top free for at least 15 cm.

- Do not place heavy and lots of things on the appliance.

- If the appliance is installed next to another refrigerator or freezer, observe a minimum distance of 2 cm to prevent condensation.

- Do not put very (!) hot food or bowl on the top table. It can damage the toptable.

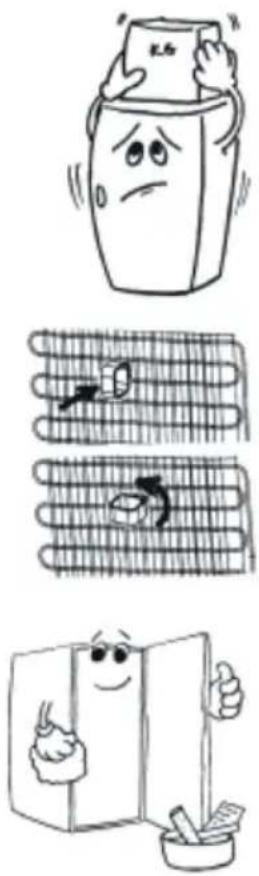

- Fit the plastic wall spacers to the condenser at the back of the refrigerator in order to prevent leaning to the wall for good performance.

- The appliance must be stand firmly and level on the floor use levelling-feet to compensate for an even floor.

- The outside of the appliance and the accessories inside should be cleaned with a solution of water and liquid soap; the inside of the appliance with sodium bicarbonate dissolved in lukewarm water. After drying replace all the accessories.

Cartoon illustration of a smiling container, broken glass, and open box with hands (no text or symbols)

Before Switching On

- Wait after 3 hours before plugging the appliance in to the power to ensure proper performance.

- There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.

PART-2. THE VARIOUS FUNCTION AND POSSIBILITIES

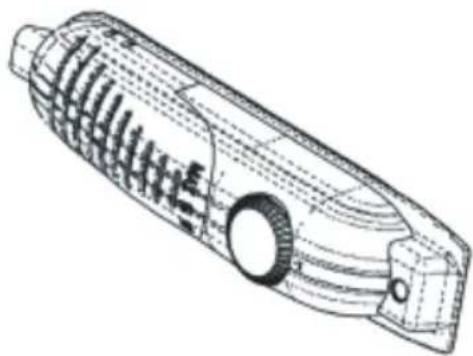

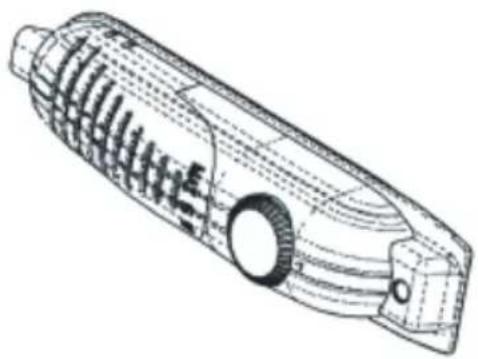

Thermostat Setting

Technical line drawing of a mechanical component with no visible text or symbols

- Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1. to 5., colder temperatures can be obtained.

- « 0 » position shows thermostat is closed and no cooling is available.

- For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.(1-3)

- For long-term storage of food in the freezer compartment, you can set knop medium position.(3-4)

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

- When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.

- In this time do not open the door so often and place a lot of food inside the appliance.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

• The freezer of the refrigerator can cool up to -12^ C.

Accessories

"Door Open" Indicator;

Diagram of a device with a green indicator light and arrow pointing to a component (no text or symbols present)

• The « Door Open » indicator on the handle shows whether the door has closed properly or whether it is still open.
• If the indicator is red, the door is still open.
• If the indicator is white, the door is properly closed.
• Observe that the freezer's door should always be kept closed. This will prevent food products from defrosting; it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption.

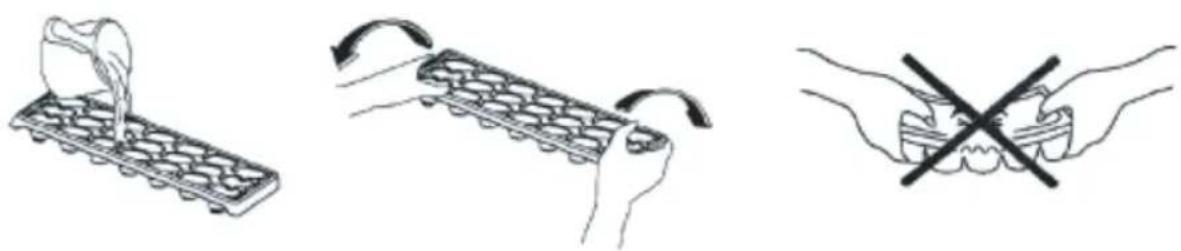

Making Ice cubes;

Ice tray ; (In some models)

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration of three hand-drawn steps: using an abacus to move, holding a toothbrush, and cutting a tooth with a crossed-out tool (no text or symbols)

PART- 3. CLEANING AND MAINTENANCE

• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed reconnect the plug of the unit with dry hands.

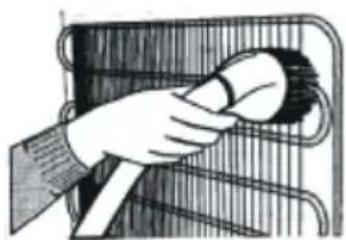

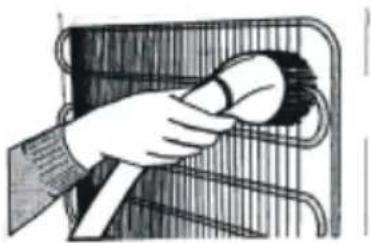

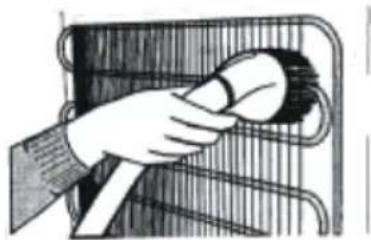

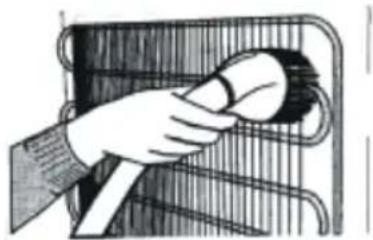

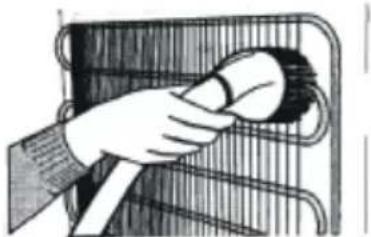

• You should clean the condenser with broom at least twice a year in order to provide energy saving and increase the productivity.

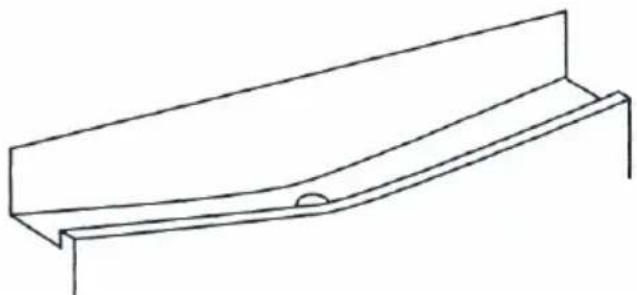

Defrosting

For cooler compartment ;

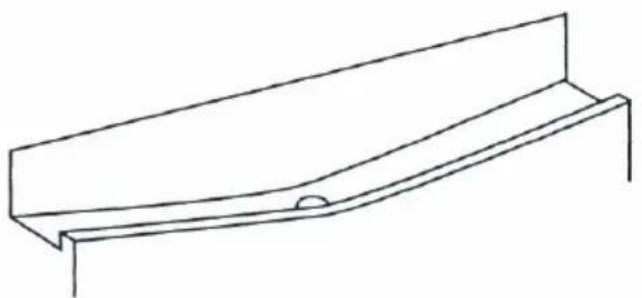

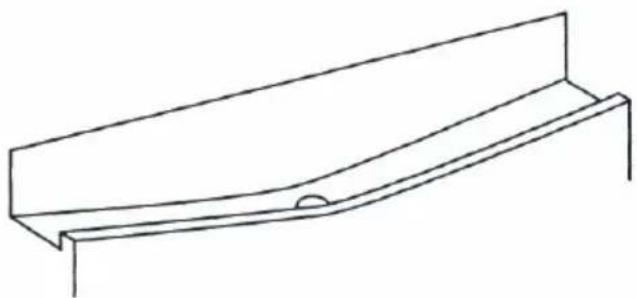

Line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

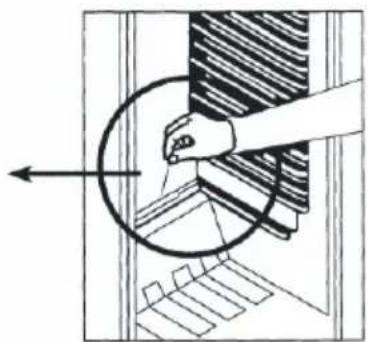

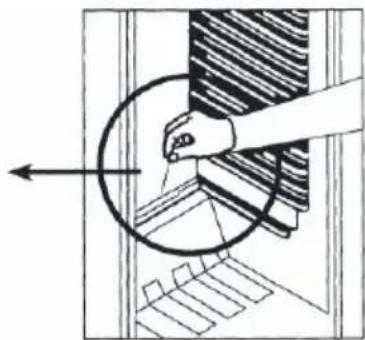

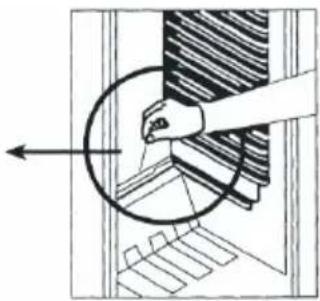

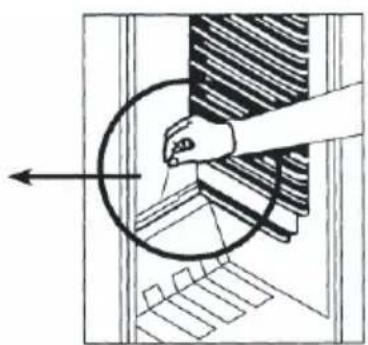

Diagram showing a hand holding a circular object with an arrow pointing to it, surrounded by layered materials (no text or symbols)

• Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evoparates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
• You can also pour 12 glass of the water to drain hole to clean inside.

For freezer compartment;

The frost, accumulated in the freezer compartment, should be removed periodically. The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.

For this;

- The day before you defrost, set the thermostat dial to 5. position to freeze the foods completely.

- During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

- Switch the refrigerator off at the socket outlet and pull the main plug

- Leave the door open and to accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.

- Dry the inside of the unit and water tray, refit the tray plug and set the thermostat knob to 5 position.

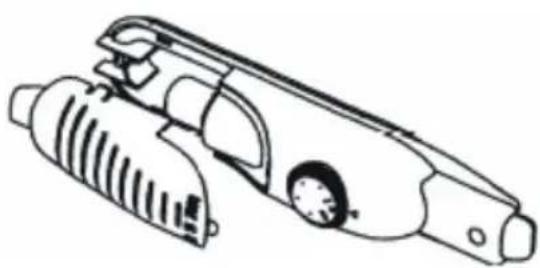

Replacing The Light Bulb

Line drawing of a mechanical device with no visible text or symbols

When replacing the light of the refrigerator compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

- The original packages and foamed polystyrene (PS) can be concealed if required.

- In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.

- Before transporting or changing old installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent the shake.

Simple line drawing of two children playing a board game (no text or symbols)

Changing of Door Opening Direction (for some models)

In case you need to change door-opening direction, please consult the domestic after sales service.

PART-5. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ; Check that ;

- There is no power,

• The general switch in your home is not disconnected,

- The thermostat setting is on « 0 » position,

- The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ; Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,

• There is no dust on the condenser,

• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

• The appliance is well leveled,
- Nothing is touching the rear,
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator ;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of refrigerators is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, according to weather the compressor is running or not. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick layer forms on the wall.
• If the appliance is not used for long time (for example during the summer holidays) set to thermostat knob to « 0 » position. Defrost and clean the refrigerator leaving the door open to prevent the formation of midew and smell.

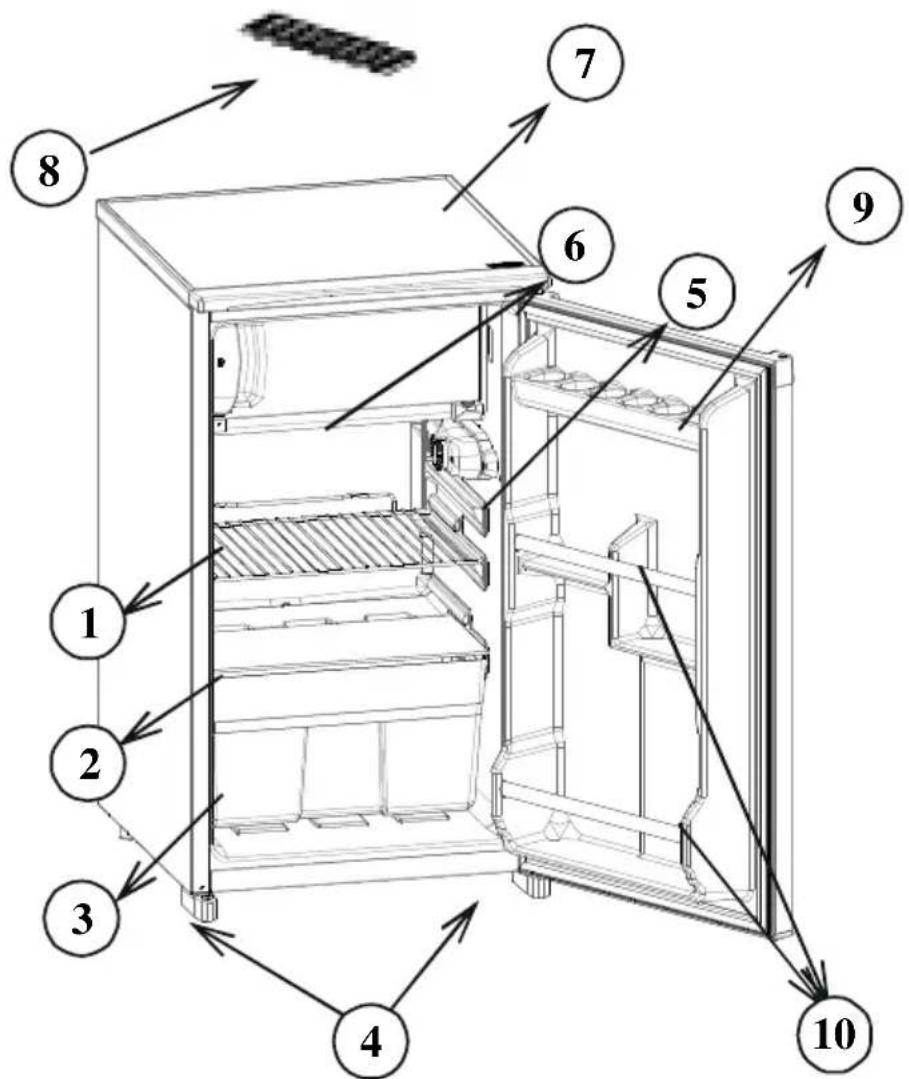

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) REFRIGERATOR SHELF
2) CRISPER COVER (SAFETY GLASS -In some models-)
3) CRISPER
4) LEVELING FEET
5) THERMOSTAT BOX
6) FREEZER COMPARTMENT
7) TOP TABLE
8) ICE TRAY
9) EGG SHELF
10) BOTTLE SHELF

SADRŽAJ

PRIJE UPORABE UREĐAJA 13

Sigurnosna pravila 13

Preporuke 14

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Illustration of three hands performing a rope knotting technique (no text or symbols present)

• Ne dozvolite djeci da se igraju uređajem. Djeca NIKAD ne smiju sjediti na ladicama ili se ljuljati na vratima.
• Ne upotrebljavajte oštre metalne predmete za odstranjivanje leda iz zamrzivača; mogli bi probušiti rashladni ciklus, te prouzročiti nepopravljivu štetu na hladnjaku.
• Ne ukapčajte električni kabel mokrim rukama.
• Ne stavljajte ambalažu ( staklene boce ili limenke ) sa tekućinom u zamrzivač, posebno treba paziti na gaziranu tekućinu, jer bi se mogla rasprsnuti u procesu zamrzavanja.
• Boce koje sadrže visok postotak alkohola moraju biti dobro zatvorene i odložene vertikalno.
• Ne dodirujte površine za hlađenje, pogotovo ne sa mokrim rukama, jer bi se mogli ozlijediti.

Illustration of a cartoon character holding a door, with a smiling face and a crossed-out prohibition symbol below (no text or labels)

Cartoon illustration of a book character, broken books, and a smiling book with a bandage (no text or symbols)

- Uređaj treba stajati čvrst na podlozi i biti ravan sa podom. Upotrijebite regulirajuče prednie nožice da bi ste kompenzirali neravnine na podu.

- Vanjski dio uređaja kao i unutrašnji dijelovi čiste se mješavinom vode i tekućeg sapuna ; unutrašnjost uređaja čisti se sa sodom bikarbonom koja je razrijeđena u mlakoj vodi.

Prije uključivanja

Simple line drawing of a hand holding a smiling face icon next to a square (no text or symbols)

2. DIO RAZLIČITE KARAKTERISTIKE I MOGUČNOSTI

Podešavanje termostata

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

- Termostat automatski ugađa temperaturu u hladnjaku i zamrzivaču. Postavljanjem gumba termostata od položaja 1 do položaja 5, u hladnjaku i zamrzivaču se snizuje temperatura hlađenja.

Diagram of a white appliance with a green indicator light and arrow pointing to a wall (no text or symbols)

Illustration of three hand positions: abacus, abacus with a leaf, and abacus with a crossed-out handle (no text or symbols)

3. DIO ČIŠĆENJE I ODRŽAVANJE

Simple line drawing of a hand reaching toward a box with a smiling face (no text or symbols)

- Hladnjak bi se trebao periodički čistiti otopinom sode-bikarbone i mlake vode.

- Dodatke čistite odvojeno sa sapunom i vodom. Ne čistite ih u perilici suđa.

- Ne upotrebljavajte grube četke, deterđente i sapune. Nakon pranja isplahnite površinu čistom vodom i pažljivo osušite. Nakon što je čišćenje završeno, uključite utikač u utičnicu sa suhim rukama.

Cartoon illustration of a smiling refrigerator with hands, accompanied by a cup and a teapot (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Cartoon illustration of a smiling rectangular character waving, with two smaller bottles nearby (no text or symbols)

Illustration of a hand holding a cylindrical object inside a container (no text or symbols visible)

Odleđivanje

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand holding a circular object with an arrow pointing to a textured surface (no text or symbols)

Line drawing of a mechanical device with internal components and a circular feature (no text or symbols)

Simple line drawing of two children playing a board game (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, no text or labels present

Illustration of three hands performing a rope knotting technique (no text or symbols present)

Cartoon illustration of a character peeking from behind a door (no text or symbols)

Cartoon illustration showing a sad container, broken pipes with a magnifying glass, and a smiling refrigerator with a thumbs-up (no text or symbols)

Simple line drawing of a hand holding a smiling face icon next to a square (no text or symbols)

2. DEL RAZLIČNE FUNKCIJE IN MOŽNOSTI

Nastavljanje termostata

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

- Termostat samodejno uravnava temperaturo v hladilniku in zamrzovalniku. Z vrtenjem gumba od položaja 1 proti 5 se temperatura viša.

- Na položaju "0" je termostat izključen in naprava ne hladi.

- Za kratkotrajno shranjevanje hrane v zamrzovalniku termostatski gumb namestite na položaje med 1 in 3.

- Za dolgotrajno shranjevanje hrane v zamrzovalniku termostatski gumb namestite na položaj med 3 in 4.

- Vedite, da temperatura prostora, temperatura na novo shranjene hrane in pogostost odpiranja vrat vplivajo na temperaturo v predelu hladilnika. Če je potrebno, spremenite temperaturno nastavitev.

Simple diagram of a device with a green arrow pointing to a component, no text or symbols present.

Illustration showing three steps of a hand holding an abacus, with one hand using a tool to press the object (no text or symbols present)

3. DEL ČIŠČENJE IN VZDRŽEVANJE

Simple line drawing of a hand pouring liquid from a container into a bag (no text or symbols)

Cartoon illustration of a refrigerator with a smiley face, hand gesture, and food items (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two smaller bottles (no text or symbols)

Illustration of a hand holding a tool inside a rack (no text or symbols visible)

Odmrzovanje

Predel hladilnika

Line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand holding a circular object with an arrow pointing to a textured surface, no text or symbols present.

Line drawing of a mechanical device with internal components and a circular component (no text or symbols)

Za zamenjavo žarnice sledite tem navodilom:

Simple line drawing of two children playing a board game (no text or symbols)

Symbol of a trash bin crossed with no text or labels

Illustration of three hands performing a rope knotting technique (no text or symbols present)

Cartoon illustration of a person peeking out of a door, no text or symbols present

Cartoon illustration showing a character holding a mug, broken down into three panels: a sad face, a broken sheet with arrows, and a smiling refrigerator with a thumbs-up (no text or symbols)

Simple line drawing of a hand holding a smiling face emoji next to a square character (no text or symbols)

Čat' 2. RÔZNE FUNKCIE A MOŽNOSTI

Nastavenie termostatu

Technical line drawing of a mechanical component with threaded ends and a central circular feature (no text or symbols)

Close-up of a white appliance with a green indicator light and arrow pointing to a small component (no text or symbols visible)

Illustration showing three different hand positions: a tray with a flower, a abacus with arrows indicating rotation, and a hand holding a tool with a crossed-out black cross (no text or symbols)

Čat' 3. ČISTENIE A ÚDRŽBA

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small cup and a teapot (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two smaller bottles (no text or symbols)

Illustration of a hand holding a small object inside a rack (no text or symbols visible)

Odleđivanje

Odmrazovanie chladiaceho oddelenia;

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand holding a circular object with an arrow pointing to it, overlaid on a grid pattern (no text or symbols)

- V chladiacom oddelení sa odmrazovanie uskutočnuje automaticky počas chodu spotrebiča, odmrazená voda sa zhromažduje v odparovacej miske a automaticky vyparuje.

Line drawing of a mechanical device with internal components and a circular component (no text or symbols)

Simple line drawing of two children playing a game with a block (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Illustration showing three different techniques for connecting wires, no text or symbols present

Cartoon illustration of a character peeking out of a door (no text or symbols)

Cartoon illustration showing a sad container, broken sheets of paper with arrows, and a smiling box with a thumbs-up (no text or symbols)

Simple line drawing of a hand holding a smiling square emoji (no text or symbols)

ČÁST 2. RŮZNÉ FUNKCE A MOŽNOSTI

Seřízení termostatu

Technical line drawing of a mechanical component with threaded ends and a central circular feature (no text or symbols)

Diagram of a device with a green arrow pointing to a component, no text or symbols present

Illustration showing three different hand positions: a tray with a leaf, a abacus with arrows indicating rotation, and a fork with a crossed-out fork (no text or symbols)

ČÁST 3. ČIŠTĚNÍ A ÚDRŽBA

Cartoon illustration of a smiling refrigerator with gloves and two smaller containers (no text or symbols)

Cartoon illustration of a smiling rectangular character waving to two smaller bottles (no text or symbols)

Illustration of a hand holding a small object inside a container (no text or symbols visible)

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand holding a circular object with an arrow pointing to a textured surface (no text or symbols)

Line drawing of a mechanical tool or device with no visible text or symbols

Simple line drawing of two children playing a board game (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Illustration of three hands performing a rope knotting technique (no text or symbols present)

Cartoon illustration of a character peeking out of a door (no text or symbols)

Cartoon illustration of four different scenes: a smiling container with a sad face, broken sheets of paper, a broken notebook, and a smiling refrigerator with a thumbs-up (no text or symbols)

Simple line drawing of a hand holding a smiling emoji-shaped object (no text or symbols)

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

Close-up of a white electronic device with a green indicator light and arrow pointing to its side (no text or symbols visible)

Illustration of three hand-drawn steps: abacus, moving cart with object, and no hand holding a tool (no text or symbols)

Simple line drawing of a hand holding a small object near a box, with no text or symbols present.

Cartoon illustration of a smiling refrigerator with gloves, accompanied by a teacup and bucket (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two smaller bottles (no text or symbols)

Illustration of a hand holding a small object over a metal rack (no text or symbols visible)

Leolvasztás

Hűtőknél

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand holding a circular object over a window, with an arrow indicating direction (no text or symbols present)

Line drawing of a mechanical device with internal components and a circular component (no text or symbols)

Simple line drawing of two children playing a board game (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Illustration of three hands performing rope knotting techniques (no text or symbols)

Cartoon illustration of a character peeking out of a door (no text or symbols)

Cartoon illustration of a milk can and a refrigerator with expressive faces (no text or symbols)

Simple line drawing of two figures inside a coiled tube (no text or symbols)

Simple line drawing of a hand holding a smiling emoji-shaped object (no text or symbols)

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

Diagram of a toilet with a green indicator light and arrow pointing to the outlet (no text or symbols present)

Illustration showing three different hand positions: an abacus, a moving abacus, and a hand holding a toothbrush (no text or symbols present)

3. CZĘŚĆ CZYSZCZENIE I KONSERWACJA

Simple line drawing of a hand reaching toward a box with a bird inside (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands cleaning its door, accompanied by a small cup and a bag (no text or symbols)

Cartoon illustration of a smiling rectangular character waving, with two smaller bottles nearby (no text or symbols)

Illustration of a hand holding a circular object over a rack (no text or symbols visible)

Rozmrażanie

Komora chłodziarki

Simple line drawing of a structural beam or support bracket (no text or symbols)

Diagram showing a hand interacting with a circular object, possibly a mechanical or architectural component (no text or symbols present)

Line drawing of a mechanical device with internal components and a circular component (no text or symbols)

Simple line drawing of two children playing a board game (no text or symbols)

Illustration of three hands performing a rope knotting technique (no text or symbols present)

Cartoon illustration of a character peeking from behind a door (no text or symbols)

Technical line drawing of a mechanical component with threaded ends and a central circular feature (no text or symbols)

Top-down view of a white electronic device with a green indicator light and arrow pointing to it (no text or symbols visible)

Illustration showing three steps of a hand holding an abacus, with one hand using a tool and the other no crossing (no text or symbols present)

Simple line drawing of a hand reaching toward a door with a smiling face (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands, accompanied by a paint bucket and a teapot (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two smaller bottles (no text or symbols)

Illustration of a hand holding a small object inside a container (no text or symbols visible)

Dezghetarea

Line drawing of a structural beam or support component (no text or symbols)

Diagram showing a hand interacting with a circular object, possibly a mechanical or architectural component (no text or symbols present)

Line drawing of a mechanical device with internal components and a circular component (no text or symbols)

Simple line drawing of two children playing a board game (no text or symbols)
