MTF170W15E - Freezer MATSUI - Free user manual and instructions

Product Type	Upright Freezer
Model Number	MTF170W15E
Dimensions (W x D x H)	600 x 600 x 1700 mm
Frozen Food Storage Volume	225 L
Storage Temperature	≤ -18°C
Freezing Capacity	11 kg / 24h
Temperature Rise Time	≥ 10.5 hours
Energy Consumption	0.686 kWh / 24h (250 kWh/year)
Energy Efficiency Class	A+
Climate Class	N/ST (16°C - 38°C ambient)
Noise Level	42 dB(A)
Defrosting Type	Manual Defrost
Rated Voltage	220-240 V~
Rated Current	0.45 A
Door Reversible	Yes (left or right opening)
Number of Drawers	7 (1 bottom, 5 small, 1 large)
Included Accessories	Ice tray, door handle, spacers, hinge cover
Installation Clearance	25 mm sides, 50 mm rear, 25 mm top
Levelling Feet	Adjustable front feet
Cleaning	Mild bicarbonate soda solution
Safety Features	Child lock, door lock (key supplied)

Frequently Asked Questions - MTF170W15E MATSUI

How do I adjust the temperature on my Matsui MTF170W15E freezer?

Turn the thermostat control dial inside the freezer. The recommended setting is NORMAL for ambient temperatures between 16°C and 38°C. Use MIN for less cold or MAX for fast freezing.

What is the fast freeze function and how do I use it?

Set the thermostat to MAX to enable fast freezing. This makes the freezer operate continuously at approx. -28°C. Freezing completes after 24 hours; then return the dial to NORMAL.

How do I defrost my freezer?

When frost builds up to 10mm, remove food, turn off and leave the door open. Use a plastic scraper to remove frost. You can place a bowl of hot water inside to speed up defrosting. Do not use metal tools or electrical appliances.

Can I reverse the door opening direction?

Yes, the door is reversible. You will need a Philips screwdriver, flat bladed screwdriver, and hexagonal spanner. Follow the instructions in the manual or contact a qualified technician. The unit must be unplugged and tilted backwards during the process.

How do I clean the interior of my freezer?

Remove all drawers. Wipe inside with a weak solution of bicarbonate soda and warm water, then rinse and dry completely. The exterior can be cleaned with a damp cloth and furniture polish (avoid the magnetic door seal).

Why is my freezer making unusual noises?

Noises such as gurgling or hissing are normal and caused by the refrigerant circulating in the cooling system. Compressor sounds are also normal. These do not affect performance.

What is the energy consumption of the MTF170W15E?

The freezer consumes 0.686 kWh per 24 hours (250 kWh per year) under standard test conditions. Actual consumption depends on usage and location.

How much food can I store in this freezer?

The total frozen food storage volume is 225 litres. It has 7 drawers: 1 bottom, 5 small, and 1 large drawer.

Is there an ice tray included?

Yes, an ice tray is included with the freezer. Fill it with water and place it in the freezer to make ice cubes.

How do I lock the freezer door?

The freezer has a lock with a key. Keep the key out of reach of children. To lock, insert and turn the key. Ensure the door is properly closed before locking.

USER MANUAL MTF170W15E MATSUI

White rectangular refrigerator with a single side door, no visible text or symbols on the body.

TALL FREEZER

Instruction manual

GB

STÅENDE FRYSESKAP

Instruksjonsmanual

NO

HÖG FRYS

Instruktionsbok

SE

SUURI PAKASTIN

käyttöopas

FI

H∅J FRYSER

brugervejlednIng

DK

Safety Warnings....8

Unpacking....14

Installation....15

Location 15

Levelling the Unit 15

Installing the Spacers....15

Free Space Requirements 15

Installing the Door Handle....16

Reversing the Door Swing 17

Cleaning Before Use 19

Before Using Your Unit 19

Product Overview 20

Operation 21

Switching On Your Unit 21

Adjusting the Temperature....21

Fast Freezing 21

Noises Inside the Unit! 21

Preparations for Freezing 22

Defrosting Frozen Food 22

Cleaning 23

Defrosting 23

Cleaning the Interior and the Exterior of the Unit....23

Maintenance 24

Care When Handling / Moving the Unit 24

Servicing....24

Switching Off for Long Periods of Time 24

Condensation 24

Disposal 24

Specifications.... 25

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:

– staff kichen areas in shops, office and other working environment;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (if applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Sikkerhetsadvarsler

NO

Thank you for purchasing your new Matsui Freezer.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

GB

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a simple rectangular box with a flat top and two corner supports at the bottom (no text or symbols)

The Main Unit

Simple line drawing of a rectangular box with a recessed top and internal slots (no text or symbols)

Bottom Freezer Drawer x 1

Small Freezer Drawer x 5

Door Handle

Simple line drawing of a rectangular electronic component with a central slot and mounting holes (no text or symbols)

Large Freezer Drawer x 1

Ice Tray

Spacer x 2

Door Handle Screw Cap x 2

Door Handle Screw Hole Plug x 2

Hinge Cover x 1

Instruction Manual

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

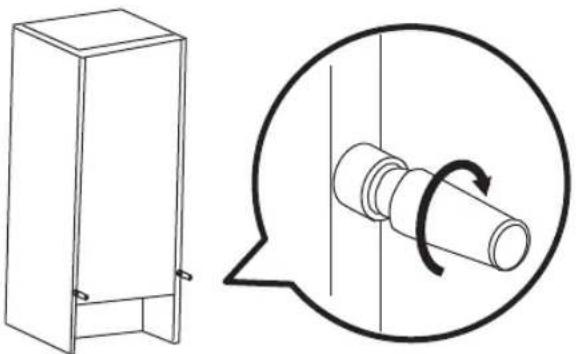

Installing the Spacers

Screw the spacers to the left and right side of the unit's rear part.

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle of 160^ .

Installing the Door Handle

1. Remove the screws. Place the door handle in place and screw tightly. Cover the screw holes with the door handle screw caps.

Pure electrical circuit lines without any symbols

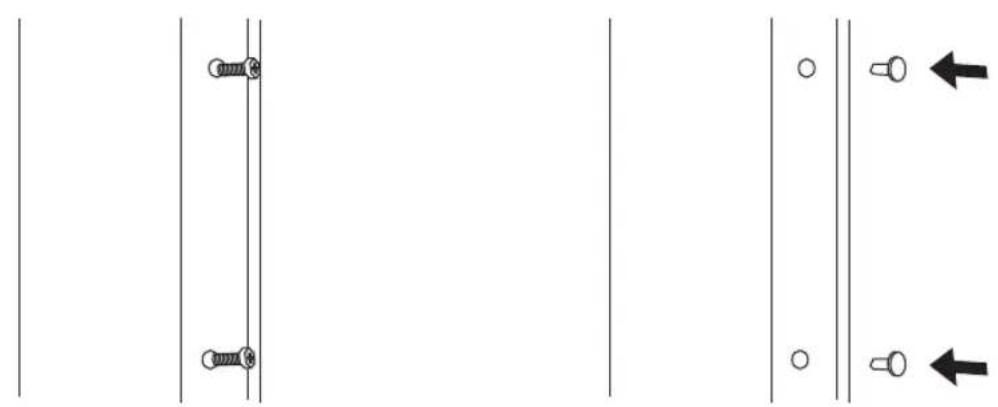

1. For the other side with no door handle attached, remove the screws. Then cover the screw holes with the door handle screw hole plugs.

Pure electrical circuit lines without any symbols

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

1. Remove the screw from the top hinge cover and then take the cover and the triangular metal away. Remove the screws from the top hinge and then take the top hinge away.

Diagram of a device with arrows indicating movement or force, no text or symbols present

1. Remove the levelling feet. Remove the screws from the bottom hinge and then take the bottom hinge away.

Mechanical assembly diagram showing a rotating shaft and mounting bracket with a black arrow indicating direction (no text or symbols)

1. Lift the door away from the unit. Place it on a padded surface to avoid scratching.

Line drawing of a corner joint or bracket structure (no text or symbols)

INSTALLATION

1. Install the top hinge, screws, triangular metal and top hinge cover on the other side.

Simple line drawing of a rectangular device with a small protrusion and arrows indicating motion (no text or symbols)

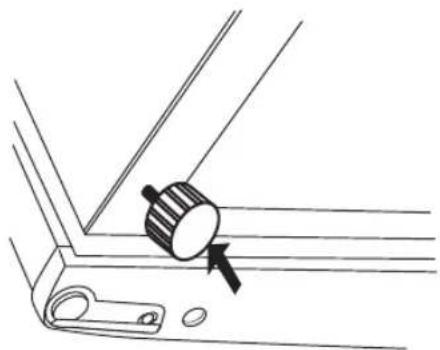

1. Reverse the position of the bottom hinge and then install it with the screws on the other side. Adjust both the levelling feet to balance the unit.

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

1. Place the door on the bottom hinge. Make sure it is the right way up. Secure the door tightly with the bottom hinge.

Technical line drawing of a mechanical component with a knob and mounting bracket (no text or symbols)

1. Align the door with the top hinge. Secure it tightly with the top hinge. Re-adjust the position of the door handle.

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

GB

Isometric line drawing of a rectangular grid pattern with triangular cutouts (no text or symbols)

Ice Tray

Switching On Your Unit

• Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are three settings MIN, NORMAL, and MAX.
• After the unit has been on for 20 minutes adjust the thermostat control dial to NORMAL. This is the recommended setting when operating at normal room temperature (between 16°C and 38°C).
• The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
• To ensure that the unit is cool enough to sufficiently chill and freeze your food, wait 24 hours before filling it with food.
• If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be between -18°C or lower.

Thermostat Control Dial

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. MAX position makes the appliance coldest and it is used for fast freezing. The recommended position is between Min and Max but should be adjusted according to its environment.

Fast Freezing

Fresh food should be frozen as quickly as possible. Setting MAX makes your freezer operate continually and get colder (approx. -28°C). It will therefore freeze quicker and retain more of the goodness of your food. Freezing will be complete after 24 hours. Turn the thermostat control dial back to position NORMAL, to allow the freezer to return to its normal temperature (-18°C). Never freeze large quantities of fresh food at one time.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Preparations for Freezing

- Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.

- Leave cooked food to cool completely. Chill food before freezing if possible.

- Consider how you will want to cook the food before freezing it.

- Don't freeze food in metal containers if you may want to microwave it straight from the freezer.

- Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.

- Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Line drawing of a hand pouring liquid from a container into a container with a spoon (no text or symbols)

Defrosting Frozen Food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.

2. Drain off and throw away any liquid lost during defrosting.

3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.

4. Cook food as soon as possible after defrosting.

5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Defrosting

Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10mm.

Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick rug or blanket to keep it cool.
2. Place a shallow bowl or pan below the unit. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the unit and closing the door. As the solid frost loosens, scrape it away with the plastic scraper and remove.
3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove all the drawers before cleaning.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the unit, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Model MTF170W15E
Frozen Food Storage Volume 225L	* * * *
Storage Temperature ≤ -18°C
Energy Consumption 0.686 kWh / 24h
Energy consumption 250 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Appliances Category Category 8 (upright freezer)
Energy Grading A+
EU Ecolabel N/A
Defrosting Type Manual Defrost
Climate Class N/ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 42dB(A)
Temperature Rise Time ≥10.5hr
Freezing Capacity 11kg / 24h
Rated Voltage	220-240V~
Rated Current	0.45A
Overall Dimension (W x D x H)	600 x 600 x 1700 mm

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte ny Matsui Fryser.

Line drawing of a simple rectangular box with a flat top and side legs (no text or symbols)

Hovedenheten

Simple line drawing of a rectangular box with a slot on top (no text or symbols)

Nedre fryserskuff x 1

Liten fryserskuff x 5

Dørhåndtak

Stor fryserskuff x 1

Isterningbrett

Avstandsholder bakside x 2

Innstallering av avstandsstykker

Technical line drawing of a cabinet with a magnified inset showing a rotating cylindrical component (no text or symbols)

Plassbehov

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram of a device with an open lid and directional arrows indicating movement or force (no text or symbols)

Mechanical assembly diagram showing a rotating component with a black arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

INSTALLASJON

Line drawing of a rectangular electronic device with mounting points and a small component, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with a knob and mounting bracket (no text or symbols)

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

Rengjøring før bruk

Isometric line drawing of a rectangular grid pattern with triangular cutouts (no text or symbols)

Isterningbrett

Slå på enheten

Line drawing of a hand pouring liquid into a container with a spoon (no text or symbols)

Simple line drawing of a rectangular box with no text or symbols

Huvudenhet

Simple line drawing of a rectangular box with a recessed top and two circular indentations on the side (no text or symbols)

Nedre fryslåda x 1

Liten fryslåda x 5

Dörrhandtag

Simple line drawing of a rectangular electronic component with a slot and mounting bracket (no text or symbols)

Stor fryslåda x 1

Islåda

Bakre distanser x 2

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Luftcirkulationsbehov

Montera dörrhandtaget

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram of a device with directional arrows indicating movement or force (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating motion direction (no text or symbols present)

Line drawing of a mechanical part with a small circular feature and angled edge (no text or symbols)

INSTALLATION

Simple line drawing of a rectangular device with a small protrusion and arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with a knob and mounting bracket (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Isometric line drawing of a rectangular grid pattern with triangular cutouts (no text or symbols)

Islåda

Slå på din enhet

Termostatkontrollratt

Line drawing of a hand pouring liquid from a container into a bowl (no text or symbols)

Tina upp fryst mat

Line drawing of a rectangular cabinet or enclosure with no text or symbols

Laite

Simple line drawing of a rectangular box with a recessed top and internal slots (no text or symbols)

Alapakastinlokero x 1

Pieni pakastinlokero x 5

Oven kahvan

Simple line drawing of a rectangular box with a slot and four dots on the side (no text or symbols)

Technical line drawing of a cabinet with a magnified inset showing a rotating cylindrical component (no text or symbols)

Oven kahvan asentaminen

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram of a device with an open lid and directional arrows indicating movement or force (no text or symbols)

Mechanical assembly diagram showing a rotating component with a black arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical part or bracket (no text or symbols)

ASENNUS

Simple line drawing of a rectangular device with a small protrusion and arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with a knob and mounting bracket (no text or symbols)

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

Line drawing of a hand pouring liquid into a container with a spoon (no text or symbols)

Pakastetun ruoan sulatus

Simple line drawing of a rectangular box with no text or symbols

Hovedenheden

Simple line drawing of a rectangular box with a recessed top and two circular holes on the side (no text or symbols)

Nedre fryserskuffe x 1

Lille fryserskuffe x 5

Lågehändtaget

Simple line drawing of a rectangular box with a slot and four dots on the side (no text or symbols)

Stor fryserskuffe x 1

Pure geometric pattern of nested triangular and hexagonal shapes within a rectangular frame (no text or symbols)

Isbakke

Technical line drawing of a cabinet with a magnified inset showing a rotating cylindrical component (no text or symbols)

Krav til fri plads

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure technical diagram of a device with arrows indicating movement or force, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with a rotating shaft and guide rails (no text or symbols)

Pure technical line drawing of a mechanical part or bracket (no text or symbols)

INSTALLATION

Line drawing of a rectangular electronic device with mounting holes and a dashed line indicating alignment or connection (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating motion direction (no text or symbols)

Technical line drawing of a mechanical component with a knob and mounting bracket (no text or symbols)

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

Rengøring før brug

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

lsbakke

Termostat kontrolhjul

DK

Line drawing of a hand pouring liquid into a container with a spoon (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
