CIF 125 - Freezer Frigor - Free user manual and instructions

Product Type	Freezer
Brand	Frigor
Model	CIF 125
Voltage	230 V / 50 Hz
Fuse Rating	13 A (recommended)
Thermostat Control	Adjustable rotary knob (positions 1-5)
Defrosting Method	Manual scraping when frost layer reaches 3 mm
Interior Light	Yes, with switch at back
Door Lock	Yes, supplied with lock
Cooling System	Hermetically sealed compressor, no PCB oil
Condenser Cleaning	Use vacuum cleaner and stiff brush; do not hose with water
Interior Cleaning	Mild soap solution, avoid chlorine or harsh cleansers
Ventilation	Distance pieces included for rear ventilation
Power Cord	3-core, green/yellow earth, blue neutral, brown live
Safety Features	Earthing required; do not store flammable materials
Environmentally Friendly	No asbestos, no CFCs, PCB-free oil
Disposal	Follow local regulations for environmentally correct disposal

Frequently Asked Questions - CIF 125 Frigor

How do I start the freezer for the first time?

After unpacking, wait 2 hours if transported vertically. Clean the interior, fit the ventilation distance pieces, then plug in. Set the thermostat to position 5 initially.

How do I adjust the temperature?

Use the thermostat button at the back. Turn clockwise to lower the temperature, anticlockwise to raise. Check with a thermometer after stabilization.

When should I defrost the freezer?

Defrost when the frost layer reaches 3 mm. Scrape off with a plastic implement without switching off. If dirty, switch off and let frost melt before cleaning.

How do I clean the freezer?

Switch off at the socket. Use a light soap solution for surfaces. Do not use chlorine-based cleansers. Clean the condenser and compressor with a vacuum and brush; do not hose with water.

What should I do if the freezer is not cooling?

Check for a power cut. If not, contact your supplier with the model and serial number (found on the rating label inside top right).

How do I use the interior light?

The interior light is controlled by a switch at the back of the cabinet.

Is there a lock on the door?

Yes, the freezer comes with a lock in the door.

What are the electrical requirements?

The freezer operates on 230 V / 50 Hz and requires a 13 A fuse. The wall socket must be properly earthed and easily accessible.

Can I store flammable materials in the freezer?

No, do not store inflammable materials such as thinner or gasoline in the cabinet.

How should I dispose of the freezer?

Dispose of in an environmentally correct manner according to local regulations.

USER MANUAL CIF 125 Frigor

Important safety instructions 7

Unpacking and installation 7

Electrical connection 7

Start-up of the cabinet 8

Thermostat 8

Defrosting 8

Light 9

Lock 9

Maintenance and cleaning 9

Service 10

Disposal 10

D Inhalt

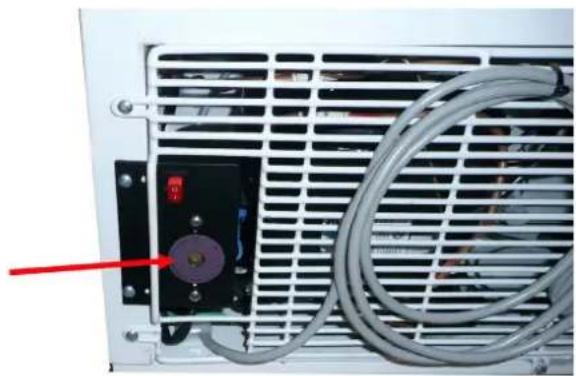

Termostaten

Close-up of an electronic device rear panel with a red arrow pointing to a component, showing no visible text or symbols.

Close-up of an electronic device rear panel with a cable and indicator lights, no visible text or symbols

Lås

Close-up of a glass door with a red arrow pointing to the bottom-left corner (no text or symbols visible)

Vedligeholdelse

Afbryd fryseren på stikkontakten.

Important safety instructions

1. To obtain full use of the cabinet, we recommend reading this instruction manual.
2. It is the user's responsibility to operate the appliance in accordance with the instructions given.
3. Contact your dealer immediately in case of any malfunctions.
4. Place the cabinet in a dry and ventilated place.
5. Keep the cabinet away from strongly heat-emitting sources and do not expose it to direct sunlight.
6. Always keep in mind that all electrical devices are sources of potential danger.
7. Do not store inflammable material such as thinner, gasoline etc. in the cabinet.
8. We declare that no asbestos nor any CFC are used in the construction.
9. The oil in the compressor does not contain PCB.

Unpacking and installation

Carefully examine the cabinet for shipping damage before discarding the packing material. If any damage is found, contact the delivery carrier immediately and have his agent prepare an inspection report for the purpose of registering a claim.

THIS IS YOUR RESPONSIBILITY.

Electrical connecting

The cabinet operates on 230 V/50 Hz.

The wall socket should be easily accessible.

All earthing requirements stipulated by the local electricity authorities must be observed. The cabinet plug and wall socket should then give correct earthing. If in doubt, contact your local supplier or authorized electrician.

The flexible cord fitted to this appliance has three cores for use with a 3-pin 13-Amp or 3-pin 15-Amp plug. If a B.S. 1363 (13-Amp) fused plug is used, it should be fitted with a 13-Amp fuse.

The wires in this mains lead are coloured in accordance with the following code: Green/Yellow: Earth, Blue: Neutral, Brown: Live.

The main electrical connections must be done by skilled electricians.

Start-up of the cabinet

Before use, we recommend that the cabinet is cleaned, see the section on maintenance and cleaning.

Important!

If the cabinet has been vertically placed during transport, please wait 2 hours before starting up the cabinet.

2 distance pieces are included for mounting on the back of the freezer. These ensure that the freezer is sufficiently ventilated. They should be fitted in the predrilled holes as shown on the photo.

Thermostat

Back view of an electronic device with a central control panel and coiled cables (no visible text or symbols)

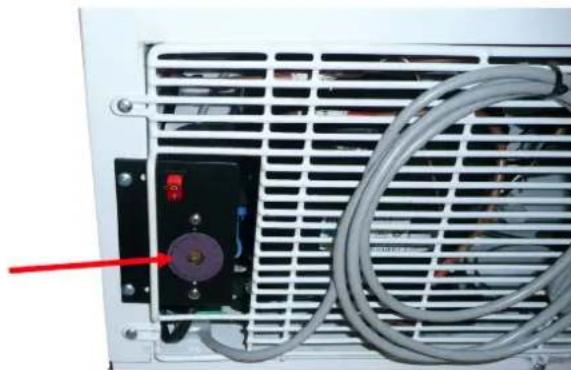

The temperature can be adjusted by using the thermostat button at the back of the cabinet. Set to position 5 on the thermostat scale. Place a thermometer approx. 10 cm inside the cabinet on the top shelf and check the temperature once it has achieved steady conditions. Turn the thermostat button clockwise if the temperature is too high or anti-clockwise of the temperature is too low.

Defrosting

A layer of frost gradually forms inside the cabinet. When the layer is 3 mm thick it should be scraped off using a plastic scraping implement, and removed from the cabinet without switching off. The cabinet is then ready for use again. If the cabinet is dirty inside, it should be switched off at the mains so the layer of frost can melt before cleaning commences.

Light

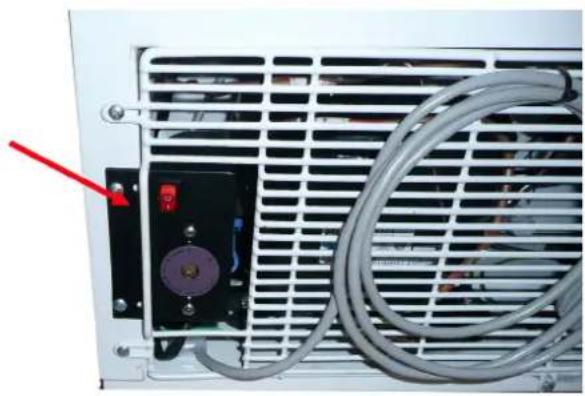

The freezer is equipped with a switch for the internal light at the back of the cabinet.

Close-up of a server rack with ventilation grilles and a cable, no visible text or symbols

Lock

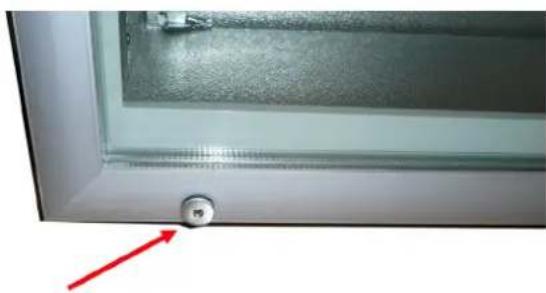

The freezer is supplied with a lock in the door.

Close-up of a glass door with a red arrow pointing to a button labeled 'PS' (no text or symbols on the door itself)

Maintenance and cleaning

Switch the freezer off at the socket.

The cabinet must be periodically cleaned. Clean the external and internal surfaces of the cabinet with a light soap solution and subsequently wipe dry.

Do NOT use cleansers containing chlorine or other harsh cleansers, as these can damage the surfaces and the internal cooling system.

Clean the condenser and the compressor compartment using a vacuum cleaner and a stiff brush.

Do NOT hose the compressor compartment with water as this can cause short circuits and damage on the electrical parts.

Service

The cooling system is a hermetically sealed system and does not require supervision, only cleaning.

If the cabinet fails to cool, check if the reason is a power cut.

If you cannot locate the reason to the failure of the cabinet, please contact your supplier. Please inform model and serial number of the cabinet. You can find this information on the rating label which is placed inside the cabinet in the top right hand side.

Disposal

Disposal of the cabinet must take place in an environmentally correct way. Please note existing regulation on disposal. There may be special requirements and conditions which must be observed.

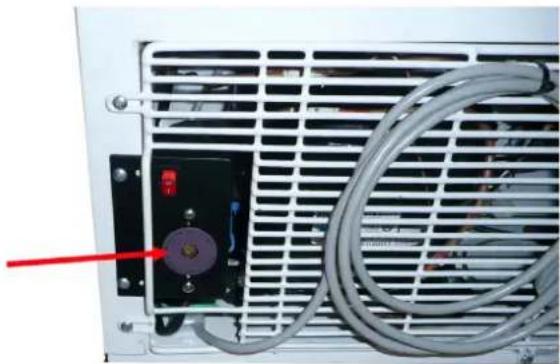

Temperaturregelung

Close-up of an electronic device rear panel with a red indicator light and coiled cable, no visible text or symbols

Close-up of a server rack with ventilation grilles and coiled cables, no visible text or symbols

Schloß

Close-up of a glass door with a red arrow pointing to a small button (no text or symbols visible)
