CIF 47 - Freezer Frigor - Free user manual and instructions

Product Type	Chest Freezer
Brand	Frigor
Model	CIF 47
Net Capacity	100 L
Energy Efficiency Class	A+
Annual Energy Consumption	150 kWh
Climatic Class	N-ST
Noise Level	40 dB(A)
Temperature Range	-18°C to -24°C
Freezing Capacity	8 kg/24h
Power Supply	220-240 V, 50 Hz
Power Consumption	100 W
Dimensions (H x W x D)	85 x 55 x 60 cm
Weight	30 kg
Control Type	Mechanical Thermostat
Defrost Method	Manual
Fast Freeze Function	Yes
Door Alarm	Optional
Interior Light	No
Refrigerant	R600a

Frequently Asked Questions - CIF 47 Frigor

How do I set the temperature on my Frigor CIF 47 freezer?

Turn the thermostat dial located inside the freezer. Numbers 1-7 correspond to colder settings; 7 is the coldest. We recommend setting to 3-4 for normal use.

How often should I defrost the Frigor CIF 47?

Defrost when ice build-up exceeds 5 mm (approx. every 6-12 months). Remove food, unplug, and let ice melt naturally. Do not use sharp objects.

Why is my freezer not freezing properly?

Check if the door is sealed properly, thermostat is set correctly, and the condenser coils are clean. If problem persists, the compressor or refrigerant may be faulty.

Can I store hot food in the freezer?

No, allow hot food to cool to room temperature before freezing to avoid raising freezer temperature and overworking the compressor.

What does the fast freeze function do?

Activate fast freeze 24 hours before adding large amounts of fresh food. It lowers temperature rapidly to preserve food quality. Turn off after food is frozen.

How do I clean my Frigor CIF 47?

Unplug the freezer and remove all food. Clean interior with a mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners.

What is the maximum storage time for frozen food?

Generally 3-6 months for meat, 6-12 months for vegetables. Check packaging for specific recommendations. Always label food with freezing date.

Why is there frost build-up in my freezer?

Frost occurs when moist air enters the freezer. Ensure door is closed tightly, avoid frequent openings, and do not leave food uncovered. Defrost as needed.

Can I change the door swing direction?

No, the door on the Frigor CIF 47 is non-reversible. It is fixed to open on one side. Plan placement accordingly.

What spare parts are available for the Frigor CIF 47?

Common spare parts include door gaskets, thermostat, shelves, and hinges. Contact Frigor customer service or authorized dealers for genuine parts.

USER MANUAL CIF 47 Frigor

Important safety instructions 7

Unpacking and installation 7

Electrical connection 7

Start-up of the cabinet 8

Thermostat 8

Defrosting 8

Light 9

Lock 9

Maintenance and cleaning 9

Service 10

Disposal 10

D Inhalt

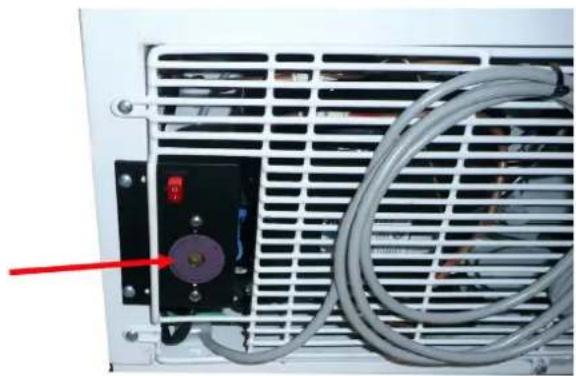

Termostaten

Close-up of an electronic device rear panel with a red arrow pointing to a component, showing no visible text or symbols.

Close-up of an electronic device panel with a black ventilation grille and coiled cable, no visible text or symbols

Lås

Close-up of a glass door with a red arrow pointing to the bottom-left corner (no text or symbols visible)

Vedligeholdelse

Afbryd fryseren på stikkontakten.

Important safety instructions

1. To obtain full use of the cabinet, we recommend reading this instruction manual.
2. It is the user's responsibility to operate the appliance in accordance with the instructions given.
3. Contact your dealer immediately in case of any malfunctions.
4. Place the cabinet in a dry and ventilated place.
5. Keep the cabinet away from strongly heat-emitting sources and do not expose it to direct sunlight.
6. Always keep in mind that all electrical devices are sources of potential danger.
7. Do not store inflammable material such as thinner, gasoline etc. in the cabinet.
8. We declare that no asbestos nor any CFC are used in the construction.
9. The oil in the compressor does not contain PCB.

Unpacking and installation

Carefully examine the cabinet for shipping damage before discarding the packing material. If any damage is found, contact the delivery carrier immediately and have his agent prepare an inspection report for the purpose of registering a claim.

THIS IS YOUR RESPONSIBILITY.

Electrical connecting

The cabinet operates on 230 V/50 Hz.

The wall socket should be easily accessible.

All earthing requirements stipulated by the local electricity authorities must be observed. The cabinet plug and wall socket should then give correct earthing. If in doubt, contact your local supplier or authorized electrician.

The flexible cord fitted to this appliance has three cores for use with a 3-pin 13-Amp or 3-pin 15-Amp plug. If a B.S. 1363 (13-Amp) fused plug is used, it should be fitted with a 13-Amp fuse.

The wires in this mains lead are coloured in accordance with the following code: Green/Yellow: Earth, Blue: Neutral, Brown: Live.

The main electrical connections must be done by skilled electricians.

Start-up of the cabinet

Before use, we recommend that the cabinet is cleaned, see the section on maintenance and cleaning.

Important!

If the cabinet has been vertically placed during transport, please wait 2 hours before starting up the cabinet.

2 distance pieces are included for mounting on the back of the freezer. These ensure that the freezer is sufficiently ventilated. They should be fitted in the predrilled holes as shown on the photo.

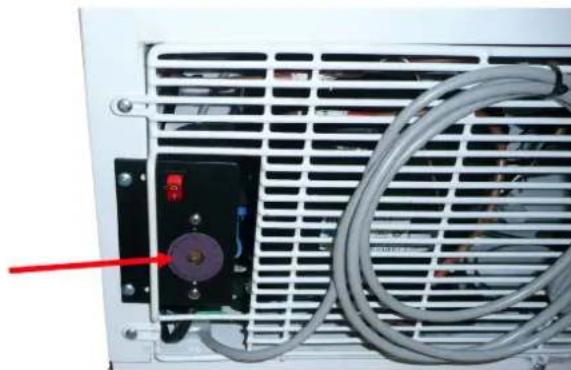

Thermostat

Back view of an electronic device with a central control panel and coiled cables (no visible text or symbols)

The temperature can be adjusted by using the thermostat button at the back of the cabinet. Set to position 5 on the thermostat scale. Place a thermometer approx. 10 cm inside the cabinet on the top shelf and check the temperature once it has achieved steady conditions. Turn the thermostat button clockwise if the temperature is too high or anti-clockwise of the temperature is too low.

Defrosting

A layer of frost gradually forms inside the cabinet. When the layer is 3 mm thick it should be scraped off using a plastic scraping implement, and removed from the cabinet without switching off. The cabinet is then ready for use again. If the cabinet is dirty inside, it should be switched off at the mains so the layer of frost can melt before cleaning commences.

Light

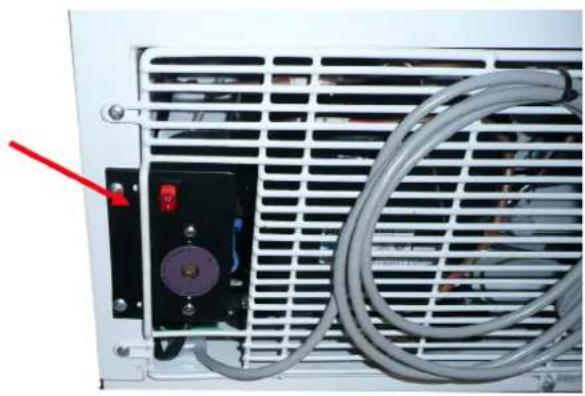

The freezer is equipped with a switch for the internal light at the back of the cabinet.

Close-up of a server rack with ventilation grilles and a cable, no visible text or symbols

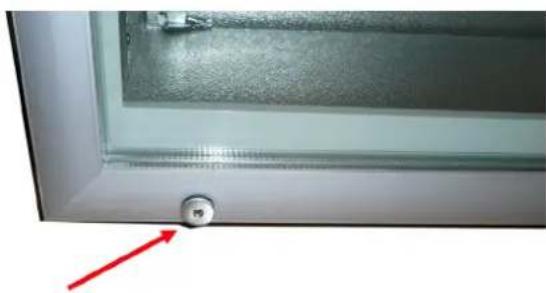

Lock

The freezer is supplied with a lock in the door.

Close-up of a glass door with a red arrow pointing to a button labeled 'PS' (no text or symbols on the door itself)

Maintenance and cleaning

Switch the freezer off at the socket.

The cabinet must be periodically cleaned. Clean the external and internal surfaces of the cabinet with a light soap solution and subsequently wipe dry.

Do NOT use cleansers containing chlorine or other harsh cleansers, as these can damage the surfaces and the internal cooling system.

Clean the condenser and the compressor compartment using a vacuum cleaner and a stiff brush.

Do NOT hose the compressor compartment with water as this can cause short circuits and damage on the electrical parts.

Service

The cooling system is a hermetically sealed system and does not require supervision, only cleaning.

If the cabinet fails to cool, check if the reason is a power cut.

If you cannot locate the reason to the failure of the cabinet, please contact your supplier. Please inform model and serial number of the cabinet. You can find this information on the rating label which is placed inside the cabinet in the top right hand side.

Disposal

Disposal of the cabinet must take place in an environmentally correct way. Please note existing regulation on disposal. There may be special requirements and conditions which must be observed.

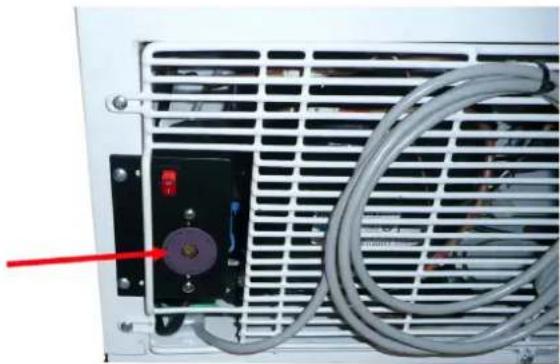

Temperaturregelung

Close-up of an electronic device rear panel with a red indicator light and coiled cable, no visible text or symbols

Close-up of a server rack with ventilation grilles and a cable, no visible text or symbols

Schloß

Close-up of a glass door with a red arrow pointing to a small button (no text or symbols visible)
