Product Type	Washing machine
Brand	UPO
Model	8640D Pesukarhu
Dimensions (Width x Height x Depth)	40.0 x 90.0 x 60.0 cm
Maximum Load	6.0 kg
Maximum Spin Speed	1400 rpm
Water Pressure	min. 0.05 MPa - max. 1 MPa
Power Supply	230V~, 50Hz (see rating plate for max absorbed power)
Control Technology	Electronic with EASY LOGIC system
Programs	Cotton (90°, 75°, 60°, 40°, 30°), Synthetics (60°, 40°, 30°), Delicates (40°, 30°), Wool (40°, 30°, Cold), Hand Wash, Quick Wash, Daily Wash, Rinse, Drain and Spin
Optional Functions	Pre-wash, Intensive wash, Extra rinses, Anti-crease
Delayed Start	Up to 16 hours
Variable Spin	Adjustable spin speed including no spin (00)
Display	LED display showing cycle time and settings
Loading Type	Top-loading
Safety Features	Out-of-balance protection, door lock
Energy Label Program	Cotton 60°C with intensive wash and max spin
Woolmark Approved	Yes (wool program)
Installation	Freestanding

Frequently Asked Questions - 8640D Pesukarhu UPO

How does the EASY LOGIC system work?

The EASY LOGIC system automatically detects the laundry load size and adjusts water usage and wash time accordingly, saving water, time, and energy. It reduces water by 2 liters per kg less than maximum load and may skip one rinse for half-loads. This function is active only for cotton programs.

How to use the delayed start function?

Press the delayed start button (I) repeatedly to set a delay from 1 to 16 hours. The display shows the delay time. Then press the start button (L); the machine will wait the set time before beginning the cycle. The dots on the display will flash during delay.

What should I do if the laundry is unbalanced during spin?

The machine has an out-of-balance protection system. Before each spin, it attempts to redistribute the clothes evenly. If imbalance remains, the spin speed is reduced, and if severely unbalanced, the spin cycle is canceled. To fix, redistribute the laundry manually and restart.

Can I open the lid during a wash cycle?

No, for safety reasons the lid is locked during the cycle. To open after a reset, turn the program knob to STOP, wait 2 minutes for the door to unlock, then open. Use this only if strictly necessary and within 3 minutes of starting.

What is the maximum load capacity?

The maximum recommended load is 6.0 kg for cotton and most programs, but some programs like wool or delicates may require a lower load. Refer to the program table for specifics.

How to select extra rinses?

Press the 'Extra rinses' button (part of optional functions button C). The machine will add three additional rinses. This is useful for areas with soft water or if detergent residues remain.

What does the anti-crease function do?

When activated, the drum continues to rotate for 30 minutes after the cycle ends, reducing creases. The maximum spin speed is limited to 800 rpm. This function does not work on the wool program.

How to vary the spin speed?

Press the spin selection button (H) repeatedly to cycle through available speeds. The display shows the selected spin speed. To exclude spin completely, set to '00'. The maximum speed depends on the program.

Which programs can use the pre-wash function?

The pre-wash function is available on Cotton, Synthetics, and Daily Wash programs. It performs a short pre-wash at up to 40°C for about 10 minutes. Remember to add detergent to the pre-wash compartment.

How to read the display during a cycle?

When you select a program, the display shows the estimated cycle duration in minutes. During the cycle, the time counts down. At the end, 'END' appears. In cotton programs, the time may adjust automatically based on load and conditions.

USER MANUAL 8640D Pesukarhu UPO

PESUKONEEN TÄRKEIMMÄT TOIMINNOT

PESUKONEEN KÄYTTÖ

"EASY LOGIC"-TEKNOLOGIA

TEHOPESU:

I Knapp for utsatt start

Kontroll av ubalanse i sentrifugen:

ANVENDELSE AF VASKEMASKINEN

"EASY LOGIC" TEKNOLOGI

PRINCIPAL FUNCTIONS OF THE WASHING MACHINE

A LED Start
B Display
C Optional functions button
H Spin selection button
L Start button
I Delayed Start button
P Program and temperature knob

USE OF THE WASHING MACHINE

"EASY LOGIC" TECHNOLOGY

The electronic washing machine is fitted with an “EASY LOGIC” system that automatically recognises the quantity of washing loaded. The machine can thus regulate the amount of water to use for the wash and proportion the wash time accordingly, thus saving water, time and energy. In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the wash will be reduced by 2 litres for each kg less of washing.

In the case of a half-load or less, the machine will automatically carry out one rinse less than programmed.

N.B. The "EASY LOGIC" function is only active for cotton programmes.

WASHING CYCLE:

(If this sequence of operations is followed, the washing machine will carry out the washing cycle that is set)

1. Open the top lid and drum
2. Load the washing in the drum and carefully close the drum doors.

Warning: You must not overload the washing machine. It is not recommended to wash articles that absorb a large amount of water, for example carpets.

1. Add a low-suds detergent and softener designed for automatic washing machines in the respective compartments of the detergent drawer (see chapter "USE OF DETERGENTS").
2. Close the top lid.
3. Turn the program selector knob (P) choosing the desired program and temperature to match the type of fabric to be washed (see: PROGRAM TABLES").

N.B. When the knob is set, the duration of the chosen cycle in minutes appears on the display. During the cycle the time shown decreases until 'END' appears, indicating the end of the program.

1. Choose the desired spin speed pressing button (H) (see "VARIABLE SPIN").
2. Select the buttons (C) with the functions to be used (see "OPTIONAL FUNCTIONS"). The pressed buttons will light up and the time shown on the display will vary according to the functions that are set.
3. Press button (I) if required (see "DELAYED START").
4. Press button (L) to start the washing cycle (see "START BUTTON").
5. At the end of the wash, turn the program selector knob (P) to "STOP".
6. Open the top lid and drum doors and remove the washing.
7. With dry hands, remove the washing machine plug from the mains socket.
8. Close the water supply tap.

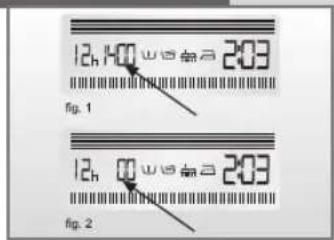

VARIABLE SPIN:

The machine offers a wide choice of spin settings that can be selected before starting the program. To vary the spin setting just press button (H) until the desired value is reached (fi g. 1); if you wish to exclude the spin, press the button until "00" appears on the display (fi g. 2).

N.B. The maximum spin speed varies according to the model and is shown on the machine display. The maximum spin speed that can be selected decreases with the program that is set.

Out of balance spin protection for the load:

This washing machine is equipped with a special electronic control system for the correct balancing of the load. Before each spin, the system makes the clothes arrange themselves in the drum in the most even way possible. In case of irregular distribution of the laundry, for safety reasons the spin speed is reduced and in cases of the load being greatly out of balance, the spin cycle will not be effected.

DISPLAY AND DURATION OF THE WASHING CYCLE:

With each program selected with the knob (P), the corresponding spin speed and the duration of the cycle will appear on the display; this time will decrease until it arrives at zero when the program is finished and "END" appears on the display. At this point it will be possible to take out the laundry.

N.B. In the “Cotton” programs, the duration of the washing cycle initially shown by the display can vary, since it can be affected by various factors such as temperature, water inlet pressure and quantity of laundry loaded in the drum. During the wash, the machine’s electronics will automatically alter the time needed for the cycle set according to these factors, thus achieving the best performance in the best time.

DELAYED START BUTTON:

The machine is equipped with a function that enables you to delay the wash for up to a maximum of 16 hours; each time button (I) is pressed, the display will show the hours to wait from 1...to 16 before the machine begins the washing cycle. When key (L) is pressed, the washing machine will wait the set number of hours and will then automatically begin the washing cycle.

Activation of the delay is indicated by the flashing of the dots on the display.

START BUTTON:

After having carried out all the operations described in points 1 to 8 in the paragraph "WASHING CYCLE" press this button and the washing machine will begin its washing cycle. The relative LED will light up after 2-3 seconds, to indicate that the door is locked and the program has started.

"STOP" ON THE PROGRAM SELECTOR:

The function of stop is to reset the washing machine. If for any reason during the washing cycle you decide to vary it, or decide later to add more laundry, all you have to do is turn the knob of the program selector to the "STOP" position, then reset the knob to the new program chosen and press the "START" button.

Warning!! It is recommended to use this function only if strictly necessary and solely if the program to be reset has started not more than 3 minutes previously. Before being able to open the door after a reset, you must wait 2 minutes for it to be unlocked.

If one of the buttons listed below is selected, its symbol will appear on the display. While if you realize that you have selected it by mistake or you have changed your mind, to cancel the option, press it again.

PRE-WASH:

When this button is pressed, a short pre-wash with a maximum temperature of 40^irc C lasting for about 10 minutes is provided. This function can only be used on the "COTTON, SYNTHETICS and DAILY" programs.

N.B. If you use this option, the detergent must also be poured into the appropriate compartment for the pre-wash.

INTENSIVE WASH:

When this button is pressed, the machine will carry out a wash at the set temperature but which lasts longer. This button works on the "COTTON and SYNTHETICS" programs.

ADDITIONAL RINSE:

The washing machine has been built so that water consumption is reduced to a minimum. For areas with very soft water or in the case possible residues of detergent are noticed at the end of the cycle, pressing this button the machine will add three extra rinses.

ANTI-CREASE:

When this button is pressed, at the end of the washing cycle the clothes in the washing machine continue to revolve for another thirty minutes reducing creases. With this function the maximum working spin speed is 800 rpm. The function does not work for the "WOOL" program.

N.B. Use of the optional functions is restricted by the type of program chosen; so, if the program does not allow the function, it will not be possible to enable the button (see PROGRAM TABLE).

PROGRAM TABLES

PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	SPINN SPEED	BUTTONS ENABLED				AUTOMATIC
						PREWASH	eINTENSIVE	EXTRA RINSES	ANTICREASE
COTTON	90°		Heavily soiled white cotton fabrics with organic stains.		Max (or lower)			3 (+3)
COTTON	75°		Sheets, shirts, tablecloths, towels that are resistant and heavily soiled		Max (or lower)			3 (+3)
COTTON*	60°		For shirts, tablecloths, towels that are resistant and normally soiled		Max (or lower)			3 (+3)
COTTON	40°		White and coloured fabrics that are resistant and heavily soiled		Max (or lower)			3 (+3)

FUNCTION ENABLED ○ FUNCTION DISABLED ⚪ OPTIONAL WITH PRE-WASH BUTTON PRESSED

* Benchmark program for energy classification, in accordance with the EN 60456 standard, running at max. spin speed and with (INTENSIV) energetic wash button selected.

PROGRAMMER KNOB	WASH TEMPE-RATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	SPINN SPEED	BUTTONS ENABLED				AUTOMATIC
						PREWASH INTENSIVE		EXTRA RINSES	ANTICREASE	[YBCW]
COTTON	30irc		Delicate coloured fabrics that are lightly soiled		Max(or lower)			(+3)
SYNTHETICS	60irc		Colourfast synthetic fabrics that are heavily soiled		800(or lower)			(+3)
SYNTHETICS	40irc		Delicate coloured synthetic fabrics that are lightly soiled		800(or lower)			(+3)
SYNTHETICS	30irc		Delicate coloured synthetic fabrics that are lightly soiled		800(or lower)			(+3)
DELICATES	40irc		Delicate cotton, viscous and mixed delicate fabrics		500(or lower)
DELICATES	30irc		Delicate cotton, viscous and mixed delicate fabrics		500(or lower)
WOOL***	40irc		Machine washable wool		800(or lower)
WOOL	30irc		Machine washable wool		800(or lower)					[2KK6]
WOOL	COLD		Machine washable wool, silk and delicate mixed fabrics		800(or lower)
HAND WASH	30irc		Hand washable fabrics		800(or lower)					[5WS4]
QUICK WASH▶	35irc		Quick wash of approximate duration 35-40 minutes for lightly soiled fabrics.		Max(or lower)
DAI Y WASH	60irc		Short wash for cotton and resistant fabrics requiring frequent washing		Max(or lower)			(+3)
DAI Y WASH	40irc		Short wash for cotton and resistant fabrics requiring frequent washing		Max(or lower)			[BAXC] (+3)
RINSESC(656)	—		To rinse and refresh the washing		Max(or lower)			(+3)
DR/CYXZ AND SPIN	—		Drain and final spin		Max(or lower)

FUNCTION ENABLED ○ FUNCTION DISABLED

OPTIONAL WITH PRE-WASH BUTTON PRESSED

** Press start to continue the program.
*** The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M0402-M0403-M0404-M0405.

MODEL →		PESUKARHU 8600D	PESUKARHU 8610D	PESUKARHU 8620D	PESUKARHU 8630D MINIMAX 6380D	PESUKARHU 8640D WT 6045D
Dimensions:	Width cm.:	40.0	40.0	40.0	40.0	40.0
	Height cm.:	90.0	90.0	90.0	90.0	90.0
	Depth cm.:	60.0	60.0	60.0	60.0	60.0
Maximum recommended load:		6,0 Kg	6,0 Kg	6,0 Kg	6,0 Kg	6,0 Kg
		4.0 Kg	4.0 Kg	4.0 Kg	4.0 Kg	4.0 Kg
		3,0 Kg	3,0 Kg	3,0 Kg	3,0 Kg	3,0 Kg
		1,5 Kg	1,5 Kg	1,5 Kg	1,5 Kg	1,5 Kg
Max. spin: (rpm)		1000	1100	1200	1300	1400
Water pressure:		min. 0.05 MPa - max. 1 MPa
Max. absorbed power/Electrical connection		see rating plate

NOTES:
