Product Type	Freestanding Washing Machine
Brand	UPO
Model	WT6045D
Capacity	6 kg
Maximum Spin Speed	1200 rpm
Energy Efficiency Class	A+
Annual Energy Consumption	180 kWh/year
Annual Water Consumption	9500 L/year
Noise Level (Wash/Spin)	58 / 75 dB(A)
Dimensions (H x W x D)	85 x 60 x 50 cm
Net Weight	65 kg
Power Supply	220-240 V ~ 50 Hz, 10 A
Power Consumption (Wash/Spin)	2200 W / 500 W
Programs	Cotton, Synthetics, Delicates, Quick Wash, Wool, Rinse & Spin, Drum Clean
Temperature Settings	Cold, 30°C, 40°C, 60°C, 90°C
Special Functions	Delay Start, Child Lock, Half Load, Extra Rinse
Drum Material	Stainless Steel
Door Type	Front Loading, 180° Opening
Control Type	Electronic with LED Display
Safety Features	Overflow Protection, Child Lock, Unbalanced Load Detection, Overheating Protection
Maintenance and Cleaning	Clean detergent drawer, filter, and door seal regularly; run drum clean cycle monthly
Spare Parts and Repairability	Available from authorized service centers; spare parts such as door seal, drain pump, control board, and belt
General Information	Designed for household use; not intended for commercial use. Refer to user manual for detailed instructions.

Frequently Asked Questions - WT6045D UPO

How do I install the UPO WT6045D washing machine?

Ensure the machine is placed on a level surface. Remove all packaging and transport bolts. Connect the water inlet hose to a tap with a 3/4 inch thread and ensure the drain hose is properly secured. Plug into a grounded socket. Level the machine by adjusting the feet. Run the drum clean program before first use.

What does the error code E20 mean on my WT6045D?

Error E20 typically indicates a problem with the drainage system. Check if the drain hose is kinked or clogged, and clean the drain pump filter. If the issue persists, contact customer support.

How can I clean the detergent drawer?

Press the release button inside the drawer to remove it completely. Rinse under warm water and use a brush to remove residue. Wipe dry and reinsert. Repeat every 2-3 months or if detergent buildup is visible.

Why does my washing machine vibrate excessively during spin?

Ensure the machine is leveled and all transport bolts are removed. Do not overload the drum. Distribute heavy items evenly. Check if the floor is uneven or too weak. Reducing spin speed can help.

How do I activate the child lock feature?

Press and hold the 'Child Lock' button (if available) or a combination of buttons as per the manual. A lock icon will appear on the display. Deactivate by repeating the same procedure. Refer to the user manual for exact steps.

What is the maximum spin speed of the WT6045D?

The maximum spin speed is 1200 rpm. You can adjust it using the spin speed selector. Lower speeds are recommended for delicate fabrics.

How often should I clean the drain pump filter?

Clean the drain pump filter every 2-3 months or if you notice draining issues. Open the bottom cover, place a towel, unscrew the filter, remove debris, and tighten it back. Ensure the machine is empty before cleaning.

Can I use liquid detergent with the UPO WT6045D?

Yes, liquid detergent is suitable. Use the appropriate compartment in the detergent drawer. For pre-wash, add liquid in the designated compartment. Avoid overfilling to prevent foam overflow.

How do I run the drum clean cycle?

Select the 'Drum Clean' or 'Self Clean' program (if available). If not, run a hot cycle (90°C) with a drum cleaning agent or a cup of white vinegar. No laundry inside. Perform monthly.

What should I do if the door does not open after a cycle?

Wait 2-3 minutes after the cycle ends for the door lock to release. If still locked, check if there is water inside or if the child lock is active. Force open the door only as a last resort by using the emergency release cord (if equipped).

USER MANUAL WT6045D UPO

PESUKONEEN TÄRKEIMMÄT TOIMINNOT

PESUKONEEN KÄYTTÖ

"EASY LOGIC"-TEKNOLOGIA

TEHOPESU:

I Knapp for utsatt start

ANVENDELSE AF VASKEMASKINEN

"EASY LOGIC" TEKNOLOGI

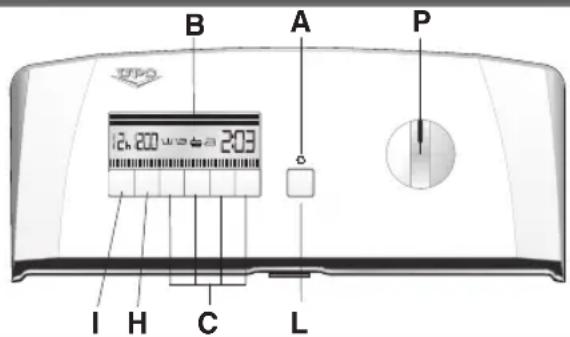

PRINCIPAL FUNCTIONS OF THE WASHING MACHINE

A LED Start
B Display
C Optional functions button
H Spin selection button
L Start button
I Delayed Start button
P Program and temperature knob

USE OF THE WASHING MACHINE

"EASY LOGIC" TECHNOLOGY

The electronic washing machine is fitted with an “EASY LOGIC” system that automatically recognises the quantity of washing loaded. The machine can thus regulate the amount of water to use for the wash and proportion the wash time accordingly, thus saving water, time and energy. In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the wash will be reduced by 2 litres for each kg less of washing.

In the case of a half-load or less, the machine will automatically carry out one rinse less than programmed.

N.B. The "EASY LOGIC" function is only active for cotton programmes.

WASHING CYCLE:

(If this sequence of operations is followed, the washing machine will carry out the washing cycle that is set)

1. Open the top lid and drum
2. Load the washing in the drum and carefully close the drum doors.

Warning: You must not overload the washing machine. It is not recommended to wash articles that absorb a large amount of water, for example carpets.

1. Add a low-suds detergent and softener designed for automatic washing machines in the respective compartments of the detergent drawer (see chapter "USE OF DETERGENTS").
2. Close the top lid.
3. Turn the program selector knob (P) choosing the desired program and temperature to match the type of fabric to be washed (see: PROGRAM TABLES").

N.B. When the knob is set, the duration of the chosen cycle in minutes appears on the display. During the cycle the time shown decreases until 'END' appears, indicating the end of the program.

1. Choose the desired spin speed pressing button (H) (see "VARIABLE SPIN").
2. Select the buttons (C) with the functions to be used (see "OPTIONAL FUNCTIONS"). The pressed buttons will light up and the time shown on the display will vary according to the functions that are set.
3. Press button (I) if required (see "DELAYED START").
4. Press button (L) to start the washing cycle (see "START BUTTON").
5. At the end of the wash, turn the program selector knob (P) to "STOP".
6. Open the top lid and drum doors and remove the washing.
7. With dry hands, remove the washing machine plug from the mains socket.
8. Close the water supply tap.

VARIABLE SPIN:

The machine offers a wide choice of spin settings that can be selected before starting the program. To vary the spin setting just press button (H) until the desired value is reached (fi g. 1); if you wish to exclude the spin, press the button until "00" appears on the display (fi g. 2).

N.B. The maximum spin speed varies according to the model and is shown on the machine display. The maximum spin speed that can be selected decreases with the program that is set.

Out of balance spin protection for the load:

This washing machine is equipped with a special electronic control system for the correct balancing of the load. Before each spin, the system makes the clothes arrange themselves in the drum in the most even way possible. In case of irregular distribution of the laundry, for safety reasons the spin speed is reduced and in cases of the load being greatly out of balance, the spin cycle will not be effected.

DISPLAY AND DURATION OF THE WASHING CYCLE:

With each program selected with the knob (P), the corresponding spin speed and the duration of the cycle will appear on the display; this time will decrease until it arrives at zero when the program is finished and "END" appears on the display. At this point it will be possible to take out the laundry.

N.B. In the “Cotton” programs, the duration of the washing cycle initially shown by the display can vary, since it can be affected by various factors such as temperature, water inlet pressure and quantity of laundry loaded in the drum. During the wash, the machine’s electronics will automatically alter the time needed for the cycle set according to these factors, thus achieving the best performance in the best time.

DELAYED START BUTTON:

The machine is equipped with a function that enables you to delay the wash for up to a maximum of 16 hours; each time button (I) is pressed, the display will show the hours to wait from 1...to 16 before the machine begins the washing cycle. When key (L) is pressed, the washing machine will wait the set number of hours and will then automatically begin the washing cycle.

Activation of the delay is indicated by the flashing of the dots on the display.

START BUTTON:

After having carried out all the operations described in points 1 to 8 in the paragraph "WASHING CYCLE" press this button and the washing machine will begin its washing cycle. The relative LED will light up after 2-3 seconds, to indicate that the door is locked and the program has started.

"STOP" ON THE PROGRAM SELECTOR:

The function of stop is to reset the washing machine. If for any reason during the washing cycle you decide to vary it, or decide later to add more laundry, all you have to do is turn the knob of the program selector to the "STOP" position, then reset the knob to the new program chosen and press the "START" button.

Warning!! It is recommended to use this function only if strictly necessary and solely if the program to be reset has started not more than 3 minutes previously. Before being able to open the door after a reset, you must wait 2 minutes for it to be unlocked.

If one of the buttons listed below is selected, its symbol will appear on the display. While if you realize that you have selected it by mistake or you have changed your mind, to cancel the option, press it again.

PRE-WASH:

When this button is pressed, a short pre-wash with a maximum temperature of 40^ C lasting for about 10 minutes is provided. This function can only be used on the "COTTON, SYNTHETICS and DAILY" programs.

N.B. If you use this option, the detergent must also be poured into the appropriate compartment for the pre-wash.

INTENSIVE WASH:

When this button is pressed, the machine will carry out a wash at the set temperature but which lasts longer. This button works on the "COTTON and SYNTHETICS" programs.

ADDITIONAL RINSE:

The washing machine has been built so that water consumption is reduced to a minimum. For areas with very soft water or in the case possible residues of detergent are noticed at the end of the cycle, pressing this button the machine will add three extra rinses.

ANTI-CREASE:

When this button is pressed, at the end of the washing cycle the clothes in the washing machine continue to revolve for another thirty minutes reducing creases. With this function the maximum working spin speed is 800 rpm. The function does not work for the "WOOL" program.

N.B. Use of the optional functions is restricted by the type of program chosen; so, if the program does not allow the function, it will not be possible to enable the button (see PROGRAM TABLE).

PROGRAM TABLES

PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	SPINN SPEED	BUTTONS ENABLED				AUTOMATIC
						PREWASH	eINTENSIVE	EXTRA RINSES	ANTICREASE
COTTON	90°		Heavily soiled white cotton fabrics with organic stains.		Max (or lower)			3 (+3)
COTTON	75°		Sheets, shirts, tablecloths, towels that are resistant and heavily soiled		Max (or lower)			3 (+3)
COTTON*	60°		For shirts, tablecloths, towels that are resistant and normally soiled		Max (or lower)			3 (+3)
COTTON	40°		White and coloured fabrics that are resistant and heavily soiled		Max (or lower)			3 (+3)

FUNCTION ENABLED ○ FUNCTION DISABLED ⚪ OPTIONAL WITH PRE-WASH BUTTON PRESSED

* Benchmark program for energy classification, in accordance with the EN 60456 standard, running at max. spin speed and with (INTENSIV) energetic wash button selected.

PROGRAMMER KNOB	WASH TEMPE-RATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	SPINN SPEED	BUTTONS ENABLED				AUTOMATIC
						PREWASH INTENSIVE		EXTRA RINSES	ANTICREASE
COTTON	30^		Delicate coloured fabrics that are lightly soiled		Max(or lower)			-3)
SYNTHETICS	60^		Colourfast synthetic fabrics that are heavily soiled		800(or lower)			-3)
SYNTHETICS	40^		Delicate coloured synthetic fabrics that are lightly soiled		800(or lower)			-3)		[TSTX]
SYNTHETICS	30^		Delicate coloured synthetic fabrics that are lightly soiled		800(or lower)			-3)
DELICATES	40^		Delicate cotton, viscous and mixed delicate fabrics		500(or lower)
DELICATES	30^		Delicate cotton, viscous and mixed delicate fabrics		500(or lower)
WOOL***	40^		Machine washable wool		800(or lower)
WOOL	30^		Machine washable wool		800(or lower)
WOOL	COLD		Machine washable wool, silk and delicate mixed fabrics		800(or lower)
HAND WASH(YZZW)	30^		Hand washable fabrics		800(or lower)
QUICK WASH	35^		Quick wash of approximate duration 35-40 minutes for lightly soiled fabrics.		Max(or lower)
[28X2]DAI Y WASH	60^		Short wash for cotton and resistant fabrics requiring frequent washing		Max(or lower)			-3)
DAI Y WASH(3T58)	40^	[YGW]	Short wash for cotton and resistant fabrics requiring frequent washing		Max(or lower)			-3)
RINSE(S75DG)			To rinse and refresh the washing		Max(or lower)			-3)
DR (TH22) AND SPIN	——		Drain and final spin		Max(or lower)

FUNCTION ENABLED ○ FUNCTION DISABLED

OPTIONAL WITH PRE-WASH BUTTON PRESSED

** Press start to continue the program.
*** The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M0402-M0403-M0404-M0405.

MODEL →		PESUKARHU 8600D	PESUKARHU 8610D	PESUKARHU 8620D	PESUKARHU 8630D MINIMAX 6380D	PESUKARHU 8640D WT 6045D
Dimensions:	Width cm.:	40.0	40.0	40.0	40.0	40.0
	Height cm.:	90.0	90.0	90.0	90.0	90.0
	Depth cm.:	60.0	60.0	60.0	60.0	60.0
Maximum recommended load:		6,0 Kg	6,0 Kg	6,0 Kg	6,0 Kg	6,0 Kg
		4.0 Kg	4.0 Kg	4.0 Kg	4.0 Kg	4.0 Kg
		3,0 Kg	3,0 Kg	3,0 Kg	3,0 Kg	3,0 Kg
		1,5 Kg	1,5 Kg	1,5 Kg	1,5 Kg	1,5 Kg
Max. spin: (rpm)		1000	1100	1200	1300	1400
Water pressure:		min. 0.05 MPa - max. 1 MPa
Max. absorbed power/Electrical connection		see rating plate

NOTES:
