Product Type	Microwave Oven
Brand	OBH Nordica
Model	Rigel 7547
Capacity	23 liters
Voltage	230 V ~ 50 Hz
Microwave Input Power	1300 W
Microwave Output Power	800 W
Grill/Hot Air Input Power	1200 W
Microwave Frequency	2450 MHz
Functions	Microwave, Grill, Convection, Combination, Defrost (weight/time), Auto Menu (10 programs)
Quick Start	+30 sec (max 95 minutes)
Child Lock	Yes
Timer	Up to 95 minutes
Display	Digital
Turntable	Glass tray, dishwasher safe
Control	Rotary knob and push buttons
Safety Features	Door interlock, child lock
Cleaning	Wipe with damp cloth; do not use abrasive cleaners
Accessories	Glass turntable, grill rack
Warranty	According to current law; proof of purchase required

Frequently Asked Questions - Rigel 7547 OBH NORDICA

What is the capacity of the OBH Nordica Rigel 7547 microwave?

The OBH Nordica Rigel 7547 has a capacity of 23 liters.

What microwave power levels are available?

You can select from five power levels: P100 (100%), P80, P50, P30, and P10.

Can I use metal containers in this microwave?

No, do not use metal bowls, aluminium foil, or containers with metal parts. Only use microwave-safe utensils, especially for microwave-only functions.

How do I set the clock?

Press the Stop/Clear/Clock button once. The time flashes. Use the function knob to set hours (0-23), press Start/+30Sec/Confirm, then set minutes (0-59) and confirm.

What is the quick start function?

Press Start/+30Sec/Confirm to start cooking at full power for 30 seconds. Each subsequent press adds 30 seconds up to 95 minutes.

How do I defrost food by weight?

Press Defrost once to select dEF1. Turn the function knob to set weight (100-2000 g). Press Start/+30Sec/Confirm to begin. Halfway through, the oven beeps; turn the food over and continue.

What auto menu programs are available?

There are 10 auto programs: A1 Reheat, A2 Potato, A3 Vegetable, A4 Pasta, A5 Meat, A6 Fish, A7 Pizza, A8 Bread, A9 Roast Chicken, A10 Cake. Select the program, set weight, and start.

How do I activate the child lock?

Press and hold the Stop/Clear/Clock and Start/+30Sec/Confirm buttons simultaneously until a padlock icon appears. Repeat to deactivate.

Can I use the grill and microwave together?

Yes, use the Combi. button to select combination modes: C-1 (55% microwave, 45% grill) or C-2 (36% microwave, 64% grill).

How should I clean the microwave?

Unplug the oven. Wipe the exterior, interior, and door with a damp cloth and mild detergent. The glass turntable is dishwasher safe. Do not use abrasive cleaners or steam cleaners.

USER MANUAL Rigel 7547 OBH NORDICA

DESIGNING GOOD LIFE

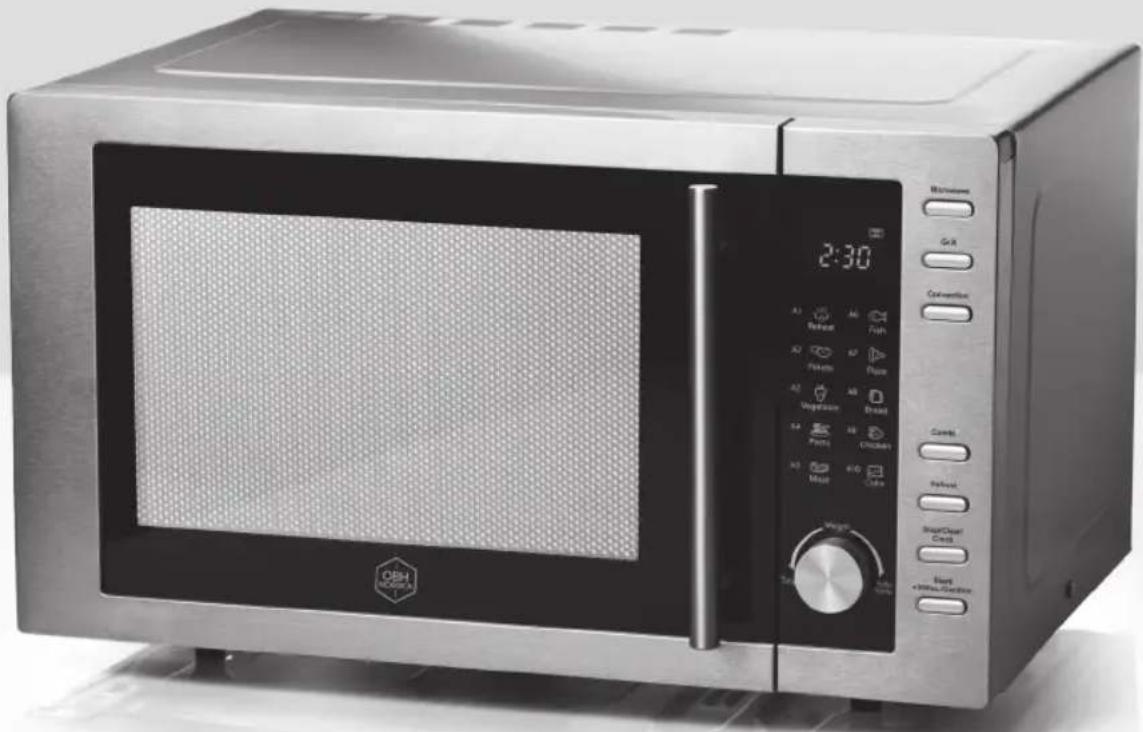

Microwave Oven 23 L RIGEL

For accurate and easy cooking

Making good!

9. Start/+30Sec./Confirm

9. Start/+30SEC./Confirm

OBH Nordica Denmark A/S

Delta Park 37

2665 Vallensbæk Strand

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 7547

23 liter

230 volt \~ 50 Hz

Kontrollpanel

1. Display

Her vises tilberedningstid, effekt, symboler og klokkeslett.

2. Microwave

9. Start/+30SEC/Confirm

OBH Nordica Norway AS

Maridalsveien 15 E

0178 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 7547

23 liter

230 volt 50Hz

1. Näyttö

9. Start/+30Sec./Confirm

READ THE INSTRUCTION MANUAL CAREFULLY AND SAVE IT FOR FUTURE USE.

Safety instructions

1. When plugging the oven, the socket shall be accessible for immediate disconnection.
2. Plug the appliance to a household outlet of 230V AC only and use the appliance only for the intended use.
3. Always unplug from the mains supply when the appliance is not in use.
4. Never immerse the appliance in water or any other liquid.
5. This appliance can be used by persons (including children from the age of 8) with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
7. Cleaning and maintenance shall not be made by children under the age of 8 and they shall be supervised.
8. The appliance should only be used under supervision.

9. Check that the cord is not hanging free from the edge of the table.

10. The microwave oven must not be built into or placed in a cabinet.

11. During use, the oven lid, the housing and the window can get hot. Do not touch these surfaces. Only open the oven door by using the handle.
12. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
13. Extra protection can be obtained by installation of a residual current device of 30mA. Check with your installer.
14. The appliance is for domestic use only.
15. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages as a consequence of the above to the product are not covered by the warranty.

Before use

Remove all packaging material and wipe the microwave oven on the inner and the outer surfaces with a damp cloth before you use it for the first time (please note that the insulating plate (the mica plate) in the oven cavity should NOT be removed!). Check the oven for any visible damages and make sure that there is no leakage in the oven cavity.

Position the microwave oven on a stable and even surface leaving a space of at least 10 cm at each side, 30 cm at the back and 85 cm above floor level to ensure free circulation of air. Note that the microwave oven must not be built into or placed in a cabinet.

General safety instructions

- WARNING: If the door or the door sealing has been damaged, do not operate the oven until it has been repaired by a qualified person.

• WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation that involves the removal of any part that gives protection against exposure to microwave energy.
• Never use the oven for other purposes than the preparation of food and not for e.g. drying of cloth, paper or other non-food products or for sterilizing objects.
• Do not operate the oven when empty, as this may damage the oven.
• Do not use the microwave oven for storage of e.g. paper, kitchen utensils or similar.
• The microwave oven is not designed for pickling. Raw materials that have not been properly pickled may rot and affect your health.
• Do not heat whole eggs or hard-boiled eggs in the microwave oven, as they may explode even after the termination of the microwave heating.
• Food covered by a heavy skin such as apples, tomatoes, potatoes etc. should be pierced with several holes before cooking in the microwave oven in order to avoid steam from being accumulated inside, which may bring them to explosion.
• Do not cover the air vents and do not insert any object in the openings of the outer cabinet.
• Never try to remove parts from the microwave oven, such as feet, screws, the cord or the mica plate that protects against radiation.
• Never prepare food directly on the rotating dish in the microwave oven, but put the food on a plate/in a container etc. that are made for use in microwave ovens.

Important!

Always cover the food with a lid (not at the grill or hot air functions) or a microwave safe cling film (pierce a number of holes in the film). Food scraps in the cavity may ignite and in the worst case catch fire.

• Only use utensils (dishes, plates etc.) that are suitable for use in a microwave oven.
• Due to the risk of ignition, always keep an eye on the oven when food is being heated in a plastic or paper container.
• If smoke is observed in the microwave oven, switch off the appliance and unplug. Keep the door closed to extinguish any flames.
• When you use the grill function for the first time there may be some smoke and smell. This us due to remaining steam on the heating element and does not mean that the microwave oven is defective.

Never use:

• Bowls of metal or containing enamel parts/decorations.
• Roasting bags with an inner side of tinfoil/metallic threads.
• Melamine bowls (such as Rosti bowls, Margrethe bowls).
• In order to avoid sparks that may damage the oven, never use aluminium or metal containers. This is also the case when you use the combination programme. Use bowls of glass/porcelain.

• If you only use the microwave function of the oven, do not use the metal grid.

• Always check the temperature of heated food to avoid any burns – in particular when heating baby food. If gruel is heated in a feeding bottle, shake the bottle and test the temperature of the gruel before feeding the child.

• After heating in the microwave oven, always keep the food 30 to 60 seconds in the oven to enable the heat to spread evenly and to prevent the food from "bubbling", when a spoon or another utensil is put in the food.
• When heating a liquid in the microwave oven, the boiling point may be reached without producing any visible bubbles. So be careful when removing the container.
• WARNING: Liquids and other foodstuffs must not be heated in closed containers due to the risk of explosion.
• Always follow the instructions and remember that some foodstuffs heat very quickly. You should also notice that foodstuffs with a high content of sugar should not be heated in plastic containers.
• Kitchen bowls can become very warm during preparation, especially if they are covered with a lid or a microwave safe cling film. We therefore recommend that you use oven gloves when taking the container out of the microwave oven.

Any damage caused by the above or similar faulty use is not covered by the warranty.

Cleaning and maintenance

Clean the oven at regular intervals and remove any food scraps. If the oven is not kept clean, the surfaces

may deteriorate and the lifetime of the appliance may be considerably shortened and a dangerous situation may occur. Unplug the appliance before cleaning. Never use scouring or etching detergents, as such products may damage the inner and outer surfaces.

The following parts can be cleaned with a damp cloth, possibly with a mild washing-up liquid:

• External surfaces and the control panel
• Rotary wheel and the bottom of the oven
- The oven door and adjacent parts.
• The glass dish is dishwasher safe.

If there is vapour on the oven door, wipe the door with a damp cloth.

Remove odours by placing a bowl with lemon water (squeezed lemon + water) in the microwave oven. Put the microwave function at top efficiency for 5 minutes and wipe with a damp cloth. For cleaning the glass part, use only glass and window cleaners.

When cleaning, please pay special attention to the following:

• Avoid water from penetrating into the air vents and make sure that the control panel does not get wet.
• Never use scouring products and sharp metal objects for cleaning the glass of the oven door, as such products may scratch the glass and make the glass break.
• Do not use steam cleaners for cleaning of the oven.

• Take care that the rotary wheel is positioned correctly after cleaning.
- It is particularly important that the door and the inner part of the oven are kept clean.

- The insulation plate (the Mica plate) inside the cavity of the oven shall be kept clean with a damp cloth. If the plate is very greasy or if it has a very dark colour, it should be replaced by an authorized person, as it may catch fire.

Utensils that can be used in the microwave oven

Only use dishes and containers that are approved for use in microwave ovens.

Bowls/kitchen utensils Microwave Grill Convection Combination
Heat resistant glass Yes Yes Yes Yes
Ceramics and porcelain Yes No Yes No
Non-heat resistant glass No No No No
Microwave resistant plastic Yes No No No
Microwave resistant plastic wrap Yes No No No
Kitchen towel Yes No No No
Metal bowl No Yes Yes No
Metal grids No Yes Yes No
Metal bowls, aluminium foil No Yes Yes No

Description

1. Safety lock
2. Oven window
3. Rotary ring
4. Rotary dish
5. Control panel
6. Mica plate, must not be removed
7. Grill cradle

Control panel

1. Display

Displays cooking time, effect, icons, and time.

2. Microwave

Activated when choosing microwave function

3. Grill

Activated when choosing grill function

4. Convection

Activated when choosing hot air function

5. Auto menu selection A1-A10

6. Combi.

Activated when choosing combination programme.

7. Defrost

Activated when using the defrosting function, based on weight/time.

8. Stop/Clear/Clock

Press the button once to stop the preparation temporarily and press twice to finish the preparation. Press the button to reset the settings of the microwave oven. Activated also for setting of the timer.

9. Start/+30Sec./Confirm

Press the button to confirm a setting, start a programme or activate the quick start function.

10. Function button

Button for setting of time, weight, and auto menu A-1 to A-10.

Setting of timer

1. Press the "Stop/Clear/Clock" button once. The time flashes. Set the number of hours by turning the function button to the time you want (0-23).
2. Confirm by pressing the "Start/+30Sec./Confirm" button, and the number of minutes starts flashing.
3. Set the number of minutes by turning the function button to the time you want (0-59). Confirm by pressing the "Start/+30Sec./Confirm" button.

If you want to interrupt the time setting, press the "Stop/Clear/Clock" button to revert to the previous status.

How to use the microwave oven

Each time you press/turn a button, you will hear a beep for confirmation of the choice. When the preparation is done, you will hear 5 beeps and the actual time is displayed.

Manual setting of preparation time and effect

Example: 50% effect for 5 minutes:

1. Open the lid and place the bowl in the microwave oven, close the lid.
2. Choose effect by pressing the "Microwave" button till P50 (50% effect) and the icon for microwaves are displayed.
3. Press the "Start/+30Sec./Confirm" button to confirm.
4. Turn the function button until the display shows 5:00 (5 minutes).
5. Press the "Start/+30Sec./Confirm" button to start the preparation.

If you want to interrupt the preparation, press the "Stop/Clear/Clock" button once. In order to revert to the preparation, press the "Start/+30Sec./Confirm" button (within 5 minutes) and the preparation continues.

When the time set has elapsed, you will hear five beeps and the actual time is displayed. In order to reset all settings, press the "Stop/Clear/Clock" button. Note that the maximum preparation time is 95 minutes.

The time intervals of setting of time are as follows:

0-1 minute -- 5 seconds

1-5 minutes -- 10 seconds

5-10 minutes -- 30 seconds

10-30 minutes -- 1 minute

30-95 minutes -- 5 minutes

Effect guide

P100 = 100%

P80 = 80%

P50 = 50%

P30 = 30%

P10 = 10%

Quick start function

Place the tray in the microwave oven and close the lid. Press the "Start/+30Sec./Confirm" button and the preparation starts automatically at full effect for 30 seconds. Each time you press the button, the time is extended by 30 seconds (max 95 minutes).

During the microwave, grill, combination, hot air or time defrost process press the "Start/+30Sec./Confirm" button in order to increase the preparation time by 30 second each time you press.

Grill function

1. Press the "Grill" button to choose "G-1" (100% grill), "C-1" (55% microwaves - 45% grill) or "C-2" (36% microwaves - 64% grill). The chosen function and the signal lamp of grill, alternatively grill/microwaves are illuminated in the display.
2. Turn the function button to set the preparation time (between 0:05-95:00).
3. Press the "Start/+30Sec./Confirm" button to start the preparation.

If you want to interrupt the preparation, press the "Stop/Clear/Clock" button once. In order to revert to the preparation, press the "Start/+30Sec./Confirm" button (within 5 minutes) and the preparation continues.

When half the preparation time has elapsed, you will hear two beeps to remind you that the food should be turned over to get the best result. Open the door, turn the food over, close the door and press the "Start/30Sec./Confirm" button to continue the preparation. If you do not open the door, the preparation will continue as normal.

The grill function is perfect for thin slices of meat, kebab, sausages and chicken wings, garlic bread, hot sandwiches and gratin. Note: Never use a lid when activating the grill function.

Automatic defrosting function (as per weight)

You can defrost e.g. meat, poultry, fish, vegetables and shellfish in the microwave oven. The defrosting time is adjusted automatically in accordance with the set weight (100-2000 g).

1. Press the "Defrost" button once and "dEF1" and symbols of defrosting and microwaves will be displayed.
2. Turn the function button to set the weight (100-2000 g).
3. Press the "Start/+30Sec./Confirm" button to start the defrosting. The symbols of defrosting and microwaves will flash in the display and "g" turns off.

If you want to interrupt the preparation, press the "Stop/Clear/Clock" button once. In order to revert to the preparation, press the "Start/+30Sec./Confirm" button (within 5 minutes) and the preparation continues.

When half the defrosting process has elapsed, you will hear two beeps to remind you that the food should be turned over. Press the "Start/+30Sec./Confirm" button to continue the defrosting.

Automatic defrosting function (as per time)

The defrosting function makes it possible to defrost raw materials by setting the time manually (max 95 minutes).

1. Press the "Defrost" button twice and "dEF2" and symbols of defrosting and microwaves will be displayed.
2. Turn the function button to set the preparation time (max 95 minutes).
3. Press the "Start/+30Sec./Confirm" button to start the defrosting. The symbols of defrosting and microwaves will flash in the display and the time counts down.

If you want to interrupt the preparation, press the "Stop/Clear/Clock" button once. In order to revert to the preparation, press the "Start/+30Sec./Confirm" button (within 5 minutes) and the preparation continues.

Auto menu

The microwave oven has 10 programmes that do not require setting of the preparation time or the effect. You just select the programme that corresponds to what you want to prepare.

1. Turn the function button to select the programme A-1 to A-10 (see the table).
2. Press the "Start/+30Sec./Confirm" button to confirm.
3. Turn the function button to set the estimated weight according to the table.
4. Press the "Start/+30Sec./Confirm" button to start the preparation.

Programme Weight Effect
A1Reheat	200 g	100%
	300 g
	400 g
	500 g
A2Potato	230 g	100%460 g
	690 g
A3Vegetables	200 g	100%
	300 g
	400 g
	500 g
A4Pasta	50 g	80%100 g
	150 g
A5Meat	200 g	100%
	300 g
	400 g
	500 g
A6Fish	200 g	80%
	300 g
	400 g
	500 g
A7Pizza	300 g	100% micro 100% grill
	400 g
A8Bread	50 g	100% grill
	100 g
A9 Roast chicken	750 g	C-2
	1000 g C-2
	1250 g	C-2
A10 Cake 475 g Preheat at 160°C	first.

Note:

• If the weight of the bread is 50 or 100g and the grill effect is 100% , turn the grill grid to make the height 95mm .
• For grilling of chicken, turn the grilling grid to make the height 50 mm.
• When grilling chicken and when 2/3 of the time has elapsed, you will hear two beeps to remind you that the chicken should be turned over to get a homogeneous result.

Preparation with convection

1. Press the "Convection" button to select the temperature. The microwave icon, grill and "°C" go on and 100, 110, ... 180 and 190 are shown in cycles at each pressure.
2. Put the food to be prepared in the microwave oven and close the lid. Set the wanted preparation time by turning the function button until the wanted time is displayed.
3. Press the "Start/+30Sec./Confirm" button to start the preparation. The convection icon flashes and the time counts down.
4. If you want to interrupt the preparation, press the "Stop/Clear/Clock" button once. In order to revert to the preparation, press the "Start/+30Sec./Confirm" button (within 5 minutes) and the preparation continues.

5. In order to see status and temperature, press the "Convection" button.

6. During this process, the time can be increased by 30 seconds each time you press the "Start/+30Sec/Confirm" button; if not the microwave oven will beep 5 times, when the preparation is done.

Combination function

1. Press the "Combi." button to select the temperature. The microwave icon, grill and "°C" go on and 100, 110, ... 180 and 190 are shown in cycles at each pressure.
2. Put the food to be prepared in the microwave oven and close the lid. Set the wanted preparation time by turning the function button until the wanted time is displayed.
3. Press the "Start/+30Sec./Confirm" button to start the preparation. The microwave and grill icons flash and the time counts down.
4. If you want to interrupt the preparation, press the "Stop/Clear/Clock" button once. In order to revert to the preparation, press the "Start/+30Sec./Confirm" button (within 5 minutes) and the preparation continues.
5. In order to see status and temperature, press the "Combi." button.
6. During this process, the time can be increased by 30 seconds each time you press the "Start/+30Sec/Confirm" button; if not the microwave oven will beep 5 times, when the preparation is done.

Child-proof safety device

How to activate the child-proof safety device:

Press the Stop/Clear/Clock" and the Start/+30Sec./Confirm" buttons simultaneously and you will hear a beep and a padlock icon is displayed. Now the panel is locked.

How to deactivate the child-proof safety device:

Press the Stop/Clear/Clock" and the Start/+30Sec./Confirm" buttons simultaneously and you will hear a beep and the padlock icon goes out.

Note! The microwave oven cannot be started when the child-proof safety device is on.

Note!

In order to ensure that the preparation time is not too long, we recommend that you check the food from time to time. Start with preparation times shorter than prescribed by the recipe. In general, we recommend that you try your way and follow the instructions given by the manufacturer (if available) on the product itself. Note that products such as e.g. popcorn burns fast if kept too long in the microwave oven.

Important!

Always cover the food with a lid (not at grill or hot air) or a microwave cling film (pierce a number of holes in the film). Food scraps in the cavity may ignite and in the worst case catch fire.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé 5

SE-174 66 Sundbyberg

Phone [phone]

www.obhnordica.se

Technical data

OBH Nordica 7547

23 litres

230 V \~ 50 Hz

Ingoing effect Microwave oven: 1300 W

Outgoing effect Microwave oven: 800 W

Frequency Microwave oven: 2450 MHz

Ingoing effect Grill/hot air: 1200 W

These instructions are subject to alterations or improvements.

Advice on microwave cooking

With the microwave oven you have the opportunity to cook exciting food and dishes quickly and easily. In the following you will find a number of different recipes for dishes which can be tried out while getting familiar with the oven and all its options and features.

All cooking times in our recipes are based on 800 Watts and are approximate, depending on e.g.:

The thickness of the ingredients

The texture of the ingredients

The freshness of the ingredients

Fresh or frozen ingredients

The thickness of the ingredients

Furthermore, we refer to the conversion table on the last page of the manual which can be used for recipes intended for microwave ovens with a lower or higher effect.

When cooking in the microwave oven, it is always a good idea to check the food from time to time during cooking. We also recommend that you start with a cooking time shorter than given in the recipes in order to prevent the food from overcooking. You can open the oven door during cooking – the oven stops automatically when the oven door is opened, and restarts easily. Read more about this in the instruction manual. We recommend that you try your way.

When defrosting it is a good idea to allow the meat to rest for a while after defrosting and to turn over the meat when half the defrosting time has elapsed.

The size of the container used in the microwave oven should match the amount of food. So, do not use too large containers, but use containers with rather tall sides.

Vegetables should be of uniform size. If some vegetables are considerably larger than others, the cooking time for these vegetables must be expected to be longer.

If the microwave oven has a grill function, and the grill function is used for browning the food, a grill time longer than in a conventional oven must be expected.

Always use oven gloves when removing a container from the oven as the heat from the food quickly distributes into containers and dishes, which can make them very hot.

Always use a lid or microwave resistant cling film during cooking.

You achieve the best results if the dish is allowed to rest for up to 5 minutes after cooking in the microwave oven. This allows for the heat to distribute uniformly inside the food.

Table of vegetables (always remember to cover the dish/the container with a lid or microwave resistant cling film)

Raw material 200 g 400 g	Water
Artichoke 3-4 min. 5-6 min. -
Asparagus 5-7 min. 8-12 min. 2 tbsp
Cauliflower 4-5 min. 7 min 1/2 dl
Broccoli, bouquets 4 min 7 min 1/4 dl
Mushrooms 5-6 min. 6-8 min. -
Fennel 5-6 min 8-9 min 2 tbsp
Carrots, lengths 5 min 7-8 min 1/2 dl
Haricots verts (green beans)	6 min 8-10 min 1/2 dl
Corncobs Approx. 8 min Approx. 10-11 min			-
Chives 4 min 7 min 1/4 dl
Brussels sprout 4 min 7 min 1/2 dl
Celery, diced 4 min 7 min 1/2 dl
Potatoes, peeled 5 min 9-10 min 1 dl
Chopped spinach 3 min 5-6 min 1 tbsp
Sugar peas	4 min 7-8 min 1/4 dl
Tomatoes	3-4 min Approx. 6-8 min		-
Peas in a pod	3-4 min	6-8 min 2 tbsp
Oyster mushrooms	3-4 min	6-8 min -

Conversion table (in minutes)

700 W	800 W	900 W
1.10	1.00	0.50
2.20	2.00	1.50
3.30	3.00	2.40
4.30	4.00	3.30
5.40	5.00	4.30
6.50	6.00	5.20
8.00	7.00	6.10
9.10	8.00	7.10
10.10	9.00	8.00
11.20	10.00	8.50
17.20	15.00	13.20
22.50	20.00	17.50
28.30	25.00	22.10

34.10 30.00 26.40
39.50 35.00 31.10
45.30 40.00 35.30

NOTE! The times in the conversion table above are only indicative.

SE/KK/7547/UVN/120615
