MIG 20 - Microwave Scandomestic - Free user manual and instructions

Brand	Scandomestic
Model	MIG 20
Product Type	Microwave Oven
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1050 W
Rated Output Power (Microwave)	700 W
Oven Capacity	20 L
Turntable Diameter	255 mm
External Dimensions (W x D x H)	440 x 341 x 258 mm
Net Weight	Approx. 10.2 kg
Power Levels	5 (Low, Med. Low/Defrost, Med., Med. High, High)
Timer Type	Mechanical dial (up to 30 minutes)
Interior Light	Yes (may dim at low power)
Safety Interlock System	Yes
Door Type	Front opening with safety seals
Accessories Included	Glass tray, turntable ring assembly
Installation Clearance	Minimum 7.5 cm sides, 30 cm above, one side open
Material	Cabinet: metal with protective film; interior: with mica cover
Cleaning	Unplug, clean interior with damp cloth, accessories in soapy water
Waste Disposal	WEEE compliant, do not dispose with household waste

Frequently Asked Questions - MIG 20 Scandomestic

Can I use metal utensils in the microwave?

No, metal or metal-trimmed utensils can cause arcing and damage the oven. Use only microwave-safe materials.

How do I test if a utensil is microwave-safe?

Place the utensil next to a microwave-safe cup of water (250 ml) and heat on maximum power for 1 minute. If the utensil feels warm, do not use it.

What should I do if the oven doesn't start?

Check that the power cord is plugged in tightly. If it is, unplug it and plug it again after 10 seconds. Also check the fuse or circuit breaker and try another appliance in the same outlet.

Why does the glass turntable make noise?

Noise may be due to a dirty roller rest at the bottom of the oven. Clean the roller rest and the bottom of the oven to solve the issue.

Can I heat eggs in the shell?

No, eggs in the shell and whole hard-boiled eggs should not be heated in a microwave oven as they may explode, even after heating has ended.

What is the proper way to clean the microwave?

Unplug the appliance before cleaning. Wipe the inside with a slightly damp cloth. Clean accessories in soapy water. Keep the door frame and seals clean.

Can I use aluminum foil in the microwave?

Yes, but only in small smooth pieces to shield thin parts of meat or poultry. The foil must be at least 2.5 cm away from oven walls to prevent arcing.

Why does steam accumulate on the door?

During cooking, steam may escape from vents and accumulate on cooler surfaces like the door. This is normal and harmless.

What is the minimum clearance required for installation?

Leave a minimum of 7.5 cm between the oven and adjacent walls. One side must be open. Allow at least 30 cm of space above the oven.

What should I do if the microwave starts accidentally with no food inside?

Do not run the microwave empty as it can damage the magnetron. If it happens accidentally, set the timer to 0 immediately and unplug if needed.

USER MANUAL MIG 20 Scandomestic

Line drawing of a black electrical outlet plug with two leads (no text or symbols)

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

A Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
B Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
C WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model: MIG 20

Rated Voltage: 230V\~50Hz

Rated Input Power(Microwave): 1050 W

Rated Output Power(Microwave): 700 W

Oven Capacity: 20 L

Turntable Diameter: 0255 mm

External Dimensions: 440x341x258 mm

Net Weight: Approx. 10.2 kg

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1 Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2 Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3 Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4 Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.(only for grill series)
5 Only use utensils suitable for use in microwave ovens.
6 The oven should be cleaned regularly and any food deposits should be removed.
7 Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8 When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9 If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10 Do not overcook food.
11 Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12 Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13 Install or locate this oven only in accordance with the installation instructions provided.
14 Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15 Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17 Do not store or use this appliance outdoors.
18 Do not use this oven near water, in a wet basement or near a swimming pool.
19 The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
20 Do not let cord hang over edge of table or counter.
21 Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22 The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23 Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
24 The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25 Children should be supervised to ensure that they do not play with the appliance.
26 The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
27 Appliances are not intended to be operated by means of an external timer or separate remote-control system.
28 The door or the outer surface may get hot when the appliance is operating.
29. The rear surface of appliance shall be placed against a wall.

To Reduce the Risk of Injury to Persons

Grounding Installation

DANGER

Electric Shock Hazard. Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to unplug the appliance from the power supply.

1 Clean the inside of the oven after using with a slightly damp cloth.
2 Clean the accessories in the usual way in soapy water.
3 The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Line drawing of a plug with two leads (no text or symbols)

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1 A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2 If a long cord set or extension cord is used:
- The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
- The extension cord must be a groundingtype 3-wire cord.
- The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION Personal Injury Hazard

It is hazardous for anyone other than a competent person

to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1 Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2 Cook on maximum power for 1 minute.
3 Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4 Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Aluminum foil

Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.

Browning dish

Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.

Dinnerware

Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

Glass jars

Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.

Glassware

Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.

Oven cooking bags

Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.

Paper plates and cups

Use for short-term cooking/warming only. Do not leave oven unattended while cooking.

Paper towels

Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.

Parchment paper

Use as a cover to prevent splattering or a wrap for steaming.

Plastic

Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.

Plastic wrap

Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

Thermometers

Microwave-safe only (meat and candy thermometers).

Wax paper

Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Aluminum tray

May cause arcing. Transfer food into microwave-safe dish.

Food carton with metal handle

May cause arcing. Transfer food into microwave-safe dish.

Metal or metaltrimmed utensils

Metal shields the food from microwave energy. Metal trim may cause arcing.

Metal twist ties

May cause arcing and could cause a fire in the oven.

Paper bags

May cause a fire in the oven.

Plastic foam

May melt or contaminate the liquid inside when exposed to high temperature.

Wood

Will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

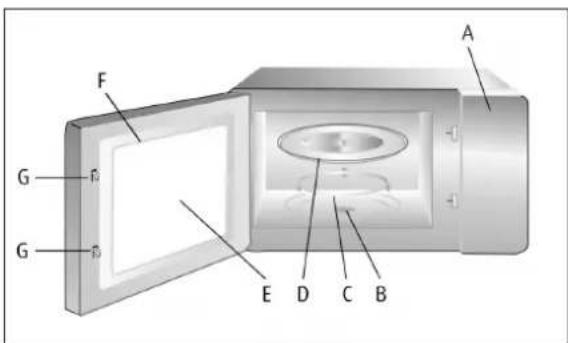

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Turntable Installation

A Never place the glass tray upside down. The glass tray should never be restricted.
B Both glass tray and turntable ring assembly must always be used during cooking.
C All food and containers of food are always placed on the glass tray for cooking.
D If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet:

Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

Select a level surface that provide enough open space for the intake and/or outlet vents. A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

1 Leave a minimum clearance of 12 inches (30cm) above the oven.
2 Do not remove the legs from the bottom of the oven.
3 Blocking the intake and/or outlet openingscan damage the oven.
4 Place the oven as far away from radios and TV as possible.

Operation of microwave oven may cause interference to your radio or TV reception.

Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

OPERATION

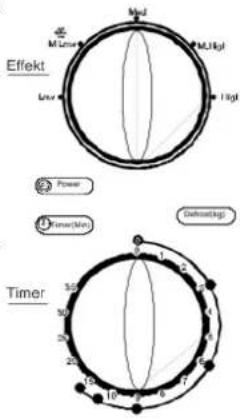

Control Panel and Features

1 To set cooking power by turning the power knob to desired level.

2 To set the time of cooking by turning the timer knob to desired time per your food cooking guide.

3 The microwave oven will automatically start cooking after power level and time are set.

4 After the cooking time is up, the unit will "Dong" to stop.

5 If the unit is not in use, always set time to "0".

Function/Power	Effect Application
Low 17% micro. Soften ice cream
Med. Low (Defrost)	33% micro. Soup stew, soften butter or defrost
Med. 55% micro. Slew, fish
Med. High 77% micro. Rice, fish, chicken, ground meat
High 100% micro. High 100% micro. Reheat,milk, boil water, vegetables, beverage

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero).

Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

Trouble shooting

Microwave oven interfering the TV reception

Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum clearer and electrical fan. It is normal.

Dim oven light

In low power microwave cooking oven light may become dim. It is normal.

Steam accumulating on door. Hot air out of vents.

In cooking, steam may come out of food. Most will get out from

vents, but some may accumulate on cool places like the ovens door. It is normal.

Oven started accidentally with no food inside.

It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible cause	Remedy
Oven can not be started	Power cord not plugged in tightly	Unplug. Then plug again after 10 sec.
	A fuse is blownen or circuit breaker works	Replace the fuse or reset circuit breaker.
	Trouble with outlet	Test outlet with another appliance
Oven does not heat	Door not closed well	Close the door well
Glass turntable makes noise when microwave oven operates	Dirty roller rest at ovens bottom	Refer to maintenance of microwave to clean dirty parts

Symbol of a trash bin with no text or labels, including a crossed-out wheel and diagonal lines (no readable text or numbers)

According to Waste of Electrical and Electronic Equipment

(WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

18 PN:261800308404
