Product Type	Satellite Receiver (DVB-S/S2)
Brand	MEGASAT
Model	HD 570 CI
Dimensions (W x D x H)	266 x 188 x 42 mm
Weight	< 1.5 kg
Power Supply	~230V, 50Hz
Power Consumption (max)	≤ 12 W
Standby Power Consumption	0.5 - 8 W
Video Decoding	MPEG-2, MP@ML
Video Resolution	720×576 (PAL), 720×480 (NTSC)
Audio Decoding	MPEG-1 Layer I/II, MPEG-2
Input Frequency Range	950 - 2150 MHz (C/Ku compatible)
Demodulation	QPSK, SCPC & MCPC compatible
Symbol Rate	2 - 45 Mbit/s
Number of Programs	Up to 6000
Supported Access Systems	DiSEqC 1.0, DiSEqC 1.2, 22 kHz, Unicable
Connectivity	HDMI, SCART (TV & VCR), USB 2.0, Digital Coaxial Audio, L/R Audio Output
CI Slot	1 (Common Interface for conditional access modules)
USB Support	FAT32, NTFS; MP3, JPEG, BMP media playback; firmware upgrade
Standards	DVB-S / DVB-S2
Safety & Compliance	CE marked; indoor use only; keep 5 cm ventilation; do not expose to rain/moisture
Maintenance	Unplug before cleaning; use soft damp cloth; no solvents

Frequently Asked Questions - HD 570 CI MEGASAT

What should I do if the receiver has no power?

Ensure the power cord is firmly connected to the wall outlet and the receiver. If still no power, turn off the unit, wait 5-10 minutes, and turn it on again. Check that the mains supply is ~230V, 50Hz.

Why can't I scan any satellite channels?

Check the antenna alignment and use an outdoor antenna with 75 Ω impedance. Verify that the LNB frequency, DiSEqC settings, and transponder parameters are correct in the Installation menu.

The receiver has power but no picture on TV. What's wrong?

Confirm that the video output cable (HDMI or SCART) is properly connected. Ensure the TV is set to the correct input source. Also, check that the video output mode (e.g., RGB/HDMI) matches your TV's capability.

How can I reset the receiver to factory defaults?

Go to Main Menu > Tools > Factory Setting. Enter the default password '0000' and confirm. This will erase all saved channels and settings.

The remote control does not work. How can I fix it?

First, check that the batteries are correctly inserted (polarities match) and not exhausted. Replace with new AAA batteries if needed. Ensure there are no obstacles between the remote and the IR sensor, and operate within 5 meters and 60° angle. Avoid bright light on the sensor.

Why is there no sound from the receiver?

Press the MUTE button on the remote to cancel mute. Increase the volume using VOL+/VOL- buttons. Verify that the audio cables (L/R or coaxial) are connected correctly. Also, ensure the TV volume is not muted.

How do I upgrade the firmware on the HD 570 CI?

Download the firmware file named 'all*.abs' to a USB flash drive (FAT32). Insert the drive into the USB port. Go to Main Menu > Tools > Upgrade by USB. Select 'ALL CODE' and start. Do not power off during upgrade, then load factory defaults afterwards.

The USB flash drive is not recognized. What can I do?

Ensure the drive is properly inserted and formatted as FAT32 or NTFS. Some high-power drives may not be supported; try a different drive. If the drive has short-circuit protection, disconnect any faulty USB devices and restart the receiver.

Can I watch both free and scrambled channels with this receiver?

Yes, it supports free-to-air (FTA) channels, and with a conditional access module (CAM) and subscription card inserted in the CI slot, you can view scrambled channels. Use the FTA Only option in search to limit to free channels.

How do I set the correct time on the receiver?

Go to Main Menu > System Setup > Local Time Setting. Enable GMT Usage, set GMT Offset for your time zone, and enable Summer Time if applicable. You can also manually set Date and Time.

USER MANUAL HD 570 CI MEGASAT

Digitaler HD Satelliten Receiver Megasat HD570CI

Inhalt

Hinweise

Vorbereitung

Schnellinstallation

AD Service: OFF / ON

Digital HD Satellite Receiver

Megasat HD570CI

Contents

Safety Instructions---- 3

Precautions---- 4

Features----4

Accessories----5

Front Panel----5

Rear Panel----5

About Remote Control 6

Start----7-9

Battery Installation----7

Service Life of Batteries----7

Operation Range of Remote Control----7

Basic connections----8

Preparation----8

Connecting TV-Set----8

Fast Installation 9

Advanced Operation----9-13

Main Menu 9

Edit Channel 9-10

Installation----10-11

System Setup----11-12

Tools----12-13

Game----13

Appendix----14-16

Maintenance 14

Terminology----14

Specifications 15

Troubleshooting 16

1.1.1 Accessories

After purchasing receiver, unpack it and check to make sure that all of the following items are included in the packaging.

Receiver one piece

Remote control one piece

User Manual one piece

Batteries (AAA) two pieces

Safety Instructions

Dear customer,

Thank you for purchasing this DVB Satellite Receiver. Please read this manual carefully before operating your product and pay close attention to the precautions which are mentioned below.

◆ This product only can be operated where the mains supply is \~230V, 50Hz.
◆ To avoid fire and electric shock, do not expose this equipment to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.
◆ To reduce the chance of fire, electric shock, or annoying interference, use only the recommended accessories.
◆ The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
◆ Keep not less than 5cm distances around the apparatus for sufficient ventilation.
◆ Keep the ventilation should not be impended by covering the openings with items such as newspapers, table-cloths, curtains, etc.
◆ No naked flame sources, such as lighted candles, should be placed on the apparatus.
◆ Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
◆ The label was silk-printed on the exterior of the bottom of the apparatus.
◆ Correct Disposal of this product.
◆ To reduce the chance of fire, electric shock, do not open the cover when it works.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

This product has been manufactured to conform to the International Safety Standards. Please peruse the following safety precautions before use.

OVERLOADING

Do not overload a wall outlet, extension cord or adapter as this may result in fire or electric shock.

CLEANING

Disconnect the product from the wall outlet before cleaning. Do not use any aerosol products to clean the product. Dust the outer surface with a cloth lightly dampened with water (no solvents).

CONNECTING TO ANTENNA

Disconnect the product from mains before connecting or disconnecting to antenna. Otherwise, it may damage the product and antenna.

CONNECTING TO TV SET

Unplug the power cord when connecting or disconnecting to TV Set. Otherwise, it may damage the product and antenna

EARTHING

The antenna cable must be earthed to the antenna system and the Earthing System must comply with the local Electric Safety Standards.

LOCATION

The DVB-S is designed for indoor use only. Do not install the product where it may expose to bright light or direct sunlight.

1.1.2 Precautions

Peruse the following precautions before using.

◆ Power Cord Protection Please complaint the following regulations to avoid malfunction, fire and electric shock or other damage to human body.

◆ Make sure to connect and disconnect the power cord with holding the plug.

Do not connect or disconnect the AC power with wet hands.

◆ Separate the AC power cord from heating appliances as distance as possible.

◆ Do not stack any heavy objects on the AC power cord.
◆ Do not repair or reconstruct the AC power cord without authorization.
◆ Clean the plug regularly.
◆ Cut off the power and disconnect the AC cord immediately if the product has been dropped or damaged.
◆ Cut off the power and disconnect the AC cord immediately if you find the product is smoking, burning or noisy.

Location

Do not install the product in following locations,

◆ Where it may expose to direct sunlight or heat resources such as heat register and stove.
◆ Ambient temperature over 35°C or ambient atmospheric moisture over 90%.
◆ Dusty place.
◆ Where it may influence by magnetic field or static electricity.
◆ Where it may subject to physical shock, vibration or dropping.

Non-use Periods

◆ Switch the product to standby status or turn off the power when the product will not be used. Unplug the power cord from the AC outlet when the product will be idle for a long period of time.

Do not insert fingers or other objects into the product

• It may damage the product or even hurt human body by touching any internal parts of the product because of high voltage.
  ◆ Do not dismantle the product.
  ◆ Do not stack any object on the product.

Keep water and magnetic things away

◆ Contact with liquid may cause serious damage, please keep the product away from it.

◆ Keep product far away from magnetic things, such as speaker etc.

Position

◆ Place the product on a horizontal surface. Do not stack heavy things on it.

◆ Do not place the product beneath the magnifier or other devices that emit heat.

Signal Interference

◆ Under the condition of TV signal receive situation, TV Set may get signal interference when you are

1.1.4

watching a TV program with the DVB-S on. This is not means that the product or the TV Set is malfunction. Please turn off the DVB-S while watching the TV.

1.1.3 Features

◆ Fully MPEG-2 / DVB-S/DVB-S2 Compliant
◆ C/Ku Band and Horizontal/Vertical Polarized Program
◆ OSD Menu
◆ Electronic Program Guide ( EPG )
◆ Multi-Programmable Channel (Favorite/Move/Lock/Delete/Sort)

◆ Satellite Signals Display
◆ Go-to-X
◆ Support 22 KHz DisEqC1.0 and DisEqC1.2 control, Unicable
◆ Editable for Satellites and Transponder's information
◆ QPSK Demodulation Mode, SCPC and MCPC Compatible

◆ Capacity of 6000 programs

◆ Auto scan/ Manual Scan/NIT Scan

◆ OSD/VBI Teletext Output

TV SCART

◆ L/R Audio Output

◆ Digital Coaxial Output

◆ Power memory

USB

◆ HMDI

◆ LCN Short-Circuit Power Protection

♦ OTA & USB Upgrade

1.1.5 Front Panels

1. Power/Standby Button
2. CH- Button
3. CH+ Button
4. IR Receiver Window
5. USB LED Indicator
6. Power/ Standby LED Indicator
   The LED indicator goes Green in POWER mode and goes Red in STANDBY mode.
7. Display Window
8. CI-Module Slot

1.1.6 Rear Panel

1. VCR SCART Socket
2. HDMI Socket
3. USB Port
4. TV SCART Socket
5. ZF IN

6. ZF OUT

7. Audio Output - Left

8. Audio Output - Right
9. Digital Coaxial Output
10. Video Output
11. AC IN

NOTE:

In order to avoid electric leakage and shock caused by scratched power cord, please unplug the power cord from the wall outlet and keep it orderly if the product is not going to be used for a long period time.

Remote control Name Descriptions
	1 Power	Switch your device on from standby mode.
	2 F2
	3 MODE	Change HDMI output resolution.
	4 Numeric Buttons	Select channel or programming parameters. Press numeric button 0 to switch to sleep mode.
	5 MENU Enter in setup interface.
	6 EXIT Exit from current menu.
	7 Navigation Buttons	Move cursor.
	8 VOL+ Turn up volume.
	9 VOL - Turn down volume.
	10 TXT	Display teletext.
	11 SUB	Display subtitle.
	12 USB	Switch to USB mode.
	13 FIND	Enter in search interface.
	14 LIST	Enter in video list.
	15 AUDIO	Change audio track.
	16 PREV	Back to previous.
	17 NEXT	Skip to next.
	18 SLOW	Slow down play speed.
	19 PLAY/ PAUSE	Start playing. Make a pause.
	20 STOP	Stop.
	21 REC	No function
	22 F.RWD	Fast backward.
	23 F.FWD	Fast forward.
	24 Ωoom Ωoom in or out.
	25 Recall	Back to previous channel or menu.
	26 SLEEP	Switch in standby mode.
	27 PAGE DOWN	Page down.
	28 Mosaic	Grid show.
	29 PAGE UP Page up.
	30 CH -	Skip to previous channel.
	31 CH +	Skip to next channel.
	32 OK	Display channel list on screen. Confirm selection.
	33 INFO	Display information of current program.
	34 SAT	Shift satellites.
	35 EPG	Display Electronic Program Guide information of current channel.
	36 FAV	Shift to favorite channels.
	37 Timer	Enter in timer setup interface.
	38 F1 Multifeed.
	39 MUTE Enable or disable the audio.
	40 TV/R	Shift between TV and radio.

Start

Battery installation

1.1.7 Install the batteries and make sure the positive (+) and negative (-) polarities match as shown in Figure A.

Service life of batteries

◆ The batteries normally last for about one year despite that it depends on how often and in what way the remote control is operated.
◆ Replace the batteries if the remote control fails to work even when it is operated near the DVB-S receiver.
◆ Use 2 pieces of 7 (AAA/UM-4) batteries.

Notes

◆ Do not use rechargeable (Ni-Cd) batteries.
◆ Do not attempt to recharge, short circuit, disassemble, heat the batteries or dispose of in fire.
◆ Do not drop or step on the remote control unit or subject it to shocks. Otherwise the parts of the remote control unit may get damaged and lead malfunction.

◆ Do not use the new and old batteries together.

◆ Please remove the batteries if the remote control is not going to be used for a long period of time. Otherwise, it may cause electrolyte leakage and lead malfunction, even fire accidents. Carefully wipe the electrolyte out of the remote control compartment and replace with new batteries. If any electrolyte happens to touch your skin, wash it off thoroughly with clean water immediately.

Operation range of remote control

◆ Point the remote control to the IR receiver window. The remote control shall be effective within a distance of about 5 meters and an angle of about 60 degrees as shown in Figure B.
◆ The effective range may vary slightly with the brightness of the room.

Notes

◆ Do not shine bright light to the remote control sensor.
◆ The remote control unit may not work if there are obstacles between the remote control and the sensor.
◆ Do not recommend this remote control using for other products.

B

1.1.8 Start

1.1.9 Basic Connections

Preparation

◆ All equipments must be connected according to this user manual.
◆ Switch off this product and other equipments before connecting
◆ Read the User Manual carefully before connecting other equipments
◆ Plug the Audio and Video cable correctly
When connecting this product with TV set, only one kind of video output format will be accepted. Please choose a corresponding video output mode for the product, otherwise the image will be distorted.

NOTE

Users can choose any proper video output formats according to the TV socket and personal requirements.

Connecting antenna, VCR and TV-set (Figure C)

1. Antenna (Not included)
2. TV Set (Not included)
3. SCART cable for connecting TV set and DVB-S receiver (Not included)
4. AC IN

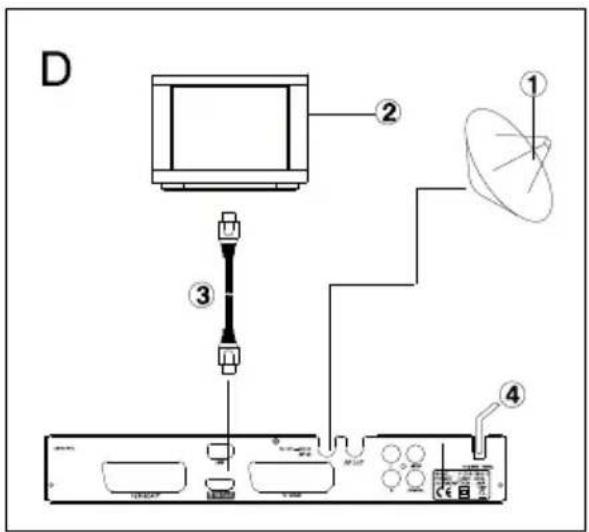

Connecting to TV-Set with HDMI/USB Socket (Figure D)

1. Antenna (Not included)
2. TV-Set (Not included)
3. HDMI Cable (Not included)
4. AC IN

Start

Fast Installation

Connect this unit and other apparatus according to "BASIC CONNECTIONS". Plug the power cord, press [STANDBY] button (no need for first connection) to start.

1. Plug the power cord and press [STANDBY] button to start.
2. Press [MENU] button to setup. Press [▲/▼] button to select "Tools" and load factory default. Default password is "0000".
3. Select "Installation" by press [CH-/CH+] button and press [VOL▶] button to setup. Password: 0000.
   A. Select "Satellite List" to choose satellite. Press [EXIT] button to exit after setup.
   B. Select "Antenna Setup" and press [VOL▶] to setup. Select "LNB Freq" to setup High Frequency and other parameters. Press [EXIT] button to exit after setup.
   C. Select "Single/Multi Satellite" and press [VOL▶] to setup. After setup, press [VOL▶] to start auto search.

Read Menu Operation Instruction for more details.

Advanced Operation

Menu Operation

Main Menu

Press MENU button to browse the Main Menu which includes 5 sub-menus are listed below:

◆ Edit Channel
◆ Installation
◆ System Setup
◆ Tools
Game

Press [CH▲/▼] button to select menu item, press OK button to browse its submenu. Press [EXIT] button to return to the previous menu.

Notes:

1. The four navigation buttons (▲/▼/◄/►), OK and EXIT button have same functions in all levels menus.
2. Some buttons have different functions in different menus. Please find out according to the screen.
3. Programmable buttons (which with color) functionality depends on the menu that is active at press moment. Please find out according to the screen.

1. Edit Channel

Select Edit Channel in Main menu and press [OK] button to enter in its submenu. There are 4 options to choose which are listed below.

TV Channel List
◆ Radio Channel List
◆ Delete All
◆ Save as Default

1.1 TV Channel List

Move cursor to "TV Channel List" and press [OK] button to enter in its setup interface. Use [CH▲/▼] button and press [OK] button to confirm. Use programmable buttons (which with color) to set up according to screen. Favor button is activated when the favorite channels have been set. Default Password is: 0000.

• FAV: Press [FAV] button to lift the "FAV" icon. Use [CH▲/▼] button to select channel and press [OK] button to set chosen channel in 8 different favorite groups. Press [OK] button twice to cancel setup. Press [EXIT] button to quit.
• Lock: Press [RED] button to lift the "Lock" icon. Use [CH▲/▼] button to select channel and press [OK] button to lock, press [OK] button again to cancel lock. Press [EXIT] button to quit current menu and save according to screen.
• Skip: Press [Green] button to lift the "Skip" icon. Use [CH▲/▼] button to select channel and set the chosen TV program to be skipped when use [CH▲/▼] button to shift channels.
• Move: Press [YELLOW] button to lift "Move" icon. Use [CH▲/▼] button to select channel and press [OK] button to confirm selection. Use [CH▲/▼] button to move and [OK] button to confirm movement. Press [EXIT] to quit current. Save according to screen.
• Edit: Press [BLUE] button to enter in "edit" interface. In "Edit" interface, press [RED] button to sort channels by Name (A-Ω)/Name (Ω-A)/Free/Scramble/Lock; press [GREEN] button to edit (rename) the chosen channel, Press [RED] button to shift alpha between capitalized and small, Press [GREEN] button to delete input, press [YELLOW] button to confirm, press [BLUE] button to cancel; press [BLUE] button to delete the chosen channel.

1.2 Radio Channel List

All found radio channels will be listed here.

Refer to the operation of TV Channel List (Item 1.1) for detailed operations.

1.3 Delete All

Delete all TV and radio programs according to screen.

1.4 Save as Default

Please operate according to screen.

2. Installation

Select installation in main menu and press [OK] button to enter in its submenu. There are 9 submenu items which are listed below.

◆ Antenna Connection
◆ Satellite List
◆ Antenna Setup
◆ Single Satellite Search
◆ Multi-Satellite Search
◆ TP List

2.1 Antenna Connection

◆ Fixed Antenna
◆ Motor Antenna

2.2 Satellite List

Move cursor to "Satellite List" and press [OK] button to enter in its submenu. Use [CH▲/▼] buttons to choose satellite.

• Edit: Press [RED] button to edit satellite. Please operate according to screen. Use [RED] button to shift alpha between capitalized and small. Use [GREEN] button to delete input. Use [YELLOW] button to confirm editor. Press [BLUE] button to cancel editor.
• Add: Press [GREEN] button add a satellite. Please operate according to chapter "Edit".
• Delete: Use [CH▲/▼] buttons to select satellite and [OK] button to confirm selection. Press [BLUE] to delete the selected satellite. Press [EXIT] button to quit and save according to screen.

2.3 Antenna Setup

Move cursor to "Antenna Setup" and press [OK] button to enter in its submenu. Use [CH▲/▼] buttons to select item and [VOL◄/►] buttons to change parameters. Signal Intensity and Signal Quality will be displayed at bottom of the window.

• Satellite: Choose a satellite.
• LNB Freq: Press [OK] button to select a proper LNB Frequency.
• Transponder: Press [OK] button to select a transponder.
• DiSEqC1.0: Press [OK] button to select a digital control port.
  ● 22K : Use [VOL◀/▶] buttons to activate or deactivate 22K Hz tone switch.
• Polarity: Use [VOL◄/►] buttons to choose a polarity voltage: Auto, H(horizontal) and V(vertical).

2.4 Single Satellite Search

• Satellite: Press [OK] button to choose satellite.
• FTA Only: Yes(Search the free channels only)/No (Search both free and paid channels)
• Scan Channel: TV Channel/Radio/TV + Radio
• Network Search: Yes/No (It is activated when "Scan Mode" is in "Preset Scan" mode.)
• Scan Mode: Auto Scan/Preset Scan
• Search: Start search.

2.5 Multi Satellite Search

• Satellite: Press [OK] button to choose satellites for search.
• FTA Only: Yes(Search the free channels only)/ No (Search all channels)
• Scan Channel: TV Channel/Radio/TV + Radio
• Network Search: Yes/No (It is activated when "Scan Mode" is in "Preset Scan" mode.)
• Scan Mode: Auto Scan/Preset Scan
• Search: Start search.

2.6 TP List

Move cursor to "TP List" and press [OK] button to enter in its submenu. Press [EXIT] button to quit.

Refer to "Satellite List" for detail operations of Edit/Add/Delete/Search.

3. System Setup

Select Setup in main menu and press [OK] button to enter in its submenu. There are 11 submenu items which are listed below.

Language
TV System
◆ Display Setting
◆ Local Time Setting
◆ Timer Setting
◆ Conax Conditional Access
◆ Parental Lock
◆ OSD Setting
◆ Favorite
◆ Audio Description Setting
◆ Other

3.1 Language

● Language: English, French, Deutsch and etc.
- First Audio: English, French, Deutsch and etc.
- Second Audio: English, French, Deutsch and etc.
- Subtitle Language: English, French, Deutsch and etc.
- Teletext: English, French, Deutsch English, French, Deutsch and etc.

3.2 TV System

• Video Resolution
• Aspect Ratio : Auto/4:3 LB (Letter Box) / 4:3 PS( Pan Scan) / 16:9
• Video Out : RGB/HDMI

3.3 Display Setting

● Brightness: 0-100
- Contrast: 0-100
- Saturation: 0-100

3.4 Local Time Setting

• GMT Usage
• GMT Offset
• Summer Time
• Date
• Time

3.5 Timer Setting

• Timer Mode: once/daily/weekly/monthly/off.
• Timer Service
• Wakeup Channel
• Wakeup Date
• On Time
• Duration

Note: Wake up function is not available in Standby mode.

3.6 Conax Conditional Access

• Subscription Status : Check status of subscribed channel.
  ● Event Status : Check notice of operational company.
• Tokens Status): Check balance of CA card.
• Change CA PIN : Setup a new PIN password.
  ● Maturity Rating : Amend limitation of channel levels, G/PG/A/X is available.
• About Conax CA : Check current CA card's information

3.7 Parental Lock

Default password: 0000

• Menu Lock: On/Off. Password will be required when auto scan or channel scan is activated if you choose "On" mode.
  ● Channel Lock: On/Off. Password will be required to watch locked programs.
• New Password: Set new password with numeric buttons.
• Confirm Password: Input the new password with numeric buttons.

3.8 OSD Setting

• Subtitle Display
• OSD Timeout: 1-10 seconds
• OSD Transparency: off/10%/20%/30%/40%

3.9 Favorite

There are 10 groups can be setup. Press OK button to rename the group.

• YELLOW: Switch capital and small letter
• RED: Cancel current input
• BLUE: Confirm input

3.10 Audio Description Setting

● AD Service: OFF/ON
- Use AD as default: OFF/ON
● AD volume offset: 0/1/2/3/-3/-2/-1

3.11 Other

• LNB Power: OFF/ON
• Channel Play Type: Free/Scrambled/All
• Ber: Off/On

4. Tools

Select Tools item and press [OK] button to enter in its submenu. There are 9 submenus which are listed below.

Information
◆ Factory Setting
◆ Common Interface
◆ Upgrade by USB
◆ Media Player
◆ Save to USB
◆ Remove USB Device Safely

4.1 Information

View the system information of this product.

4.2 Factory Setting

Default password is "0000"

Common Interface

- Slot1

1) Set up information according to system inform of CI card.
2) Please insert card face up. If you find difficulties in insert card, please take it out and check the card is inserted right. Make sure the card is available.
3) PCMCIA Card is accepted with thickness no more than II-5.00mm.

Upgrade by USB

• Insert flash drive and load file named with "all*.abs".
• Enter in "Tools" menu and select "Upgrade by USB", press OK button to start upgrade.
• Select "ALL CODE", the upgrade file will be found automatically.
• Select "Start" to load the upgrade file and start upgrade.

Notes:

1. Do not cut off power supply during upgrade.
2. Factory default must be loaded after upgrade.

4.6 Save to USB

Insert flash drive and enter into "Save to USB" interface.

• Save Mode: All code/Radio back/ Default db
• Save File
• Start

4.7 Media Player (USB)

The device will automatically connect USB flash drive once it is inserted. Browse USB device files from "Media player" submenu which is located in "Tools" menu.

Notes:

1. MP3/JPEG/BMP formats are all supported.
2. Media player submenu can't be open without connecting USB device.
3. Press "EXIT" button to exit.

4.8 Remove USB Device Safely

Move cursor to "Remove USB Device Safely" and press [OK] button, wait for few seconds and remove the USB device safely.

5. Game

Select "Game" in "Tools" menu and press OK button to enter in its submenu. There are 2 submenus which are listed below.

◆ Othello
◆ Sudokuo

Appendix

Maintenance

◆ Unplug the power cord before maintenance.
◆ Keep the product surface clean. Soft cloth to clean the outer if it's dirty.
◆ Do not use any chemical products like Alcohol or dilution to clean the product.
◆ Refer all servicing to a qualified service agent.

Specifications

Items Features
High Frequency Tuner	Input Frequency Range 950~2150 MHz (C/Ku Compatible)
	Input Signal Level - 65 ~ - 30dBm
	RF Input Connector IEC169 - 2, Female
	Input Impedance 75Ω
Demodulation Mode	Demodulation QPSK, Compatible SCPC & MCPC
	Symbol Rate 2~45 Mbit/s
	Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Video Decoding	Video Decoding ISO/IEC13818-2 MPEG2 (MP@ML)
	Video Resolution	720×576 (PAL); 720×480 (NTSC)
	Video Input Code Rate 15 Mbit/s Max
	Teletext	DVB-TXTETSI/EN300472
Audio Decoding	Audio Decoding ISO/IEC13818 - 3
	Audio Track	Stereo, Monophony (L, R), SPDIF
	Audio Sample Rate	32, 44.1, 48KHz
USB	USB Port	USB2.0
	Format	MP3/JPEG/BMP
	System	FAT32, NTFS
Power Specifications	Power Range	~ 176-264V, 50Hz
	Rated Power	~230V, 50Hz
	Standby Power Consumption	0,5 W≤ 8W
	Rated Consumption	≤ 12W
Environment	Temperature 0~40II
	Humidity	<90%
Dimensions	Weight	<1.5 Kg
	Size	266(W)×188(D)×42(H)mm

Note:

Weight and dimensions are not absolutely exact values.

Specifications are subject to change (by manufacturer) without notice.

Troubleshooting

Look through the trouble shooting information. Some simple checks or minor adjustment of the unit on your part may help resolve the problems. If the problems prove to beyond your capability, you had better hand it over to a professional qualified technician.

The integrated circuits are easily breakdown by static. Make sure the antistatic protection has been well taken before maintenance.

Troubles Possible Causes Suggested Solutions
No power	The power cord has not been well connected	Plug the power cord into the outlet tightly and turn on the power; if no power still, turn off the power again, and turn it on in 5-10 minutes.
Can not scan programs	The antenna is not adjusted well	Adjust the antenna or use an outdoor antenna
	Use antenna incorrectly	Use an antenna with 75 Ω impedance input
	Parameter input incorrectly	Input Frequency, Bandwidth parameter correctly
No picture	Output cord connect incorrectly	Connect the output cord correctly.
	The video output mode of the unit is different from the mode of monitor	Reset the working system
No Color	The video output system of the unit is different from the mode of monitor	Reset the color system
Image distortion at channel shift	normal
The remote control fails to work	Batteries incorrectly installed	Install the battery correctly
	Batteries exhausted	Replace the battery
	Beyond the effective operation range	Operate within an normal range
	The remote sensor is pointed to by bright light	Place the unit elsewhere for a change
Audio track and subtitle language are not the chosen items	Has not chosen the right sound track	Press the Audio button to shift the channel
No sound at all	The unit is in a mute status Cancel the mute
	Volume set at a too low level Augment the volume
	Cable connected incorrectly Connect the cable correctly
No sound by chance	There might be a short circuit	Correct the output-cable connection, and turn on it.
	In mute status Cancel the mute
	In standby mode Turn on the unit
Serious distortion or cannot receive signal normally	Too much interferential signal Adjust the antenna.
Flash drive can not be read	The flash drive has not been connected well	Connect the cable correctly.
	The flash drive's current is too heavy, the product wouldn't afford it.	Provide external power source.
	The flash drive runs self-protection program because of external device short circuit.	Change the short circuit device and restart the product.

MEGASAT
