Product Type	Cordless Telephone
Brand	Topcom
Model	Butler 2450
Frequency	DECT (1.88-1.90 GHz)
Range	Up to 300 m outdoor, 50 m indoor
Display	Backlit LCD
Phonebook Capacity	50 entries
Caller ID	Yes
Hands-free	Yes (speakerphone)
Battery Type	NiMH rechargeable, 2x AAA
Talk Time	Up to 10 hours
Standby Time	Up to 100 hours
Ringtones	Polyphonic, selectable
Additional Handsets	Up to 4
Dimensions (Handset)	Approx. 160 x 50 x 25 mm
Weight (Handset)	Approx. 150 g
Power Supply	AC adapter 230V/50Hz
Warranty	2 years
Cleaning	Wipe with dry cloth, avoid liquids
Safety	Do not expose to moisture or extreme heat

Frequently Asked Questions - Butler 2450 TOPCOM

How do I register an additional handset to the Butler 2450 base station?

Press and hold the paging button on the base for about 5 seconds until the base emits a tone. Then on the handset, go to Settings > Register and follow the prompts to enter the base PIN (default 0000).

Why is my phone not ringing?

Check that the ringer volume is not set to off. Also ensure the handset is registered to the base and within range. If the issue persists, restart both the base and handset.

How can I change the ringtone on my Butler 2450?

Go to Menu > Settings > Tones > Ringtone. Select from the list of polyphonic melodies and confirm with OK.

What type of batteries does the handset use and how do I replace them?

The handset uses two NiMH AAA rechargeable batteries. Remove the battery cover on the back, replace the batteries, and reattach the cover. Use only recommended batteries.

How do I store contacts in the phonebook?

Press Phonebook button, then Add New. Enter the name and number using the keypad, and press Save. You can store up to 50 contacts.

Can I use the phone during a power outage?

No, the base station requires AC power to operate. During a power outage, the phone will not work even if the handset has battery charge.

How to set up the answering machine (if applicable)?

The Butler 2450 does not have a built-in answering machine. If you need one, consider an external device or a different model.

What is the default PIN for the base station?

The default PIN is 0000. Change it via Menu > Settings > Base Settings > Change PIN for security.

How do I perform a factory reset?

On the handset, go to Menu > Settings > Reset and confirm. This erases all personalized settings and phonebook entries. For base reset, unplug the power for 10 seconds.

The display shows 'No Base' or 'Searching'. What should I do?

Ensure the base station is powered on and the handset is within range. Try re-registering the handset (see question 1). If the problem continues, reset the base.

USER MANUAL Butler 2450 TOPCOM

DECLARATION OF CONFORMITY

We, TTS Nv, Grauwmeer 17, 3001 Heverlee, Belgium, declare that our product:

Product name: TOPCOM

Model type: Butler 2450

is in conformity with the essential requirements of the R&TTE directive 1999/5/EC and carries the CE mark accordingly.

Supplementary information:

The product complies with the requirements of:

Low Voltage Directive 73/23/EEC

EMC Directive 89/336/EEC

Date: 17/07/2002.

Place: Heverlee, Belgium

Name: Verheyden Geert

Function: Technical Director.

Signature

European contact: TTS Nv, R&D department, Research Park, Grauwmeer 17, 3001

Heverlee, Belgium. Tel: [phone], Fax: [phone]

TOPCOM®

Butler 2450

!! Viktigt!!

To use 'Caller ID' (display caller), this service has to be activated on your phone line. Normally you need a separate subscription from your telephone company to activate this function.

If you don't have the Caller ID function on your phone line, the incoming telephone numbers will NOT be shown on the display of your telephone.

GB The features described in this manual are published with reservation to modifications.

TOPCOM®

Butler 2450

TOPCOM

Butler 2450

Batteriindikator:

Technical line drawing of a mechanical component with a numbered label (15), no readable text or symbols present.

TOPCOM®

Butler 2450

3 DISPLAY (FLYTANDE KRISTALL)

4

Line drawing of a handheld electronic device with battery and cylindrical batteries, no text or symbols present

Line drawing of a device with an arrow pointing to a component (no text or symbols)

TOPCOM®

Butler 2450

Batteriindikator:

Technical line drawing of a mechanical component with a numbered label (15), no readable text or symbols present.

TOPCOM®

Butler 2450

3 DISPLAY (LCD)

	tryk tryk tryk tryk		tryk
1	+	-	/		1
2	A		B	C	2
3	D	E	F		3
4	G	H	I		4
5	J	K	L		5
6	M	N	O		6
7	P	Q	R		S	7
8	T	U	V		8
9	W	X	Y		Z	9
0	Mellemrum	0

TOPCOM®

Butler 2450

4.15 Telefonbogen

Line drawing of a handheld electronic device with battery and cylindrical components, no text or symbols present

Line drawing of a device with an arrow pointing to a component (no text or symbols)

TOPCOM®

Butler 2450

Batteristand:

Technical line drawing of a mechanical part with a numbered annotation (15), no readable text or symbols present.

TOPCOM®

Butler 2450

3 VINDU/DISPLAY (LCD)

4

9 Symbol vindu ( ): ☒

11 Symbol vindu ( ):

- dette symbolet betyr at du befinner deg i menyen.

12 Symbol vindu ( ):

13 Symbol vindu ( ):

14 Symbol vindu ( ):

7.5 Ringeinnstillinger

Du kan bestemme selv hvor mange ganger telefonen skal ringe før innkomne samtaler sendes videre til telefonsvareren. Du kan velge mellom 2 – 9 ganger og TS ("Telleskritt sparing").

10 TEKNISET TIEDOT 130

TOPCOM®

Butler 2450

1 ASENNUS

Line drawing of a handheld electronic device with battery and cylindrical batteries, no text or symbols present

Line drawing of a device with a handle and label, showing no text or symbols

TOPCOM®

Butler 2450

Technical line drawing of a mechanical component with a numbered label (15), no readable text or symbols present.

TOPCOM®

Butler 2450

3 NÄYTTÖ (LCD)

4

• Only use the charger plug supplied. Do not use other chargers, as this may damage the battery cells.
• Only insert rechargeable batteries of the same type. Never use ordinary, non-rechargeable batteries. Insert rechargeable batteries so they connect to the right poles (indicated in the battery compartment of the handset).
• Do not touch the charger and plug contacts with sharp or metal objects.
• The operation of some medical devices may be affected.
• The handset may cause an unpleasant buzzing sound in hearing aids.
• Do not place the basic unit in a damp room or at a distance of less than 1.5 m away from a water source. Keep water away from the handset.
• Do not use the telephone in environments where there is a risk of explosions.
• Dispose of the batteries and maintain the telephone in an environment-friendly manner.
• As this telephone cannot be used in case of a power cut, you should use a mains-independent telephone for emergency calls, e.g. a mobile phone.

Cleaning

Clean the telephone with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents.

TOPCOM®

Butler 2450

1 INSTALLATION 135

2 KEYS/LED 136

3 DISPLAY (LCD) 137

4 OPERATION 138

4.1 Setting the language 138

4.2 Making Calls 138

4.3 Receiving a Call 139

4.4 Activate/deactivate handsfree function 140

4.5. Headset connection 140

4.6 Transferring a call to another handset 140

4.7 Out of Range Warning 141

4.8 Setting the speaker volume 141

4.9 Call Duration Indicator on the Display 141

4.10 Turning off the microphone (mute) 141

4.11 Pause key 141

4.12 Conference call (two internal DECT handsets and one external caller) 141

4.13 Locating a misplaced handset (paging) 142

4.14 Using the alphanumeric keypad 142

4.15 The Phone Book 142

4.16 Switch the handset on/off 144

4.17 Setting the ring volume level on the handset 144

4.18 Setting the ringer melody on the handset 145

4.19 Setting the ring volume level of the base 145

4.20 Locking the key pad 146

4.21 Turning key click on/off 146

4.22 The R key (flash) 146

4.23 Changing the PIN code 147

4.24 Subscribing a handset to a Butler 1000, 1010, 1210, 2405, 2410, 2450 base unit 147

4.25 Subscribing Butler 2450 handset on another base (other brand/model) 148

4.26 Subscribing a Butler 1800T handset to a Butler 24xx base unit 148

4.27 Removing subscription of a handset to a base unit 148

4.28 Selecting a base unit 149

4.29 Barring outgoing calls 150

4.30 Direct Call 150

4.31 Default settings (reset) of the parameters 151

4.32 Complete Reinitialisation of the telephone 151

5 CALLER ID/CLIP 152

5.1. Setting the date and time 152

5.2 The Call List 153

5.3 Calling a number from the Call List 153

5.4 Storing a number from the Call List in the Phone Book 153

5.5 Deleting numbers from the Call List 153

6 VOICE MAIL INDICATOR 154

TOPCOM®

Butler 2450

7 ANSWERING MACHINE 154

7.1. LED Display 154

7.2 Keypad Functions 155

7.3 Outgoing Messages 155

7.4 Turning Answering Machine On/Off 156

7.5 Setting Number of Rings 156

7.6 Checking Number of Rings 157

7.7 Setting Day and Time 157

7.8 Checking Day/Time 157

7.9 Programming the VIP Code 157

7.10 Operation 158

7.11 Recording a Memo 158

7.12 Playback of Messages and Memos 158

7.13 Erasing Messages 159

7.14 Memory Full 159

7.15 Remote Operation 159

7.16 Turning Answering Machine On Remotely 160

8 TROUBLE SHOOTING

9 TOPCOM WARRANTY

10 TECHNICAL CHARACTERISTICS

161

162

163

TOPCOM®

Butler 2450

1 INSTALLATION

Before you use the telephone for the first time, you must first make sure the battery is charged for 20 hours. If you do not do this, the telephone will not work optimally.

For installation, do the following:

• Plug one end of the adaptor into the outlet and the other end into the adapter jack on the bottom of the telephone.
• Connect one end of the telephone cord with the wall phone jack and the other end to the bottom of the telephone.

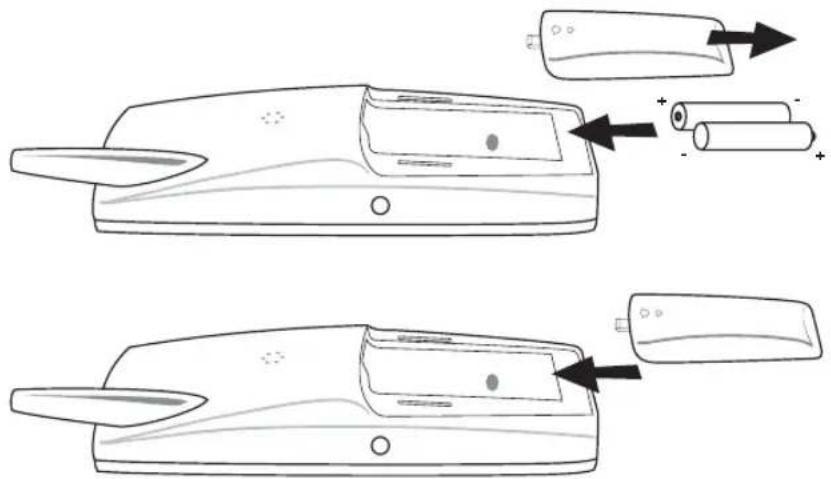

• Open the battery compartment (see below).
• Insert the batteries respecting the (+ and -) polarity.
• Close the battery compartment.
• Leave the handset on the base unit for 20 hours. The Line/Charge indicator (TED) on the base unit will light up.

TOPCOM®

Butler 2450

Battery indicator:

• Battery is fully charged.
• The battery is half drained (50%)
- The battery is low. When the battery is low, you will hear warning signals and the battery symbol on the display will blink.

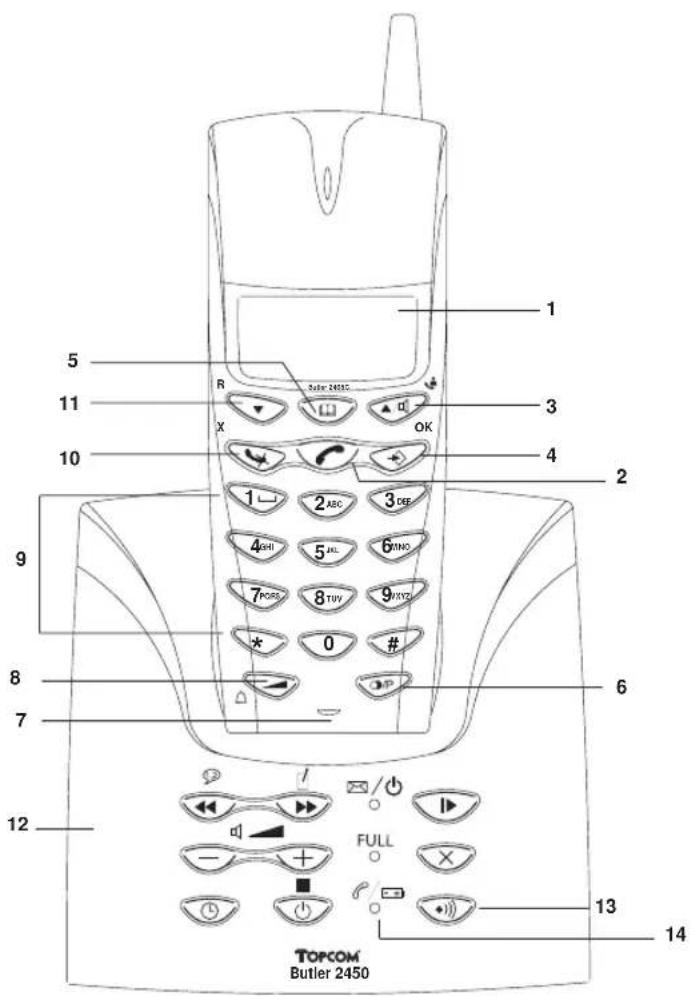

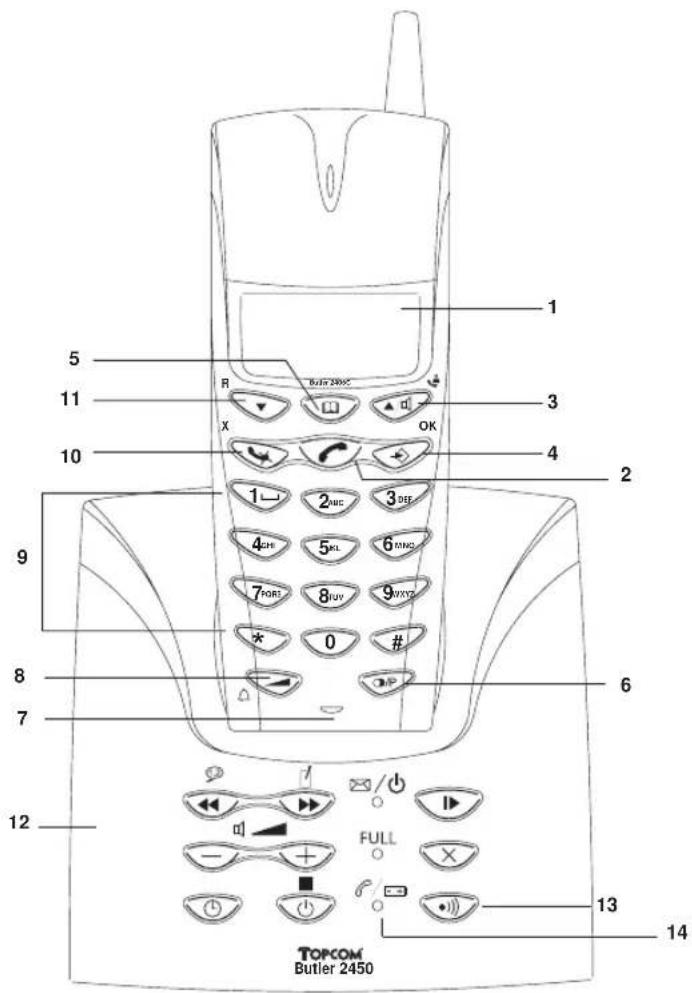

2 K EYS/LED

1 Display
2 Line key
3 Up/Handsfree key /▲
4 Programming key
5 Phonebook key
6 Redial/Pause key /B
7 Microphone
8 Volume/Ringer key /
9 Alphanumeric keys
10 Delete/Mute key
11 Down/Flash key /R
12 Base
13 Paging key
14 Line/Charge indicator (LED)
15 Headset connection

Technical line drawing of a mechanical component with a numbered label (15), no readable text or symbols present.

TOPCOM®

Butler 2450

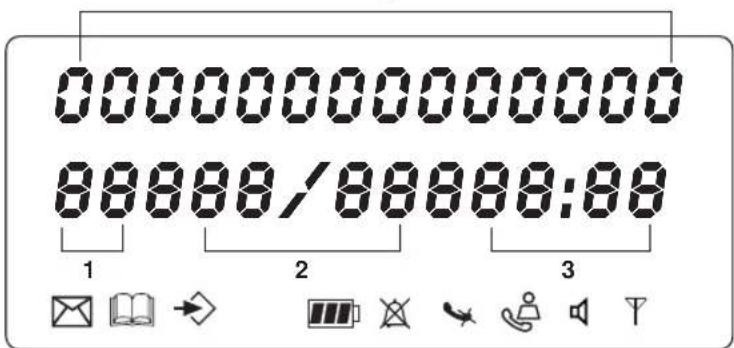

3 DISPLAY (LCD)

4

1 Number of calls received.
2 Date (day/month) of calls received.
3 Time (hour:minutes) of calls received.
4 Call information.
5 Symbol display ( ):

- this symbol means that the handset is located within the range of the base unit.

- when this symbol starts blinking, this means you are beyond the range of the base unit. Move closer to the base unit so that the connection between the base unit and the handset can be restored.

6 Symbol display ( ):

- this symbol means that the telephone has received calls that are automatically stored in the Call List.

7 Symbol display ( ):

- this symbol means that the mute function is activated, the microphone is turned off during a conversation.

8 Symbol display ( ):

- this symbol appears on the display when you make or receive a call.

9 Symbol display ( ):

- this symbol means that the ringer is turned off. When you receive a call, the telephone does not ring. The telephone will ring when you receive an internal call.

10 Symbol display ( )

- this symbol is the battery indicator.

11 Symbol display ( ):

- this symbol means you are in the menu.

12 Symbol display ( ):

- this symbol appears when you browse the numbers in the Phone Book.

13 Symbol display ( ):

- this symbol appears when you have received a voice mail message (see chapter 6).

14 Symbol display ( ):

- this symbol means that the handsfree function is activated. You can now talk without having to pick up the handset.

TOPCOM®

Butler 2450

4 OPERATION

4.1 Setting the language

The telephone has 5 display languages: see display languages table on packaging!!

To set the language, do the following:

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display
• Press the Programming key
• Press the Up or Down key ▲▼ repeatedly until 'LANGUE' appears on the display.
• Press the Programming key
• The language set appears on the display.
• Press the Up or Down key repeatedly to select the language you would like to use.
• Once the desired language appears on the display, press the Programming key to confirm your selection or repeatedly press the Mute/Delete key to leave the menu.

4.2 Making Calls

4.2.1 External Call

• Press the Line key
• The Line/Charge indicator (CBD) on the base unit will blink. 'EXT' and the Call symbol appear on the display.
• You will hear the dial tone. Dial the telephone number you wish to call.
• The number appears on the display and is dialled.
  • After finishing your call, press the Line key to hang up.

4.2.2 Number preparation

• Dial the telephone number you wish to call. You can correct the number by pressing the Delete/Mute key 🏠
• Press the Line key
• The Line/Charge indicator (CBD) on the base unit will blink. 'EXT' and the Call symbol appear on the display.
• The telephone number is dialled automatically.
  • After finishing your call, press the Line key to hang up.

4.2.3 Redialling the last number dialled

• Press the Line key
• The Line/Charge indicator (CBD) on the base unit will blink. 'EXT' and the Call symbol appear on the display.
• You will hear the dial tone.
• Press the Redial key The number you last called is dialled automatically.

TOPCOM®

Butler 2450

4.2.4 Redial one of the last 5 numbers dialled

• Press the Redial key ⬆. The number you last called appears on the display. If you would like to dial one of the last 5 numbers dialled, press the Redial key ⬆ a few times until the desired number appears on the display.
• Press the Line key
• The number shown on the display is dialled automatically.
  • After finishing your call, press the Line key to hang up.

4.2.5 Calling a programmed number from the Phone Book

The telephone has a Phone Book in which you can program the telephone number with name. If you would like to call a number from the Phone Book:

• Press the Phone Book key The first number of the Phone Book appears on the display.
• Press the Up or Down key repeatedly to select the telephone number you wish to call.
• Press the Line key
• The number shown on the display, is dialled automatically.
  • After finishing your call, press the Line key to hang up.

4.2.6 An internal call: calling another handset

This function only works if multiple handsets are subscribed to the base unit!

• Press the Programming key
• Press the Up or Down key ▲▼ repeatedly until ‘INTERCOM’ appears on the display.
• Press the Programming key
• 'INT' appears on the display
• Dial the number of the handset you would like to call.
  • After finishing your call, press the Line key to hang up.

4.3 Receiving a Call

4.3.1 Receiving an external call

• All subscribed handsets will ring when you receive a call.
  • The Call symbol blinks on the display.
• The telephone number of the caller appears on the display if you have Caller ID service (CLIP). Consult your telephone company. The name of the caller also appears on the display if:

- the name is programmed into the Phone Book

- the network sends the name together with the telephone number (FSK CID system only).

• Press the Line key to accept the external call.
• During the call 'EXT' and the symbol appear on the display. The call timer starts running.
• After finishing your call, press the Line key to hang up or put the handset back on the base unit.

TOPCOM®

Butler 2450

4.3.2 Receiving an internal call

This function only works if multiple handsets are subscribed to the base unit!

• The handset rings.
• 'INT' and the number of the handset calling, appear on the display. The Call symbol links on the display.
• Press the Line key to accept the internal call.
• During the call, 'INT', the handset number of the caller and the symbol appear on the display. The call timer starts running.
  • After finishing your call, press the Line key to hang up.

4.3.3 Receiving an external call during an internal call

If you receive an external call during an internal call, you will hear a call waiting tone (double beep) on both handsets being used for an internal call.

• Press the Line key twice to accept the external call.
  • After finishing your call, press the Line key to hang up.

4.4 Activate/deactivate handsfree function

This function allows you to communicate without having to pick up the handset. When you are talking, press the Up/Handsfree key ▲to activate the handsfree function.

Press the same button to deactivate the handsfree function.

Note : When you are calling in handsfree mode and you want to change the volume, press the Volume button ▶.

Attention !! When you use the handsfree function for a long time, the batteries will be empty quickly!

4.5. Headset connection

You can connect a headset with a 3 pole jack plug of 2,5mm on the right side of the handset. When the headset is connected, you can only hear and talk through the headset. The headset microphone can still be muted by the Mute key. The handsfree speaker can still be activated by pressing the handsfree key

4.6 Transferring a call to another handset

• You have an external caller on the line.
• Press the Programming key
• 'INTERCOM' appears on the display.
• Press the Programming key
  • The external call is now on hold.
• 'INT' appears on the display.
• Dial the number of the handset to which you would like to transfer the call.
• If the handset dialled is answered, you can have an internal conversation. Press the Line key and the external call is transferred.
• If the handset dialled is not answered, press the Down key ▼ to speak to the external caller again.

TOPCOM®

Butler 2450

4.7 Out of Range Warning

If the handset is out of range of the base unit, a warning signal will sound.

• 'SEARCHING' appears on the display and the symbol blinks on the display.
• Move closer to the base unit.
• As soon as you are back within range of the base unit, a signal sounds and the symbol T stops blinking.

4.8 Setting the speaker volume

Use the Volume/Ringer key /to set the volume of the speaker (handset). You can select from 5 levels. The telephone is set to level '3' by default.

During a call, you can change the volume:

• Press the Volume/Ringer key /
• The volume level currently set appears on the display.
• Use the number keys to set the desired level (1-5).
• Press the Volume/Ringer key / to confirm your selection.

Note : You have 8 seconds to set the desired volume; if you do not, the telephone returns to standby mode and the volume remains unchanged.

4.9 Call Duration Indicator on the Display

As soon as you press the Line key the call duration appears on the display (minutes-seconds).

E.g. "01-20" for 1 minute and 20 seconds.

The call duration remains visible on the display for 5 seconds after each call.

4.10 Turning off the microphone (mute)

It is possible to turn off the microphone during a call by pressing the Delete/Mute key .Now you can speak freely without the caller being able to hear you.

• You are on the phone. The Line/Charge indicator (CBD) on the base unit will blink and the Call symbol appears on the display.
• Press the Delete/Mute key to turn off the microphone.
• The symbol 'X' appears on the display ( ).
• When you want to resume the conversation, press the Delete/Mute key again.
• The symbol 'X' disappears from the display (☐). The person on the other end of the line can hear you again.

4.11 Pause key

If you dial a telephone number and you would like to add a pause to this number, press the Pause key at the desired place in the number.

When you call this number, this pause (3 seconds) is automatically included.

4.12 Conference call (two internal DECT handsets and one external caller)

You can have a telephone conversation with one internal and one external caller at the same time.

• While on the line with an external caller, press the Programming key
• 'INTERCOM' appears on the display.

TOPCOM®

Butler 2450

• Press the Programming key
  • The external call is now on hold.
• 'INT' appears on the display.
• Dial the number of the handset you would like to include in the call.
• Once the handset dialled is answered, keep the ‘#’ key pressed for 3 seconds.
• 'CONFERENCE' appears on the display.
• Now you are connected to one external and one internal caller (conference call).

4.13 Locating a misplaced handset (paging)

If you cannot find the handset, briefly press the Paging key on the base unit.

All handsets subscribed with the base unit will sound a signal so you can locate the misplaced handset. To stop the signal, briefly press the Line key on any handset.

4.14 Using the alphanumeric keypad

Use the alphanumeric keypad to type text. To select a letter, press the corresponding key. E.g. if you press the alphanumeric key '5', the first character (j) appears on the display. Press it repeatedly to select other characters from this key.

Press the '2' key twice to select the letter 'B'. If you would like to select both 'A' and 'B' after each other, first press the '2' key once to select 'A', wait 2 seconds until the cursor moves to the next position and then press the '2' key twice to select 'B'. You can delete characters mistakenly typed by using the Delete key. The character in front of the cursor will be deleted. You can move the cursor by pressing the Up and Down keys ▲▼

Available characters

Press the right keys to get the following characters:

Keys First Second Third Fourth Fifth

press press press press press
1	+	-	/	1
2	A	B	C	2
3	D	E	F	3
4	G	H	I	4
5	J	K	L	5
6	M	N	O	6
7	P	Q	R	S	7
8	T	U	V	8
9	W	X	Y	Z	9
0	SPACE	0

4.15 The Phone Book

4.15.1 Adding a number and a name to the Phone Book

• Press the Programming key
• Press the Up or Down key ▲▼ repeatedly until 'PHONE BOOK' appears on the display.
• Press the Programming key

TOPCOM®

Butler 2450

• 'SEARCH' appears on the display.
• Press the Up or Down key repeatedly until 'ADD NEW' appears on the display.
• Press the Programming key
• 'NAME' appears on the display.
• Enter the name. Use the alphanumeric keys.
• Press the Programming key
• Enter the telephone number. Use the alphanumeric keys.
• Press the Programming key
• You will hear a long beep. The name and the number are stored in the Phone Book.

4.15.2 Looking up a number in the Phone Book

• Press the Programming key
• Press the Up or Down key repeatedly until 'PHONE BOOK' appears on the display.
• Press the Programming key
• 'SEARCH' appears on the display.
• Press the Programming key
• Enter the first letters of the desired name.
• Press the Programming key
• The first name, corresponding with these letters appears on the display.
• Press the Up or Down key to browse for other numbers in the Phone Book.
• Once the desired number appears on the display, the number will be automatically dialled once the Line key is pressed.

4.15.3 Changing a name or number in the Phone Book

• Press the Programming key
• Press the Up or Down key repeatedly until 'PHONE BOOK' appears on the display.
• Press the Programming key
• 'SEARCH' appears on the display.
• Press the Up or Down key repeatedly until 'EDIT' appears on the display.
• Press the Programming key
  • The first number in the Phone Book appears on the display.
• Press the Up or Down key until the desired number appears on the display.
• Press the Programming key to change the selected number programmed into the memory.
• Press the Delete key to delete each letter of the name and use the alphanumeric keypad to enter the correct name.
• Press the Programming key
• Press the Delete key ↘ to delete each digit of the number and use the alphanumeric keypad to enter the correct number.
• Press the Programming key to save the changes made.

4.15.4 Deleting name and number from the Phone Book

• Press the Programming key
• Press the Up or Down key repeatedly until 'PHONE BOOK' appears on the display.
• Press the Programming key
• 'SEARCH' appears on the display.
• Press the Up or Down key repeatedly until 'DELETE' appears on the display.

TOPCOM®

Butler 2450

• Press the Programming key
  • The first number in the Phone Book appears on the display.
• Press the Up or Down key ▲▼ until the number you want to delete appears on the display.
• Press the Delete key
• 'DELETE?' appears on the display.
• Press the Programming key to confirm that you want to delete it.

4.16 Switch the handset on/off

4.16.1 Switch the handset off

The handset is turned on.

• Press the Programming key
• Press the Up or Down key repeatedly until 'POWER OFF?' appears on the display.
• Press the Programming key. The telephone turns itself off. You cannot dial any more numbers, nor receive any calls.

Note : If you would like to leave the menu without turning off the handset, press the Delete/Mute key ↗.

4.16.2 Switch the handset on

The handset is turned off.

- Press the Programming key .The telephone turns itself on.

4.17 Setting the ring volume level on the handset

You can change the ring volume of an incoming call. You have 10 levels. You can set the ring volume of internal and external calls separately so you can hear a difference.

If you select level '0', the symbol appears on the display and you no longer hear the phone ring when an external call is received (you still hear it ring for internal calls).

Level '9' is the highest level. The telephone is set to level '5' by default.

4.17.1 Setting the ring volume for external calls (0-9)

• Press the Programming key
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key
• 'EXTERNAL' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'VOLUME' appears on the display.
• Press the Programming key
• The current volume level used appears on the display.
• Enter a number between 0 and 9 to select the desired ringer volume. Use the number keypad to do this.
• Press the Programming key to confirm your selection.

4.17.2 Setting the ringer volume for internal calls (1-9)

• Press the Programming key
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key

TOPCOM®

Butler 2450

• 'EXTERNAL' appears on the display.
• Press the Up or Down key repeatedly until 'INTERNAL' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'VOLUME' appears on the display.
• Press the Programming key
• The current volume level appears on the display.
• Enter a number between 1 and 9 to select the desired ringer volume. Use the number keypad to do this.
• Press the Programming key to confirm your selection.

4.18 Setting the ringer melody on the handset

You can change the ringer melody for an incoming call. You have 9 ringer melodies to choose from (1-9). By default, the ringer melody is set to '5'.

4.18.1 Setting a ringer melody for external calls (1-9)

• Press the Programming key
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key
• 'EXTERNAL' appears on the display.
• Press the Programming key
• 'MELODIES' appears on the display.
• Press the Programming key
• The currently set ringer melody appears on the display.
• Enter a number between 1 and 9 to select he desired ringer melody. Use the number keypad to do this.
• Press the Programming key to confirm your selection.

4.18.2 Setting a ringer melody for internal calls (1-9)

• Press the Programming key
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key
• 'EXTERNAL' appears on the display.
• Press the Up or Down key repeatedly until 'INTERNAL' appears on the display.
• Press the Programming key
• 'MELODIES' appears on the display.
• Press the Programming key
• The currently set ringer melody appears on the display.
• Enter a number between 1 and 9 to select the desired ringer melody. Use the number keypad for this.
• Press the Programming key to confirm your selection.

4.19 Setting the ring volume level of the base

You can change the ring volume and melody of the Butler 2450 base.

TOPCOM®

Butler 2450

• When base is ringin
• Press volume key on base to increase or decrease ring volume

4.20 Locking the key pad

If you lock the alphanumeric keypad, it is impossible to dial a telephone number. Only the Programming key can still be used. 'KEY LOCKED' will be displayed on the display.

- Press the Programming key

- Press the Up or Down key repeatedly until 'KEY SETUP' appears on the display.

- Press the Programming key

- KEY LOCK ^' appears on the display.

- Press the Programming key

- The current status of the keypad appears on the display:

- 'LOCK': the keypad is locked

- 'UNLOCK': the keypad is not locked

- Press the Up or Down key to make your selection.

- Press the Programming key to confirm your selection.

4.21 Turning key click on/off

You can set the telephone to make a sound whenever you press a key.

- Press the Programming key

- Press the Up or Down key repeatedly until 'KEY SETUP' appears on the display.

- Press the Programming key

- Press the Up or Down key repeatedly until 'KEY CLICK' appears on the display.

- Press the Programming key

• The current status appears on the display:

- 'CLICK ON': turn on key click

- 'CLICK OFF': turn off key click

- Press the Up or Down key to make your selection.

- Press the Programming key to confirm your selection.

4.22 The R key (flash)

Press the Flash key 'R' to use certain services such as "call waiting" (if your telephone company offers this feature); or to transfer calls if you use a telephone exchange (PABX). The Flash key 'R' is a brief interruption of the line. You can set the flash time to 100ms or 250ms. This is set to 100ms by default! However, if your system requires a longer flash time, do the following:

- Press the Programming key

- Press the Up or Down key repeatedly until 'SETTING' appears on the display

- Press the Programming key

- Press the Up or Down key repeatedly until 'RECALL' appears on the display.

- Press the Programming key

- Press the Up or Down key repeatedly to select the flash time:

- SHORT = 100ms

- LONG = 250ms

- Press the Programming key to confirm your selection.

TOPCOM®

Butler 2450

4.23 Changing the PIN code

Certain functions are only available if you know the PIN code of the telephone.

The PIN code has 4 digits. The default PIN code setting is '0000'. If you would like to change the default PIN code and set your own secret code, do the following:

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'PIN CODE' appears on the display.

- Press the Programming key

- 'OLD CODE' appears on the display.

- Enter the old PIN code. Use the number keys.

- Press the Programming key

- 'NEW CODE' appears on the display.

- Enter the new PIN code in. Use the number keys.

- Press the Programming key

- 'AGAIN' appears on the display.

- Enter the new PIN code again. Use the number keys.

- Press the Programming key

- You hear a confirmation tone. The new PIN code has been set.

Caution : Do not forget your personal PIN code. If you do, you have to restore the default settings (reset – see section 4.31).

4.24 Subscribing a handset to a Butler 1000, 1010, 1210, 2405, 2410, 2450 base unit

In order to be able to make and receive telephone calls, a new handset has to be subscribed to the base unit. You can subscribe 5 handsets to one base unit. By default, each handset is subscribed as handset 1 on the base unit upon delivery (base unit 1).

!!! You only need to subscribe the handset if: !!!

- the handset subscription has been removed from the base unit (e.g. for reinitialisation)

- you want to subscribe a different handset to this base unit.

The underlined procedure is only applicable to a Butler 1000, 1010, 1210, 2405, 2410, 2450 handset and base unit!!

Keep the Paging key on the base unit pressed for 10 seconds until the Line/Charge indicator on the base unit begins to blink rapidly. The Line/Charge indicator will blink rapidly for one minute. During this minute, the base unit is in subscribing mode and you must do the following to subscribe the handset:

• Press the Programming key
• Press the Up or Down key repeatedly until 'BASE SUB' appears on the display.
• Press the Programming key
• 'BASE_' appears on the display.

- Enter a number of the base unit you would like to subscribe the handset to (1-4). Use the number keypad.

Note: Each handset can be subscribed to 4 different DECT base units. Each base unit is assigned a number from 1 to 4 in the handset. When you subscribe a new handset, you can assign a base unit number. It is best to use '1'.

TOPCOM®

Butler 2450

• 'SEARCHING' and the symbol appears on the display.
• The RFPI code (each base unit has a unique RFPI code) appears on the display and a signal sounds when the handset has found the base unit.
• Press the Programming key
  • 'PIN' appears on the display.
• Enter the 4-digit PIN code of the base unit in (default PIN code is '0000'). Use the number keypad.
• Press the Programming key
• The handset is subscribed to the base unit.

4.25 Subscribing Butler 2450 handset on another base (other brand/model)

Put the base in subscription mode (see manual of the base). If the base is in subscribing mode, you have to do the following to subscribe the handset:

• Press the Programming key
• Press the Up or Down key repeatedly until 'BASE SUB' appears on the display.
• Press the Programming key
• 'BASE_' appears on the display.
• Enter a number for the base unit to which you would like to subscribe the handset (1-4). Use the number keypad.

- 'SEARCHING' and the symbol appear on the display.

- The RFPI code (each base unit has a unique RFPI code) appears on the display and a signal sounds once the base unit is found by the handset.

- Press the Programming key

• 'PIN' appears on the display.

- Enter the 4-digit PIN code of the base unit. Use the number keypad.

- Press the Programming key

- The handset is subscribed to the base unit.

4.26 Subscribing a Butler 1800T handset to a Butler 24xx base unit

The below procedure only applies to a Butler 1800T handset and Butler 24xx base unit!! Press the Paging key on the base unit for 10 seconds until the Line/Charge indicator op the base unit starts to blink quickly. The Line/Charge indicator will blink quickly for one minute. During this minute, the base unit is in subscribing mode and you must do the following to subscribe the handset:

• Press the key once.
• Press the OK key and select a base unit (1-4) with the keys.
• Press the OK key.
• Enter the PIN code of your base unit. Usually: 0000.
• Press OK to confirm your selection or press ESC to cancel the subscription.

- Press OK. The Butler 1800T now searches for your DECT base unit. As soon as it finds it, you will see the identification code of this base unit on the display.

4.27 Removing subscription of a handset to a base unit

It is possible to cancel subscription of a handset to a base unit. You would do this if a handset is damaged and has to be replaced by a new one.

TOPCOM®

Butler 2450

Caution: You can only cancel subscription of another handset, not the handset you are using to do the cancellation procedure.

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'REMOVE HS' appears on the display.
• Press the Programming key
  • 'PIN' appears on the display.
• Enter your 4-digit PIN code in (default PIN code is '0000'). Use the number keypad.
• Press the Programming key
• 'REMOVE HS' appears on the display.
• Dial the number of the handset you want to remove (1 -5). Use the number keypad.
• Press the Programming key
• 'REMOVE HS' appears on the display and the handset is removed
• NOT SUB' appears on the handset removed.

4.28 Selecting a base unit

If your handset is subscribed to several base unit stations (max. 4), you must select a base unit because the handset can only communicate with one base unit at a time. There are two possibilities:

4.28.1 Automatic selection

If you set the handset to 'automatic selection', the handset will automatically choose the closest base unit in standby.

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'BASE SEL' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'AUTO' appears on the display.
• Press the Programming key
• 'SEARCHING' and the symbol appear on the display.
  • A signal sounds once the handset has found a base unit.

4.28.2 Manual selection

If you set the handset to 'manual selection', the handset will only choose the base unit you have set.

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'BASE SEL' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'MANUAL' appears on the display.
• Press the Programming key
• 'BASE -' appears on the display.
• Enter the number of the base unit you want to select (1-4). Use the number keypad.
• Press the Programming key

TOPCOM®

Butler 2450

• 'SEARCHING' and the symbol appear on the display.
  • A signal sounds once the selected base unit has been found.

Notes :

• Before you can select a base unit, the base unit must be subscribed to the handset first.
• If 'NOT SUB' appears on the display, this means the selected base unit does not exist or the handset has not been subscribed.

4.29 Barring outgoing calls

You can program the handsets to bar calls to certain telephone numbers so that for instance '00' international numbers cannot be called. Up to 5 numbers (of max. 5 digits) can be barred.

To do this, do the following:

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'BARRING' appears on the display.
• Press the Programming key
  • 'PIN' appears on the display.

- Enter your PIN code

- Press the Programming key

- 'BAR NUM' appears on the display. You are in memory "1._".

- Press the Up or Down key to select one of the 5 memories.

- Enter the number (max. 5 digits) to be barred, e.g. 01486.

- Press the Programming key

- 'HS ____.' (= number on the handset (1-5)) '01486' (= the barred numbers) appear on the display.

- Enter the numbers of the handsets from which the barred numbers cannot be called.

- e.g. Press the number key 2, 3 and 5. On the display, this will appear: HS _2 3_5 01486 These handsets can no longer dial numbers beginning with '01486'.

- Press the Programming key to confirm your selection. Repeat the same procedure described above if you would like to bar other numbers (max. 5)!

4.30 Direct Call

By setting a Direct Call number, the phone will automatically take the line and dial out this number. This function is useful to use the phone as a emergency phone.

4.30.1 To program the Direct Call number

• Press the Programming key
• Press the up or down key until 'DIRECT' appears on the display
• Press the Programming key
• If necessary, delete the existing number by pressing the Delete-key a few times
• Enter the direct number
• Press the Programming key

TOPCOM®

Butler 2450

4.30.2 Turn the Direct Call function ON/OFF

To turn it ON:

• Press the Programming key
• Press the up or down key until 'DIRECT' appears on the display
• Press the mute-key for 2s
• 'DIRECT ON' appears on the display

To turn if OFF:

- Quick press the Programming key twice

4.31 Default settings (reset) of the parameters

You can reset the standard (default) settings in the telephone. You need the PIN code to do this.

The default settings are:

Keypad: not locked

Key clicks: active

Speaker volume: level 3

Ringer melody: 1

Ringer volume : 5

Selection base unit: automatic

Flash time: 100ms

To restore the default settings, do the following:

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'RESET' appears on the display.
• Press the Programming key
  • 'PIN' appears on the display.
• Enter your PIN code.
• Press the Programming key

4.32 Complete Reinitialisation of the telephone

This function allows you to completely reinitialise the telephone without requiring your PIN code. This will delete all Phone Book memory entries, all handsets will be removed, all default settings will be restored and the default PIN code will be restored to '0000'.

Do the following:

• Disconnect the battery in the telephone.
• Keep the ‘*’ key pressed and reconnect the battery until the handset rings continually and the display lights up. Release the ‘*’ button and press the Programming key
• The handset finds the base unit and a signal sounds.
• Briefly press the ‘*’ key.
• 'RESET?' appears on the display.
• Press the Programming key to confirm your selection of disconnect the battery to discontinue the procedure.

TOPCOM®

Butler 2450

• 'RESETTING' appears on the display and a long beep tone sounds.
• 'NOT SUB' appears on the display. The handset is completely reinitialised.

Afterwards, you must resubscribe all handsets as described in point 4.24! However you no longer need to set the base unit to subscription mode, because this now happens automatically!

5 CALLER ID/CLIP

(This service only works when you have a Caller ID/Clip subscription. Contact your telephone company).

When you receive a call, the telephone number of the caller, the date and time appears on the handset display. The telephone can receive calls in both FSK and DTMF. If the name is programmed in the Phone Book, the name in the Phone Book is displayed!

The telephone can store 30 calls in a Call List that can be reviewed later. The telephone never stores the same call twice. When the memory is full, the new calls automatically replace the oldest calls in the memory. The symbol on the display blinks if the call is not read or not answered. If the Call List is empty and you press the Up key ▲ three beep tones will sound.

You can view the information of an incoming call as follows:

• Press the Up key ▲The name (if sent by the network or present in the Phone Book memory) of the caller, the sequence number of the call in the Call List, the date and time of the call appear on the display.
• Press the Down key. The telephone number of the caller appears on the display.

5.1. Setting the date and time

When you receive an incoming call and the date and time are not sent together with the telephone number, this means that the date and the time will not be shown on the display. By setting the date and time, they will be shown on the display, together with the telephone number, every time a call comes in!

• Press the Programming key
• Press the Up or Down key a few times until 'SETTING' appears on the display.
• Press the Programming key
• 'DATE/TIME' appears on the display.
• Press the Programming key again.
• When 'YEAR' appears on the display, enter the 2 last numbers of the year (00=2000, 01=2001, ...) and press the Programming key to confirm.
• When 'MONTH' appears on the display, enter the month (01=January, 02=February, ...) and press the Programming key to confirm.
• When 'DAY' appears on the display, enter the day of the month and press the Programming key to confirm.
• When 'HOUR' appears on the display, enter the current hour (in 24h format) and press the Programming key to confirm.
• When 'MINUTES' appears on the display, enter the minutes and press the Programming key to confirm.
  The date and time are now set!

TOPCOM®

Butler 2450

5.2 The Call List

The calls received are stored in the Call List (max. 30 numbers).

• Briefly press the Up key to view the most recent call.
• The name of the most recent caller appears on the display. If no name is available, 'NO NAME' appears on the display.
• If it is a private number, 'UNAVAL' appears on the display.
• The date and time the call was received are linked to each call.
• Briefly press the Down key to view the telephone number of the call.
• Briefly press the Down key to browse other numbers on the list.

Notes :

• If neither the Up or Down key ▲▼ is pressed for 15 seconds, the telephone will return to standby mode.
  • After a call is received, the number of the caller remains on the display for 15 seconds after the last ring.
• Caller ID is not available while you are on the line.

5.3 Calling a number from the Call List

• Press the Up key to go to the Call List
• Press the Up key to look up the desired call. Press the Down key to view the telephone number.
• Once the number is on the display, press the Line key ⏻ and the number is dialled automatically. (The symbols and 'EXT' appear on the display and the call timer starts.)

5.4 Storing a number from the Call List in the Phone Book

• Press the Up key to go to the Call List.
• Press the Up key to look up the desired number.
• Press the Phone Book key twice.
• 'STORE' appears on the display.
• The number is stored in the Phone Book. If the call was displayed without a name (NO NAME), you can add a name to this number in the Phone Book afterwards
• The telephone returns to standby-modus.

5.5 Deleting numbers from the Call List

5.5.1 Deleting one number

• Press the Up key to go to the Call List.
• Press the Up key to find the call you would like to delete.
• Once this call appears on the display, press the Delete key
• 'DELETE?' appears on the display.
• Press the Programming key to confirm your selection or the Delete key to cancel.
• The call is deleted and the next call appears on the display.

5.5.2 Delete all numbers

• Press the Up key to go to the Call List.
• Keep the Delete key pressed until 'DELETE ALL' appears on the display.
• Press the Programming key to confirm your selection or the Delete key to cancel.
• All calls are deleted.

TOPCOM®

Butler 2450

6 VOICE MAIL INDICATOR

This function only works if you have the voice mail or phone mail service and if the network sends this indication along with the caller ID (CLIP) information!

When you receive a new message in your voice mail system, the 'icon will appear on the display. Once you have listened to your messages, the 'icon will disappear.

7 ANSWERING MACHINE

The Butler 2450 has a built-in digital answering machine with a recording capacity of 11 min. The answering machine can be operated remotely and features the possibility of recording two outgoing messages (OGM 1 and OGM 2) (maximum of 2 min).

There are 2 possibilities:

• With OGM 1, the caller has the possibility to leave a message
• With OGM 2, only the outgoing message is given without the caller having the opportunity to leave a message

The max. recording time for each incoming message = 2 min.

An internal voice will state various information, such as day and time of the call, as well as settings such as VIP code, ringer tones .. The language of the internal voice is stated on the packaging!

7.1. LED Display

The new message LED will flash if new messages have been received; the number of flashes between each long pause indicates how many new calls have been recorded. If the answering machine is switched off, the On-Off LED does not light.

MEMORY FULL-LED is turned on when the internal memory is full and no new messages can be recorded.

TOPCOM®

Butler 2450

7.2 Base Key Functions

Note: - The & △• keys are at the bottom of the base

Key Stand-by mode During messagePress key briefly press key for 2 seconds play-back
1 Play OGM Record OGM Go to previous message
2 ▶	Playback messages None		Pause
3 ▶▶	None Record memo Skip message
4 ▶	Set volume None set volumespeech +ringing
5 ▶/■	Select OGM	Switch On-Off	Stop
6 Play VIP-code Set VIP-code None
7 △•●	Current number of ring tones	Set numbers of ring tones	None
8 ⏻	Playback Time Set date/time None
9 ×	None	Delete all messages	Delete message or delete OGM

7.3 Outgoing Messages

Two outgoing messages of 2 minutes can be recorded (OGM1 and OGM2).

• Outgoing message 1 for the answering function and possibility for callers to leave a message.
• Outgoing message 2 for the answering function without allowing callers to leave a messages on the machine.

7.3.1 Recording outgoing messages (OGM 1 or OGM 2)

• Press the ⏻/■-key to select the OGM.
  • A voice will playback the recorded OGM
• Press the 1.2-key for two seconds
  • Record the outgoing message after the beep
• Press the Stop ■ -key to stop recording.

Note: The recording cannot exceed 2 minutes. If no outgoing message is recorded, the prerecorded outgoing message is used.

7.3.2 Playback the Outgoing Message

To check the outgoing message now set:

- Press the 1.2 key.

Note: To stop playing the welcome note briefly press the Stop ■-key.

TOPCOM®

Butler 2450

7.3.3 Select outgoing message

• Press the key switch between the 2 outgoing messages.
• The internal voice will confirm the set outgoing message.

Notes:

It is only possible to select an outgoing message if the answering machine is turned on.

If the memory is full, only outgoing message 2 can be selected (only answering without recording messages)

7.3.4 Erasing the Outgoing Message

If you erase the outgoing message, the default message will be played 'Please call later'. Erase the outgoing message as follows:

• Select the desired outgoing message by pressing the key.
• Press the key to play the outgoing message.
• Keep the key pressed down when the OGM is played back.

7.4 Turning Answering Machine On/Off

If the answering machine is on, the LED will light up and the machine will automatically pick up the line after a number of rings (see 'Setting Number of Rings').

• Press the key for 2 secs to switch on the answering machine. A voice confirms the setting and says which outgoing message is active (OGM 1 or OGM 2).
• Press the key for another 2 secs to switch off the answering machine. A voice confirms the setting.

Note: Even if the answering machine is off, the machine will automatically pick up after 10 rings in order to enable remote activation (see 7.15 Remote operation)

7.5 Setting Number of Rings

The number of rings after which the answering machine will answer calls can be set from 2 – 9 and TS (Toll saver). The standard setting is 3 rings. In Toll saver mode, the machine will answer after 5 rings if there are no new messages, and after 2 rings if there are new messages. If there are no new messages and you call your machine to check your messages remotely (see 7.15 Remote operation), you can hang up after the 2nd ring. You do not need to pay connection fees and you know that you do not have any new messages.

• Briefly press the key. A voice will state the current number of rings.
• Press the key for 2 secs to set the number of ringing tones.
• Press the 🔊 key to change the current number of rings.
• Confirm the setting by pressing the key. The current ring setting is confirmed by the internal voice.

Notes:

• If you do not press any keys for 3 seconds, the machine will revert back to the answering machine menu, without changing the settings.
• If there is a loss of power in the base, the number of rings will revert to 3.

TOPCOM®

Butler 2450

7.6 Checking Number of Rings

• Press the key briefly.
• The internal voice will state the number of rings set.

7.7 Setting Day and Time

The day and time setting of the answering machine is independent of the telephone component. The day and time of each call is registered and announced during play-back. The format of the hour depends on the language of the internal voice. e.g. English is in 12-hour format and German is in 24-hour format.

Programming the day and time:

• Keep the -key pressed down for 2 secs.
  • The internal voice will ask you to set the day.
• Press a few times on 🔊 keys to set the day. The internal voice states the current settings.
• Press the key to confirm the day.
  • The internal voice will ask you to set the hour.
• Press a few times on or keys to set the hour.
• Press the key to confirm the hour.
  • The internal voice will ask you to set the minutes.
• Press a few times on or keys to set the minutes.
• Press the key to confirm the minutes.

The complete day and time setting is then repeated for confirmation.

Notes:

• If you do not press any keys for 8 seconds, the previous day/time setting is saved and the machine automatically exits the day/time setting mode.
• When you use the machine for the first time and have not yet set the day/time, no day/time registration of incoming messages is recorded.
• If there is a loss of power to the base, the day/time must be re-entered.

7.8 Checking Day/Time

- Press the ⏻ key to announce the day/time. The internal voice will say the current day/time setting.

7.9 Programming the VIP Code

The VIP code is a 3-digit code used to operate the machine remotely (see Remote Operation). The VIP code is set to '321' by default.

Note: If there is a loss of power to the base, the VIP code will revert to '321'.

7.9.1 Changing the VIP Code

• Keep the -key pressed down for 2 secs to change the VIP code.
• The internal voice asks you to set the VIP code and says the first number.

TOPCOM®

Butler 2450

• Press a few times on or keys to set the first number of the VIP code.
• Press the dekey to confirm the first number. The internal voice says the current set 2nd digit of the VIP code.
• Press a few times on or keys to set the second digit of the VIP code.
• Press the key to confirm the second number. The internal voice says the current set 3rd digit of the VIP code.
• Press a few times on or keys to set the third digit of the VIP code.
• Press the de key to confirm the VIP code. You will hear a long beep. The internal voice says the new VIP code for confirmation.

Note: If you do not press any keys for 8 seconds, the previous VIP code is saved and the machine automatically exits the VIP setting mode.

7.9.2 Checking the VIP Code

- Press the key to play the VIP code. The internal voice says the current VIP code.

7.10 Operation

If a call is received and the answering machine is turned on, the answering machine will automatically pick up the line after the set number of rings. If

• outgoing message 1 has been selected, it will be played. After the outgoing message, a beep will be heard and the caller can leave a message (of a max. 3 minutes).
• Outgoing message 2 has been selected, it will be played. After the beep, the line will automatically be disconnected. The caller does not have the possibility to leave a message.

Note: If, during pick-up, nothing is said for 8 seconds, the line will be automatically disconnected.

7.11 Recording a Memo

With the Butler 2450, you can record memos. These memos are considered an incoming message that can be picked up later by the user. The max. recording time for a memo is 2 minutes.

- Press the Key for 2 seconds. After the beep, say your memo.

- Press the Stop -key to stop recording.

7.12 Playback of Incoming Messages and Memos

• Press the key to play the messages and memos.
• An internal message tells you how many messages there are (total) and how many new (unheard) messages.
• The messages are played one at a time. If there are new messages, only the new messages (those that have not been heard) are played.
• For each message, the internal voice says the day and time the message was recorded
  • During playback, you can:
• go to the beginning of the current message by pressing the key once.
• go to the previous message by pressing the key twice.
• stop playback by pressing the Stop ■ey .

TOPCOM®

Butler 2450

• interrupt playback by pressing the Pause key ▶Press the Pause key again to restart playback.
• go to the next message by pressing the key.

7.13 Erasing Messages

7.13.1 Erasing Messages One at a Time during Playback

Start message playback as explained above.

• When the message to be erased starts playing, press the delete key for 2 secs
• During erase the internal voice will tell you that the message is being erased.
• The machine will start playing the next message.

7.13.2 Erase all messages

One can also erase all heard messages at one time. This erases only the messages that have already been heard. New messages are not erased.

- Press the delete key for 2 secs.

- The internal voice confirms that the messages have been erased by saying how many new (unheard) messages there are.

7.14 Memory Full

If the memory is full, MEMORY FULL-LED will flash. If the answering machine is turned on and a call comes in, the machine will automatically play OGM 2 (answering machine function without recorded caller message).

When listening to the messages, the internal voice will say that the memory is full and then play back the messages.

• Erase all the messages after listening to them.
  • The memory is free again.

7.15 Remote Operation

The answering machine can only be operated remotely using a tough-tone phone (DTMF tone selection system).

• Call your machine.
• The answering machine picks up the line, you hear the outgoing message and a beep.
  • After the beep, slowly dial the VIP code (default 321).
• You will hear two short beeps for confirmation.
• Enter the next codes to use the desired function :

a) Listening to Messages

- Press '2' (listen to messages). The answer machine will play the messages.

During playback, you have the following options:

• Press '2' to stop playback.
• Press '2' to restart playback.
• Press '3' to go to the next message.
• Press '1 1' to go to the previous message.

TOPCOM®

Butler 2450

• Press '1' to repeat the current message.
• Press '6' to stop playback.
• Press '7' to erase the current message.

b) Erasing All Old Messages

After listening to all messages, press '0' to erase all messages.

c) Playing Outgoing Message

- Press '4' to play the current outgoing message.

d) Recording Outgoing Message

• Press '9' to select OGM 1 or OGM 2.
• Press '5' to start recording
  • A beep will indicate that you can start recording.
• Say your message.
• Press '6' to stop recording.

Note: Recording will be automatically interrupted after 2 minutes.

e) Turning Answering Machine On/Off

• Press the '9' key to switch on the answering machine.
• Press the '8' key to turn off the answering machine.

f) Ending Remote Operation

If you want to end remote operation, press '6'.

7.16 Turning Answering Machine On Remotely

If the answering machine is switched off, you can turn it on remotely.

• Call your machine.
• The machine will pick up automatically after 10 rings and play outgoing message 2.
• Dial the VIP code (default 321) slowly during the message plays.
• Press the '9' key.
• The internal voice will say that the answering machine has been turned on.
• Press '6' to stop operation.

TOPCOM®

Butler 2450

8 TROUBLE SHOOTING

Symptom Possible cause Solution

No display Batteries uncharged Check the position of thebatteriesRecharge the batteries
	Handset turned OFF Turn ON the handset
No tone Telephone cord badly Check the telephoneconnected cord connection
	The line is occupied Wait until the other handsetby another handset hangs up
The icon Handset out of range Bring the handset closer toflashes the base
	The base has no power Check the mains connectionsupply to the base
	The handset is not Register the handset to theregistered to the base base
Base or handsetdo not ring zero or low	The ringing volume is Adjust the ringing volume
Tone is good, butthere is no wrongcommunication	The dialling mode is(pulse/tone)	Adjust the dialling mode
Telephone does notreact to pressingthe keys	Manipulation error	Remove the batteries andbut them back in place
	Keypad lock ON	Turn OFF the Keypad Lock
Flash (R) Key does Wrong Flash timenot work	Change the flash time

TOPCOM®

Butler 2450

9 TOPCOM WARRANTY

• This equipment comes with a 24-month warranty. The warranty will be honoured on presentation of the original bill or receipt, provided the date of purchase and the unit type are indicated.
• During the time of the warranty Topcom will repair free of charge any defects caused by material or manufacturing faults. Topcom will at its own discretion fulfil its warranty obligations by either repairing or exchanging the faulty equipment.
• Any warranty claims will be invalidated as a result of intervention by the buyer or unqualified third parties.
• Damage caused by inexpert treatment or operation, and damage resulting from the use of non-original parts or accessories not recommended by Topcom is not covered by the warranty.
• The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor does it apply if the unit numbers on the equipment have been changed, removed or rendered illegible.

Note: Please do not forget to enclose your receipt if you return the equipment

TOPCOM®

Butler 2450

10 TECHNICAL CHARACTERISTICS

• Standard:
  DECT ( Digital Enhanced Cordless
  Telecommunications)
  GAP ( Generic Access Profile )

• Frequency range: 1880 MHz to 1900 MHz
• Number of channels: 120 duplex channels
- Modulation: GFSK
- Speech coding: 32 kbit/s
- Emission power: 10 mW (average power per channel)
- Range: 300 m in open space /50 m maximum inhouse
- Base power supply: 220 V / 50 Hz for the base
- Handset Batteries: 2 rechargeable batteries AAA, NiMh 600mAh
- Handset autonomy: 100 hours in standby
- Talk time: 8 hours
- Charging time: 6-8 hours
• Normal conditions of use: +5 °C to +45 °C
- Dialling mode: Pulse / Tone

TOPCOM®

it's nice talking to you

www.topcom.be
