Product Type	MP3 Player with Color Display
Brand	Hitachi
Model	DMP460
Display	1.8-inch Color LCD, 128x160 pixels
Storage Capacity	2GB / 4GB / 8GB (depending on variant)
Audio Formats Supported	MP3, WMA, WAV
Photo Formats Supported	JPEG, BMP
Video Formats Supported	MTV (converted)
Dimensions (W x H x D)	43 x 84 x 8.3 mm
Weight	Less than 40g (without accessories)
Battery Type	Built-in rechargeable Li-polymer, 300mAh
Battery Life	Up to 8 hours music playback; up to 3 hours video playback
Charging Method	Via USB connection to computer
Interface	USB 2.0 High Speed
Equalizer Settings	Normal, Pop, Rock, Classic, Jazz, Bass, Custom EQ
Playback Modes	No Repeat, Repeat One, Repeat All, Random All, Folder Normal, Folder Repeat, Folder Random
Additional Features	Voice recording, lyrics display, e-book viewer (TXT), photo slideshow
Supported Languages	English, French, German, Italian, Spanish, Portuguese, Dutch, Russian
Operating Temperature	-10°C to 40°C
Storage Humidity	Less than 90%
Signal-to-Noise Ratio	≥85dB
Distortion	<0.2%
Frequency Response	20Hz - 20kHz

Frequently Asked Questions - DMP460 HITACHI

How do I charge the Hitachi DMP460 MP3 player?

Connect the MP3 player to a computer using the provided USB cable. The battery charges automatically. For the first use, charge for approximately 8 hours. The device does not function while charging.

How do I transfer music files to the DMP460?

Connect the MP3 player to your computer via USB. It will appear as a 'Removable Disk'. Simply drag and drop music files (MP3, WMA, WAV) into the folder on the device. Safely eject before disconnecting.

What should I do if the MP3 player freezes or does not respond?

Use a pointed object to press the RESET hole/button located on the device. This will re-initialize the system.

How do I play music on the DMP460?

Press and hold the ▶|| button to enter the main menu. Select Music using the ◀▶ buttons, then press ▶II to confirm. Choose a file and press ▶II to start playback. Use ▲▼ to adjust volume, ◀▶ to skip tracks.

How do I make a voice recording?

Enter the main menu and select Voice. Then select Record and press ▶ to start recording. Press ▶II to pause, MENU to stop. Recordings are saved as WAV files in the MICIN.DIR folder.

How can I convert videos to MTV format for playback?

Use the included MTVVideo Converter software on the CD. Insert the CD, run the converter, select input video, set output frame size to 128x128 or less, choose MTV format, and click 'Start Conversion'. Ensure proper codecs are installed.

How do I change the equalizer settings?

While playing music, press MENU to enter the Music Setup Menu. Select Equalizer and choose from Normal, Pop, Rock, Classic, Jazz, Bass, or Custom EQ. For custom EQ, adjust the frequency bars.

Can I read e-books on the DMP460?

Yes. The device supports TXT files. Place TXT files in the E-Book folder. Enter the main menu, select E-Book, choose a file, and press ▶ to view. Use ▲▼ to turn pages. The last page is bookmarked automatically.

How do I delete files from the MP3 player?

Enter the main menu and select Delete. Navigate to the file or folder using ▲▼, press MENU to select delete, then confirm Yes.

What should I do if there is no sound from the earphones?

Check that the volume is turned up. Ensure the earphones are properly connected. Verify the music file format is supported (MP3/WMA/WAV). Also check that the key lock is not activated (press and hold ▶II to unlock).

USER MANUAL DMP460 HITACHI

2GB/4GB/8GB Music and Video Multimedia Player

Congratulations on the purchase of your new Hitachi MP3 Player. It has many exciting features to make your listening to music experience more enjoyable.

We recommend that you spend some time reading this instruction manual in order to fully understand these features.

You will also find some tips and help with troubleshooting common issues.

Read all the safety instructions carefully before using the MP3 Player and keep this instruction manual for future reference.

Contents

Contents 3

Product Overview....5

Unpacking the MP3 Player....5

Features....5

Identification of Parts and Controls 6

Connecting to a Computer....7

System Requirements....7

Installing the Driver for Windows 98 SE 7

Loading Files from a Computer to the MP3 Player....7

Disconnecting the USB Cable 8

Charging the Battery 8

Battery Level Indication 8

Basic Operation 9

Turning On/Off the MP3 Player 9

Resetting the MP3 Player....9

Key Hold Function....9

Entering the Main Menu....9

Music Playback 10

Playing Music....10

Display Lyrics....11

Entering the Music Setup Menu ....11

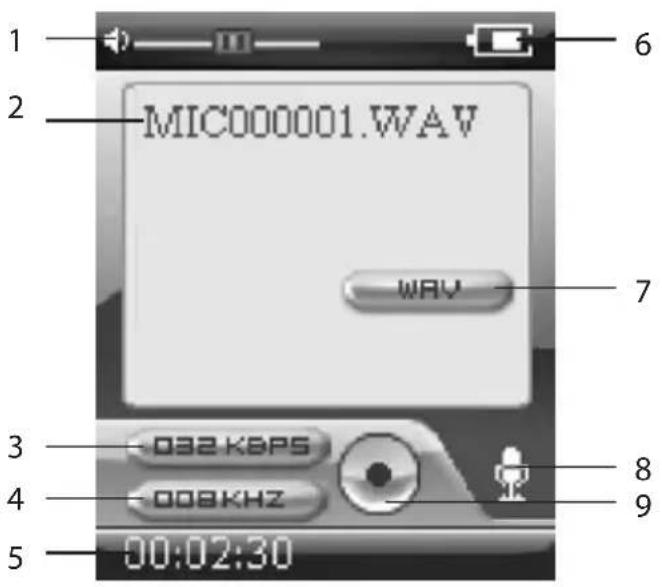

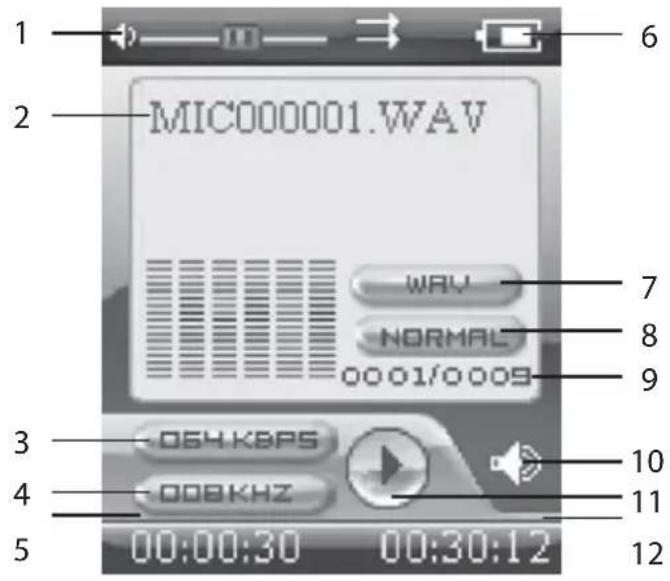

Voice Recording and Playback 15

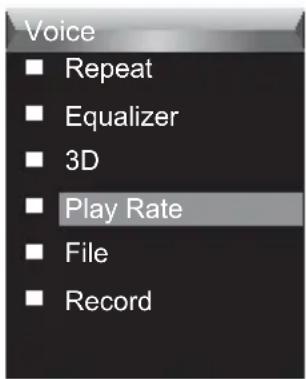

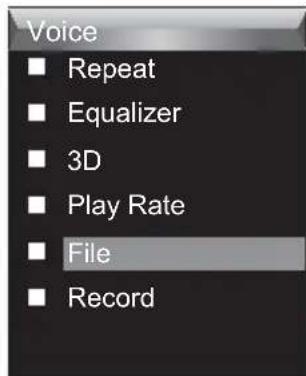

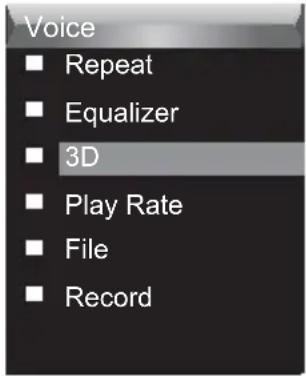

Entering the Voice Setup Menu....17

-To Set Repeat....17
- To Set Equalizer .... 18
- To Set 3D Sound Effect ....19
- To Set Play Rate ....19
- To Navigate Music Files 20

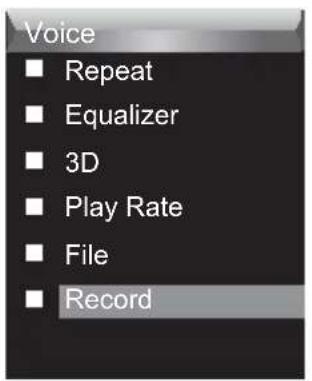

– To Record Voce ...... 20

Photo Playback....21

Entering the Photo Setup Menu....21

Movie Playback....22

Deleting Files and Folders 23

E-Book Viewing......24

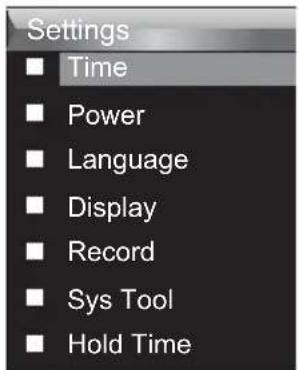

Customising Settings 25

Time....25
Power....26
Language....26
Display....26
Record....27

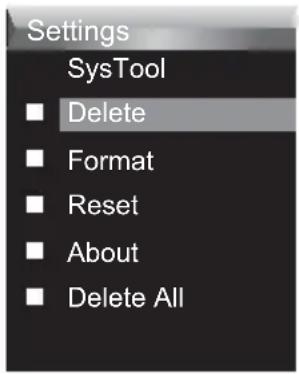

System Tools....27

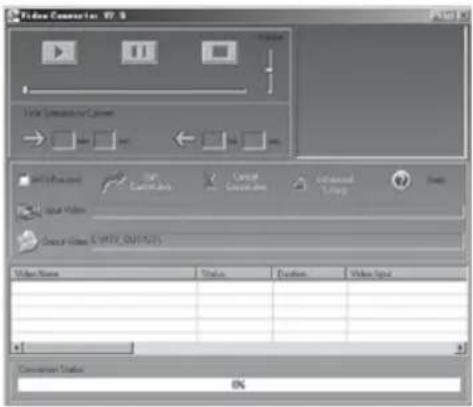

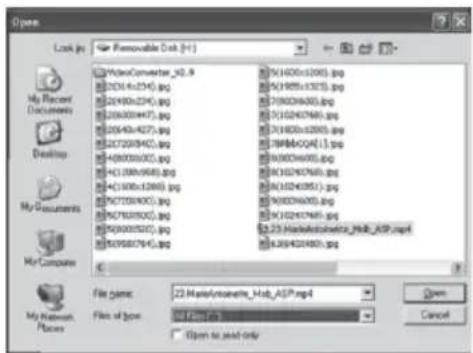

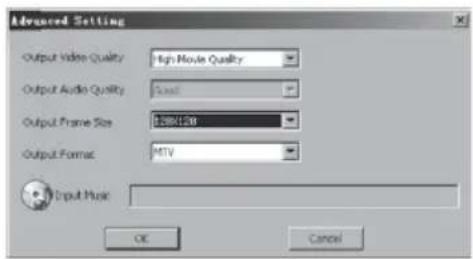

Converting Video to MTV Format....28

Hints and Tips....29

Specifications....30

Safety Warnings....31

Unpacking the MP3 Player

Remove all packaging from the MP3 player. Retain the packaging. If you dispose it please do so according to local regulations.

The following items are included:

Line drawing of a handheld electronic device with a screen and circular button (no text or symbols)

MP3 Player Installation with

part number: 50-110-26900119

USB Cable
part number: 38-012-10300019

Instruction Manual part number: 54-809-30000109

If items are missing or damaged, please contact partmaster (UK only).

Tel: [phone] for assistance.

Features

1.8 inch colour LCD, 128×160 pixel

Built-in rechargeable Li-polymer battery

USB 2.0 high speed transmission•

Supports playback of MP3, WMA, WAV audio files

Supports multiple equalizer (EQ) and 3D sound effects•

Supports multiple playback mode: section repeat, file repeat, folder repeat and random

Supports the basic information of titles, artists and albums of music files(ID3 tag).

Supports lyrics synchronisation, displayed on screen while music is playing•

Supports viewing of JPEG and BMP picture files

Supports converted MTV video format (file transformation tool included)

Supports viewing of e-book in TXT format•

Supports voice recording via the build-in microphone •

Multiple language user's interface•

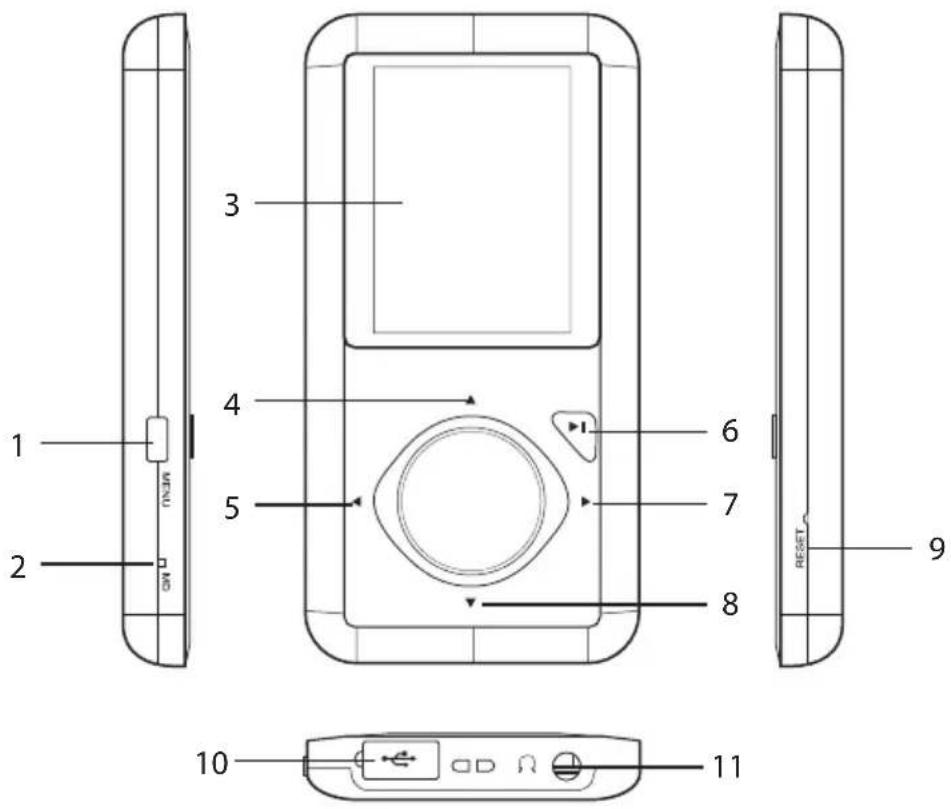

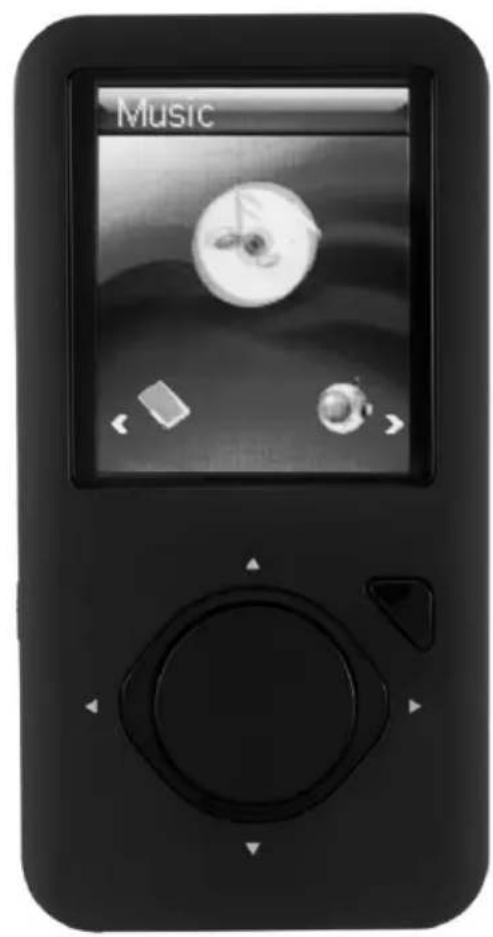

Identification of Parts and Controls

1 MENU Power on/off; Open or exit sub-menu; Stop recording
2 MIC Microphone for voice recording
3 Screen Screen display area
4 ▲	Increase volume; Navigate upwards; Previous picture/line
5 ◀	Previous track/page/screen; Fast backward; Navigate leftwards; Return to previous screen
6 ▶II	Start /Pause playback; Enter main menu; Confirm selection in the main menu
7 ▶	Next track; Fast forward search; Navigate rightwards; Confirm and enter next screen.
8 ▼	Decrease volume; Navigate downwards; Next picture/line
9 RESET Press the RESET hole/button if a malfunction occurs.
10 USB cable connection port with cover	Remove the USB cover and connect to the computer with the supplied USB cable.
11 📊 Earphones Jack	Connect with the supplied earphones.

System Requirements

Your computer system must meet the following requirements:

Pentium 200MHz or above•

Microsoft Windows 98SE / 2000 / ME / XP / Vista®

120MB of available hard disk space•

USB port supported•

CD-ROM drive•

Installing the Driver for Windows 98 SE

If your computer is running Windows ME / 2000 / XP / Vista ^® , no driver is required.

If your computer is running Windows 98 SE, you must install the driver provided on the CD before connecting the MP3 player to your computer.

Insert the installation CD into the CD-ROM drive.1.

Execute the "2. USB Disk Win98 Driver Version xxx.exe" file in the CD and follow the instructions in the pop-up window to complete the installation.

Restart the computer.3.

Make sure the MP3 player is disconnected from the computer when installing the driver.

Loading Files from a Computer to the MP3 Player

Files can be transferred directly into the MP3 player using the USB data cable.

Connect the MP3 player to the computer using the USB cable.1.

The computer system will detect "2. New Hardware" and start to install the driver automatically. Wait for the system to finish the installation. When it has finished, a new "Removable Disk" will be created in "My Computer".

Select the files on your computer and simply drag and drop them into the 3.

"Removable Disk".

Please do not disconnect the MP3 player from the computer during file transfers as it may cause the file transfer process and MP3 player to malfunction.

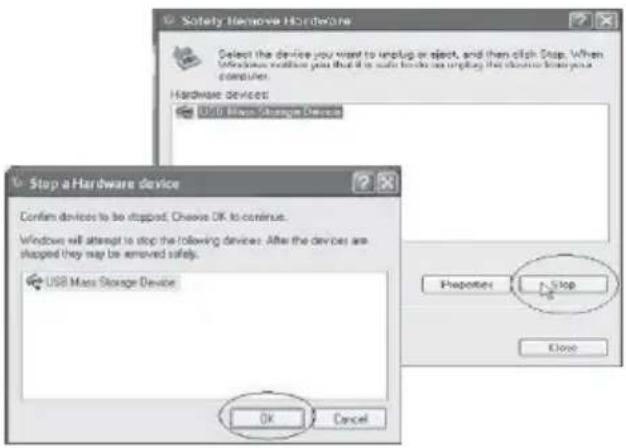

Disconnecting the USB Cable

After completing the file transfer, disconnect the USB cable in the following way:

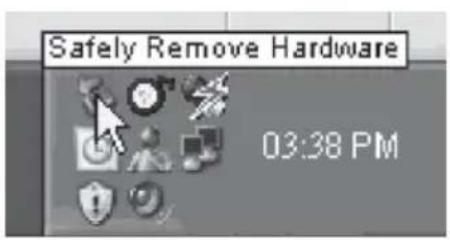

Double click the green arrow "1. Safely Remove Hardware" in the taskbar on the bottom right of the window.

Select "2. USB Mass Storage Device" and click "Stop".

1. The "Stop a Hardware device" pop-up window will appear, select "USB Mass Storage Device" and click "OK". Then you can unplug the MP3 player safely.

Charging the Battery

Your MP3 player has a built-in rechargeable Li-polymer battery. The battery is charged automatically whenever the MP3 player is connected to a computer.

If you charge the MP3 player while loading files to the MP3 player, it may take a longer time.

• Fully charge the MP3 player before you use it for the first time (\~8 hours) or when you haven't used it for a long period of time.
• Charge the MP3 player immediately when the "Low battery" message is displayed.

Do not overcharge the battery as it may shorten its life.

The MP3 player does not function while charging.

Battery Level Indication

The approximate power levels of your battery are indicated as follows:

Full Two-third full Low Empty

Power On/Off the MP3 Player

Make sure the battery is sufficient and the earphones are connected.

• Press and hold the MENU button to power on.
• Press and hold the MENU button to power off.

Resetting the MP3 Player

If the user interface is not responding, you will need to use a pointed object to insert into the RESET hole/button to re-initialise the system of your MP3 player.

Key Hold Function

The keys will be locked in Music and Voice mode after the set time if no button is pressed.

To deactivate the lock function, press and hold the ▶II button for 2 seconds and then release.

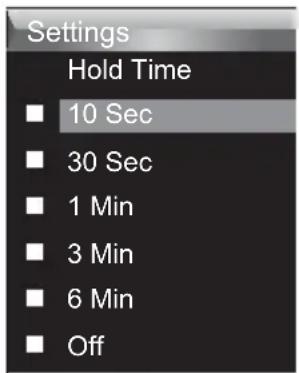

- To lock all buttons of the MP3 player, see "Hold Time" on page 27 for details.

Entering the Main Menu

Press and hold the ▶ button to open the main menu. Use the buttons to select an item and press the ▶ ll button to confirm your selection. All available options are listed below.

Music playback Photo playback voice recording playback

Game interface showing a white cup with fireworks and three icons below (no text or symbols on the main image)

Deleting files and folders
E-Book viewing

Black-and-white photo of a small electronic device with a camera module and two separate items (no visible text or symbols)

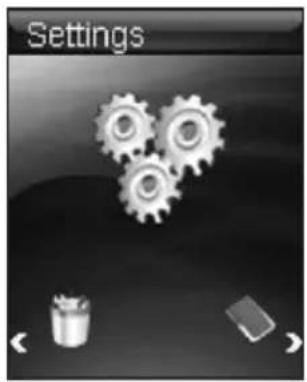

Customising settings

Black-and-white image showing a movie with three small objects on a dark background (no text or symbols)

Movie playback

Music Playback

Playing Music

Make sure the battery power level is sufficient and the earphones are connected correctly.

1. Press and hold the ▶ll button to enter the main menu. Press the ◀▶ buttons to select Music.

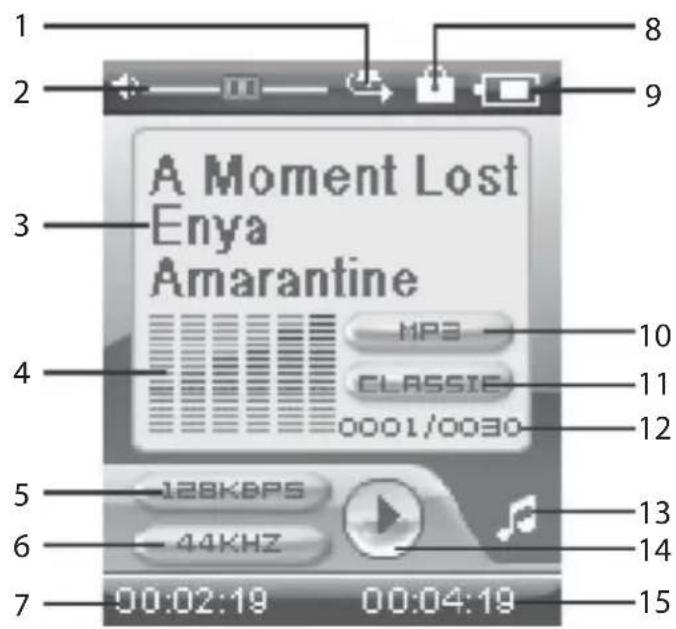

Press the ▶.|| button to display the following screen.

Play mode indicator1.

Volume level 2.

Playing file name / ID3 tag /Lyrics 3.

Spectrum display4.

1. Bit rate
2. Sampling frequency
3. Elapsed time of the track
4. Key locked indicator
5. Remaining battery power indicator
6. File format
7. Current EQ indicator
8. Current track / Total track number
9. Current mode
10. Play/Pause/Stop/Fast forward/Rewind
11. Total time of the track

Press the ▶.llbutton to play the music. While playing music, you can:

Pausing/Resume Playing• :

Press the ▶II button to pause playing. Press the ▶button again to resume playing.

Skipping Tracks• :

Press the ◀▶ buttons to skip to previous / next track.

Searching· :

Press and hold the ◀▶ buttons to fast rewind / fast forward within a track.

Adjusting the Volume• :

Press the ▲▼ buttons to increase / decrease the volume.

Exit· :

Press and hold the ▶|| button to return to the main menu.

Displaying Lyrics

This MP3 player supports lyrics display while playing music. Only lyrics in LRC format can be displayed. To add lyrics to music, perform the following steps:

Choose an MP3/WMA file, for example "love music.mp3".1.

Download the corresponding lyrics with extension ".lrc" from the Internet. 2.

Rename the lyrics file. Make sure that the lyrics filename is the same as the music 3. file name. For example "love music.lrc"

Copy both files into the same folder on the MP3 player.4.

Start playback of the music file. The lyrics will be displayed on screen while the 5. music is being played.

Entering the Music Setup Menu

While playing music, press the 1. MENU button to enter the Music Setup Menu.

Press the ▲▼ buttons and then the ▶button to access the following: Repeat, Equalizer, 3D, Play Rate, File.

1. After finishing the music setting, press the MENU button to exit the Music Setup Menu.

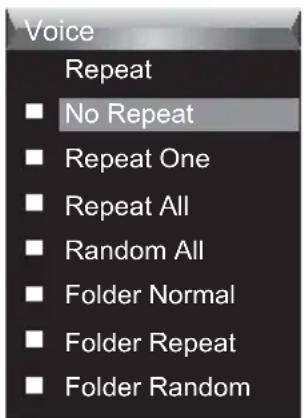

To Set Repeat

The repeat mode setting enables you to play the tracks in a desired order.

Press the 1.

MENU button while listening to a track.

Music Setup Menu appears on the screen. Press the ▲▼ buttons to select Repeat.

Press the ▶ button to enter the Repeat Menu. Press the ▲▼ buttons to select the desired mode as below and then press the ▶ button to confirm and exit.

No Repeat·

Play all the saved music files in order once.

Repeat One·

Play the current or selected file repeatedly.

Repeat All·

Play all the music files in order repeatedly.

Folder Normal·

Play all the files in the current folder in order once.

Folder Repeat·

Play all the files in the current folder repeatedly.

Folder Random·

Play all the files in the current folder in random order.

Music

Repeat

No Repeat

Repeat One

Repeat All

Random All

Folder Normal

Folder Repeat

Folder Random

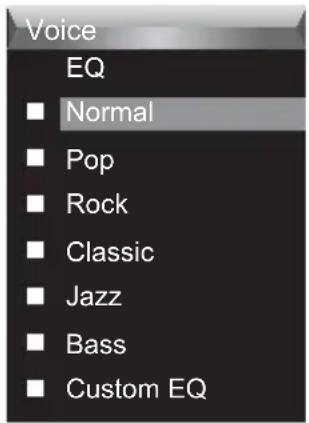

To Set Equalizer

The equalizer setting enables you to select an equalizer from the six preset equalizer settings to suit the type of audio output or customise your personal equalizer effect.

Press the 1. MENU button while listening to a track. The Music Setup Menu appears on the screen. Press the ▲▼ buttons to select Equalizer.

Music

Repeat

Equalizer

3D

Play Rate

File

Press the ▶ button to enter the EQ Menu. Press the ▲▼ buttons to select the desired equalizer from Normal, Pop, Rock, Classic, Jazz, Bass and Custom EQ. Press the ▶ button to confirm and exit.

Music

EQ

Normal

Pop

Rock

Classic

Jazz

Bass

Custom EQ

To customise EQ, select Custom EQ, and press the ▶ button. The Custom EQ value bars appear on the screen.

Press the ▲▼ buttons to navigate between the value bars.

When navigating to a value bar, press the ▶.ll button to select it. The blue arrow becomes red.

Use the ▲▼ buttons to adjust the value and then press the ▶|| button to confirm.

After completing the setting, press the 4. MENU button to exit.

To Set 3D Sound Effect

Press the 1. MENU button while listening to a track. The Music Setup Menu appears on the screen. Press the ▲▼ buttons to select 3D.

Press the ▶ button to enter the 3D Menu. Press the ▲▼ buttons to select On or Off, and then press the ▶ button to confirm and exit.

To Set Play Rate

Press the 1. MENU button while listening to a track. The Music Setup Menu appears on the screen. Press the ▲▼ buttons to select Play Rate.

Press the ▶ button to enter the Play Rate Menu. Press the ▲▼ buttons to select a play rate from 1.00X, 1.14X, 1.33X, 0.67X and 0.80X. Press the ▶ll button to confirm and exit.

Music

Play Rate

1.00X
1.14X
1.33X
0.67X
0.80X

To Navigate Music Files

Press the 1. MENU button while listening to a track. The Music Setup Menu appears on the screen. Press the ▲▼ buttons to select File.

Music

Repeat
Equalizer
3D
Play Rate
File

Press the ▶ button. The music file list appears on the screen.

Use the ▲▼ buttons to select a folder or file and then press the ▶ button to open the folder or play the selected file.

Music

MTPMEDIA
MUSIC
Evergreen.mp3
Say you say me.m
Take me to your h

Voice Recording and Playback

You can make voice recordings using the integrated microphone.

Press and hold the ▶.|| button to enter the main menu. Press the ◀▶ buttons to select Voice.

Press the ▶.II button and then the MENU button. Press the ▲▼ buttons to select Record.

Press the ▶ button to display the following screen and the MP3 player starts recording.

Volume level 1.
Recording voice name 2.
Bit rate3.
Sampling frequency4.
Elapsed time of the track5.
Remaining battery power indicator6.
File format7.
Current mode8.
Play/Pause/Stop/Fast forward/9.
Rewind

During recording, you can:4.

Pausing/Resume Recording• :

Press the ▶ll button to pause recording. Press the ▶button again to resume recording.

Stop Recording· :

Press the MENU button to save the recordings. The MP3 player will go to the Voice playback interface automatically.

Volume level 1.

Recording voice name 2.

Bit rate3.

Sampling frequency4.

Elapsed time of the track5.

Remaining battery power indicator6.

File format7.

Current EQ indicator8.

Current track / Total track number9.

1. Current mode

2. Play/Pause/Stop/Fast forward/Rewind

3. Total time of the track

The recorded files are saved in the MICIN.DIR folder of the MP3 player as WAV files (format: MIC0000X.WAV) and can be listened in the Voice mode.

Voice recording is automatically stopped when the memory of the MP3 player is full. Data that has been already recorded is automatically saved.

1. Press the ▶|| button to play the recording while playing recordings, you can:

• Pausing/Resume Playing:

Press the ▶II button to pause playing. Press the ▶button again to resume playing.

- Skipping Tracks:

Press the ◀▶ buttons to skip to previous / next track.

- Searching:

Press and hold the ◀▶ buttons to fast rewind / fast forward within a track.

• Adjusting the Volume:

Press the ▲▼ buttons to increase / decrease the volume.

- Exit:

Press and hold the ▶|| button to return to the main menu.

Entering the Voice Setup Menu

While playing the recording, press the 1. MENU button to enter the Voice Setup Menu.

Press the ▲▼ buttons and then the ▶button to access the following: Repeat, Equalizer, 3D, Play Rate, File, Record.

After finishing the music setting, press the 3. MENU button to exit the Music Setup Menu.

To Set Repeat

The repeat mode setting enables you to play the tracks in a desired order.

Press the 1. MENU button while listening to a track. The Voice Setup Menu appears on the screen. Press the ▲▼ buttons to select Repeat.

Press the ▶ button to enter the Repeat Menu. Press the ▲▼ buttons to select the desired mode as below and then press the ▶ button to confirm and exit.

No Repeat·

Play all the saved music files in order once.

Repeat One·

Play the current or selected file repeatedly.

Repeat All·

Play all the music files in order repeatedly.

Folder Normal·

Play all the files in the current folder in order once.

Folder Repeat·

Play all the files in the current folder repeatedly.

Folder Random·

Play all the files in the current folder in random order.

To Set Equalizer

The equalizer setting enables you to select an equalizer from the six preset equalizer settings to suit the type of audio output or customise your personal equalizer effect.

Press the 1. MENU button while listening to a track. The Voice Setup Menu appears on the screen. Press the ▲▼ buttons to select Equalizer.

Press the ▶ button to enter the EQ Menu. Press the▲▼ buttons to select the desired equalizer from Normal, Pop, Rock, Classic, Jazz, Bass and Custom EQ. Press the ▶ button to confirm and exit.

To customise EQ, select Custom EQ, and press the ▶ button. The Custom EQ value bars appear on the screen.

Press the ▲▼ buttons to navigate between the value bars.

When navigating to a value bar, press the ▶.ll button to select it. The blue arrow becomes red.

Use the ▲▼ buttons to adjust the value and then press the ▶II button to confirm.

After completing the setting, press the 4. MENU button to exit.

To Set 3D Sound Effect

Press the 1. MENU button while listening to a track. The Voice Setup Menu appears on the screen. Press the ▲▼ buttons to select 3D.

Press the ▶ button to enter the 3D Menu. Press the▲▼ buttons to select On or Off, and then press the ▶ button to confirm and exit.

To Set Play Rate

Press the 1. MENU button while listening to a track. The Voice Setup Menu appears on the screen. Press the ▲▼ buttons to select Play Rate.

Press the ▶ button to enter the Play Rate Menu. Press the ▲▼ buttons to select a play rate from 1.00X, 1.14X, 1.33X, 0.67X and 0.80X. Press the ▶II button to confirm and exit.

To Navigate Recorded Files

Press the 1. MENU button while listening to a track. The Voice Setup Menu appears on the screen. Press the ▲▼ buttons to select File.

Press the ▶ button. The recorded file list appears on the screen.

Use the ▲▼ buttons to select a folder or file and then press the ▶ button to open the folder or play the selected file.

To Record Voice

Please refer to "Voice Recording" on page 15 for details.

Photo Playback

This MP3 player supports the playback of pictures in JPEG and BMP format.

Press and hold the ▶.|| button to enter the main menu. Press the ◀▶ buttons to select Photo.

Black-and-white photo editing interface showing a butterfly-shaped object, a microphone, and a document (no text or symbols on objects)

Press the ▶.□ button. The picture list appears on the screen.

Press the ▲buttons to select a folder or picture and then press the button to open the folder or view the selected picture. The pictures on the MP3 player will start a slide show from the selected picture.

Entering the Photo Setup Menu

The picture menu allows you to select a manner to view the pictures, such as slide show or manual scan.

Press the 1. MENU button while viewing the pictures. The Picture Setup Menu appears on the screen.

Press the ▲▼ buttons to select the desired pictures viewing from Slide Show and Manual Scan. Press the ▶II button to confirm and exit.

Slide Show•

Once selected all the pictures on your MP3 player will play in a slide show.

Manual·

To view pictures manually.

Press the ▲▼ buttons to display the previous or next picture.

Press the 3. MENU button to return to the previous menu or press and hold the next button to return to the main menu.

Movie Playback

This MP3 player supports the playback of converted videos in MTV format.

1. Press and hold the ▶ll button to enter the main menu. Press the ◀▶ buttons to select Movie.

Black-and-white image showing a movie with three small objects: a box, a mug, and a camera (no text or symbols)

Press the ▶.II button. The movie list appears on the screen.

Press the ▲buttons to select a folder or picture and then press the button to open the folder or view the selected movie.

While playing the movie, you can: 4.

Pausing/Resume Playing• :

Press the ▶II button to pause playing. Press the ▶button again to resume playing.

Skipping Video Files• :

Press the ◀▶ buttons to skip to the previous / next video file.

Searching· :

Press and hold the ◀▶ buttons to rewind / fast forward within a video file.

Adjusting the Volume• :

Press the ▲▼ buttons to increase / decrease the volume.

Exit· :

Press the MENU button to return to the previous menu or press and hold the

▶|| button to return to the main menu.

Deleting Files and Folders

In the Delete mode, you can delete the files and folders stored on your MP3 player without a computer.

Press and hold the ▶.|| button to enter the main menu. Press the ◀▶ buttons to select Delete.

Game interface screenshot showing a white cup with fruit and three small icons below (no readable text or symbols)

Press the ▶.llbutton. The file list appears on the screen. Press the ▲▼ buttons to navigate between the files or folders.

To delete a file, select the file and then press the 3. MENU button. To delete a folder, select the folder and press the MENU button.

Press the ▲▼ buttons to select Yes and then press the ▶ button to confirm. Select No and then press the ▶button to cancel.

E-Book Viewing

This MP3 player only supports the playback of files in TXT format. Other formats must be saved as TXT formats before transferring to the MP3 player.

Press and hold the ▶.|| button to enter the main menu. Press the ◀▶ buttons to select E-Book.

Press the ▶.■button. The E-book list appears on the screen. Press the ▶▼ buttons to select a folder or file and then press the ▶ button to open the folder or view the selected file.

While reading E-book, you can:

Move to Previous/Next Page• :

Press the ▲▼ buttons to move to previous / next page.

Skip to Next Page Automatically• :

While viewing text, press the ▶ button to automatically skip pages. Press the ◀ button again to stop the automatic skipping.

Exit:

Press the MENU button to return to the E-book list or press and hold the ▶II button to return to the main menu.

The last page you read is saved as a bookmark automatically when you exit the E-book mode. The bookmark page will be displayed on the screen when you switch to E-BOOK mode next time.

Customising Settings

The MP3 player settings can be customised by accessing the Settings Menu. The Settings Menu consists of several items where various functions can be selected concerning language, play mode, recording, contrast, time off, storage, reset, etc.

Press and hold the ▶.ll button to enter the main menu. Press the ◀▶ buttons to select Settings and then press the ▶ll button.

Press the ▲ buttons and then press the button to access the followings.

Time

Adjust

To change the current time.

Press the ▲▼ buttons to change the setting value. Press the 21▶ buttons to navigate between setting field. Press the ▶.ll button to confirm the setting and exit.

Time Zone

To change the time zone.

Press the ▲▼ buttons to change the time zone. Press the ▶ button to confirm the setting and exit.

GB-25

Power

Auto off

To set the auto off time.

The available options include: 15, 30, 60, 90, 120 minutes and Disable.

Always on

Yes

The MP3 player will be always on while playing. However, it will turn off automatically in any other mode if no button is pressed for the set time.

No

The MP3 player will turn off automatically if no button is pressed for the set time.

Settings

Power

Auto off
Always on

Language

Press the ▲buttons and then the button to select a desired menu language: English / French / German / Italian / Spanish / Portuguese / Dutch / Russian

Settings

Languages

English
Français
Deutsch
Italiano
Español
Português
Nederlands
Русско

Display

To set the LCD off time. The backlight will be off after the set time if no button is pressed.

Press the ▲▼ buttons and then the ▶button to select Backlight.

Press the ▲▼ buttons and then the ▶button to select the desire options: 15, 30 seconds, 1 Minute and Always on.

The backlight will never turn off when viewing pictures, reading E-books or watching a videos.

Settings

Display

Blacklight

Record

Before starting the recording, you can set the recording quality.

Press the ▲▼ buttons to select a recording quality from Long Time, Normal Quality and High Quality.

Press the ▶ button to confirm and return to the pervious screen.

System Tools

Press the ▲buttons to select the following settings, and then press the ▶ button to confirm and return to the pervious screen.

Delete

To delete a file in the file list.

Format

To format the MP3 player, you can select from either Quick or Complete. After formatting, all the data on the MP3 player will be erased.

Reset

To restore all settings of the MP3 player to factory default settings.

About

To check the free memory and firmware version of the MP3 player.

Delete All

To delete all files in the MP3 player.

Hold Time

To specify the key locked time. The keys will be locked after the set time if no button is pressed.

Press the ▲▼ buttons and then press the ▶button to select the desire time will be locked after the set time: 10, 30 seconds, 1, 3, 5 minutes and Off.

To deactivate the lock function, see Key Hold Function on page 9 for details.

Converting Video to MTV Format

This MP3 player supports the playback of videos in MTV format. Other formats (AVI, WMV, MEPG1, Quick Time, MPEG2, RealMedia, MPEG4, 3GP) must be converted to MTV format. The "MTVVideo Converter" is supplied on the CD to enable you to convert the other formats to MTV format.

Insert the provided CD in the CD-ROM drive of 1. your computer.

Double-click the file "2. Video Converter.exe" in the folder "MTVVideoConverter". The Video Converter V2.9 window appears.

Click "3. Input Video", and then select the input source from the Open dialog box.

If your video files (e.g. MP4 file) cannot be found in the Open dialog box, select All Files (*.*) in the File of type box.

1. Click "Output Video" to select an output directory.

Click "5. Advanced Settings". Select "128x128" in the "Output Frame Size" box and select "MTV" in the Output Format box.

Click "6. Start Conversion".

For detailed operations, click "Help".

To make your video playable on the MP3 player, you must select 128x128 or less in the Output Frame Size box (Advanced Setting). Otherwise, the message "Device Not Support" will appear on the screen when you play the video file.

You have to install the relevant codec package before running "Video Converter.exe". If not, the system will prompt "Load Video Failed!". When you attempt to convert the video files. Click "OK" and follow the prompt to download and install codec from the web site.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Cannot power on The battery may be exhausted. Recharge the battery.
Files cannot be downloaded	Check if the driver is installed correctly in the computer.• Check the connection between the MP3 player and the • computer.
No sound from the earphones	Check that the volume is on.• Check the connection between the earphones and the • MP3 player. Check if the music file format is supported by the MP3 • player.
Recording cannot be done	Check if there is enough memory and battery capacity.
The buttons do not work	The key may be locked. Press the ▶II button to deactivate the lock function.

Specifications

Model DMP260	/ DMP460 / DMP860
Audio Format MP3 / WMA / WAV
Photo Format JPEG / BMP
Video Format MTV
MP3 bit Rate 8Kbps-320Kbps
WMA bit rate 5Kbps-320Kbps
S/N rate ≥85dB
Distortion <0.2%
Size 43 x 84 x 8.3 mm
Weight <40g (without accessories)
Frequency response 20Hz~20KHz
Dynamic current ≤40mA (Play Mp3, backlight off)
Power off current ≤0.30mA
Storage condition Humidity <90%, Normal temperature
Working condition Humidity <85%,-10~40°C
Power out 2 x 1mW(16 ohm load)
Battery 300mAh, up to 8 hours playback for music and 3 hours for video
EQ	Normal / Rock / Pop / Classic / Jazz / Custom EQ
Support Video Format to Converter	AVI(*.avi), WMV(*.wmv, *.asf), MPEG1(*.mpg), QuickTime(*.mov, *.qt), MPEG2(*.vob), RealMedia(*.rm, *.rmvb,...), MPEG4, 3GP(*.3gp)

Safety Warnings

Retain the manual. If you pass the unit onto a third party make sure to include this • manual.

Damage

Please inspect the unit for damage after unpacking.

Do not continue to operate the unit if you are in any doubt about it working • normally, or if it is damaged in any way - switch off and consult your dealer.

Temperature

Avoid extreme degrees of temperature, either hot or cold. Place the unit well away • from heat sources such as radiators or gas/electric fires.

Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

Never place any type of candle or naked flame on the top of or near the unit.

Moisture

Do not expose this unit to rain, moisture, dripping or splashing.

If you spill any liquid into the unit, it can cause serious damage. Switch it off and consult your dealer.

Interference

Do not place the unit on or near appliances which may cause electromagnetic • interference. If you do, it may adversely affect the working of the unit, and cause a distorted picture or sound.

LCD screen

The LCD screen is manufactured using high-precision technology. However, some tiny black points and/or bright points (red, blue or green in colour) may constantly appear on the LCD screen. These points are generated in the manufacturing process and are normal.

Earphones

For traffic safety, do not use earphones while driving or cycling.

Listening to loud sounds for prolonged periods of time may permanently damage • your hearing.

Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Batteries

Please dispose of the battery correctly by following the guidance in this manual.

Service

Do not open any fixed covers. The unit does not contain any user-serviceable parts.

Please leave all maintenance work to qualified personnel.

Maintenance

Ensure to switch off the unit before cleaning.

Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.

- Do not use liquids to clean the unit.

SOME DOS AND DON'TS ON THE SAFE USE OF EQUIPMENT

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

**********************************************************************

• DO read the operating instructions before you attempt to use the equipment.
• DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between the pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug before making or changing connections.
• DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
  DO• be careful with glass panels or doors on equipment.
• DO route the mains lead so that it is not likely to be walked on, crushed, chafed, or subjected to excessive wear and tear or heat.

**********************************************************************

DON'T• remove any fixed cover as this may expose dangerous voltages.

• DON'T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.
• DON'T allow electrical equipment to be exposed to dripping or splashing, or objects filled with liquids, such as vases, to be placed on the equipment.
• DON'T place hot objects or naked flame sources such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.
• DON'T use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety always fit the manufacturer's approved stand or legs with the fixings provided according to the instructions.
• DON'T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving.
• DON'T listen to headphones at high volume, as such use can permanently damage your hearing.
• DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a stand-by mode. Switch off using the switch on the equipment and make sure that your family know how to do this. Special arrangements may need to be made for infirm or handicapped people.
• DON'T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

ABOVE ALL

--- NEVER let anyone especially children push anything into holes, slots or any other opening in the case - this could result in a fatal electrical shock;

--- NEVER guess or take chances with electrical equipment of any kind

--- it is better to be safe than sorry!

Note: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
USB Cable 38-012-10300019
Earphones 50-110-26900119
Installation CD with Instruction Manual 54-809-30000109

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct

to your door the very next day. Visit www.partmaster.co.uk or call 0870 6001 338 (UK customers only) Calls charged at National Rate.

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries as unsorted municipal waste, but use the return and collection systems available.

If the batteries or accumulators included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more than 0.002% Cadmium or more than, 0.004% Lead.

Important Notice for the battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, disposal of used batteries according to your local laws or regulations. Do not dispose of batteries with the normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

Removal of the battery

Always bring your product to a professional to remove/ replace the battery.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

All trademarks are the property of their respective owners and all rights are acknowledged.
