Product Type	Electric Water Heater
Model	DG80025
Brand	Siemens
Capacity	80 liters
Power Supply	230 V ~ 50 Hz
Power Rating	2000 W
Energy Efficiency Class	C
Dimensions (H x W x D)	850 x 400 x 400 mm
Weight	25 kg
Max Temperature	70 °C
Safety Features	Thermostat, pressure relief valve, dry-run protection
Installation Type	Wall-mounted, vertical
Inner Tank Material	Enameled steel
Heating Element	Copper immersion heater
Insulation	Polyurethane foam
Control Type	Mechanical thermostat with dial
Included Accessories	Safety valve, mounting bracket, instruction manual
Maintenance	Annual descaling, check pressure valve
Spare Parts Availability	Thermostat, heating element, anode, gaskets
Repairability Index	7.5 / 10

Frequently Asked Questions - DG80025 SIEMENS

What is the capacity of the Siemens DG80025 water heater?

The Siemens DG80025 has a capacity of 80 liters, suitable for a household of 2-3 people.

How do I install the water heater correctly?

Installation must be done by a qualified professional. The heater should be mounted vertically on a wall capable of supporting its weight (25 kg). Ensure the pressure relief valve is properly connected to a drain.

What is the recommended temperature setting?

For optimal energy efficiency and safety, set the thermostat to 60 °C. This prevents bacterial growth while reducing scale buildup.

How often should I descale the water heater?

Descaling should be performed annually to remove limescale deposits. Use a descaling solution recommended by Siemens and follow the instructions in the manual.

What should I do if the water heater is not heating?

First, check if the power supply is connected and the circuit breaker is on. Then, test the thermostat and heating element. If defective, they can be replaced using spare parts.

Is the pressure relief valve important?

Yes, the pressure relief valve is a critical safety component. It prevents excessive pressure buildup. Test it periodically by lifting the lever briefly – water should flow. If not, replace it immediately.

Can I install the water heater outdoors?

No, the Siemens DG80025 is designed for indoor installation only. It should be placed in a frost-free room to prevent damage.

What spare parts are available for this model?

Common spare parts include anode rods, heating elements, thermostats, and gaskets. They can be ordered through Siemens service centers.

How do I clean the exterior of the water heater?

Clean the exterior with a soft damp cloth. Do not use abrasive cleaners or solvents. Avoid getting water on electrical components.

What does the error indicator light mean?

A blinking or solid red light indicates a fault condition. Common causes include overheating, dry-run, or a sensor failure. Refer to the manual for specific error codes and troubleshooting steps.

USER MANUAL DG80025 SIEMENS

Assembly and operating instructions

DG80025

DG10025

DG12025

DG15025

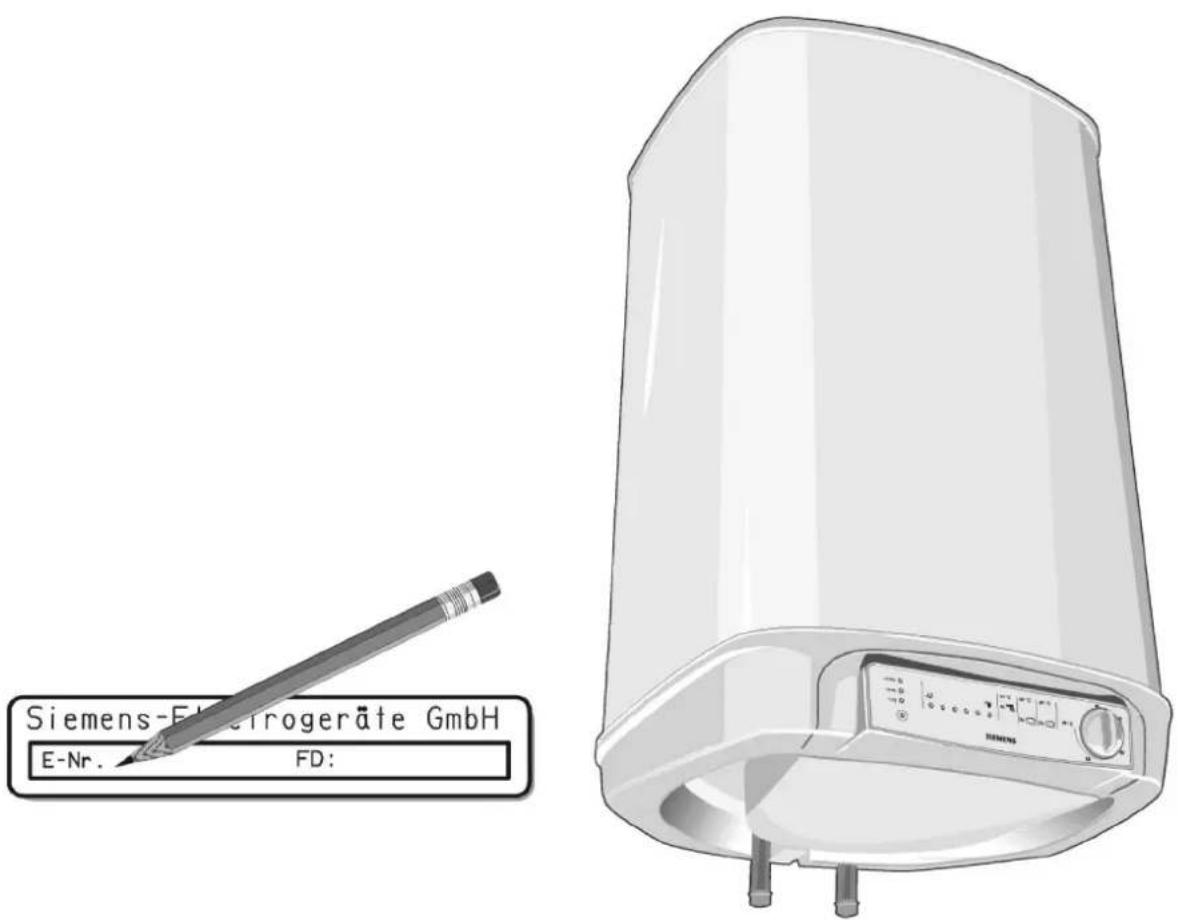

Line drawing of a cylindrical electronic device with a front panel and two terminals (no text or symbols)

Two technical line drawings of a mechanical component with mounting holes and internal channels (no text or symbols)

6

Technical line drawing of a cylindrical water heater with base and top ports, labeled 'A' (no text or symbols on the diagram itself)

7

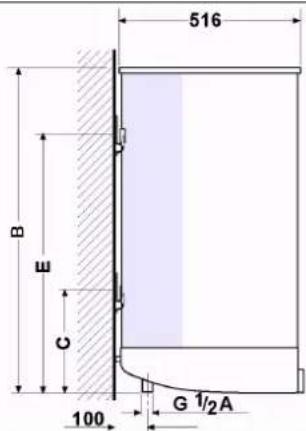

Type		DG 80	DG 100	DG 120	DG 150
A	mm	836	988	1148	1378
B	mm	841	993	1153	1383
C	mm	-	-	300	300
E	mm	900	900	900	1000

11

12

Technical diagram of Siemens air conditioner unit with cooling fans and temperature indicators (no text labels or symbols beyond basic technical markings)

Diagram of a ceiling-mounted appliance with screws inserted, showing mounting hardware (no text or symbols)

Illustration of hands installing or adjusting a ceiling-mounted device with a cloth cover (no text or symbols visible)

13 13.1

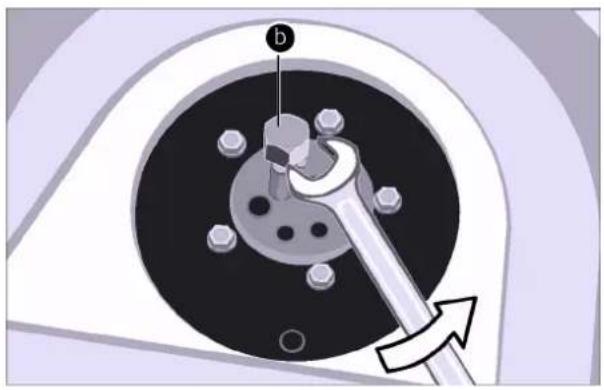

Mechanical assembly diagram showing a wrench inserted into a circular component with bolts and a directional arrow (no text or symbols)

Empfohlene Anschlussarten Zweikreis / Recommended Configurations - Double-power

Eine Störung, was tun

• This manual is an integral and essential part of the appliance. It should be preserved with care alongside the appliance even if the latter is transferred to another owner or user and/or moved to another location.
• Carefully read the instructions and warnings contained in this manual; they provide important information for the safe installation, use and maintenance of your new appliance.
• The installation is the responsibility of the buyer and should be performed by a competent person in accordance with the instructions contained herein.
• The use of this appliance for purposes other than those specified is strictly forbidden. The manufacturer is not to be held responsible for any damage due to improper,

incorrect and unreasonable use or due to failure to comply with the instructions set forth herein.

• Installation, maintenance and all other interventions must be carried out by a competent person in full conformity with the applicable legal regulations and the directions provided by the manufacturer.
• Incorrect installation can cause personal injury, property damage and damage to animals; the manufacturer will not be held responsible for such damage.
• Keep all packing material (clips, plastic bags, polystyrene foam, etc.) out of children's reach as they are hazardous.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• It is strictly forbidden to touch the appliance barefoot or with wet hands or feet.

• All repairs should be carried out by a competent person only, using only original spare parts. Failure to comply with the above instructions could compromise safety and invalidate all liability on the part of the manufacturer.
• The temperature of the hot water is adjusted by an operating thermostat that acts as a resettable safety device to avoid any dangerous rises in temperature.
• The appliance electrical connection should be made in accordance with the instructions provided in the relevant paragraph.
• If the device that safeguards against excess pressure is supplied with the appliance, it must not be tampered with and must be promptly replaced with appropriate devices if it is not in accordance regulations and legislation.
• No inflammable items should be left in the vicinity of the appliance.
• If the device or electrical accessory is installed in a bathroom, then attention must be given to IEC 60364-7-701 (DIN VDE0100 part 701). The legal regulations of the respective country and the connection requirements of the electricity and watersupply authorities (DIN 1988) must be observed.
• The hot water wall storage unit is a protection class 1 device, and must be connected to an earth conductor.

Caution: earthed water lines can be mistaken for a protective earth conductor.

- The device must be permanently connected to firmly laid cables. The cable cross section must correspond to the power capacity which is to be installed.

- Only for Austria: When using the protective measure “residual-current circuit breaker” (for both a pre-equipped circuit breaker, as well as during a new installation of your system), only one residual-current circuit breaker may be connected upstream from this device.

- The hot water wall storage unit is designed for closed (pressurised) and open

(de-presurised) operation.

Closed (pressurised) operation appropriate safety valve combinations, or rather, safety valve combinations with a pressure reducing valve, are to be installed. See assembly preparations (page I).

In closed operation, the pressure relief valve must actuated regularly to check its function and to remove limescale deposits (fig. 2):

Turn venting screw until a jet of water is expelled. Close the venting screw again. If the safety valve is not working, contact the after-sales service.

Open (de-pressurised) operation

An appropriate overflow mixer unit is to be installed: see assembly preparations (page I).

• The hot water wall storage unit may only be installed in a frost free room.
• Disconnect the power cable and shut off the water supply before assembly!
• Perform the electrical connection only after the water connection.
• Only create openings which are necessary for the assembly. When refitting, unused openings must be sealed watertight.
• Voltage carrying parts has to be untouchable after the assembly.
• It is normal for water to trickle from the pressure safety device during the heating phase; for this reason, it is necessary to connect the outlet, which must always be left exposed to the atmosphere, to a drainage pipe that slopes downwards and located in an area not subject to ice.
• During heating, displaced water must drop from the discharge of the safety valve (closed operation) or out of the mixer tap (open operation). Monitor the first heating cycle.
• Please warn children that the water can get hot.
• In the case of a leak on the device, shut off the cold water supply line immediately. Only allow the fault to be repaired by customer service technician or a qualified specialist company.

For technicians only

Assembly Instructions

Mount the hot water wall storage unit as described in the diagram. Observe the instructions in the text. You will find the diagrams at the beginning of the manual.

Assembly

Assembly Preparation

Closed Operation

Mount close to the tap from which the most hot water will be extracted. A design proofed safety valve combination is to be installed. In addition, if water pressure exceeds 0.48 Mpa (4.8 bar), a pressure reducing valve is to be installed and adjusted accordingly. No shut-off valves may be installed between the safety modules and the reservoir. Discharge from the safety valve must always be open. The safety valve combination for closed operation must be accredited (design proofed):

Safety valve combination AK030300, i.e. safety valve combinations with pressure reducing valve AK040300 can be mounted with a customary thermostat pre-mixer.

Note: According to the Energy Conservation Act, the temperature in the mains system must be limited to 60^ C for hot water pipes longer than 5m.

Open Operation

An appropriate overflow mix regulator is to be installed:

BZ12410 wall temperature regulator with bath spout, shower hose and hand sprinkler; or BZ11110 wall regulator with shower hose and hand sprinkler. The discharge from the fitting must always be free. Never use an aerator! A back-flow preventer is to be installed in the cold water intake.

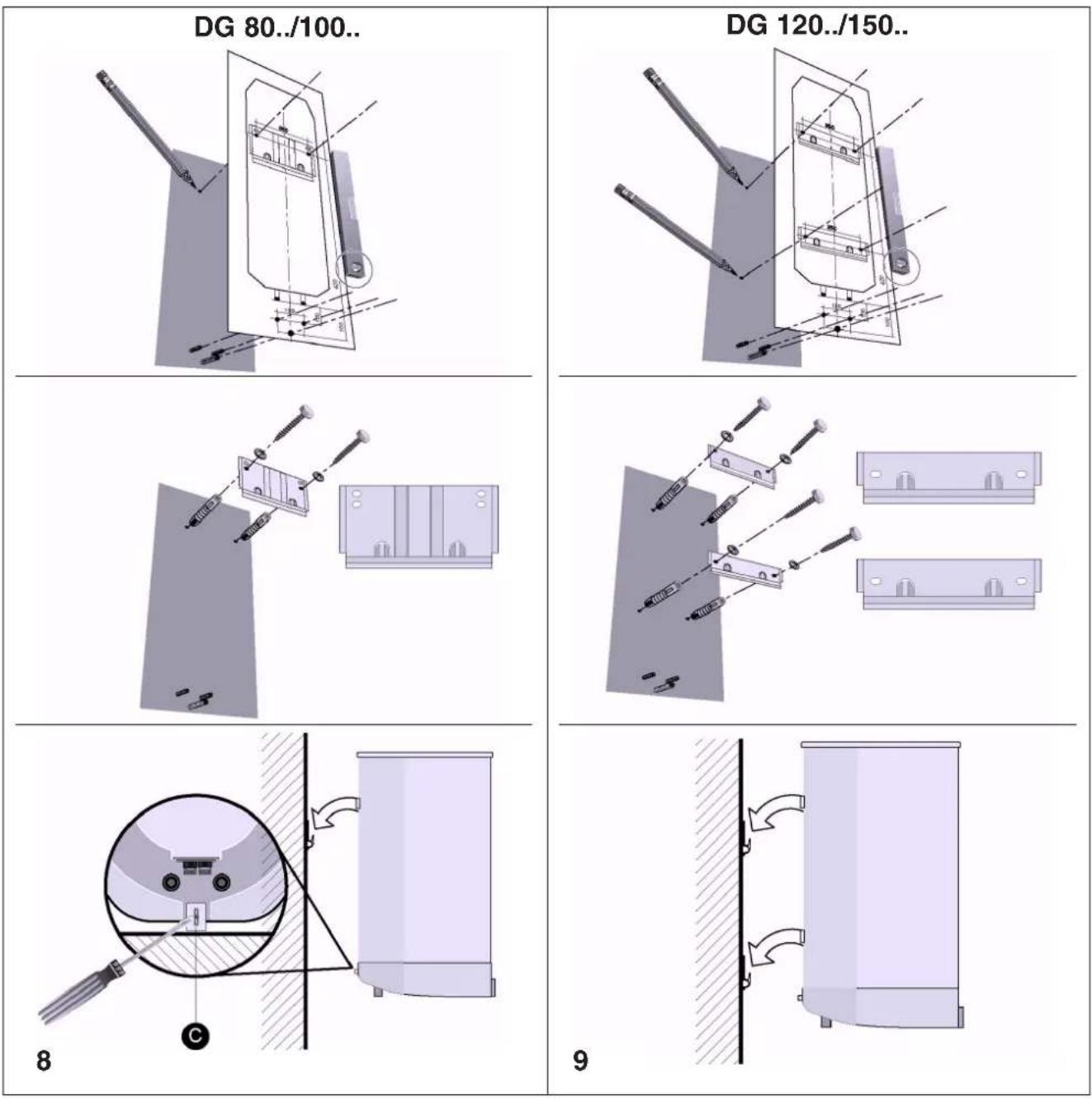

Wall Assembly (page II, diagrams 6 to 9)

The assembly diagram is on the packaging. To allow for replacement of the heating flange and anti-corrosion anode, at least 500m of free space must be left underneath the reservoir. Use appropriate screws with a diameter of at least 12mm. Provide a special supporting structure for lightweight walls.

Mount DG120 and DG150 with both mounting brackets. Vertically align DG80 and DG100 with the wall separator C.

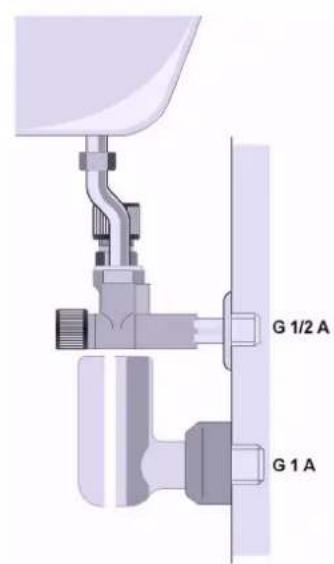

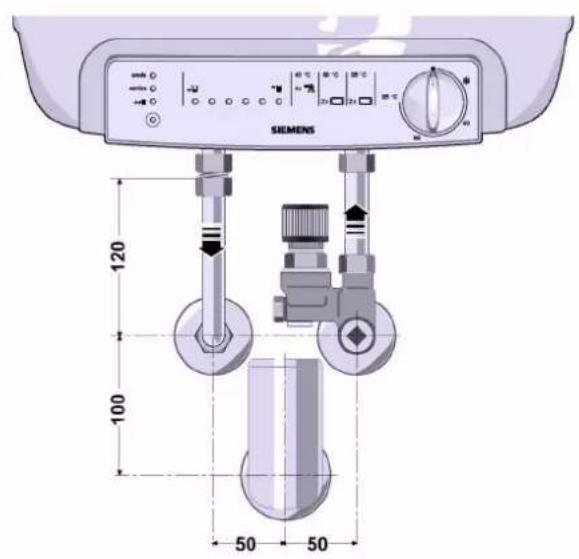

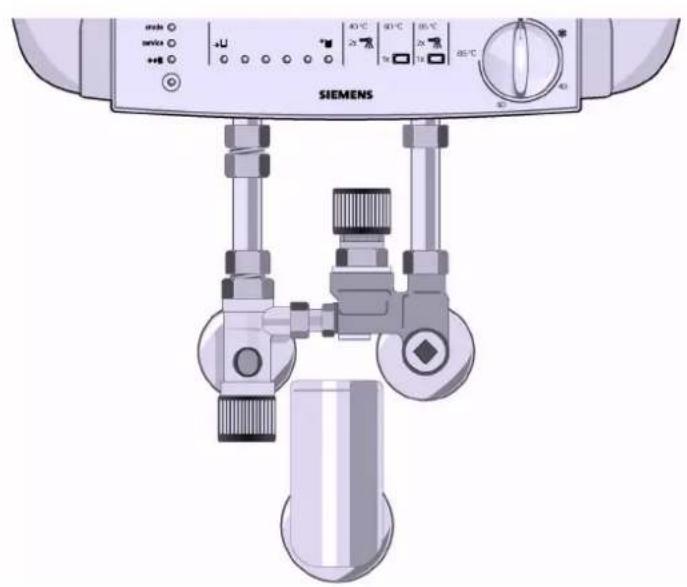

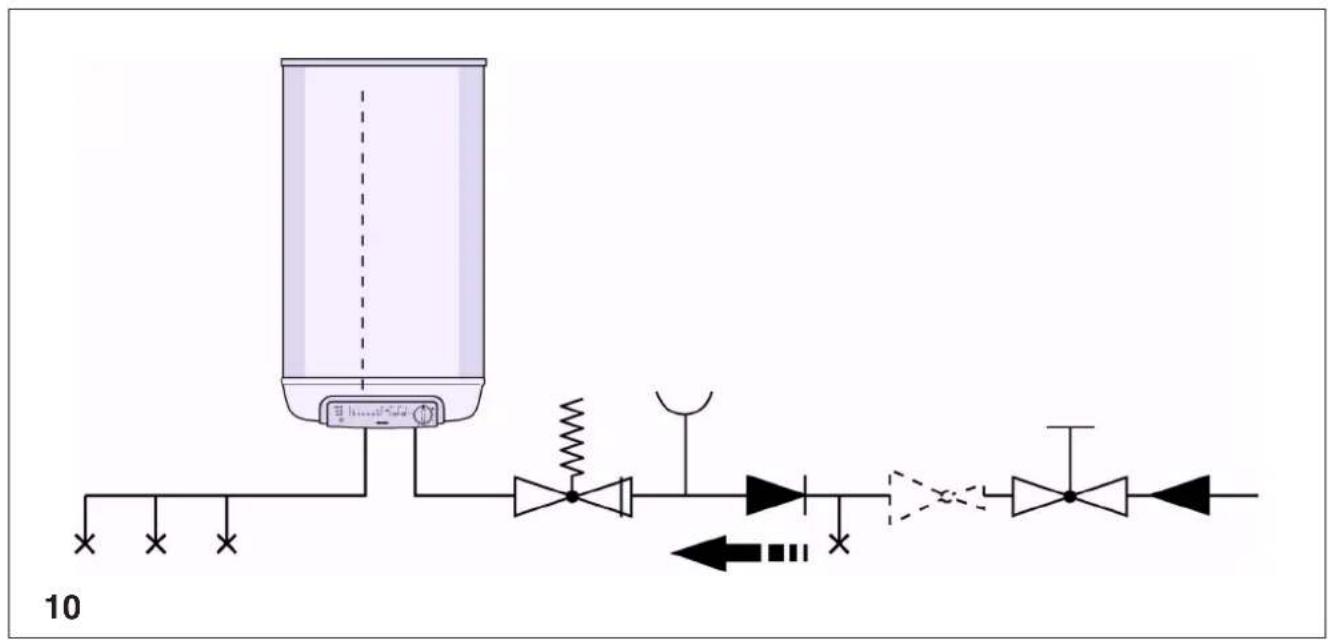

Water Connection (page III / IV, diagrams 10 to 12)

Only detachable connections are permissible!

Before connecting the fittings, thoroughly flush out the water pipes in order to remove any impurities.

For closed operations, if the safety valve is not directly above the drain, then the drain pipe must be mounted at a continuous downward slope in a frost-free environment.

Please take care because of application range within water types according to technical data on page 17.

Operating Modes

Single Power Operation

Connection without off-peak contact.

The appliance heats with the adjusted performance.

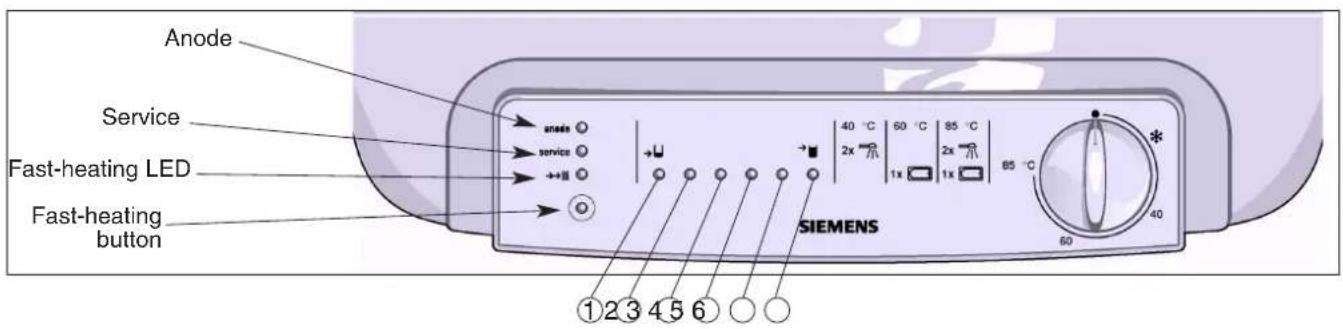

The 'fast-heating' button is only used for the reset and diagnose functions.

Connection with off-peak contact

If the 'fast-heating' button is activated, the device heats once to the configured temperature. All 6 LED thermal capacity indicators light up as soon as the configured temperature has been reached. Afterwards, the device turns itself off automatically.

Double Power Operation

Connection without off-peak contact.

The reservoir heats with the configured basic performance.

The "fast-heating function" activates a heating cycle at higher installed power in order to accelerate the heating-up procedure. To start this function, press the fast-heat button Ⓞ . The LED fast-heating' ↔ ≡ lights up. The function turns itself off automatically, as the soon as the configured temperature has been reached. The LED 'fast-heating' turns off ↔ ≡ .

Connection with off-peak contact

During off-peak time the device heats with the configured basic performance. The “fast-heating function” activates a heating cycle at higher power in order to accelerate the heating-up procedure. To start this function, press the fast-heat button Ⓞ. The LED 'fast-heating' ↔○ lights up. The function turns itself off again automatically as soon as the configured temperature has been reached. The LED fast-heating' ↔○ turns off.

The rest of the time, the device does not heat. If the 'fast-heating' button is activated, the device heats once to the configured temperature. All 6 LED thermal capacity indicators light up as soon as the configured temperature has been reached. Afterwards, the device turns itself off automatically.

Boiler Mode

Connection without off-peak contact.

The device does not heat by default.

If the 'fast-heating' button is activated, the device heats once to the configured temperature. All 6 LED thermal capacity indicators light up as soon as the configured temperature has been reached. Afterwards, the device turns itself off automatically.

Each further heating process must be started by pushing the button "fast-heating"

Electrical Connections

Danger of electric shock!

The power switch "S1" may only be activated in an unpowered state!!

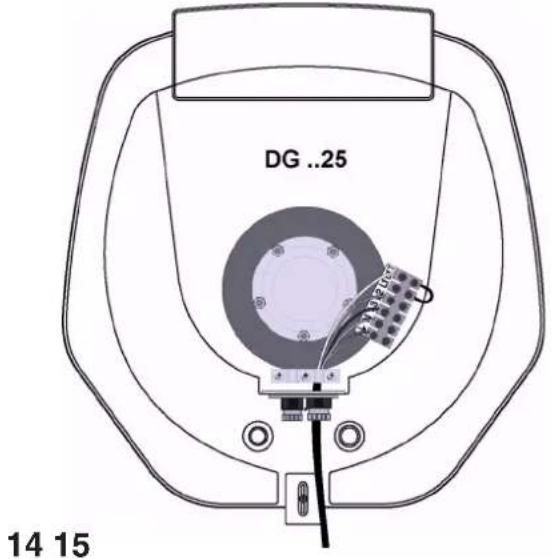

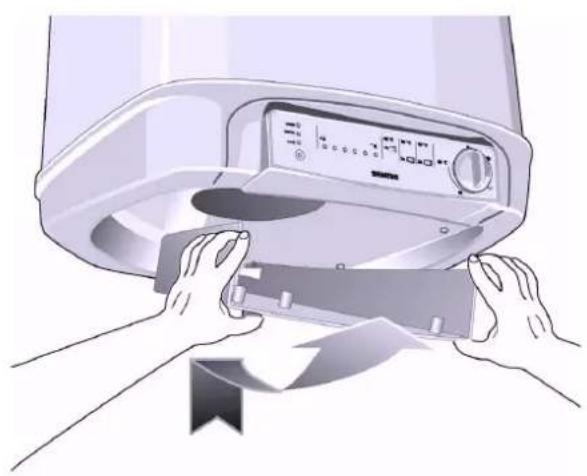

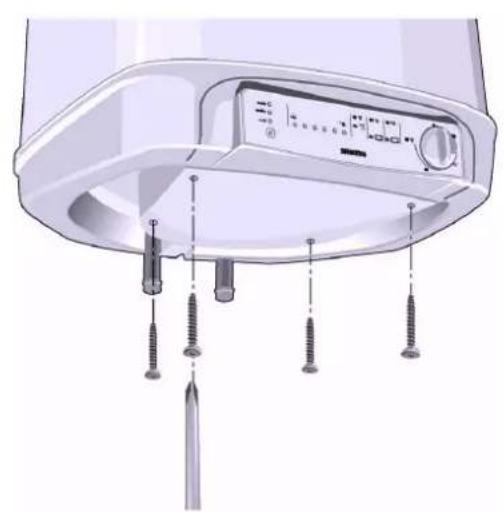

Remove lower cap by taking the screws out (page IV, diagram 13, 13.1).

Lead cable through the cable gland and cord grip and connect, then tighten the cable gland and cord grip (page V, diagram 14).

Check that the system is suitable for the maximum power absorbed by the water heater (please refer to the data plate) and that the cross-section of the electrical connection cables is suitable, and no less than 2.5 mm ^4 .

Operating mode

Set the power switch "S1" to the correct operating mode on the electronic board.

Set the desired load according to the connection examples.

Power Switch “S1”				Mode of Operation
				Double power switch positions 5 / 6 / 7
				Single power switch positions 1/ 2 / 3 / 4
				Boiler mode switch positions 8 / 9 / 0

The power switch is set by the manufacturer in position 5 for DG80025 and DG10025 models and in position 6 for DG12025 and DG15025.

Double power

Depending on the home installation, the following connection variations are possible:

Refer to the connection types recommended for double power (page VI)

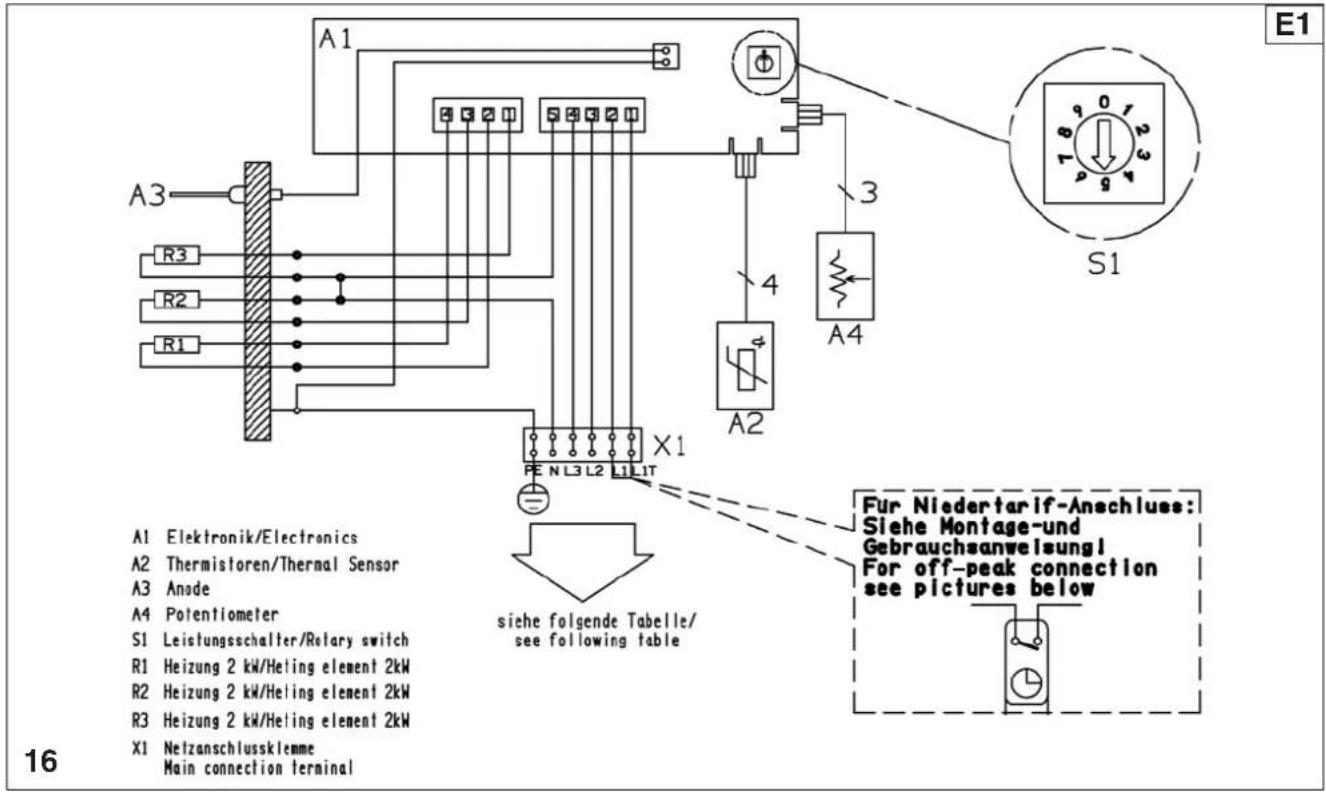

- Variant A, (page VI, diagram 16):

If no low-tariff electricity is to be used, do not remove bridge between L1 and L1T.

- Variant B, (page VI, diagram 17)

Connect the output of the autotimer (delivered by the electricity provider) with L1 and L1T.

- Variant C, (page VI, diagram 18)

Connect switched phase L1T (connection for low-tariff power) to L1T terminal.

- Variant D, (page VI, diagram 19)

Connect switched phase L1 to terminal L1 and L1T.

According to the duration of the off-peak period of either 8 or 4 hours, and the associated loads (refer to connection types on page 7), set the power switch "S1" to the correct positions, 5/6/7, of the double power set-up.

Single power

Depending on the home installation, the following connection variations are possible:

Refer to the connection types recommended for single power (page VII)

Set power switch "S1" on the electronic board to positions 1 / 2 / 3 / 4 "single power".

Boiler mode

Depending on the home installation, the following connection variations are possible:

Refer to the connection types recommended for boiler switch (page VII)

Set power switch "S1" on the electronic board to positions 8 / 9 / 0 "boiler mode".

Finally, separate the appropriate circuit diagram (E1/E2/E3/E4) and the corresponding power-switch position "S1" from the enclosed adhesive foil and adhere to the pad provided. Fill out the information decal about the installed circuit and installed load and adhere to the outside of the cover.

Initial Use

Important!

Fill the reservoir and flush it out until water discharges from all hot water taps, otherwise the temperature sensor and retainer will be damaged and require replacing.

During heating, displaced water must drop from the discharge of the safety valve (closed operation) or out of the mixer tap (open operation). Monitor the first heating cycle.

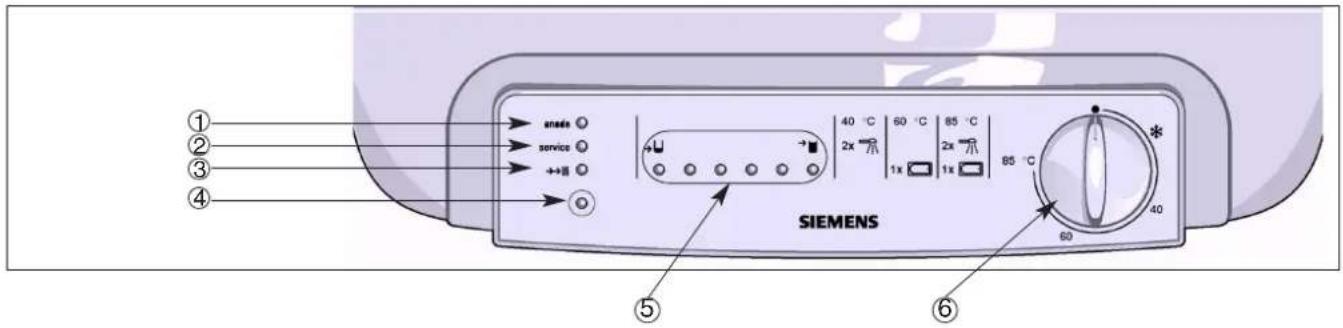

Temperature Limits (page 1, diagrams 2 to 4)

1. Set temperature selector to position "●" and remove.
2. Remove the adjusting ring and reposition it so that 40^ or 60^ sits at reference point C on the display panel. Intermediate positions are also possible.
3. Replace the temperature selector.

Maintenance

In order to avoid hazards, repairs may only be carried out by a customer service operator licensed by us.

The initial service through our customer service operator should take place around two years after the first operation. At this time, the device will potentially be decalcified. Afterwards, the customer service operator will recommend a date for the next service. Specify the E-No. and FD-No. when phoning the customer service operator!

Decalcification

Before decalcification the device must be emptied. Without placing stress on the device, draw hot water until cold water comes. Then, close the shut-off valve on the intake, open the hot water valves on all connected fittings and empty the device via the safety valve. A few litres of water will remain in the device. To empty completely, loosen the four screws on the cover and remove the cover (page IV, diagram 13, 13.1). Unscrew the fastener "b" of the discharge connecting piece (page V, diagram 15), the remaining water flows away.

Decalcify the device. The specially enamelled steel reservoir and the protection anode are not to come into contact with the decalcifier, do not work with a pump! Remove heater and de-calcify, clean discharge pipes mechanically and remove remaining lime.

In an open operation, a valve can be fitted between the fitting and cold water intake of the reservoir to aid emptying.

Technical Data

Model			DG80025	DG10025	DG12025	DG15025
Volume		Litres	80	100	120	150
Weight when full		kg	106	133	162	197
Maximum operating pressure		Mpa (bar)	6,0 (0,6)
Heating time in hrs, with cold water intake of ca. 15°C, to a temperature of 85°C		1kW	6,8	8,5	10,3	12,8
		2kW	3,4	4,3	5,1	6,4
		3kW	2,3	2,8	3,4	4,3
		4kW	1,7	2,1	2,6	3,2
		6kW	1,1	1,4	1,7	2,01
Water connection			G ^1/_2 male thread

Application range within water types	Water hardness	[°dH]	≥6
	Electrical conductivity	[μS/cm]	≥100

Model					DG12025DG80025 DG10025 DG150
Double-power operation	1/N/PE~230V		1 - 4 kW 1/N/PE~230 V min 10 A // max 20 A2 - 4 kW 1/N/PE~230 V min 10 A // max 20 A3 - 4 kW 1/N/PE~230 V min 16 A // max 20 A
Current limits	2/N/PE~230V		1 - 4 kW 2/N/PE~230 V min 10 A // max 20 A2 - 4 kW 2/N/PE~230 V min 10 A // max 20 A3 - 4 kW 2/N/PE~230 V min 16 A // max 20 A
Secure base load (min. xx A)	2/N/PE~230V		1 - 6 kW 2/N/PE~230 V min 10 A // max 20 A2 - 6 kW 2/N/PE~230 V min 10 A // max 20 A3 - 6 kW 2/N/PE~230 V min 16 A // max 20 A
Secure max. load (max. xx A)	3/N/PE~230V		1 - 6 kW 3/N/PE~230 V min 10 A // max 20 A2 - 6 kW 3/N/PE~230 V min 10 A // max 20 A3 - 6 kW 3/N/PE~230 V min 16 A // max 20 A

Model			DG80025 - DG15025
Single-power operation	1/N/PE~230V	1kW	1 kW 1/N/PE~230 V // 1 x min 10 A
	1/N/PE~230V	2kW	2 kW 1/N/PE~230 V // 1 x min 10 A
Current limits	1/N/PE~230V	3kW	3 kW 1/N/PE~230 V // 1 x min 16 A
	1/N/PE~230V	4kW	4 kW 1/N/PE~230 V // 1 x min 20 A
Secure load	2/N/PE~230V	3kW	3 kW 2/N/PE~230 V // 2 x min 16 A
	2/N/PE~230V	4kW	4 kW 2/N/PE~230 V // 2 x min 10 A
	3/N/PE~230V	6kW	6 kW 3/N/PE~230 V // 3 x min 10 A

Model			DG80025 - DG15025
Boiler mode operationCurrent limitsSecure load	1/N/PE~230V	2kW	2 kW 1/N/PE~230 V // 1 x min 10 A
	1/N/PE~230V	3kW	3 kW 1/N/PE~230 V // 1 x min 16 A
	1/N/PE~230V	4kW	4 kW 1/N/PE~230 V // 1 x min 20 A
	2/N/PE~230V	2kW	2 kW 2/N/PE~230 V // 2 x min 10 A
	2/N/PE~230V	3kW	3 kW 2/N/PE~230 V // 2 x min 10 A
	2/N/PE~230V	4kW	6 kW 2/N/PE~230 V // 2 x min 16 A
	3/N/PE~230V	2kW	2 kW 3/N/PE~230 V // 3 x min 10 A
	3/N/PE~230V	3kW	3 kW 3/N/PE~230 V // 3 x min 10 A
	3/N/PE~230V	6kW	6 kW 3/N/PE~230 V // 3 x min 10 A

In case of fault

If your device does not function as intended, it is usually due to a small detail. Please check whether or not the fault can be self-repaired according to the following indicators. You will thereby avoid the costs of an unnecessary repair service.

In normal operations, the LED "anode" is constantly lit, the LED "service" is off.

service

If one of the two LEDs flashes, this indicates an "error condition".

In case of fault, do not disconnect the power supply line.

In order to possibly remedy the error condition oneself, there are two procedures:

RESET: To begin with, please reset the device → RESET. To do this, proceed as follows:

Firstly, turn the dial Ⓞ to the setting "●".

After that, press the "fast-heating" button Ⓞ.

If the cause of the “error condition” does not exist directly after the reset, the device will again return to its normal mode of function. Otherwise the device will again indicate an “error condition”.

Diagnostic routines: In order to better define the "error condition", the device uses diagnostic routines. Please activate the program as follows:

Push and hold the button "fast-heating" for at least 5 seconds.

The type of fault will now be displayed by the 6 hot water content LEDs , as presented in the following table:

Heat content display indicators (LED)

Display (LED) Status			Heat content display indicators (LED)						Cause / Fault	Solution Who
Anode Service		Fast Heating	1	2	3	4	5	6
anode	service	→III	-	-	-	-	-	-
On	Flashing	Off	On	On	See below (*)	-	On	On	Internal electronic failure	Electronic board locked, wait 15mins and then reset	Technician
On	Flashing	Off	On	-	See below (*)	-	-	On	The reservoir has heated without water	Turn the device off, check the cause of the water shortage (leakage, faulty water connection). If the problem remains contact technician	Technician
On	Flashing	Off	On	-	See below (*)	-	On	-	Water temperature in reservoir too hot	Reset, wait until the reservoir has cooled. If the problem remains please contact technician	Technician
On	Flashing	Off	-	-	See below (*)	On	-	-	Internal electronic failure	Reset, if the problem remains please contact technician	Technician
On	Flashing	Off	-	On	See below (*)	On	-	-	Internal electronic failure	Reset, if the problem remains please contact technician	Technician
On	Flashing	Off	On	-	See below (*)	-	-	-	Temperature sensor fault	Reset, if the problem remains please contact technician	Technician
On	Flashing	Off	On	On	See below (*)	-	-	-	Temperature fault between heating/sensor	Reset, if the problem remains please contact technician	Technician
Off	Flashing	Off	-	-	See below (*)	On	-	-	Anode fault	Check that the reservoir is filled. If the problem remains please contact technician	Technician
On	Flashing	Flashing	-	-	See below (*)	-	-	-	Temperature selector fault	Reset not possible, please contact technician.	Technician

(*) the third LED indicates whether or not the off-peak contact was correctly installed.
Third LED "on" if off-peak contact on.
Third LED "off" if off-peak contact out.

If the third LED is off during the off-peak period, the fault lies in the installation of the off-peak contacts.

When installing the device without off-peak contact, the third LED is always on.

Note

In an “error condition”, the device is out of order.

In the case of an “anode fault” or a “potentiometer fault”, the device can be manually activated for a heating cycle by pressing the “fast-heating” button. In this case the device heats until a water temperature of 40^ C is reached. The device heats at the installed power for single-power and boiler mode connections, for double-power connections it heats according to the basic load of the connection, at 1kW, 2kW or 3kW.

If the fault could not be remedied, please contact the customer service operators.

Note

When the device is full with water and functions normally (there are no faults apparent), the device cannot be separated from the mains voltage, otherwise the external power source anode stops functioning and the device rusts through. For complaints of this nature, the warranty and guarantee do not apply.

After the assembly, please present the user with the instructions for use and explain the device to them.

For Users and Technicians

Instructions for Use

Before you use the device, please read this instruction manual carefully!

Safety advice

- This device is intended for household or household-like use, not for commercial purposes.

Household-like applications include, for example, use in staff kitchens of shops, offices, agricultural and other business operations, as well as use by guests in hostels, small hotels and similar living facilities.

Danger of electric shock!

In the case of a fault, disconnect from the voltage supply.

• We are not liable for any damages which arise due to failure to observe the instructions in this manual.
• The hot water wall storage unit may only be installed and brought into operation by a technician.
• In order to avoid hazards, repairs may only be carried out by a customer service operator licensed by us.
• The hot water wall storage unit must be installed in a frost-free room.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep children away from the device. Supervise children to prevent them from playing with the device.
• The mixing tap and the hot water pipe can become hot.
• In the case of a fault please switch off the fuse immediately.
• Please warn children that the water can get hot.

In the case of a leak on the device, shut off the cold water supply line immediately. Only allow the fault to be repaired by

customer service technician or a qualified specialist company.

- If the reservoir has not been used for more than three months, it must be flushed out until no more air bubbles escape. When the device is full with water and functions normally (there are no faults apparent), the device cannot be separated from the mains voltage for long periods of time, otherwise the external power source anode stops functioning and the device rusts through. For complaints of this nature, the warranty and guarantee do not apply.

Read also the detailed safety sentence at the beginning of the manual and to observe them!

Your new device

The hot water storage units DG80025 – DG15025 with electronic control are designed for the heating of drinking water according to DIN 1988.

They can provide hot water to 85^ C and, depending on the mode of operation, service one or more taps (tapping points). The water is heated electrically. On the control panel the current amount of available hot water is displayed by 6 LEDs. The hot water storage units are equipped with an active, electronic corrosion protector (external power source anode).

Control Panel

1. anode LED anode
2. service LED service
3. fast-heating LED →
4. fast-heating button
5. heat content LEDs
6. water temperature dial

Service and Operation

The hot water temperature may be set between ^* and 85^ C using the dial. We recommend the setting of 60^ C. Heat wastage and calcification are lowest here.

Upon reaching the set temperature all 6 thermal capacity indicators LEDs light up. As hot water is extracted the amount of hot water available in the reservoir decreases. The less hot water available, the fewer LEDs are lit up.

The heating period is dependent upon the volume of water in the reservoir, the cold water intake temperature, and the set heat output.

See technical data table (page 15)

The hot water storage unit may be used optionally for

closed (pressurised) operation

suitable for service of multiple tapping points

open (de-pressurised) operation

suitable for service of one tapping point

There are three variations of electrical connections to choose from:

Single-power operation

Reheating occurs automatically subject to the power supply.

The button "fast-heating" is only used for the reset and diagnostic routine functions (technician).

Double-power operation

During off-peak periods, the hot water storage unit automatically heats the

contents of the reservoir at the configured basic performance. The quick heating may be activated by pressing the fast-heating button Ⓞ. As the device is heating up the LED → lights up, before going out again as soon as the set temperature is reached. The 'fast-heating' switches itself off automatically.

Boiler mode operation

In this mode the hot water storage unit heats the contents of the reservoir once upon the initial operation at the connected and configured basic performance. Each further heating procedure must be started manually by pressing the button fast-heating ☐.

LED display anode and service

In normal operations, the LED “anode” is constantly lit, the LED “service” service is off.

If one of the two LEDs flashes, this indicates an "error condition".

To begin with, please reset the device → RESET. To do this, proceed as follows:

Firstly turn the dial ⏻ to the setting "●".

After that, press the "fast-heating" button Ⓞ.

If the cause of the error condition does not exist directly after the reset, the device will again return to its normal mode of function. Otherwise the device will again indicate an “error condition”.

In this case please contact the customer service operator.

Cleaning

• Wipe with a damp cloth. Do not use any sharp or coarse cleaning products.
• Do not use a steam cleaner.

Customer Service

In order to avoid hazards, repairs may only be carried out by a customer service operator licensed by us.

The initial service through our customer service operator should take place around two years after the first operation. At this time, the device will potentially be decalcified. Afterwards, the customer service operator will recommend a date for the next service. Specify the E-No. and FD-No. when phoning the customer service operator!

When requesting customer service, please enter the E-No. and the FD-No. of your device.

You will find the numbers on identification plate between the water access pipes of the reservoir.

This device complies with the European Guideline 2002/96/EG for waste electrical and electronic equipment (WEEE). This provides the framework for an EU-wide recall and conversion of waste electronic devices. Please consult a specialist dealer for information about current disposal methods.

Subject to change.

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice.

Kundendienst – Customer Service

European Trade Center Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bg

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

www.siemens-home.com/ch

DE Deutschland, Germany

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/hr

LU Luxembourg

www.siemens-home.com/lu

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:[e-mail]

MK Macedonia, Makedonija

GORENEC

Jane Sandanski 69 lok. 3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

PL Polska, Poland

1023, 1st floor, Pattanakarn Road

Suan Luang

Bangkok 10250

Tel.: [phone]

Fax: [phone]

Service Call Center

Tel.: [phone]

Spareparts

Tel.: [phone]

www.siemens-home.com/th

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A. S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/tr
