Product Type	Window-type Room Air Conditioner
Model	DWB-123
Power Source	AC 240V, 50Hz, Single Phase
Dimensions (W x H x D)	600 x 380 x 535 mm (23.6 x 14.9 x 21.0 inches)
Net Weight	42 kg (92.6 lbs) approx.
Operating Temperature Range (Outdoor)	20°C to 43°C (68°F to 109°F)
Operating Temperature Range (Indoor)	20°C to 32°C (68°F to 90°F)
Temperature Set Range	16°C to 32°C (60°F to 90°F) in 1°C (1°F) increments
Cooling Capacity (Estimated)	Approximately 12,000 BTU/h (based on model naming)
Operating Modes	Cooling, Turbo, Fan
Fan Speeds	High, Mid, Low
Airflow Direction Control	Auto Swing (left/right)
Timer	Off/On Timer: 1 to 24 hours, cancel option
Sleep Mode	L1: Auto off after 4 hours, temperature increase by 3°C (5.4°F); L2: User-set temperature and fan speed
Remote Control	Includes remote control (batteries required: 2 x AAA, not included)
Air Filter	Washable; clean every 2 weeks
Drainage	Rear drain hole; drain cap provided for seasonal use
Door Vent	Lever-operated: left closes, right opens
Installation Options	Window or through-the-wall (consult dealer for wall installation)
Electrical Grounding	Three-prong grounding plug; unit must be grounded
Recommended Cleaning	Clean condenser coils annually; use mild soap and water; no abrasive cleaners

Frequently Asked Questions - DWB-123 DAEWOO

How often should I clean the air filter?

Clean the air filter at least once every two weeks during operation. A dirty filter reduces airflow and cooling capacity.

What should I do if the air conditioner does not cool?

First, check that the power cord is plugged in and the main circuit breaker is on. Wait 3-4 minutes after startup for the compressor to engage. Also clean the air filter and ensure no obstacles block the front grille.

Why is water dripping from the unit?

On humid days, water may drip from the rear drain hole or overflow. This is normal. Ensure the unit is tilted slightly downward to the outside for proper drainage.

Can I use an extension cord with this air conditioner?

It is strongly recommended against using an extension cord due to safety hazards. If you must, use a grounded cord rated 250V, 10A minimum. However, a direct wall outlet is preferred.

How do I set the timer to turn off the unit?

While the unit is on, press the TIMER/CANCEL button on the remote control repeatedly to select off times from 1 to 24 hours. The display will show the set time, and the unit will turn off after that period.

What is the Sleep mode and how do I use it?

Sleep mode has two levels: L1 turns off after 4 hours and gradually increases temperature by 3°C (5.4°F); L2 runs at your set temperature and fan speed. Press the SLEEP button on the remote while in Cooling mode to toggle.

How do I replace the batteries in the remote control?

Slide off the cover on the back of the remote, insert two new AAA batteries ensuring correct polarity (+/-), and reattach the cover. Do not use rechargeable batteries.

The unit is noisy – what could be the problem?

Noise may come from loose parts, weak building structure, or water hitting the fan. Tighten any loose parts, provide additional support, or allow water to drain through the drain hole. Some noise is normal in high humidity.

Can I install this air conditioner through a wall?

Yes, through-the-wall installation is possible. Consult an independent servicing dealer for proper installation. The manual provides window installation steps; wall installation may require additional hardware.

How do I clean the condenser coils?

At the beginning of each cooling season, use a soft brush or vacuum cleaner to gently clean the condenser coils (outdoor side). Avoid using water or harsh chemicals. This ensures peak efficiency.

USER MANUAL DWB-123 DAEWOO

PRECAUTIONS FOR PROPER USE OF AIR CONDITIONER

Please observe the following instructions.

1. Operate the Selector Switch to run or stop the unit.

- Do not use Main Power Switch or Auxiliary Power Switch to operate unit.

1. Do not stick anything into the air outlet or inlet.

- It is dangerous and it can cause injury or damage.

1. Avoid exposing your body directly to a continuous cool air - flow for long periods.

- It is not good for your health.

1. Do not pour water on the unit to clean it.

- It is dangerous and it can cause injury or damage.

Never use solvents or harsh chemicals when cleaning the unit.

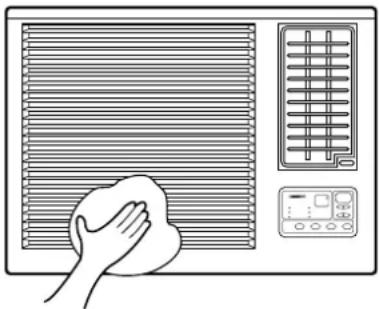

When the air inlet grill and cabinet are dirty, wipe with luke - warm water (below 40°C or 104°F)

1. Avoid placing any obstacles near the inlet or outlet.

- If the inlet or outlet is blocked with any obstacle, it may cause damage to the unit.

1. Do not run or stop the unit frequently.

- If you run or stop the unit more then 4-5 times an hour, it can cause damage to the unit.

1. Wait at least 3 minutes before restarting the unit or in the case of power failure.

- If you turn on the unit within 3 minutes after power off, this can cause damage to the unit.

1. If the air conditioner is operated without an air filter, dust is not removed from the air, and resultant accumulation in the unit may lead to a failure.

- Do not forget to install the air filter.

1. The air filter should be cleaned at least once every two weeks.

2. When the unit is cleaned, set the Selector Switch at off position.

- And then unplug the power plug.

1. Never store gasoline or other flammable liquid near the air conditioner.

- It is very dangerous.

1. Do not force the controls on the front panel too much.

- It can cause damage the controls and the unit.

1. Set a comfortable temperature.

- Very low temperature setting considerably increase power consumption.

1. Be careful to keep room temperature comfortable.

- Avoid continuous direct air flow on you or a sick person while sleeping.

1. Do not remove the plug by pulling the power cord.

- Damage to the cord and may cause shock hazard.

1. This air-conditioner must used 20^(min)-43^(max) outdoor and 20^(min)32^(max) indoor on the temperature range.

2. The appliance is not intended for use by young children or infirm persons without supervision.

3. Young children should be supervised to ensure that they do not play with the appliance.

TABLE OF CONTENTS

1. GENERAL SPECIFICATIONS....2
2. INSTALLATION INSTRUCTIONS ....3\~6

• LOCATION OF INSTALLATION
- BEFORE INSTALLATION
• HOW TO REMOVE THE FRONT GRILLE
• HOW TO INSTALL THE DRAIN CAP
• WINDOW INSTALLATION

1. NAMES OF MAJOR COMPONENTS....7
2. OPERATION INSTRUCTIONS....8\~13

• DISPLAY
• REMOTE CONTROL
• HOW TO INSERT BATTERIES

1. GENERAL INFORMATION......14

• AIR FLOW AROUND UNIT
• DRAIN HOLE AND WATER DRIPPING OUTSIDE
• DOOR VENT

1. CARE AND MAINTENANCE......15

• AIR FILTER
• CLEANING THE AIR CONDITIONER

1. ELECTRICAL REQUIREMENTS ......16

• ELECTRICAL GROUNDING INSTRUCTIONS.
• USE OF EXTENSION CORDS
• REPLACEMENT OF SUPPLY FLXIBLE CORD

1. BEFORE CALLING FOR SERVICE....17

GENERAL SPECIFICATIONS

ITEM\MODEL	DWA-122R DWB	-122R DWB-123R DWA	A-151R
POWER SOURCE	AC 208-230V, 60Hz, SINGLE PHASE	AC 220-230V, 50Hz, SINGLE PHASE	AC 240V, 50Hz, SINGLE PHASE	AC 208-230V, 60Hz, SINGLE PHASE
DIMENSIONS	600(W)x380(H)x535(D) mm
	23.6(W)x14.9(H)x21.0(D) inch
WEIGHT (NET)	38.8Kg (85.6 lbs) – Approx.	39.8 Kg (87.7 lbs)– Approx. 42Kg (92.6 lbs)– Approx.

INSTALLATION INSTRUCTIONS

• LOCATION OF INSTALLATION

1. Install the unit at a place having sufficient strength to support the unit securely.
2. Do not install the unit at a place where leakage of combustible gas is suspected.
3. If the air conditioner is operated in an atmosphere containing oils (including machine oil), salt near a coastal area, etc, such substances may lead to failure of the unit.

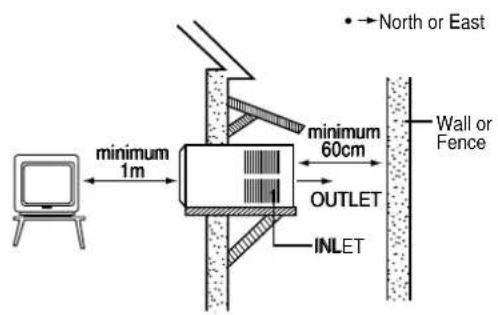

4. Provide sufficient clearance or space around the air inlet and air outlet so that air flow will not be obstructed (See following figures).

CAUTION

- The air conditioner shall be installed in accordance with the national wiring regulation.

1. Install an exclusive main power switch (main circuit breaker) or GFI (Ground Fault Interrupted) Switch.
2. Be sure to use grounded power source.
3. Power source for DWA-122R, DWA-151R is 208\~230V and DWB-122R is 220\~230V and DWB-123R is 240V.
4. Consumer must pay charges for wiring and installation.

- BEFORE INSTALLATION

Test Run Unit : Plug unit into proper power supply outlet.

Refer to operating instructions in this manual for comfortable living. Check all controls for correct operation, then unplug unit.

Determine Correct Mounting procedure-Refer to Window Installation or Through the Wall Installation.

WARNING :

• Moving parts can cause personal injury. Be careful when test-running unit. Do not operate unit with front grille removed.
• Be sure to use an exclusive power source.
• Contact service man for replacement of power cord.

• HOW TO REMOVE THE FRONT GRILLE

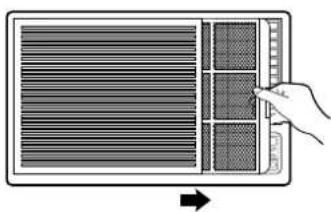

1. Pull the Air-filter out of the Front Grille.

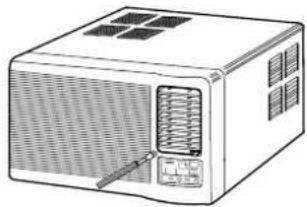

2. Loosen screw which fasten Front Grille with driver.

Illustration of a hand interacting with a digital air conditioner unit panel (no text or symbols visible)

Line drawing of a portable air conditioner unit with ventilation grilles and control panel (no text or symbols)

1. Disassemble Front Grille from Chassis.

- Front Grille and chassis are fixed with snap-fit.

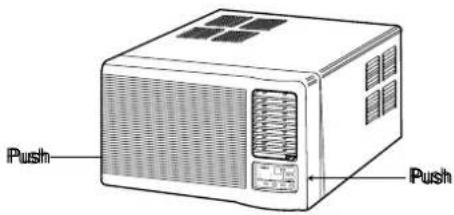

1) Release right-lower snap-fit.
- Push the right lower side of chassis to the left, with pushing left side of Front Grille to the right until the snap-fit is released.

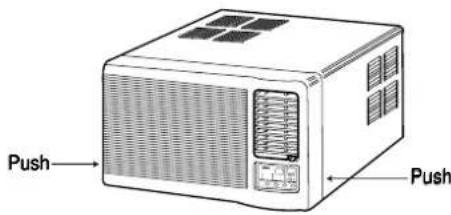

2) Release left-lower snap-fit.
- Push the left-lower side of chassis to the right, with pushing right side of Front Grille to the right until the snap-fit is released.

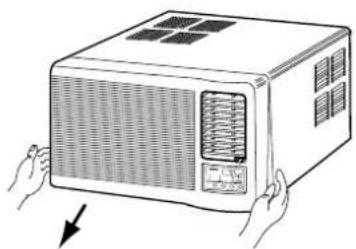

3) Pull lower side of the Front Grille until it is separated from the chassis.

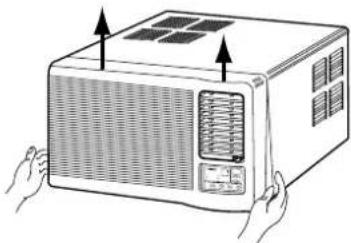

4) Push base side of the Front Grille to upper side until it is separated from the chassis.

Line drawing of a microwave oven with hands holding it, showing ventilation grille and control panel (no text or symbols)

Illustration of a microwave oven with heat exchanger and control panel, hands adjusting casing (no text or symbols)

1. Reinstall the unit, side screws, front grille.

CAUTION

- When the front grille is reinstalled, the DOOR VENT should be in position first so that it would not be bent by grille.

• HOW TO INSTALL THE DRAIN CAP

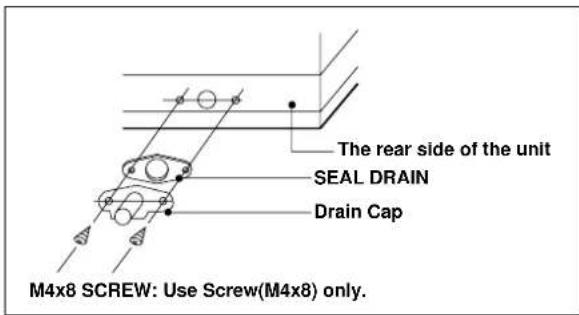

Install the drain cap like Fig. of the right side.

There are two kinds of method to install the drain cap.

The first method is that the shape of hole like It is good for the household.

The second method is that the shape of hole is like It is good for the shop.

• WINDOW INSTALLATION

1. Determine Window Location.

Determine a suitable location.

The window where the Air Conditioner is to be installed should have enough strength to bear the weight of the Air Conditioner.

1. Measure unit's dimensions

2. Install the Mounting Angle at the Proper Location.

Install the Air Conditioner using the Mounting Angle or other Hardware to be installed as shown in Fig.1 For proper drainage, Rear side of the unit should be declined about 5mm lower.

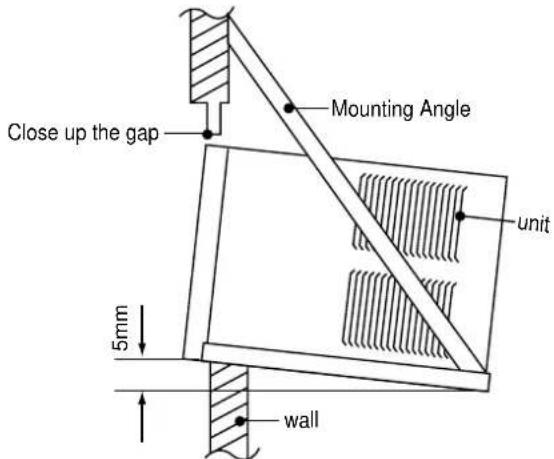

Fig. 1 Mounting Angle Installation.

1. Insert unit in window.

With 2 people, lift unit and insert it into the window opening.

⚠️ CAUTION : Two people must work together to avoid personal injury.

1. Finish opening

Close up the gap between unit and window using the sponge or tape for insulation as shown in Fig. 1

* If through the wall installation is required, you may choose to consult an independent servicing Dealer.

NAMES OF MAJOR COMPONENTS

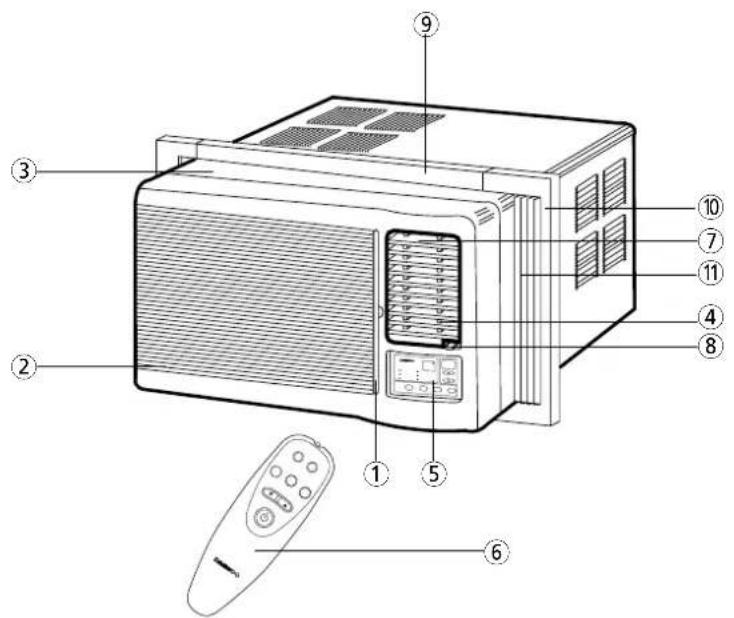

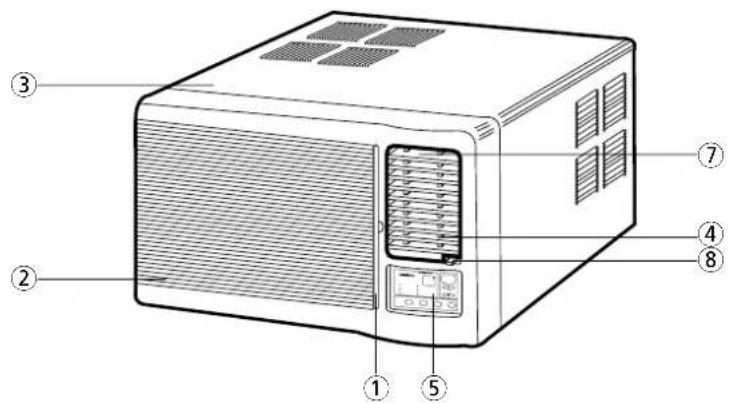

• DWA-122R/DWB-122R/DWB-123R/DWA-151R

NO PART NAME	NO PART NAME
1 AIR FILTER	7 BLADE HORIZONTAL
2 GRILLE FRONT	8 AIR VENT
3 CABINET	9 FRAME GUIDE TOP
4 BLADE VERTICAL	10 FRAME WINDOW KIT
5 PANEL CONTROL	11 SHUTTER WINDOW
6 REMOTE CONTROLLER

OPERATION INSTRUCTIONS

• DISPLAY

MODE DISPLAY

- It displays the operating mode.

TEMP./TIMER DISPLAY

- It displays the temperature and the timer.

REMOTE SIGNAL RECEIVER

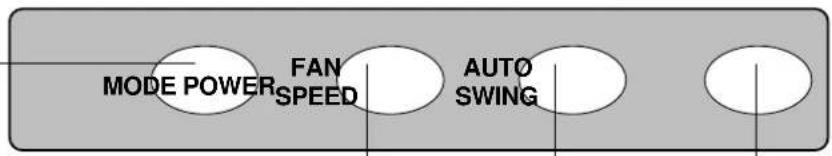

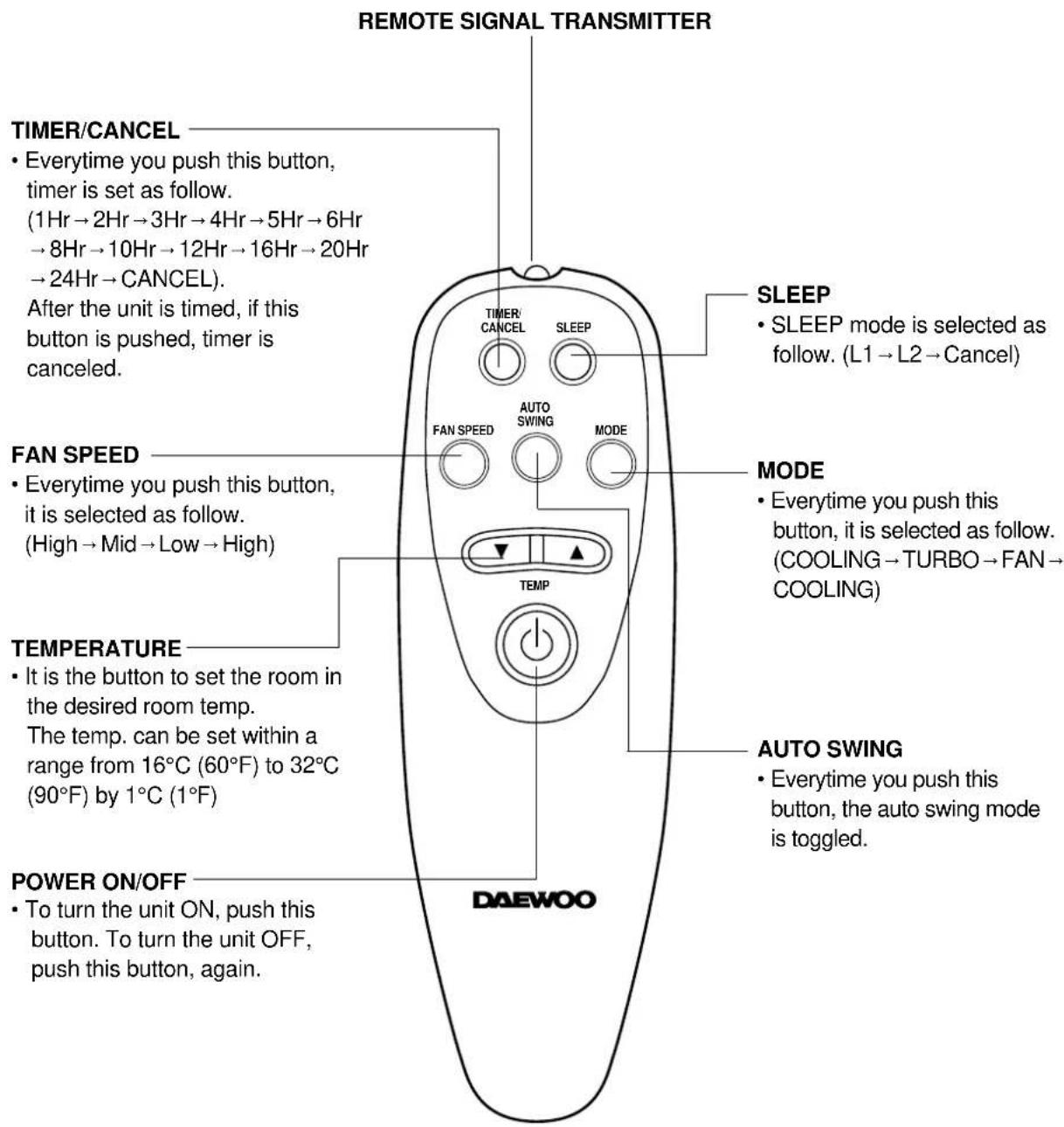

TEMPERATURE SET

- It is the button to set the desired room temperature. The temperature can be set within a range from 16°C (60°F) to 32°C (90°F) by 1°C (1°F)

FAN SPEED

- Everytime you push this button, It is selected as follow. (High → Mid → Low → High)

POWER ON/OFF SWITCH

• To turn the unit ON, push this button. To turn the unit OFF, push this button again.

AUTO SWING

- Everytime you push this button, the auto swing mode is toggled.

MODE SELECT

- Everytime you push this button, It is selected as follow. (COOLING → TURBO → FAN → COOLING)

• REMOTE CONTROL

* Do not use the REMOTE CONTROLLER before the lamp lights. If use, the “°F” temperature display can change to “°C” temperature display (only “°F” temperature display model).

FUNCTION	OPERATION	DISPLAY
POWER ONPush POWER button	1. The unit starts working.(It is delayed 3 minutes after main power source is supplied.)2. Default mode is ‘COOLING’ mode.3. Default desired room temperature is ‘26°C’ (79°F).And fan speed is ‘HIGH’.	1. Current room temperature is displayed.2. ‘COOLING’ lamp lights.3. ‘ROOM TEMP’ lamp lights.
COOLING MODEMODEPush the ‘MODE’ button until ‘COOLING’ lamp lights.	1. Operating modes are changed as follows by pushing “MODE” button.(COOLING→TURBO→FAN→COOLING)2. The compressor and fan work.3. In this mode you can change fan speed and desired temperature at any time.4. SLEEP mode and ON/OFF TIMER can be selected.(By remocon button only)	1. Current room temperature is displayed.2. ‘COOLING’ lamp lights.3. ‘ROOM TEMP’ lamp lights.
Change desired room temperaturePush the ‘TEMP▲▼’ button.	1. The desired room temperature is changed within a range from 16°C (60°F) to 32°C (90°F) by 1°C (°F)	1. It display desired room temperature when ‘TEMP’ button is pushed.2. ‘DESIRED TEMP’ lamp lights.3. After a few seconds, display is changed to current room temperature and ‘ROOM TEMP’ lamp lights.
Change ‘FAN SPEED’Push the ‘FAN SPEED’ button.	1. FAN SPEED is changed as follows by pushing “FAN SPEED” button.(HIGH→MID→LOW→HIGH)	1. It displays as follows.2. After a few seconds, display is changed to current room temperature.
FAN MODEMODEorMODEPush the ‘MODE’ button until ‘FAN’ lamp lights.	1. The Fan works only.2. In this mode, the unit circulate room air.3. Fan speed can be changed.	1. Current room temperature is displayed.2. ‘FAN’ lamp lights.3. ‘ROOM TEMP’ lamp lights.
ON/OFF AUTO SWINGAUTOSWINGorAUTOSWINGPush the ‘AUTO SWING’ button.	1. Auto swing function is toggled.2. Air out-flow direction is changed automatically. (left/right direction)	There is no change in display.
TURBO MODEMODEorMODEPush the ‘MODE’ button until ‘TURBO’ lamp lights.	1. Fan speed is set to ‘HIGH’ and desired temperature to 18°C (64°F).	1. Current room temperature is displayed.2. ‘TURBO’ lamp lights.3. ‘ROOM TEMP’ lamp lights.
OFF TIMERTIMER/CANCELPush the ‘TIMER/CANCEL’ button when unit is working. (REMOCON ONLY)	1. Timer is set to as follows by pushing “TIMER/CANCEL” button. (1hr→2hr→3hr→4hr→5hr→6hr→8hr→10hr→12hr→16hr→20hr→24hr→cancel)2. Unit is off after timer is over.3. If you want to cancel timer, push this button again at any time.	1. ‘TIMER’ lamp lights.2. Set time is displayed.3. After a few seconds, display is changed to current room temprature. and ‘ROOM TEMP’ lamp lights.
ON TIMERPush the ‘TIMER/CANCEL’ button when unit is off.(REMOCON ONLY)	Timer is changed to as follows by pushing “TIMER/CANCEL” button. (1hr 2hr 3hr 4hr 5hr 6hr 8hr 10hr 12hr 16hr 20hr 24hr cancel) The unit starts working after set time is over in cooling mode with last temperature set.If you want to cancel timer, push this button again at any time.	‘TIMER’ lamp lights.Setting time is displayed.After a few seconds, display is changed to current room temperature. and ‘ROOM TEMP’ lamp lights.
SLEEP MODEPush the ‘SLEEP’ button in ‘COOLING’ mode. (REMOCON ONLY)	SLEEP MODE is changed as follows by pushing “SLEEP” button. (L1 L2 cancel) * L1 Mode– The unit is off after 4 hours.– The desired Temp is increased 3^ ( 5.4^ ) for 4 hours.– Auto swing is selected.– Fan speed is set to ‘LOW’.* L2 MODE– The unit works as follow.– Auto swing is selected.– Fan speed is set to ‘LOW’.Set proper desired room temperature, fan speed and auto-swing mode.This mode can be selected in ‘COOLING’ mode only.	‘L1’ or ‘L2’ is displayed.‘ROOM TEMP’ and ‘DESIRED TEMP’ lamp is off.

• ROOM TEMPERATURE DISPLAY.

Over 45°C or 100°F	5°C~45°C or 41°F~99°F	Below 5°C (41°F)
	DISPLAY TEMPERATURE

• HOW TO INSERT BATTERIES

1 Remove the COVER from the back of the remote controller.• Slide the Cover according to the arrow direction	Insert two batteries.• Be sure that the (+) and (−) directions are correct• Be sure that both batteries are new	Re-attach the cover.• Slide it back into position
• Do not use rechargeable batteries such batteries differ from standard dry cells in shape, dimensions, and performance.• Remove the batteries from the remote controller if the air conditioner is not going to be used for an extended length of time.

GENERAL INFORMATION

• AIR FLOW AROUND UNIT

Check in door grill and outdoor louvers for air flow obstructions. Do not block air flow to and from unit. The outdoor coil should be checked and periodically cleaned for debris that may collect and block unit air flow. If air flow is obstructed or deflected back into unit, the compressor may cycle on and off rapidly, causing early compressor failure.

• DRAIN HOLE AND WATER DRIPPING OUTSIDE

Locate drain hole at the rear or on the bottom of unit. Water in base pan is picked up by the fan blade and thrown onto the warm outdoor coil where it evaporates. The air conditioner must be installed level or tilted slightly to the outside for proper water disposal. On exceptionally hot and humid days the air conditioner may permit excess water to pass thru rear drain hole or overflow. This should be considered normal.

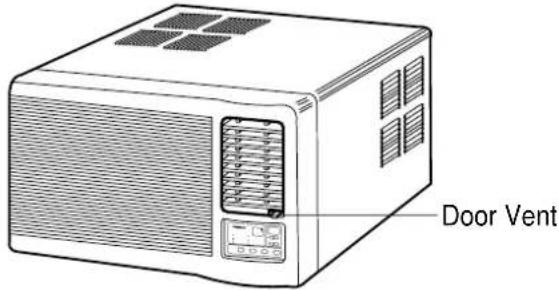

- DOOR VENT

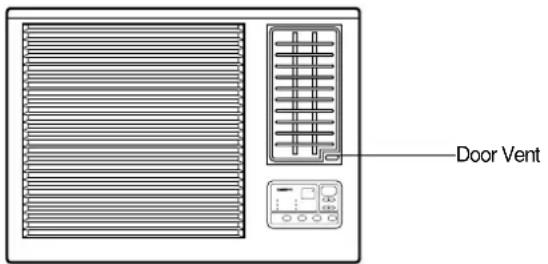

The door vent for the room air ventilation is lever type. If the door vent lever moves to the left, then close the vent and moves to the right, then open the vent.

Close ← Vent → Open

CARE AND MAINTENANCE

CAUTION

To avoid death or personal injury due to electrical shock, turn fan control OFF and unplug power cord before cleaning or performing maintenance. After cleaning or performing maintenance, reconnect power.

• AIR FILTER

Clean the air filter, which removes dust inside the room.

It should be washed at least once every week during operation.

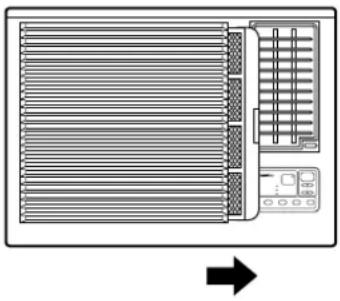

1. Remove the Air Filter from the front grille by pulling to right.
2. Clean Air Filter with a vacuum cleaner or lukewarm, soapy water.
3. Shake it when clean to remove moisture completely. Reinstall.

Diagram of a front view of an air conditioner unit with ventilation grilles and control panel (no text or symbols)

NOTE

A dirty Air Filter reduces air flow and the cooling capacity. Do not operate unit without Air Filter.

• CLEANING THE AIR CONDITIONER

1. At least once a year, remove cabinet and thoroughly clean air conditioner. Have the unit inspected by an authorized service man to ensure unit is functioning properly.
2. Wash air conditioner with lukewarm, soapy water as needed. Rinse and dry thoroughly.
3. If using concentrated liquid detergent, dilute in warm water first.
4. Front grille may be wiped off with a cloth dampened in a mild detergent solution.
5. Cabinet may be washed with mild soap or detergent and lukewarm water, then polished with liquid wax for appliances.
6. Condenser and Evaporator coils should be cleaned at the beginning of each cooling season. Use a soft brush or vacuum cleaner to clean them, making sure that the Condenser and Evap
7. Do not use abrasive cleaners. These items scratch, crack and discolor surfaces.

Illustration of a hand washing a white foam on a front panel with a control panel (no text or symbols)

NOTE

To assure continued peak efficiency, condenser coils (weather side of unit) should be checked periodically and cleaned if clogged with soot or dirt from the atmosphere.

ELECTRICAL REQUIREMENTS

• ELECTRICAL GROUNDING INSTRUCTIONS

This appliance is equipped with a three-prong(grounding) plug for protection against possible shock hazards. If a two-prong wall receptacle is encountered, the customer is required to contact a qualified electrician and have the two-prong wall receptacle replaced with a properly grounded three-prong wall receptacle in accordance with the National Electrical Code.

WARNING :

To avoid death, personal injury or properly damage due to electrical shock, this unit must be grounded. Do not under any circumstances cut or remove the round grounding prong from the plug. Do not use a two prong adapter.

- USE OF EXTENSION CORD SET.

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord set. However, if you still elect to use an extension cord, it is absolutely necessary that it is earthed and the marked rating of the extension cord set should be 250V, 10A (Min.). The socket-outlet shall be installed near the equipment and shall be easily accessible.

WARNING :

To avoid death, personal injury or properly damage due to electrical shock, do not use an extension cord or pinch the power cord. Do not remove the warning tag from the power cord.

- REPLACEMENT OF SUPPLY FLEXIBLE CORD.

If the supply flexible cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.

CAUTION :

The appliance shall be installed in accordance with national wiring regulations.

BEFORE CALLING FOR SERVICE

When you find something wrong with your room air conditioner, please carefully check the following items. If you are unable to find the cause of trouble, contact your service dealer.

Difficulty	Possible Cause	Suggested Solution
• Air conditioner does not operate.	• No power to unit.	• Confirm power cord is plugged in.• Verify main power switch (main circuit breaker) or fuse of the unit is good.
• Little or no cooling	• Compressor lockout on initial plug in.• Dirty air filter• Is there anything blocking the front?• Air conditioner undersized for application.	• Wait 3 to 4 minutes and restart the unit.• Clean air filter.• When blocked by curtains, blinds, or furnitures, etc., the air flow is restricted and cooling performance is affected.• Check with dealer to determine proper unit capacity for application.
• Noisy unit	• Loose parts• Weak building construction.• Water hitting fan.	• Tighten any loose parts.• Provide additional support.• Normal in high humidity.• Stop noise by allowing water to drain from base fan through drain hole.
• Ordors from unit	• Mold, mildew or algae formation on wet surfaces.	• Place algaecide tablet in base pan• Remove water in base pan through drain hole.
• Water in base pan.	• Normal for operation in humid areas.	• Water in base pan is picked up by the fan blade and thrown onto the warm outdoor coil where water then evaporates.

DAEWOO

ROOM AIR CONDITIONER USE & CARE MANUAL

WINDOW TYPE ROOM AIR CONDITIONER

MODEL #: DWA-122R

DWB-122R

DWB-123R

DWA-151R
