Product Type	IP66 Varifocal IR Dome Camera
Model	KNC-P3DR28V12IR
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	Up to 3 Megapixels (2048 x 1536)
Lens	2.8-12mm Varifocal, DC Iris
IR Range	Up to 30m (built-in IR LEDs)
Day/Night	Mechanical IR Cut Filter
Power Supply	12VDC or PoE (IEEE 802.3af)
Power Consumption	< 5W (typical)
Ingress Protection	IP66
Mounting	Wall/Ceiling, with gang box option
Adjustment	3-Axis (Pan, Tilt, Rotate)
Video Output	CVBS for setup (via accessory cable)
Storage	Micro SD card slot (up to 128GB)
Reset Button	Yes (restores factory defaults)
Operating Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	< 90% (non-condensing)
Dimensions	Φ140 x 100mm (approx.)
Weight	Approx. 0.8kg
Included Accessories	Mounting plate, screws, security key wrench, drill template
Compliance	CE, FCC, UL, RoHS

Frequently Asked Questions - KNC-P3DR28V12IR KT&C

How do I reset the camera to factory defaults?

Press and hold the Reset button on the camera module for about 10 seconds while the camera is powering on or rebooting. This restores default settings including username, password, IP address, and port number.

What is the default IP address and login credentials?

Default IP address is 192.0.0.64. Default username is admin and password is 12345.

Can I power the camera via PoE?

Yes, the camera supports IEEE 802.3af PoE (Power over Ethernet). Alternatively, it can be powered by a 12VDC power supply (SELV/Limited Power Source).

How do I adjust the zoom and focus?

Loosen the zoom and focus levers on the lens. Move the zoom lever between T (Tele) and W (Wide) to set the field of view, and the focus lever between F (Far) and N (Near) to adjust sharpness. Repeat until satisfied, then tighten the levers.

How can I access the live view from a web browser?

Ensure your PC is on the same subnet as the camera. Open a web browser and enter the camera's IP address (e.g., 192.0.0.64). Log in with admin credentials and install the required plug-in when prompted.

What software tools are available for configuration?

KT&C provides OMNI Finder and OMNI CMS software to discover and configure the camera over the LAN. These tools can automatically detect the device and allow IP address modification.

How do I clean the camera lens or dome?

Use a clean, soft cloth with a small amount of ethanol to gently wipe the lens or dome cover. Avoid touching the lens with fingers. Replace the dome cover protective film only after installation to prevent dust.

What should I avoid to prevent IR reflection?

Keep the lens and dome cover clean and free of dust/grease. Ensure no reflective surfaces are near the camera. The foam ring around the lens must sit flush against the inner surface of the dome cover to isolate the lens from IR LEDs.

Can I install the camera outdoors?

Yes, the camera has an IP66 rating, making it suitable for outdoor use. Ensure proper sealing of mounting screws with rubber O-rings and sealant to maintain weather resistance.

How do I use the local CVBS video output?

Connect the supplied accessory cable to the CVBS video output (yellow RCA connector) to a monitor or test display. This allows you to view the image during installation for adjustment of pan, tilt, zoom, and focus.

USER MANUAL KNC-P3DR28V12IR KT&C

Scalable IP Solutions

KNC-p3DR28V12IR

IP66 Varifocal IR Dome Camera

Quick Operation Guide

Thank you for selecting this KT&C Omni IP Series product. For additional information please refer to the complete User Guide for this cameras series. End users should contact their KT&C Certified Dealer for service. Certified Dealers can obtain support directly from KT&C.

About This Guide

While KT&C makes every effort to insure the completeness and accuracy of the information contained in this Guide, we are not responsible for typographical errors or misprints. At the same time, KT&C reserves the right to make changes to improve the performance of our products at any time without notice, and so the specifications and content of this document are subject to change without notice. Every effort will be made to include updates in new versions of this manual and/or online.

DISCLAIMER STATEMENT

"Underwriters Laboratories Inc. ("UL") has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL's Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info

Safety Instructions

These instructions are intended to ensure that the camera is installed in a manner that avoids danger to persons or property loss.

These precautionary measures are divided into “Warnings” and “Cautions”

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cautions: Injury or equipment/property damage may occur if any of the cautions are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cautions Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information.
• Input voltage should meet the requirements for both the SELV (Safety Extra Low Voltage) and Limited Power Source for 12 VDC

according to the IEC60950-1 standard; or 802.3af PoE. Please refer to technical specifications for detailed information.

- If connecting several devices to one power supply, to avoid any overload that may cause over-heating or a fire hazard insure that the power supply is adequate for the power load.

- Please make sure that all plugs are firmly connected to the power sockets. When the product is mounted on wall or ceiling, the device shall be firmly attached, taking into consideration any wind, snow loading, or other factors. The mounting surface shall be capable of supporting several times the base weight of the camera.

- If smoke, unusual odors or noise come from the device, turn off the power at once and unplug the power cable, and then contact authorized service personnel.

Cautions

- Make sure the power supply voltage is correct before using the camera.

- Do not drop the camera or subject it to physical shock.

- Do not touch lenses or sensor modules with fingers. If cleaning is necessary, use clean cloth with a bit of ethanol and wipe gently. If the camera will not be used for an extended period, please protect the lens openings from damage and/or debris.

- Avoid aiming the camera at the sun or extremely bright light sources. Blooming or smearing may occur in excessive light

(which is not a malfunction), and could compromise the performance of the sensor.

• The sensor may be damaged if exposed to laser energy, so when any laser equipment is in use, make sure that the sensor will not be exposed to the laser beam.
• Do not place the camera in extremely hot or cold (see camera specifications) locations. Do not exceed the rated environmental (IP66) conditions. Do not expose the camera to high levels of electromagnetic (RF) radiation.
• To avoid heat accumulation, good ventilation is required in the operating environment.
• Keep the camera away from solvents while in use; exposure to liquids should not exceed IP66 environmental conditions.
• During shipping, the camera shall be packed in its original packing, or packing providing the equivalent protection.
• Improper use or replacement of any batteries (if so equipped) may result in the hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
• If the product does not function properly, Dealers please contact KT&C; End Users please contact your KT&C Certified Dealer or an authorized service center. Do not disassemble the camera for repair or maintenance by yourself. (KT&C shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

Table of Contents

1 Appearance and Description 8
2 Installation.... 10

2.1 Disassembling 10
2.2 Mounting 12

2.2.1 Wall/Ceiling Mounting.... 12
2.2.2 Wall/Ceiling Mounting with Gang Box 16
2.2.3 Wall Mounting.... 19

2.3 Image and Focus Adjustment 22

3 Setting the Network Camera over the LAN ..... Error! Bookmark not defined.
4 Accessing via Web Browser ....Error! Bookmark not defined.

1 Appearance and Description

The overview of the network dome camera is shown below.

Figure 1-1 Overview

Table 1-1 Description

No.	Description
1	Dome cover with clear bubble
2	Black Liner (conceals direction of aim)
3	Lens
4	Mounting Plate
5	Reset Button
6	CVBS Video Output
7	Micro SD Card Slot
8	Network Cable
9	Power Cable

- Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, and port No., etc.

2 Installation

Before you start:

● Make sure the camera is in good condition and all the accessory parts are included.
● Make sure all related equipment is powered-off during the installation.
- Check to insure that the specifications of the camera are correct for the installation environment.
● Make sure the power supply voltage is 12VDC or PoE compliant to avoid damage to the camera.
- If the product does not function properly, Dealers please contact KT&C; End Users please contact your KT&C Certified Dealer or an authorized service center. Do not disassemble the camera for repair or maintenance by yourself.
● Make sure that the mounting surface is strong enough to withstand three times the weight of the camera.

If the IR LEDS in this camera will be active, you must observe the following precautions to prevent IR reflection:

- Dust or grease on the lens/dome cover will cause IR reflection. Please do not remove the cover protective film until the installation is finished. If there is dust or grease on the lens/dome cover, clean the lens/dome cover with clean soft cloth and isopropyl alcohol.

- Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing haze, distortion or improper scene exposure.

- The foam ring around the lens must be seated flush against the inner surface of the cover/bubble to isolate the lens from the IR LEDs. Fasten the lens/dome cover to camera body so that the foam ring and the dome cover are attached seamlessly.

2.1 Disassembling

Steps:

1. Loosen the three screws on the cover with the security key wrench provided.

2. Open the cover and remove the inner black liner as shown in Figure 2-1.

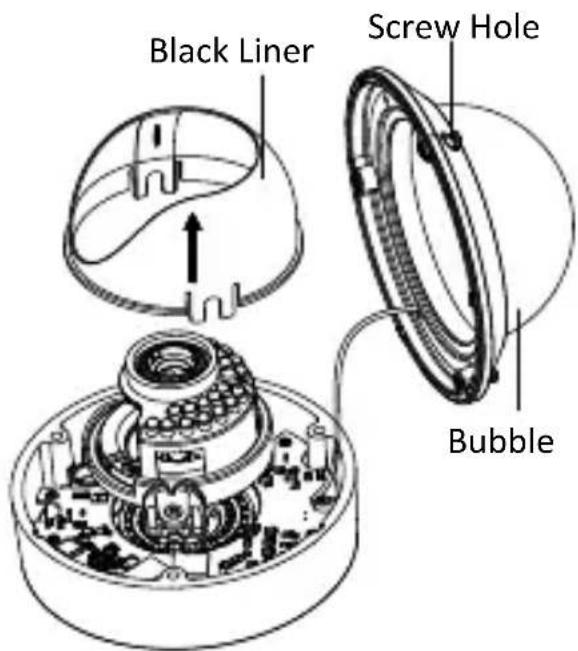

Figure 2-1 Remove the Cover and Black Liner

2.2 Mounting

Wall/Ceiling Mounting

Steps:

1. Disassemble the camera. Refer to the section 2.1.
2. You may mount the camera directly to the surface, or you may use the included mounting plate and screws (recommended). Attach the drill template (supplied) to the location where you want to place the camera. Or, position the plate at that location.
3. Using to the drill template as shown in Figure 2-2, drill three screw holes in the wall or ceiling. Or, mark and drill the number “1” holes in the plate.

Figure 2-2 Drill Template/Mounting Base

1. If you want to route the cables inside the wall/ceiling, drill a cable hole in the ceiling according to the drill template; ff using the plate, drill the cable hole within the center area. Skip this step if you want

to route the cables on the surface of the ceiling. Refer to Conduit Installation on the Side for side cable routing.

1. Route the cables through the cable hole and connect to network and power (if used).

2. Attach the camera to the wall/ceiling by aligning the holes of the back box with the holes on the wall/ceiling. Or, attach the plate and then align the camera with the holes in the plate.

3. Secure the camera with the supplied screws as shown in Figure 2-3.

NOTE: THE MOUNTING SCREWS ARE AN INTEGRAL PART OF THE WEATHER SEAL FOR THE CAMERA. BE CERTAIN TO USE THE RUBBER "O" RINGS PROVIDED, TO USE SEALER AROUND THESE SCREWS, AND TO TIGHTEN THEM SECURELY WITHOUT TEARING THE O-RINGS.

Figure 2-3 Secure the Camera

1. Adjust the image and focus. The supplied accessory cable may be used to access the local CVBS aim/focus video output. Please refer to the section 2.3 for more detailed information.
2. Install the inner black liner back onto the camera.
3. Install the cover/bubble onto the camera and secure it with the cover attachment screws as shown in Figure 2-4.

Figure 2-4 Secure Black Liner and Cover/Bubble

Conduit Installation on the Side

If you want to route the cables from side of the camera, you need to follow the steps below to install a conduit for cable routing.

Steps:

1. Rotate the water-proof plug counterclockwise to remove it from the camera.

Figure 2-5 Remove the water-proof plug

1. Route the power cable and network cable through the side outlet to the conduit.
2. Align and rotate clockwise the conduit to the side outlet tightly.

Figure 2-6 Install the Conduit to the Camera

For wall mounting, position the side outlet directly downward to insure resistance to infiltration of water.

Figure 2-7 Side Outlet Direction

2.2.2 Ceiling Mounting with Gang Box

Steps:

1. Disassemble the camera. Refer to the section 2.1.
2. Install the gang box in the ceiling. Gang boxes are provided by others.
3. Attach the mounting base to the gang box with two or four screws, depending on the size/hole pattern of the box.

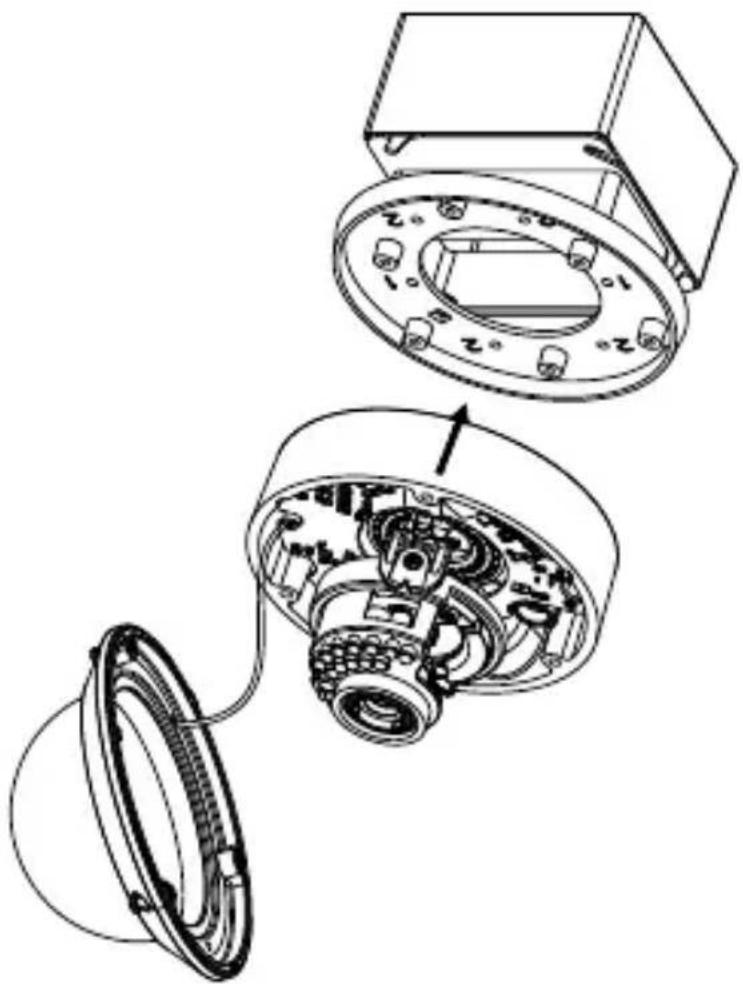

Figure 2-8 In-ceiling Mount

1. Route the cables through the hole in the center of the mounting base and connect them.
2. Align the camera with the mounting base.
3. Tighten the screws to secure the camera with the mounting base. See Figure 2-9
4. Adjust the image and focus. The supplied accessory cable may be used to access the local CVBS aim/focus video output. Please refer to the section 2.3 for more detailed information.

Figure 2-9 Secure Camera

1. Install the inner black liner back to the camera.
2. Align the cover/bubble with the camera.
3. Tighten the cover screws to secure the cover/bubble to the camera as shown in Figure 2-10.

Figure 2-10 Secure the Bubble

2.2.3 Wall Mounting

Accessory wall mounts are sold separately.

Steps:

1. Disassemble the camera. Refer to the section 2.1.
2. Install the wall mount and mounting adapter as shown in Figure 2-11.
3. Align the screw holes of the mounting base with the corresponding screw holes of the mounting adapter.
4. Secure the mounting base to the mounting adapter with four screws.

Figure 2-11 Install the Mounting Base

1. Route the cables through the hole in the center of the wall mount and connect them.
2. Align the camera with the mounting base.
3. Tighten the screws to secure the camera to the mounting base.
4. Adjust the image and focus. The supplied accessory cable may be used to access the local CVBS aim/focus video output. Please refer to the section 2.3 for more detailed information.

Figure 2-12 Secure Camera

1. Install the inner black liner back to the camera.
2. Align the cover/bubble with the camera.
3. Tighten the screws to secure the cover/bubble to the camera.

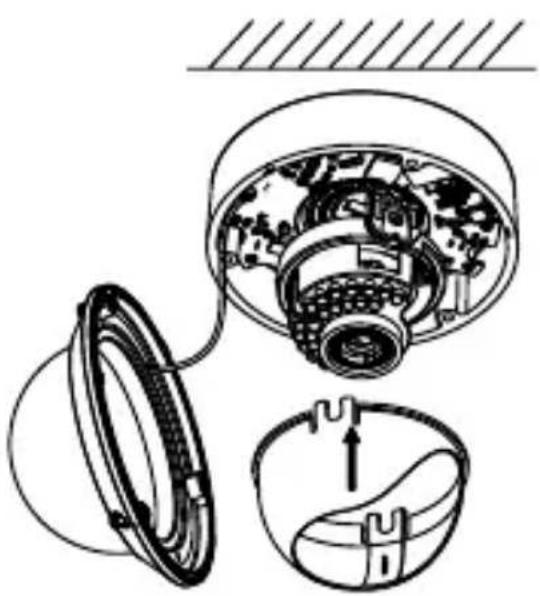

Figure 2-13 Secure Black Liner and Bubble

2.3 Image and Focus Adjustment

Steps:

1. 3-axis adjustment.

1). View the camera image using the CVBS test monitor output, on a PC or NVR.
2). Rotate the entire camera module to adjust the pan direction of the camera.
3). Tilt the upper portion of the camera module to adjust the tilt angle as needed.
4). Rotate the upper portion of the camera module so that the image is upright.

Figure 2-14 3-axis Adjustment

1. Zoom and focus adjustment.

1.) View the camera image using the CVBS test monitor output, on a PC or NVR.
2.) Loosen the zoom lever and move the lever between T (Tele) and W (Wide) to obtain the appropriate field of view.
3.) Loosen the focus lever and move the lever between F (Far) and N (Near) to obtain the optimum focus.
4.) Repeat 2 & 3 until the desired image is obtained. Tighten the zoom and focus levers.
5.) Replace the camera cover and tighten the cover screws.

Figure 2-15 Lens Adjustment

3 Setting the Camera Parameters over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the OMNI Finder or OMNI CMS software to search and change the IP of the network camera.

The following figure shows a camera and PC connected through a switch:

Figure 3-1 Typical LAN Connection

Set the IP address of the camera for accessing via LAN.

Steps:

1. To get the IP address, you can choose either of the following methods:

☐ Use OMNI Finder, a software tool which can automatically detect network camera on the LAN and list device information such as IP address, subnet mask, port number, device serial number, device version, etc., as shown in Figure 3.2 below.

☐ Use OMNI CMS software and to list the online devices. Please refer to the user manual for the OMNI CMS software for detailed information.

1. Change the IP address and subnet mask to the same subnet as that of your computer, or change your computer to match the address/subnet of the camera.

Refer to the following introductions to set IP address with OMNI Finder software:

□ Search active devices online

Search online devices automatically:

After launching the OMNI Finder software, it automatically searches for online devices every 15 seconds on the subnet where your computer is connected. It displays the total number and information of the discovered devices in the Online Devices interface. Device information including the device type, IP address, port number, gateway, etc. will be displayed.

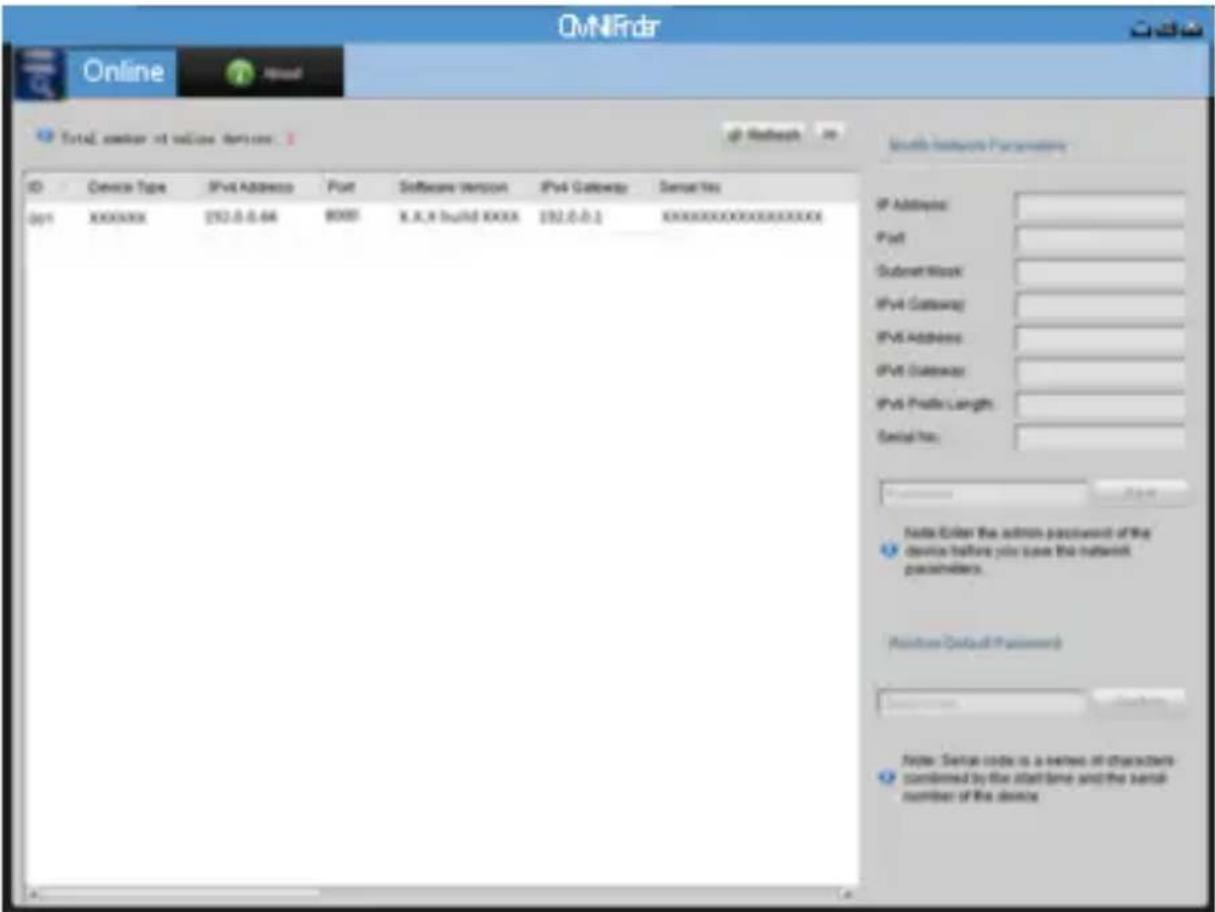

Figure 3-2 Search Online Devices

Devices can be discovered and displayed in the list in 15 seconds after they go online; devices will be removed from the list in 45 seconds after going offline.

Search online devices manually:

You can also click to refresh the online device list manually. The newly searched devices will be added to the list.

You can click or on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.

1.2 Modify device information

Steps:

1) Select the device to be modified in the device list as shown in Figure 3-3. The network parameters of the device will be displayed in the Modify Network Parameters panel on the right side as shown in Figure 3-4.
2) Edit the modifiable network parameters, e.g. IP address, subnet, port number and gateway. NOTE: This port if the CONTROL port used by the Finer and CMS. It is NOT the HTTP web browsing port (which defaults to 80).
3) Enter the password of the admin account of the device in the Password field and click Save to save the changes.

Figure 3-3 Select a Device

Figure 3-4 Modify Network Parameters

4) Enter the IP address of network camera in the address field of the web browser to view the live video.

The default value of the IP address is "192.0.0.64". The default

user name is "admin", and password is "12345".

For accessing the network camera from different subnets, please set the gateway for the network camera after you log in.

4 Accessing via Web Browser

System Requirement:

Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits

CPU: Intel Pentium IV 3.0 GHz or higher

RAM: 1G or higher

Display: 1024×768 resolution or higher

Web Browser: Internet Explorer 6.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 3.5 and above version and Google Chrome8 and above version

Steps:

1. Open the web browser.
2. In the browser address bar, input the IP address of the network camera, e.g., 192.0.0.64 and press the Enter key to enter the login interface.
3. Input the user name and password.

4. Click Login.

Figure 4-1 Login Interface

1. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in.

It is recommended to close the web browser before finishing the installation of the plug-in.

Figure 4-2 Download Plug-in

Figure 4-3 Install Plug-in (1)

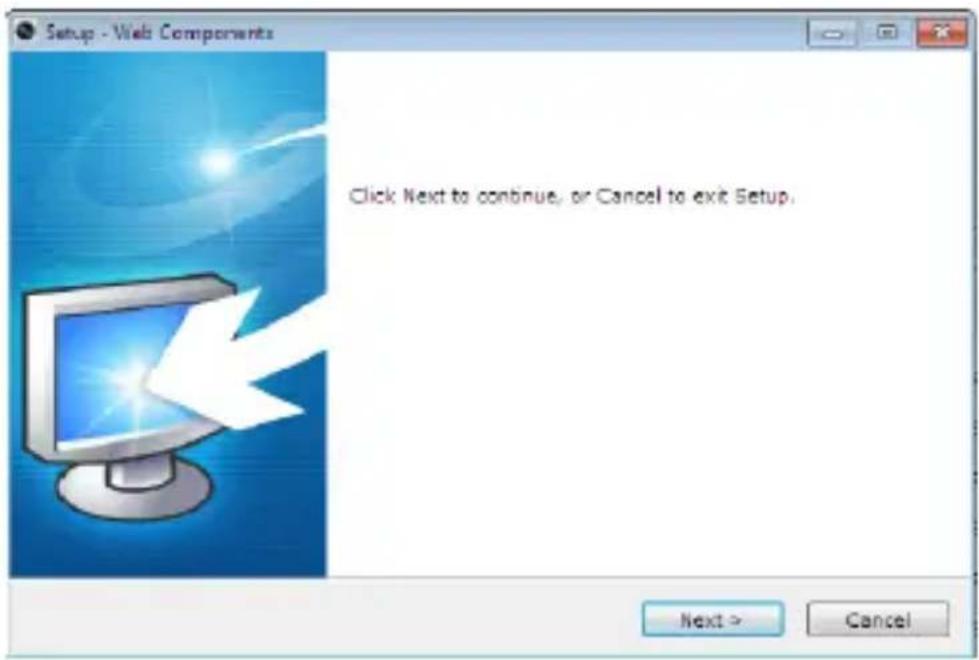

Figure 4-4 Install Plug-in (2)

1. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login.

For more detailed instructions about further configuration, please refer to the user manual for this series of network cameras.

KT&C Americawww.ktincusc.com

New Jersey Office40 Lane Road 1st FloorFairfield, NJ 07004T: 973 2160118F: 973 2160 116

New York Office200 Revy Drive South Suite 200Houuppoupe, NY 11788F: 631 864 0118F: 631 864 0119

California Office3240 Wielie Blvd Suite 501Los Angeles, CA 90010F: 213 381 0051F: 213 381 0054
